Fitting instruction - PL1009

Page 1

PL1009 (A1009)

. . . PRODUCT DETAILS, TECHNICAL DETAILS AND FITTING INSTRUCTIONS www.frostdenmark.com 70 mm 130 mm 4 mm R2mm 50 mm 19 mm 11 mm 25 mm 38 mm 30 mm 16 mm 22 mm Spindle: 8 x 8 mm 72 mm 4 mm 120 38 mm 30 mm R8mm 3° 3° 22 mm

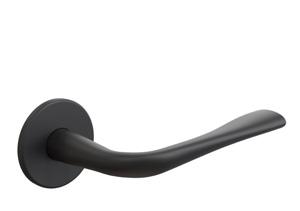

PL1009

lever handle, 2 pcs. a set

Stainless Steel AISI 304

Suitable for indoor and outdoor use

Length: 130 mm

Projection: 70 mm

Rose: Ø50 x 4 mm

Door Thickness: 40-69 mm

Spindle: 8 x 8 x 90 mm

Longer spindles available on request

Design: Paul Leroy

CLEANING AND MAINTENANCE

Stainless steel surfaces should be cleaned with a microbre cloth, glass cleaner or other non abrasive and gentle agents.

ATTENTION:

Never use solvents or aggressive household cleaners like bleach, acids (e.g. descalers) or ammonia-based bathroom cleaner to clean theproduct. Steel wool and hard brushes can permanently damage the surfaceof the steel.

2 WWW.FROST.DK
Brushed Stainless A1009B Brushed Copper A1009BOC Brushed Gold A1009BMG Brushed Black A1009BCB Polished Stainless A1009P Polished Copper A1009C Polished Gold A1009GO Matt Black A1009BL

FITTING INSTRUCTIONS

Door thickness: 40-69 mm

When the set screw is tightened, a guide hole is punched in to the spindle.

Spindle: 90 mm Ø5x20 Plastic tub plug
Torx no. 15 Allen key 2 mm Rose key
Machine screw: M4x62 brake off Machine screw: M4x35
Torx
15 1 D D A B1 E1 F H E2 2x 1x 2x 2x 1x 2x C 1 D D B1 E1 F H E2 1x 2x 2x 1x 2x C 1 D A B1 E1 2x 1x 2x C 1 D A 1x 2x 2x 2x 1x 1x C 2x 4x 1x
E1 M4x62
no.
Torx no. 15
WHAT IS IN THE BOX E F
Wood screw: ST4,5x16

DK - 8370 HADSTEN

T +45 8761 0032

info@frost.dk

www.frost.dk

facebook.com / FROSTdenmark

twitter.com / FROSTdenmark

instagram.com / FROSTdenmark

pinterest.com / FROSTdenmark

Copyright © 2021. All rights reserved.

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy, recording or any other information storage and retrieval system, without prior permission from FROST A/S. We reserve the right to make alterations to the models without prior notice.

FROST A/S BAVNE ALLÉ 32
