Fittings instruction - KUBE 2001 Center & Modul

Page 1

KUBE 2001 CENTER

KUBE 2001 MODUL

PRODUCT DETAILS, TECHNICAL DETAILS AND FITTING INSTRUCTIONS

PRODUCT DETAILS, TECHNICAL DETAILS AND FITTING INSTRUCTIONS
26 mm 4 mm 6 mm 50 mm 12 26 mm 4 mm 6 mm 23 mm 38 mm 30 mm 27 mm 50 mm 12 18 38 mm 30 mm 27 mm 18 37 mm 37 mm 20 22 10 23 mm 50 mm 20 26 mm 4 mm 6 mm 50 mm 12 26 mm 4 mm 6 mm 23 mm 38 mm 30 mm 27 mm 50 mm 12 18 38 mm 30 mm 27 mm 18 37 mm 37 mm 20 22 10 23 mm 50 mm 20
www.frostdenmark.com

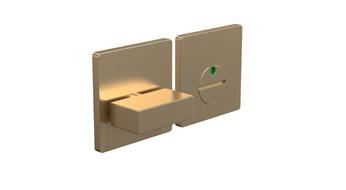

KUBE 2001 CENTER

bathroom indicator, 2 pcs. a set

Stainless Steel

Rose: 50 x 50 x 4 mm

Projection: 26 mm

Door thickness: 34-50 mm

Spindles: 5 x 5 x 53 mm + 8 x 8 x 70 mm

Design: Busk+Hertzog

Brushed Stainless A2001BS Brushed Copper A2001BOCS Brushed Gold A2001BMGS

Brushed Black A2001BCBS

Polished Stainless A2001PS Polished Copper A2001CS

Polished Gold A2001GS

Matt Black A2001BLS

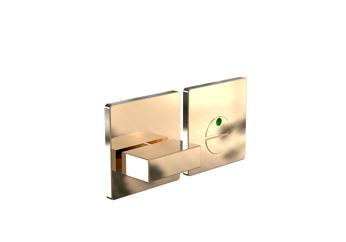

KUBE 2001 MODUL

bathroom indicator, 2 pcs. a set

fits scandinavian standard locks

Stainless Steel

Rose: 50 x 50 x 4 mm

Projection: 26 mm

Door thickness: 34-50 mm

Spindles: 5 x 5 x 53 mm

Design: Busk+Hertzog

Brushed Stainless A2001BS.MODUL

Brushed Copper A2001BOCS.MODUL

Brushed Gold A2001BMGS.MODUL

Brushed Black A2001BCBS.MODUL

Polished Stainless A2001PS.MODUL Polished Copper A2001CS.MODUL

Polished Gold A2001GS.MODUL

Matt Black A2001BLS.MODUL

CLEANING AND MAINTENANCE

Stainless steel surfaces should be cleaned with a microfibre cloth, glass cleaner or other non abrasive and gentle agents.

ATTENTION:

Never use solvents or aggressive household cleaners like bleach, acids (e.g. descalers) or ammonia-based bathroom cleaner to clean the product. Steel wool and hard brushes can permanently damage the surface of the steel.

2
CENTER MODUL
M4X20
Torx no. 15 Allen key 2 mm 3
A B1 Ø5x20 2x 1x 63 mm 2 mm C 1 D 1x 1x 2x 2x 1x 2x 4x 1x Wood screw: ST4x16
Spindle: 63 mm 1x 1x 1x Spindle: 53 mm Spindle: 70 mm A1 A2 A3 B C D E1 F G E2 E3 A1 A2 A3 C D E1 E2 E3 D A B1 E1 F H E2 Ø5x20 2x 1x 2x 2x 1x 2x 63 mm M4x62 M4x35 ST4x16 Torx no. 15 2 mm C 1 D D A B1 E1 F E2 Ø5x20 2x 1x 2x 1x 63 mm M4x62 M4x35 ST4x16 Torx no. 15 2 mm C 1 D
Plastic insert Plastic tube plug Machine screw: M4x62 brake off Machine screw: M4x35
FITTING INSTRUCTIONS
WHAT IS IN THE BOX

DK - 8370 HADSTEN

T +45 8761 0032

info@frost.dk

www.frostdenmark com

facebook.com / FROSTdenmark

twitter.com / FROSTdenmark

instagram.com / FROSTdenmark

pinterest.com / FROSTdenmark

Copyright © 2021. All rights reserved.

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy, recording or any other information storage and retrieval system, without prior permission from FROST A/S. We reserve the right to make alterations to the models without prior notice.

FROST A/S BAVNE ALLÉ 32
