Fitting instruction - HB203 ASSA

Page 1

H203 ASSA CYLINDER

PRODUCT DETAILS, TECHNICAL DETAILS AND FITTING INSTRUCTIONS www.frostdenmark.com 34 mm 4 mm 50 mm 8 3° 22 mm 30 mm 32 mm 36 mm 11mm 50 mm 35,5 mm 10,5mm 38 mm 30 mm 30 mm 25 mm 38 mm

HB203 ASSA CYLINDER

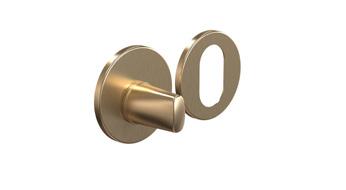

assa cylinder and thumb turn

2 pcs. a set

Stainless Steel

Rose: Ø50 x 4 mm

Projection: 30 mm

Design: Bønnelycke mdd

Fits scandinavian standard cylinders

ASSA CYLINDER

Brushed

Brushed

Brushed

Brushed

Polished

Polished

Polished

Matt

CLEANING AND MAINTENANCE

Stainless steel surfaces should be cleaned with a microfibre cloth, glass cleaner or other non abrasive and gentle agents.

ATTENTION:

Never use solvents or aggressive household cleaners like bleach, acids (e.g. descalers) or ammonia-based bathroom cleaner to clean the product. Steel wool and hard brushes can permanently damage the surface of the steel.

2
Stainless A2014B Copper A2014BOC Gold A2014BMG Black A2014BCB Stainless A2014P Copper A2014C Gold A2014GO Black A2014bl

FITTING INSTRUCTIONS

3
2x 2x 2x 4x 2x 1x WHAT IS IN THE BOX 2x 1x 1x A B C D F2 F3 G C B F1 F2 F3 E F1 D E A A B1 E1 E2 Ø5x20 2x 1x 2x 2x 63 mm M4x62 M4x35 ST4x16 Torx no. 15 C 1 D D A B1 E1 F H E2 Ø5x20 2x 1x 2x 2x 1x 2x 63 mm M4x62 M4x35 ST4x16 Torx no. 15 2 mm C A B1 E1 E1 E2 2x 1x 2x 2x C 1 D

DK - 8370 HADSTEN

T +45 8761 0032

info@frost.dk

www.frostdenmark com

facebook.com / FROSTdenmark

twitter.com / FROSTdenmark

instagram.com / FROSTdenmark

pinterest.com / FROSTdenmark

Copyright © 2021. All rights reserved.

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy, recording or any other information storage and retrieval system, without prior permission from FROST A/S. We reserve the right to make alterations to the models without prior notice.

FROST A/S BAVNE ALLÉ 32
