CONTENTS 01 URBAN TERRACES Residential Complex for Collective Living in Boston RISD Urban Ecologies Core Studio Fall 2020 02 OFFSETTING THE LIGHT Research Center Pier in Miami RISD Advanced Studio Spring 2022 03 MUSEUM OF FOLKLORE Museum Based on Traditional Chinese Typologies RISD Advanced Studio Fall 2021 04 WHATCHEER FLOWER FARM Mixed-used Building Design RISD Integrated Building Systems Fall 2022 05 BUILDING A FUTURE Community Center in Africa to Promote Gender Equality Women’s House Fall 2021 06 OTHER WORKS Summer Internship and Photography Works
01
URBAN TERRACES
Year: Fall 2020
Course: Urban Ecologies Core Studio
Theme: Urban Residential Design
Instructor: Laura Briggs
Role: Independent Work
Urban Terraces is an urban affordable housing project that is sited at the Blair Lot of Roxbury in Boston, Massachusetts. It proposes a new housing typology for urban communities and collective living. Consisting of a community center, a local farmer’s market, a food court, a community garden, and affordable apartments with greenhouses, this project intends to insert farming and gardening into residents’ daily lives. The tectonic of this project comes from the series of rooftop terraces that create outdoor farming and gardening spaces for residents to grow fruits and vegetables by themselves as a way not only to create a more self-sufficient community but also to promote a new social activity for residents to interact and communicate with each other.
Due to the limited access to farmland and green parks in the surrounding neighborhoods, this project aims to propose a new typology that brings greeneries and farming into people’s lives in this community. Usually, farms, markets, and residential communities are considered in a vertical supply chain. This project proposes a new typology that puts farming, gardening, markets, and urban living into an enclosed loop, which integrates farming and gardening into people’s daily lives.
Surrounding Green Parks
Surrounding Farmlands
Orignal Model
Community Market Farmland
Proposed Model
Urban Farmland
Farmer’s Market
Community
Urban Garden
Residential & Greenhouses
planting: may-jul
harvesting: aug-oct
planting: sep-feb harvesting: mar-aug
planting: may-jun harvesting: jul-sep
Farmer’s Market & Food Court Community Center
planting: apr-jun harvesting: jul-sep
planting: may-jun harvesting: jul-oct
blooming: may-jul bare: dec-mar
Identify site context
Push inwards on south-facing sides and add stairs
Offset terraces to create urban
on both

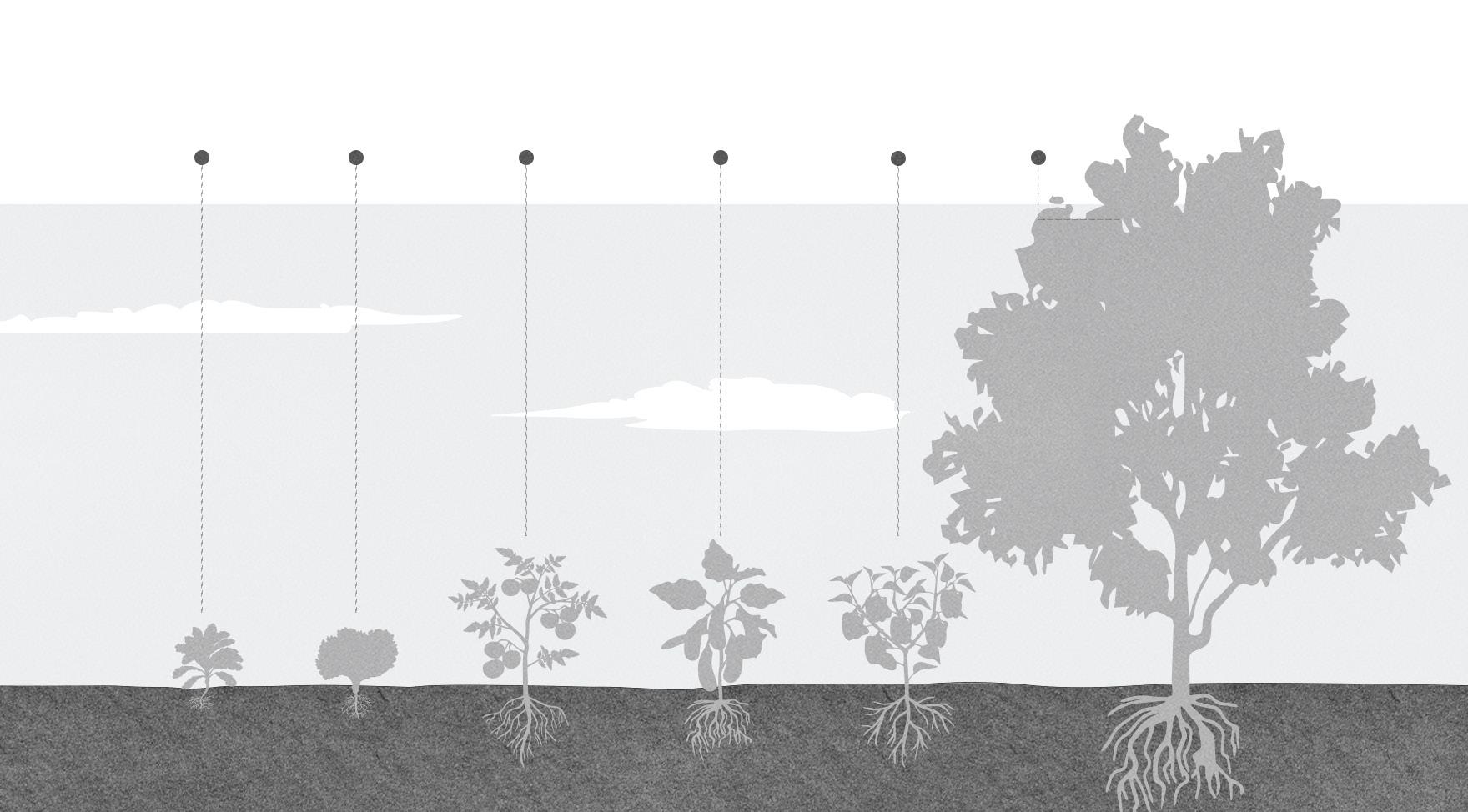

01 02 03 04 05 06 Kale Lettuce Tomatoes Eggplants Peppers Sweetbay magnolia
Carve volume to create entry and divide programs
Partially remove volume for semi-outdoor urban garden Extrude volume to generate massing and courtyard
farms
sides
studio unit 2 452 sf studio unit 1 270 sf 2-bedroom unit 744 sf 3-bedroom family unit 878 sf
Ground Floor Plan
Typical Residential Plan - Fourth Floor Typical Residential Plan - Fifth Floor
Building Section
External Perspective - Street View
Perspective - Street View
Section
External
Cross
Urban Garden
Greenhouse
Urban Farm
02
OFFSETTING THE LIGHT
Year: Spring 2022
Course: Advanced Studio
Theme: Pier Building Design
Instructor: Silvia Acosta
Role: Independent Work
The tectonic of this project emerges from the offsetting of volumes in each unit. The two variations of the unit alternate with one another to generate a rhythmic spatial sequence and a sense of open and enclosed spaces. Light comes into the building through the light wells on the edge of the offset volumes on both sides, creating distinct experiences in each unit. Through the establishment of order, the project delivers a language interlocking and offsetting of volumes from the exterior, and an experience of traveling between light and dark from the interior. The light wells, having various sizes and generating different types of light conditions, are also attracting and guiding visitors to travel along the building through the creation of thresholds that partially block people from viewing what is behind them.
Basic Units
South Pointe Park, Miami
Posous Spaces
Circulation Cores
Roof Shading System
Identify site context Extrude massing 01 02 Extract and extend inner volumes Offset and extrude inner volumes 03 04 Carve volumes to generate lightwells and cores Add shading system on roof for final massing 05 06
Ground Level Plan Roof Level Plan Underwater Level Plan Longitudinal Section
Lobby and Reception
Library
Cross Section A
Cross Section B
Cross Section C
Laboratory
Main Auditorium

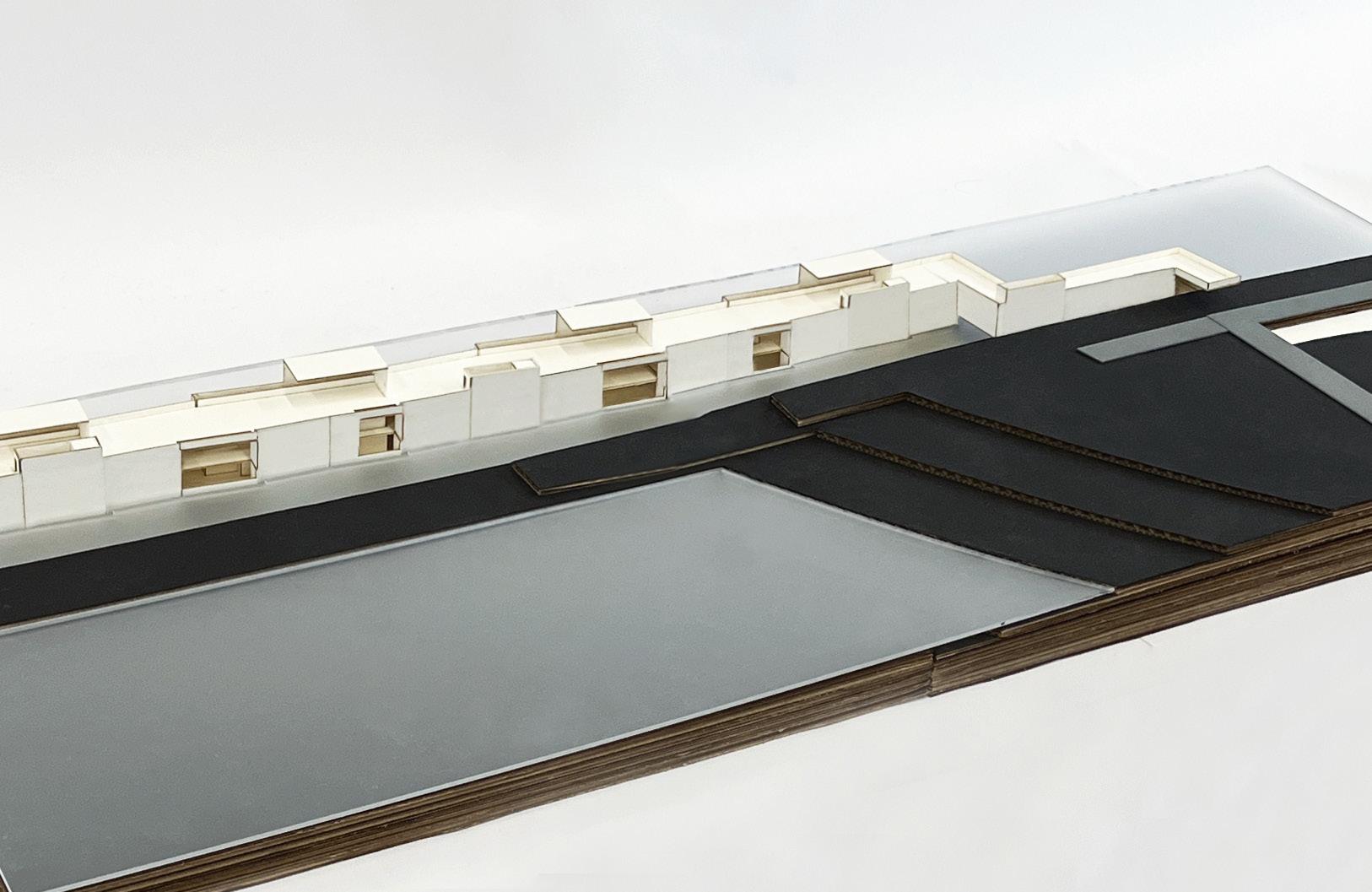

Model Photo (North Facing Facade)
Model Photo (South Facing Facade)
Exterior Night View
View From Roof Level (Ocean view)
View From Roof Auditorium (City view)
03
MUSEUM OF FOLKLORE
Year: Fall 2021
Course: Advanced Studio
Theme: Museum Design
Instructor: Spencer Hayden
Role: Independent Work
Based on the traditional Chinese typology of the Tulou, this project aims to create a similarly inviting and intimate sense of place, but one that, through the deconstructing and reassembling of the dense concentric rings of the original structure, is also playful for children and open to the larger community of Qingdao. The museum consists of four courtyards with three for the museum and one dedicated to the public, which weaves the museum into the larger urban context not only as an educational space for exhibitions but also as a relaxing place for parents and kids to spend time together. The continuous serpentine roof visually ties together the unfolding myths that will be experienced in a variety of media. The exhibition area is designed as an enclosed loop with an atrium space as a core of circulation where visitors can travel between the “mountain” section above ground and the “sea” section below. This museum is one of continuity and disruption: the continuity we seek in narratives of myths, but enriched by the productive disruptions of the courtyards that might enhance the educational mission of the museum without turning its back on the surrounding city but rather seeking to invite it in.
“Tulou”
Laoshan, Qingdao
Typology Group Off-Center Final Typology Deconstruct
Lobby Space Cafe & Restaurant Exhibition Spaces Theater & Offices Courtyards
Original
& Reassemble

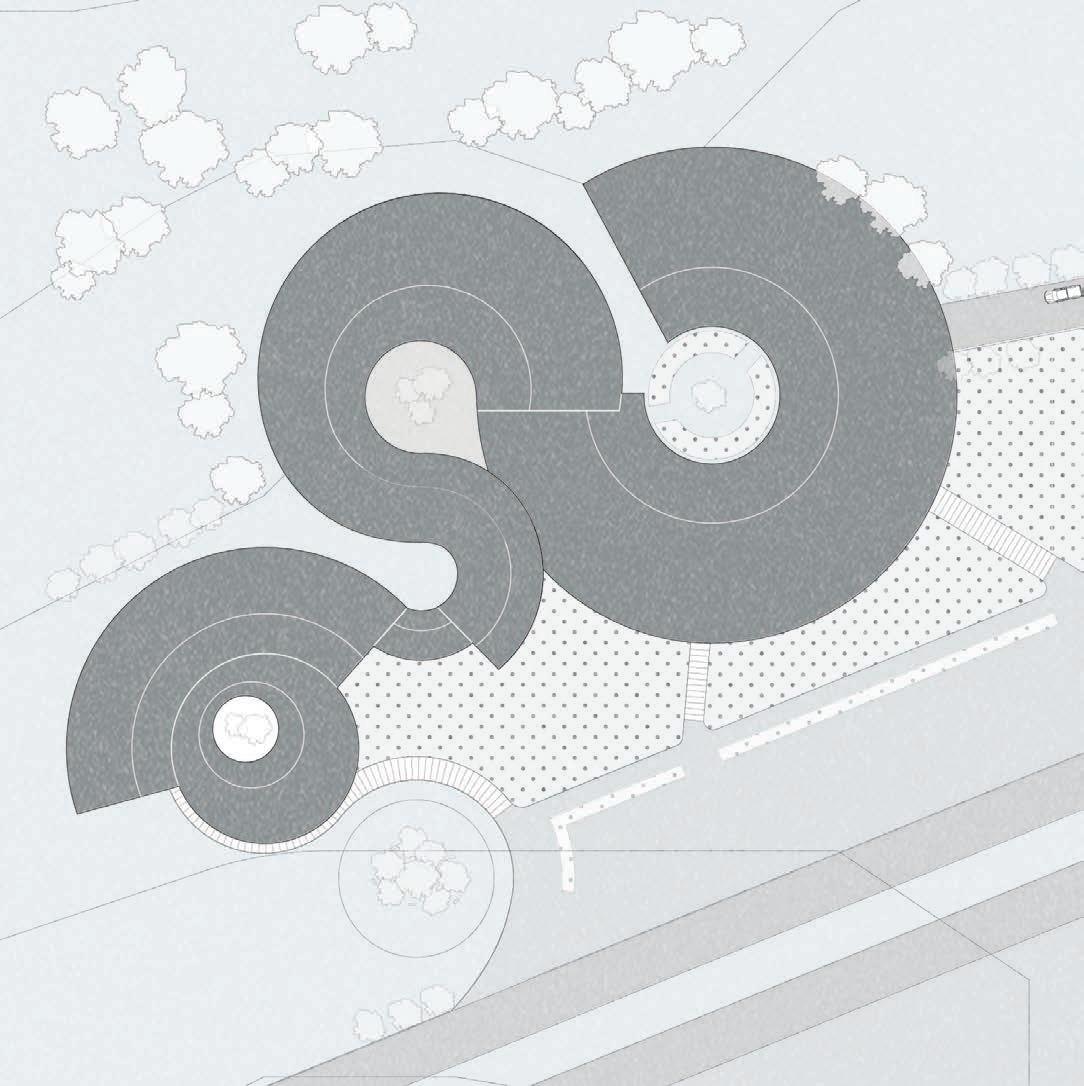

Roof Plan Second Floor Plan First Floor Plan Third Floor Plan
When visitors move through the museum, the courtyards provide four distinct atmospheres that correspond to the stories appearing in The Classics of Mountains and Seas. The circulation through the museum guides visitors on a varied and exciting journey through subterranean rooms that correspond to the underwater stories, and sweeping panoramas on the higher floors that correspond to those of the mountains. The courtyards punctuate this journey and serve to elevate the exhibits with moments of play and
Whatcheer Flower Farm 04
Year: Fall 2022
Course: Integrated Building Systems
Theme: Flower Farm and Floral Academy
Instructor: Laura Briggs
Role: In Collaboration with Xiaoqi Shen and Yuki Cao
This project is a detailed design of the What Cheer Flower Farm located in Providence, Rhode Island. Featuring two prominent characteristics, the vertical green wall facade design, and the open-web joist steel structural system, this project aims to utilize the tectonic of “weaving” for the facade design to create a more dynamic light and spatial experience and outstanding characteristic from both the interior and exterior. v
Lobby 1940 SF OL 388 Meeting Room 663 SF OL 45 Reception 438 SF OL 30 EXIT 2 72’’ EFFECTIVE WIDTH EXIT CAPACITY = 480 OCCUPANTS EXIT 4 72’’ EFFECTIVE WIDTH EXIT CAPACITY = 480 OCCUPANTS EXIT 5 72’’ EFFECTIVE WIDTH EXIT CAPACITY = 480 OCCUPANTS EXIT 6 72’’ EFFECTIVE WIDTH EXIT CAPACITY= 480 OCCUPANTS EXIT 7 36’’ EFFECTIVE WIDTH EXIT CAPACITY= 240 OCCUPANTS EXIT 1 144’’ EFFECTIVE WIDTH EXIT CAPACITY = 960 OCCUPANTS EXIT 3 72’’ EFFECTIVE WIDTH EXIT CAPACITY = 480 OCCUPANTS Shop and Storage 1426 SF OL 5 Stem Processing 2750 SF OL 10 Loading Area Compost Room 319 SF OL 2 Refuse Room 319 SF OL 2 Max Egress Distance = 91’-0’’ Small Classroom 1 298 SF OL 30 Small Classroom 2 298 SF OL 30 Waiting Area 610 SF OL 41 Administration 762 SF OL 6 O ces 1360 SF OL 10 Medium Classroom 2 428 SF OL 64 Medium Classroom 3 428 SF OL 64 Open Workshop 1580 SF OL 32 Student Cafe & Breakout Area 957 SF & 841 SF OL 65 & 57 Medium Classroom 1 575 SF OL 87 Open Workshop 2343 SF OL 47 Max Egress Distance = 134’-6’’ Max Egress Distance = 129’-0’’ Lecture Hall 1848 SF OL 264 Multipurpose Rooms 546 SF OL 8 Conference Room 428 SF OL 29 Executive O ce 2 428 SF OL 3 Support O ce with Kitchen 698 SF OL 5 Balcony Area Executive O ce 1 575 SF OL 4 O ces 1360 SF OL 10 Max Egress Distance = 129’-0’’
Ground Floor Second Floor Third Floor ① ① ① ② ② EXIT 2 72’’ EFFECTIVE WIDTH EXIT CAPACITY = 480 OCCUPANTS
Wash on Coping
Roof Slope for Unobstructed Drainage
TERRART®-Baguette Ceramic Rods
Steel Decking
Steel Open Web Joists
Liquid Applied Flashing
AA™6600 Thermal Window Assembly
Fixed with Project-out/ Outswing
Casement Vent 6inch deep (1inch infill)
48inch x 72inch
Glass U-Factor = 0.10
Overall U-Factor = 0.38
Aluminum Window Frame
2 inch Interior Dry Wall
3 inch Rockwool Insulation
3.0 to 3.3 per inch of insulation
R-value= 9
1/4-inch Water Control Layer
3/4-inch Exterior OSB Sheathing
R-value=0.91
6 inch Steel Stud Cavity
6 inch Rockwool Insulation
3.0 to 3.3 per inch of insulation
R-value=18
2 inch Interior Dry Wall
2.5 inch Rockwool Insulation
3.0 to 3.3 per inch of insulation
R-value=7.5
6 inch Concrete Slab
R-value = between 0.6 and 1.2.
Drip Edge
South Facade R-value :
Roof R-value = 40.8
Wall R-value= 27.91
Slab R-value= 8.7
Prescriptive R-value :
Roof R values = 33
Wall R values = 22
Slab R = 8.25
6 inch Under-slab Insulation
6 inch Concrete Footing
Gravel Layer
30.00 feet 45.50 feet 17.00 feet 0.00 feet
TERRART®-Baguette Ceramic Rods
Receptor Backer Rod
Sealant
Exterior Sill Support Blocking
2 inch GFRC Panel
3 inch Rockwool Insulation
3.0 to 3.3 per inch of insulation
R-value= 9
1/4-inch Water Control Layer
3/4-inch Exterior OSB Sheathing
R-value=0.91
6 inch Steel Stud Cavity
6 inch Rockwool Insulation
3.0 to 3.3 per inch of insulation
R-value=18
2 inch GFRC Panel
Welded Assembly into Concrete Slab
Vertical Green Wall
Drip Edge Drip Cap
Liquid Applied Flashing Plenum
051020in
BUILDING A FUTURE 05
Year: Spring 2021
Theme: Women’s House in Africa
Instructor: Laura Briggs
Role: Collaborative work with Jichen Zou and Charles Baoumar
The women’s empowerment house is about the processes of construction. Instead of merely designing a structure for promoting gender equality, we aims to turn the house’s construction processes into an empowerment program. A ceramic kiln and a brick press will allow the community to make durable terracotta tiles and compressed stabilized earth blocks. As the vaults and walls take form, a women-run manufacturing cooperative will seed. In addition to the creation of iconic and elegant public spaces, these tools, integral to the women’s house, will have long-lasting effects on women’s economic status and rural development in the village of Baghere. When the house finishes at the end, skilled and equipped women will be able to keep the cooperative running and expand its activities. This empowerment model could also be adopted elsewhere in the African continent to reduce the gender gap.
The project is intended to be located next to the main road and crossed by two existing walking paths for easy access and transportation. Meanwhile, the orientation of the building is based on the annual wind directions and solar paths in order to create a better ventilation system and indoor temperature, especially without access to the HVAC system that is normally used in buildings under urban conditions.
Wind Rose and Solar Path Diagrams
Site Plan
1.
| 2.
1 | 3.
2 | 4.
| 6.
| 7.
|
1 2 3 4 6 7 5 8
Activity Hall
Storage
Storage
Office 5. Meeting Room
Outdoor Gathering
Bathroom
8.Kiln
1. Split volumes by air
2. Lift roof at leaward side
3. Place heat and waste at leaward side
4. Calibrate overhangs for overheating
5. Add rattan shading to south
6. Collect water at outside edges for plants to reduce urban island effect and promote biodiversity

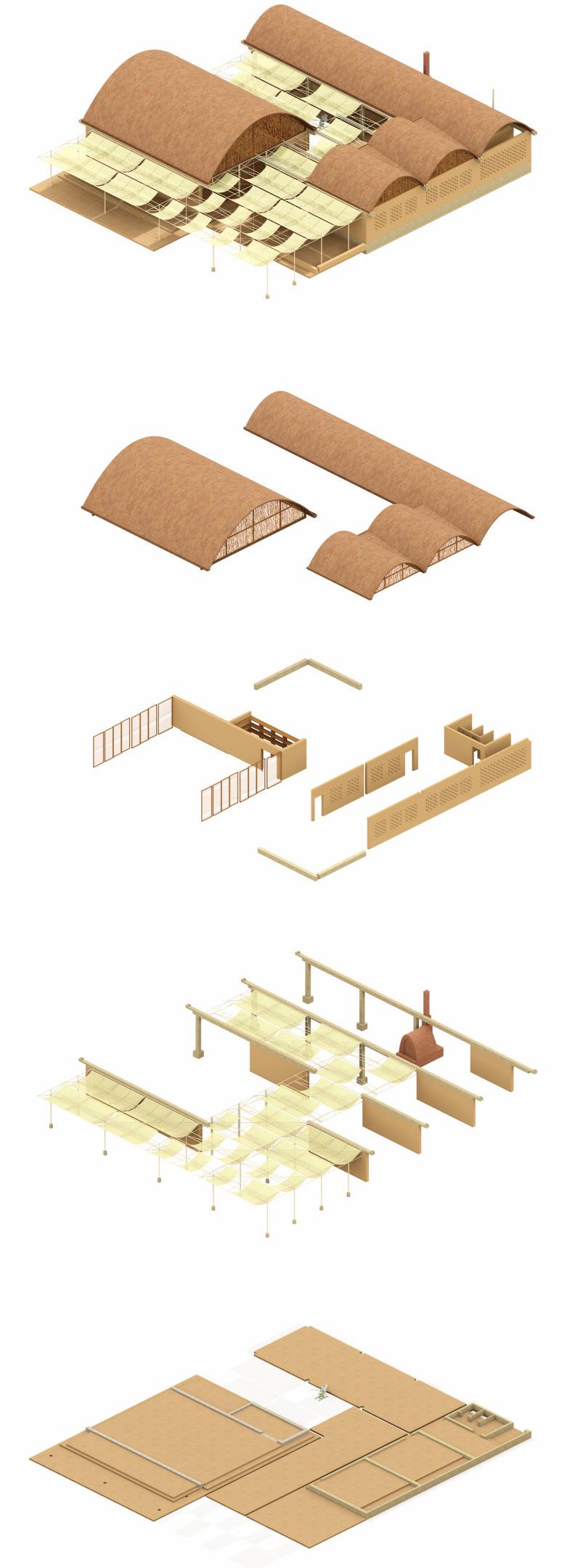

[Above] Exploded Axon (Construction Processes)
Professional Practice
Year: Summer 2021
Role: Internship
06
8/16/2021 5:35:04 PM BIM 360://Gelex Hotel/TNH-DC01-ZZ-ZZ-M3-A-0002.rvt
12* 13* B' A' LIFT LOBBY 2 A-351 3 A-351 1 A-351 1 A-491 M IN 0 2800 MIN 2800 2800 MIN 2400 2400 M IN 0 5200 MIN 2400 2400 M IN 5 5200 1125 1125 HP1 HP ELEV. HP2 1300 100 650 1300 550 550 1300 650 2500 2500 550 1300 650 550 1300 650 2500 2500 HP ELEV. HP3 HP ELEV. HP4 14* 12* 13* B' A' LIFT LOBBY STORAGE ST-13 VEST. 2 A-351 3 A-351 1 A-351 1 A-491 HP ELEV. HP1 HP ELEV. HP ELEV. HP4 2800 2800 2400 5200 5200 2700 650 1300 550 550 1300 650 2500 2500 550 1300 650 550 1300 650 2500 2500 HOTEL HYD ROOM HP ELEV. HP3 14* 12* 13* B' A' STAIR VEST. 2 A-351 3 A-351 1 A-351 1 A-491 SERVICE LIFT HP ELEV. HP ELEV. HP2 HP ELEV. HP4 2800 2800 5200 2400 5200 2400 650 1300 550 550 1300 650 2500 2500 550 1300 650 550 1300 650 2500 2500 HYD RISER HP ELEV. 700 1400 700 14* 12* 13* B' A' GUEST LIFTS LOBBY ST-13 VEST. ST-13 2 A-351 3 A-351 1 A-351 1 A-491 HP ELEV. HP4 HP ELEV. HP2 HP ELEV. HP1 S3 2800 2400 5200 2400 5200 650 1300 550 550 1300 650 2500 2500 550 1300 650 550 1300 650 700 1400 700 2800 2500 2500 HYD RISER HP ELEV. HP3 12* 13* 10 CC DD B' A' SERVICE LIFT LOBBY BOH CIRCULATION ST-13 ? 2 A-351 3 A-351 1 A-351 1 A-491 HS ELEV. HP1 HP ELEV. HP2 2800 2400 5200 2400 5200 700 1400 700 2500 550 1300 650 650 1300 550 2500 550 1300 650 650 1300 550 2500 2500 2800 WC HYD RISER HP3 HP ELEV. HP4 A-202 2 12* 13* 10 CC DD B' A' A-205 2 A-351 3 A-351 1 A-351 1 A-491 HS ELEV. S3 GUEST LIFT LOBBY ST-13 STAIR VEST. LOBBY LOUNGE & BAR 2800 2800 2400 5200 2400 5200 650 1300 550 550 1300 650 2500 2500 550 1300 650 550 1300 650 2800 2500 2500 700 1400 700 2800 MEP ROOM HP ELEV. HP1 HP ELEV. HP2 HP ELEV. HP3 HP ELEV. A-206 2 11 MC-112 2 A-312 3 A-312 A-202 2 1 100 1 ENLARGED PLAN @B4 HOTEL CORE-1 1 100 2 ENLARGED PLAN @B3 HOTEL CORE-1 1 100 3 ENLARGED PLAN @B2 HOTEL CORE-1 1 100 4 ENLARGED PLAN @B1 HOTEL CORE-1 1 100 5 ENLARGED PLAN @L1 HOTEL CORE-1 1 100 6 ENLARGED PLAN @L2 HOTEL CORE-1
Photography Works 06
Year: 2021-2022
Role: Individual works
