School Goes Tankless, Saves $70k Annually

Replacing a 2,300-gal. electric water heater with a tankless system resulted in a two-month ROI and signifi cant annual energy savings.

Located in Overton County, Livingston Academy High School in Livingston, TN, is a public school with approximately 900 students. Operating the school’s 1970s electric water heater had been draining the school’s funds for a while. It was time for a change.

In 2011, the school took steps to replace the old water heater with a more efficient water-heating solution. What wasn’t known at the time was how much

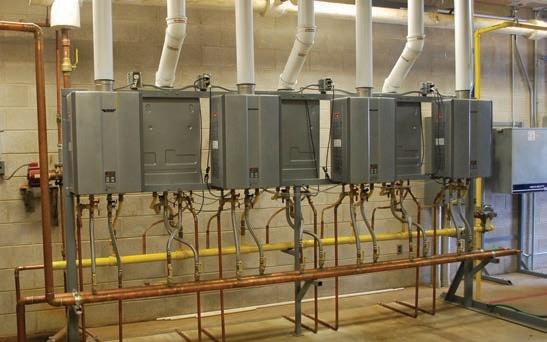

Top. When the Livingston Academy school replaced its 2,300-gal. electric water heater with a tankless system, the school realized a $70,000 annual energy savings.

Above. The seven tankless units have a 1.7-million-Btu capacity and the system paid for itself in two months. more effective that new system would be at meeting the school’s hot water needs and reducing energy costs. In fact, throughout 2012, the school saved $65,000 to $70,000 in energy costs as a result of installing a Rinnai tankless water-heating system. Rinnai America Corp. is located in Peachtree City, GA.

The school’s maintenance staff began working with Jim Palmer, territory sales manager for C.C. Dickson Co., Wilson, NC, one of the largest wholesale distributors of HVAC/R equipment in the Southeast, to design a new, more energy-efficient system.

Palmer had seen the benefits of tankless water heaters in other applications, but had not yet been involved with such a project. After much consideration, Palmer and school administrators collectively decided that Rinnai Ultra Series condensing tankless water heaters would offer the school optimal energy savings and effectively meet its hot-water needs.

Removal of the older, 2,300-gal. electric water-heater tank from the school’s mechanical room proved to be a challenge. “The old tank was the size of a car. It took up half the room and we had to cut it at the bolt forces to get it out the door. The tankless units are only one-third the size and are a much more powerful system. It’s quite impressive,” said Palmer.

The project’s team worked with Rinnai engineering in the design and installation of a sophisticated rack system for the mechanical room. Collectively, the school needed seven Rinnai condensing tankless units—approximately 1.4 million Btu—to adequately supply hot water to its five mop sinks, 75 regular sinks, and 46 showers. Each unit is individually vented through the building’s roof. An existing gas line in the mechanical room allowed the team to easily make the switch from electric to gas.

Condensing units were selected because they capture latent heat before it escapes into the vent system and transfer it to the water being heated. This improves energy efficiency. Condensing units offer an energy factor rating as high as 0.95, compared with 0.82 with non-condensing tankless units.

Because the wait time for hot water could be substantial in a large school facility, one of the tankless water heaters is on a recirculation system, which moves hot water in a loop close to fixtures, so there is less of a hot-water wait.

The new tankless water heaters also feature unit redundancy, which means that if one, two, or more units require maint enance, the remaining units seamlessly continue to provide on-demand hot-water service to the school. Therefore, even if one unit shuts down, the system still operates with approximately 80% to 90% coverage.

“Redundancy was another major reason the school decided to go with a tankless system,” said Palmer. “If one unit wasn’t working or needed maintenance, the school would still have hot water. You could just work on the unit that needed to be worked on without shutting down the hot-water supply.”

The whole project took about six months, including specifying equipment, developing a plan, and completing installation during summer vacation. “Once we had everything figured out, it went very fast,” said Palmer. “Rinnai experts helped us specify the right number of units for the school’s hot-water demands. They gave us good advice and direction and what they recommended is providing fantastic results.”

“We never imagined how much money it would save,” said Palmer. “The system paid for itself in two months. The school is still amazed at how well the new system is working—that something that compact could deliver the hot water they need. They have no complaints. Not one.”

Overton County School System decisionmakers are planning to gradually switch to Rinnai condensing tankless water heaters in all schools. Additionally, when the Overton County Sheriff’s Department heard about the energy savings experienced at Livingston Academy, it contacted Palmer for information.

“We are looking for more and more opportunities to use tankless water heaters. People see the value of them and the results speak for themselves,” Palmer said.

CBP

DATA CACHE

Want more information? The resources below are linked in our digital magazine at cbpmagazine.com/digital/apr2014.

Circle 10 on the Reader Service Card.

Evaluate the specifi cations of the Rinnai RU98 unit at http://www. Evaluate the specifi cations of the Rinnai RU98 unit at http://www. rinnai.us/commercial/tankless-products/ru98i-reu-kb3237ffud-us. rinnai.us/commercial/tankless-products/ru98i-reu-kb3237ffud-us.

Download the RU98 spec sheet at http://www.rinnai.us/ Download the RU98 spec sheet at http://www.rinnai.us/ documentation/downloads/RU98i_KB3237FFUD_spec_sheet_ documentation/downloads/RU98i_KB3237FFUD_spec_sheet_ tankless_water_heater.pdf.

Download a manual for designing tankless-water-heating systems Download a manual for designing tankless-water-heating systems at http://www.rinnai.us/documentation/downloads/R-TRWH-E-02_ at http://www.rinnai.us/documentation/downloads/R-TRWH-E-02_ Rev_D.pdf.

EDITORS’ CHOICE

High-efficiency chiller

AquaSnap 30RB chiller:

• Uses Greenspeed intelligence for high effi ciency • Variable-speed condenser fans provide optimal airfl ow • Software constantly calculates head pressure

AquaSnap 30RB chiller has Greenspeed intelligence, reported to enable high effi ciency and optimum performance.  e unit has enhanced scroll compressors and variable-speed condenser fans to provide an operating sequence for optimal airfl ow across the condenser.  e condenser supports higher effi ciency when running at part-load conditions. Software optimizes use of compressors, fans, and circuits.  e software constantly calculates the most effi cient head pressure from the load and ambient conditions and controls to this pressure through infi nite feedback steps and adjustment.

Carrier, Syracuse, NY Circle 91

High-effi ciency fl oor-mounted system VertiCool Aurora provides a versatile design in a fl oor-mounted air-conditioning system. Cabinets can be placed next to walls or in closets or mechanical rooms. Systems are available as air-cooled, water-cooled, or water-source heat pump confi gurations. Multiple airpath confi gurations provide additional fl exibility to reportedly handle most application requirements as ducted or free blow.

United CoolAir, York, PA Circle 92

Square shower drains 1404hvac04p MR A line of 5-in. x 5-in. drains have designer grate styles and inset trays that accept porcelain or glass mosaic tiles or natural stone materials to 3/4 in. The drains create the appearance of uninterrupted tile design and the illusion of vanishing water.

Luxe Linear Drains, Atlanta Circle 94

Expanded diffuser line

Additional sizes for the company’s suction diffuser line include 4 x 2 ½ in., 5 x 3 in., and 8 x 5 in. The diffusers are fl ow-straightening devices that are said to provide maximum fl ow effi ciency at the suction inlet of a pump while at the same time reducing space and fi tting requirements. They also eliminate the need for an equivalent length of ten pipe diameters of straight run on the suction side of the pump. Devices are available for 125- or 250-psi working pressures with fl anged or grooved-fl ange connections.

Taco Inc., Cranston, RI Circle 96

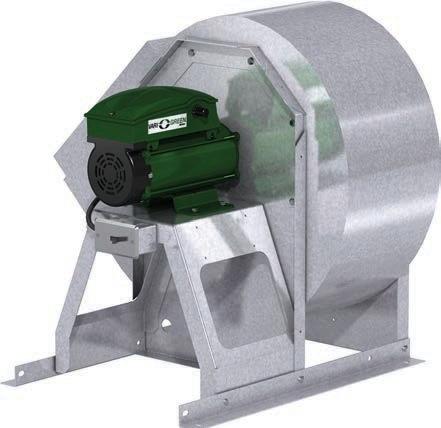

Utility fan

Model SWD direct-drive, backward-inclined utility fan has a Vari-Green motor. The unit is said to achieve the performance of the SWB belt-drive centrifugal utility fan. Available in sizes 7 through 18 with capacities from 100 to 5,860 cfm, applications include ducted exhaust and supply and return air.

Greenheck, Schofi eld, WI Circle 93

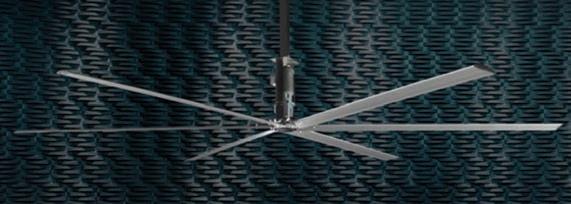

UL-listed fans AirVolution and AirSpan fan lines are UL listed. The entire fan unit, including motor, gearbox, variable-frequency drives, switches, and wires, is included. The company’s AirViz uses specifi cations from a potential installation space to produce a 3-D motion video that predicts airfl ow, temperatures, and cooling/heating effects from a fan.

MacroAir, San Bernardino, CA Circle 95

Aquatherm Pipe Lindon, UT 801.805.6657 aquatherm.com

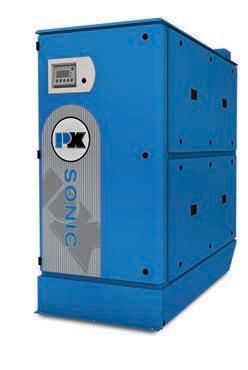

Segmented boiler Patterson-Kelley P-K Sonic boiler has a stainless-steel heat exchanger with segments designed to work together for optimum effi ciency and improved reliability. The design is said to allow the boiler to operate at 96% effi ciency with ultra-low emissions. The unit also has a small footprint.

Harsco Corp., Camp Hill, PA Circle 97

Hydronic boiler Endura hydronic boiler is reported to have ultra-high effi ciencies. The unit has a duplex stainless-steel heat exchanger, high turndown capabilities, low NOx emissions, and is designed for primary variable-fl ow applications.

Fulton, Pulaski, NY Circle 98

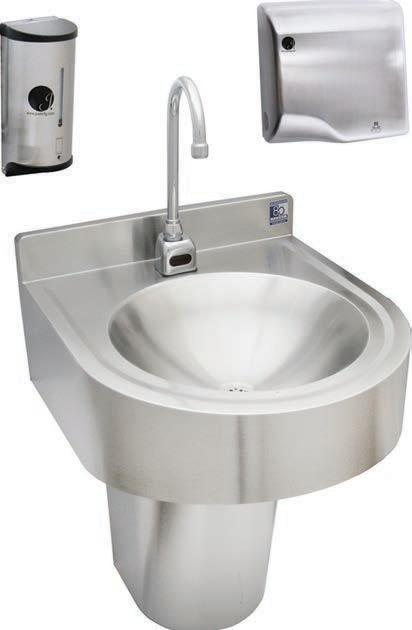

Lavatory package An ADA-compliant, hands-free lavatory package offers single-source reliability. Each unit includes a stainless-steel lavatory; an adjustable, sensor-activated faucet; an automatic hand-dryer system; sensor-activated soap dispenser; lavatory drain with overfl ow; thermostatic mixing valve; P-trap with cleanout; and vandal-resistant enclosure. The package uses the Integra-Flow system said to prevent overfl ow.

Just Manufacturing, Franklin Park, IL Circle 100

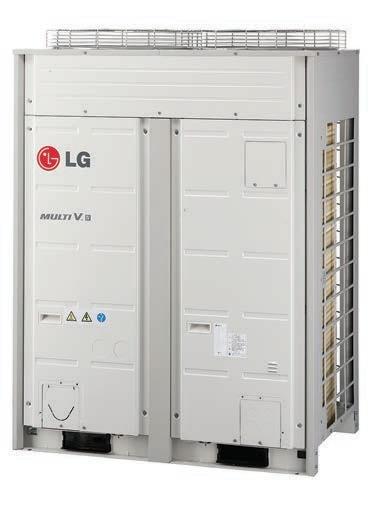

Fourth-generation unit Multi V IV is the fourth generation in the company’s Multi V series that uses VRF technology to deliver reported improved energy-effi ciency by allowing occupants to choose whether to heat or cool only the zones in use. The unit has a more compact footprint and is AHRI 1230 certifi ed. Compressor design and an optimized heat exchanger provide effi ciency as high as 28.2 IEER.

LG Electronics USA, Alpharetta, GA Circle 99

Floor-heating thermostat Signature thermostat is a WiFi-enabled fl oor-heating device that allows users to control the unit from an app on a smartphone. With seven-day programmability, the device also reports outdoor temperature and weather forecast information.

Nuheat Industries, Vancouver, British Columbia Circle 101

Jail Windows Provide Daylight, Security

Two types of detention-grade windows add daylight, aesthetics, and security to a Chicago jail addition.

The Cook County Department of Corrections, Chicago, installed Hope’s steel detention windows in the newest addition to its campus. T he latest addition to the Chicago Cook County Jail’s sprawling 96-acre campus in the city’s southwest corridor is a $90 million, five-story, 290,000-sq.-ft. Residential Treatment Unit (RTU) and Reception Classification Diagnostic Center (RCDC). The addition serves multiple functions for the Cook County Department of Corrections. It also meets LEED Silver certification, as must all new Cook County facilities.

The RTU contains approximately 1,000 beds to provide inmates with medical care and specialized psychiatric treatment. The RCDC serves as the jail’s central intake/discharge space, designed to process 300 to 400 pretrial male and female detainees into the jail system each day, discharge a roughly equal number, and hold and transfer about 1,500 detainees from other sites using new and existing underground tunnels connected to court buildings and other related facilities.

“With all of this movement of inmates, it was critical to the Department of Corrections that all of the facility’s spaces meet the highest security standards,” said Paul Reich, project manager for Roula Associates Architects Chtd., Chicago, the firm that designed the facility

Daylight is an important component in any facility, but usually not difficult to accomplish with conventional commercial windows. Windows in a correctional facility become a much different challenge for a variety of obvious reasons. To meet the stringent requirements of this design, the architects specified SA30 series steel/aluminum fixed detention windows and the STB30 series

steel fixed thermal-break detention windows, manufactured by Hope’s Windows Inc., Jamestown, NY.

The SA30 windows incorporate an interior secure steel frame with an exterior thermally broken aluminum glazing frame. These window assemblies are designed for extreme weather climates.

The interior frames are custom formed using 12-gauge 302/304 stainless steel. They are designed with exterior and interior sub-frames that eliminate removable covers. The interior frames are fusion welded at the corners and are back welded for superior strength and water tightness. The tool-resistant steel meets or exceeds ASTM A627-03.

The exterior frame is constructed with 6063-T5 alloy aluminum, that is filled and has a de-bridged thermal break. Exterior frames are screwed, gusseted, and sealed. Hope offers unlimited glass options.

The SA30 windows are impact tested to meet or exceed ASTM F1592-01. The standard requires that the windows be able withstand a minimum of 600 blows at each impact location, 1,200 total blows/frame without a rail bar, and 1,800 total blows/frame with a rail bar.

The STB30 series windows feature a vinyl thermal-break sandwich between the interior and exterior frame. As with the SA30 windows, the interior frame is custom formed 12-gauge 302/304 -grade tool-resistant stainless steel that meets or exceeds ASTM A627-03.

The frames are designed with exterior and interior sub-frames that eliminate removable covers. The sub-frames are separated by a 1/4-in. rigid-vinyl separator for thermal enhancement. The windows meet the same impact specifications as the SA30 units.

Arnold & O’Sheridan, Brookfield, WI, a full-service engineering consulting firm, handled the deten

INTRODUCING GUARDIAN SUNGUARD SNX 51/23

SunGuard SNX 51/23 from Guardian is a glass industry  rst — the  rst product on the market with visible light above 50% and a solar heat gain coef cient below 0.25. Along with low re ectivity and a neutral blue color, it represents a breakthrough combination of light, appearance and solar control that meets increasingly strict energy codes. For complete performance data — and other ways to Build With Light — visit SunGuardGlass.com. Or call 1-866-GuardSG (482-7374).

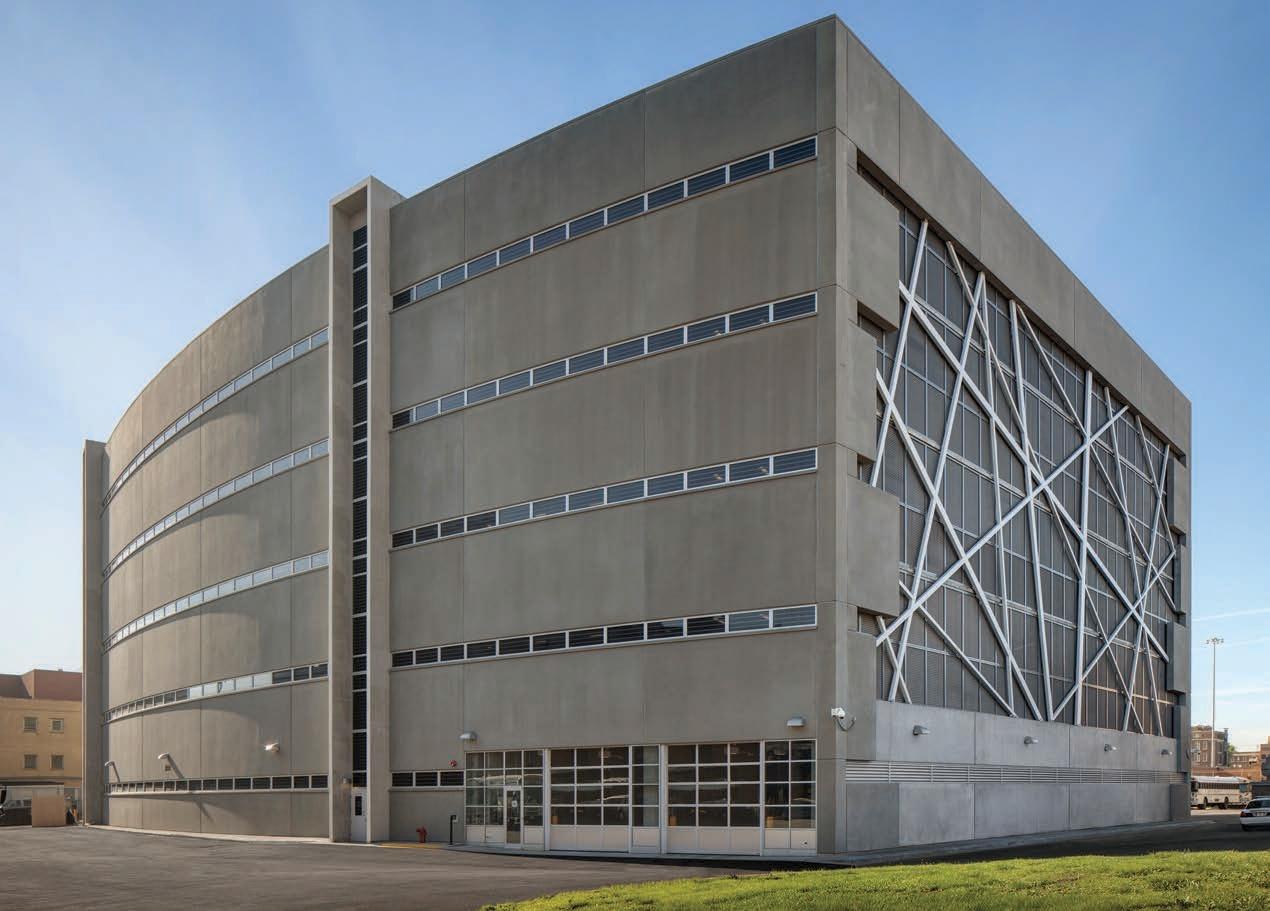

The windows provide daylight to this LEED Silver facility while meeting all correctional-facility standards for tool and impact resistance.

tion/security design for the facility, including the specifications for the windows. “This is a highly sophisticated facility incurring a great deal of liability serving inmates with mental health issues,” said Jeff Pronschinske, CSI, CDT, director of security engineering for Arnold & O’Sheridan. “Specifying Hope’s is easy as they have a 50-year track record in the correctional market and we know their product meets or exceeds our requirements and expectations.”

CBP

DATA CACHE

Want more information? The resources below are linked in our digital magazine at cbpmagazine.com/digital/apr2014.

Circle 9 on the Reader Service Card.

To learn more about the facility in general, read an article To learn more about the facility in publishedin publishedin CorrectionalNews magazine.

Download specifi cation information for the SA30 windows. Download specifi cation

Download specifi cation information for the STB30 windows. Download specifi cation informa
