LED Retrofits Light Up College Library

Power meter Aramis AR150 cylindrical LED pendant provides more than 13,500 lumens from a 6-in.-dia. cylinder. A ventilated cast-aluminum heat sink and separate driver chamber optimize heat management and efficacy. With a high CRI and light uniformity ratio of 1:67, the luminaire is available in a range of color temperatures and finishes.

Luminis, Montreal Circle 79

Indoor/outdoor cylinders LED 8-in. indoor/outdoor cylinder fixtures are available in ceiling, pendant, or wall mount. Wet-location versions have a silicone-sealed clear glass lens in a gasketed die-cast trim ring. All cylinders can be dimmed.

ConTech Lighting, Northbrook, IL Circle 80

PowerLogic PM5000 series power meter is an addition to the PowerLogic line of power and energy meters. A range of models is compliant with all applicable metering standards. Features include different communication and I/O options, a battery-backed real-time clock, alarms, multiple tariff schedules, and data and event logging. The meter integrates with the company’s StruxureWare software.

Schneider Electric, Nashville, TN

WE KNOW EDUCATIONAL LIGHTING

Cylindrical LED pendant

Circle 81

High-performance, energy efficient interior and exterior illumination with LED and fluorescent, including specialty lighting for: • Distance Learning • Video Conferencing • Exterior Low Level • White Boards

Floodlights and Displays Factory assistance is always available!

Find our products at www.elplighting.com or call us at 626.579.0943

LED sconce WS 850 SoHo LED sconce provides softly diffused ambient/ accent lighting. The polymer lamp body looks like hand-turned wood. The luminaire measures 6 3/4-in. wide and 20 1/8-in. long, and is available in 3,000 K or 4,000 K.

Jesco Lighting, Port Washington, NY Circle 82

Varco Pruden’s Innovative Daylighting Solution PRISMAX SL ™

PrisMAX SL provides more light for longer periods of the day, enhancing a wide variety of indoor activities for customers, employees and visitors in your facility. These durable skylights use prismatic lens technology to deliver optimal daylight performance. PrisMAX SL was developed in conjunction with Sunoptics™ and when used as part of a sensored-controlled lighting package reduces the need for electrical lighting. Designed to work on Varco Pruden’s SSR™ or HWR™ roof systems, PrisMAX SL’s unique “self-curbing” structure uses a patented water-diverter and seam-mounted aluminum framing to create a long term, weathertight seal for years of maintenance-free performance. With Varco Pruden’s PrisMAX SL, you can expect:

Reduced lighting costs Diffused lighting without hot spots Ideal for existing buildings or new construction Environmentally friendly, low maintenance performance Build Smart, Build Green

With Varco Pruden Buildings

Powered by Sunoptics An AcuityBrands Company

Trusted Since 1948

For more information about PrisMAX SL, Visit www.VP.com/ad/CBP.

Colorful pendants A series of blue pendants add cool color to a variety of installations. The company offers more than 20 styles with tones from aquamarine and sapphire to indigo. Fixtures are available in a variety of sizes and light sources, including LED.

Nora Lighting, Commerce, CA Circle 83

Dimmable LED can lights RDL32-4-12W series LED recessed downlights are dimmable ceiling can lights for indoor use. The luminaires use 12 W, fi t 4-in. ceiling openings, and have pigtail wires connected to a quick-disconnect connector attached to a standard E26 Edison base.

LEDtronics, Torrance, CA

Circle 84

LED closet light An LED closet light measures 6 5/8-in. wide x 4 1/4-in. tall and delivers 575 lumens. Designed to be small, yet versatile, the fi xture mounts fl ush to ceiling or wall surfaces. The low-profi le fi xture has a white acrylic diffuser and removable pull chain.

Lithonia Lighting, an Acuity Brand, Atlanta Circle 85

LED lamp accessory Snap System allows users to customize light directly on an LED lamp, rather than on a fi xture. MR16, PAR30, PAR38, and AR111 lamps provide a choice of lamps and accessories to tailor light in applications including restaurant, retail, and hospitality. Using the company’s bright, point source GaN-on-GaN LED and prismatic optic, the lamps accept a magnet in the lens center, allowing accessory attachment. Accessories adjust color and shape of the beam.

SORAA, Fremont, CA Circle 86

EDITORS’ CHOICE

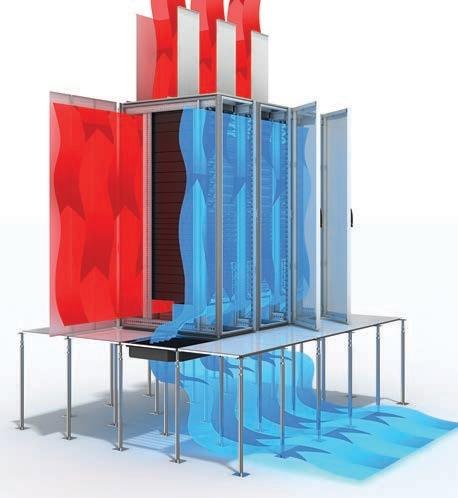

Cabinet for raised-floor data centers

IsoFlo:

• Fully contained cabinet for data centers • Separates IT and human airfl ow space • Integrates with building-management system

IsoFlo fully contained cabinet isolates inlet and exhaust airfl ow paths for reported effi cient and fl exible data-center design and operation.  e unit separates the IT airfl ow from the human-occupied space so a comfortable work environment can be maintained even when excessively warm inlet and exhaust temperatures are realized.  ere is no requirement for a hot aisle/cold layout.  e isolated airfl ow paths and a standard module sizing of the chimney and airfl ow panel allow the cabinet to be used in any new or existing pod or cage confi guration. Automatic airfl ow controls allow integration with a building-management system. DCIM provides real-time information to the data-center manager.

Tate Airfl ow, Jessup, MD Circle 101

Energy-optimization software Software-as-a-Service (SaaS) version 4.0 for energy optimization builds on the company’s Predictive Energy Optimization software and offers streamlined analytics, increased visibility into savings, and improved managed services. Said to save users 10% to 25% in HVAC energy costs with increased scores in LEED, the software has an intuitive interface and offers real-time transparency into energy operations. The platform displays predictive and retrospective data and allows users to view adjustments that were made to the operating system. Results can be accessed in a consolidated view.

BuildingIQ, Foster City, CA Circle 102

Transfer switches ASCO 7000-series automatic transfer switch and bypass-isolation transfer switch lines include a 30-cycle rating of 600 to 1,200 A. The rating has a withstand close-on rating (WCR) of 30 kA at 480 V, its ability to withstand and close-on short circuit currents with a specifi c type of over-current protective device, or for a fi nite time period. At 30 cycles, the time period is typically 0.5 sec. at 60 Hz. The rating allows the switches to be specifi ed for large, complex projects where the fault current on the emergency system is high.

Emerson Network Power, Florham Park, NJ Circle 104

Long-focus HD camera WV-SFV631LT camera is a full-HD, 1,080-pixel, outdoor, vandal-resistant and waterproof fi xed-dome network camera. An addition to the 6-series i-Pro camera line, the unit is IP66-rated water and dust resistant and has a built-in, long-focus variable-focal lens. The variable focal length of 9 to 22 mm includes applications such as situations where the camera needs to produce an exceptional image but be located some distance from the subject, such as on a high ceiling in a large lobby.

Panasonic System Communications Co., Newark, NJ Circle 103

Facility-wide lighting management XPoint wireless lighting-control system provides building-wide control. The system embeds controls and distributes decision making directly into a fi xture, creating an intelligent luminaire. Users can implement a wide range of lighting-control strategies, including programming light-fi xture operation to zone-based occupancy control, as well as daylight control. The system can store schedules and group information. Other features include direct programming from a PC or the web, scheduling options, and maintenance alerts.

Acuity Controls, Atlanta Circle 105

Glass Panels Muffle School Noise

Replacing conventional operable panels with sound-deadening glass panels provides the acoustics and daylighting required for optimal learning.

Top. Hufcor GA1 omni-directional movable glass panels allow classrooms to be reduced in size for teaching in smaller groups at Princeton Community Middle School.

Above. Acoustic glass walls also were used at McKinney High School, McKinney, TX. A corridor was closed off, diverting students from a hallway located next to the library. A rchitects Fanning & Howey, Park Ridge, IL, were tasked to create a flexible learning environment at Princeton Community Middle School near Cincinnati. The facility had to be adaptable to changing needs and enrollments and meet LEED daylighting requirements. Traditional operable partitions were not the answer because, although they have been used for decades to divide classrooms and multipurpose spaces and are good sound controllers, they also prevent light from entering adjacent rooms.

The answer was Hufcor, Janesville, WI, GA1 omni-directional movable glass panels. The panels provide the needed flexibility, primarily to create small classrooms for small-group teaching. The insulated glass inserts meet daylighting requirements and are designed to stop as high as 44 dB of sound from traveling from one room to another. So, even though students walking through the corridors created by the folding glass walls may make noise, the glass panels keep the ambient sound levels within the rooms at levels required for optimal learning.

Guidelines published by the Acoustical Society of America (ASA), Melville, NY, state that ambient noise levels within classrooms should not exceed 35 dB, including the sound from HVAC equipment and sounds from the exterior or adjacent rooms.

In addition, the designers needed a wall system that would reduce sound flanking around the edges of the panels. To control flanking, the Hufcor operable partitions use a lever closure panel, an expandable closure that provides force across the entire system to squeeze the panels together. The 200 lb. of force creates a tight panel-to-panel bond, preventing
