New Energy For Historical Structure

Above. The large windows in Phillips Hall include arched tops and circular shapes, and even some casement windows with curved tops. Marvin windows were used throughout.

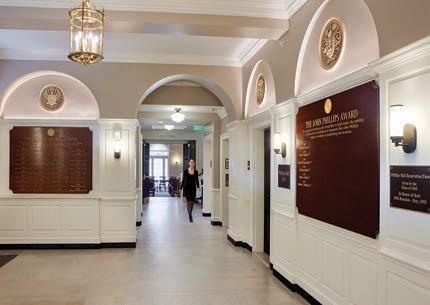

Top right. The entire Phillips Hall project followed principles of sustainable design and construction developed by a design team and school personnel.

Above. Some of the round-top windows went into newly created attic dormers, which turned a dreary, underused space into fi ve cheerful, comfortable new classrooms.

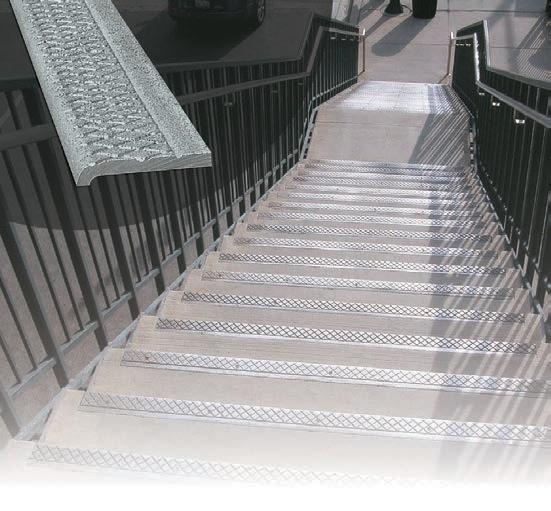

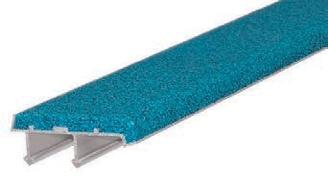

Make Every Step a Safe One... with ANTI-SLIP STAIR NOSINGS!

ALUMOGRIT ®

SPECTRA ®

SUPERGRIT ®

AVOID COSTLY SLIP AND FALL ACCIDENTS!

WOOSTER PRODUCTS

For more products & information visit us on-line or call:

www.wooster-products.com • 800-321-4936

that happened to the building over the last 50 years,” Laird said. Linear-fluorescent light fixtures had been installed throughout the building in the 1970s. By studying vintage photos, the design team was able to source pendant light fixtures in keeping with the style of the original fixtures.

The $10.6-million project was completed in August 2012, five years after initial planning began. The renovation has been well received by students and staff, said Laird.

“This is an important, almost iconic building for the school,” he said. “The school has a very long and rich history. It’s a beautiful building and I think the school really wanted to have the renovation reflect the integrity and character of the original building.”

Perhaps the best indication of how well the Phillips Hall project has been received: ARC is currently working on a similar renovation of the building next door. CBP

DATA CACHE

Want more information? The resources below are linked in our digital magazine at cbpmagazine.com/digital/oct2014.

Circle 9 on the Reader Service Card.

Learn more about geothermal systems in our Commercial Conversation podcast with Jay Egg.

In a Commercial Conversation podcast, Amy Stein talks about matching education technology with education design.

Learn about Marvin Window’s historical-renovation capabilities.

Sheet flooring

EDITORS’ CHOICE

Noraplan nTx sheet flooring is said to cut flooring installation time by as much as 50% when compared with standard PVC sheet installation. e flooring has a pre-applied, solvent-free self-adhesive that minimizes prep work and eliminates drying time. Resistant to moisture and with no pH limits, the flooring eliminates the need for moisture testing and remediation and requires minimal preparation of the concrete slab. Floors can be cleaned and walked on immediately after installation.

Nora Systems Inc., Salem, NH Circle 106

Deflection clip line Three-Legged Dog deflection clip line is said to reduce the risk of the clip being dropped during installation and reduces installation time. The clip slides over the top of a stud before it is lifted into place. Offered in a number of sizes including 1 5/8, 2 1/2, 3 5/8, 6, 8, and 10 in., the product provides 1 3/4-in. deflection in every size except the 1 5/8 in., which provides 1 1/2-in. deflection.

Flex-Ability Concepts, Oklahoma City Circle 107

Textile composite flooring Counterbalance collection Kinetex textile composite flooring is an alternative to hard surface flooring. Constructed of knitted polyester fabric and cushioned polyester felt backing, it is said to provide the durability of hard-surface flooring, the comfort and warmth of soft-surface flooring, and better acoustics and safety than either. Reported to be virtually unaffected by stains, the flooring resists crushing. The collection includes three 24 x 24-in. modules with a variety of patterns, colors, and accents.

J+J Flooring Group, Dalton, GA

Circle 109

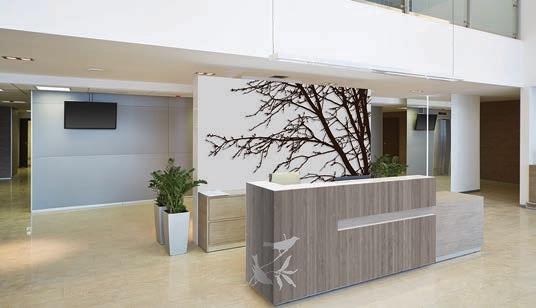

Bio-based laminates 2DL line consists of digitally customizable, sustainable laminates for vertical and light horizontal surfaces. The laminates are made of corn and soy byproducts. Available in more than 100 standard colors and textures, the material can match the look of other building products. Applications include wall paneling, tables, fixtures, and interior doors and cabinetry.

BioSurf, Montgomery, MN

Noraplan nTx:

Sheet flooring Has pre-applied, solvent-free self-adhesive Minimal preparation of concrete slab

Circle 108

Wood-flooring adhesive

Multi-powered wood-flooring adhesive is said to provide strong initial grab and minimize hollow spots while remaining easy to trowel and clean up. The adhesive provides moisture control, sound deadening, and crack bridging, is low VOC, and can contribute to LEED credits.

TEC, Aurora, IL Circle 110

Batt insulation SmartBatt insulation with MoistureSense technology is a kraft-faced fiberglass batt insulation that is said to manage moisture.

The product adapts based on moisture levels in the wall cavity, blocking moisture from entering when humidity is low and allowing the wall to breathe when it senses high humidity. It is available in R-values from R-13 to R-38 and installs like traditional kraftfaced insulation.

CertainTeed Corp., Valley Forge, PA

Circle 111

Commercial Building Products

Salsbury Industries

Luminous ceilings I-Set installation system for LVT is said to minimize disruptions and return spaces Mar, May, Jul/Aug, Oct to immediate operational status. Natural Creations LVT allows installations to be completed reportedly in half the time of traditional methods.

Armstrong World Industries, Lancaster, PA Circle 112

MirroFlex luminous ceilings provide an evenly lit, three-dimension ceiling. Thermoplastic ceiling tiles in a Tiffany White diffuser material are available in more than 50 3-D patterns. Colored gels can be added to change the mood of the room. The ceiling can be used with an existing grid system.

Vinyl-tile installation system Runs in: Greensboro, NC Circle 114

ATI Decorative Laminates,

Basket-weave mesh The company’s S-18 mesh pattern is a mid-scale basket weave. The checkered pattern’s low-percentage open area allows it to reflect color and light. Available in bronze or stainless steel, the weave allows walls to show through when used as a wall covering for a 3-D effect.

Banker Wire, Mukwonago, WI Circle 115

Roller-shade fabrics Color additions to the GreenScreen Revive fabrics for roller shades include Pewter and Onyx. The fabric is 100% PVC-free polyester and contains a minimum of 89% Repreve fibers. Fabrics are fire retardant, provide solar control, and are available for manual and automated window-shading solutions.

Mermet USA, Cowpens, SC Circle 116

Acoustic curtain wall SZ acoustic curtain walls are said to reduce noise levels inside buildings by as much as 22 to 25 dB. The modular, flexible walls can be custom fit for most existing spaces. Constructed of panels with an interior core of sound-dampening loaded vinyl and a layer of antimicrobial polyester batting, the core is layered between two panels of 18-oz. flame-retardant vinyl. The panels connect with Velcro and can be reconfigured.

Zoneworks, Milwaukee Circle 113
