Partitions Add Aesthetics, Durability To Science Center

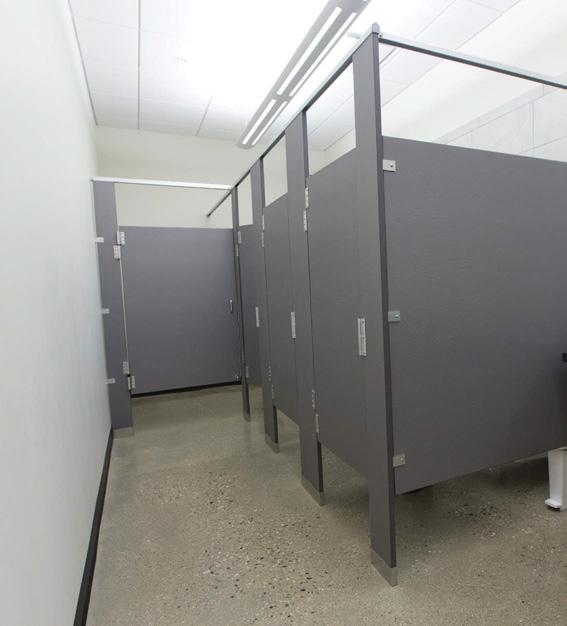

Above. HDPE, designed to look like metallic or wood fi nishes, is becoming popular among aesthetic-minded designers and maintenance managers who oversee cleaning staffs.

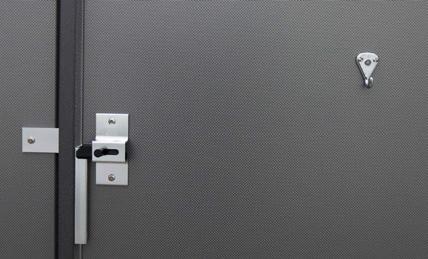

Top. The panels have a pattern of raised dots with a ridged texture. Though they are manufactured of solid plastic, the partitions have a metallic look without the cost of stainless steel.

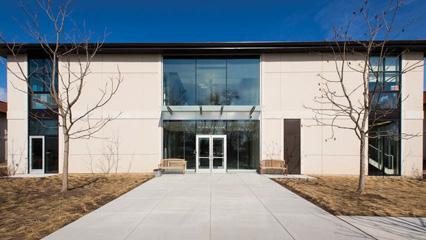

Above. The goal for the new Science Center at Lake Forest Academy was to create a learning environment that was clean and modern looking, with natural stone, concrete, and steel/chrome accents throughout the structure.

Partitions Add Aesthetics, Durability To Science Center Easy-to-clean HDPE partitions have the look of stainless steel, contribute LEED points, and reduce maintenance time and costs.

Although Lake Forest Academy in Lake Forest, IL, has a long history, construction of a new science center gave Kelly Mede, director of facilities, an opportunity to specify building materials from the ground up. “Since this was a science center, our goal was to create a learning environment that was clean and modern looking,” said Mede. “The plan was to have natural stone, concrete, and steel/chrome accents throughout the structure, as well as an atrium in the center.”

Selection of the bathroom partitions for the new science center was easy; Mede knew exactly what had worked in other buildings. “We’ve done several renovations here on the campus and, for the bathroom partitions, we had started to move away from traditional metal to HDPE, a material that is much more durable and easier to maintain,” said Mede, who oversees the repairs and maintenance of all the buildings on the campus. “The metal partitions had rust problems and required a lot of maintenance. Hinges need to be replaced frequently and the partitions peeled, so they often required repainting.”

With the help of their architectural specialties vendor, Prestige Distribution Inc., Northbrook, IL, Mede and the facilities team chose Scranton Products, Scranton, PA, Hiny Hiders solid-plastic bathroom partitions because they found them to be a durable product that would also alleviate many of the maintenance and cleanliness issues associated with the metal partitions. Constructed from HDPE, they also offer a sustainable solution for restroom stall partitions.

Mede suggested to the science building committee that they continue to use the Scranton partitions, and they concurred, choosing the Metallic collection’s stainless color with EX texture. The texture has a pattern of raised dots with a ridged texture. Though they are manufactured of solid plastic, the partitions feature a bold, metallic look without the high cost of stainless steel. Seven partitions were furnished and installed by Prestige Distribution in the science center—three in the men’s bathroom and four in the women’s bathroom.

“The key to this project was finding an alternative to expensive stainless-steel restroom partitions. The color and texture look just like stainless steel and are perfect for the contemporary design of the new science center,” said Mede. “Their sleek, modern look is exactly what we were going for.”

Cleaning can be a problem with wood or metal partitions, especially with mars in surfaces that can harbor bacteria or that are prone to graffiti. That is why HDPE, designed to look like metallic or wood finishes, is becoming popular among aesthetic-minded designers and maintenance managers who oversee cleaning staffs. Lake Forest Academy is fortunate not to have the vandalism issues that occur at many other schools and high-traffic facilities, but the EX finish that was chosen offers an additional layer of protection against scratching, markers, and other forms of vandalism.

From a cleanliness point of view, the partitions provide the academy with another substantial benefit. The non-porous surface of HDPE is naturally resistant to bacteria, odors, mold, and mildew. HDPE won’t retain germs, and the surface is easy to clean. Graffiti also wipes off easily with most non-abrasive cleaners. The partitions can be power washed and steam cleaned without the worry of rust eventually forming.

Today, according to Mede, the partitions have proven to be low maintenance. “We’ve had virtually no maintenance issues in any of the restroom stalls, and they look as good today as when we first installed them. We simply wash them down from time to time and they look virtually brand new after almost a year of use.”

The partitions are Greenguard Gold certified for improved indoor air quality, especially important in schools. They also contribute points toward LEED certification, another factor in Mede’s selection of the product. CBP

Want more information? The resources below are linked in our digital magazine at cbpmagazine.com/digital/apr2015. Circle 4 on the Reader Service Card.

Download a Scranton product brochure.

Download a materials brochure.

Universal converter

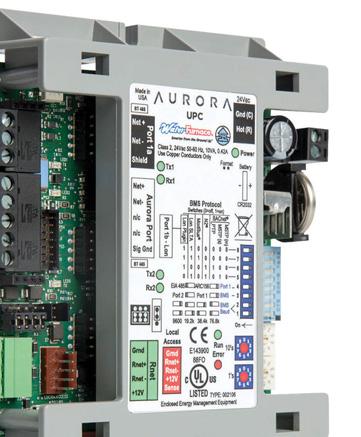

Aurora Universal Protocol Converter (UPC) is available on Versatec base, Versatec

Ultra, and Envision2 Compact products.

The device communicates with Aurora boards and converts the Modbus protocol to BACnet MS/TP, LON, or OpenN2 protocol.

The module provides access to unit sensors, relay operations, and faults and allows individual unit confi guration, all without manually accessing the heat pump. A portable touch-screen interface provides full access to equipment status, parameter values, temperatures, and humidity sensing, along with alarm and trend history.

Water Furnace International Inc.,

Fort Wayne, IN

Circle 77, waterfurnace.com

Geothermal heat pump Trilogy 45 Q-Mode variable-speed geothermal heat-pump system is said to provide effi ciencies of 45 EER, along with programming, monitoring, and control from any WiFi-enabled device. Q-Mode technology provides full-time, year-round water heating at 5.0 COP effi ciency and provides cooling by drawing heat from a space and into the unit’s iGate Smart Tank storage tank. With variable-speed technology that provides a wide range of heating and cooling capacities, the unit delivers its full rated capacity across its entire operating range (20 to 120 F entering water temperature). It can also match loads as low as 30% of maximum.

ClimateMaster Inc., Oklahoma City

Circle 79, climatemaster.com EDITORS’ CHOICE

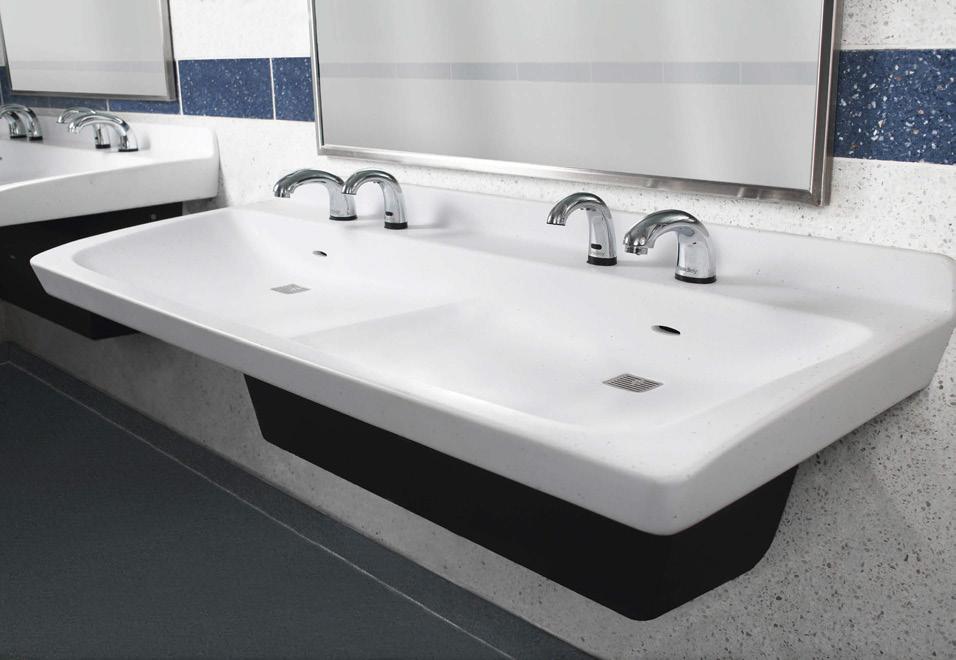

Multi-user lavatory

Express ELX:

Single-bowl, multi-user lavatory system Uses Terreon solid-surface material ADA compliant

Express ELX series lavatory system is said to be a contemporary alternative to china sinks and laminate countertops for commercial restrooms. Its single bowl, multi-user design provides contoured styling and personal hand-washing space.  e streamlined system accommodates three users at one time. Made of Terreon solid-surface material, seamless construction is said to eliminate mold and delamination.  e system uses a mounting plate for installation and requires only a single drain and supply rough-in. Available in a full line of Terreon colors, it may be speci ed as two or three stations with several faucet and soap options.  e  xture complies with ADA and TAS for barrier-free clearances and reaches for all users.

Bradley Corp., Menomonee Falls, WI

Circle 76, bradleycorp.com

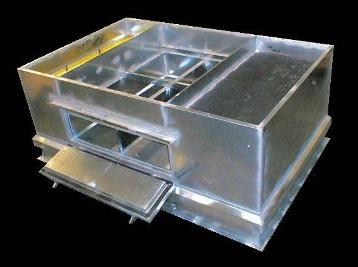

Filter curbs Filter curbs are manufactured to specifi cations and are usually shipped fully assembled. Curbs have welded construction, factory-insulated walls, an integral fi lter rack, and an access door for servicing fi lters. Options include a built-in roof pitch, extra height or installation of sound traps beneath the unit, and a pressure-treated wood nailer.

Thybar Corp., Addison, IL

Circle 78, thybar.com

Curved shower rods Curved shower rods offer an elegant look while increasing space and comfort in a shower. Permanent- or tension-mount options are available. Rods are available in a variety of fi nishes. They fi t standard shower curtains, liners, and rings.

Moen, North Olmsted, OH

Circle 80, moen.com

Air-cooled chillers Quantech air-cooled chillers ship from inventory, minimizing downtime. The units are said to offer as much as 50% annual energy cost savings, compared with the replaced chillers, have a low lifecycle cost, meet or exceed ASHRAE standards, and help earn LEED credit with low refrigerant charge. The line includes the QTC2 and QTC3 15- to 175-ton scroll chillers and the ATC4 160- to 210-ton screw chillers with variable-speed drives that are built to order.

Johnson Controls, Milwaukee

Circle 81, johnsoncontrols.com

Energy-recovery ventilator MiniCore energy-recovery ventilator provides preconditioned fresh outdoor air for applications from 300 to 1,000 cfm. The total energy core is constructed of a processed hydroscopic resin material layered in a cross-fl ow corrugated structure that separates the supply and exhaust air, ensuring only fresh air is introduced into the indoor space.

Greenheck, Schofi eld, WI

Circle 82, greenheck.com

Air-handling insulation Atmosphere air-handing products include a duct liner, duct wrap, and duct board solutions that use glass mineral-wool insulation that is formaldehyde free and DecaBDE free. Said to provide excellent thermal and acoustical performance, the products also meet the ULe/Greenguard Gold Indoor Air Quality standard. The product is reportedly easy to fabricate and install.

Knauf Insulation, Shelbyville, IN

Circle 83, knaufi nsulation.us

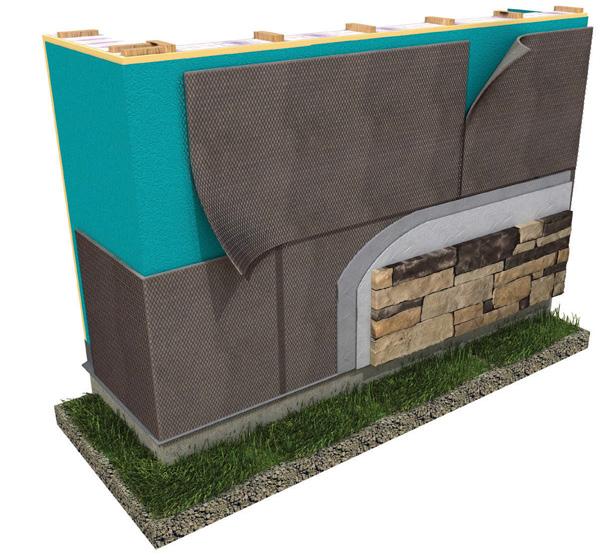

NEW *LathNet ™ - Drainage Mesh and Metal Lath in One
