Dirty Habit Diners Enjoy Historic View

When the dynamic glass is clear, the view from the surrounding patio into the front of the Dirty Habit reveals an exciting interior design.

Restaurant renovation in the Hotel Monaco DC uses dynamic glass to provide a comfortable view for occupants.

Located in the heart of Washington D.C.’s Penn Quarter, the Dirty Habit restaurant at the iconic Hotel Monaco DC offers an invaluable addition to the city’s thriving restaurant and bar scene. The hotel is located inside the classical revival architecture of the General Post Office Building, which was constructed in 1839 and has since been named a National Historic

Landmark.

The owner of the original Dirty Habit restaurant in

San Francisco was considering opening a restaurant on the East Coast and became interested in replacing the restaurant that had previously inhabited the Hotel Monaco for 14 years. The owner wanted to ensure the East Coast location would attract a multitude of diners and be as successful as its flagship restaurant.

The designer, Stanton Architecture, San Francisco, is known for overseeing the recent renovation of the building’s historic mail sorting room. The firm specializes in compelling design solutions for hospitality, historic preservation, master planning, and rebranding. Stanton teamed with interior designers at Dawson Design Associates, Seattle. The two firms were confronted with the challenge of creating a dynamic space that featured cutting-edge design while adhering to the General Service Administration’s (GSA), Washington, historic-preservation-committee requirements to preserve visibility to the General Post Office façade. The architects also knew the space had suffered from heat gain and glare in the past and the courtyard could get hot and uncomfortable in summer months.

Based on this information, the architects considered how they could create a space with structural glass to preserve views to the Post Office façade, while developing a

On hot, sunny days, the dynamic glass is darkened to keep diners comfortable inside. This view of the rear of the Dirty Habit shows the refl ected building across the patio.

cutting-edge design. Additionally, the architects wanted to ensure they would be able to combat heat gain and glare, since they would be replacing the previous restaurant’s traditional façade with an all-glass façade. They wanted to provide diners with a truly dynamic experience, so they would feel equally comfortable eating indoors or relaxing in the outdoor patio space.

The architects knew they would be unable to use traditional options such as blinds and shades, since those solutions would block views and interfere with the space design. After exploring a number of solar-control options, the architects chose SageGlass dynamic glass, Faribault, MN, for its ability to optimize daylight, outdoor views, and comfort while preventing glare, fading, and overheating. The dynamic-glass technology answered all of the architect’s design challenges by preserving the view to the façade, optimizing dining comfort, mitigating solar heat and glare, and creating a unique dining experience.

“When designing Dirty Habit, we wanted to ensure we took into account the ample outdoor patio space and provided unobstructed views of the General Post Office façade,” said Michael Stanton, principal of Stanton Architecture. “SageGlass provided us with the flexibility to create a dynamic restaurant with historical views that was both free from heat gain and glare and maximized the restaurant’s outdoor space.”

SageGlass partnered with glazing contractor Innovo Construction LLC, Washington , to install 2,042 sq. ft. of dynamic glass on the façade and skylight of the restaurant to provide diners with unobstructed views and a dining experience free from heat gain and glare. Diners are able to enjoy the outdoor patio space or can dine inside and still experience the ambiance of the outdoors, since the atrium’s dynamic glass walls that overlook the patio can be cleared by remote control. Additionally, the dynamic-glass façade stands out among the classical architecture of the General Post Office, attracting tourists and locals to the restaurant.

The restaurant, which officially opened in September 2016, features cocktails and social plates, edgy design, and an urban patio that encompasses an entire city block. Located across the street from the Smithsonian American Art Museum and the Smithsonian National Portrait Gallery, the restaurant attracts visitors from around the world.

CA

Want more information? To download the information listed below, visit commercialarchitecturemagazine.com/1707sage

Circle 9 on the Reader Service Card.

Explore the SageGlass portfolio. Learn about SageGlass technology.

Plan to dine at Dirty Habit.

Fire Resistant. Design Consistent.

Fire-Rated Aluminum Window And Door Systems

Aluflam has a complete offering of true extruded aluminum fire-rated vision doors, windows and glazed wall systems, fire-rated for up to 120 minutes. Available in all architectural finishes, our products are almost indistinguishable from non-fire-rated doors and windows. You won’t have to compromise aesthetics to satisfy safety regulations.

Aluflam North America 562-926-9520 aluflam-usa.com

Translucent wall system

Lightwall 3440:

Translucent wall-panel system Polycarbonate glazing options Anti-refl ective, infrared blocking, anti-graffi ti

Lightwall 3440 interlocking translucent wall-panel system has three polycarbonate glazing options: anti-refl ective, infrared blocking, and anti-graffi ti.  e anti-refl ective glazing facilitates a better distribution of light through a building interior, while reducing refl ections and glare. Infrared blocking fi lters out unwanted IR and UV waves and reduces solar heat gain. Projects in high-traffi c areas or at risk of damage or vandalism use the anti-graffi ti glazing that resists vandalism and scratching and is also more resistant to natural weathering and typical chemicals.  e Lightwall system is lightweight and said to be easy to install. In addition to enhancing a building’s appearance, the system meets performance specifi cations including high wind loads, impact resistance, fi re rating, air infi ltration, water penetration, and thermal and structural performance.

Extech/Exterior Technologies Inc., Pittsburgh Circle 58 Circle 58 extechinc.com extechinc.com

Patch fi lling for all-glass entrances A hydraulic patch fi tting for interior all-glass entrances uses a self-closing mechanism that is integrated in to the fi tting, eliminating cutting into the fl oor mechanism that is integrated in to the fi tting, eliminating cutting into the fl oor to install a conventional fl oor closer. Only the base plate is anchored to the to install a conventional fl oor closer. Only the base plate is anchored to the substrate. The fi tting has adjustable closing and latching speeds and a 90-deg. hold option. Designed for 3/8-in. or 1/2-in. monolithic tempered glass, it holds doors as heavy as 220 lb. and 39-in. wide.

C.R. Laurence Co. Inc., Los Angeles Circle 59 crlaurence.com

Wood-grain fi berglass door AF-219-1 contemporary wood-grain composite door is part of the All Fiberglass Composite door series. Constructed by factory bonding FRP face sheets to fi berglass stiles and rails, the doors are lightweight, strong, impervious to moisture, and resistant to rust, rot, and corrosion. The face sheet has a realistic wood look with cherry species replication in four stain colors.

Special-Lite Inc., Decatur, MI Circle 60 special-lite.com

Vinyl single slider Model 1630 vinyl single-slider window has dual-pane insulated glass. The slim profi le provides a large viewing area and unobstructed outlook. Available in two- and three-lite confi gurations, colors include white, clay, or almond.

MI Windows & Doors, Gratz, PA Circle 61 miwindows.com

Mortise lock Part of the Behavioral Health series, the 8200 series mortise lock with BHW trim provides an innovative solution for behavioral health environments. An integrated lever and escutcheon combines aesthetics with safety. All components have tapered surfaces. A Microshield antimicrobial coating is available.

Sargent Mfg Co., New Haven, CT Circle 62 sargentlock.com

Hurricane impact resistance ForceFront Storm curtainwall, storefront, and entrances provide hurricane impact resistance. The curtainwall systems use a 2 1/2-in. face pressure-bar system for single-and twinspan applications. Storefront systems are for use on first floor, single-span applications. Entrance doors complement the company’s curtainwall and storefront products.

Tubelite Inc., Walker, MI Circle 63 tubeliteinc.com

Wood-tone interior doors Woodview interior-door collection combines the durability of molded doors and hand-brushed finishing. The illusion of real wood emanates from a two-tone color process. Prefinished colors include hazelnut, chocolate, espresso, and amaretto. Six designs complement contemporary, traditional, and craftsman styles.

Jeld-Wen, Charlotte, NC Circle 64

Warm-edge spacer TGI-Spacer M is a high-performance, warm-edge spacer for large insulating glass units. By reducing the heat transfer at the glass edge, the spacer is said to minimize condensation on the interior glass surface.

Technoform Glass Insulation, Twinsburg, OH Circle 65 glassinsulation.us

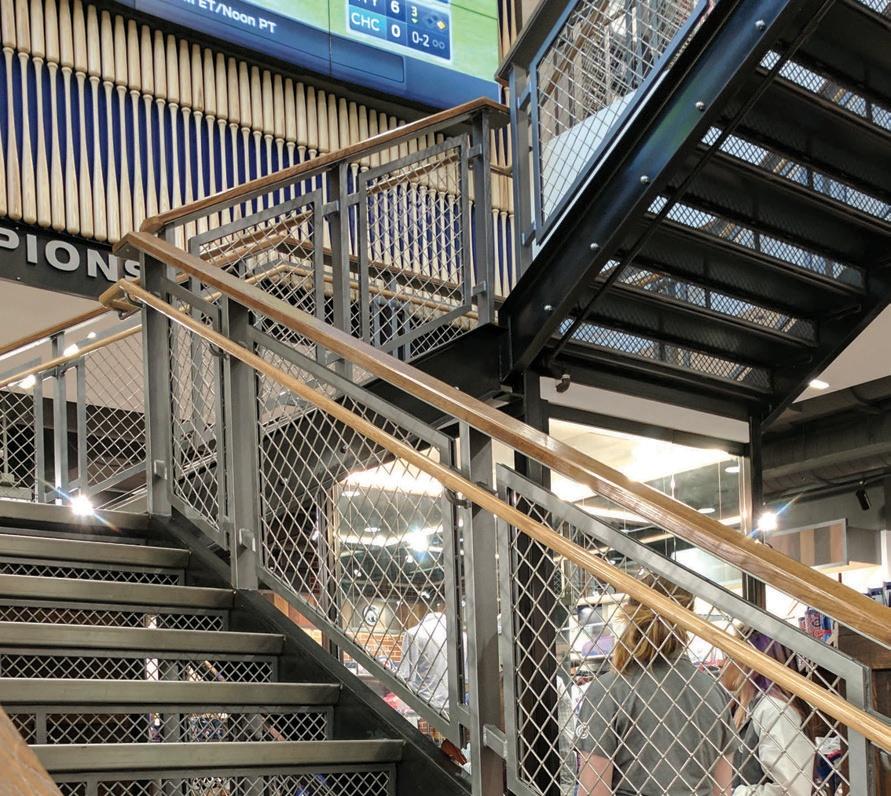

McNICHOLS ® Wire Mesh multitasks at the Cubs Store at Wrigley Field. The Carbon Steel Square Mesh forms railing infi ll panels, stairway risers, display cases and signage at the retail location of the 2016 World Series champions. More than 96 pieces were skew-cut and installed at a 45-degree angle to mimic the shape of a baseball diamond. The design result––a game-winning home run!
