Most-Wired Hospital Saves Big
by IdeaSoil
Ranked among the Top 100 “Most Wired Hospitals in America,” Major Health Partners Medical Center, Shelbyville, IN, relies on state-of-the-art technology to provide quality care. Photo: Tony Frederick Photography
Most-Wired Hospital Saves Big Major Health Partners medical center saves $360,000 annually.
Advertisement
Ranked three times in the Top 100 “Most Wired Hospitals in America” with the most advanced computer systems, according to Hospitals and Health Networks magazine, Major Health Partners (MHP), Shelbyville, IN, relies on state-of-the-art technology to provide quality care. This commitment to technology for patient well-being extends to the healthcare provider’s choice of building controls for its MHP Medical Center. Lynnwood, WA—based Alerton’s Ascent building-management system, along with other building design features, helps MHP save close to $360,000 in energy costs annually while providing a comfortable indoor environment.
The new MHP Medical Center—opened in January 2017—replaces the 59-year-old Major Hospital in Shelbyville. The full-service, replacement hospital occupies 305,000 sq. ft. and houses 55 inpatient beds and 38 outpatient rooms, along with operating rooms and medical office suites. Located outside Indianapolis, the hospital serves patients from throughout southeast Indiana and beyond.
MHP’s design objectives for the new medical center included using conventional heating and cooling systems in unconventional ways for significant energy-efficiency gains. To this end, the project team targeted an aggressive Energy Star goal of 95 or higher. “It will be one of the more efficient hospitals in Indiana,” said Douglas R. Hundley, Jr., PE, principal with CMTA Consulting Engineers, Louisville, KY. Hundley predicts the facility will use 53% less energy than the national average for hospitals (125 kBtu/sq.ft./year vs. 266 kBtu/ sq.ft./year).
One of the key challenges in meeting the project’s
Above. Upgrades were added to help improve the system effi ciency at the existing cancer center, and Btu metering was added in the hot- and chilled-water mains feeding the cancer center.
Right. Alerton controls help MHP Medical Center save a projected $360,000 in annual energy costs .
energy-saving goals is the new building connects to an existing 46,000-sq.ft. cancer center. Because the existing building was designed as a more conventional system, and energy was not a significant consideration when it was built, the new hospital central plant had the challenge of back feeding the existing heating and cooling systems. “Some minimal upgrades were added to help improve the system efficiency at the existing cancer center, and Btu metering was added in the hot- and chilled-water mains feeding the cancer center, so we could monitor energy usage and inform the owner if additional system adjustments need to be made,” said Hundley.
CMTA recommended numerous control strategies to help achieve the energy-savings goal for the new medical center. Among these was integrating operating-room occupancy sensors with the supply and return air terminals in those spaces to allow the airflow to be reduced while maintaining a positive pressure. The project team also specified a heat-recovery chiller to reclaim waste heat generated from chilled-water production and provide the hot water for all summertime reheat.
To help cost-effectively optimize building operations for energy savings, the project team chose the Ascent building-management system. The system includes Ascent control modules, Compass
software, and Microset 4 wall units. “Ascent’s features and ease-ofuse were the perfect fit for a sophisticated building owner operating a critical facility,” said Ed Ransom, vice president of operations for the Envelop Group’s, Indianapolis, Open Control Systems (OCS) division. Of particular benefit to the hospital is Compass software’s alarm management, scheduling, and trending capabilities, noted Ransom.
“We couldn’t have achieved the energy targets we set for this building without a sophisticated building-management system,” said Jeff Williams, vice president of facility operations for Major Health Partners. “This is a critical facility that will be used around the clock, and we wanted to ensure energy savings and comfort throughout—from the ORs to patient rooms to physician offices.”
Commenting on the power of the product suite, Hundley noted, “Recently, I was on site helping the owner evaluate a system deficiency, and using the controls, we were able to quickly diagnose the problem and fix it in a matter of hours. Typically, we would have had to have the controls contractor, mechanical contractor, and T&B contractor on site to correct this problem. With just some phone support, we were able to make the adjustments needed and address the problem.” CA
Want more information? To download the information listed below, visit commercialarchitecturemagazine.com/1711alerton
Circle 14 on the Reader Service Card.
Read about the hospital opening. Learn more about the Ascent BAS.
Learn about the Energy Star Commercial Buildings Program.
EDITORS’ CHOICE
Smart lighting control
E100 gateway:
Wireless device Provides local and IoT-based lighting control Compact
E100 gateway is a compact, Zigbee-based wireless device that provides local and IoT-based control for a wide range of lighting devices, accessories, fixtures, controllers, and switches for small- or medium-scale facilities. With a range of 328 ft., the network supports 130 devices in 30 different rooms. The unit supports code-compliant requirements for task scheduling, occupancy sensing, and daylight harvesting. Software supports as many as four daily programmable schedules with two-day groupings. The gateway measures about 2 x 2 x 1 in.
Cortet by CEL, Santa Clara, CA Circle 95 cortet.com
Building-automation system Metasys 9.0 building-automation system includes two IP/Ethernet-based controllers and user interface features. BAC-net IP field equipment controllers communicate on Ethernet IP networks and support increased network performance and bandwidth. The enhanced UI includes a Building Network feature that provides access to all objects defined under the system’s component hierarchy for familiar navigation and status. The building network view requires no configuration.
Johnson Controls, Milwaukee Circle 96 johnsoncontrols.com

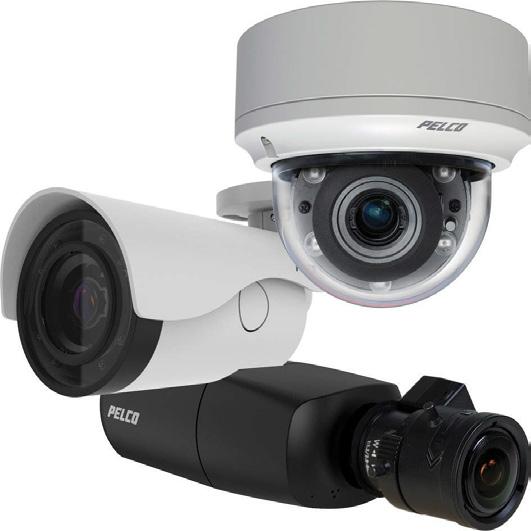

Enhanced IP cameras Sarix enhanced IP cameras with SureVision 3.0 technology have wide dynamic range (WDR) to deliver high-quality images in challenging lighting environments where highly contrasted lighting sources exist within the same scene. The cameras have an enhanced WDR of 130 dB, low-light performance with full color to 0.05 lux, anti-bloom technology, 3D noise filtering, and enhanced tone mapping for color accuracy.
Pelco by Schneider Electric, Clovis, CA Circle 97 pelco.com
Built-in camera intelligence The Autodome IP line of pan, tilt, and zoom (PTZ) cameras allow users to manually keep track of persons of interest as they move, even at speed, far beyond a fixed camera’s field of view. Built-in essential video analytics enable the cameras to understand what they are seeing. They generate metadata to add sense and structure to the video footage, instead of just capturing and storing video images. They not only detect objects, they deliver associated data like size, speed, shape, direction, and color, and automatically distinguish between the object types such as person, car, bike, motorcycle, or truck. The line includes the 4000i is for indoor use; the 5000i is for indoor/outdoor applications with a larger surveillance area.
