The Lighting Device
Student Outlook:
1. Skeleton: which will be the structure,

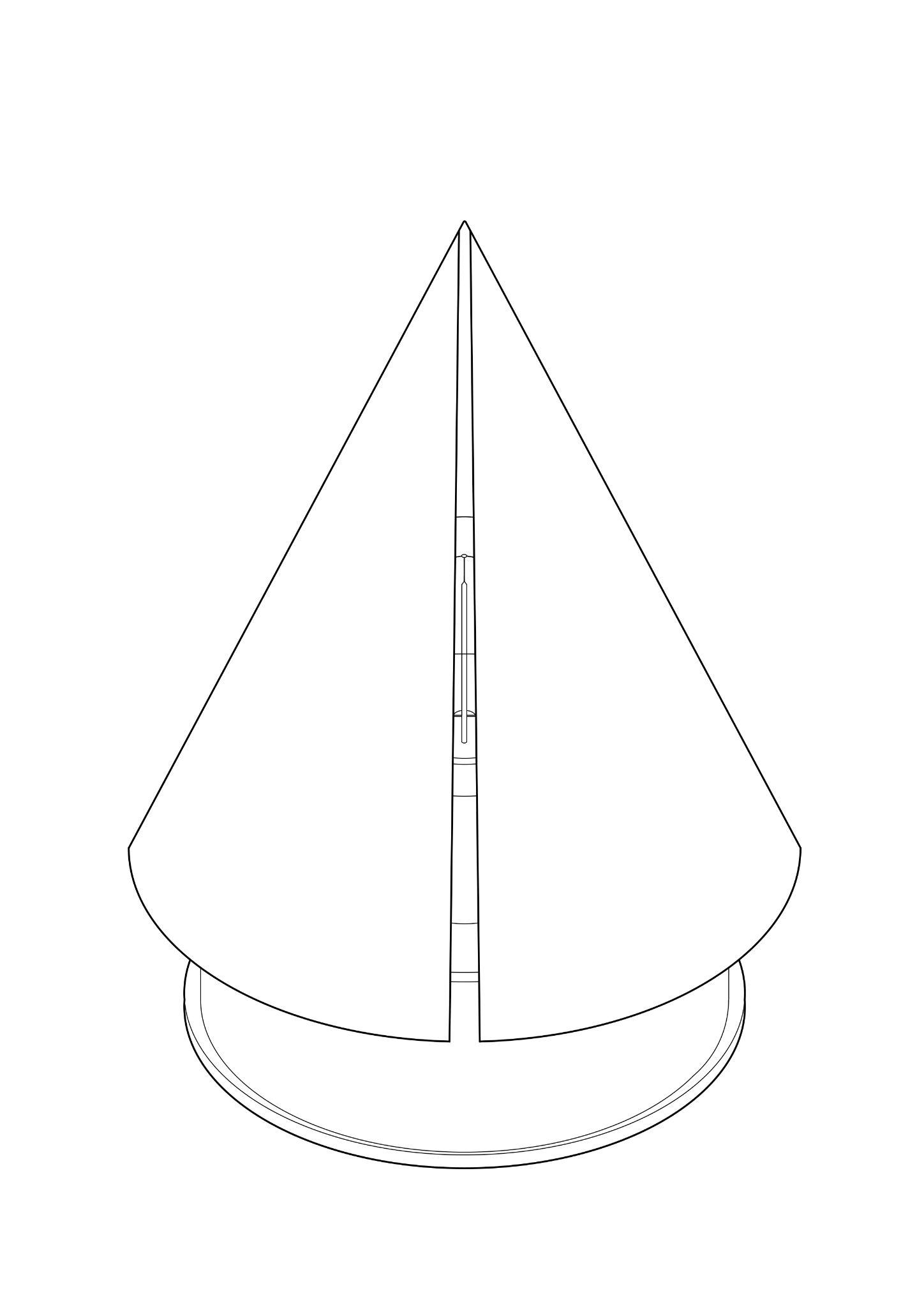

This lighting device serves to produce a diverging stream of illumination from a narrow triangular opening, whilst also allowing light to still radiate from the source in the shape of the (circular) base. The cone-shaped covering of the device, originally modeled from chipboard, was painted black to contrast the glow and brightness, thus reinforcing the light intensity. The protruding foot of the base was also painted black to complement the covering.
Referring to a given shape, design a lighting device to transmit light using the assigned method.
Design Objective: Design and fit together the three aforementioned elements in a practical and aesthetically pleasing manner (the skeleton may be an endo or exoskeleton).
● Cone ● Direction/spotlight
2. Skin: which will be the covering to diffuse, direct, reflect the light,
PROJECTBRIEF
3. Internal organs: which will be the electrical fittings, switch and bulb, possibly the reflecting, diffusion, directing device.
Device Specifications:
Assigned Features
focus - the design should cause the light to emerge from the form in a particular direction.
