01 │ Hospitality Design │ Hotel Karl 04 02 │ Community Center Design │ The Hope 46 03 │ Health Care Clinic Design │ Winthrop Care 64 04 │ Small Interior Projects │Spa Room & Cafe 78

Hotel Karl

01HOSPITALITY DESIGN │ HOTEL KARL

Project / Oakland Hotel Design

Instructor / Kathleen Valkuchak

Site / Oakland, California

Project Challenge :

Design a business model boutique hotel located down town Oakland, California. The hotel will primarily serve business guest, tourists, tech clients and cabin crew. It is an eight-story structure, with public spaces located primarily on the first and second floors, including an interior court yard on the first level. Floor 3-8 provides 60 guest rooms, 10 on each floor.

Project Solution

:

Hotel Karl will create a customer journey of relaxation that establishes changing perspectives through its vibrant art atmosphere.

Project Utilized : Revit, Sketchup, Enscape, AutoCad, Photoshop, InDesign

7

CONCEPT DEVELOPMENT

01 │ Design Inspiration

1 Jonathan Franzen’s short essay about fog

2 Key words related to the design concept

“Fog spilled from the heights of San Francisco like the liquid it almost was. On better days it spread across the bay and took over Oakland street by street, a thing you saw coming, a change you watched happening to you, a season on the move. Where it encountered redwoods, the most local of rains fell. Where it found open space, its weightless pale passage seemed both endless and like the end of all things. It was a temporary sadness, the more beautiful for being sad, the more precious for being temporary. It was the slow song in minor that the rock-and-roll sun then chased away.”

8 P R O J E C T 0 1
01│ 1 2 01│

02 │ Concept Sketches

1 Explore the possibility of a relationship between floors

2 Explore the form of the fog

3 Explore the circulation path in the building

PROJECT 01 │ HOSPITALITY DESIGN 9 3
02│ 02│ 1 2 02│ 1

CONCEPT STATEMENT

These images juxtapose obscurity and clarity, creat ing a contrast of the soft and the sturdy. A vibrant orange creates visual impact while a calm blue soothes the surrounding space. Space transitioning from narrow to open provides the patron an experi ence that mimics exiting the fog.

10 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022

02 │ Concept Statement

Jonathan Franzen, in his short essay about fog, has inspired me. I was moved by his detailed description of the way fog moves over a landscape from San Francisco to Oakland and by his intricate description of its interaction with the foliage and individual items in that landscape.

Oakland stands in the shadow of San Francisco as its sister city. The metamorphosis of the fog, as it moves, changes perceptions. The metaphor tells a story of Oakland’s journey from obscurity to clarity. Technology and economic growth have played a significant role in giving the city new life and highlighting its vibrant art and mixed cultures.

Taking the inspiration from the way fog moves over a city’s landscape, the concept behind the high-end boutique hotel is to embrace today’s Oakland and offer people changing perspectives through its vibrant art atmosphere.

The design speaks to the user’s triumphant journey, from snuggling in a cozy blanket from fog to reveling in bright open working space. Transforming space smoothly from calm to vibrant illustrates a newfound sense of freedom in the way that getting out of the fog encourages people’s ability to dream and enjoy their extended stay in the hotel.

The design elements mimic the behavior of fog’s tendency to roll in and its undulating patterns, now thick, now thin, now soft, now more solid, which depict the delicate structure while presenting changing perceptions of that structure.

PROJECT 01 │ HOSPITALITY DESIGN 11

SITE ANALYSIS

Address: 1544 Broadway Oakland, California

Neighborhood: Downtown Oakland Zoning: CBD-P

Lot Area: appox.area = 11370 Sq.ft

Target Audience: Business people, traveler, local visitor

Main Access : West Site of the Building at Broadway the main street at downtown Oakland Parking Access: Basement parking Transportation Near by: BART & bus station along Broadway

The site location provides great oppor tunities for hotel business. The cultural diversity and the history of downtown Oakland encourage visitor in the area to try new things. This building has shared property lines on the North, East, South-side of the building. Any areas that should have the best views will have a limited choice, and daylight will be more prominent in the South and West side of the building. The main entrance of the building locates at the West

12 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
Freeway Junction Point
01│
Broadway Street along Downtown
PROJECT 01 │ HOSPITALITY DESIGN 13 Competitor hotel near by Restaurant, Bar, Theater, Shops Art Galleries Museum around the site: 01 │ Downtown Oakland Map with Neighbourhood Analysis 1. Downtown Oakland 3D Map 2. Street View on Broadway 3. Across Street View 4. Fox Theatre 5. 17th Broadway Apartment Building 6. Project Hotel Building Model 8. Latham Square Office Building 9. Cathedral Building 03 │Adjacent buliding 02 │ solar and acoustic analysis 1 2 3 4 5 6 7 8 9 Noise Noise Pedestrian Site Plan Scale: 3/32” =1’-6” ALL Axis Enterprise Building 02│ 03│
14 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022 Courtyard View Street View NTS NTS Courtyard View Street View Staff Entrance Main Public Entrance
BUILDING ANALYSIS Building Entrance Building Exit Structural Wall Shaft Wall Non-Structural Wall Vertical Circulation Mech Shaft Exterior Views Natural daylight Exit Path Electrical Shaft Legend Airflow

Note:

• No existing plumbing

• With existing electrical shaft

• The main construction material on structural walls and columns are concrete

• Non-structural walls are concrete and metal stub

• The courtyard provides an excellent oppor tunity for natural daylight and air ventilation

Summary:

The potential of this building to be a boutique is being seen through the building analysts. The facade is facing Broadway street, which drag attention from the audience. It can be an ex cellent opportunity for hotel marketing. Variety of ceiling height at 1st and 2nd floor can have the potential to create an outstanding lighting design. The courtyard in the middle of the build ing gives a relaxing feature for the visitor while increasing air circulation between the building block. The east and south sides of the building receive a good among of sunlight during the day, which can be a great sustainability feature to reduce energy consumption during the day. The design challenge for the project is to create a smooth transition between private and public space while offering a unique experience fol lowing the design concept. Minimize acoustical impact for the guest and give more privacy for the guest in the hotel room and meeting room is part of the challenge.

PROJECT 01 │ HOSPITALITY DESIGN 15
NTS Courtyard View Street View NTS Courtyard View Street View Floor Height at West Wing of 1st Floor: 15’-5” Floor Height at East Wing of 1st Floor Floor Height at Each hotel unit : 9’-10” Main Public Entrance

PRECEDENT STUDY

Project Name: W hotel Guangzhou

Project Location: Guangdong, China

This W hotel project is has set an excellent example for my se mester project to design my hotel. The concept of the W ho tel is become a chic and energetic modern boutique hotel with southern Chinese culture touch. It successfully become a landmark in the area .The hotel design has aesthetically responded to the city, which took consideration to cultural and historical value in it. As one of the high-end hotel in the finance district, the overall space plan is functionally well. Exceptionally the lobby design smart to separate the hotel residence with the local guest in the public area at the floor level.

Design insights:

• Rich design elements incorporate in the space such as: wall and floor texture, upholstery textile

• Incorporating artworks, sculptures, crafted divider to increase the aesthetic level in the space

• Strong characters reflects the city culture

• Great lighting design blends in design concepts through out the space

Incorporating design elements that are meaningful to the community – culturally and historically

• Well contrast between soft and hard material on the floor and the furniture

• The lighting in the bar and restaurant increase the aes thetic level

01 │ Study Sketches

1 Lobby Lounge 1st floor Sketch

2 Lobby Lounge 2nd floor Sketch

3 Hotel Lobby Floor Plan

16 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
01│
PROJECT 01 │ HOSPITALITY DESIGN 17 02│ 1 4 1st Floor Plan (NTS) 2 3 02 │ Hotel Images 1 Check in area 3 Ballroom 3 Cocktail lounge 4 wair area seating 1 2 3 4
18 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
PUBLIC SPACE SEMI-PRIVATE SPACE PRIVATE SPACE TRAVEL PATH ENTRANCE PATH ENTRANCE PATH
DIAGRAMS & ADJACENCY
1st Floor 2nd Floor Sample-I 1st Floor 2nd Floor Sample-J 1st Floor 2nd Floor Sample-L 1st Floor 2nd Floor Sample-K LEGEND:
BUBBLE
MATRIX

PROGRAMS

SPACE OCCUPANCY TYPE AREA SQ.FT OCCUPANCY FACTOR OCCUPANCY LOAD FUNCTION REQ/AMENITIES AESTHETIC GOALS

LOBBY Group A-1 776 50 20

MANAGER OFFICE Group B 117 100 1

Reception desk, variety of lounge seating, baggage storage room, adjacent to ADA restroom, self check-in station

Private workspace with full size work station, computer chair, guest chair

Welcome and relax open space for audience, artistic lighting and feature wall

Natural color with cozy seating and natural daylight

OUTDOOR CAFE Group B 250 251 10

Outdoor Small scale cafe, variety of seating, service cafe bar

RESTAURANT X2 Group A-2 722 25 28

KITCHEN X 2 Group H 400 200 2

Two medium scale restaurant with variety of restaurant seating suitable for group, small wait area, buffet station, cashier desk

Commercial kitchen for food preparation and storage, groceries delivery, direct access to trash chute

Casual comfortable and welcome cafe with warm lighting

Relax dining environment with warm lighting

Functional space with light color wall and bright and functional lighting

COCKTAIL LOUNGE Group A-2 595 30 17

BALLROOM & BANQUET ROOM Group A-1 1400 15 93

Lounge and bar seatings, bar counter, bar stool, adjacent to the Lobby and Kitchen

Multi-function room capable for large events ,meetings, exhibits, table and chair storage room, mechanical room, projector

Dark and dramatic space with artistic lighting

Artistic carpet and ceiling light, warm and bright adjustable lighting

CONFERENCE ROOMS x 3 Group A-2 300 30 10

HEALTH CLUB & SPA Group A-2 1721 100 17

One Small and two medium meeting room for business use,conference table and chair, build-in speaker, TV screen, projector,cabi net,window view, acoustical ceiling

Small health club for hotel guest, fitness equipments with running machines and weights, fitness flooring, acoustical ceiling, full mirror wall, towel rack, shared hot tube, women’s and men’s separated changing room with Sauna room and shower room.

Bright and warm open space

Relaxing environment with Bright open space and even lighting

BACK OF HOUSE Group H 650 60 10

Outdoor Seating Area Group A-2 2134 100 21

Small service room, janitorial closet, staff locker, laundry room, house keeping space

Variety table and seating for guest ,,t can also be free work space and seating for hotel guest.

Bright and natural color

Free and relax outdoor environment surrounding with green landscape

PROJECT 01 │ HOSPITALITY DESIGN 19

SPACE PLANNING & EGRESS PLAN

Level 1 Level 2

20 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022

Level 3

PROJECT 01 │ HOSPITALITY DESIGN 21
22 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
1 3 2
DESIGN PROCESS SKETCHES
PROJECT 01 │ HOSPITALITY DESIGN 23 Space Sketches 1 Reception Area 2 Cocktail Lounge 3 Lobby Seating 4 2nd Floor Open Seating Area 5 Guest Room 4 5
24 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022 MARBLE FLOOR AREA CARPET MARBLE FLOOR ACOUSTIC CARPET FLOOR CHEVRON PORCELAIN TILE CARPET TILE FLOOR OUTDOOR STONE TILE FLOOR ACOUSTIC CARPET FLOOR A. B. C. D. E. E. G. H I J K L M N O p. Q. LEVEL 1 - FURNITURE PLAN

A. Cocktail Lounge

B. Lobby Seating

C. Reception

D. Wait area Seating

E. Luggage Room

F. Men’s Restroom

G. Women’s Restroom

H. Kitchen

I. Restaurant

J. Manager Office

K. Courtyard Outdoor Seating

L. Mini Cafe

M. Gender Neural Restroom

N. Ballroom & Banquet Room

O. Storage

P. Gift Shop

Q. Back of House

PROJECT 01 │ HOSPITALITY DESIGN 25
1 Selected Textile & Furniture
01│Level
26 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022 CARPET TILE FLOOR ACOUSTIC CARPET FLOOR CHEVRON PORCELAIN TILE MARBLE TILE PORCELAIN TILE WOOD FLOOR ACOUSTIC CARPET FLOOR GYM FLOOR A. B. C. D F E H G J. I K L N M LEVEL 2 - FURNITURE PLAN

A. Open Seating Area

B. Small Business Center

C. Patio Cafe

D. Gender Neutral Restroom

E. Kitchen

F. Conference Room #1

G. Conference Room #2

H. Conference Room #3

I. Break Room

J. Health Club & Spa Center

K. Women’s Changing Room

L. Men’s Changing Room

M. Resting Area

N. Jacuzzi

PROJECT 01 │ HOSPITALITY DESIGN 27
01│ Level 2 Selected Textile & Furniture
28 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
REFLECTED CEILING PLAN Level 1
PROJECT 01 │ HOSPITALITY DESIGN 29
Level 2

LIGHTING FIXTURE & CEILING MATERIAL

COCKTAIL LOUNGE AND LOBBY

SD

2'3" GYP.BOARD +14' A.F.F

WATER RIPPLE STAINLESS STEEL PANELS +13' A.F.F GYP.BOARD +14' A.F.F

GYP.BOARD +10' A.F.F

a

FLOOR & CEILING COVE LIGHTING

Recessed Wallwasher

5'6" 3' - 1"

4'0"

4'0"

Recessed Down Light b

GYP.BOARD +11' A.F.F GYP.BOARD +9' A.F.F GYP.BOARD +8' A.F.F

GYP.BOARD +8' A.F.F

SD SD SD SD SD SD

5'6" 8'0" 8' - 0" 8' 0" 8' - 0" 8' - 0" 8' - 0" 8' 0" 8' - 0" 1' 10" 3'2"

CEILING COVE LIGHTING ALONG THE OPENING SD

FLOOR & CEILING COVE LIGHTING FLOOR & CEILING COVE LIGHTING

8'0" 10' - 9"

GYP.BOARD +14' A.F.F

9'0" 2' - 0" 3' - 0" 4'0"

4' - 2" FLOOR COVE LIGHTING LEGEND SD

4' - 10" 4' 5" 3' - 7" 4'1" 4'0"

7" 2' - 0" 2'10" 2'10" 4'0"

2'1" OPEN ABOVE

5'6" 5' - 1"

5'6"

4'2" 4'2"

4'2"

5'6" EQ EQ 2'9" 2'0" 8'0" 8'0" 8'0" 8'0" 3'0"

4'2"

4'2"

GYP.BOARD +10' A.F.F GYP.BOARD +14' A.F.F GYP.BOARD +14' A.F.F GYP.BOARD +13' A.F.F GYP.BOARD +9' A.F.F

6' - 0" 6' 5' 6" 5' 3'0" 2'0" 7' - 9" 2' - 9" 2'0" 2'0" 4' - 6" 2' - 5" 3' - 0" 2' 4'0"

4'2"

SD SD

3/32" = 1'-0" Level 1 RCP

Exit Sign Smke Detector LED Cove Light Padent Light (Note Bottom of fixture mounted 3' 0" from clg)

Emergency Lights a 6' Linear Fluorescent Custom Surface Mounted Lights

Padent Light A (Note Bottom of fixture mounted 3' 0" from clg) Padent Light

30 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022 Back of house
EQ EQ EQ EQ
EQ EQ 5' -
EQ EQ EQ EQ EQ
EQ EQ EQ EQ
4'0"
3' 0" 4' - 0" 4' - 0" 4'0" 4'0" 4'0" 6'10" b b b b 3'0" 3'0" 3'0" 3' - 6" 3' - 6" 8' - 0" 8' - 0" 8' - 0" 3' - 0"
0"
3'8" 2'0" 3' - 0" 4' - 0" 2' 5" 2'0" 2' - 0" 5'0" 5'0" 9'2" a a a a a a a a a a a a 3' - 0" 3' 0" 7' - 0" 3' 0" 7' - 0" 3' - 0" 3' - 4" 7' - 4" 3' - 5" 2'7" 3' - 6" 3' - 6" 4' - 10" 2'0" 2' - 2" 2'0"
3'6"
PROJECT 01 │ HOSPITALITY DESIGN 31 CONFERENCE ROOMS AND OUTDOOR DINING DN UP 780 SF Patio Cafe 565 SF Conference Room 2 290 SF Conference Room 1 393 SF Conference Room 3 233 SF Small Business Center 1719 SF Health Club & Spa Center Storage Media Wall 263 SF Kitchen 157 SF Gender Neutral Restroom 19 SF Janitory 125 SF Break Room OPEN ABOVE 2'0" 2' - 5" c c c c 4' - 0" 4' - 0" 4' 0" 2' - 5" 4' - 0" 4' - 0" 4' 0" 4' 8" 4' 0" 4' 0" 8' 7" 4'6" 2' - 11" 3' 0" 4' 4" 1' - 9" 6'0" 1' - 2" 6'0" 1'6" 1'6" 1'6" 6'0" 6'0" 6'0" 6'0" 2'10" 4' - 0" c c c c c c c 3'8" 5'10" 2' - 11" 5' 0" 2'0" 3'3" 3'0" 2' 2" 3'4" 2'9" 7'10" 9' 3" 4' 5" 4' - 3" 3' 9" 6' 0" 6' - 0" 6' - 0" 4' 0" 5' - 3" 4'0" 2'1" 4'6" 4'6" 7'1" 3' - 0" 2' 10" ARMSTRONG FELTWORKS BLADES RECTANGULA PANEL +9' 10" A.F.F ARMSTRONG ACOUSTICAL CEILING PANEL +9' 10" A.F.F ARMSTRONG DRYWALL CELING +8' 10" A.F.F ARMSTRONG ACOUSTICAL CEILING PANEL +9' 10" A.F.F ARMSTRONG SOLID WOOD PANEL +8' 10" A.F.F GYP.BOARD +9' 10" A.F.F GYP.BOARD +9' 10" A.F.F GYP.BOARD +9' 10" A.F.F GYP.BOARD +8' 10" A.F.F GYP.BOARD +8' 10" A.F.F GYP.BOARD +8' 10" A.F.F GYP.BOARD +8' 10" A.F.F GYP.BOARD +9' 10" A.F.F GYP.BOARD +9' 10" A.F.F GYP.BOARD +9' 10" A.F.F GYP.BOARD +9' 10" A.F.F GYP.BOARD +9' 10" A.F.F GLASS CEILING WITH WOOD GRIDS +9' 10" A.F.F ARMSTRONG SOLID WOOD PANEL +8' 10" A.F.F 2' - 4" 5' - 0" 5' 0" FLOOR & CEILING COVE LIGHTING WATER RIPPLE STAINLESS STEEL PANELS +9'10" A.F.F 4'6" 4'6" 4'6" 4' 6" 4'6" 4' 6" 4' 6" 4' 6" FLOOR OPENING c 4'6" LEGEND Recessed Wallwasher Recessed Down Light 4' Track Light b Padent Light A (Note Bottom of fixture mounted 3' 0" from clg) Padent Light (Note Bottom of fixture mounted 3' 0" from clg) Decorated Ceiling Art (Note Bottom of fixture mounted 3' 0" from clg) Wall Sconce Exit Sign LED Cove Light Padent Light (Note Bottom of fixture mounted 3' 0" from clg) c Floor Cove Liting Exhaust Fan Emergency Lights a 6' Linear Fluorescent Custom Surface Mounted Lights D SINGLE POLE DIMMABLE SWITCH 3/32" = 1'-0" Level 2 RCP

LOBBY AREA

The fireplace will bring up the cosiness and relaxation when people first walk in. The Dark marble flooring has good contrast the light wall and fireplace to evoke the relationship between ocean and fog. The glowing translucent acrylic wall and the flowing art fixture of the ceiling are chang ing people’s perception. The wavy paten is adding texture to the walls to present the way fog moves — cozy furniture with or ange and blue color best to address Oak land’s city color.

PROJECT 01 │ HOSPITALITY DESIGN 33

RECEPTION AREA

The reception and wait area carry the same design element from the lobby. While space is more bright and open, the organ ic curve opening at the ceiling will allow people to travel up and down use the spiral stairs. The mirror wall behind the reception table reflects light which changing peo ple’s perception of the space. The trans lucent mesh creates a blurry effect which mimics the uncleanness in the fog.

PROJECT 01 │ HOSPITALITY DESIGN 35
PROJECT 01 │ HOSPITALITY DESIGN 37 03│ 01│ 2 1 01│ Selected textile & Furniture 1 Translucent Metal Mesh Ceiling Scripture 2 Translucent Metal Mesh Screen 3 Bronze Wall Trim 4 White Marble Floor RECEPTION AREA 3 4

The cocktail lounge is adjacent to the hotel’s main entry and lobby. The translucent divider creates a blurry boundary between the lobby and the lounge space. The curved ceiling cov ed by water ripple pattern stainless steel finishes which softly relate the surrounding environment. The glowing bottle shelves with colorful sliders give the space a fun and dramatic feeling.

38 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022 01│
COCKTAIL LOUNGE
PROJECT 01 │ HOSPITALITY DESIGN 39 01│ Selected Textile & Furniture 1 Ceiling Finish - Water Ripple Stainless Steel Sheet 2 Red Velor Upholstery 3 Leather Seating Upholstery 4 Bar Stool 5 Red Velor Lounge Chair 6 Dark Marble Table 01│ 4 5 6 1 2 3

The restaurant adjacent to the hotel lobby will be a fine-dining space serves the hotel’s guest and local visitors. The design is to use a mixed texture of solid and translucent creates a contrast that mimics the relation between Oakland past and cur rent. Texture walls with soft and hard metal will create a beauti ful contrast with harmony.

40 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022 04│

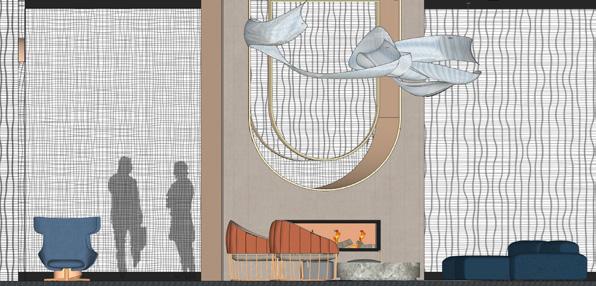

01│ Selected Textile RESTAURANT ELEVATION 1 Small Dining table 2 Blue Leather Dining Chair 3 Gubi Multi-lite Pendant 4 Tom Dixon Pendant 5 Soseego Wood Dining Table 01│ 02│ Selected Furniture & Lighting Fixture 1 Acrylic Wall 2 Metal Texture Wall 3 Wave Wall paper 4 Velor Chair Back 2 1 3 4 02│ 1 2 3 4 5

BALLROOM ELEVATION

The ballroom has so much potential the be a great event room. The design idea will bring in the illuminating walls to be part of the highlight in the room. Cove lighting behind the acrylic walls can be changed with different color themes. Using Acoustical ceiling can use to reduce the sound impact in the ballroom.

PROJECT 01 │ HOSPITALITY DESIGN 41
01│ Selected Textile Furniture & Lighting Fixture 1 Translucent Acrylic waved Wall 2 Wall Paper 3 Burgundy Ballroom Chair 4 Vertical Wall Scones 5 Armstrong Acoustical Ceiling 01│ 2 1 3 4 5

The relaxing area in the health club will focus on bringing in the Biophilic design element to enhance the connecting between out door environment to indoor. The planter in the space can increase the indoor air quality while creating a calming environment for the user.

42 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
HEALTH CLUB ELEVATION
02│ Modally Fabric Sofa 01│ Pendant light with Planter
PROJECT 01 │ HOSPITALITY DESIGN 43 03│ Wall Material 1 Bronze Wall Finish 2 3D Waved Texture Wall Paper Planter 03│ 1 2 01│ 02│

HOTEL GUEST ROOM

The guest model room has a studio layout with a mini kitchen. Inspired with down town Oakland’s vibrant art culture, the color theme falls into orange and blue to create a contrast. Brown mirror wall and glass pendant light contrast with soft blue and gray seating upholstery. The guest room will use soft, warm lighting to create a chic and fun relaxing environment for the visitor.

44 P R O J E C T 0 1 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
FORBO ALLURA LUXURY VINYL TILE FIRECLAY PORCELAIN TILE
2 9 4' 0" 4' 3" 3'4" 1' 4" GYP.BOARD GYP.BOARD +9' 10" A.F.F GYP.BOARD 4' 2" D D D D D D D LEGEND Recessed Wallwasher Recessed Down Light 4' Track Light Padent Light A (Note Bottom of fixture mounted 3' 0" from clg) Padent Light (Note Bottom of fixture mounted 3' 0" from clg) Decorated Ceiling Art (Note Bottom of fixture mounted 3' 0" from clg) Wall Sconce Exit Sign LED Cove Light Padent Light (Note Bottom of fixture mounted 3' 0" from clg) c Floor Cove Liting Exhaust Fan Emergency Lights 6' Linear Fluorescent Custom Surface Mounted Lights SINGLE POLE DIMMABLE SWITCH 1/4" = 1'-0" Level 3 GUEST ROOM RCP
FORBO ALLURA LUXURY VINYL TILE
PROJECT 01 │ HOSPITALITY DESIGN 45 BROWN ACRYLIC WALL 3D WAVED WALL PAPER TRANSLUCENT ACRYLIC WALL 1 2 3 4 5 01│ 02│ 3 02│Selected Textile 01│Selected Furniture & Light Fixture 1 Bed Side LED Pendant Light 2 Sannerman Orb Pendant Light 3 Molly Group Sofa 4 SSQ Coffee Table 5 Osen Arm Chair

HOTEL GUEST ROOM

The guest model room has a studio layout with a mini kitchen. Inspired with downtown Oakland’s vibrant art cul ture, the color theme falls into orange and blue to create a contrast. Brown mirror wall and glass pendant light contrast with soft blue and gray seating upholstery. The guest room will use soft, warm lighting to create a chic and fun relaxing environment for the visitor.

PROJECT 01 │ HOSPITALITY DESIGN 47

Project / Community Center Design

Instructor / Ryadi Adityavarman

Site / Portland, Oregon

02Community Center Design │ The Hope

Project Challenge :

Design a community center based on the research of mul tiple cultures environment. The project intention is to de sign a community center that will serve the new refugee population, relocating from different countries around the world. Create a space that is innovative and cohesive with the latest trends in design which will welcome new immi grants and provide them with social services, education, temporary housing, and community connection as they journey toward self-sufficiency and adjust to life in a new city. Culture factors become an important aspect during the design. We need to put a respectful consideration of the unique aspects of cultural diversity this project while establishing a proper common/universal design decision.

Project Solution :

While incorporation sustainable design strategy, the com munity center incorporates the innovative Biophilic design elements into a healing and encouraging environment that values people health, enables them to feel protected while still at peace. The center will provide users a heal ing environment to overcome their life challenge in a new country with the help of the center and its employee. The programing of the design will be basic on need of the users as will as providing the foundational space in the center to meet the need in social services and education.

Project Utilized

: Revit, Enscape, AutoCad, Photoshop, InDesign

49

CONCEPT DEVELOPMENT

Project Constrains :

My initial considerations were concerning the future users and their experience as a whole – from leaving their home and re locating to a foreign place. Refugees are probably consumed with all kinds of emo tions from fear to insecurity or hope and motivation. When we did our research and discussion on the building users, I thought about the many possibilities as to why they needed to leave their home and what they were possibly looking for or hoping to gain in their new home. These thoughts are what primarily drove my thinking re garding my project’s design aesthetic and what I wanted the elements to represent or illustrate. I also considered the client as far as the purpose of the space and how they equally would like the design to il lustrate the heart behind their services.

Regarding aesthetics, I thought of the re al-life reviews of the building and how it is an eye-sore. It really puts the impact of design decisions in perspective so I want ed to make sure that space blends well with its surroundings so that it can be em braced and received in a positive man ner because I feel that this will also affect how the users of the space are received

04│

04│ Mood Board

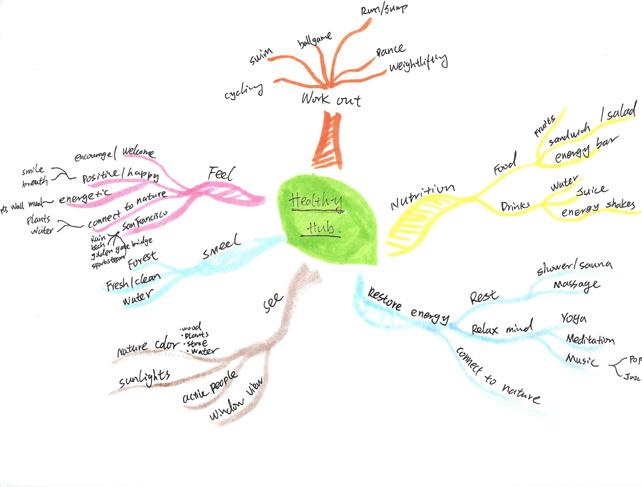

Nature has incredible healing powers. When stepping into a natural landscape, our bodies transition to peaceful state of mind. We let go of our worries and are able to appreciate the present moment. Forest bathing is defined as taking in the atmosphere of the forest in order to heal the body and mind. Immersing oneself in a natural green environment not only has mental benefits but also has been shown to heal the body physically.

50 P R O J E C T 0 2 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022

Concept Statement

Inspiring by incredible healing powers from mother nature. The design speaks to the user’s triumphant journey from lost dignity to redefine their life. Dignity is defined as a sense of pride in oneself, a sense of self-re spect. It flows from the nature of the hu man being, and being an extension of our understanding of the positive values we all possess. Dignity gives dignity, it does not grow by putting down others but rather grows when one recognizes the dignity, the inherent worth of others. As it comes from the nature of our humanity, it is the birthright of every human being. Design elements of organic patterns depict the delicate struc ture of the organism while Biophilic ele ments of raw textures and foliage reflect the creature’s habitat. This aligns with the concept that illustrates a newfound sense of freedom, opportunity, and well-be ing for the user; encouraging their ability to fulfill their highest hopes and dreams.

PROJECT 02 │ COMMUNITY CENTER DESIGN 51

CONCEPT SKETCHES

01 │ Beginning Concept

1 Organic forms from nature

2 Public area relax seating is inspired from primitive hut and bird’s nest. These semi-private seating will wel come visitor to enjoy their stay as a individual or group.

01│

1

02│ Cafe & Open Seating

52 P R O J E C T 0 2 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
Because of many culture group of people are comfortable knee down or a seat on the floor, design a free platform seating close to the ground instead of using formal chairs is more welcoming. The green floor and hanging plants are evoking the Biophil ic design to bring the outdoor landscape indoor to create a relaxing environment for healing and nursing people. 2 2
02│
PROJECT 02 │ COMMUNITY CENTER DESIGN 53 03 │ Schemetic Design Concepts 1 Level 1 Area Schemetic floor plan 2 Reception Area 3 Lobby Open Seating 4 Level 2 Schemetic Floor Plan 03│
rock climbing area near by entrance on a green floor with kid’s and adult seat ing.
Floor Schemetic Floor Plan 1 2 3 4 2nd Floor Schemetic Floor Plan
Kid’s
Reception Area 1st

SITE ANALYSIS

01 │ Site Information

Site Location : NE 60th Ave and Holladay Street

Site Location : Portland, Oregon

Site Size: 8,750 sq ft

Neighborhood: Rose City Park Zoning: EG2

Building Type: Type-V

Key Consideration:

• Addressing safety for pedestri an site access; crossing NE 60th Ave

• With the railroad right of way and the freeway backing up to this side of the building noise concerns

• Balancing quality views with quality of light coming in from east and west

• Utilizing environmental friendly practices during constructionimportant value for this region

NOTE:

W E

Winter Wind Summer Wind

Normandale Park (Large Park)

Houses

Industrial Park / Automotive shop

Freeway I-84 /Free 30

Transpotaion

Sun Path

Main Traffic Path

Secondary Traffic Path

Facing secondary traffic , houses view / Low noise level / Less natural lights

Facing main traffic , Industrial Park area, and nearby freeway view / High noise level / More natural lights

Recomanded the main entrance facing north.

54 P R O J E C T 0 2 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
SITE Student: Hebe Chen

Level 1

- Lobby / Reception

- Cafe

- Kid’s Play Area

- Community Room

- Meditation Room

- Men and Women ADA Restroom

Level - Services Office

- Computer Lab

- 3 classes Class rooms

- Men and Women ADA Restroom

PROJECT 02 │ COMMUNITY CENTER DESIGN 55 1 Level 1 Block diagram
Level 2 Block diagram
│ Block Diagrams PROGRAMS
1
2
2
02
AND DIAGRAMS 01│ Project Programs
02│ 1

AND

Automatic sky window allow hot air escape from the building helps to cool down the building in summer while improving the indoor air quality

56 P R O J E C T 0 2 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
3D MODEL
ELEVATION PLAN 01 │ 02│ 1
Lobby Reception Office Reception & Computer Lab Service Office Family Activity Area Patio / Outdoor Seating

Sky dome window on top of the opened floor area to bring in natural daylight in the building for the living plants.

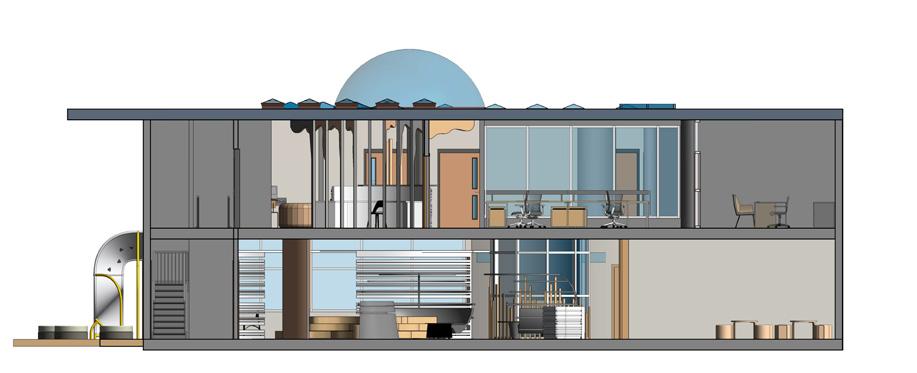

PROJECT 02 │ COMMUNITY CENTER DESIGN 57 01 │ Building Exploded Econometrica Plan 02 │ Building North Elevation 1 North Elevation 2 East Elevation
2 Cafe Opened Seating
Area
Atrium
& Computer Lab Class Room Community Room

01 │ Community Center 1st Floor Plan

A. Lobby Reception

B. Lobby Wait Area

C. Kid’s Play Area

D. Cafe Bar

E. Cafe Seating

F. Opened free Seating

G. Small Group Seating

H. Cafe Manager’s Office

I. Community Room

J. Meditation room

K. Window Side Soft Seating

L. Elevator

M. Mechanical Room

N. Janitor’s Closet

O. Storage

P. ADA Women’s Restroom

Q. ADA Men’s Restroom

R. Residential Units for Refugees

58 P R O J E C T 0 2 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
A. A. C. E. I. J. O. B. D. G. G. F. H. I. J. K. L. M. N. O. P. Q. R.
R. 01 │ LEVEL 1 - FURNITURE PLAN
PROJECT 02 │ COMMUNITY CENTER DESIGN 59
A. Office Reception & Wait Area
B. Open Work Space
C. Manager’s Office D. Class Room # 1 With Stairs Seating
E. Women’s Restroom
F. Men’s Restroom G. Janitor’s Closet H. Storage
02 │ Community Center 2n Floor Plan R. R. 02 │ A. B. C. D. E. F. G. H. I. J. K. L. LEVEL 2 - FURNITURE PLAN
I. Computer Lab J. Resting Space K. Classroom #2 L. Classroom #3
60 P R O J E C T 0 2 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
PROJECT 02 │ COMMUNITY CENTER DESIGN 61 01│ 2 1 3 4 6 5 7 1 BAUX Wall Panels 2 Porcelain Floor 3 HBF Upholstery Textiles - Woven lime 4 HBF Uphostery Textiles - Crossing the Line 5 Sancal Pion Stool / Table 6 Sossego Wood Bech seating 7 Designer Art Pendant Light 01 │ Textile & Furniture LOBBY SEATING AREA Natural daylights through windows with an open floor plan and Biophilic design to create a heal ing environment which allows audience to recon nect with the outdoor nature.

COMMUNITY ROOM

The semi-private community room is located at the south-east corner of the building. The curved shape walls allow nature daylight travels to the main lobby while remains some visual contact with the surrounding space.

62 P R O J E C T 0 2 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022

CAFE OPENED SEATING AREA

The opened seating area at the lobby is multi-functional. It is a comfortable seating area which good for an indi vidual or a small group of people. The free floor space can also use for music or dance performance.

PROJECT 02 │ COMMUNITY CENTER DESIGN 63

The opening on the 2nd floor covered with living plants under a dome shape sky window. A large classroom is set adjacent to the opening with a large open window looking to the greens and computer lab. The opening in crease natural lights and air circulation into the building which benefits for en ergy-saving and indoor air qualities.

64 P R O J E C T 0 2 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
01│
01 │ Selected Furnitures - Computer Lab 2ND FLOOR -ATRIUM & COMPUTER LAB

Inspired by the growing power of the green plants in nature, the curves wood panels at the service office reception area are the met aphor of how nature support and healing humans naturally.

PROJECT 02 │ COMMUNITY CENTER DESIGN 65
01│
2ND FLOOR -OFFICE RECEPTION 01│ Selected Furnitures for Reception

Winthrop Care │ Medical Office Design

Project / Medical Office Design

Instructor / Archana Myer

Site Location / Winthrop,AK

Project Challenge :

The design challenge is giving a fresh look of a small medical office in downtown Winthrop while keeping its a historical feature of the building. The design process will help the client determine her need to avoid glare in the main office while providing privacy for the patient.

Project Solution :

Winthrop Care is an accessible and comfortable set ting designed to welcome patients into a safe place of healing. The Biophilic design feature will provide a sense of healing while celebrating the beauty of the historical building.

Project Utilized :

Revit, Enscape, AutoCad, Photoshop, InDesign

67
03

DESIGN DEVELOPMENT

Concept Statement:

Winthrop Care is a warm and caring medical office. Patients in the Winthrop Care will ex perience the same medical services as the other big cities. The overall design is to cre ate an environment to encourages strength, provides comfort, and celebrates the natural beauty of the colonial revival legacy. Inspired by the beauty of the eternal legacy building and the surrounding natural environment of the town, this cutting-edge medical office, responsible for its environment incorporates finishes and fixtures to promote both environ mental and occupant health. The holistic de sign provides the patient, staff, and family an updates experience and exceptional care on the journey to restoration.

Project Program:

Spaces Include:

- 4 Exam Rooms

- 2 Consultation Office

- Nurse’s Station

- Break Room

- Storage Room

- Reception / Business Office

- Waiting Area

- Kid’s Playground

- 2 ADA Restrooms

68 P R O J E C T 0 3 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
01│
PROJECT 03 │ MEDICAL OFFICE DESIGN 69 02│Bubbles & Block Diagrams 1. Bubble Diagram 2. Block Diagram 1. 2. 02│ 01│Concept Mind Map 02│Schematic Design Options 3. Option A 4. Option B - Finalize 3. 4.
SELECTED WORKS OF HEBE CHEN │ 2020 - 2022 01│Medical Office Floor Plan 3 4 5 6 A B C D E F 6" 1/2" = 1'-0" 1 LEVEL 1 FURNITURE家具
A ENTRENCE STAFF EXIT B C D E F G H L J K L M N 01│ 02│ DESIGN PLANS & 3D MODEL
A. Break Room B. Exam Room-1 C. Exam Room-2 D. Exam Room-3 E. Exam Room-4 F. Nurse’s Station G. Kid’s Play Area H. Waiting Area I. Reception / Business office / Workroom J. Storage Room K. ADA Restroom L. ADA Restroom M. Consultation Office N. Consultation Office
PROJECT 03 │ MEDICAL OFFICE DESIGN 71 03│
72 P R O J E C T 0 3 SELECTED WORKS OF HEBE CHEN │ 02│Wait Area View 01│Reception View 03│Selected Sustainable Material for wall and floor 03│ RENDERING - OF RECEPTION AND WAIT AREA 01│ 02│

RENDERING - OF WAIT AREA AND CORRIDOR

74 P R O J E C T 0 3 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022 02│
01│

The glass wall between the wait area and nurse station will allow the nurse to have visual contact in the wait area. It is also benefit for natural lighting sharing between spaces.

PROJECT 03 │ MEDICAL OFFICE DESIGN 75 05│ 03│ 02│Rendering
01│Rendering -
04│Rendering
05│Funirtures
04│
- Wait Area Seating
Nurse Station & Wait Area & Corridoor
- Corridoor
and Lighting Fixtures
03│Rendering - Children’s Play Corner
76 P R O J E C T 0 3 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
01│ 02│Rendering - Exam Room 01│Rendering - Consulting 03│Rendering - Exam Room RENDERING - OFFICE AND EXAMPLE ROOM
PROJECT 03 │ MEDICAL OFFICE DESIGN 77 02│
78 P R O J E C T 0 3 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
Winthrop’s Care Sustainable Design Strategy Research
PROJECT 03 │ MEDICAL OFFICE DESIGN 79
80 P R O J E C T 0 4 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022 04

Project / Small Interior Design

Small Interior Design projects

PROJECT 04 │ SMALL PROJECTS 81

The black and white high contrast col or scale of the tile will give the space a very dramatic look. The black metal trim on the shower door and winder will en hance the volume in the space. tradition al Moroccan pattern tile floor will give the space a strong character. Brass faucets will enhance the luxury feel of the entire space.

82 P R O J E C T 0 4 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
a. a.
d. Material Board a. c. b.
LONE OAK SPA
a.
d.
PROJECT 04 │ SMALL PROJECTS 83 b.
[a]. 4” x 8” Deep Bevel Marble Tile [b]. 13” x 13” Onix Hexagon Gun Metal Glass Mosaic [c]. 8” x 8” Moroccan pattern ceramic tile [d]. 2”x 8” White Marble Tile
a. a. a. c.

COAST CAFE & BAKERY

The Coast Cafe and Bakery is one of the trendy American restaurants with health food con cept located in the beautiful bay area. Surrounding by the fun and classy San Francisco culture, this restaurant will become a hub of the residents and visitors. The logo which embraces with simple line and dots will simples present the idea of people interact like a line crossing each other.

The color palette selection is inspired by the color of the city, San Francisco. The beautiful picture of the Golden Gate Bridge and surrounding nature appears in brown, orange, cream, light and dark green under the warm Cali fornia sunshine. The primary color, dark green, will have a great calm ing and relaxing color for space. The light color flooring will have a good contrast with the dark green walls and cabinet. Natural wood color will appear golden brown in the space to be transition color between the light and dark. Green and orange color from upholstery and textile will create some inter esting sparkles for space. Flooring and wall material will be selected to match the theme color palette. The Coast Cafe & Bakery will be a friendly casual American bakery to represent the west coast culture.

84 P R O J E C T 0 4 SELECTED WORKS OF HEBE CHEN │ 2020 - 2022
5 Advance Tabco Stainless 1 Natural Wood Counter 2 Chevron Porcelian Tile 3 Earth Anatomy Marble 4 Forbo Allura LVT wood Floor Flooring Transition
Manufacture: Shelby Williams
Model: B53 series Cafe
Manufacture: Sossego
Model: Amsterdam Dining Table
Dimension: 39.4” W x 86.6” D Dining Table Cafe Table 6 7
6 7 8 Dining Chiar
Manufacture: Sossego
Model: Duda Dining Chiar
Dimension: 19.6” W x 20.8” D x 26.8” H 8 Furniture Plan Logo & Brand Color

• Dining Chiar Upholstery

• Manufacture: HBF Textiles

• Model: Aviator

• Color: 712-36 Wingapan

• Booth Seating Upholstery

• Manufacture: HBF Textiles

• Model: Pepper Blend

• Color: 995-63 Green

• Bar Stool Chiar Upholstery

• Manufacture: HBF Textiles

• Model: Argly Blend

• Color: 978-36 Raw Slenna

PROJECT 04 │ SMALL PROJECTS 85
RH
15
Hemisphere Pendant Light West Coast industry
Wall and Ceiling Paint: AMF Safecoast Pearl , Zero Atlantic Wave 0473 Cardinal Acoustics Ceiling Wall and Ceiling Paint: AMF Safecoast Pearl , Zero Florida Wave 0488 Reclaimed wood Wall
Sossego Marcia Bar Stool 9 10 12 11 13 14 16 17 18 Dining Area View 15 12 14 8 7 6 Bar Area View 17 18 15 9
THANK YOU, - HEBE CHEN

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
