Realization and solution of construction and furniture details in cultural equipment in BIM Methodology
Student's residence HUBR on 37 Don Ramón de la Cruz street, Madrid (built)
Interior design of restaurant "Pan y Huevo" on 82 Goya street, Madrid (built)
Interior design of Sotheby’s International Realty headquarters on 14 Sagasta street, Madrid (built)
04.2017 - 12.2018
Interior design of restaurant “Kamikaze” on 7 Argensola street, Madrid (built)
BIM architect at TresPams Arquitectura (1 year and 5 months)
Industrial plant Utrillas (5000m2) (in project)
work experience
Junior architect at Foxium Arquitectura (1 year and 8 months)
Development of hospitaliy and restaurant projects in BIM Methodology for Iberostar Drafting of basic and execution projects.
Proposal for a new football stadium design for Atlético Baleares (in project)
Interior design of Disco “La Nuit” on 10 Orense street, Madrid (built)
1st prize contest “Recuperación de la Memoria Histórica en el municipio de Zuera”, Zaragoza. Drafting of basic and execution projects with BIM. “s’Arenal Lighting”, Palma de Mallorca. Public contest
BIM architect in Alfons Romero Estudi d'Arquitectura (2 months)
Development of residential, hospitality and rehabilitation projects. Development of interior design architecture and furniture design projects. Construction management and budget control.
Drafting of execution projects and construction management in the rehabilitation of the ecclesiastical heritage of the Archbishopric of Zaragoza
Participation in the coordination and design (BIM Coordinator) of the new metro line from Kungsträdgården to Nacka and Gullmarsplan in Stockholm. BIM Coordinator for MBS Global Center for Arabic Calligraphy. Riyadh, Saudi Arabia BIM Coordinator for Tren Maya. Cancun, Mexico Development and implementation of the BIM methodology in the company. 3D modeling (digital twins) with BIM methodology.
Single-family house restoration on Lanzahíta, Ávila (built)
04.2019 - 06.2019
Weyler House transformation into a care building (in construction)
Rural house interior design in Soller (Mallorca) (built) Reforma vivienda Arturo Soria (Madrid) (built)
Vivienda unifamiliar Sueca (Valencia) (built)
06.2020 - present Freelance architect
Single-family house restoration and interior design in Algaida (built)
Single-family house restoration on 183 Serrano street, Madrid (built)
Interior design of restaurant “La Chingona” on Aravaca, Madrid (built)
Single-family house restoration on 20 Tapia de Casariego street, Madrid (built)
Reform and expansion of Iberostar Club Cala Romántica Hotel 4* (in construction)
Single-family house restoration and interior design in Palma de Mallorca (built)
Junior architect at Cota Interiorismo, O.T of the Zaragoza's Archbishopric (1 year and 2 months)
Interior design of an appartment on 2 Cristo Rey square, Madrid (built)
Vivienda unifamiliar Algaida (Mallorca) (in construction)
Masterplan rehabilitation Monasterio Nofuentes, Burgos (in project)
Reform and expansion of Iberostar Club Cala Barca Hotel 4* (in construction)
03.2021 - present Senior architect. BIM Coordinator at TYPSA (1 year)
Exhibition design "Los Certales, an emblematic firm", Zaragoza Design and production of the Archaeological Classroom "Ciudad de Cara" - Santacara and the Utrillas Mining Park Production and assembly of exhibitions ("Give my creation ... Life! - OPN Studio", "IntersticesChevalvert" ...)
Junior architect/designer at Trazacultura (1 year and 2 months)
Architectural internship at OHL - Obrascón Huarte Laín (7 meses)
Construction, materials and quality control. Budget and document supervision.
Gran Vía 80 Hotel, Madrid
Damage rehabilitation projects for churches in the Archbishopric of Zaragoza (La Puebla de Híjar...) Execution project for the construction of a winter chapel in the Parroquia Ntra. Señora de los Ángeles, Paniza
02.2016 - 04.2017
10.2014 - 05.2015
Design and assembly of spaces with exhibition contents: museums, routes, interpretation centers... Graphic design of audiovisual content
Mamba Restaurant
Academic
Los Escoceses Hospitality
selected works
Cristo Rey Residential
Kamikaze Restaurant
La Chingona Restaurant
El Viso Residential Aravaca Residential
Iberostar Club Cala Barca 4* Hospitality BIM
Hubr Madrid Hospitality
Betancourt Academic
Turégano house Academic homenaje Contest
Fábrica Almar
La Emilia Residential
Espacio
Hubr Don Ramón de la Cruz student residence Madrid 2017 - 2018
Foxium Arquitectura - Collaborator Padilla y Nicás arquitectos Architect Interior design and project development
The rooms, however, have somewhat more conservative materials such as wood flooring, ceramic cladding or plasterboard false ceilings. Therefore, a happy and optimistic intervention is sought that manages to coexist the most conservative character of the building with that of the young students who inhabit it.

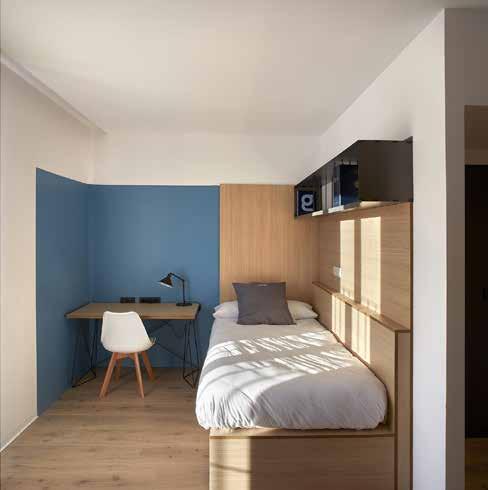

We do the interior design of a student residence. In contrast to the classic building from the 50s, the design proposal tries to generate a contemporary atmosphere with the idea of connecting with the students who reside in it. Continuous flooring, walls and color signage along with the facilities seen in public spaces help to shape it.
LOS ESCOCESES Valladolid 2017-... Foxium Arquitectura Architect Concept design
The project consists of the rehabilitation and reconversion of an old school in Valladolid, into an hotel and an big event space for wed dings. The current volume has currently a patio without any type of vegetation. In the initial volume there is the hotel that serves the rest of the complex. A new plant building is built with a metal structure and a zinc roof. This new volume is sewn with the old one using metal pergolas. It is intended to give the new volume an industrial character, but maintaining a traditional spirit in keeping with the old building.
+6,60m P1 +3,50m +3,80m ,60m ,00m +9,65m +14,00m P1 +3,89m ,00m
S02.- Chinese washed pebble flooring, color to be chosen by the d.f. with limestone strips of campaspero, according to plans.
CI08.- Waterproofing with double layer asphalt fabric, covered with high density polyethylene sheet with semi-conical reliefs.
E02.- Inclined roof beam ipe, dimensioned according to structure plans.
TB02.- Water resistant plasterboard wall covering, filled with rock wool, finished with plastic paint.
T01.-CeilingsFalse ceiling in natural oak wood 3x3cm. 3cm. interlocking on black painted wood substructure with acoustic rock wool in black veil 50mm. colorless water varnish finish cs2d0.
T03.- Shingle false ceiling made of brushed pine wood placed in herringbone according to the cutting, finished with colourless water-based varnish cs2d0 with pine wood beams recovered from the demolition, on a steel tubular substructure.
CU05.-finish. Covering
dimensioned according to structure plans.
CU06.- base felt metallic sandwich panel with rock wool core thickness 100mm. roofing belts, sized according to structural plans.
CI01 ,40 ,24 ,50 ,20 ,12 ,09 CE07 CE01 CE03 CE02 CU05 CU06 CU07 CU08 T03 T01 T01 ES02 CL04 CL05 CL02 CI07 S01 CI06 CI04 CI08 CI09 CI01 CI02 CI03 CU01 ES04/05 ES03 CU01 S03 S02 CU02 CU04 CU03 CI05 ES06 T01 CI08 ,75 ,56 ,30 3,25 2% ,60 ,14 ,05 ,27 ,75 ,24 3 ,51 ,23 ,77 ,60 ,19 ,15 ,83 ,60 ,35
CI02.- Compacted soil.
T05.- False ceiling made of water-repellent plasterboard with 50mm rock wool.
CI01.-FoundationSurface foundation, according to foundation plan.
E07.- Slab structure, formed by ipe / heb joists and collaborative sheet metal slab according to the structure plan.
CU03.- Rock
CI04.- Concrete floor cleaning ha-20, thickness 10cm.
CU04.- Continuous
E04.- Marquee beam embedded in false ceiling, upn 160 in continuation of pillar between carpentry
CI03.- Gravel bedding, thickness 25cm.
S04.- Slavic oak platform, hungarian point e=2cm. on antiimpact sheet, finished with colorless water varnish cs2d0.
E03.- Double external canopy pillar tubular profile # 60.40.5
S01.-FloorsLimestone pavement of campaspero, format 75x40cm. thickness 3cm. received with cement plaston. with strips of phyllite stone gray cordillera thickness 3cm. in axes of pillars, according to plans.
CE02.- Natural black steel carpentry formed by rectangular tubular steel profiles, with 3mm sheet metal blind parts. filled with 50mm rock
CE06.- Black plaster plaster and white plaster trim finished with transparent permeabl waterproofing.
CE08.- Ferrés estartit glazed ceramic lattice yellow color 52, 15x15x5.5cm. on half a foot of rough brick plastered and painted black.
S03.- Exterior landscaping with grass and gravel areas, according to urbanization plan.
PlasterboardPartitions
CI10.- Natural ventilation sanitary chamber, pvc ø150mm. 2ud./3.25m. linear manhole with drain and stainless steel grates. circular on
S06.- Floating platform of oak to choose for the d.f. on lamina antiimpacto dim. 2200 x 220 x 22mm. finished varnish to the water colorless cs2d0.
T04.- Shingled false ceiling made of planed pine wood, placed according to the quartering, with pine wood beams recovered from the demolition, whitewashed finish with exposed grain cs2d0, on steel tubular substructure.
Zinc
CU07.- Covering
CU08.- Metal
E06.- Gutter formation using upn profiles, dimensioned according to structure plans and continuous wood flooring in solid wood (ph> 5). 100mm rock wool filled.
T02.- Prodema false ceiling with hidden fixing system, color to be chosen by the d.f.
CE05.- Black sheet steel mouth sheet e = 10mm. finished with extra matt polyurethane varnish for metals. 50mm rock wool filled.
CU01.-Cover cover, fixed and sliding legs in stainless steel, thickness 0.4mm, installed every 33cm and fitted to the profile of the zinc cover tiles. Profiled in tiles, height of profile: 25mm, thickness 5mm. wood flooring in solid wood (ph>5), slope ≥5 %. wool insulation 100mm. gutter in folded zinc trays, with lower PVC waterproofing. Hidden downpipes in factory cores, matt grey antique of folded zinc trays on waterproof board, matte gray aged finish.
S05.- Interior sill of slavic oak hungarian point e=2cm. finished with colorless water varnish cs2d0.
CI09.- Perimeter drainage system, through a drain tube on a sand bed and an anti-root sheet.
T06.- Acoustic plasterboard ceiling with silentblock and rock wool guaranteeing 50db. according to cte db-hr.
CI07.- Natural ventilation sanitary chamber, pvc ø150mm. 2ud./3.25m. stainless steel grates. circular facing.
CU02.- Continuous
E05.- Canopy cover of steel sandwich panel with rock wool core.
CE07.- Yellow "ferrés" enamelled tile ceramic coating 52, 15x15x5.5cm. on half a foot of rough plastered brick.
CE03.-wool.Guardian sun double glazed glass, laminated with transparent acoustic butyral 3 + 3 ca12 3 + 3mm.
CE04.- Aluminum carpentry with hidden leaf with rpt, color to be chosen by the d.f.
E01.-Structurepavement.Ipepillar,
Zinc
CI06.- Sanitary slab cavitti system, thickness 40cm. ha-25 with reinforced compression layer thickness 5cm.
partition filled with rock wool, in separation between rooms or rooms with different uses, 50db according to cte db-hr. finished with plastic paint or tiling according to the finishing plan.
CI05.- Concrete floor cleaning ha-25, thickness 20cm.
CE01.-Enclosureipe 160 profile with 2 l50.50.4mm. natural black steel with 8cm rock wool insulation.
REFORM AND EXPANSION OF IBEROSTAR CLUB CALA BARCA HOTEL 4* Mallorca 2019-2020 TresPams Arquitectura BIM Architect Concept design and BIM project development Actual state Reformed state
The project consists in the reform of two blocks of rooms at the Iberostar Cala Barca Hotel, the blocks were completely renovated, raising the category of the hotel to 4 *. In turn, enter a new intermediate block in which all the common services are placed to service the two blocks of rooms.
An attempt is made to integrate nature and the Mediterranean style into the architecture of the blocks using many green areas, lattices, white colors, etc.
The project was fully developed in BIM, from its initial phase to the execution process
REHABILITATION HOUSE FOR “LA EMILIA” Lanzahíta - Ávila 2018
Foxium Arquitectura Architect Concept design and project development
THE WEEKEND
OF COUNTRY
There was an old tool house in ruins and the objective was to carry out a rehabilitation and reconversion of it into a weekend house, maintaining the rustic exterior appearance of the area. The original geometry of the building was respected. Industrial elements were introduced both in the plates of the openings to the facade which emerge from the facade as a way of looking at the Sierra de Gredos, and in the gate or pergola.
The exterior environment was also adapted by replanting various plant species, trying to respect the typical flora of the area. In the interior we tried to achieve a clear and minimalist design.
emplazamiento
01 510 N
GE01_General:
6.- Pergola formed by ipn 120 joists and ipn 80 belts, with dimmer upper mesh. 6 mm # 20x20 cm, on tubular pillars # 50 · 50 on concrete dies / reinforced screed.
9.- Sliding door frame enclosure with metal frame and s ”t” laminated profiles, hanging from the upper guide, covered by upn140.
4.- Inner channel for collecting rainwater made of zinc-plated aluminum sheet.
12.- Ochavo chiseled black granite cobblestone pavement 10 x 10 cm, received with crumb sand / mortar, on reinforced concrete floor.
16.- Posterior drainage: formed by a gravel cone and a perimeter drain tube, on a sand bed. wall waterproofing by bituminous membrane.
1.- Cover: formed by ancient Arab ceramic tiles, mortar plaster to receive the tiles and bituminous waterproofing sheet on the thermochip.
14.- Anchor plate received with reinforced concrete chemical anchors (# 8 c / 15)
5.- Eave formation with ceramic tiles
7.- Lintel: 2upn 220 profile in drawer, with bottom and top flats 500 x 12 mm.
15.- Steel plate trellis e: 8mm, with installation passage (lighting and irrigation) and draining bottom.
13.- Composition of the land: Meadow, vegetal substrate and draining gravel pit.
8.-External side jambs of flat e: 10 mm.
11.- Floor: formed by a concrete slab e: 20 cm slightly reinforced (# 6 c / 15), waterproo fing sheet on gravel pits h: 50 cm.
01 510 4 15 14 13 12 11 10 9 8 7 6 5 3 14
3.- False interior ceiling: plasterboard e: 13 mm on aluminum tc profiles, with incorpora tion of rock wool.
2.- Roof structure: made up of ipn 140 metal profiles, with a thermochip sandwich panel, phenolic chipboard and extruded polystyrene core.
10.- Pavement: oregon pine wood plank stained e: 21mm on cupered pine strips. cladding of clay for installation passage and housing of battens e: 10 cm.
SINGLE-FAMILY HOUSE RESTORATION ON “EL VISO” SUBURB Madrid 2017-2018
Architect Concept design and project development
Foxium Arquitectura
The project was about the rehabilitation of an old house in the colony "El Viso". Nowadays it had been transformed into an art deco style Thehouse.intention in the first place was to recover both the aesthetics and the characteristic elements of the rationalist architecture that pro jected it. A totally public and diaphanous PB is distributed, keeping the upper floors for private rooms, the basement floor is dedicated to both installations and service.
The whole courtyard is also redistributed with different species of plants.
1 ,17 ,70 ,87 0 ,30 1 ,74 0 ,90 0 ,23 1 ,20 0 ,91 0 ,90 0 ,61 5 ,48 0 ,78 0 ,42 1 ,20 ,48 0 ,97 0 ,93 1 ,29 1 ,40 ,19 3 ,59 0 ,90 1 ,38 2 ,28 1 ,63 1 ,22 ,85 1 ,58 0 ,90 0 ,27 2 ,75 1 ,29 ,29 0 ,88 3 ,46 ,35 3 ,10 0 ,35 ,30 ,35 ,51,52,33,12 1 ,03 ,00 4 ,72 1 ,12 ,35 ,35 1 ,00 ,40 ,10 ,45 0 ,50 0 ,39 0 ,90 0 ,24 ,79,60 2 ,02
Foxium
2 ,85 ,22 ,10 ,97 ,10 ,80 0 ,53 2 ,90 ,58 1 3,450,75 ,44
APPARTMENT RESTORATION ON CRISTO REY SQUARE Madrid 2018
0 2,810,25 ,90 ,09 1 ,59 ,50 ,17 2 ,20 1 ,02 0 ,78 0 0,25 ,12 0 ,78 ,24 0 ,13 ,50 ,13 4 ,02 2 ,89 2 ,85 5 ,20 ,34 ,98 13 ,38 ,12 0 ,56 ,90 3 ,58 ,67 ,35 0 ,23 3 ,25 1 ,10 ,65 1 ,10 ,85 ,33 ,85 2 ,00 ,45 ,20 ,83 1 ,12 ,60 1 ,36 1 ,12 5 ,20
,46 2 ,78 ,46 3 ,71 1 ,50 ,10 ,35 2 ,96 2 ,38 ,05 2 ,98 2 ,75 0 ,26 0 ,05 0 ,60 ,10 ,46 1 ,10 ,55 ,13 ,76 ,17 ,71 ,30 ,13 ,73 ,31 5 ,71 2 ,57 71 ,63
development
BIBLIOTECABIBLIOTECA CAJONERACAJONERACAJONERACAJONERACAJONERACAJONERA CAJONERA CORTESÍA HAB PRINCIPAL 1 HAB PRINCIPAL 2 HAB INVITADOS BAÑO HAB .PRINCIPAL SALA PLANCHA HAB SERVICIO ASEO SERVICIO PASILLO VESTÍBULO HAB .PRINCIPAL HALLCOMÚN ASEO CORTESÍA BAÑO HAB .PRINCIPAL HAB PRINCIPAL HAB INVITADOS ASEO INVITADOS CUARTO TRASTOS ENTRADA VIVIENDA A SALÓN/COMEDOR/COCINA SALÓN/COMEDOR/COCINA ASSAULT BIKE CINTA DE BANCOCORRER ABDOMINALES PESAS RUSAS RACK PESAS YOGA MÁQUINA REMO MUEBLE TV ESTANTERÍA CÓMODA INGLESA ALMACENAJE ,95 ,95 B A ,50
Architect Concept design and interior design ,70 0 ,98 ,80 0 ,60 0 ,03 ,90 2 ,48 0 ,30 0 ,29 1 ,20 0 ,10 3 ,22 ,20 ,12 1 ,60 1 ,12 ,05 ,45 ,10 ,00 ,71 5 ,91 2 ,72 0 ,21 ,94 2 ,14 1 0,10 ,72 0 ,30 0 ,91 1 ,26 1 ,45 2 ,00 1 ,35 2 ,00 0 ,78 0 ,60 ,80 ,13 0 ,80 ,94 ,10 ,92 8 ,18 ,83 0 ,65 0 ,85 0 ,83 1 ,18 0 1,582,800,00 ,12 1 ,71 0 ,25 ,63 ,88 1 ,69 3 ,20 1 ,09 ,05 ,77 ,40 1 ,90 1 ,40 ,06 1 ,44 ,61 5 ,51 ,08 0 ,32 0 ,78 0 ,62 8 ,31 1 ,35 ,40 ,87 0 ,25 0 ,49 0 ,47 2 ,60 0 ,57 0 ,33 1 ,06 ,53 ,87 1 ,28 ,54 0 ,29 3 ,61 0 ,40 1 ,03 5 ,82,33 0 2,17,17,40 ,82 4 ,28 0 ,60 ,54 ,88 1 ,28 3 ,97 ,40 ,83 ,40 ,02 2 ,82 0 ,40 ,68 ,28 ,00 ,03 1 ,00 ,68 ,79,50 ,77 0 ,40 3 ,78
1 ,10 2 ,75 0 ,33 2 ,08 0 ,82 ,34 ,49 ,85 7 ,08 ,20 0 ,25 2 ,40 0 ,54 ,20 0 ,66 2 ,40 1 ,10 1 ,20 1 ,05 0 ,50 1 ,36 2 ,04 0 ,78 0 ,82 ,60 4 ,31 1 ,46 ,15 ,80 ,64 ,80 ,15
Arquitectura
The project consisted in the reform of a 400m2 house and its partition in 2 independent houses but connected by a hall/reception room. The state of the house was ruinous, we proceeded to the absolute demolition of the house and the design of both a new distribution and the furniture of it.
The houses were for a mother and a daughter and then the design had to be different to meet the different needs of both. Both houses end up revolving around a very large living room / kitchen, separating the day area from the night area.
SINGLE-FAMILY
HOUSE RESTORATION ON ARAVACA Madrid 2018 Foxium Arquitectura Architect Concept design and project development
The project consists of the reform of a 1960's house and its plot, both of which were in a state of abandonment and in a very deteriorated Thecondition.aimis to create a better interior-exterior connection by opening new holes in the façade. Currently, the house is closed in itself.
Looking for a uniformity of materials to give a sobriety and elegance to the project, only wood, stone and iron are used.
The interior is articulated by means of a double height with a metallic staircase (of own design) through which the rest of the spaces of the house are articulated.
We also act in the plot, transforming a small shed into an "orangerie" to use as a dining room throughout the year, also built a pool that together with a metal pergola gives us access to the house.
“La Chingona” Restaurant Madrid 2017 Foxium Arquitectura Architect Concept and graphic design
Exterior carpentry detail 7 niveles ,79 ,79 ,79 ,79 ,79 ÁLICO PERFIL TUBULAR CUADRADO #80
The restaurant revolves around a central bar with an elliptical shape, which is the one that articulates the rest. The use of animated colors, fabrics, murals with Mexican motifs are in accordance with the character that the client wanted for his premi Theses. exterior folding carpentry allows a complete interior / exterior connection. The use of steel mixed with wood is one of the key points of the project.
0,55 ,0600 0,1 0,0650 0,40 0,03 5 6 4 3 14 13 12 11 10 9 8 7 1 2 1 ,15 ,03 ,01 ,16,15 ,42 +0,13 ,34 ,33 0,50 0,38 0,20 0,13 0,13 0,36 3 ,35 +0,39 0 ,33 0,50 0,20 2 ,20 2 ,92 ,34 1 ,44 0,76 00,1 ,0800 0,28 0,03 5 6 4 3 1 2 ,15 ,15 +0,13 0,36 121314 11 10 9 8 7 1.- Steel flat top e: 10mm 2.- Led strip under the worktop 3.- Front of rusty and varnished pegasus sheet. 4.- Metal profiling substructure 5.- Bar foot formed by steel plate h: 200mm with bracket for pegasus sheet support. 6.- Formation of metal bar using racks and sheet metal 7.- Sheet metal shelf e: 5mm 8.- Continuous stretched metal front anchored internally by means of “l” profiles 9.- Formation of a bottle rack structure using a portico of lpn profiles 30 · 30 · 3 10.- Continuous front of bleached shingles e: 20mm on frame substructure 15.15 11.- Aacc delivery nozzle type due to trox or similar, painted color to be chosen by the DF. 12.- False wooden beam 150.100 13.- 60.40 wooden battens roof substructure 14.- Braided wicker ceiling 15.- Steel plate trellis e: 8mm, with installation passage (lighting and irrigation) and draining bottom. 16.- Posterior drainage: formed by a gravel cone and a perimeter drain tube, on a sand bed. wall waterproofing by bituminous membrane. Restaurant bar details
“Mamba”
Restaurant Madrid 2017 Foxium Arquitectura Architect Concept and graphic design
We had a place inside a shopping center with a great variety and quantity of gastronomic offer. An industrial, vintage theme was chosen, using ferrous elements for it. The restaurant revolves around two large rooms on two different floors, which are served by two bars. On the upper floor it has a terrace with views of Madrid Río. Wood and black steel are used as decoration materials, also for floors, walls or exterior locksmiths.
ACCESO PRINCIPAL SALIDA CAMAREROS
Restaurant “Kamikaze” Madrid 2018 Foxium Arquitectura Architect Concept and graphic design
The restaurant is inspired by a Japanese izakaya (tavern), which reflects the local way of life, the night and urban atmosphere of the in some cases densely populated and chaotic areas, suburbs where there are no hours or things never stop happening. Both industrial elements and sheet metal are used, such as original oriental signage, manga comics, neons and televisions where oriental B-series films are played, etc.
Space tribute to those retaliated by Francoism Zuera 2018 Jonás Jiménez Gil, Pablo Galán 1st Prize Public Contest ,12 ,12,12,12 0,300,30 0,3000,30,30 2,1 0,301,38 0,810,73 2,25 ,702 2,1 0,30 0,94 ,702 2,1 0,30 ,702+2+2+2+2+2+2+2+2+2,10,10,10,10,10,10,70,70,70 S.2 S.1 1,08 ,081 1,08 ,081 1,08 ,081 1,08 ,08 1,08 ,08 ,405 5,40 ,405 ,001,28 ,170 0,29 3,60 2,99 1,07 0,67 0,26 ,22 1,621,45 2,09 1,29 1,35 0,84 1,24 0,66 1,15 1,97 1,92 2,00 FEDCB 654321 A PERÍMETRO RECORRIDO 15,24m ÁREA INTERIOR ESPIRAL: 16,40m2 ÁREA TOTAL: 29,16m2 ,50 0,180,00
The contest was about a tribute space for retaliates and exiles in the municipality of Zuera (Aragón). The main idea was to transmit throu gh the architecture a tour of homage and tribute, from the public exterior to a more private interior.
As key elements, the laser-engraved name of each victim and the creation of 3 steel suitcases were introduced as an allegory of a hasty march, exile ...
Rusty black steel and polished concrete were used for their austere and serious character in accordance with the objective of the memo rial.
TURÉGANO HOUSE Madrid 2021 Jonás Jiménez Gil ETSAM (UPM) Master BIM Project Axo building East elevation South elevation 0 00 P A 0 3 20 P A 1 6 55 P A 2 9 15 PLA C 0 00 PLA P 3 20 PLA P 6 55 PLA P 9 15 PLA PC
Building plants
MEP AXO
The academic work consists of the creation of a BIM model of the Campo Baeza's Turégano House a planning of all its processes and the creation of a MEP file with the plumbing, electricity, sanitation, air conditioning facilities... It was modeled from scratch
ETSAV
Jonás Jiménez Gil
(UPC) Final Degree Project
ALMAR "CREATION FACTORY"
Barcelona 2015
Link complete project: https://upcommons.upc.edu/handle/2099.1/26626
The project consists of the expansion and adaptation of an old industrial warehouse from the 60s, in the interstitial area between Sant Cu gat and Cerdanyola, in a multi-functional center that combines performing arts, business incubator and relationship with the environment for the people of the zone. Both the building and the environment are currently in a state of disuse or infrause due to the economic crisis. In contrast to this fact, is pursued the inclusion of the warehouse in the Creation Factories, a network of municipal cultural facilities, focu sed on cultural creation and production. These facts make the factory have to adapt to these changes, creating a building that reinforces the social and cultural networks of the area and acting as an element of regeneration.
1.- Rectangular skylight of 2000x1000 mm practicable formed by polycarbnoate panel with transparent finish 2.- Lower and upper anchor profile 3.- Metal profile for skylight closure * Light panel of 150mm + 38mm, with dimensions of 1150mmx5000mm with 2 frets per cover formed by: 4.- 0.8mm lacquered galvanized steel sheet 5.- Mineral wool, density 150 kg / m2 6.- 0.5mm lacquered galvanized steel sheet 7.- Regulatory overlap mechanism for light panels 8.- Mechanical fixings for panels to existing structure 9.- Overlap and dropper Limahoya 10.- Limahoya metal plate e = 2 mm with panel drain 11.- Waterproof sheet e = 1 mm 12.- Skylight metal plate e = 2 mm 13.- L-profile bidirectional tram plate guide 14.- Bidirectional Tramex e = 4cm 15.- Thermal insulation e = 10cm 16.- False ceiling stiffener plate e = 8mm 17.- Mechanical union metal structure roof office area 18.- Metallic profile 10x10cm insulating support 19.- HEB 160 structure beam with fire protection paint 20.- Metallic plate with top part e = 3 mm 21.- Mechanical fixing plate to guide 22.- UPN 160 joist 23.- Industrial focal lighting 24.- Plasterboard panel e = 15cm (double plasterboard e = 3.75cm - insulating e = 7.5cm - double plasterboard e = 3.75cm) 25.- Metal sliding door guide 26.- Sliding door support metal structure 27.- Metal sliding door 210x100 cm 28.- Frame door end piece 29.- Laminated glass DCH 6 mm / C. Air 12 mmm / 6 mm e.total = 24 mm 30.- Metallic carpentry not practicable window 31.- Neoprene sheet joining metal joinery with metal substructure 32.- Screws for anchoring the cut plate to the metal substructure 33.- Column sheet forged supporting profile e = 1 mm 34.- Column sheet forged collaborating profile e = 1 mm 35.- Forged metal beam / collaborating sheet metal connector 36.- Window end plate e = 2 mm 37.- Cut plate reduction to avoid direct contact with the beam 38.- Self-supporting plasterboard panel e = 10cm (plasterboard e = 1.40cm - insulating e = 7.2cm - plasterboard e = 1.40cm) 39.- Corten steel metal plate e = 3mm size 3500mmx1000mm 40.- Metallic substructure of corten steel plates 41.- Neoprene sheet metal substructure contact / cut steel plate 42.- Square profile metal substructure support steel plate 55x55 mm 43.- Electricity installation box 44.- Synthetic resin layer e = 50mm expansion joints every 5m 45.- Leveling layer e = 50mm 46.- Thermal / acoustic insulation e = 5cm 47.- Metallic collaborating slab, trapezoidal shape e = 11 cm 48.- Laminated glass e = 28mm 49.- Metal carpentry interior windows 50.- Metal profile forged finish collaborating sheet metal exposed finish e = 5 mm 51.- Welding h = 2/3 52.- HEB 160 primary beam 53.- Neoprene sheet for beam / partition separation, cut wall 54.- Metal bar steel box e = 4 mm 55.- LED lights recessed linear profile Frame for Ledstrip 6 mm 56.- Sliding bar closing metal slat guide 57.- Corrugated metallic slat 105x20 cm bar closure 58.- Metallic profiles support slats e = 3.5x5.5 cm 59.- Floor foam joint e = 2cm 60.- Corten steel plate union rivet 1 cm 61.- 18x20 cm concrete die 62.- Concrete footing 30x75x75 cm 63.- Synthetic resin layer e = 50mm expansion joints every 5m 64.- Leveling layer e = 50mm 65.- Concrete floor e = 5cm 66.- Recycled polypropylene formwork Cupolex 13.5h 67.- Plasterboard panel e = 15cm (double plasterboard e = 3.75cm - insulating e = 7.5cm - double plasterboard e = 3.75cm) 68.- Plasterboard panel e = 10cm (plasterboard e = 1.40cm - insulation e = 7.2cmplasterboard e = 1.40cm) 69.- Lower guide slats 70.- Metal bar counter top e = 1cm 71.- Lower LED lighting for Iguzzini bar nr. 10 leds neutral white
STUDY AND REDESIGN OF THE FREE SPACES OF THE GROUND FLOOR OF BETANCOURT, EINA Zaragoza 2017 Jonás Jiménez Gil
EINA (UZ) Master's Final Project
The main objective of the project was to improve the user experience in the spaces on the ground floor of the Betancourt building by rede signing them, increasing their activity and use by the university community. These renovated spaces had to respond to the real needs of the different parties involved. The project presents a general concept of the entire space and develops a functional unit in greater detail.
Link complete project: http://zaguan.unizar.es/record/61014/files/TAZ-TFM-2017-048.pdf
ERASMUS
Jonás Jiménez Gil jonasjimeneZarag08/08/1990oza(Spain)zgil@gmail.com+34620439287
2020 - 2021
formation
2006 - 2008 High School degree (Certificate of excellence) I.E.S Jerónimo Zurita, Zaragoza
Master in Building Information Modeling Project, Construction & Facility Management Higher Technical School of Architecture of Madrid (Polytechnic University of Madrid), Madrid
spanish native language catalan C1 level (5 years living Barcelona and 1 in Palma de Mallorca) english B2/C1 level (First Certificate) italian B2 level (1 year living in Roma)
C/Vicente Muzas 6, 28043, Madrid
Master in Big Data and Data Science Complutense University of Madrid, Madrid
2018 Interview winning contest: https://www.elperiodicodearagon.com/noticias/la-contra/jonas-jime nez-gil-los-represaliados-merecen-monumento-singular_1326590.html
Facoltà di Architettura Università di Roma “La Sapienza”, Roma
2022 - 2023
publications
2012 - 2013
2015 - 2017
languages
Master in Product Design Engineering School of Engineering and Architecture (University of Zaragoza), Zaragoza
2008 - 2015 Architecture degree ETSAV (Polytechnic University of Catalonia), Barcelona
2017 PFC in Beta Architecture. http://www.beta-architecture.com/fabrica-almar-jonas-jimenez-gil/ Publication TFM. http://zaguan.unizar.es/record/61014/files/TAZ-TFM-2017-048.pdf
Suite Adobe IllustratorIn-DesignPhotoshop Suite Office SoftwaPEWordxcelowerpointreMac Computer-aided design VAMicrostationutoCadectorworks Modelling 3D Sketchup Pro Rinhoceros 3D Vectorworks 3D Rendering KLV-Rayumioneyshot BIM/programming PProjectwiseNavisworksRevitython
FOXIUM ARQUITECTURA SL
Yours faithfully,
PERIOD: April 2017 December 2018
Foxium Arquitectura S L.P. qrma oxiu .f www . .p .l s cura foxi m rqui e u t a t .com 3, 1ºdc 28010B-86789179madridOLIVER ALVAROBULTO-46145215Q
Jonás Jiménez Gil
I hope that he can, therefore, devote herself with passion and talent to the real advancement of our discipline, both through the academic and professional fields.
On the other hand, we had also the opportunity to work with Jonás in the development of interior design projects sucha as restaurants and housing programs. Jonás is a very mature, trustworthy person who shows an unbreakable commitment to his duties, someone who always knows how to ask the rignt questions, who displays high receptiveness to feedback and who is not afraid of leading whenever necessary.
It is a pleasure to write this recommendation letter for Jonás Jiménez Gil, Architect from the ETSAV UPC “Escuela Técnica Superior de Arquitectura del Vallés Barcelona”, who has been a member of Foxium Arquitectura for almost two years.
ÁLVARO OLIVER BULTÓ, ARQ. Calle Fernando el Santo nº7, local 1 Col. COAM 63.201 28010 Madrid www.foxiumarquitectura.com tel +34.910 833
During the months he has worked in our office, he collaborated in the development of different projects of various typologies and scales, as different phases, from the more creative ones to others involving constructive Idevelopement.wouldhereby
Álvaro Oliver Bultó
PROJECTS RESPONSIBILITIESAND:
OLIVER
Digitally signed by BULTODate:cn=OLIVERgivenName=ALVARO,DN:46145215Qc=ES,serialNumber=IDCES-46145215Q,sn=OLIVERBULTO,BULTOALVARO-46145215Q2019.06.2109:19:43+02'00'
NAMEMadrid,alvaro@oliverbulto.com157January2019:
like to highlight some of the many attributes shown by Jonás Jiménez Gil in his stay in Madrid, such as his ability to work in a team, his command of different computer program and tools (Vectorworks, Photoshop, scale modeling, …), his commitment and responsability for ever project in which he collaborated, and, above all, his willingness to help whenever necessary.
pza. chamberí
ALVARO
Jonás Jiménez Gil worked for several projects such as: Reform and expansion of family house in C. Tapia de Casariego, Madrid. Student residence “HUBR” in C. Don Ramón de la Cruz, Madrid. Country house “La Emilia”, in Lanzahíta, Ávila. Refurbishment of the nightclub “Nuit”, C. Orense, Madrid. Restaurant “Pan y Huevo”, C. Goya., Madrid. Refurbishment of a racionalist villa in el Viso, Madrid. Sotheby’s International Realty headquarters office, C. Sagasta, Madrid. Country house “El Chaparral”, in Navamorcuende, Toledo. Reform and segregation of housing in Pz. Cristo Rey, Madrid.
uitectura
Jonás Jiménez Gil
jonasjimeneZarag08.08.1990oza.Spainzgil@gmail.com+34620439287C/VicenteMuzas,628043Madrid
