PORTFOLIOARCHITECTURE KRUTI SHAH
CONTENTS 030201 JAL-Page-01-06SelectedPage-13-18Works-2020-2022anawarenesscenter for water Design thesis Olive CommercialPods Interior Project ThePage-07-12Courtyard House Residential Architecture Project
Photograph of original site Image of Designed building
Render
OliveInteriorPodsProject
Collaborator - Individual
01 01
Time Period - 2021
The client had 2 floor penthouse which he wanted to convert into full fledge commercial office space in Apartment building. The construction was around 50 years old, the main design challenge was to re-design the interior space according to the new functional requirement of 25 staff with CEO office on first floor. The idea was to create space having open space floor plan along with soothing natural colours with little tint of bright walls to enhance the working capability.
Type - Office Interior Project
Location - Vadodara, Gujarat , India
Area - 2744 sq.ft
Two 800 sq.ft of flat with double height space in between was initially used as residential space. Staircase was already constructed taking visitor to first floor.
AFTER INTERIOR:
EXISTING:
Both the flats were joined to make one huge of fice in which one of first floor area was used as CEO Cabin.Some walls were removed and slab was constrcted in double height area.
02
TheCONCEPT-concept of the interior was inspired from sand and waves. The pattern, colour, texture was placed and designed keeping patterns naturally created with water and sand.
0201
FF Space was used as bedroom where storage was kept. There were cracks in walls and size of rooms were smaller than required.
ProcessTheExisting
The space was opened up to create bigger lounge and cabin for CEO of the company. Interior was designed such that the whole upper floor give more of rustic look with wooden tile flooring ,light coloured walls and veneer used in furniture.
In ground floor the common wall was removed to cater staff working area, conference hall and manager cabin. The kitchen space was tranformed into pantry.
Ground floor makes you feel more earthly full of olive green and wooden tile flooring. Some walls were highlighted to depict more abstract forms of waves throughout the office space.
03 03 04
Ground Floor Plan LEGENDS: 1. Entrance Corridor 2. Reception Desk 3. Waiting Area 4. Staff working area 5. Cabin-1 6. Cabin-2 7. Cabin-3 8. Conference Room 9. 10.ToiletStorage Room 11. Pantry/Laboratory 12. Utility area
Isometric representationGroundFloorFirstFloor 04
Render view of Ground floor
FURNITURE WORKING DRAWING 05
Interior Photos- First Floor
Interior Photos- Ground Floor 06
Photograph of original site Designed building
Area - 2600 sq.ft
Location - Vadodara, Gujarat , India
Type - Residential
Time Period - 2020
Collaborator - Ketan shah and associates
The Courtyard House Architecture Project
The site is situated in urban area surrounded by residential bungalows around the site. The approaching road directly connects to main road . The bungalow was designed for 6 family members having 1+2 floors. The client wanted more traditional touch to the Architecture while his son and daughter wanted more contemporary touch in bedroom. Both Architecture and interior was designed by KSA Associates.
07 02
ProcessTheExisting
FF Space was used as bedroom where storage was kept. There were cracks in walls and size of rooms were smaller than required.
0201
The space was opened up to create bigger-lounge and cabin for CEO of the company.Interior was designed such that the whole upper floor give more of rustic look with wooden tile flooring ,light coloured wall sand veneer used in furniture.
In ground floor the common wall was removed to cater staff working area, conference hall and manager cabin. The kitchen space was transformed into pantry.
08 03 04
Ground floor makes you feel more earthly full of olive green and wooden tile flooring. Some walls were highlighted to depict more abstract forms of waves throughout the office space.
Ground Floor Plan First Floor Plan LEGENDS: 1. Main Entrance 2. Foyer 3. Living Area 4. Dinning Area 5. Courtyard 6. Common Toilet 7. Kitchen 8. Store 9. Puja Area 10. Senior Bedroom 11. Bathroom 12. Utility 13. Servent Room 14. Servent Toilet 15. Garden 16. Master Bedroom 17. Bathroom 18. Home Office 19. Home theater 20. Bedroom-1 21. Walk in Wardrobe 22. Bathroom
Isometric Section 09
Section through courtyard
Staircase Screen Detail
Front Elevation
10
Jharokha Detail
Daughter Bedroom Interior Render
11 INTERIOR WORKING DRAWIMGS
Exterior Architecture view
12 Interior view
Photograph of original site Image of Designed building
Render
Collaborator - Individual
People of India are facing extreme flood or drought condition which is leading us towards dark future ahead. Therefore water harvesting is our only gateway for survival ”JAL- AN AWARENESS CENTER FOR WATER” main objective is to educate people about ancient and modern water Harvesting technique. A deliberate intention is made to express water through Architecture.
Proposal type - Thesis-Interactive museum and awareness center
Time Period - Academic- Fifth year
Thesis Guide - Ar. Niketa Moghe and Ar.Pradyumansingh Chauhan
Location - Statue of Unity, Gujarat , India
ANJALAWARENESS CENTER FOR WATER
03 13
Bus service
01
Site was divided into two zones by water channel passing between them.
riverNarmadatowardsStream

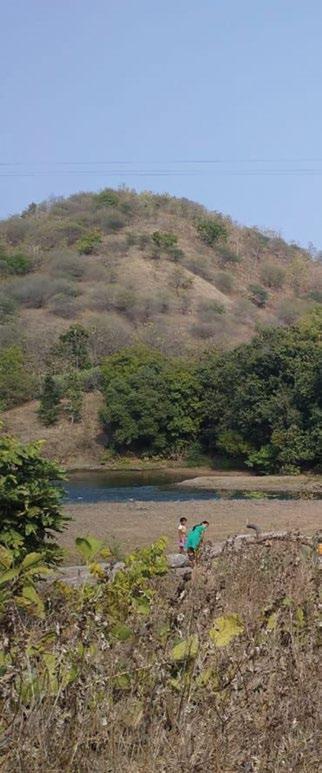

ConceptExisting site
02
contour on site bridge
03 04
All the gallery were placed on north side of main stepwell.
Whole stepwell acts as one Museum with two floors Connected to each other.
14
3.7 M
LOCATION-INDIA, GUJARAT
Site Area - 21000 sq.mt
Contour Interval - 1m Total Built-up - 7896 sq.mt
The site is situated near banks of Narmada river around 3.2 Km away from Sardar sarover dam. This area has highest tourist influx in past years and has diverse variety of flora and fauna in its Transportationsurrounding.facilitiesare available.
15 K
Ground Floor Plan
1:1 scale traditional water harvesting techniques were designed such that they are part of the journey and are interactive in nature.
Water Channel Detail
Water capacity harvested
Kund Gallery Isometric
Water retention
Brasschain of 7mm
Water harvest bed which get channelised
Total plot area: 21000 sq.mt =21000 x 1m x 1000lit =21000000 lit
Gutter of 900 x 150mm
Total Terrace area: 5644 sq.mt = 5644 x 1 x 1000 =5644000 lit
Surface water gets collected into the stream.3 Recharge pits are installed.
16
Drainhole with triangular hanger with clip to hang chain.

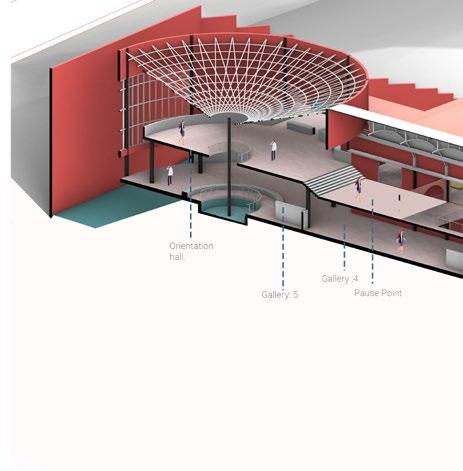

Sectional
OrientationIsometricRoofDetail
The orientation hall was designed to create dramatic light and shadow volumes with Concept of collecting rain water from roof. Its designed was inspired to connect local people with stepwell in the surrounding areas.
Curtain Wall Detail
17
Cross section of StepwellWater Cascade Detail
Roof structure Road
RoofGroundlevellevel 18
Exploded Isometric
Thank you LinkedIn- https://www.linkedin.com/in/kruti-shah-babb141ba/EmailID-krutishah9622@gmail.com
