Recommendation #1 - Built Environment / Vehicle Balance AV Companies, Developers, and Cities must share adaptation costs Assignment 1 Image: David Hong. 2022. Landscape x Vehicle Accessibility Interoperability Diagram

Recommendation #2 - Integrate Micromobility

Cities and developers should plan for fully integrated micromobility net-

Image: Cycling with diabetes on a special needs bike. Van Raam. https://www.vanraam.com/en-gb/advice-inspiration/news/cycling-with-diabetes-on-a-special-needs-bike, Change, D. (2021, December 8). Is Micromobility Here To Stay? The 3 Things Policymakers Need To Do. Driving Change. https://drivingchange.org/is-micromobility-here-to-stay-the-3-things-policymakers-need-to-do/, Gazelle Electric Bikes launches 2020 product line with unveiling of Ultimate T10. (2019, November 12). Bicycle Retailer and Industry News. https://www.bicycleretailer.

Assignment 1

Assignment 1 Recommendation #3 - Accessible Micromobility Any Micromobility Network must have fully accessible options Image: WHILL Model C2 | Portable Electric Wheelchair. (n.d.). https://www.accessiblemadrid.com/en/accesorios/whill-ci

Green Corridor Opportunities in Mayfair Mayfair Development & Design Control Document

Sources: Mayfair Design and Development Control Document 2021. https://www.nbtexas.org/3333/Mayfair

Assignment 2

Proposed Micromobility Corridor

Image from Streetmix

Image: John Devine. 2022. Proposed Micromobility Corridor. Created in StreetMix. https://streetmix.net/

Assignment 2

Initial Retail PU/DO Concept Assignment 2 Fully covered pathways and roundabout PU/DO in Town Center Locations Continuously covered path for mini mall format with curb cuts on both ends Image: David Hong. 2022. Fully Covered Pathways and Roundabout PU/DO in Town Center Locations, Continuously Covered Path For Mini Mall Format

Proposed Change in Min. Off-Street Parking Dimensions for Fully Autonomous Vehicles

Bottom Image Source: Nourinejad, M., Bahrami, S., & Roorda, M. J. (2018). Designing parking facilities for autonomous vehicles. Transportation Research Part B: Methodological, 109,

Assignment 2

Technology Stack

Image: Moore, D. (2020, December 23). New North Texas Center for Mobility Technologies Will Fuel Innovation With Industry-University Collaborations. Dallas Innovates. https://dallasinnovates.com/new-north-texas-center-for-mobility-technologies-will-fuel-innovation-with-industry-university-collaborations/

Assignment 2

Images: Abuelsamid, S. (2021, August 31). Autonomous Tech Developer Motional Unveils Hyundai Ioniq 5-Based Robotaxi. Forbes. https://www.forbes.com/sites/samabuelsamid/2021/08/31/motional-unveils-its-hyundai-ioniq-5-based-robotaxi/?sh=50989b7a3665, https://www.prnewswire.com/news-releases/beno-technologies-is-unleashing-a-new-breed-of-e-bike-301146886.html, https://faq.whill.inc/eu

Assignment 2

Images: Porter, J. (2021, June 15). Amazon brings its cashierless tech to a full-size grocery store for the first time. The Verge. https://www.theverge.com/2021/6/15/22534570/amazon-fresh-full-size-grocery-store-just-walk-out-cashierless-technology-bellevue-washington, https://techcrunch.com/2019/01/10/caper-shopping-cart/

Assignment 2

Image Credit: Jun Cen

11.313 Research Presentation

John Devine | David Hong

Image: Berger, A. M. (2017, September 19). Opinion | The Suburb of the Future, Almost Here. The New York Times. https://www.nytimes.com/2017/09/15/sunday-review/future-suburb-millennials.html

11.313 Final Project Presentation

John Devine | David Hong

Image: Berger, A. M. (2017, September 19). Opinion | The Suburb of the Future, Almost Here. The New York Times. https://www.nytimes.com/2017/09/15/sunday-review/future-suburb-millennials.html

Image: Forbes, P. (2021b, May 6). Recipes: Classic Side Dishes From Perini Ranch Steakhouse’s New Cookbook. Texas Monthly. https://www.texasmonthly.com/food/recipes-classic-side-dishes-from-perini-ranch-steakhouses-new-cookbook/

Image: All-on-4 Lansing | Dental Implants. Healthy Smiles Dental Care. https://www.healthysmileslansingdentist.com/all-on-4.html

Issues 1. Micromobility networks currently aren’t allowed 2. Cars are the only convenient mode of transportation 3. Retail developments are mostly parking

Main

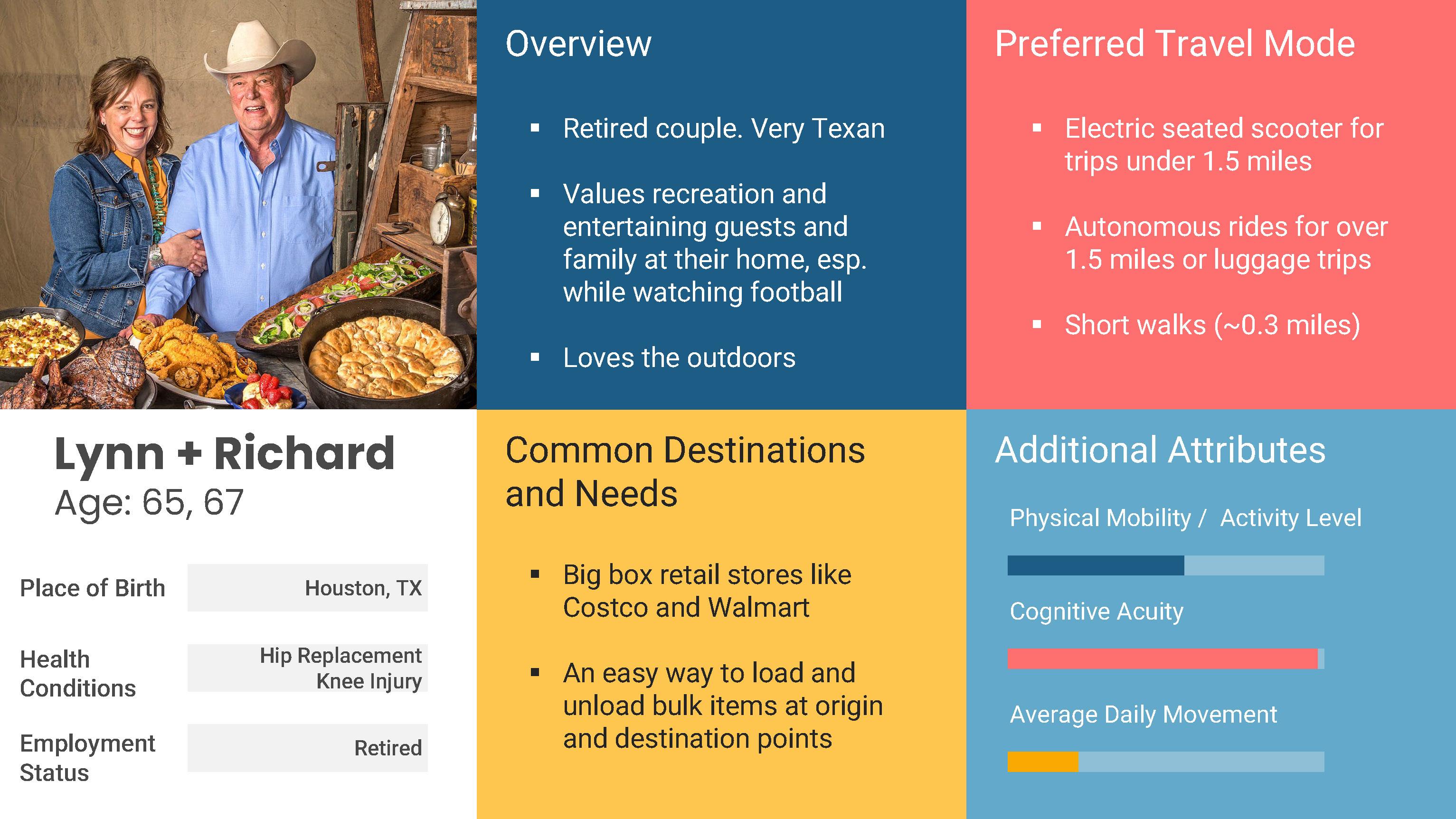

Lynn and Richard’s Journey 1 Micromobility Hub 2 Micromobility Corridor 3 Commercial AV PU / DO 4 Residential AV PU / DO 1 2 3 4

1 2 3 4 Bab’s Journey 1 E-bike Station 2 Multimodal Street 3 Town Square AV PU / DO 4 Multifamily AV PU / DO

Residential Pick-Up and Drop-Off 1

Residential PU/DO - existing code

2 parking per home Min 10 ft. rear setbacks Min 12 ft. front setbacks Garages

The Mayfair DDCD and CONB Zoning ordinance require a minimum of 2 parking ratio per household, and the DDCD outlines the front and rear setbacks required.

Image: Chenhao Zhu, 2022. Cluster Home Plain View.

Residential PU/DO - C2K Modification Mod: 8 ft. rear setbacks Mod: 8 ft. front setbacks Garages replaced with AV PU/DOs C2K Access Point Direct Passenger Unloading into the Home Proposal to reduce parking minimum to zero and instead implement dedicated AV pickup and drop offs (1.5 spaces per home) & to modify the setback requirements to grow the shared cluster space.

Chenhao Zhu, 2022. Cluster Home Plain View.

Image:

Existing vs. Proposed Views Compared 2 parking per home Min 10 ft. rear setbacks Min 12 ft. front setbacks Garages Image: Chenhao Zhu, 2022. Cluster Home Plain View. Mod: 8 ft. rear setbacks Mod: 8 ft. front setbacks Garages replaced with AV PU/DOs C2K Access Point Direct Passenger Unloading into the Home

- Perspective View Garage - 2 CARS 380 sq.ft x 8 = 3,040 sq. ft Narrower 20 feet passway

Existing

Image: Chenhao Zhu, 2022.

Cluster Home View Axon.

Proposed - Residential AV PU/DO Mod Direct Access AV PU/DO - No turn req’d for wheelchairs Wider court for clusters between ~ 5,000 to 6,500 sq. ft of open space for cluster of 4 homes

Zhu, 2022. Proposed Cluster Home View Axon.

Image: Chenhao

Residential C2K Section View

Existing View

Modified View

Units: Feet

The section view provides ground measurements of existing and modified sections, and shows that there is a 60% depth increase in cluster open space - resulting in an even greater volume increase.

Residential C2K PU/DO - EMS Circulation View

The circulation path connected through the clusters allows for emergency vehicles (firetruck, ambulance, etc) to obtain direct access to the Shared Autocourt.

Residential Area Code Amendments

CONB Zoning Ordinance 2012

• 2 parking lots for each dwelling unit required under Section 3.4-3 “R-2A” single-family and two-family district

• Propose a proviso that allows for dedicated space for on-demand mobility pickup and dropoff to replace parking minimums.

Mayfair DDCD 2021

• Minimum parking ratio of 2 required for Single Family Detached Clusters under Part G Section 12.

• Propose to remove this requirement. For this typology, we will provide 1.5 AV PU/DO spaces per home.

• Front setback of 12 feet and rear setback of 10 feet required under Part E Section 9.

• Propose an amendment to 8 feet.

Sources: City of New Braunfels Zoning Ordinance 2012. https://www.nbtexas.org/3444/Zoning, Mayfair Design and Development Control Document 2021. https://www.nbtexas.org/3333/

2. Micromobility Hub

Images: Cycling with diabetes on a special needs bike. Van Raam. https://www.vanraam.com/en-gb/advice-inspiration/news/cycling-with-diabetes-on-a-special-needsbike, Change, D. (2021, December 8). Is Micromobility Here To Stay? The 3 Things Policymakers Need To Do. Driving Change. https://drivingchange.org/is-micromobilityhere-to-stay-the-3-things-policymakers-need-to-do/

3. Micromobility Corridor

4. Retail Pick-Up and Drop-Off 4

Retail PUDO Existing Code Existing Walmart in New Braunfels 1. One parking space required per 200sf (Mayfair DDCD) 2. No language permitting autonomous delivery infrastructure (Mayfair DDCD) 3. No requirement for accessible car access outside ADA requirements

Area Code Amendments Mayfair DDCD 2021 Reduced Parking Minimum • One parking space required per 200sf required for Shopping Centers under Part G Section 12. • Propose to change this require to one PU / DO per 600sf Increased Accessibility Requirement Add new language to Section 12.3.1 requiring that 25% of retail PU / DOs be designed for full accessibility, with level rear/side loading and a covered path to the store entrance Autonomous Delivery Infrastructure Add new language to Section 5 setting design standards for automated delivery infrastructure, requiring that autonomous delivery staging be integrated with accessible PU / DOs

Mayfair Design and Development Control Document 2021. https://www.nbtexas.org/3333/

Retail

Source:

This diagram shows how land can be re-programmed once parking minimums are reduced. In this example, half of the existing Walmart parking could be used for new development and a fourth can become public greenspace

1. Reduced Parking Minimum 25% Parking 50% Developable Area 25% Greenspace

Today, 13% of the U.S. population lives with a mobility diasability. As the population ages, we can expect this number to increase. 25% Allows us to accomdate this growth and serve people with mobiltiy challenges not covered in this statistic

In this Walmart example, that means 100 fully accessible spaces, each 9x23 for rear / side loading

1. Reduced Parking Minimum Existing Requirement: 1 space per 200sf New Requirement: 1 PU/DO per 600sf New Requirement: 25% Must be fully accessible

2. Increased Accessibility Requirement

Total Area for Accessible PU /DOs

Our new code requires that 25% of retail PU DOs be accessible for those with mobility issues. The area in blue shows how much land this requires, and how it can potentially integrate into the design of a store.

cashierless checkout automated carts adjustable PU/DO platforms 2. Accessible PU/DO Image: Chenhao Zhu, 2022. Accessible PU/DO Zone.

2. Accessible PU/DO

Shelter Canopy

Image: Chenhao Zhu, 2022. Accessible PU/DO Zone Covered.

2. Accessible PU/DO adjustable PU/DO platforms automated carts cashierless checkout Shelter Canopy Image: Chenhao Zhu, 2022. Accessible PU/DO Zone Ground.

3. Autonomous Delivery Infrastructure

Autonomous

delivery staging and path

Our new code also requires that staging areas for autonomous delivery be integrated with AV PU DOs so that robots can be used to move goods directly to vehicles.

3. Autonomous Delivery Infrastructure Autonomous Delivery Staging + Path Entrances Greenspace

Dominos. Self-Driving Delivery.

https://selfdrivingdelivery.dominos.com/en

Image:

(n.d.).
