Connecting Discrete I/O Modules: HE10 Connector Modules

Basics on how to use cable runs

At a glance HE10 connector modules are connected to sensors, pre-actuators or terminal blocks using a preformed cable designed to allow the smooth and direct transition of module inputs/outputs from wire to wire.

Pre-formed cables TSXCDP301 / 501 The 3-meter long TSXCDP301 or 5-meter long TSXCDP 501 pre-formed cables consist of:  a molded HE10 connector at one end with 20 protruding sheathed wires with a cross-section of 0.34mm2;  free wires at the other end, differentiated by a color code complying with DIN47100. NOTE: A nylon thread built into the cable allows easy-stripping of the sheath. NOTE: HE10 connectors must be engaged or disengaged with sensor and pre-actuator voltage switched off.

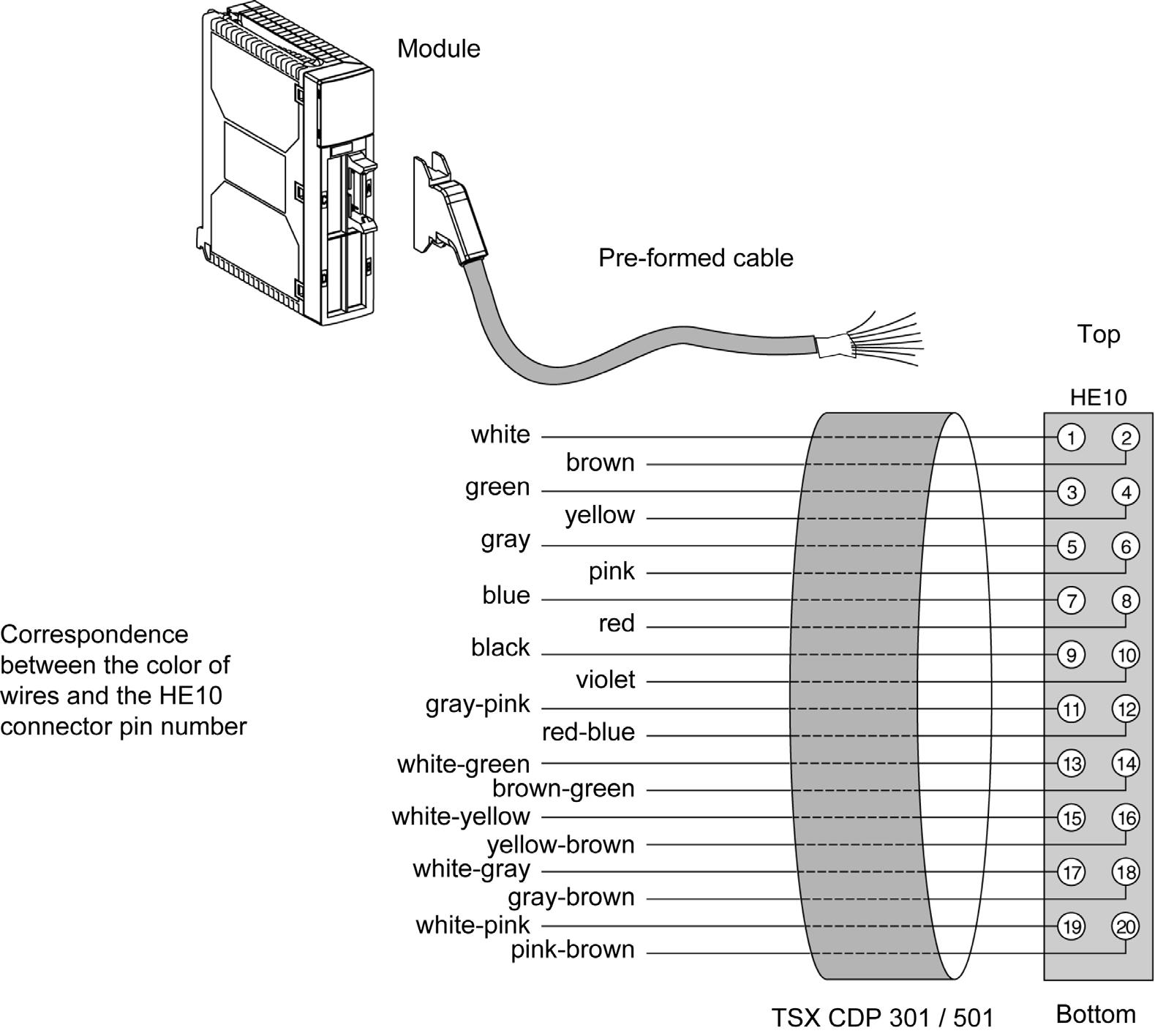

The diagram below shows the connections of the pre-formed cable to the module:
