VAPORTEK RESTORATOR

ODOUR ELIMINATION MACHINE

Compact, efficient and versatile odour treatment machine that produces vaportek’s unique active dry vapour – the eco-friendly alternative to ozone treatment.

2 PAGES OF TIPS & TRICKS FOR POPULAR USES

RESTORATOR

COMPACT, EFFICIENT AND VERSATILE ODOUR TREATMENT MACHINE THAT PRODUCES VAPORTEK’S UNIQUE ACTIVE DRY VAPOUR – THE ECO-FRIENDLY ALTERNATIVE TO OZONE TREATMENT

Instructions for use on the side

Opening for inserting cartridges with active oil

Plastic cord with ABS end caps Extra strong designed handle On/Off button

Output of active odour neutralizing dry vapour

Galvanized steel grid

Internal fan, 220 volts. Capacity up to 1.4 m³/min

TIPS & TRICKS FOR POPULAR USES

PAGES 4-5 Power consumption: 11 watt

Durable vinyl clad 2.2 mm steel case

1.8 m power cord, 220 volt

Cartridge with active oil for odour treatment (sold separately)

RESTORATOR TREATS ATMOSPHERE, CONTENTS AND BUILDINGS SIMULTANEOUSLY

ATTENTION!

• This system is a safe and effective alternative to ozone, ULV cold and thermal fogging .

• No health risks.

• The use of personal protective equipment is not necessary.

RESTORATOR item no. 56-1226

CARTRIDGES ARE AVAILABLE IN:

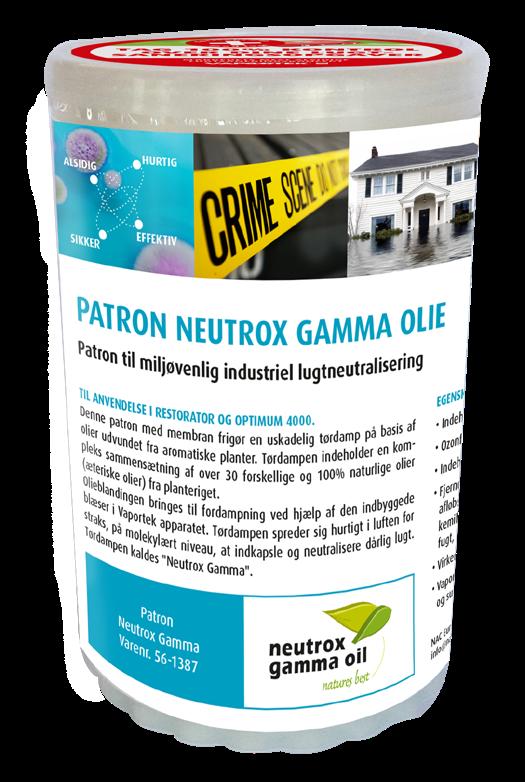

56-1387 Cartridge for Restorator/Optimum 4000 - Neutrox Gamma

56-1769 Cartridge for Restorator/Optimum 4000 - SOS

56-1759 Cartridge for Restorator/Optimum 4000 - Lemon

56-1756 Cartridge for Restorator/Optimum 4000 - Summer Orange

56-1765 Cartridge for Restorator/Optimum 4000 - Neutral w. 10% lemon

56-1369 Cartridge for Restorator/Optimum 4000 - Berry

56-1370 Cartridge for Restorator/Optimum 4000 - Orchard

56-1776 Cartridge for Restorator/Optimum 4000 - Ocean

RESTORATOR

COMPACT, EFFICIENT AND VERSATILE ODOUR TREATMENT MACHINE THAT PRODUCES VAPORTEK’S UNIQUE ACTIVE DRY VAPOUR – THE ECO-FRIENDLY ALTERNATIVE TO OZONE TREATMENT

The Restorator is a simple portable electrical machine that uses a harmless technology that quickly, effectively and permanently removes malodours and renews the air in indoor spaces. The Restorator uses Vaportek’s patented membrane system, which contains a complex mixture of more than 30 different, and 100% natural, essential oils. This means cold pressed and otherwise extracted essential oils from the plant kingdom, such as eucalyptus, cedar, peppermint, camphor, pine, lavender, citrus fruits, etc.

When air passes over the membrane, using the Restorator’s built-in fan, the oil diffuses through the membrane and is released into the air as a dry vapour. The essential oil molecules of the dry vapour are extremely active. They quickly spread to the entire treatment area and effectively penetrate porous surfaces, such as wood, concrete, wallpaper, plaster, bricks, insulation materials, textiles, etc. and settles on non-porous surfaces to quickly and effectively encapsulate and neutralize or modify odours at a molecular level. Odours from fire and soot damage, nicotine, urine, mould, sewage, faeces, stove fire, burned-on food, sweat, vomit, decay, pets and all other odours of organic origin.

ECO-FRIENDLY TECHNOLOGY

The technology is based on natural plant extracts and is not harmful to humans, and is therefore a better choice than the use of ozone machines, thermal foggers or ULV (cold) foggers and unlike ozone treatment. The Restorator does not damage textiles, rubber, adhesives, etc. Moisture is not released into the treated rooms. As the method is harmless to humans, there is no need to evacuate rooms treated with the Restorator or rehouse residents. You can stay in the treated rooms while the Restorator is working.

This very versatile deodorizing machine is intended for areas where quick results are desired, from small rooms, such as car cabins, hotel rooms, to slightly larger rooms of up to 600 m3 (or approx. 250 m2) depending on the type and intensity of the odour.

RESTORATOR TREATS ATMOSPHERE, CONTENTS AND STRUCTURE SIMULTANEOUSLY

THE RESTORATOR’S SIMPLE AND ROBUST DESIGN GIVES YOU MANY YEARS OF EFFORTLESS OPERATION WITHOUT MAINTENANCE COSTS AND WITH MINIMAL POWER CONSUMPTION - "JUST PLUG AND PLAY"

SELECTED SPECIFICATIONS

• Treats areas up to 566 m³ or more depending on odour intensity and type.

• Durable construction with 2.2 mm vinyl clad steel case and ABS end caps

• Dimensions: 16 x 13 x 30 cm.

• Weight: 1.7 kg.

• Cartridges are inserted into the Restorator and emit active odour neutralizing dry vapour.

• Power consumption: 11 watt.

• Lifetime cartridge: approx. 200-300 hours.

APPLICATIONS FOR RESTORATOR

• Odour remediation after fire/water damage etc.

• Odour treatment of hotel rooms etc.

• Car rental companies (smoke odor etc. in cars).

• Car dealers/camping dealers.

• Hospitals and nursing homes (health care in general).

• Cleaning companies.

• Sports arenas.

• Estate agents/property service.

• The industry in general.

• And many more.

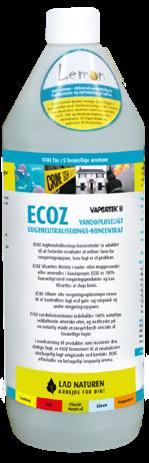

TIP: Use ECOZ liquid - odour elimination - in your cleaning/rinse water when cleaning fire damage.

TIPS & TRICKS – RESTORATOR

GET THE MOST OUT OF VAPORTEK PRODUCTS AND GET HAPPY CUSTOMERS

RESTORATOR

The Restorator is a unique, compact and very versatile odour treatment machine that helps you remove odours immediately and make your customers happy. The Restorator is an indispensable tool for thousands of damage restoration companies worldwide.

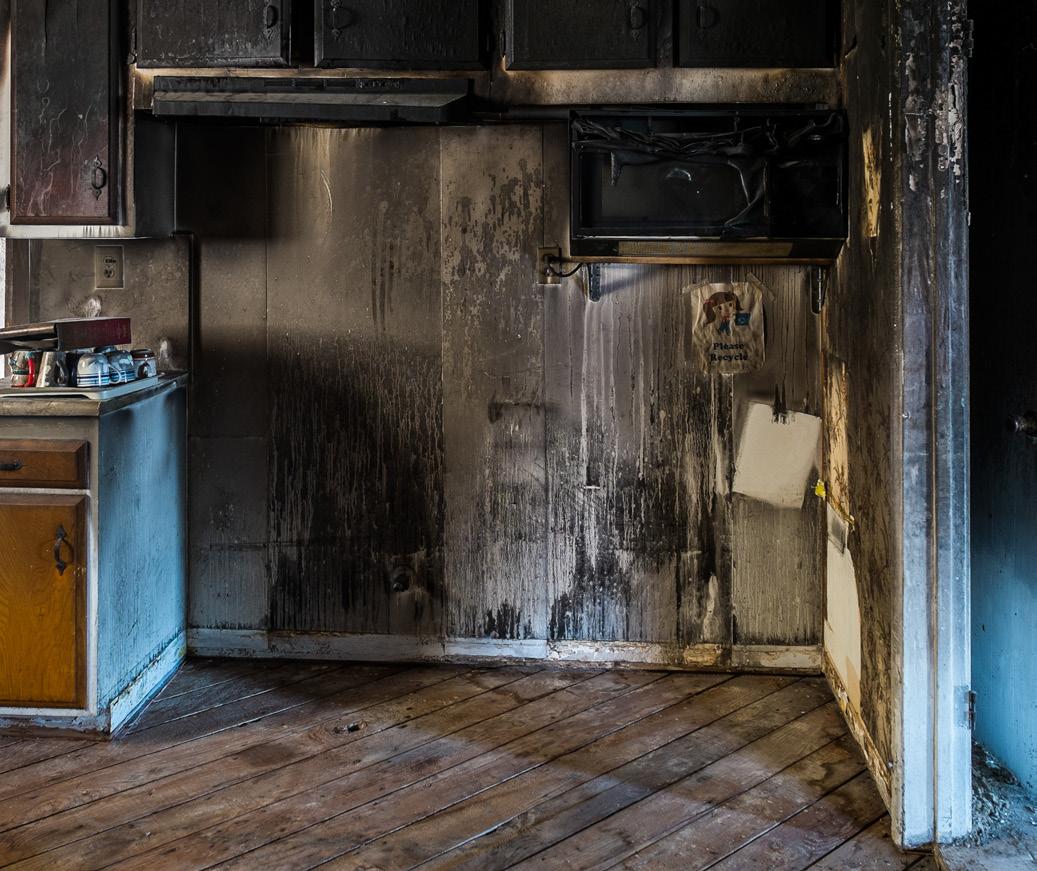

1 FIRST AID AFTER A FIRE

The Restorator is excellent to use immediately after the fire is out. Victims, neighbors etc. are frustrated by the strong smell of soot. The Restorator alone or combined with other Vaportek products such as Neutrox Gamma Bricks, SOS Bricks and ECOZ concentrates, will help to reduce the strong and unpleasant smell of smoke and soot, with the result that odour complaints are reduced or completely avoided.

2 ODOUR REMEDIATION AFTER A FIRE

The Restorator is particularly suitable for the permanent removal of unpleasant odours after a fire etc. and can be used during the entire remediation process. The standard procedure is to wash all surfaces with alkaline detergent and use ECOZ odour neutralizer concentrate in your rinse water. Then you can use a Restorator which will remove any residual odour after cleaning. We recommend that you use a cartridge with SOS oil (Smoke Odour Solution) or with Neutrox Gamma oil in the Restorator. For lighter odour remediation, our fresh Lemon and Summer Orange cartridges from the Fresh & Clean Citrus Concept are very popular.

TIPS & TRICKS – RESTORATOR

GET THE MOST OUT OF VAPORTEK PRODUCTS AND GET HAPPY CUSTOMERS

3 ODOUR REMOVAL – CARS, CARAVANS, BOATS ETC.

Popular machine for removing odours in cars, motorhomes, caravans, holiday homes, boats and the like. If necessary, apply/wash first with Bio-C or ECOZ concentrate on textiles and hard surfaces.

4 INCREASE THE DISPERSION OF ACTIVE DRY VAPOUR

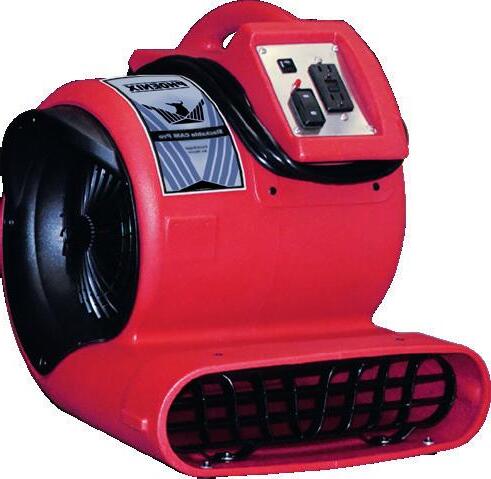

Place the Restorator in front of the air intake of an air mover and effectively spread the odour neutralizing active dry vapour from the Restorator to a larger area.

5 ODOUR REMOVAL – CONTENTS

The Restorator can be used for odour treatment of furniture and textiles. The tiny essential oil molecules from the active dry vapour will quickly penetrate materials and textiles. We recommend using Vaportek Lemon or SOS cartridges for this purpose.

6 ODOUR REMOVAL – HOTEL ROOMS

The Restorator is ideal for odour treatment of hotel rooms, if e.g. a smoking ban is not observed or for the removal of all other unpleasant odours in hotel rooms such as sweat, vomit, urine, food etc. Smelly hotel rooms cannot be used and cost a lot of money every night the room is not rented out. If necessary, spray with Bio-C first directly in places where the source of the smell can be detected. First remove the source of the smell, e.g. vomit on carpets, clean the area and then spray the area with Bio-C. Then use the Restorator, which very quickly and effectively removes/ eliminates the smell in the entire room with the active dry vapour. Hotel maids worldwide are enthusiastic about the ability of the Restorator and Bio-C to quickly, efficiently and ECO-friendly neutralize odours in hotel rooms.

NEUTROX GAMMA OIL

ECO-FRIENDLY ODOUR CONTROL WITH PURE "PLANT ENERGY"

Since Vaportek was founded in 1979, the company’s unique Neutrox Gamma oil has been the backbone of the company’s global success and the scientifically formulated mix of complex natural oils has yet to be duplicated, simply because it is not possible!

The Vaportek technology is a unique method of safe, effective and simple odour removal. The method has, worldwide, set a new standard for environmentally and user-friendly odour remediation within the damage restoration industry.

A scientifically formulated and patented composition of more than 30 different and 100% natural aromatic plant extracts form the foundation of Vaportek’s versatile product range. This complex mix of essential oils is called Neutrox Gamma and was developed in the late 70s by a reputable American pharmaceutical manufacturer for the safe and effective neutralization of odours in the American healthcare system. Today, Vaportek is used with great success in many different industries.

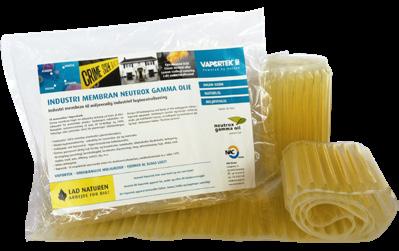

The Neutrox Gamma oil is hermetically sealed in a special plastic membrane. When air is passed over the membrane, using the Vaportek machines built-in fan, the oil diffuses through the membrane and is released into the air as an active dry vapour. The plant oil molecules of the dry vapour are extremely active. They quickly spread to the entire treatment area and effectively penetrate porous surfaces, such as wood, concrete, wallpaper, plaster, bricks, insulation materials, textiles, etc. and settles on non-porous surfaces to quickly and effectively encapsulate and neutralize or modify odours at a molecular level. Odours from fire

and soot damage, nicotine, urine, mould, sewage, faeces, stove fire, burned-on food, protein fires, sweat, vomit, food, decay, pets and all other odours of organic origin.

THIS NEUTRALIZATION PROCESS IS CALLED "ZWAARDEMAKER PAIRS"

Intense research into the unique essential oils, which are also used for the development of pharmaceuticals, has shown that many of these oils possess the ability to neutralize odours if you pair/combine an essential oil with a given odour molecule.

The formula of Vaportek’s complex blend of these oils is carefully composed based on the fact that specially selected essential oils will neutralize odours of various origins.

Together with the Neutrox Gamma oil in the membrane/cartridge, we recommend using ECOZ liquid odour elimination concentrates Classic Neutral, Lemon or Summer Orange.

SOS OIL (SMOKE ODOUR SOLUTION)

ECO-FRIENDLY ODOUR CONTROL WITH PURE "PLANT ENERGY"

Vaportek – Unlimited Possibilities – Eliminates All Kinds of Odours!

The SOS oil is scientifically formulated and specially developed for odour remediation after fire and smoke damage. Vaportek offers this brilliant mix of essential oils as an alternative to the original and popular Neutrox Gamma oil. SOS smells pleasant, yet is powerful and effective, making it an ideal choice for neutralizing smoke odours in private homes and other areas where people stay, while improving the working environment for damage restoration technicians. SOS is not a replacement for Neutrox Gamma oil, but must be seen as an effective alternative for all types of smoke and soot damage. The SOS oil is available as membranes for the VaporShark, as cartridges for the Restorator, SOS Bricks and HDS cartridges for e.g. odour treatment of ventilation ducts.

See pages 8-9 for a more detailed explanation of how essential oils neutralize odours according to the Zwaardemaker Pairs method.

"We use the SOS oil with great success for all types of fire damage. The customers are very satisfied, and everyone appreciates the mild aroma that the SOS oil releases."

Allan Nielsen, Branch Manager - Polygon

A/S, Denmark

IDEAL FOR:

Protein fires

Pot/pan fire, burnt and charred meat and most fires where cellular tissues are involved.

Wood/paper fires

Fire in rooftops, chimney fire, explosion fire and fire in buildings and in general where wooden structures are involved, etc.

Synthetic fires

Carpets and upholstery, fire in electrical installations and generally where plastics are burnt.

Cigarette smoke/Nicotine smell

Private homes, apartments, restaurants, waiting rooms, vehicles and anywhere tobacco smoke is a problem.

Together with the SOS oil in the membrane/ cartridge, we recommend using ECOZ liquid odour elimination concentrates SOS, Lemon or Summer Orange.

ARE NOW AVAILABLE WITH

ESSENTIAL OILS NEUTRALIZE MALODOURS AND AT THE SAME TIME CONTRIBUTE TO A CLEANSING AND ANTISEPTIC EFFECT

HOW VAPORTEK WORKS

VAN DER WAAL´S FORCE:

This refers to the interactive energy acting between elements of exceedingly small volume. These are forces, such as collision, repulsion and attraction, which control the behavior of nonelectrically charged particles present in a gas. This explains the bonding action between the essential oils and the malodorous materials when in a vapour state.

ZWAARDEMAKER PAIRS:

ESSENTIAL OIL MOLECULE

(e.g. juniper oil)

ODOUR MOLECULE

( e.g. buturic acid)

Zwaardemaker Pairs is based on a scientific discovery which means that if you mix or combine odorous substances, it will result in no smell. This “odour pairing” has proven to be possible with a limited range of essential oils and malodorous targets. This interaction between odorous substances is a phenomenon discovered near the end of the 1800s by the Dutch scientist Zwaardemaker.

STRENGTHEN YOUR COMPANY’S IMAGE BY GIVING YOUR DAMAGE JOB A DISCREET AND POSITIVE SCENT THAT THE CUSTOMER WILL REMEMBER!

It has been scientifically proven that we humans are to a large extent emotionally controlled by our sense of smell. After the sense of sight, the sense of smell has the greatest influence on humans. Imagine that you can do a little extra for your customer via scent and they will remember you for it.

NEUTRALIZE ODOURS AND SPEAK TO YOUR CUSTOMER’S SENSES WITH SCENT

It has been scientifically proven that we humans are to a large extent emotionally controlled by our sense of smell. After the sense of sight, the sense of smell is the one of all our senses that has the greatest influence on humans.

PEOPLE ARE DRAWN TO A GOOD SMELL/FRAGRANCE!

Vaportek’s special oils and compounds are based on 100% natural and highly effective fragrant essential oils, which for 45 years have created convincing results in odour treatment in the professional damage restoration industry worldwide. It is scientifically proven that only natural essential oils possess the ability to neutralize odours. Vaportek’s technology is not a masking of the malodour, but works according to a scientifically proven method called the "Zwaardemaker Smell System" or "Zwaardemaker Pairs".

Vaportek’s technology is based on studies and research by: Hendrik Zwaardemaker Born 10 May 1857, Haarlem Died 19 September 1930, Utrecht Nationality: Dutch Scientific career: Fields Physiology Institutions University of Utrecht Largest scientific work "Physiologie of Olfaction" published in 1895

NOT A MASKING, BUT A NEUTRALIZATION OF ODOUR

An important contribution of Zwaardemaker’s studies is the concept of odour conjugates. Zwaardemaker discovered that certain odours could avoid being perceived by the sense of smell if they were mixed with different essential oils. This combination of essential oils and odours is referred to as "Zwaardemaker Pairs" (or Z-pairs).

IF IT SMELLS GOOD – IT’S CLEAN!

Vaportek’s products neutralize odours with the power of the fine essential oils which work according to the Zwaardemaker Pairs method. However, much has happened since 1895, when Hendrik Zwaardemaker presented his first studies. You can probably attribute the founder of Vaportek Mr. Jack Bryson a large part of the credit for being one of the people who has managed to see the possibilities in the essential oils and utilized these oils’ potential to the fullest. On this basis, a company has been created with products that have won great respect worldwide within the damage restoration industry, and many other markets. For the past 44 years, the damage restoration industry has used the natural ingredients of Vaportek products to create fragrant and odour-free rooms after fire damage, sewage damage, unattended death cleanup, etc.

Rooms/facilities that have been treated with Vaportek odour treatment products will not be masked with an overpowering scent – but will present themselves as fresh and fragrant – something that the human sense of smell will perceive as very positive. Therefore, Vaportek customers perceive our fragrances as very positive. It brings joy to the customer to return to his newly restored house, where he is met by a fresh hint of eg. citrus scent… THIS IS VAPORTEK!

Insurance customers who have had fire damage or similar, where the damage restoration company has used Vaportek odour removal products, contact us to purchase and use Vaportek products in their daily life to treat odours from pets, cigarette smell, food odours or whatever is relevant for the person concerned.

Butyric acid Vomiting, decay, rancid dairy products

In other situations, it may be desirable to create completely fragrance-free rooms. NAC Europe also has a solution for that. We have a whole programme of other high-tech products that work through oxidation. These can be used separately or in combination with Vaportek.

This is what we call THE BEST OF TWO WORLDS These concepts are presented in NAC’s new "Odour Management Concept". See more on page 15.

VAPORTEK TECHNOLOGY – THIS IS HOW IT WORKS

People often ask whether Vaportek’s technology masks or truly eliminates malodours. The answer: Vaportek eliminates organic odours.

ODOUR MASKING VERSUS ODOUR NEUTRALIZATION

To mask is to increase overall odour intensity in order to forcibly “cover-up” an existing malodour. This means introducing a new odour that is more powerful smelling than the problematic odour you wanted to eliminate. It results in a further bombardment of perceived scents that does nothing to eliminate the source of the original malodour.

To neutralize is to eliminate or cause malodorous molecules to be imperceptible on a molecular level through direct counteractant measures with an additional compound, in this case, our essential oil compound comprised of plant, flower, and tree extracts. Malodour molecules are then changed through chemical interaction, called odour-pairing or encapsulation, into a new molecular form that either no longer smells or that is not volatile enough to be perceived. In this way, the malodorous molecule is lessened to the point of nonexistence as it has been broken down beyond recognition.

When Vaportek’s essential oil compounds are released into the air as a dry vapour, they react directly with odorous molecules in the air. This molecular, chemical interaction allows Vaportek’s products to effectively neutralize organic malodours.

WHY ESSENTIAL OILS?

While Vaportek does introduce an additional fragrance (which some incorrectly attribute to masking) due to our complex formula of naturally occurring essential oils, it is the exact complexity of our oil formula that goes one step further to effectively eliminate the source of the malodorous molecules through encapsulation or odour-pairing neutralization technology. While there are many essential oils, not all of them are capable of neutralizing organic odours such as smoke, urine, skunk, and mildew. Vaportek has carefully crafted the correct blend of oils required for effective and permanent odour elimination. This is why Vaportek’s technology is so unique. Our formula of essential oils offer a broad spectrum neutralization of odour causing elements like aldehyde, amine, diamine, sulfide, lactone, carboxylic acid, ester, carbylamines, ketone, and other carbons.

It is thanks to our essential oils that Vaportek may proudly claim to offer our customers a green solution for their malodour issues rather than be forced to seek out harsh chemicals and ozone producing products. Many existing odour eliminating solutions expose both occupants and the professionals using the equipment to health issues like respiratory disease and lung damage. These products can cause harm to our natural environment too. Our technology is CFC-free, nontoxic, and VOC compliant.

WHY DRY VAPOUR?

Vaportek further distinguishes itself from competitors with our dry vapour delivery technique which adds zero moisture to the treatment area and is otherwise imperceptible beyond the aroma of essential oils. Our technology doesn’t produce any harmful ozone or hydroxyl, doesn’t involve any fogging equipment, and isn’t as messy or sticky as gels and sprays. Dry vapour compounds have high mobility in the air and are able to safely penetrate porous substances such as wallboard, wood, carpeting, cement, insulation, and other surfaces in a way that competitors’ products cannot.

TRUST VAPORTEK

Vaportek is the pioneering force behind essential oil, dry vapour technology. Vaportek is years ahead of imitation products crafted by companies who are still struggling to achieve the ideal balance of what we discovered and perfected in 1979. Place your trust in Vaportek and our original blend of oils for effective and permanent odour elimination. Beyond our 100% guarantee, we promise impeccable customer service, fair pricing, and a commitment to offer you an environmentally friendly solution for your organic odour problems. We believe in our products and are proud of what we produce. Try us first – we’re all you’ll need!

ELIMINATE ORGANIC ODOURS

Here are a few examples of some organic odours our products have been known to effectively neutralize: Mould/mildew, mustiness, pet, urine, smoke/fire, flood, garbage/ dumpster, sweat/athletic, sewage, sour/spoiled dairy, skunk, hydroponic/grow rooms, protein fires, cooking odours like curry, decomposing body, and more!

FIRST AID FOR ODOUR!

THERE ARE MANY GOOD REASONS TO USE VAPORTEK PRODUCTS – HERE IS ONE OF THEM!

IN THE CASE OF SUDDEN ODOUR NUISANCES, IT IS ABOUT BEING PROACTIVE, REACTING QUICKLY AND THEREBY CREATING SATISFIED CUSTOMERS

In addition to the fact that Vaportek’s unique technology and products over the past 45 years have proven their worth and effectiveness within the global damage restoration industry, and today are popular products for complete and permanent odour removal throughout the entire remediation process, Vaportek products stand out especially through their versatility and extremely fast effect – especially in case of sudden odour problems.

Here, the Vaportek products provide very quick and superior first aid for odours, which means that likely complaints about smoke and soot smell after a fire in private homes, apartment complexes, companies, stairwells, shopping malls, production halls, etc. can be completely prevented if one or more of the fast-acting Vaportek products are used immediately after the fire, such as a VaporShark, a Restorator or the popular Neutrox Gamma, SOS or Aroma Bricks.

PROACTIVE ACTION

Result = Satisfied customers who feel that you instantly solve their odour problem. Your proactive and quick efforts will be remembered. It strengthens your company’s image!

See how to practice first aid with Vaportek products under the Tips & Tricks section on pages 4-5.

Recommended treatment of sudden or persistent odours related to damage restoration. Extremely safe and effective. A

• No Ozone.

• Popular with cleaning and restoration companies worldwide.

• Immediate results without harmful side effects.

• Fast odour removal promotes customer satisfaction.

• Odour removal is permanent for difficult odours.

• Recommended by the insurance industry.

A B C D E

SOS (Smoke Odour Solution) or Neutrox Gamma oil can be used to treat all types of smoke odour after synthetic fires, wood and paper fires, protein fires, etc.

Install the equipment at the start of the remediation work to immediately reduce odours for restoration technicians and residents.

Safe for use in residential areas during remediation. Simplifies and speeds up cleaning.

Odours from water damage are effectively removed during the treatment. Ideal for use during the drying process. Use e.g. Neutrox Gamma Bricks in dehumidifiers.

Even animal odours can be removed with proper treatment. Also ideal for unattended death cleanup etc.

VAPORTEK FRESH & CLEAN CITRUS CONCEPT

With the Fresh & Clean Citrus Concept, we pay tribute to Vaportek’s fantastic ability to formulate products that work and make people happy. Citrus scents are associated with purity and freshness. Especially in the damage restoration industry, the scent of cleanliness and freshness is popular! The Fresh & Clean Citrus Concept is a sure success!

Since Vaportek was founded in 1979, the company’s unique Neutrox Gamma oil has been the backbone of the company’s global success and the scientifically composed and complex oil blend has yet to be copied or imitated, simply because it is not possible. Along with the also scientifically formulated SOS oil (Smoke Odour Solution), these two oil blends are popular in the damage restoration industry and create convincing results when stubborn odours from fire and other foul-smelling damages need to be controlled and neutralized.

As a fresh and fragrant initiative, Vaportek pays tribute to the scent of the ever-popular citrus fruits in its Fresh & Clean Citrus Concept. Fresh & Clean Citrus Concept is available in a Lemon and a Summer Orange version.

The popular Vaportek Lemon scent has always been one of our bestsellers. The Lemon and Summer Orange versions are available as membranes for VaporShark, cartridges for Restorator, as Aroma Bricks and as ECOZ odour neutralizer concentrate.

USE OF LEMON MEMBRANES AND CARTRIDGES IN THE VAPORSHARK AND THE RESTORATOR

ECOZ Lemon has been one of our bestsellers among the ECOZ products for several years, but also as membranes and Aroma Bricks, simply because Vaportek’s Lemon products smell fantastic! The reason for the fresh, clean and effective citrus aroma is simply the use of genuine essential oils from several different citrus fruits. In technical terms, ECOZ Lemon is called a top note

fragrance. Top note fragrances are green scents. They are fresh and based on notes from citrus fruits such as lemon, bergamot, orange, mandarin, grapefruit etc.

Lemon membranes and cartridges are used separately for lighter odour damage, where they will refresh the treated rooms with a natural and catchy, clean and fresh citrus scent. Lemon membranes can also be used in combination with SOS or Neutrox Gamma membranes, on severe odour damage where the primary odour neutralization comes from the Neutrox Gamma or SOS oil, but where Lemon will give an invigorating fresh hint of catchy citrus scent, which is appreciated by the customers. Lemon membranes also act as an antiseptic.

USE OF SUMMER ORANGE MEMBRANES AND CARTRIDGES IN VAPORSHARK AND RESTORATOR

To enrich the selection of wonderful Vaportek aromas, Vaportek has introduced another lovely and fresh top note fragrance, Vaportek Summer Orange. Vaportek has very successfully captured the scent of freshly squeezed oranges. Summer Orange membranes and cartridges are fresh, bubbly and warm and the scent is provided by tangerine, orange, blood orange, grapefruit etc. Neither Lemon nor Summer Orange membranes/cartridges replace the use of Neutrox Gamma or SOS membranes/cartridges, as these are scientifically formulated to neutralize odours within professional damage restoration. But they can be used in combination with theese, or seperately after treatment with Neutrox Gamma or SOS, to add to the job a fresh hint of citrus scent that customers will appreciate.

It is scientifically proven that: Essential oils from citrus fruits make people happy!

Our customers love Vaportek’s citrus products Lemon and Summer Orange, available as membranes, cartridges, Aroma Bricks and ECOZ concentrate. These can be used separately or in combination with each other, depending on the intensity of the smell. About some of the most commonly used citrus oils in the above products it is said:

GRAPEFRUIT: Gives new energy and good mood - sharpens concentration

LEMON: Gives good mood and energy - helps you to focus

BERGAMOT: Gives new energy and has a refreshing effect

ORANGE: Gives a good mood and has a refreshing effect

MANDARIN: Gives energy and good mood

Result: Your customers will be happy when they feel the fresh breeze of Lemon or Summer Orange

MEMBRANES FOR VAPORSHARK:

- SOS (Smoke Odour Solution)

- Neutrox Gamma

- Summer Orange

- Lemon CARTRIDGES FOR RESTORATOR:

- SOS (Smoke Odour Solution)

- Neutrox Gamma

- Lemon

- Summer Orange

- Other variants

BESTSELLER PRODUCTS FROM OUR FRESH & CLEAN CITRUS CONCEPT Lemon and Summer Orange as ECOZ concentrate and Aroma Bricks. Based on genuine essential oils for effective and fragrant results that your customers will love!

GET THE MOST OUT OF YOUR VAPORSHARK

Use Neutrox Gamma or SOS alone, or in combination with a Lemon or Summer Orange membrane.

GET THE MOST OUT OF YOUR RESTORATOR

Use Neutrox Gamma or SOS cartridges. Or try a Lemon or Summer Orange cartridge from our Fresh & Clean Citrus Concept.

The Restorator treats areas up to 600 m3/250 m2 to effectively eliminate odour pollution, quickly and safely. The unit is primarily intended for delivering a fast, high-intensity odour neutralizing treatment. A characteristic neutralizer fragrance will be noticeable during operation as the essential oil dry vapour circulates throughout the treatment area. Residual fragrance will dissipate in a matter of hours after treatment ends.

GENERAL INSTRUCTIONS

Ensure unit is plugged into the correct outlet. Situate unit so air flow at both ends is unobstructed, preferably in a relatively high location. Place on a firm, stable surface. Ensure cartridge is properly installed with the plastic cap removed from the cartridge prior to installation. To preserve cartridge life, always store with the cap on when not in use. Turn the unit on, moving it to different areas if appropriate. Odour remediation may require as little as 15-60 minutes for light contamination. For more severe contamination, treatment may take several hours or days.

PROCEDURE WHEN USING

RESTORATOR FOR FIRE DAMAGE:

1. Prior to use, a general and thorough cleaning has been carried out and the source of the smell has been removed, e.g. removal of soot particles, etc. If necessary, wash/rinse all surfaces with one of the following Vaportek ECOZ odour neutralizing concentrates: SOS, Classic Neutral, Summer Orange or Lemon.

2. The Restorator is placed in the room that is desired to be odour treated, place the device as high as possible, as the dry vapour is slightly heavier than air. Close doors and windows.

3. If two Restorators are used in the same room, place them at opposite ends of the room.

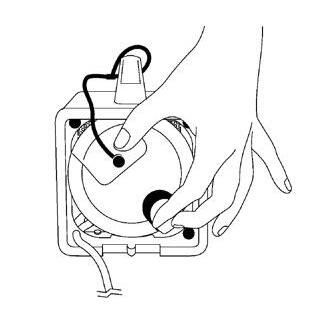

4. Remove the cover from the cartridge and insert the cartridge into the Restorator. Leave the Restorator on for 15-30 min. to several hours/days – depending on room size, type of odour and odour intensity. If necessary, set up a fan to distribute the dry steam over a larger area.

5. When treatment has finishined, you can ventilate if you wish.

6. After treatment, the cartridge is removed from the Restorator and the lid is put on.

IMPORTANT

As with any powered tool, certain precautions for safe use apply. Follow these rules and recommendations when using the Restorator:

1. The membrane inside the cartridge is sealed. Do not puncture or open the internal membrane.

2. Do not allow membrane oils to come in contact with finished surfaces. Finished surfaces may be damages by direct contact with oils. If oils should leak, wash affected skin, clothes, and/or surfaces with soapy water.

3. Store cartridges in a cool, dry location and keep away from extreme heat.

4. Replace cartrides after 270 hours use.

5. Dry vapour output will ber affected by humidity, airflow, and temperature. Ideal dry vapour release occurs at 10-27°C. Vapour release significantly increases in excess of 32°C.

6. To extend cartridge life, re-cap it when not in use.

7. Vaportek products use natural essential oils. If an allergic reaction occurs, please discontinue use immediately.

8. Not designed for continuous, long-tern operation.

REMEMBER TO PUT THE CAP ON THE CARTRIDGE AFTER USE!

NAC EUROPE ODOUR MANAGEMENT CONCEPT

NAC EUROPE PRESENTS THE NEW ODOUR REMEDIATION CONCEPT, WHERE YOU GET "THE BEST OF BOTH WORLDS"

NAC Europe was established in 2001 with Vaportek as one of the main products in our then modest product range. Since 2001, NAC Europe has expanded its product range considerably with technical equipment and chemicals, etc. from a number of recognized and innovative global manufacturers.

Soon NAC Europe will present a new website, a number of new products and several new concepts, including a completely new odour remediation concept which is based on the best of both worlds.

Vaportek is still and will continue to be one of our best selling brands, simply because the technology and products from Vaportek are so unique, effective and versatile in their use.

However, NAC Europe is known in the industry as the company that challenges its customers by launching new technologies that we believe offer new and more advantages in an industry that needs fast and efficient results.

Vaportek is based on natural plant extracts and works through special processes, where the natural and powerful essential oils react with odour molecules in a process called "Zwaardemaker Pairs". See pages 16-18.

Now NAC Europe is introducing a new concept where we combine Vaportek with new product technologies that work through oxidation and adsorption.

With the new concept, we give our customers the opportunity to combine different odour removal methods, with the aim of optimizing the odour remediation process in terms of speed, efficiency, sustainability and user-friendliness.

We hope our customers will welcome this new concept.

VAPORSHARK

VAPORTEK
