Portfolio. Selected Projetcs 2022-2024 NICOLAS UWACU A rchitect D esigner Contact uwanilas@gmail.com T. +86 198 9624 2875

EDUCATION

Nicolas Uwacu

Architect Designer

Having commenced my career at a prominent architectural design studio, swiftly recognized the importance of a holistic approach to design. While I spent three years, including an internship, honing my skills in this creative environment, I also realized that my passion extended beyond just one facet of the architectural process. This realization fueled my decision to transition to a construction company, where I could contribute to projects from their inception to their triumphant completion.

In pursuit of a more comprehensive perspective, I transitioned to a dynamic construction company. This career move provided me with a significant learning curve as had the privilege of participating in projects from their inception through to their successful completion. This exposure allowed me to grasp the intricate connections between design, project management, and construction execution. Collaborating closely with cross-functional teams, including architects, engineers, contractors, and clients, I played a pivotal role in translating designs into tangible, functional structures.

What sets me apart is my unwavering commitment to marrying creativity with practicality. I take pride in my ability to bridge the gap between design vision and construction feasibility, resulting in innovative yet realizable architectural solutions. My proficiency in relevant software tools, combined with my comprehensive understanding of industry trends, equips me to contribute effectively to projects that demand a blend of artistic ingenuity and technical precision. Furthermore, my international experience in China has endowed me with a deep appreciation for cultural diversity and global architectural influences. am confident that my exposure to this unique landscape can bring fresh perspectives, enabling me to tackle projects with a global mindset.

2014 - 2019

Central South University Bachelor Degree (Architecture + Art )

2013 - 2014

Central South University Language Certificate (Chinese language )

2010 - 2013

Byimana High School Diploma (Mathematics + Physics + Computer Science )

SKILLS

Design Proficiency, Proficiency in using architectural software Design, Collaboration, Sustainability Knowledge, Cultural Awareness & Time Management

Adaptability, Hardworker, Problem-Solving, Teamwork

English - Full professional proficiency

French - Full professional proficiency

Chinese- Working proficiency & Conversational

LANGUAGES

FIRST PLACE

HONORABLE MENTION

SECOND MENTION

COMPETITIONS

Dakhla Clinic, Morocco

DOngguang Cultural center, China

Shenzhen Bao’an School, China

Czech Republic Embassy, Ethiopia

Opera House, Poland

CONFERENCES

Shanghai Hospitality Design & Supplies EXpo.

International Conference on Civil, Architectural and Environmental Sciences.

Prefabrication and Modular Construction

China Roofing and waterproofing Expo.

Asia Conference on Design and Application of Architectural facade.

International Thermal Materials and Energy_Saving Technology Exhibition.

SOFTWARES

Set

Hunan, China Jilin, China. Rabat, Maroc. Anhui, China. QIANGYANG VILLAGE BAIHE LAKE TICKET CENTER RABAT CLINIC

19 30

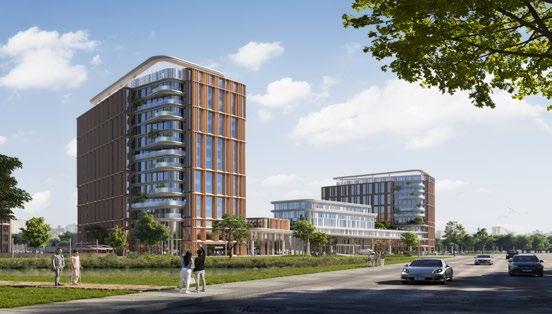

MA’AN HOSPITAL

Contents 05

SHIQIYE HOSPITAL

Ma’anshan, Anhui

The west side of the site is planned to build Yanghu Park, which is expected to be completed in the first half of 2024. After the completion of the park, it will provide a good view and high-quality air quality for the project, which is conducive to increasing the willingness of patients to seek medical treatment in the project and the rehabilitation of hospitalized patients.

Typology

Healthcare + Educational

Role

Schematic

Built Year

To be Completed in 2025

Software

Revit, Rhino, AutoCAD, Sketchup

Nicolas Uwacu

N 人行主入口全院公共车行主入口即停即走车行出口儿科门诊入口综合门诊入口仁心湖杏树林救护车广场住院入口污水处理站氧气站垃圾站员工，洁物车库出入口停车场停车场公共停车场救护车入口急诊入口员工入口急救入口污物物流入口污物物流出口住院楼综合医技平台 12F H=53.10m 6F H=27.00m 4F H=19.00m 悦迎山水廊

Uwacu 6

Nicolas

设计理念

Design Concept

分期策略

Phasing Strategy

根据基地现状进⾏分期布局

Phased layout according to the current status of the base

医技平台沿城市边界线性生长

自由的体块有机布局迎向阳湖公园

Welcoming and organic layout

Med-Tech grows alongside the urban edge Phase Phase I Phase II Phase II Phase II

地块南窄北宽，而二期的建设量是一期建设量的翻倍，因此我们意愿将北部相对宽松的地块预留给二期建设，以适应未来的各种可能性

The site is narrow in the south and wide in the north, and the construction volume of Phase 2 is double that of Phase 1, so we are would like to reserve the relatively loose plot in the north for the construction of Phase II to accommodate various future possibilities.

为保证医疗服务的高效衔接，二期医技功能紧贴一期医技平台布局，往北拓展，线性生长，形成最终的医技轴线。

为了更好的打造新院区的城市界面，高耸的三栋住院楼和门诊功能块布局相对自由，和医技平台共同成为有机整体。

In order to ensure the efficient connection of medical services, the medical technology function of the second phase closely follows the layout of the first phase of the medical technology platform, expanding to the north and growing linearly to form the final medical technology axis.

In order to better create the urban interface of the new hospital area, the layout of the three towering inpatient buildings and the outpatient function blocks are relatively free, and together with the medical technology platform, they become an organic whole.

一期一期二期二期二期

Nicolas

一期 Phase I

Uwacu

分期策略

Phasing Strategy

结合远期规划组织交通

Access and paths in accordance with long-term planning

交通组织按照远期规划统一预留出入口以及绕场地一圈的车行通道，并合理安排一、二期停车规划。

高效运作与二期施工互不影响景观先行建设，两期收益

Efficiency and no-negative impact for future construction

医院一期建筑在功能上完整、连通，在形态上独立、自洽。二期项目施工时不会影响一期使用，一期建筑也不会阻碍二期建设。

Phase 1 landscape benefits future planning

仁心湖及沿岸景观花园在一期先行修建，在二期拓展后形成完整的景观轴。

Traffic organization in accordance with the long-term planning unified reserved entrances and exits as well as around the site a circle of vehicular access, and reasonable arrangements for the first and second phase of the parking plan.

The first phase of the hospital building is functionally complete and connected, and morphologically independent and self-contained. The construction of the phase 2 will not affect the use of the phase 1, and the phase 1 will not hinder the construction of the phase 2.

Renxin Lake and the landscape garden along the shoreline were constructed first in the first phase, forming a complete landscape axis after the expansion in the second phase.

分期策略

Strategies

Phasing

Nicolas Uwacu 8

设计概念

Concept

清桂庭

Sweet-scented osmanthu garden

以花为题，提供静舒适的疗养环境。

GardenAxis

杏树林-仁心湖

Ecological Wetland

以湿地和树林打造富氧型自然景观。

悦迎山水廊

Mountain Water Corridor

以山水为题，展现医院形象，作欢迎之势。

登高望远

View from rock towards lake view landscape

舞樱庭

Cherry Blossom Garden

以花为题，提供静谧平和的疗养环境。

通过“三个特色庭院+一个开放花园”的南北向山水轴线，串联起新院区的绿色空间，并与东西向的湖景视线廊道叠合出医院的立体景观结构。

The north-south landscape axis of "three characteristic courtyards + one open garden" connects the green space of the new hospital area and superimposes the three-dimensional landscape structure of the hospital with the east-west lake view corridor.

以山水为题，打造系列特色庭院和一个开放的自然湿地花园，表达美好的寓意，对患者的呵护关怀，对医护人员的激励和爱护。

With the theme of landscape, a series of characteristic courtyards and an open natural wetland garden are created to express beautiful symbolism, pampering care for patients, and motivation and love for healthcare workers.

Nicolas Uwacu

一期总平面分析

Master Plan Analysis of Phase I

消防流线分析

Fire Flow Analysis

景观绿化分析

Landscape Analysis

车行流线分析

Car Flow Analysis

Public parking 公共停车场

Public Vehicle Flow 公共车行流线落客区急停急走出口

医院入口

Pediatric Entrance 儿科门诊入口

Emergency Entrance 急诊入口 Rescue Entrance 急救入口

General Outpatient Entrance 综合门诊入口

地库出口

Soiled Flow 污物流线垃圾站 Soiled

Rescue Flow 急救流线

医院出入口

Inpatient Entrance

Staff Entrance 住院入口员工入口

parking parking 停车场停车场

后勤流线，下地库员工入口

Logistics Flow

Staff Entrance

医院出入口

公共车行流线

Public flow

救护车流线

Ambulance flow

Fire truck access

消防登高场地

Fire ascending field

消防扑救面

Fire facade 消防环道

花园景观 Garden landscape

花园视野 Garden view

屋面景观 Roof garden 景观轴线 Landscape axis

员工车行流线

Staff flow

后勤车流线

Logistic flow

污物车流线

Soiled flow

建筑出入口

Entrance1

Nicolas Uwacu 10

设计原则1：融合自然环境

疗愈花园：医院内外的自然疗法

Healing gardens provide a natural space within a healthcare facility for patients, families and hospital staff, bringing the benefits of outdoor space into the hospital to enhance patient well-being in terms of physical, mental, emotional and social factors and maximize to promote patient recovery. Garden-style hospitals attach great importance to the importance of greening in the hospital’s indoor and outdoor environments. They use rich plant communities to coordinate landscape functions and create healing gardens that can relieve mental stress.

This project connects the green space of the new hospital area through the north-south landscape axis of «three cohesive courtyards + one open garden», and overlaps with the east-west lake view corridor to form the three-dimensional landscape structure of the hospital. The building volume encloses atrium courtyards of different scales, defining garden themes according to functional needs, and enhancing the accessibility of outdoor spaces within the courtyard and the comfort of the environment. The roof garden of the medical technology platform strengthens the overall axis through organic forms and provides a comfortable and natural outdoor leisure space. The viewing platform at the corner of the tower creates a multi-level three-dimensional landscape, introducing green into the interior of the building and creating an interesting ecological facade.

“汲取山水精华，凝聚医者仁心”

– 现代化智慧医疗中心

"Drawing on the essence of mountains and rivers, uniting the hearts of healers" - Modern Intelligent Medical Center

DESIGN PRINCIPLE 1: NATURE INTEGRATION

Nicolas Uwacu

设备用房餐厅总务库 Equipment Canteen General Warehouse 停车库 Parking 装卸货车库车库机房机房车库 100辆 1210 3456.27 m² 机房 89.68 m² 机房 118.80 m² 机房 125.19 机房 194.58 m² 机房 326.81 m² 机房 375.13 m² 机房 270.31 m² 机房 89.68 m² 机房 29.22 m² 餐厅 229.12 m² 装卸货 1381 93.48 m² 机房 74.60 m² 物流接收检验 1391 35.16 m² 总务库房 1458 114.33 m² 日用品库房 1459 69.95 m² 上机房 84.94 m² 机房 49.32 m² 连接二期车库

B1 Plan (-6.00m) 功能布局 Department Layout 急诊科 Emergency&Rescue 挂号收费住院大厅儿科/儿保药房 Registration Inpatient Lobby Clinic Pharmacy 影像科 Imaging 商店 Retail 一层平面图(5.50m)

地下一层平面图(-6.00m)

Plan(5.50m) 功能布局 Department Layout MEDICAL PLANNING 医疗规划急诊影像科影像科住院大厅药房儿科 / 儿保大厅入口急诊挂号收费 32.49 m² 急诊药房 33.13 m² 心电 17.12 诊室 17.12 m² 诊室 15.40 m² 16.34 m² 换药室 17.12 m² 急诊检验 38.32 m² 诊室 12.54 m² 创伤中心 113.62 m² 120 24.01 m² 卫生间 35.88 输液区 76.80 m² 留观区 118.44 m² 120 21.20 m² 会议室 44.72 m² 办公 26.24 走道 98.83 阅片室 59.04 m² 办公 19.92 m² 办公 23.92 m² 办公 19.92 卫生间 37.71 m² 卫生间 16.10 m² 控制室 41.04 CT 40.13 m² MRI 42.32 设备间 14.00 m² 二次等候 39.41 m² 门诊发药 34.04 m² 住院大厅 169.44 m² DR 25.28 m² DR 27.16 DR 26.29 数字肠胃机 29.03 m² 备用 14.00 m² 控制室 56.50 m² 乳腺 23.76 m² WC 3.30 库房 36.26 商店 73.31 m² 办公 10.29 办公 12.18 m² 库房 11.01 m² 办公 12.10 m² 办公 11.09 m² 门诊药房 312.34 m² 会议室 36.19 诊室 14.48 m² 诊室 15.00 诊室 14.17 m² 诊室 15.03 m² 值班 14.96 m² 值班 15.12 m² 值班 14.48 m² 推床等候 561.86 m² 配药 11.06 m² 库房 12.01 库房 6.60 m² 诊室 12.18 m² 诊室 12.50 诊室 12.69 m² 诊室 12.69 诊室 12.69 卫生间 15.10 m² 雾化室 32.43 m² 库房 18.10 m² 住院发药 13.95 m² 办公 11.15 m² 接收 11.16 m² 住院大厅 46.52 m² 自助挂号收费 1299 15.60 m² 自助机 5.02 商店 57.10 m² 自助挂号收费 9.64 m² 商店 32.12 m² 更衣 10.08 m² 值班 9.46 m² 休息 43.18 阅片室 45.76 m² 洗胃 14.69 m² 库房 9.91 m² 卒中胸痛 172.30 m² 库房 6.26 m² 处置室 9.62 m² 配药室 10.65 库房 14.02 m² 配药室 8.96 m² 处置室 7.04 m² 库房 15.06 m² 库房 7.32 处置室 6.30 m² 配药室 14.73 m² 诊室 14.50 m² 值班 10.01 m² 值班 10.13 m² 值班 10.63 m² 办公 17.00 m² 办公 12.70 m² 办公 13.79 m² 办公 15.87 m² 库房 9.48 库房 9.22 m² 更衣 8.20 会议室 47.84 m² DSA 49.50 DSA 49.32 m² 更衣 7.96 m² 库房 6.00 m² CT 40.65 m² MRI 44.00 m² 更衣 4.69 库房 19.00 m² 值班 6.83 m² 办公 10.68 办公 15.71 m² 办公 16.89 准备 15.40 m² 准备 15.22 恢复 19.98 m² 处置 5.95 m² 配药 7.77 m² 库房 7.03 m² 控制室 41.28 m² 污物暂存 16.24 诊室 12.18 m² 诊室 13.05 m² 卫生间 11.66 更衣 10.08 m² 办公 11.54 m² 设备间 23.88 m² 设备间 13.84 m² 更衣 10.32 办公 10.42 m² Nicolas Uwacu 12

MEDICAL PLANNING

二层平面图(10.00m)

2F Plan(10.00m)

功能布局

三层平面图(14.50m)

3F Plan(14.50m)

功能布局 Department Layout

门诊科室 ICU 检验科内镜中心 Clinic ICU Laboratory Endoscopy Center 功能检查 Function Examination

中心手术部 Surgery Center 中心供应 CSSD 门诊科室 Clinic

Department Layout

医疗规划 I CU 门诊内镜中心检验科门诊功能检查 ICU 床） 177.76 m² 等候区 71.80 m² 抽血 49.08 卫生间 37.71 m² 简餐休憩 53.95 m² 自助机 6.20 诊室 11.04 m² 诊室 12.15 m² 诊室 12.88 m² 诊室 12.05 m² 诊室 12.05 诊室 14.57 m² 诊室 13.03 诊室 12.96 m² 诊室 12.29 介入超声 20.51 m² 诊室 15.52 检查室 12.27 m² 检查室 12.25 办公 12.25 m² 办公 12.01 m² 办公 8.65 m² 综合实验室 529.12 m² 门诊 12.57 m² 门诊 17.52 门诊 17.52 库房 6.26 m² 微分子实验室 248.06 m² PCR 实验室 101.32 男更 12.47 m² 女更 12.47 体液室 20.00 m² 会议室 34.57 m² 库房 14.73 m² ERCP 36.40 办公 12.08 m² 麻醉恢复 51.05 m² 洗镜 45.76 m² 肠镜 22.79 喉镜 24.15 m² 会议室 29.99 m² 储镜 24.64 m² 单人ICU 23.78 m² 值班 35.10 m² 会议室 49.04 污物暂存 17.00 m² 机房 54.08 家属等候视频 27.81 m² 换床间 42.90 m² 更衣 28.09 办公 47.92 m² 卫生间 78.78 m² 检查室 11.75 m²检查室 11.75 m²检查室 11.83 检查室 18.46 m² 诊室 10.50 m² 诊室 10.50 m² 诊室 10.80 m² 患者准备 14.48 m² 库房 10.59 m² 检查室 13.16 检查室 13.43 m² 检查室 13.41 m² 检查室 15.25 m² 检查室 13.64 值班 12.71 m² 值班 12.63 m² 值班 12.55 m² 检查室 12.81 m² 检查室 11.66 m² 检查室 15.54 m² 休息 25.12 m² 库房 11.36 m² 胃镜 22.47 m² 胃镜 26.04 m² 支气管镜 22.40 m² 肠镜 21.20 m² 膀胱镜 24.38 m² 准备 34.37 m² 库房 24.01 m² 办公 12.57 m² 办公 15.72 m² 办公 14.98 办公 15.72 m² 办公 15.72 m² 更衣 18.45 m² 值班 11.59 m² 值班 11.55 m² 更衣 14.18 m² 空调机房 38.01 m² 会议室 23.36 m² 咨询室 9.28 m² 咨询室 9.04 m² 控制室 10.50 库房 9.90 m² 门诊 11.84 m² 门诊 14.40 m² 门诊 14.45 m² 门诊 16.29 m² 门诊 15.21 m² 门诊 17.85 m² ICU 床） 141.97 m² 单人ICU 22.02 m² 单人ICU 23.32 m² 污物清洗 18.20 m² 配药 10.57 m² 处置 10.73 m² 办公 14.28 m² 值班 16.71 m² 值班 12.84 m² 污物打包 19.87 m² 污物清洗 15.43 m² 机房 41.66 m² 刷手 7.60 污物 4.26 m² 门诊 15.39 m² 卫生间 20.41 m² 办公 22.72 m² 办公 22.72 库房 55.47 HIV 71.95 m² 库房 42.86 物品接收 20.13 m² 打印室 8.14 卫生间 22.30 m² 儿童抽血 15.67 m² 手术中心门诊手术中心消毒供应 CT 杂交 89.11 准备恢复 114.78 m² 普通手术室 43.87 m² 普通手术室 43.87 m² 普通手术室 45.03 m² 洁品库 107.04 m² 换床间 30.63 m² 走道 347.94 m² 达芬奇手术室 85.63 百级手术室 54.39 m² 家属等候 70.50 m² 预麻间 19.84 m² 术中休息室 15.61 m² 术中休息室 20.46 万级手术室 53.87 m² DSA手术室 69.93 m² 控制室 16.75 m² 库房 27.52 m² 污物存放 28.46 气瓶间 14.95 诊室 12.99 m² 卫生间 25.11 m² 诊室 12.65 诊室 12.49 诊室 12.96 m² 诊室 12.89 m² 诊室 12.24 m² 诊室 19.30 m² 诊室 11.84 m² 诊室 11.64 m² 诊室 12.00 m² 诊室 12.11 m²诊室 11.61 m² 诊室 12.15 诊室 11.64 诊室 11.84 m² 诊室 11.88 m² 检查室 18.98 m² 诊室 11.57 m²诊室 11.31 m² 诊室 11.57 m² 诊室 11.64 m² 诊室 12.98 m² 诊室 12.15 m² 诊室 12.00 自助机 8.57 m² 检查室 18.75 m² 诊室 11.57 m²诊室 11.31 m² 诊室 11.61 m² 诊室 12.98 m² 办公 12.15 m² 办公 12.00 自助机 5.23 m² 诊室 12.00 m² 诊室 12.15 诊室 12.00 m² 诊室 11.84 m² 诊室 11.60 m² 诊室 12.36 m²诊室 12.40 m² 诊室 7.56 m² 诊室 11.88 m² 诊室 13.73 m² 诊室 11.84 m² 诊室 11.88 m²诊室 11.74 m² 诊室 13.95 m² 自助机 8.27 m² 诊室 18.93 m² 诊室 12.93 m² 诊室 12.15 m² 办公 12.00 m² 办公 12.00 m² 诊室 12.15 m² 诊室 12.93 m² 诊室 18.40 m² 清洗 155.56 m² 打包 168.12 无菌库 137.52 m² 发放大厅 33.60 接收大厅 30.10 m² 办公室 36.24 m² 会议室 33.33 m² 更淋卫 29.51 m² 更淋卫 29.51 m² 蒸汽设备 21.34 m² 一次性物品库 38.81 m² 缓冲 14.16 m² 缓冲 5.57 纯水设备 25.76 m² 缓冲 22.01 m² 敷料仓库 48.23 m² 卫生间 35.92 m² 诊室 12.27 m² 诊室 6.24 敷料打包 35.76 m² 换床间 42.90 m² 诊室 12.11 诊室 11.66 诊室 12.32 m² 诊室 12.32 m² 诊室 12.42 m² 诊室 12.38 m² 诊室 11.91 m² 诊室 12.11 m² 万级手术室 33.80 万级手术室 33.80 m² 万级手术室 33.80 m² 百级手术室 54.39 m² 百级手术室 54.39 m² 准备恢复 87.52 m² 库房 43.84 m² 缓冲 4.18 m² 设备 16.80 m² 设备间 7.82 m² CT间 13.80 m² CT控制室 17.90 m² 正负压手术室 41.52 m² 储藏 8.72 m² 污物暂存 7.04 m² 缓冲 20.90 m² 准备 9.72 m² 勤工间 37.82 m² 污物存放 28.61 m² 冷冻切片 24.86 m² 库房 25.82 m² 普通手术室 33.23 m² 普通手术室 28.00 m² 库房 10.12 m² 机房 46.33 m² 库房 24.86 m² 石膏间 23.32 m² 刷手 16.92 m² 设备间 12.60 m² 中控室 14.36 Nicolas Uwacu 13

住院药房/药库

输血科

MEDICAL PLANNING 医疗规划

四层平面图(19.00m)

4F Plan(19.00m)

功能布局 Department Layout

设备用房 Equipment

门诊科室 Clinic

设备用房 Equipment

五层平面图(23.00m)

5F Plan(23.00m)

功能布局 Department Layout

手术医护区

Staff Zone 静脉配置中心

病理科

PIVAS Inpatient Pharmacy Pathology Blood Transfusion 门诊科室 Clinic

门诊病理科静脉配置中心药库住院药房血库手术部医护区手术部医护区房机调空化净办公室 15.84 m² 发放区 18.20 m² 值班室 22.10 m² 病理接收 31.32 m² 染色 19.24 m² 电镜室 24.12 m² 更衣 12.08 m² 免疫组化 37.20 m² 办公 15.23 m² 取药 30.46 普药调配区 140.15 库房 90.08 抗生素调配区 79.30 m² 卫生通过更衣 14.49 m² 办公 13.32 m² 卫生间 25.11 m² 诊室 19.30 m² 诊室 11.84 m² 诊室 11.64 m² 检查室 18.93 m² 诊室 12.11 m²诊室 11.61 m² 诊室 12.15 m² 诊室 11.64 m² 诊室 11.84 m² 诊室 11.88 检查室 18.93 诊室 11.57 m²诊室 11.31 m² 诊室 11.57 诊室 11.64 m² 诊室 12.93 m² 诊室 12.15 m² 诊室 12.00 m² 自助机 8.57 m² 检查室 18.93 m² 诊室 11.57 m²诊室 11.31 m² 诊室 11.61 m² 诊室 12.93 诊室 12.00 m² 自助机 5.23 m² 诊室 12.00 m² 诊室 12.15 诊室 12.22 m² 诊室 12.65 诊室 12.60 m² 换鞋 16.98 男更 40.68 m² 办公 10.00 办公 8.82 m² 值班 28.58 自助机 7.95 m² 诊室 12.11 m² 诊室 12.15 m² 诊室 12.43 m² 诊室 12.78 m² 诊室 12.05 m² 诊室 12.05 m² 诊室 12.60 m² 诊室 13.87 m² 诊室 12.30 m² 诊室 12.60 诊室 13.88 m² 诊室 12.77 诊室 12.93 诊室 12.63 m² 餐厅 92.70 会议室 26.33 m² 女更 56.85 m² 标本存放 24.96 脱水包埋 30.47 冷冻切片 17.32 细胞室 33.54 m² 实验室 34.88 会议室 20.88 m² 机房 237.32 m² 机房 140.44 m² 机房 211.72 m² 机房 34.45 m² 接收检验 12.80 m² 阴凉库 61.46 m² 会议室 29.49 办公 12.74 m² 发放 21.24 m² 包装 21.19 m² 药房 139.83 m² 办公 11.76 m² 更衣 11.18 m² 更衣 14.12 m² 值班 14.82 m² 值班 27.04 m² 办公 8.74 m² 会议室 24.04 值班 14.23 m² 更衣 11.72 m² 卫生通过更衣 14.30 m² 拆包 22.43 m² 资料库 38.63 m² 摆药区域 98.57 m² 办公 15.48 m² 办公 12.72 m² 办公 13.09 m² 值班 18.29 m² 值班 17.73 m² 库房 28.27 会议 31.43 发血 14.25 m² 收血 16.64 m² 储血室 31.61 合血室 27.53 m² 自体采血 15.39 会议室 24.59 m² 更衣 10.03 m² 更衣 11.46 m² 自体采血 16.78 m² 办公 21.03 m² 库房 21.19 m² 会议室 61.04 m² 门诊转换层设备 213.72 m² 设备 132.03 m² 设备 40.01 m² 设备 75.83 m² 设备 77.06 m² 设备 51.71 m² 设备 214.81 m² 设备 143.05 m² 设备 106.91 m² 卫生间 25.11 m² 诊室 19.30 m² 诊室 11.84 m² 诊室 11.64 检查室 18.93 诊室 12.11 诊室 11.61 m² 诊室 12.15 诊室 11.64 m² 诊室 11.84 诊室 11.88 m² 检查室 18.93 m² 诊室 11.57 m²诊室 11.31 诊室 11.57 m² 诊室 11.64 m² 诊室 12.93 诊室 12.15 m² 诊室 12.00 m² 自助机 8.57 m² 检查室 18.93 诊室 11.57 m²诊室 11.31 m² 诊室 11.61 m² 诊室 12.93 m² 诊室 12.00 自助机 5.23 m² 诊室 12.00 诊室 12.15 诊室 12.22 m² 诊室 12.65 诊室 12.60 m² 自助机 7.95 m² 诊室 12.11 m² 诊室 12.15 诊室 12.43 m² 诊室 12.78 m² 诊室 12.05 诊室 12.05 m² 诊室 12.60 m² 诊室 13.87 m² 诊室 12.30 m² 诊室 12.60 诊室 13.88 m² 诊室 12.77 m² 诊室 12.93 m² 诊室 12.63 m² Nicolas Uwacu 14

标准层平面

行政办公平面图 (45.10m)

医护区 Staff Zone 标准病区病房 Typical Ward

Typical Floor Plan 功能布局 Department Layout 行政办公 Administration

Admin/Dorm Floor Plan (45.10m) 功能布局 Department Layout MEDICAL PLANNING 医疗规划住院单元三人间三人间三人间三人间三人间三人间三人间三人间三人间三人间三人间三人间家属等候 47.56 会议室配药室 14.26 处置室 15.51 一次性物品库 15.15 医生办公室 33.47 换药室三人间三人间单人间单人间值班三人间过道 219.97 更淋办公室 11.41 行政办公办公 34.24 m² 办公 34.24 会议室 35.33 m² 办公 34.24 m² 办公 34.24 m² 办公 34.24 m² 办公 34.24 m² 办公 34.24 m² 办公 34.24 m² 值班 34.24 m² 值班 34.24 m² 值班 34.24 m² 过道 235.47 露台 47.56 办公 26.98 m² 办公 37.17 办公 13.83 m² 办公 20.03 m² 值班 35.33 值班 34.24 办公 13.83 m² 办公 25.00 m² 办公 13.67 m² 办公 13.83 会议室 71.29 会议室 34.21 m² 卫生间 24.18 m² 卫生间 24.00 办公 34.24 m² 办公库房 26.07 库房 41.19 m² 办公 14.74 库房 10.07 m² 值班 14.61 m² 值班 12.81 m² 值班 10.55 m² Nicolas Uwacu 15

建筑立面概念

Facade Concept

总体概念

Global Concept

1 标志性 Iconic/Memorable

城市尺度 CITY SCALE

社区尺度 COMMUNITY SCALE

个人尺度 HUMAN SCALE

宜人就医环境 Relatable medical environment

舒适住院环境 Residencial environment, comfort

Nicolas Uwacu 16

舒展大气的雨棚为医院创造了一个舒适的过渡区植入自然元素，将自然植物的生命力直接传递给患者。

Facade reflects the Clear volume identity viewed from the Lake The entrance canopy creates a comfortable clear protected zone for people to access the hospital.

Nature is insertied at key build locations to bring Natural plant life directly to patients.

2 3

沿湖主立面清晰体现建筑形体

Facade Type -1.0 Facade Type -2.1

Nicolas Uwacu 17

Facade Type -2.2

立面图

Elevation

（一、二期）东立面图（一期） West Elevation Phase 1+2 East Elevation Phase 1

西立面图

Nicolas Uwacu

RABAT CLINIC

Surgery and aesthetic medicine clinic project in Rabat

As aesthetic medicine is capable of enhancing what nature has created, this option offers a spatial sequence in which the patient is guided from a natural environment, in its raw and wild aspect, towards the elegance and purity of a patio delicate, entirely controlled by man.

Typology

Healthcare + Educational

Role

Concept design

Software

Rhino, AutoCAD, Sketchup

Nicolas Uwacu

Projectis set in a natural wooded environment that is very peaceful, secretive, authentic. design can take account of this environment, which must be respected by creating a modern composition that blends into its natural surroundings. The challenge is to make the patient’s journey more experiential, and to demedicalize reception, waiting and outside areas, within the technical and regulatory limits of the hospital. In this vein, the proposed architecture features a “beauty resort”-type pavilion concept. “beauty resort” concept, horizontal, with a variety of functionalities, blending into its natural surroundings.

Concept Development

The concept was developped with the idea of patient levitating in the heart of nature with care rising.

TRAITEMENT ENTRANCE

SUPPORTING FUNCTION

Nicolas Uwacu 20 Site Location

1. Réception Administration

2. Médecine

3. Chirugie-hospitalisation

4. Soin odontologiques

5. Soin capillaires

6. Services techniques

7. Club

8. Villa N

3 6 2 5 1 7 8 8 8 4 Logistics

entrance

Club Entrance Main

Logistics Access Main Entrance Secondary Access Villa Entrancce

Nicolas Uwacu Legende

Environmental Context

02

03

Existing lush forest + location of pavilions

The pavilion’s arms extend into the forest to maximize views of nature.

Forêt luxuriante existante + emplacement des pavillons

Les bras du pavillon s’étendent dans la forêt pour maximiser les vues sur la nature.

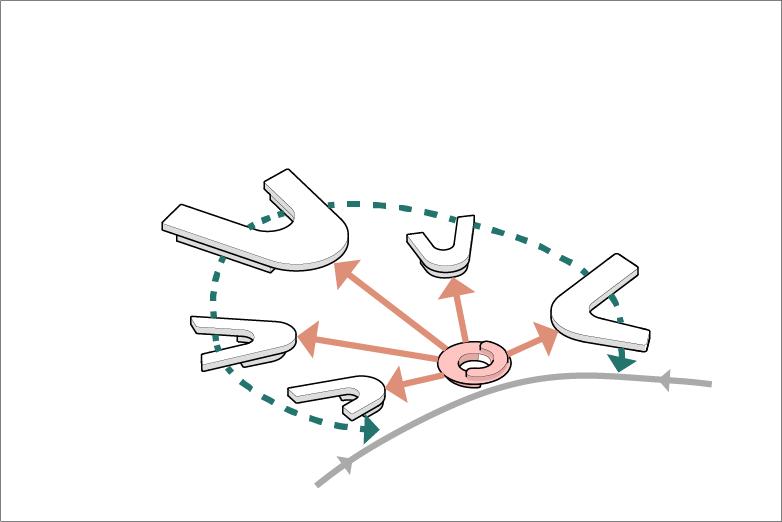

The central reception pavilion will serve as an orientation point to organize public traffic in the center, leaving access to the forest for VVIPs and assistance.

Le pavillon d’accueil central servira de point d’orientation pour organiser le trafic public au centre, laissant l’accès à la forêt aux VVIP et à l’assistance.

Nicolas Uwacu 22

Greenery creates a natural visual boundary for a private experience.

Walks with dynamic views offer visitors an adventurous journey to the site.

Chaque pavillon fait face à un jardin unique, mettant en valeur différentes facettes de la nature.

La verdure crée une frontière visuelle naturelle pour une expérience privée.

Les promenades avec des vues dynamiques offrent aux visiteurs un voyage aventureux sur le site.

Chaque pavillon fait face à un jardin unique, mettant en valeur différentes facettes de la nature.

Nicolas Uwacu 23

Traffic development

05 06

Traffic + Ground floor plan

1 RECEPTION ADMINISTRATION

2 MEDICINE

3 SURGERY-HOSPITALIZATION

4 DENTAL CARE

5 HAIR CARE

6 TECHNICAL SERVICES

7 CLUB

8 VILLA

Patients Caregiver VVIP

Logistics Flow Community

N Entrée logistique Sortie du véhicule Entrée 1 7 4 3 2 5 6 8 8 8 Espace de vie Entrée VVIP Entrée Nicolas Uwacu 24

Urban Context

POND Reflecting pool MEDICINAL GARDEN VEGETALIZED INFILTRATION UNPIVOTED TRAIL PERMIABLE PAVING RAINWATER COLLECTION Canopy ENVIRONMENTAL FEATURES ECOLOGICAL PAD DEVELOPMENT BUFFER Buffer composition and processing varies and is subject to detailed study ENVIRONMENTAL FEATURES ENVIRONMENTAL DEVELOPMENT Nicolas Uwacu 25

Environmental Approach

RAIN PROTECTION

Semi-outdoor space. Climate transition by sequences.

RAINWATER COLLECTION

Collection of rainwater for reuse.

ENERGY PRODUCTION

Production of renewable energy thanks to photovoltaic panels on the south-facing sides of the sunshades.

A A

RDC N1

±0.000 5.000 Nicolas Uwacu 26

RDB

-4.000

Clinic_Sections

B B RDB RDB RDC RDC N1 N1 -4.000 -4.000 ±0.000 ±0.000 5.000 5.000 A A Nicolas Uwacu 27

Section B-B Section A-A

1. Support staff area 2. Kitchen 3. Gymnastic 4. Master bedroom 5. Guest room 6. Desk 7. Living room 8. Dining room 9. Private swimming pool 1 2 3 4 5 6 7 8 9 Nicolas Uwacu 28

8. Villa _Floor Plan

Clinic Elevation

VERRE À FAIBLE ÉMISSIVITÉ

TOITURE EN ALUMINIUM

PANNEAU DE BOIS TOITURE EN ALUMINIUM REVÊTEMENT EN PIERRE

PANNEAU DE BOIS

REVÊTEMENT EN PIERRE

WOOD PANEL

LOW EMISSIVITY GLASS

ALUMINUM ROOF

STONE CLADDING

1 2 1 2

Nicolas Uwacu 29

BAIHEHU CENTER

The park ticket center

The original site was a picturesque park featuring a stunning lake and scenic views. However, the client had a bold vision to transform it into a lively and inviting tourist destination. Since the land is owned by the government and considered public property; client could only rent so we faced restrictions on using traditional architectural materials. To meet this challenge, we devised an innovative architectural design that made a statement and fulfilled the client’s vision.

Typology

Commercial

Role

Concept to finish

Built Year

Completed in 2024

Software

AutoCAD, Sketchup, Revit

Nicolas Uwacu 30

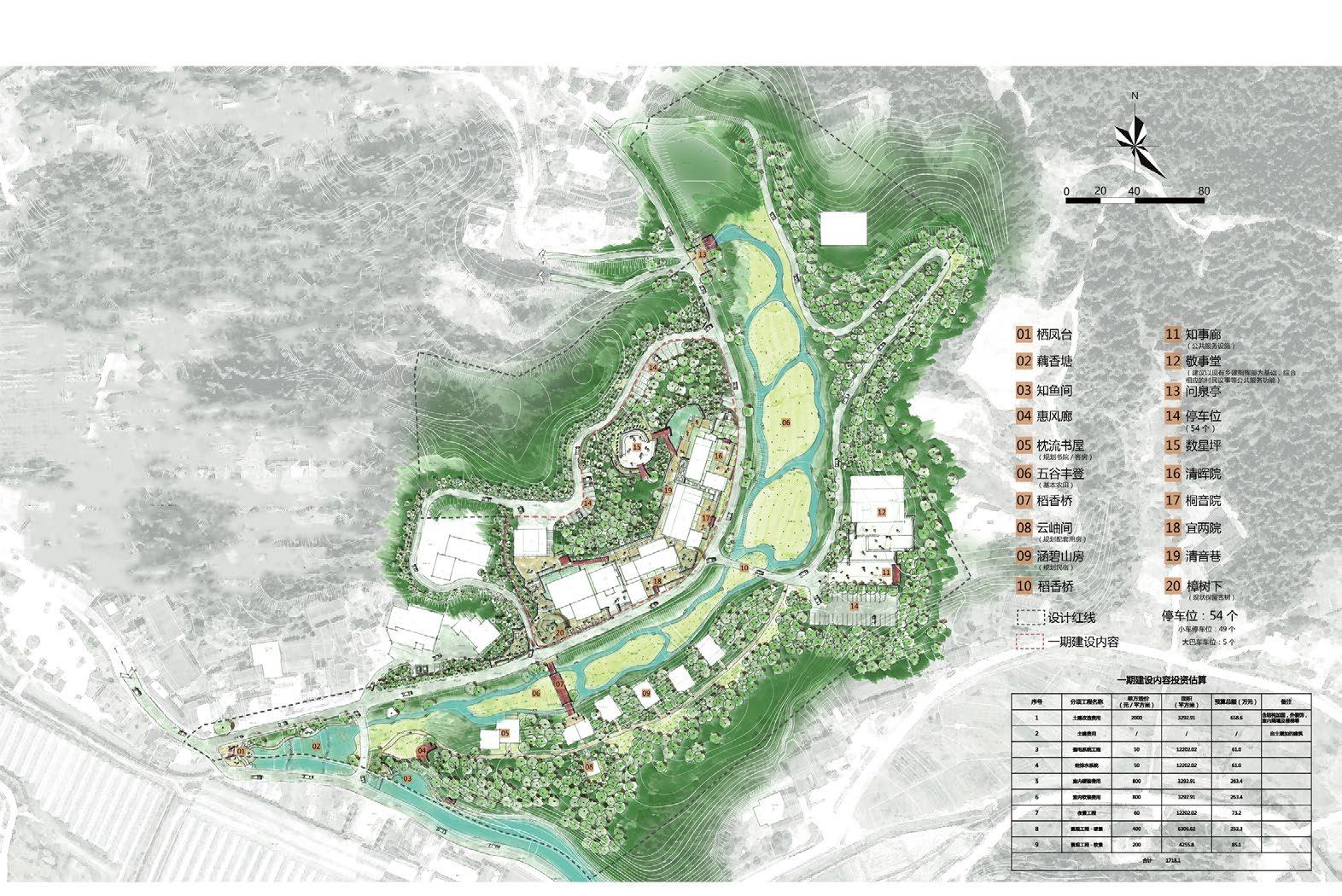

Site Plan

One of the Big reasons to why we decide on using shipping containers instead of traditional building materials is cost-effectiveness. Shipping containers are relatively inexpensive compared to traditional building materials, which can significantly reduce construction costs. Moreover, recycling shipping containers for building supports sustainable construction practices and reduces waste. Additionally, the durability of shipping containers makes them ideal for building structures that can withstand extreme weather conditions. They are also customizable and modular, allowing for versatile design and construction. Finally, the mobility and quick assembly of shipping containers make them ideal for temporary structures such as pop-up shops, cafes, or offices.usually, Shipping containers are available in two sizes: 6.06meters by 2.43m wide, 2.59m high or 12.2 meters x 2.43meters. Our containers were not of ISO standardarized dimensions. you can combine multiple containers to create a multilevel Structure. We used the conventional standard, which were 6m, 9m and 12meters long, all of them 3meters wide and 3 meters high containers for our building.

Nicolas Uwacu 31

LEGEND

Ticket Center Pond Access point

Deterrming the maximun cubic capacity.

Conceptional Development

The big reason to why we decide on using shipping containers instead of traditional building materials is cost-effectiveness. Shipping containers are relatively inexpensive compared to traditional building materials, which can significantly reduce construction costs. Moreover, recycling shipping containers for building supports sustainable construction practices and reduces waste. Additionally, the durability of shipping containers makes them ideal for building structures that can withstand extreme weather conditions.

After that was confirmed, we had to come and sort out other important factors such as circulation, orientation, view maximization, arrangement and more important filling the client’s functional spaces.

OFFICE

Adopting Cubic elements. Function for intergration.

Nicolas Uwacu 32

2. 3. PUBLIC BATHROOM

SHOP + PERSONEL

RESTAURANT

Detailed Single container

They are all customizable and modular, allowing for versatile design and construction. Finally, the mobility and quick assembly of shipping containers make them ideal for temporary structures such as pop-up shops, cafes, or offices.usually, Shipping containers are available in two sizes: 6.06meters by 2.43m wide, 2.59m high or 12.2 meters x 2.43meters. Our containers were not of ISO standardarized dimensions. you can combine multiple containers to create a multilevel Structure. We used the conventional standard, which were 6m, 9m and 12meters long, all of them 3meters wide and 3 meters high containers for our building.

Nicolas Uwacu 33

2896

224

2743

173 Glue

MBL

MTL

FFL

FCL

MFL

2mm Corrugated metal sheet 50mm Spray foam / 20mm Galv. c-channel

50mm C-proﬁle main channel

20mm Furring channel

2*10mm MGO board

MGO

25mm

28mm

62mm

1.6mm

sheet 1.6mm Corrugated metal sheet 50mm LGS / 50mm Spray foam 10mm MGO board 3mm Primer + paint 8mm SPC Panel 6mm Cement board 10mm MGO board 25mm Plywood stripes / 25mm XPS Panel 28mm Plywood 130mm C-channel / 120mm Glass wool 2mm Metal sheet CEILING

WALL

FLOORING INTERNAL WALL

3mm Primer + paint 8mm SPC Panel 6mm Cement board 10mm

board

Plywood stripes / 25mm XPS Panel

Plywood

C-channel / 25mm Glass wool

Corrugated metal

FINISHED

Nicolas Uwacu 34

B-B BACK VIEW 1:200 Male Bathroom Shop Security Chamber VIP Lounge Meeting Room Cafeteria/ Bar Lounge Area Management Office …01 …03 …05 …09 …12 …13 …16 …17

Front Elevation Section

Section View Section B-B

RHS

SHS

RHS 100*50*2

Nicolas Uwacu 35 上上 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 30000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 24000 30000 3000 3000 6000 3000 3000 6000 3000 3000 3000 3000 12000 N

150*100*5

150*100*4

100*100*4

1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H I 1 2 3 4 5 6 7 8 9 10 11 1 2 3 A B C D E 1 2 3 05 04 08 TICKET LINE 03 01 02 06 07 MAIN ENTRANCE 09 10 SCENIC ENTRY SCENIC EXIT SHOP ENTRY BACK ENTRY PERSONEL ENTRY TOILETS OFFICE ENTRY 3rd GROUND FLOOR 1:200 01. Male Bathroom 02. Female Bathroom 03. Shop 04. Control Room 05. Security Chamber 06. Vending Machine 07. Ticket Counter 08. Lobby 09. VIP Lounge 10. Luggage Storage

FLoor

Ground

First

Nicolas Uwacu 36 11 12 15 13 16 Balcony Balcony Balcony 17 11. Offices 12. Meeting Room 13. Cafeteria/ Bar 15. Window Outreach 16.Lounge Area 17. Management Office

Second FLoor Third FLoor

Interior renders

Nicolas Uwacu 37

QIANYANG HOUSING

Village center park

The overall planning for QianYang village focuses on its future and long term development on a local and national scale. Through comprehensive ansalysis of projects cultural background, society and economical development.

Design proposes a “Sustainable“ planning strategy that combines and binds QianYang village existing cultural, agricultural and environmental feature.

Redefining and renovating its socio-spatial space, creating and “Autonomous community“ for local people and visitors.

Typology

Residential

Role

Schematic

Built Year

Completed in 2023

Software

AutoCAD, Sketchup

Nicolas Uwacu

Planning Strategy

Sample data showed there is an obvious aging trend in the population. They have sped up aging speed in the population’s majority is old aged. The rural migrant workers are mainly young and middle-aged, and losing the young labor force is serious.

The Rational development scheme goes hand in hand with sustainable planning strategies, forming a “Blueprint” for the overall physical and economic development of qianyang village. The design attempts to create an organic interaction of people, places, and resources. Forming a sustainable, dynamic, and local rural appearance.

Nicolas Uwacu 39

Staged Construction

Public Toilet

Garden/Green

Architecture

Route

Village and Architecture relationship

Q337-338

Q334-336

Q333

Q329-330

Q328

Phase I building content

Phase II building content

Phase III building content

Phase IV building content

0 20 40 80 N

Qianyang Village Dormitory relation

Nicolas Uwacu 40

Primary Experience

Under the Camphor tree

Local SeiHiu Inn

Doaxiang Bridge

Digital satellite station

2 3 4 3 2 1

0 40 20 80

Nicolas Uwacu

Combined Section Plans & with Day and Night Renderings

A-B

Q337-Q338 Q334-Q336 Q333 Q332

Nicolas Uwacu

Implementation recommendations

To provide a strong organization guarantee for the implementation of rural construction and reconstruction. In the process of rural reconstruction, the working leading group has been set up to define the responsibilities and division labor. The formation of a party committee is responsible for coordinating the organization and village collective economic organizations to carry out a good working mechanism of reconstruction work according to law regulations and procedures.

Prepare models and plans for rural construction and reconsturction in arccordance with the actual conditions. The former yangcun before the renovation was investigated and checked, and the owner signed and confirmed the registration. On the basis of the investigation and mapping, according to the requirements of the upper plan, the construction model and construction plan are proposed.

Qianyang Village uses innovative management methods to form Qianyang village economc developement Co. Ltd. based on the village committee, and the village company manages and serves the villagers who participate in the company’s operations; the collective property management Co., Ltd., and dividends according to the number of villager’s shares to protect the develoment of the village’s collective economy and the source of villager’s income; At the same time, the village company also helps villagers pay social security, old-age insurance and other social security funds.

Nicolas Uwacu

CHUI MOHAMMED VI

University + Hospital

Typology

Healthcare + Educational

Role

Schematic design

Built Year

to be completed in 2025

Nicolas Uwacu

Function Mix

Focused View

Design traffic

The function of the whole project is mainly divided into two main parts: teaching and medical. The left podium is subdivided into three colleges, while the right podium and the tower have a small lower section for the hospital clinic. The main function of the tower is also the teaching area of the school subdivided into three colleges. There are also two administrative floors in the center of the tower and a vip forum area on the top floor. The lower half of the left podium is divided into a cafeteria, a simulation training center and a lecture hall.

The two squares on the left and right have a view of the rooftop activity area on the second floor of the podium, and the green axis passes through the two squares to form a blend of landscapes. Due to the height advantage of the tower part to get a better view with the coastline of the city center and the first phase of the building towers to form a vision of the interaction with each other.

The central zone is a sequence of interlinked spaces. A weave of interior and exterior spaces, defined by the location of access points with regard to the squares, gives life to the environment

Nicolas Uwacu 45

Miscellaneous

Skyscraper (Commercial + Offices).

Project Overview

Our firm was entrusted with the task of redesigning the exterior facade of an old existing office building and creating a new design for the first five floors. The objective of the project is to transform the building into an inviting and attractive commercial space, accommodating various boutiques and brands. The design should seamlessly blend modern aesthetics with the existing structure while enhancing its functionality, accessibility, and overall appeal.

Nicolas Uwacu 46

Miscellaneous Hotel.

Project Overview

The project was to outline the design considerations for expanding an existing hotel located opposite a governmental office, which necessitates a wider footprint instead of increasing its height. The expanded hotel would serve multiple functions, including hosting official town meetings, accommodating high-priority guests, and providing dining facilities for both official and non-official ceremonies.

Nicolas Uwacu 47

Miscellaneous

Cultural Center.

Project Overview

Our architectural firm has been commissioned to design a dynamic and inspiring cultural center. This project aims to create a vibrant and inclusive space that celebrates the arts, fosters cultural exchange, and engages the local community. The cultural center will serve as a hub for various artistic disciplines, hosting exhibitions, performances, workshops, and other cultural activities. Our design approach will focus on creating a visually captivating and functional space that encourages creativity, interaction, and a sense of belonging.

Nicolas Uwacu 48

Miscellaneous

Office building.

Project Overview

The project brief was to create an office building that prioritizes team work, collaboration, and work sharing among the company’s employees. The design should incorporate an open floor layout to facilitate communication and create a sense of unity among teams. The aim is to provide an environment that promotes interaction, idea exchange, and seamless collaboration.

Nicolas Uwacu 49

Portfolio. Nicolas Uwacu A rchitect D esigner Contact uwanilas@gmail.com T. +8619896242875 uwacu ARCHITTECTURE PORTFOLIO
