PASCO

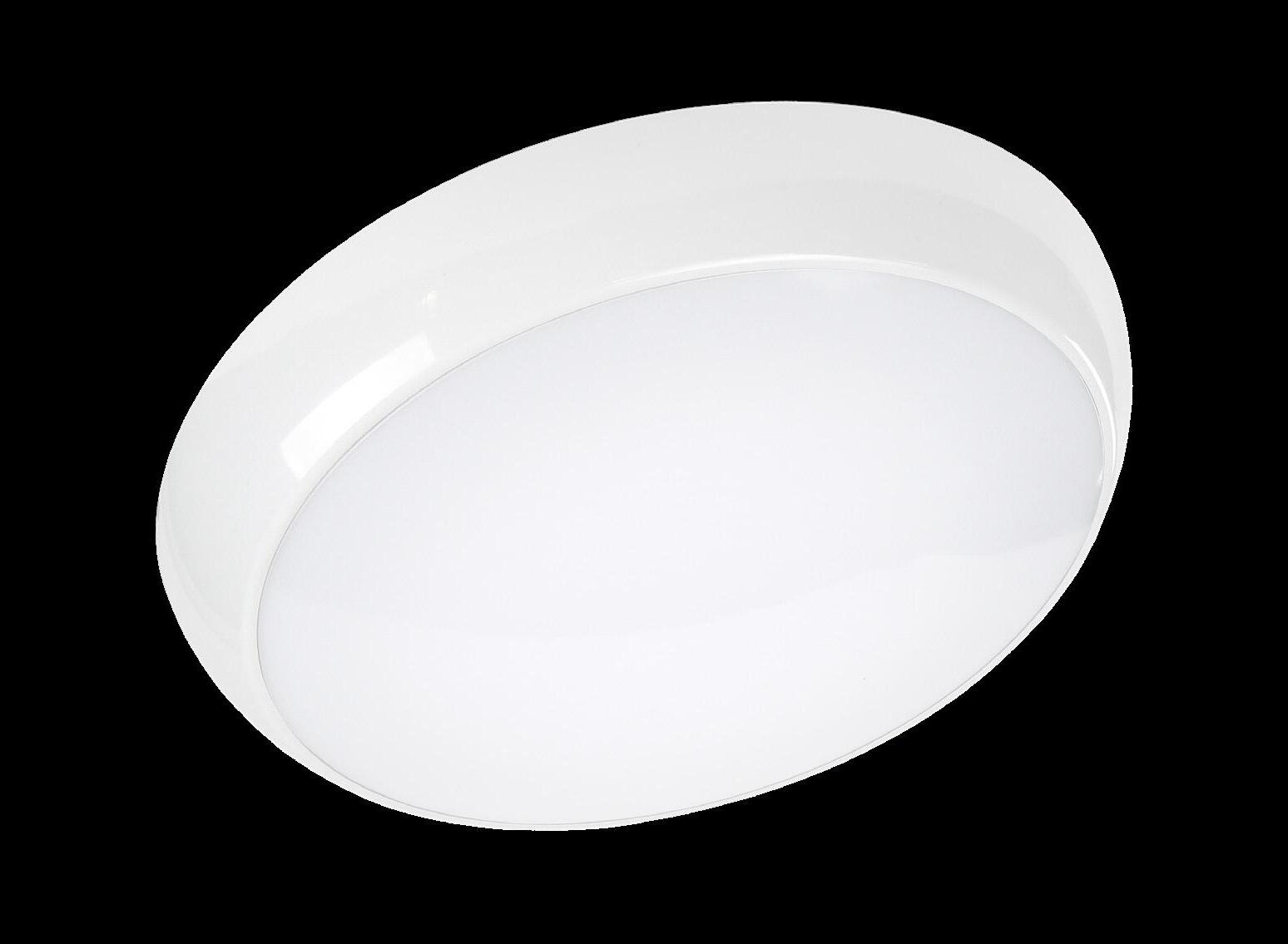

IP65 multi-wattage / multi-CCT bulkhead fitting for commercial indoor areas
MULTI-CCT SELECTABLE 3000K / 4000K / 6500K WATTAGE SELECTABLE 9W / 14W / 18W
APPLICATIONS
- For commercial interior use in corridors, stairwells, toilets and changing rooms
CONSTRUCTION
- Polycarbonate base and bezel
- Opal polycarbonate diffuser
TECHNICAL DETAILS
- 155 lm/W
- 3 wattages are selectable:
- 9W nom., 1,057 lm, 119 l.lm/c.W
- 14W nom., 1,518 lm, 113 l.lm/c.W
- 18W nom., 1,858 lm, 111 l.lm/c.W
- CRI>80
- CCT selectable 3000K/4000K/6500K
- Emergency maintained 3 hr version available as listed
TECHNICAL DETAILS (contd.)
SENSOR Available with built in microwave sensor. Suffix MW, as listed
47 NVC LIGHTING CATALOGUE / 2024 T: +44 (0)121 457 6340 / E: sales@nvcuk.com / www.nvcuk.com AMENITY LIGHTING
WARRANTY FIVE YEAR SDCM <5 L70 50,000 LITHIUM VERSIONS AVAILABLE
NEW ORDER CODE DESCRIPTION NPC/WH/830-40-65 Pasco 9-14-18W LED Bulkhead IP65 White Opal 830-40-65 NPC/WH/M3L/830-40-65 Pasco 9-14-18W LED Bulkhead IP65 White Opal M3L 830-40-65 NPC/WH/MW/830-40-65 Pasco 9-14-18W LED Bulkhead IP65 White Opal MW 830-40-65 NPC/WH/MW/M3L/830-40-65 Pasco 9-14-18W LED Bulkhead IP65 White Opal M3L MW 830-40-65 MW SENSOR
