SKF boosting service intervals for traction motors

Boosting service intervals for traction motors

SKF tells Rail Express about how the latest methods of bearing protection, including insulating coatings, hybrid bearings and sealed bearing units, can help extend maintenance intervals for traction motors in the rail sector. I N MODERN RAIL INDUSTRY traction engines, AC motors have almost completely replaced DC motors as they present several advantages, including higher efficiency, reduced wear, less maintenance and greater power density. That’s not to say they are problemfree, however. One consequence of using AC motors typically in combination with frequency converters is an increased risk of stray, high frequency currents. These can cause surface erosion of bearings, leading to potential failure. This then requires more frequent servicing – which undermines the original efficiency gains.

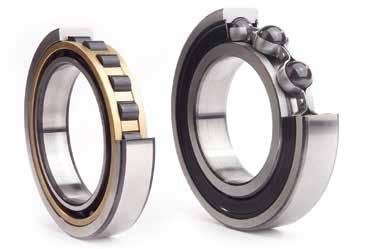

SKF Australia’s general manager rail, Anthony Clack, says the company aims to provide a range of solutions to help designers and users of traction motors extend maintenance intervals and boost efficiency. He says all solutions rely on SKF’s proven ability to protect bearings – to various degrees – from the conditions within AC motors. Hybrid approach The most important technology is hybrid bearings, in which the steel rolling elements are replaced with ones made of ceramics. This material provides very high current insulation, so is resistant to the “damaging” effects of AC motors. “Hybrid bearings have the high resistance and low capacitance needed to withstand these conditions,” Clack said. Some of the advantages of running these bearings include: high wear resistance; lower friction; higher speed capabilities; and no cold welding effects under poor lubrication or low load conditions. However, one main attribute of hybrid bearings is that they run cooler than conventional bearings, thanks to their lower friction. This has a profound effect on bearing life because it ensures that lubricant lasts longer. “For grease-lubricated bearings – which are used in almost all traction motors – the maintenance interval is usually determined by the grease life. This is mainly affected by contamination, mechanical stressing and temperature,” Clack said.

A temperature rise of just a few degrees can have a huge effect – while a 15°C rise in bearing temperature will cut grease life in approximately half. At the same time, the insulative nature of ceramics ensures there is no electrical “burning” of the grease. In this way, adopting hybrid bearings can help to more than double the grease life – with a subsequent extension of the maintenance interval. Yet, despite their many advantages, hybrid bearings have traditionally been considered unaffordable for general applications. However, recent manufacturing advances have helped to bring the price of hybrid bearings closer to that of standard bearings. “For smaller bearings, it has been possible to reduce the price gap significantly – though large hybrid bearings are still more expensive than their standard equivalents. Taking lifecycle cost into account – rather than simply purchase cost – makes hybrid bearings even more attractive,” Clack explained. An added advantage is that hybrid bearings can be swapped directly for their standard equivalents, as a direct retrofit replacement. Insulated coating Hybrid solutions – particularly the hybrid TMBU – will guarantee the longest possible extension of maintenance interval. However, Clack says not all applications require such an extension – and not all budgets will stretch far enough. A more basic solution is to use specially treated Insocoat bearings – which are standard steel bearings with an insulated coating that gives a degree of resistance against stray electric currents. Insocoat bearings are useful for designers who are not yet ready to make the switch to hybrid bearings due to missing experience with ceramic materials. They can also be incorporated into a TMBU arrangement. SKF is currently expanding the capabilities of its Insocoat products. Last year, for instance, it launched a new product that works more effectively in humid conditions – making it highly appropriate for rail applications in certain regions. In addition, SKF will increase coating thickness on Insocoat bearings, to improve their effectiveness. Find out more by visiting SKF Australia at AusRAIL PLUS, at Stand 286. Hybrid CRB and DGBB - bearing solution for extreme railway application conditions. BOTTOM LEFT: Insocoat - prevent electrical erosion and increase the reliability of railway bearings.
