THE SPIN ON FANS
you need them
Introduction
Fans have become a stylish fixture that aids in climate comfort and energy efficiency.
The first electric powered ceiling fans was invented in 1887. Philip H. Diehl, a German-American, invented the first electrically powered ceiling fan by attaching blades to a sewing machine motor and securing it to the ceiling. He was granted a patent for the ceiling fan in 1889.
These now common household fixtures can make occupants feel cooler in the summer months and warmer in the winter months by circulating the air in the room.
Fans are also used outdoors for circulation and insect control.
Using a ceiling fan correctly can make the space they are installed in more energy efficient.
What is CFM and why is it important?
Airflow rating is measured in cubic feet per minute (CFM) per one watt (W) of electrical power while the fan is running at high speed. The higher the CFM, the more energy efficient the fan will be. A very inefficient ceiling fan would have a CFM of about 75, while an efficient model will have a CFM in the 4,000 to 5,000 range, and the best CFM is 6,000 or more.
HVLS vs. Residential Fans
The smaller, high-speed fans can create airflow for a space up to about 200 or 250 square feet (18 to 24 square meters). In contrast, the bigger, low-speed fans can circulate air up to around 25,000 square feet (2,300 square meters).
HVLS fans must hang AT LEAST 10 feet off the ground and perform best when hanging 20 to 30 feet up. HVLS fans demonstrate acceptable performance when hanging as high as 50 feet off the ground but lose effectiveness beyond that
Why is the pitch of a fan blade important?
Blade pitch refers to the angle at which the blade is set in relation to the fan, and it determines how well the blades will rotate. For blades to whip the air enough to get it circulating around the room, optimum pitch is between 12 and 14 degrees. Blades pitched too high meet too much resistance, potentially causing the motor to burn out.
Higher blade pitches usually move more air. However, blade pitch alone does not determine air movement. A fans pitch of the blades and the power of the motor need to complement each other in order to prevent the fan from burning out as it moves less air with more power
AC vs DC Motor?
AC (Alternating Current) and DC (Direct Current) ceiling fans have their advantages and disadvantages.
Fans were first manufactured using AC motors they are more affordable in manufacturing, offer 3 speeds and have been around a long time creating the belief that they are more reliable.
DC ceiling fans are more energy efficient, offer greater speed control, are quitter, have a longer lifespan. They deliver more torque, power and allow 6 speeds.
Smart Fans
Why are so many homes upgrading to smart fans?
Convenience
Alexa, Google Home, and Siri
Energy Savings
Schedules and convenient control mean fans are used more effectively
New Features Available via Bond Home app Schedules, Groups, and Timers available only in app
Supports a Mobile Lifestyle Control and check up on home while away
Low-Risk
Smart fans still come with a classic remote control
Smart Fans, Easy Setup. Out of the Box.
1. Quick setup on 2.4GHz Wi-Fi
2. Control your devices from your phone 3. Smart right out of the box 4. No hub required
5. Control from anywhere
6. Control via Alexa and Google Home
7. Drivers available for Whole Home Automation
8. Endless fixtures controlled in bond app
Download the App
9. Download the Bond Home app by going to the App Store and searching "Bond Home".
10. Choose Bond Home, not Bond Bridge.
11. Links available here: https://bondhome.io/app/
Pro Integrations – "CEDIA Channel"
Smart By Bond fans have a local API and a community of driver developers.
By default, all smart fans are compatible with many home automation systems and more are coming.
*Lutron integration not available, at this time Not Certified Native integration Native integration
O2 CEILING FANS
Indoor | Outdoor | Damp | Wet Rated (IPX2)
FLEET 56" CEILING FAN
Available Finishes
6 White | White ABS Blades
15 Black | Weathered Gray ABS Blades
24 Satin Nickel | Silver ABS Blades
1515 Black | Black ABS Blades
40 Aged Brass | Matte Black ABS Blades
-Lifetime Motor Warranty
-4" & 6" Downrod (Included)
-DC Motor
-6 Speeds-Reversible with Remote Control
-Remote Control Included
-Airfl ow: 7662 Cubic Feet/Minute
ENORME 78" CEILING FAN
Available Finishes
15 Black | Black ABS Blades
23 Classic Nickel | Classic Nickel ABS Blades
-Lifetime Motor Warranty
-DC-168NL Motor
-10" Downrod Included (3/4" diameter)
-3 optional 96" Stabilizing Cables Included
-6 Speeds-Reversible with Wall Mounted Pocket Remote (included)
-Airfl ow: 14400 Cubic Feet/Minute on High Speed
-SMART by BOND technology
EXODUS 58" DAMP CEILING FAN
Available Finishes
59 Matte Black | Matte Black ABS Blades
80 Aged Brass | Matte Black ABS Blades
-Lifetime Motor Warranty
-DCS-15NS Motor
-6" Downrod Included (3/4" diameter)
-6 Speed Wall Control Included
-Remote Control Adaptable
-Airfl ow: 6538 Cubic Feet/Minute on High Speed

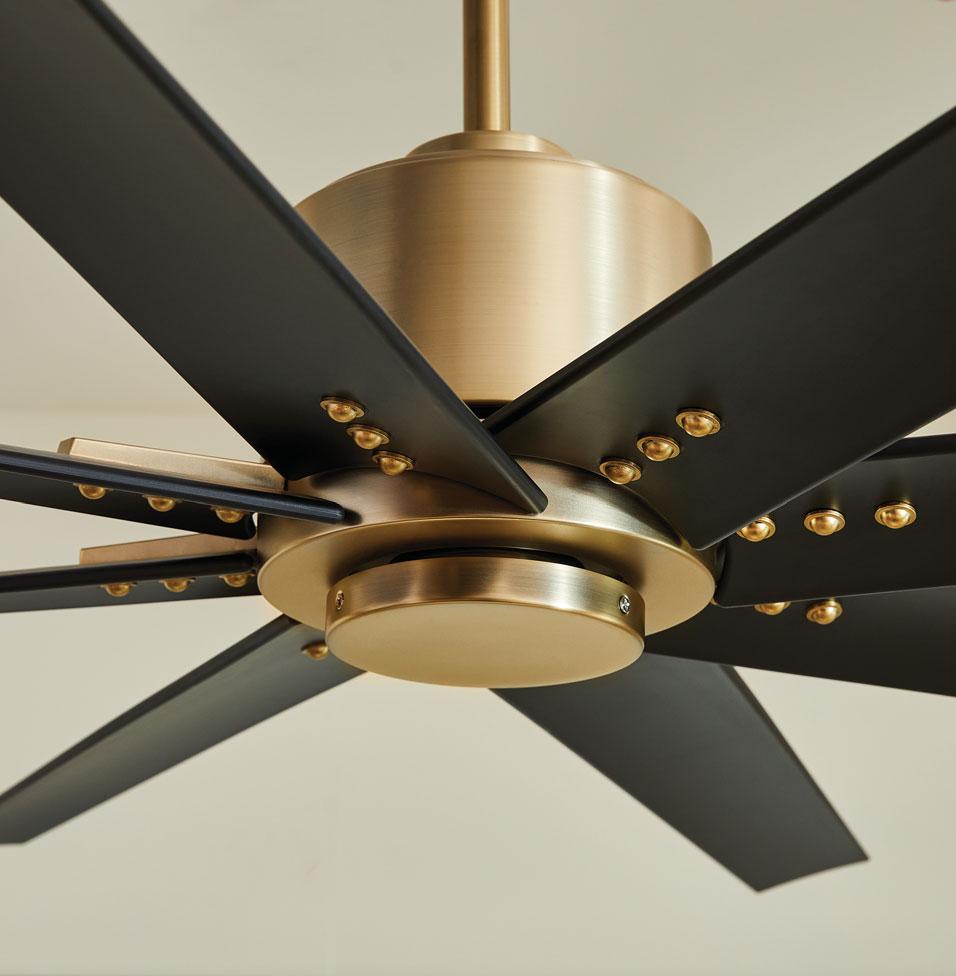

REVEL 80" DAMP CEILING FAN
Available Finishes
8059 Aged Brass/Matte Black | Matte Black ABS Blades
59 Matte Black | Matte Black ABS Blades
808 Aged Brass | Studio White ABS Blades
-Lifetime Motor Warranty
-DC-30NS Motor
-6" Downrod Included (1/2" diameter)
-6 Speed Wall Control Included
-Remote Control Adaptable
-Airfl ow: 10578 Cubic Feet/Minute on High Speed
SPREE 84" DAMP CEILING FAN
Available Finishes
59 Matte Black | Matte Black Stained Wood Blades
80 Aged Brass | Walnut Stained Wood Blades
-Lifetime Motor Warranty
-DC-165NL Motor
-4” & 6" Downrods Included (1/2" diameter)
-6 Speed Wall Control Included
-Remote Control Adaptable
-Airfl ow: 7826 Cubic Feet/Minute on High Speed
SPREE 84" DAMP CEILING FAN
Available Finishes
47 Brushed Brass | Matte Black ABS Blades
59 Matte Black | Matte Black ABS Blades
-Lifetime Motor Warranty
-DC-165NL Motor
-6" Downrod Included (3/4" diameter)
-6 Speed Wall Control Included
-Remote Control Adaptable
-Airfl ow: 8871 Cubic Feet/Minute on High Speed
ALISIO 58" CEILING FAN
Speci fi cation: 58" Blade Span
Material: Iron | ABS Blades | Case Glass
Finish: Aged Brass
Blades: Dark Walnut ABS
Motor: 6 Speed DC Motor
Wall Control: Included
Light Kit: 15W | 3000k | 90CRI | Dimmable LED
Blade Pitch: 18 Degree
Downrod: L 6" x Dia 3/4" Included
Certi fi cation: ETL Certi fied
Optional length downrods available
BORA BORA 62" CEILING FAN
Speci fi cation: 56" Blade Span
Material: Iron | ABS Blades
Finish: Matte Black
Blades: Walnut ABS
Motor: 6 Speed DC Motor
Wall Control: Included
Light Kit: Not Adaptable
Blade Pitch: 16 Degree
Downrod: L 6" x Dia 3/4" Included
Certi fi cation: ETL Certi fied
Optional length downrods available
ZONDA 62" CEILING FAN
Speci fi cation: 62" Blade Span
Material: Iron | Rope | ABS Blades | Glass
Finish: Oiled Bronze
Blades: Medium Oak ABS
Motor: 6 Speed DC Motor
Wall Control: Included
Light Kit: 15W | 3000k | 90CRI | Dimmable LED
Blade Pitch: 16 Degree
Downrod: L 6" x Dia 3/4" Included
Certi fi cation: ETL Certi fied
Optional length downrods available
ZEPHYR 60" CEILING FAN
Speci fi cation: 60" Blade Span
Material: Steel | Leather
Finish: Aged Brass
Blades: Black Leather
Motor: 6 Speed DC Motor
Wall Control: Included
Light Kit: Not Adaptable
Blade Pitch: 16 Degree
Downrod: L 6" x Dia 3/4" Included
Certi fi cation: ETL Certi fied
Optional length downrods available
DOING BUSINESS with OXYGEN
Tools & References
oxygenlighting.com | Cut Sheets | Revit | Delivered Lumens
Catalogs
Print & Digital
Supplements
Print & Digital
Website
Images, Social Media Content
Partnership Program
Rebates, freight incentives, and discounted re-stock fees
Display Promos
Virtual Training
LUCCI Pendant
3000KOnly 1Delivered:1708lm(LM-79) 1000mA,20VAC,50/60Hz36WmaxpowerColdTRIACDimmingRolledSteelHousingandCanopy - Aluminum 4”White/IndustrialShadeBrass(-650),Black/IndustrialBrass(-1550) cETLOctagonalJ-Box CertifiedDamplisted,ConformstoULSTD1598, CAN/CSA
Orderexampleforstandardfixture: 3-21-650(x-Voltage-xxx-Sequence#-xx-Finish)
How to Order
Orders are placed with authorized Oxygen sales representatives.
Ordering Hours: 8:00am - 5:30pm Central Standard Time | Monday - Friday
Shipping & Freight
Orders ship from Fort Worth, TX. Freight/Shipping terms vary by account.
RGA’s
12 Month RGA Policy. Uninstalled, in original box. 25% Re-Stock Fee.
Warranty
FROM THE DATE OF INVOICE
2 years to the original end user of all lighting, ceiling fan and accessory products. 3 years Energy Star lighting products | 5 years on integral LED light fixtures
Pricing
Provided Price Sheets include Dealer Net and List. Oxygen does enforce a protected MAP.
