BEIRUT BLAST MEMORIAL

Lebanon - Beirut Port

AL TALL BOUTIQUE HOTEL

Lebanon - Tripoli

GRAND PAVILLION

Lebanon - Rashid Karami International fair

2020-2021

Academic third year

Lebanese University Branche 3

BEIRUT BLAST MEMORIAL

Software used 3dmax- Vray Autocad- Photoshop

Lebanon - beirut port

On 4 August 2020, a large amount of ammonium nitrate stored at the Port of Beirut in the capital city of Lebanon exploded, causing at least 221 deaths, 7,000 injuries, and US$15 billion in property damage, as well as leaving an estimated 300,000 people homeless.

• Date August 4, 2020

• time:6:07 pm

• Cause:2750T of ammonium nitrate with fireworks

• Details: 2 explosions (33 seconds between them)

• Victims: 221

• Injuries: 6500

• Largest non-nuclear explosion

• The wheat silo, the most important silo in the Arab world when it was built, has become in ruins.

• The explosion destroyed a section of the shoreline and left a hole about 124 m in diameter and 42 m deep.

• Houses up to 10 km away were damaged

• 3 hospitals destroyed.

• 2 hospitals damaged.

Concept diagram

S ymbol of flame presented in a form of a statue at the heart of the project

is one of the most common and understood symbols in memorials, representing the unforgettable tragedy and at the same time to honor the victims.

Curved walls form the memorial building that openness towards the sea and closeness towards the silo representing how part of the explosion disappeared into the sea and the other part was deterred by the silo. These walls also wrapped around the flame statue.

openness towards the sea & black hole &

symbol of flame closeness towards the silo acoustic experience

Black hole & acoustic experience presented at the entrance represent the dark tragedy of the explosion where it doesn't seem to have an end and that is by using unreflective materials like vantablack . in this part the user will experience an acoustic architecture. echo sound will be heard and that is achieved using a cylinder with a diameter of more than 17 ( = 20 m ) and that is the minimum long.

Perspective view of the memorial proposal at the center of the hole that has been created by the explosion.

Section A

Side elevation

Section B

basement floor plan -1

ground floor plan

As we enter the space our eyes are straightly directed into parts of the large statue of flame that start below the entrance level where the eternal flame in present is her center.

the exhibition passway starts with a dark and small space, as we continue the light starts coming in from the roof with a remarkable rise in height ending with the flame stature facing us.

View from the exhibition ending

Reception view

View from the exhibition exit

2020-2021

Academic third year

Lebanese University Branche 3

AL TALL BOUTIQUE HOTEL

Software used

Revit- Vray

Autocad- Photoshop

Lebanon - Tripoli

In a major Lebanese city that is Tripoli, rich of historic layers whether by its monuments or by its urban fabric, the city is facing a problem consisting of many tourists visiting it for a few hours before returning to their hotel tens of Kilometers away due to a lack of interesting and adequate sort of lodging in the city. By this, both the city and the tourists are losing an opportunity.

The boutique hotels; that offer unique and upscale settings for guests; will be located in Tripoli, in front of the municipality, on plot number 7 El-Tall with an area of 1674 m2.

The plot used to be a coffee shop surrounded by urban stairs that are aligned with the topography.

The project is divided into 2 parts: a commercial at the street level and rooms above where we can see clearly the diving from terraced spaces to cubic blocks. The boutique contains 4 types of rooms ranging from 25m2 with a total number of 58 units and 16 on 1 floor.

AL-TALL BOUTIQUE HOTEL SIDE ELEVATION

The concept behind the hotel form expresses the topography of its surrounding

Bringing the land topography to the project

Dividing the building into 2 identical parts

Secondary plot entrance from the level of the stair

Hotel rooms

Business center and administration

Restaurant Gym

Reception and coffee shop

Al-tall coffee shop entrance behind the plot

Mass AL TALL BOUTIQUE HOTEL | BACHELOR SEMESTER 6 | 2021

2021-2022

Academic master 1

Lebanese University Branche 3

Software used

Revit- Lumion- Illustrator

Autocad- Photoshop

GRAND PAVILLION

Lebanon - Rashid Karami international fair

the Rashid Karami International Fair was Designed by the past Brazilian Architect Oscar Niemeyer (the creator of Brasilia and the last giant of the modernist second generation of the 20th century Modern movement).

The grand cover, situated at the heart of the Fair, originally dedicated to host the international pavilions underneath, does not comply today with the most recent technical requirements of exhibition spaces, due to its linear arrangement, and relatively low clearance under its cover slabs.

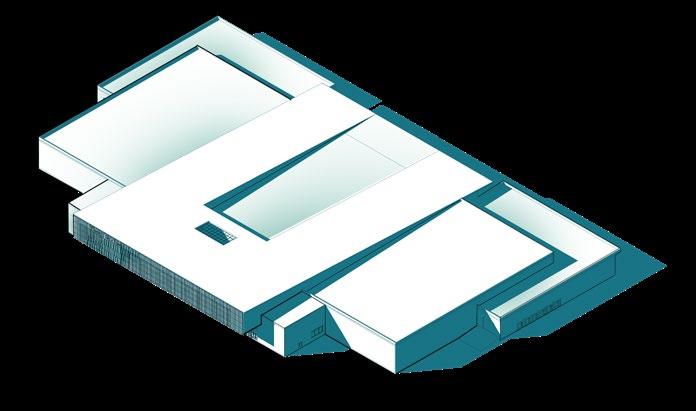

Now, within a new vision of the fairground, a new proposal emerged, for designing an alternative exhibition pavilion to replace the grand cover function, enabling another adaptive reuse scheme for its 48.000 m2 spaces underneath.

The new proposed exhibition hall will be located on the southern empty land spaces inside the fairground campus, namely to the backside of the grand cover (see attached layout), and will have a dedicated access gate, using existing carpark spaces.

Mass plan of tripoli

Rashid Karami fair

1.�obby

2.Exhibition

3.Storage

4.Restaurant

View of the pavillion from the exterior exhibition

Second main elevation
