Buyers Guide: RAM® Docks for Honeywell ScanPal™ EDA10A

Page 1


LOCKING & NON-LOCKING

RAM® Docks for Honeywell ScanPal™ EDA10A

PRIMARY MARKETS

Compatible Docks

RAM-HOL-HON11U

Non-Powered

RAM-HOL-HON11PU

Powered

RAM-HOL-HON11PKLU

Powered, Locking

RAM-HOL-HON11PDU

Powered, Single USB-A Peripheral

RAM-HOL-HON11PDKLU

Powered, Locking, Single USB-A Peripheral

RAM-HOL-HON11PD2U

Powered, Dual USB-A Peripherals

RAM-HOL-HON11PD2KLU

Powered, Locking, Dual USB-A Peripherals

RAM-HOL-HON11PD2-DB9U

Powered, Dual USB-A + DB9 Serial Peripherals

RAM-HOL-HON11PD2-DB9KLU

Powered, Dual USB-A + DB9 Serial Peripherals

RAM® Docks for Honeywell ScanPal™ EDA10A

FEATURES & BENEFITS

Pogo Pin Connection

Protect the charge port and increase efficiency by utilizing the device’s pogo pad docking contacts—simply dock the EDA10A to keep the device charged and/or connected to supported peripherals. All powered RAM® Docks come equipped with pogo pin technology to enable a seamless docking experience.

Accessory Compatible

Intentionally designed with a concave area to accommodate tablet accessories, such as hand straps and battery extensions.

Connector Options

This form-fit powered dock can be customized to fit workforce needs. With multiple connector options, operators can configure the dock to charging only or include multiple peripheral support options with USB-A and DB9 Serial ports.

Mount It

Patented & Pats Pend. rammount.com/ip

Two dedicated side-mounting areas allow operators to mount up to two small devices such as an NFC Extender, scanner, or handheld.

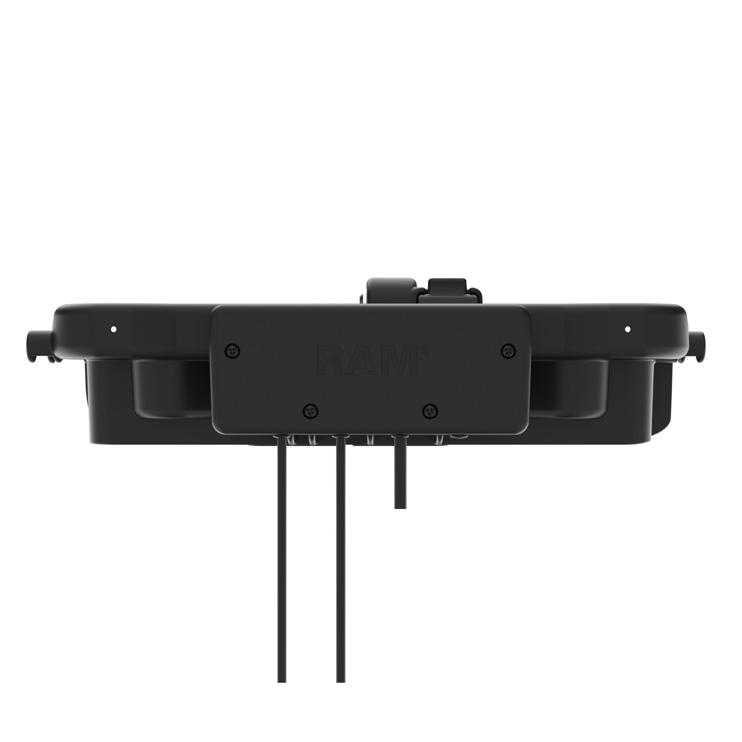

RAM® Docks for Honeywell ScanPal™ EDA10A

SPECIFICATIONS

2-Hole AMPS pattern * Honeywell Hand Strap Compatible

Honeywell Handstrap Compatable

Side Mounting

Dock is compatible with the OEM boot for the Honeywell EDA10A, and at this time does not support the device without the boot

Key-Locking Option

Mounting Area 75mm VESA pattern

Mounting Area

4-Hole AMPS pattern

Single USB-A Peripheral Power (DC Barrel Jack)

Dual USB-A Peripheral or USB-A + DB9

rammount.com/ip

HARDWIRE POWER SUPPLIES

RAM-GDS-CHARGE-V9U

RAM-GDS-CHARE-10U

CERTIFICATIONS

RoHS, WEEE, CE, FCC

INPUT VOLTAGE 5VDC

POWER CONNECTOR TYPE 5.5mm DC Connector Female

POWER CABLE LENGTH 1 Meter

PERIPHERAL POWER OUTPUT 5V/900mA

DATA CONNECTOR TYPE USB Type-A Female or DB9 (RS232) Male

DATA CABLE LENGTH 250 mm Patented & Pats Pend.

RAM® Docks for Honeywell ScanPal™ EDA10A

COMPATIBLE MOUNTS

Patented & Pats Pend. rammount.com/ip

Mounting Options

RAM-D-2461U-C-247-4

RAM® 4” Square Post Clamp Mount with 75x75mm VESA Plate

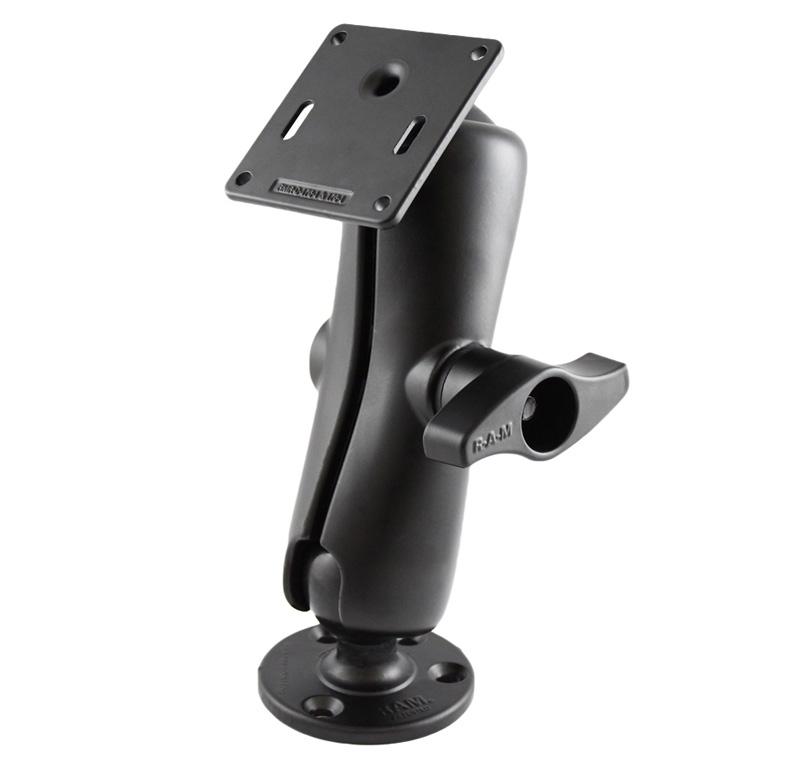

RAM-D-101U-2461

RAM® Double Ball Mount with 75x75mm VESA Plate and Jam Nut - Medium

RAM-GDS-CHARGE-M55-V7B1U

GDS® Modular 10-30V Hardwire Charger with 90-Degree DC Cable

RAM-GDS-CHARGE-M55-V8BU

GDS® Modular 30-64V Hardwire Charger with 90-Degree DC Cable

RAM-VP-SW2F-89-2461

RAM® Tele-Pole™ with 8” & 9” Poles and Double Ball 75x75mm VESA Mount
