NFC Extender
SKUs

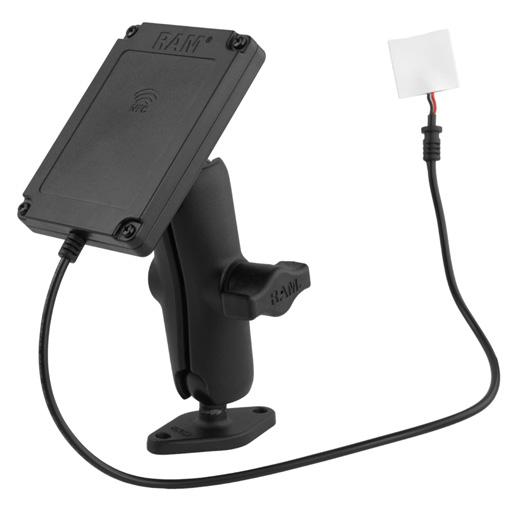

RAM® NFC Reach™ NFC Extender
RAM-GDS-CAB-NFCU
MSRP: $50.49
RAM® NFC Reach™ NFC Extender with Drill-Down Double Ball Mount
RAM-B-102-NFCU
MSRP: $84.99
RAM® NFC Reach™ NFC Extender with Dashboard Mount
RAM-B-101-225B-NFCU
MSRP: $90.99
RAM® Locking Powered Dock for Tab Active3 with RAM® NFC Reach™
RAM-HOL-SAM58PKL-NFCU
MSRP: $228.99
RAM® Powered Dock for Tab Active3 with RAM® NFC Reach™
RAM-HOL-SAM60P-NFCU
MSRP: $164.99
GDS® Tough-Dock™ for Tab Active3 with RAM® NFC Reach™
RAM-GDS-DOCK-SAM62CP-NFCU
MSRP: $262.99
Locking GDS® Tough-Dock™ for Tab Active3 with RAM® NFC Reach™
RAM-GDS-DOCKL-SAM62CP-NFCU
MSRP: $282.99
GDS® Tough-Dock™ Body for Tab Active3 with RAM® NFC Reach™
RAM-GDS-DOCKB-SAM62-NFCU
MSRP: $246.49
Features
NFC Extension
Extends the signal from a compatible tablet’s NFC access point up to 1-foot of reach while device is docked.
Data Transfer
Supports passage of data to a device from cards, tags, buttons, etc; supports Tap To Pay, asset tracking, time tracking, attendance, and much more.
RAM® Ready
4-hole AMPS pattern for attaching RAM® B or C size ball mounts.
rammount.com
1-800-497-7479
sales@rammount.com
BUYER’S GUIDE
PRODUCT
SHEET
&
SPEC
SPECIAL NOTE
Potential interference of NFC functionality may occur when positioned close to strong magnets.
Weight 0.22 lbs.
Materials
High strength composite
Input Cable Length 11.811”
Warranty Status
3-year warranty
Hardware Included
Assembly Hardware to back of dock
Dimensions
Height: 3.5”
Width: 2.65”
Depth: 0.5”
11.811”
sales@rammount.com
rammount.com 1-800-497-7479
3.5” BUYER’S GUIDE & PRODUCT SPEC SHEET 11.811”
Back Dock Cover
0.5”
NFC Transmitting
Antenna NFC Receiving Antenna AMPS Hole Pattern
