PORTFOLIO
1
Rudraksh Dubey Nirma University
EDUCATION ACHIEVEMENTS
2020 - present Insititute of Architecture, Nirma University, Ahmedabad
2022
2021
Best Studio Performance 2nd year
Best Studio Performance 1st year
SSC Merit - 93.6 %
Class X Merit - 94.8 %
Drawing Intermediate Certificate
Grasshopper
Enscape
DOB: 17/07/2002
E-Mail : 20bar032@nirmauni.ac.in
Mobile no. 9926285343
Residence : A-2, Regency Riddhi-Siddhi,
Ganeshpuri, Khajrana, Indore
Currently in 3rd year of B.Arch, Institute of Architecture, Nirma University, Ahmedabad
2023
Laurie Baker Center - Kerala
Hands on workshop (Brick, mud and Bamboo)
2022
2022
HUDCO Trophy
France and Italy RSP
2021 Measure Draw - Pol House, Ahmedabad
2021 ANDC Trophy
2
3 CONTENT
DREAM ABODE
CO-INTERACTIVE HOUSING
INCUBATION CENTER
WORKING DRAWING 4. DOCUMENTATION 5. MISCELLANEOUS Opening vistas towards nature 04-07 08-13 14-21 22-27 28-29 30-43 Redefining planes and spaces Interactive merger of land and built Detailing the incubation center Pol Houses, Ahmedabad Exploratory and Other works
1.
3.
2.
3.
DREAM ABODE 01
A dream residence, at a dream location, but yet realising the dream in the most radical way. Aim was to give justice to the context through orientation, and hence letting the spaces create themselves. Aim was to create spaces that give the peace and patience that is needed to calm yourselves down.
Project : Material Studio | Sem III
Location : Valvan Lake, Lonavala
Area : 250 sqm
Material : CSEB Blocks and Concrete
4
5
The design process started through taking Queues from the site terrain, and the lake-facing multi-directional slope of the land. Splitting the built into four parts, with different levels, opened up the vista towards the lake.
Longitudinal Section
6
7 1 Living Room 2 Kitchen 3 Dining 4 Bedroom 5 Toilet 6 Workspace 7 Library 8 Semi-Open Sitting Latitudinal Section
INCUBATION CENTER 02
A center for formal and informal Interactions that in-turn lead to intellectual research and explorations. Exploring the institution design through different parameters of user experience, which then enhanced the design through a very natural and contextual process.
The project works around the idea of an interactive promenade, which connects the major spaces, and hence becomes a node for the formal as well as informal discussions in the institute.
Project : Institution Studio | Sem V
Location : Bodakdev, Ahmedabad
Area : 5000 sqm
Material : Brick and Concrete
8
Conceptual Model
Structural System Model
10
Final Amalgamation
Wall Section - North Treatment
11
0 5 10 15 20 25 50 M
Following the slope of the land in both the directions, acheiving double height spaces through the slope which is moving down, and the natural street-promenade formation which happens through orienting the building in the direction of the contours.
14
03

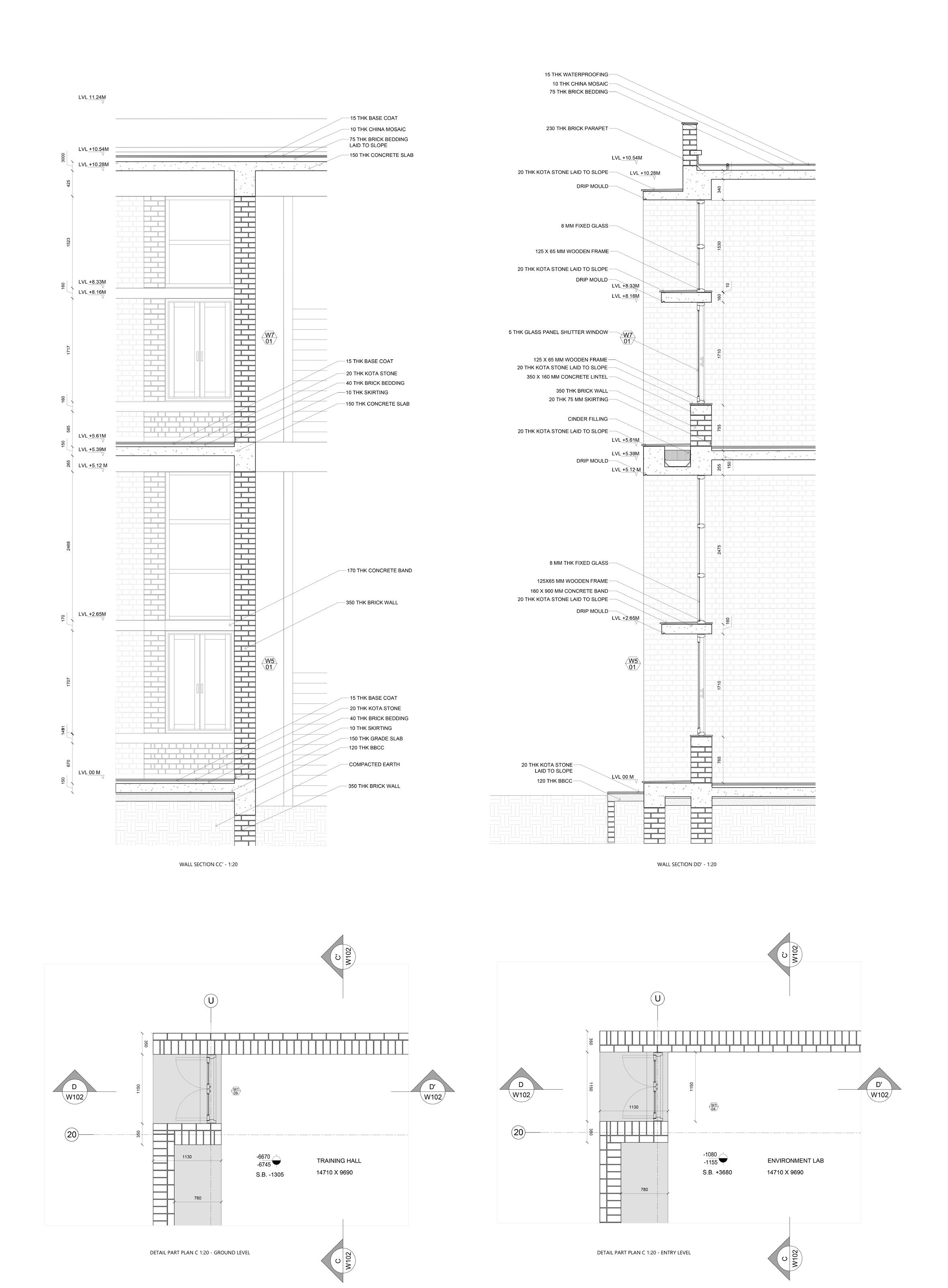

WORKING DRAWING ONGOING SEM VI
15
16
17
18
19
20
21
CO-INTERACTIVE HOUSING 04
Overlapping of ideas and activities are true catalysers towards social housing, And thus interaction is a major aspect of healthy living.
Exploring the idea of overlapping planes, and social heirarchy, the project focused on prioritizing the open spaces even while going vertical because of land constraints.
Project : Housing Studio | Sem IV
Location : Afzal Khan No Tekro, Khadia, Ahmedabad
Area : 7000 sqm
22
Conceptual exploration of the idea of overlapping multi-purpose spaces and cluster formation through the conceptual idea. Creation of interactive nodes, and movement, pedestrain and vehicular were the major goals.
Section also explored the sense of balance between going vertical and maintaining open spaces. Natural terrace formation was achieved through sensible stacking of largest area units at the lowest level, medium in the middle and smallest at the topmost level.
24
30 sqm units, with overlooking balconies
45 sqm units, with a common open to sky balcony.
60 sqm units, at the ground level, favoring the larger families.
25
Staggering the grid with open spaces at different levels, lead to creation of a pedestrian street, and ceremonial spaces tangential to the street, thus giving pockets of open spaces to all the blocks.
26
0 5 10 15 20 25 50 M
Unit plans focused on providing semi-open overlooking, common and overlapping spaces. Following the same structural grid, but creating more voids as you move up, following the social heirarchy but in a different way.
27
30 sqm Unit 45 sqm unit A 60 sqm Unit 45 sqm Unit B
DOCUMENTATION - POL HOUSE, AHMEDABAD
Measure draw case study of the heritage city of Ahmedabad, traditional pol house architecture. Documentation of Plans, electrical plans, reflected ceiling plans, sections, elevations as well as the details was carried out.
28 246 241 261 241 246 20 84 1358 125 139 SECTION AT AA' 152 75 80 635 80 227 1260 B 240 75 PLAN (1:10) 472 442 578 139 120 170 182 221 101 101 297 1195 551 198 525 84 1715 ELEVATION AT B A' A DETAIL C NICHE DETAIL1 : 10 LEGEND CLIENT: PROJECT: Documentation of WHC KEY PLAN DRAWING NAME: DRAWN BY: CHECKED BY: DRAWING NO.: All dimensions are in Millimeters unless specified otherwise NOTES Metal cut Conjectural line Wood cut Metal wood Wall Distress DATE: UNIVERSITY/FIRM: SCALE Rudraksh Dubey Afifah Patheria Zahra Chandurwala C17
05
29 370 2540 975 1000 990 888 1779 690 940 1891 2222 3442 750 1500 600 1330 1930 2824 3212 2958 880 1852 1840 480 220 1070 50 3036 1988 197 197 191 234 Rev. No. Ahmedabad World Heritage City Trust (A Trust of Ahmedabad Municipal Corporation) LEGEND CLIENT: PROJECT: Documentation of WHC UNIVERSITY/FIRM: KEY PLAN SCALE DRAWING NAME: DATE: DRAWN BY: CHECKED BY: DRAWING NO.: All dimensions are in Millimeters unless specified otherwise NOTES POL WARD NO SURVEY NO GRADEMetal cut Conjectural line Wood cut Metal wood Wall Distress Plumbing DATE:-Rudraksh Dubey Afifah Patheria Zahra Chandurwala 30/12/21 LAMBA PADA NI POL KHADIA 1 4179 III SECTION AA' C12A 1 : 50 790 1790 3015 640 185 945 3185 1880 590 12935 1300 270 1430 400 2115 640 2065 2360 260 1500 1590 1170 530 760 2030 13040 C C' WASHROOM BATHROOM KITCHEN MANDIR TV ROOM PRESS ROOM CHOWK LIVING 660 B B' A A' 5245 FFL: +0.42 MT FFL: +0.42 MT FFL: +0.42 MT FFL: +0.42 MT FFL: +0.42 MT FFL: +0.42 MT FFL: +0.52 MT Rev. No. Ahmedabad World Heritage City Trust (A Trust of Ahmedabad Municipal Corporation) LEGEND CLIENT: PROJECT: Documentation of WHC UNIVERSITY/FIRM: KEY PLAN SCALE DRAWING NAME: DATE: DRAWN BY: CHECKED BY: DRAWING NO.: All dimensions are in Millimeters unless specified otherwise NOTES POL WARD NO SURVEY NO GRADEMetal cut Conjectural line Wood cut Metal wood Wall Distress Plumbing DATE:-Rudraksh Dubey Afifah Patheria Zahra Chandurwala 30/12/21 LAMBA PADA NI POL KHADIA 1 4179 III C31 : 50 N GROUND FLOOR PLAN
MISCELLANEOUS 06
Courses carried out throughout the three years, including Basic Design, Architectural Representation and building Construction Technologies. On the right is a Basic design landscape abstraction exercise.
Exploratory study programs, which included hands on workshop and extensive observational on-site work and sketching trips.
30
31
FRANCE & ITALY SUMMER RSP 22’
32
Grande Arche de la Defense, Paris
La Tourette, France
Leaning tower of Pisa
Villa Savoye, Paris
33
St. Peter’s Basillica, Rome
Milan Cathedral, Milan
Villa Savoye, Paris
KERALA RSP EXPLORATORY PROGRAM , JAN 23’
34
Darbar Hall, Kochi
Kanthari, Kerala
Loyola Chapel, Trivandrum
Mattancherry Palace, Kochi
HANDS ON WORKSHOP
LAURIE BAKER CENTER, JAN 23’
35
Brick Dome Construction
Rat-trap Bond Constrcution
Brick Arch Construction
Mud wall Construction
KINETIC PAVILION INSTALLATION, KALP 23’
Link to the Youtube Video, demonstrating the installation. https://youtu.be/IWR399JgvBw
36
Visualizing a rhythmic movement, the idea was to develop a people centric mechanism. An interactive and engaging gateway in the center of the lawn, the installation functions with a system of pulleys that enable the movement of members in the path of a sine wave.
37
39
BASIC DESIGN
Understanding the natural architects and their creations, and using the process of bio-mimicry, creation of a small temporary structure, following the same techniques and materials.
40
41
SCIOGRAPHY
Detailed shadow study, Understanding the orthographic and isometric projection systems, and drafting shadows in plan, sections, elevations as well as in 3D view.
42
43
44 Rudraksh Dubey +91 9926285343 rudrakshdubey@gmail.com 20bar032@nirmauni.ac.in
