Multi-functional Facade Module

Multi-functional Facade Module for different climate conditions

Graduation Thesis by Maria Mourtzouchou

My graduation project was focused on Façade and Climate Design in collaboration with “Rollecate”, which is a facade construction company in the Netherlands with worldwide projects. It started with the existing research project “Future Adaptive Facades and Components” with the question from “Rollecate” about the direction the facade industry is heading to.

Figure 1. Example of facade composition constructed with a possible combination of Multi-functional Facade Modules.

Figure 2. Module types delivering different functions.

Research framework The building sector is responsible for more than one third of resource consumption globally. Concerning the new construction, new regulations have been set, which impose that by 2020 all new buildings constructed within the EU should reach nearly zero-energy levels. Traditional buildings were built by means of passive systems lacking flexibility. Current high energy consumption in buildings is attributable to non-optimal architectural choices, low performance of the building envelope, low efficiency of HVAC and lighting systems, as well as a still low utilization of renewable energy sources

The building envelope plays a strategic role in the energy and environmental performance of the building, significantly affecting the levels of indoor comfort. The increasing necessity of sustainability in built environments is leading to the need of the adaptive façade adoption. The façade is no longer a mere static element offering just a shelter for users. In reality, the factors that affect a building, its envelope and its ability to serve as an effective system of climate control are multi-dimensional. The future building skin is required to respond dynamically, being able to react to noncontinuous, ever-changing climatic conditions, occupant comfort and energy efficiency requirements. As architect Jean Nouvel has said: “Constructing generic buildings, to be placed anywhere, not specific to urban areas, is doing things with no value”. It is apparent that building facades need to be transformed to fulfill adapted roles of high performance integration and façade elements need to be designed to provide the necessary flexibility needed in terms of energy flow and thermal comfort.

Companies like “Rollecate” have grasped this change and are interested in creating new products, which reflect the current trend of adaptivity. “Rollecate” wanted to know what the future of adaptive facades is and how this is translated into a new product or a modification of an existing one that could be developed soon and be relevant for the building sector in the next five years and on.

The journey of seeking an answer to this question started with researching adaptive materials, products and buildings with the aim of putting forward the characteristics of these systems and gain knowledge on them. This was achieved by creating a classification approach based on existing ones with the final goal of defining the future trends of adaptive facade design according to the evaluation of the state-of-the-art existing adaptive buildings and mainly to the development

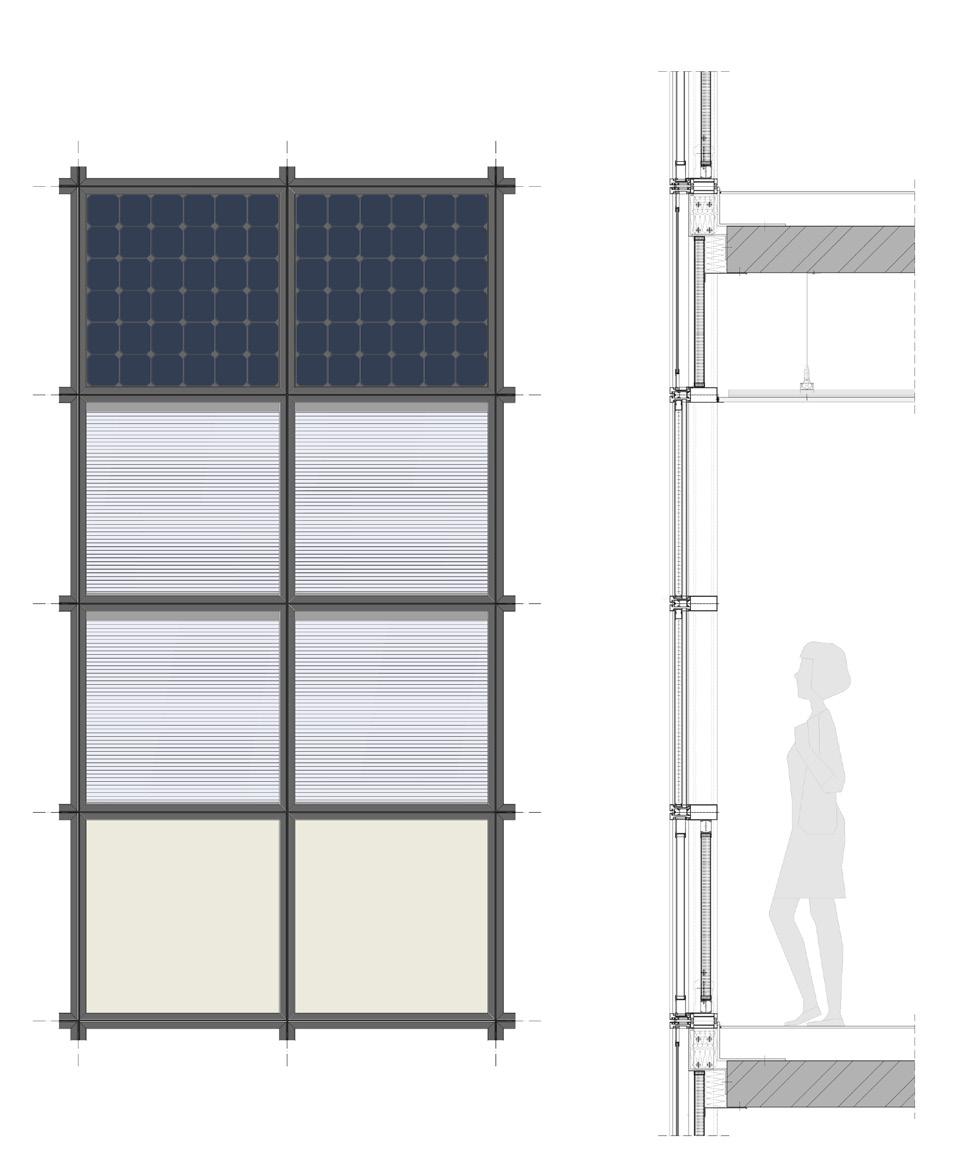

Figure 3. Elevation and Section of simulated facade example.

of novel adaptive technologies as presented by research currently conducted.

This first research part was conducted in collaboration with Shirin Masoudi, who started her thesis with the same research project but focused on the lighting aspect rather than the thermal comfort. The research projects were evaluated according to the Technology Readiness Levels (TRLs), which is a development in “Horizon 2020” (EU Research and Innovation Programme). This is a measurement system that provides a common understanding of technology status and addresses the entire innovation chain. Thus, the emerging adaptive facade concepts were defined and put on a timeline estimating which would be applied in the near future and which were further away from actual applications. The choice of the system, which was developed for this research project, was based on the future trends defined by these classifications and on the conclusions drawn by grouping the case studies according to specific parameters. In addition, it was considered important to conduct research on the market design process, the principles of product development and the facade types evolution and how integrated systems work to provide thermal comfort.

The Design The aim of my research project was the development of a Multi-functional Façade Module (MFM) (Figure 1) that consists of several functionalized layers that could be separately assembled depending on the architectural design of the building and the corresponding climate. This innovative adaptive facade system consists of different units, being multi-functional as a whole, an aspect which is achieved by making a selection of modules to be used according to each project and its context. Moreover, the proposed design is modular, which gives the possibility to be altered easily throughout its lifecycle, thus being also adaptive to future technological innovations. The modular elements are able to be assembled and placed with different geometric configurations, different types of materials and different colors in order to guarantee customization.

The Facade System comprises three main types of modules: transparent, semi-transparent and opaque (Figure 2). These three types were chosen, in order to provide the necessary architectural design freedom because all the case studies presented consist only of opaque and transparent ones. Transparent modules should maximize thermal insulation, light transmission and protection from summer solar radiation. Therefore,

Figure 4. Visualisations of an office interior with different module combinations and arrangements.

the functions that they offer are solar protection (integrated blinds) and smart glazing (electrochromic glazing). Semi-transparent modules should provide the advantage of combining daylight with energy efficiency. Therefore, they contribute to the energy production (BIPVs) and provide insulation (translucent PCM). Opaque modules should maximize inertia and thermal insulation characteristics. In addition, they are a good option to incorporate energy production, since it has a higher efficiency than in semi-transparent modules. Therefore, energy production (BIPV/T), insulation (PCM) and green facade (Living Wall) are incorporated in this type of modules.

The MFM facade system was tested for an office building in Amsterdam, Netherlands (Figure 3) with the main objective of providing thermal comfort to the occupants, whilst minimizing the energy consumption. A reference project with the same dimensions was simulated, allowing for the Multi-functional Facade System to be compared with a typical construction. The results obtained by the simulations were beneficial and showed a much better energy performance compared to that of the reference project with the typical office construction. MFMs show more controlled solar gains, thus leading to lower needs for heating and cooling, and offer additionally the benefit of energy production.

Nowadays, most offices’ facades are a typical, usually fully-glazed curtain wall, a quite standardized solution which leads to the creation of similar buildings although constructed in different countries with different climates. The proposed Multi-functional Facade Module (MFM) offers an adaptive solution for this standardized practice lowering the energy consumption, improving the indoor environment and offering more aesthetic variety. A few of the different module combinations tested can be seen in Figure 4, which also demonstrates the different architectural possibilities that can be achieved.

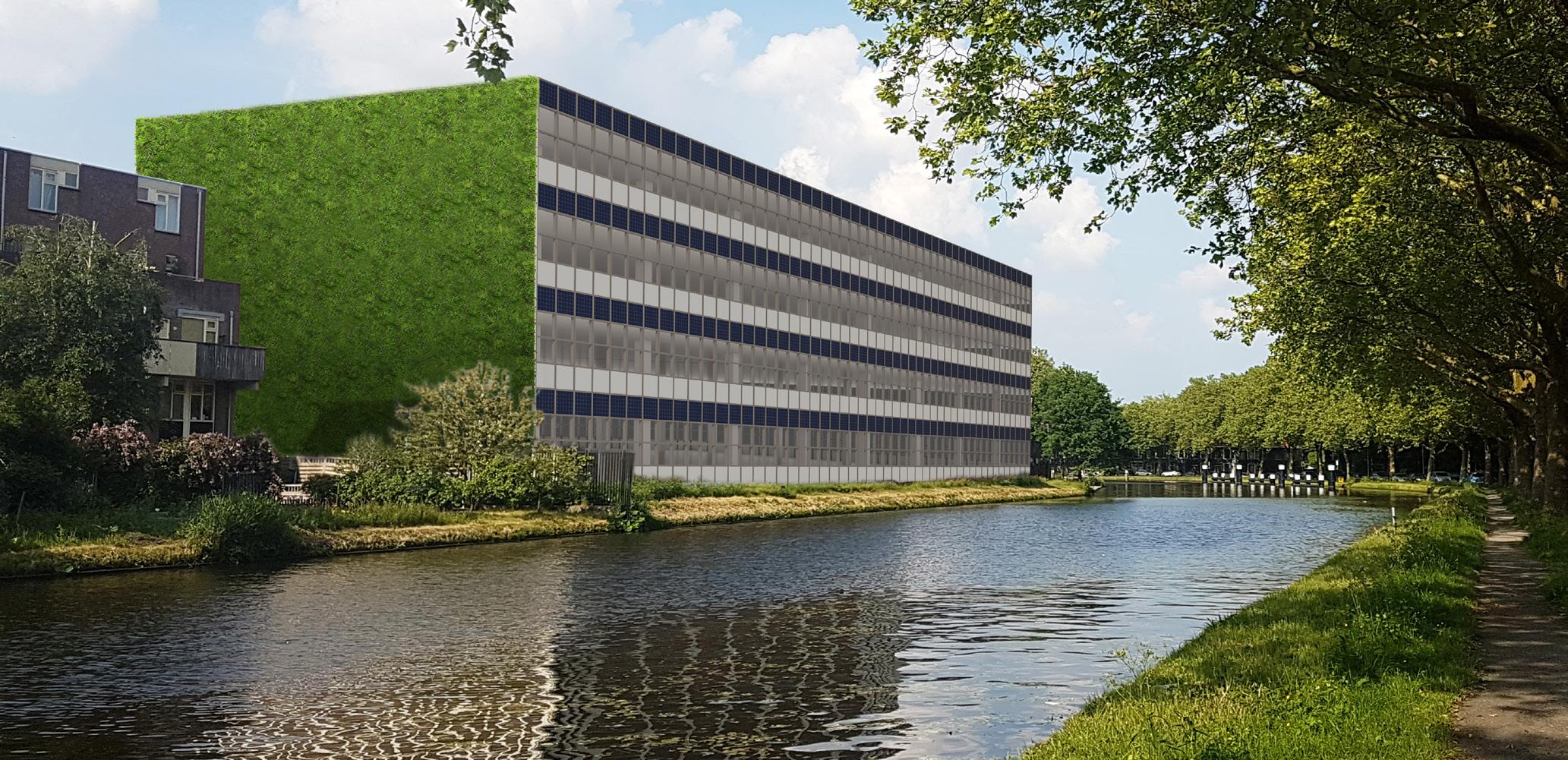

Figure 5. Visualisation of different facade options.

Conclusions

In the framework of a decade-long research activity on Advanced Integrated Façades (AIF), MFMs show a considerable potential for building envelopes, being one of the most promising Responsive Building Elements (RBE) in terms of energy reduction potential. In addition, the results of this research project prove that MFMs are performing well, offering considerable energy savings. They are a promising facade concept for future applications, offering not only an adaptive but also a sustainable solution to the construction of office buildings. Nevertheless, there is still space for future improvement, as well as further research and development. As overall conclusion about the near future of adaptive facades after the completion of this research project, it was deduced that it does not lie on the integration of smart, innovative materials but on traditional ones with the difference that layering and combinations matter.

The adaptability and thus the higher energy efficiency depend a lot on the sequence of layers chosen for a facade but also on the combination of different elements with different layering. Consequently, “Rollecate” is not needed to change the way facade systems are constructed but it should consider collaborating with other stakeholders with knowledge on material science and building physics, in order to achieve synchronisation of these functions and offer systems with long-term cost savings for the client.

Figure 6. Visualisation of different facade options.
