STAY IN PLACE : COFFER SYSTEM TESTING/ VERIFICATION PROCESS

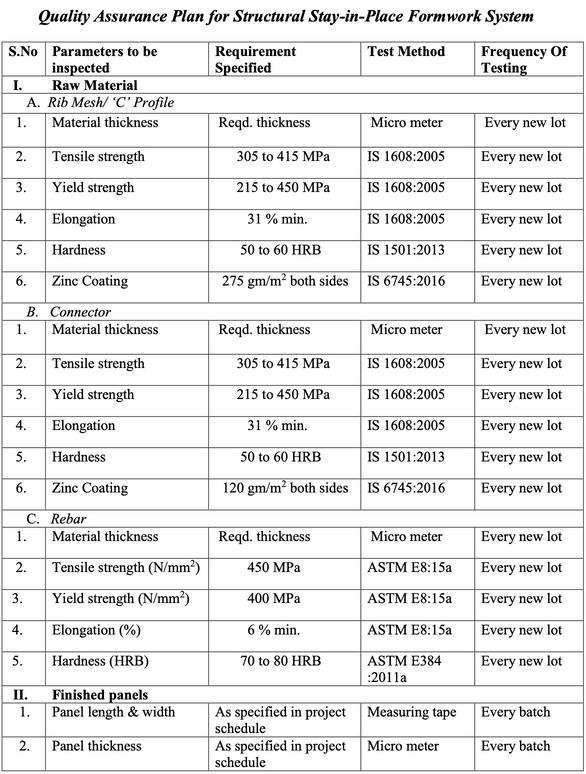

Some Imp Codes And Standards Used In Assessment

NAME: Muskan Aanand (19110016)

Katta Sheetal (19110011)

Amasa Pranay (19110002)

Shreyes Gupta (19110025)

Test 1: Lateral capacity of the panels with concrete Details of Test: Size of panels: 2.2 m x 3.0 m, thickness : 160 mm and no of panels used = 2

Grade of concrete: M20

Test result; Breaking load 8.512 MT

Maximum deflection: 62 mm

Test 2: Axial and Buckling capacity of the panels with concrete Details of Test:

Size of panels: 05 m x 30 m, thickness 160 mm and no of panels used = 2 Concrete grade : M20

Test Result: Maximum load per cylinder given: 263 MT Total load applied per cylinder: 1052 MT

Maximum deflection observed: 187 mm

Test 1: Compressive Strength on Hardened Concrete Cubes Details of Test: Material description: Concrete cube (150 x 150 x 150mm) Concrete grade M20 for 28 days strength Concrete grade: M25 for 7 days & 28 days strength Concrete grade M30 for 28 days strength

Test 2: Compressive strength of Concrete cubes & Concrete panel (after 7 days & 28 days), Flexural strength of Concrete beam & concrete panel (after 7 days & 28 days), Shear strength of panel (after 28 days), Deflection of panel (after 28 days), Water absorption (after 28 days) and Modulus of Elasticity of Cylinder (after 28 days)
