Product Guide
Kalea Bay
Kalea Bay
OUTDOOR FIREPLACE
LED Models; Full spectrum lighting (120VAC Required)
LED Model Sizes: 32” / 48” / 60” / 72” (all 16” tall openings)
Burner & firebox constructed of weather/corrosion resistant 304 stainless steel. Ecoflow Electronic Ignition System features built-in safety shutoff in case of loss of flame and auto-relight. Control Center with each model housed in 304 Stainless Steel Cabinet.
Ships as Natural Gas (NG) or Liquid Propane (LP). Field Convertible to Liquid Propane (LP). Conversion Kits sold separately.
Tested & Approved to: ANSI Z21.97-2014/CSA 2.41-2014 standards.

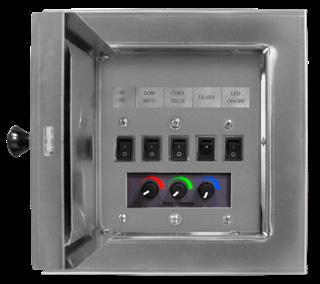

Control Panel
Kalea Bay | LED Models
On / Off, Low / High, Continuous Pilot, Learn & LED On/Off Use the RGB dials to get your desired color, there are over 16 million to choose from!
OFP-36LECO-NLED 36" W x 16" H x 16" D NG 18,500 31,000 OFP-36LECO-LPK 78002 OFP-36COV OFP-48LECO-NLED 48" W x 16" H x 16" D NG 24,500 43,500 OFP-48LECO-LPK 78004 OFP-48COV OFP-60LECO-NLED 60" W x 16" H x 16" D NG 36,000 50,000 OFP-60LECO-LPK 78006 OFP-60COV OFP-72LECO-NLED 72" W x 16" H x 16" D NG 42,000 65,000 OFP-72LECO-LPK 78008 OFP-72COV OFP-36LECO-PLED 36" W x 16" H x 16" D LP 18,500 31,000 OFP-36LECO-LPK 78002 OFP-36COV OFP-48LECO-PLED 48" W x 16" H x 16" D LP 24,500 43,500 OFP-48LECO-LPK 78004 OFP-48COV OFP-60LECO-PLED 60" W x 16" H x 16" D LP 36,000 50,000 OFP-60LECO-LPK 78006 OFP-60COV OFP-72LECO-PLED 72" W x 16" H x 16" D LP 42,000 65,000 OFP-72LECO-LPK 78012 OFP-72COV
Controls: 78002 36" Kalea Bay LED (OFP-36LECO-NLED) See-Through Conversion Kit includes: 2-Piece Glass Windshield Kit and Stainless Steel Hood, LED Tray with LED Strip 78004 48" Kalea Bay LED (OFP-48LECO-NLED) See-Through Conversion Kit includes: 2-Piece Glass Windshield
- 2 -
Burner
Gas Type BTU Low BTU High Conv. Kit See Through Conv. Kit Weather Cover
SEE PAGE 19
Model
Size
GLASS MEDIA FOR BURNERS SOLD SEPARATELY. FOR AVAILABLE GLASS & ROCK MEDIA
78006 60"
78008 72"
78009 36"
Model Description OFP-36COV 36" Kalea Bay Weather Cover - Constructed of 304 Stainless Steel OFP-48COV 48" Kalea Bay Weather Cover - Constructed of 304 Stainless Steel OFP-60COV 60" Kalea Bay Weather Cover - Constructed of 304 Stainless Steel OFP-72COV 72" Kalea Bay Weather Cover - Constructed of 304 Stainless Steel Model Description 77111 10' long, 6-pin LED Extension wire harness - for LED Models only 77161 10' long, 8-pin Mod Extension wire harness for LED and Non-LED Models VCS-ECOBBUEXT120 2-pin battery pack extension wire to extend the wire on a battery pack of the NON-LED Kalea Bay. Model Description See-Through Conversion Kits Weather Covers Installation Accessories
Kit and Stainless Steel Hood, LED Tray with LED Strip
Kalea Bay LED (OFP-60LECO-NLED) See-Through Conversion Kit includes: 2-Piece Glass Windshield Kit and Stainless Steel Hood, LED Tray with LED Strip
Kalea Bay LED (OFP-72LECO-NLED) See-Through Conversion Kit includes: 2-Piece Glass Windshield Kit and Stainless Steel Hood, LED Tray with LED Strip
Kalea Bay NON-LED (OFP-36LECO-N) See-Through Conversion Kit includes: 2-Piece Glass Windshield Kit, Windshield Support and Stainless Steel Hood 78010 48" Kalea Bay NON-LED (OFP-48LECO-N) See-Through Conversion Kit includes: 2-Piece Glass Windshield Kit, Windshield Support and Stainless Steel Hood 78011 60" Kalea Bay NON-LED (OFP-60LECO-N) See-Through Conversion Kit includes: 2-Piece Glass Windshield Kit, Windshield Support and Stainless Steel Hood
TF-GFRC-FBWGR-30W
TF-GFRC-FBWSN-30W
TF-GFRC-FBWBR-30W
Lavelle
TF-FBL-LAV-ORB-18-H
TF-FBL-LAV-ORB-24-H
TF-FBL-LAV-SS-18-H
TF-FBL-LAV-SS-24-H
- 3 -
Fire & Water Bowl +
Adobe
Fire
Grey Sand Brown Stainless Steel Oil Rubbed Bronze
Bowl
Grey
NG
MT 30" Diameter x 12.6" H
75,000 OAS-LPK41 COVER-SAN3
Sand
NG
MT 30" Diameter x 12.6" H
75,000 OAS-LPK41 COVER-SAN3
Brown
NG
Model Color Ignition Dimensions Gas Type BTU Conv. Kit Weather Cover
MT 30" Diameter x 12.6" H
75,000 OAS-LPK41 COVER-SAN3
Oil Rubbed Bronze MT 18"
NG
W x 8" H
75,000
Oil Rubbed Bronze MT
NG
24" W x 10" H
75,000
Stainless Steel MT
NG
18" W x 8" H
75,000
Stainless Steel
NG
Model Color Ignition Dimensions Gas Type BTU COLOR OPTIONS COLOR OPTIONS A Backyard Oasis for the entire family
MT 24" W x 10" H
75,000
- 4Sanctuary Series
AR
RA Slate
Chocolate CH Colors listed shown are representations and may not reflect actual colors received. Color chip samples available. Check with your locale dealer or distributor for availability. COLOR OPTIONS Weather Cover SANCTUARY-LPTEChoose your color by adding your desired color code to the end of the Model Number. Dimensions: 20” W x 20 1/2” H Model Description Liquid Propane Tank Housing COVER-SAN1 Deluxe Weather Cover for Sanctuary 1, Breathable & Water Resistant, Draw Sting Closure offers a secure fit - Black in color COVER-SAN2 Deluxe Weather Cover for Sanctuary 2, Breathable & Water Resistant, Draw Sting Closure offers a secure fit - Black in color COVER-SAN3 Deluxe Weather Cover for Sanctuary 3, Breathable & Water Resistant, Draw Sting Closure offers a secure fit - Black in color Model Description Glass & Media Sold Separately | Page 19 SAN176-TPSI-N- TPSI 76" L x 38" W x 16" H 125,000 Use the color legend and add your color code to the end of the model number. Sold as Natural Gas - You can also purchase an LP Conversion Kit: TPSI-LPK31 SAN176-TPSI-P- TPSI 76" L x 38" W x 16" H 125,000 Use the color legend and add your color code to the end of the model number. Sold as Liquid Propane SAN176-MT-N- MT 76" L x 38" W x 16" H 125,000 Use the color legend and add your color code to the end of the model number. Sold as Natural Gas - You can also purchase an LP Conversion Kit: OAS-LPK31 Model Ignition Dimensions BTU Color Gas Type GFRC FIRE TABLE Sanctuary 76
Arctic
Raven
SL

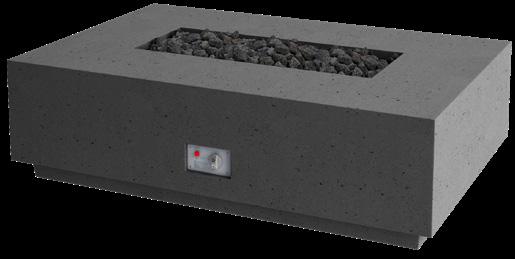

GFRC FIRE TABLE Sanctuary 1
SAN1-30LHAWS-N- AWS 56" L x 38" W x 16" H 75,000 Use the color legend and add your color code to the end of the model number.
SAN1-30LHTPSI- TPSI 56" L x 38" W x 16" H 75,000 Use the color legend and add your color code to the end of the model number.
Sold as Natural Gas - You can also purchase an LP Conversion Kit: OAS-LPK31 + FG-AWS-PBO-P
Sold as Natural Gas - You can also purchase an LP Conversion Kit: TPSI-LPK41
SAN1-30LHTPSI- -P TPSI 56" L x 38" W x 16" H 75,000 Use the color legend and add your color code to the end of the model number. Sold as Liquid Propane SAN1-30LHMT-N- MT 56" L x 38" W x 16" H 100,000 Use the color legend and add your color code to the end of the model number.
Sold as Natural Gas. You can also purchase an LP Conversion Kit: OAS-LPK35
Model Ignition Dimensions BTU Color Gas Type
SAN2-34DBSAWS-N- AWS 39" Diameter x 18" H 75,000 Use the color legend and add your color code to the end of the model number.
SAN2-34DBSTPSI- TPSI 39" Diameter x 18" H 75,000 Use the color legend and add your color code to the end of the model number.
Sold as Natural Gas - You can also purchase an LP Conversion Kit: OAS-LPK31 + FG-AWS-PBO-P
Sold as Natural Gas - You can also purchase an LP Conversion Kit: TPSI-LPK41
SAN2-34DBSTPSI- -P TPSI 39" Diameter x 18" H 75,000 Use the color legend and add your color code to the end of the model number. Sold as Liquid Propane
SAN2-34DBSMT- MT 39" Diameter x 18" H 75,000 Use the color legend and add your color code to the end of the model number.
Sold as Natural Gas. You can also purchase an LP Conversion Kit: OAS-LPK41
SAN3-26DBSAWS-N- AWS 29" Diameter x 14" H 75,000 Use the color legend and add your color code to the end of the model number.
SAN3-26DBSTPSI- TPSI 29" Diameter x 14" H 75,000 Use the color legend and add your color code to the end of the model number.
Sold as Natural Gas - You can also purchase an LP Conversion Kit: OAS-LPK31 + FG-AWS-PBO-P
Sold as Natural Gas - You can also purchase an LP Conversion Kit: TPSI-LPK41
SAN3-26DBSTPSI- -P TPSI 29" Diameter x 14" H 75,000 Use the color legend and add your color code to the end of the model number. Sold as Liquid Propane
SAN3-26DBSMT- MT 29" Diameter x 14" H 75,000 Use the color legend and add your color code to the end of the model number.
Sold as Natural Gas. You can also purchase an LP Conversion Kit: OAS-LPK41
- 5 -
Model Ignition Dimensions BTU Color Gas Type
& Media Sold Separately | Page 19 Glass & Media Sold Separately | Page 19 Glass & Media Sold Separately | Page 19
Model Ignition Dimensions BTU Color Gas Type GFRC FIRE BOWL Sanctuary 2 GFRC FIRE BOWL Sanctuary 3 Glass
HOW IT LIGHTS
HOW IT LIGHTS
TPSI > IGNITION SYSTEM
OVERVIEW
- 6Ignition Systems INCOMING GAS LINE POWER SUPPLY POWER SINGLE BURNER SYSTEMS UP TO 500 FT MAX DISTANCE POWER SOURCE TO NEXT BURNER SYSTEM FLEXFRAME FLEX LINE FLEX LINE KEY VALVE INCOMING GAS LINE SHUT-OFF VALVE ORIFICE FLEX LINE FLEX LINE KEY VALVE INCOMING GAS LINE SHUT-OFF VALVE ORIFICE BURNER BURNER POWER SUPPLY VALVE & SWITCH INCOMING GAS LINE INCOMING ELECTRICAL OUTLET KEY VALVE VALVE BOX HEAT SHIELD ORIFICE BURNER FLEXFRAME GOE-30VDC POWER SUPPLY KEY VALVE 120VAC POWER GFI HEAT SHIELD BURNER VALVE BOX INCOMING GAS Single Fire Feature Multiple Fire Features MULTIPLE FIRE FEATURES, POOL CERTIFIED, & WEATHER RESISTANT WEATHER RESISTANT BURNER FLEXFRAME FLEX LINE FLEX LINE CONTROL KNOB INCOMING GAS LINE SHUT-OFF VALVE SPARK IGNITION THERMO VALVE GROUND BURNER FLEX LINE FLEX LINE CONTROL KNOB INCOMING GAS LINE SHUT-OFF VALVE SPARK IGNITION THERMOCOUPLE VALVE GROUND THERMO IGNITION GAS CONTROL KNOB SPARK IGNITION ORIFICE PILOT TUBE
ALL WEATHER ELECTRONIC IGNITION SYSTEM If you chose an FPB or LOF system, the system lights by pressing the toggle switch on the faceplate.
AWS > IGNITION SYSTEM
If you choose our A La Carte System, the way to operate your fire features are endless! See page 7 to learn more
La Carte
System!
about the A
Purchasing
ALL WEATHER ELECTRONIC IGNITION SYSTEM
ALL WEATHER ELECTRONIC IGNITION SYSTEM
MT | IGNITION SYSTEM
Thermocouple Piloted System with Safety Valve turns gas off when loss of flame Easy ignition with Battery Spark Igniter (included) TPSI system with Safety Valve turn gas off when pilot flame goes out Robust ignition system with full BTU throughput OVERVIEW Most popular ignition system, least amount of cost Light a match or a butane lighter Can be used in residential installs This system is the easiest to use, and with non-listed burners you can achieve high BTU’s and big flames.
AWS > A La Carte Purchase System
Single Fire Feature
Multiple Fire Features
MULTIPLE FIRE FEATURES, POOL CERTIFIED, & WEATHER RESISTANT WEATHER
RESISTANTUsed for a single fire feature. Can only be installed in fire features that are greater than 10 feet away from a pool or spa.
All components can be housed underneath the burner.
FG-AWS30VDC-GOEK-N
FG-AWS30VDC-GOEK-P
Includes: 290K BTU Capacity 30VDC Valve System for Natural Gas, 30" Pilot Assembly, Heat Shield, Wire Leads, Hardware Bag, GOE-30VDC Power Supply, On/ Off Weatherproof Rocker Switch and Stainless Steel Mounting Plate - 290K BTU NG (replaces part # FGAWS30VDC-RCK)
Includes: 290K BTU Capacity 30VDC Valve System for Liquid Propane, 30" Pilot Assembly, Heat Shield, Wire Leads, Hardware Bag, GOE-30VDC Power Supply, On/ Off Weatherproof Rocker Switch and Stainless Steel Mounting Plate - 290K BTU LP (replaces part # FGAWS30VDC-RCK)
Used when running 1 – 4 fire features. Also used when running a single or multiple fire features within 5 feet of a pool / spa.
One kit per fire feature. One power supply (sold separately) for every 4 fire features.
FG-AWS-PS-30V320
30VDC, 320W Power Supply - POOL CERTIFIED - built into NEMA Approved Enclosure - for use with single installation or up to four fire features, max distance run of 500' - Replaces FG-PS-30V320
FG-AWS30VDC-HC-K-N
FG-AWS-HARDWARE-BAG
AWS-FACEPLATE
Replacement hardware bag for all AWS valve systems
Stainless Steel Faceplate (only) for AWS Valve Systems for mounting Key Valve and ON/OFF Weatherproof Switch
FG-AWS30VDC-HC-K-P
NEW HIGHER BTU: FG-HCNG-30VDC Valve System, High Capacity Natural Gas Valve System - 3/4 FIP Inlet, 3/4 FIP Outlet, 30" Pilot Assembly, Mounting Plate for High Capacity Key Valve (3/4" IPS straight Valve with Key) and On/Off Weatherproof Rocker Switch, Heat Shield, Mounting Hardware, Wire 10' AWS Power Wire to Valve, T300-9898-34 (5/8" OD, 1/2" ID Tranquiline Gas Flex Connector, 3/4" Stainless Steel Close Nipple, 5/8" Flare x 3/4" MIP Steel Adapter (Tapped 1/2 FIP), Power Supply and Orifice Not Included - 715K BTU NG
NEW HIGHER BTU: FG-HCNG-30VDC Valve System, High Capacity Natural Gas Valve System - 3/4 FIP Inlet, 3/4 FIP Outlet, 30" Pilot Assembly, Mounting Plate for High Capacity Key Valve (3/4" IPS straight Valve with Key) and On/Off Weatherproof Rocker Switch, Heat Shield, Mounting Hardware, Wire 10' AWS Power Wire to Valve, T300-9898-34 (5/8" OD, 1/2" ID Tranquiline Gas Flex Connector, 3/4" Stainless Steel Close Nipple, 5/8" Flare x 3/4" MIP Steel Adapter (Tapped 1/2 FIP), Power Supply and Orifice Not Included - 715K BTU LP
FG-EMER-STOP
Electrical Emergency Stop for 120VAC or 30VDC Appliances, housed in Weatherproof J-Box and Weatherproof Cover
FG-TIMER-2HR
120VAC Two (2) Hour Mechanical Timer, housed in Weatherproof J-Box and Weatherproof Cover
FG-AWS30VDC-K-N
290K BTU Capacity 30VDC Valve System for Natural Gas - 1/2 FIP Inlet, 1/2 FIP Outlet, 30" Pilot Assembly, Mounting Plate for High Capacity Key Valve (3/4" IPS straight Valve with Key) and On/Off Weatherproof Rocker Switch, Heat Shield, Mounting Hardware, Wire 10' AWS Power Wire to Valve, T200-9898-46 (1/2" OD, 3/8" ID Tranquiline Gas Flex Connector, Stainless Steel Coupler, 1/2" Flare x 1/2" MIP Steel Adapter (Tapped 1/2 FIP), Power Supply and Orifice Not Included - 290K BTU NG
FG-AWS30VDC-K-P
FG-WS-OD

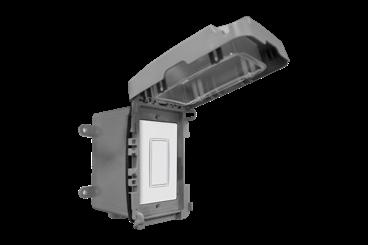

120VAC Wired Wall Switch housed in Weatherproof J-Box and Weatherproof Cover
FG-1420-AOD
1420-A (On/Off/Remote) with 110 Receiver. With weatherproof J-Box and weatherproof cover
FG-AWS-PS-30V320
290K BTU Capacity 30VDC Valve System for Liquid Propane - 1/2 FIP Inlet, 1/2 FIP Outlet, 30" Pilot Assembly, Mounting Plate for High Capacity Key Valve (3/4" IPS straight Valve with Key) and On/Off Weatherproof Rocker Switch, Heat Shield, Mounting Hardware, Wire 10' AWS Power Wire to Valve, T200-9898-46 (1/2" OD, 3/8" ID Tranquiline Gas Flex Connector, Stainless Steel Coupler, 1/2" Flare x 1/2" MIP Steel Adapter (Tapped 1/2 FIP), Power Supply and Orifice Not Included - 290K BTU LP
- 7 -
GEO-30VDC
FG-AWS-HARDWARE-BAG Replacement hardware bag for all AWS valve systems AWS-FACEPLATE
for
Key Valve and ON/OFF Weatherproof Switch Model Description Model Description IGNITION & ACCESSORIES ALL WEATHER ELECTRONIC IGNITION SYSTEM
Stainless Steel Faceplate (only) for AWS Valve Systems
mounting
Pro Series: Burner Kits
Pro Snowflake | BURNER ONLY
Model Size BTU
FG-PSBR-SF11-NG 11" 50,000
FG-PSBR-SF18-NG 18" 145,000
FG-PSBR-SF25-NG 25" 260,000
FG-PSBR-SF32-NG 32" 426,000
FG-PSBR-SF11-LP 11" 42,000
FG-PSBR-SF18-LP 18" 124,000
FG-PSBR-SF25-LP 25" 240,000 FG-PSBR-SF32-LP 32" 402,000
Pro Burning Spur | BURNER ONLY
Model Size BTU
FG-PSBR-BS10-NG 10" 80,000
FG-PSBR-BS14-NG 14" 125,000
FG-PSBR-BS10-LP 10" 95,000 FG-PSBR-BS14-LP 14" 160,000
Pro H Burner | BURNER ONLY
Model Size BTU
FG-PSBR-H24-NG 24" x 6.75" 80,000
FG-PSBR-H30-NG 30" x 6.75" 95,000
FG-PSBR-H40-NG 40" x 6.75" 120,000
FG-PSBR-H50-NG 50" x 6.75" 160,000
FG-PSBR-H60-NG 60" x 6.75" 180,000
FG-PSBR-H80-NG 80" x 6.75" 250,000
FG-PSBR-H24-LP 24" x 6.75" 110,000
FG-PSBR-H30-LP 30" x 6.75" 115,000
FG-PSBR-H50-LP 50" x 6.75" 175,000
FG-PSBR-H40-LP 40" x 6.75" 150,000
FG-PSBR-H60-LP 60" x 6.75" 200,000
FG-PSBR-H80-LP 80" x 6.75" 240,000
Model Size BTU
FG-PSBR-T24-NG 24" 50,000
FG-PSBR-T38-NG 38" 90,000
FG-PSBR-T44-NG 44" 100,000
FG-PSBR-T56-NG 56" 135,000
FG-PSBR-T68-NG 68" 140,000
FG-PSBR-T86-NG 86" 145,000
FG-PSBR-T90-NG 90" 165,000
FG-PSBR-T24-LP 24" 50,000
FG-PSBR-T38-LP 38" 90,000
FG-PSBR-T44-LP 44" 100,000
FG-PSBR-T56-LP 56" 135,000
FG-PSBR-T68-LP 68" 140,000
FG-PSBR-T86-LP 86" 145,000
FG-PSBR-T90-LP 90" 165,000
Pro Snowflake | BURNER KIT
Model Size BTU
FG-PSBR-SF11-NGK 11" 50,000
FG-PSBR-SF18-NGK 18" 145,000
FG-PSBR-SF25-NGK 25" 260,000
FG-PSBR-SF32-NGK 32" 426,000
FG-PSBR-SF11-LPK 11" 42,000
FG-PSBR-SF18-LPK 18" 124,000
FG-PSBR-SF25-LPK 25" 240,000
FG-PSBR-SF32-LPK 32" 402,000
Pro Burning Spur | BURNER KIT
Model Size BTU
FG-PSBR-BS10-NGK 10" 80,000
FG-PSBR-BS14-NGK 14" 125,000
FG-PSBR-BS10-LPK 10" 95,000
FG-PSBR-BS14-LPK 14" 160,000
Pro H Burner | BURNER KIT
FG-PSBR-H24-NGK 24" x 6.75" 80,000
FG-PSBR-H30-NGK 30" x 6.75" 95,000
FG-PSBR-H40-NGK 40" x 6.75" 120,000
FG-PSBR-H50-NGK 50" x 6.75" 160,000
FG-PSBR-H60-NGK 60" x 6.75" 180,000
FG-PSBR-H80-NGK 80" x 6.75" 250,000
FG-PSBR-H24-LPK 24" x 6.75" 110,000
FG-PSBR-H30-LPK 30" x 6.75" 115,000
FG-PSBR-H40-LPK 50" x 6.75" 175,000
FG-PSBR-H50-LPK 40" x 6.75" 150,000
FG-PSBR-H60-LPK 60" x 6.75" 200,000
FG-PSBR-H80-LPK 80" x 6.75" 240,000
Pro T Burner | BURNER KIT
FG-PSBR-T24-NGK 24" 50,000
FG-PSBR-T38-NGK 38" 90,000
FG-PSBR-T44-NGK 44" 100,000
FG-PSBR-T56-NGK 56" 135,000
FG-PSBR-T68-NGK 68" 140,000
FG-PSBR-T86-NGK 86" 145,000
FG-PSBR-T90-NGK 90" 165,000
FG-PSBR-T24-LPK 24" 50,000
FG-PSBR-T38-LPK 38" 90,000
FG-PSBR-T44-LPK 44" 100,000
FG-PSBR-T56-LPK 56" 135,000
FG-PSBR-T68-LPK 68" 140,000
FG-PSBR-T86-LPK 86" 145,000
FG-PSBR-T90-LPK 90" 165,000
- 8 -
EACH BURNER & BURNER KIT ARE DESIGNED TO BE NATURAL GAS OR PROPANE FROM THE FACTORY. WE DO NOT OFFER GAS CONVERSION KITS FOR PRO SERIES
Model Size BTU
Pro T Burner | BURNER ONLY
Model Size BTU
Stainless Steel: Burner Kits
Stainless Steel Burning Spur | BURNER ONLY
Model Size BTU
TF-SS-FBO-12 12" 50,000 TF-SS-FBO-18 18" 75,000 TF-SS-FBO-24 24" 125,000 TF-SS-FBO-30 30" 250,000 TF-SS-FBO-36 36" 250,000 TF-SS-FBO-48 48" 250,000
Model Size BTU
FG-FR-18SS 18" 75,000 FG-FR-24SS 24" 125,000
FG-FR-30SS 30" 250,000 FG-FR-36SS 36" 250,000 FG-FR-48SS 48" 250,000
Model Size BTU
FG-H-2110SS 21" x 10" 75,000 FG-H-2406SS 24" x 6" 75,000 FG-H-2710SS 27" x 10" 100,000 FG-H-3006SS 30" x 6" 100,000 FG-H-3310SS 33" x 10" 125,000 FG-H-3606SS 36" x 6" 125,000 FG-H-4510SS 45" x 10" 150,000 FG-H-4806SS 48" x 6" 175,000 FG-H-5710SS 57" x 10" 175,000 FG-H-6910SS 69" x 10" 200,000 FG-H-8110SS 81" x 10" 225,000 FG-H-9310SS 93" x 10" 250,000
Model Size BTU
FG-FR-18SSK 18" 75,000
FG-FR-24SSK 24" 125,000
FG-FR-30SSK 30" 250,000 FG-FR-36SSK 36" 250,000 FG-FR-48SSK 48" 250,000
Model Size BTU
FG-H-2110SSK 21" x 10" 75,000
FG-H-2406SSK 24" x 6" 75,000
FG-H-2710SSK 27" x 10" 100,000
FG-H-3006SSK 30" x 6" 100,000 FG-H-3310SSK 33" x 10" 125,000
FG-H-3606SSK 36" x 6" 125,000 FG-H-4510SSK 45" x 10" 150,000
FG-H-4806SSK 48" x 6" 175,000
FG-H-5710SSK 57" x 10" 175,000
FG-H-6910SSK 69" x 10" 200,000
FG-H-8110SSK 81" x 10" 225,000
FG-H-9310SSK 93" x 10" 250,000
Model Size BTU Model Size BTU
FG-T-21SS 21" 50,000
FG-T-27SS 27" 50,000
FG-T-33SS 33" 75,000
FG-T-45SS 45" 100,000
FG-T-57SS 57" 125,000
FG-T-69SS 69" 150,000
FG-T-81SS 81" 175,000
FG-T-93SS 93" 200,000
FG-T-21SSK 21" 50,000
FG-T-27SSK 27" 50,000
FG-T-33SSK 33" 75,000
FG-T-45SSK 45" 100,000
FG-T-57SSK 57" 125,000
FG-T-69SSK 69" 150,000 FG-T-81SSK 81" 175,000 FG-T-93SSK 93" 200,000
- 9ALL STAINLESS STEEL BURNERS & BURNER KITS SHIP AS NATURAL GAS.
Stainless Steel Fire Ring | BURNER ONLY
Stainless Steel Fire Ring | BURNER KIT
Stainless Steel H Burner | BURNER KIT
Stainless Steel H Burner | BURNER ONLY
Stainless Steel T Burner | BURNER ONLY
Stainless Steel Pro T Burner | BURNER KIT
FPB-19RPSSF11AWS-N 19" 50,000
FPB-25RPSSF18AWS-N 25" 145,000
FPB-29RPSSF18AWS-N 29" 145,000
FPB-33RPSSF25AWS-N 33" 260,000
FPB-19RPSSF11AWS-P 19" 42,000
FPB-25RPSSF18AWS-P 25" 124,000
FPB-29RPSSF18AWS-P 29" 124,000
FPB-33RPSSF25AWS-P 33" 240,000
FPB-19RPSSF11TPSI-N 19" 50,000
FPB-25RPSSF18TPSI-N 25" 145,000
FPB-19RPSSF11TPSI-P 19" 42,000
FPB-25RPSSF18TPSI-P 25" 124,000
Model
FPB-19RPSSF11MT-N 19" 50,000
FPB-25RPSSF18MT-N 25" 145,000
FPB-29RPSSF18MT-N 29" 145,000
FPB-33RPSSF25MT-N 33" 260,000
FPB-19RPSSF11MT-P 19" 42,000
FPB-25RPSSF18MT-P 25" 124,000
FPB-29RPSSF18MT-P 29" 124,000
FPB-33RPSSF25MT-P 33" 240,000
FPB-20SPSSF11AWS-N 20" 50,000
FPB-26SPSSF18AWS-N 26" 145,000
FPB-32SPSSF25AWS-N 32" 260,000
FPB-20SPSSF11AWS-P 20" 42,000
FPB-26SPSSF18AWS-P 26" 124,000 FPB-32SPSSF25AWS-P 32" 240,000
FPB-20SPSSF11TPSI-N 20" 50,000
FPB-26SPSSF18TPSI-N 26" 145,000
FPB-20SPSSF11TPSI-P 20" 42,000
FPB-26SPSSF18TPSI-P 26" 124,000
Model Pan Size BTU
FPB-26DPSSF18AWS-N 26" 145,000
FPB-29DPSSF18AWS-N 29" 145,000
FPB-34DPSSF25AWS-N 34" 260,000
FPB-26DPSSF18AWS-P 26" 124,000
FPB-29DPSSF18AWS-P 29" 124,000
FPB-34DPSSF25AWS-P 34" 240,000
Model
FPB-26DPSSF18TPSI-N 26" 145,000
FPB-29DPSSF18TPSI-N 29" 145,000
FPB-26DPSSF18TPSI-P 26" 124,000
FPB-29DPSSF18TPSI-P 29" 124,000
Model Pan Size
FPB-26DPSSF18MT-N 26" 145,000
FPB-29DPSSF18MT-N 29" 145,000
FPB-34DPSSF25MT-N 34" 260,000
FPB-26DPSSF18MT-P 26" 124,000
FPB-29DPSSF18MT-P 29" 124,000
FPB-34DPSSF25MT-P 34" 240,000
FPB-25SFPSSF18AWS-N 25" 145,000
FPB-30SFPSSF25AWS-N 30" 260,000
FPB-34SFPSSF25AWS-N 34" 260,000
FPB-25SFPSSF18AWS-P 25" 124,000
FPB-30SFPSSF25AWS-P 30" 240,000 FPB-34SFPSSF25AWS-P 34" 240,000
FPB-25SFPSSF18TPSI-N 25" 145,000
FPB-25SFPSSF18TPSI-P 25" 124,000
- 10 -
Series: Burner Systems Brass l Square | Snowflake | Drop-In [AWS] Brass l Square | Snowflake | Flat [AWS]
Pro
Model Pan Size BTU
Model Pan Size BTU Brass l Square | Snowflake | Drop-In [TPSI] Brass l Square | Snowflake | Flat [TPSI]
Model Pan Size BTU
Model Pan Size BTU
l Round | Snowflake | Drop-In [AWS]
l Round | Snowflake | Flat [AWS]
Brass
Brass
Model Pan Size BTU
Brass l Round | Snowflake | Drop-In [TPSI]
Brass l Round | Snowflake | Flat [TPSI]
Pan Size BTU
Model
Pan Size BTU
|
Brass l Round
Snowflake | Drop-In [MT]
Brass l Round | Snowflake | Flat [MT]
Pan Size BTU
BTU
FPB-20SPSSF11MT-N 20" 50,000
FPB-26SPSSF18MT-N 26" 145,000
FPB-32SPSSF25MT-N 32" 260,000
FPB-20SPSSF11MT-P 20" 42,000
FPB-26SPSSF18MT-P 26" 124,000
FPB-32SPSSF25MT-P 32" 240,000
FPB-25SFPSSF18MT-N 25" 145,000
FPB-30SFPSSF25MT-N 30" 260,000
FPB-34SFPSSF25MT-N 34" 260,000
FPB-25SFPSSF18MT-P 25" 124,000
FPB-30SFPSSF25MT-P 30" 240,000
FPB-20SPSBR14AWS-N
FPB-19RPSBR14TPSI-N Model Pan Size BTU
125,000
Model Model Pan Size BTU FPB-20SPSBR14MT-N 20" 125,000 FPB-20SPSBR14MT-P 20" 160,000
- 11EACH PRO BURNER SYSTEM IS DESIGNED TO BE NATURAL GAS OR PROPANE FROM THE FACTORY. WE DO NOT OFFER GAS CONVERSION KITS FOR PRO SERIES BURNER SYSTEMS. Brass l Square | Snowflake | Drop-In [MT] Brass l Square | Snowflake | Flat [MT]
Pan Size BTU
Model
Pan Size BTU Brass l Round | Burning Spur | Drop-In [AWS] Brass l Round | Burning Spur | Drop-In [TPSI] Brass l Round | Burning Spur | Drop-In [MT] Brass l Square | Burning Spur | Drop-In [AWS] Brass l Square | Burning Spur | Drop-In [TPSI] Brass l Square | Burning Spur | Drop-In [MT] FPB-19RPSBR14AWS-N 19" 125,000 FPB-19RPSBR14AWS-P 19" 160,000 Model Pan Size BTU
19" 125,000 FPB-19RPSBR14TPSI-P 19" 160,000 Model Pan Size BTU FPB-19RPSBR14MT-N 19" 125,000 FPB-19RPSBR14MT-P 19" 160,000 Model Pan Size BTU
20"
FPB-20SPSBR14AWS-P 20"
FPB-34SFPSSF25MT-P 34" 240,000 Model Pan Size BTU FPB-20SPSBR14TPSI-N 20" 125,000 FPB-20SPSBR14TPSI-P 20" 160,000
160,000
Pro Series: Burner Systems
LOF-3610PS306AWS-N 36" x 10" 95,000
LOF-4810PS406AWS-N 48" x 10" 120,000
LOF-6010PS506AWS-N 60" x 10" 160,000
LOF-7210PS606AWS-N 72" x 10" 180,000
LOF-9610PS806AWS-N 96" x 10" 250,000
LOF-3610PS306AWS-P 36" x 10" 115,000
LOF-4810PS406AWS-P 48" x 10" 150,000
LOF-6010PS506AWS-P 60" x 10" 175,000
LOF-7210PS606AWS-P 72" x 10" 200,000
LOF-9610PS806AWS-P 96" x 10" 240,000
LOF-3610PS306MT-N 36" x 10" 95,000
LOF-4810PS406MT-N 48" x 10" 120,000
LOF-6010PS506MT-N 60" x 10" 160,000
LOF-7210PS606MT-N 72" x 10" 180,000
LOF-9610PS806MT-N 96" x 10" 250,000
LOF-3610PS306MT-P 36" x 10" 115,000
LOF-4810PS406MT-P 48" x 10" 150,000
LOF-6010PS506MT-P 60" x 10" 175,000
LOF-7210PS606MT-P 72" x 10" 200,000
LOF-9610PS806MT-P 96" x 10" 240,000
Model
LOF-3610PS306TPSI-N 36" x 10" 95,000
LOF-4810PS406TPSI-N 48" x 10" 120,000
LOF-6010PS506TPSI-N 60" x 10" 160,000
LOF-3610PS306TPSI-P 36" x 10" 115,000
LOF-4810PS406TPSI-P 48" x 10" 150,000
LOF-6010PS506TPSI-P 60" x 10" 175,000
- 12 -
Model Pan Size BTU
Pan Size BTU
Model Pan Size BTU
l Linear | H Burner | Flat [AWS]
l Linear | H Burner | Flat [TPSI] Brass l Linear | H Burner | Flat [MT] OAS-LPK47 MT 50,000 Universal LP Conversion kit for: 50,000 BTU, includes: OAS-LP47, #S499-8, #113-SS4-D5, U3-8D-S OAS-LPK41 MT 75,000 Universal LP Conversion kit for: 75,000 BTU, includes: OAS-LP41, #S499-8, #113-SS4-D5, U3-8D-S OAS-LPK35 MT 100,000 Universal LP Conversion kit for: 100,000 BTU, includes: OAS-LP35, #S499-8, #113-SS4-D5, U3-8D-S OAS-LPK31 MT 125,000 Universal LP Conversion kit for: 125,000 BTU, includes: OAS-LP31, #S499-8, #113-SS4-D5, U3-8D-S OAS-LPK29 MT 150,000 Universal LP Conversion kit for: 150,000 BTU, includes: OAS-LP29, #S499-8, #113-SS4-D5, U3-8D-S OAS-LPK26 MT 175,000 Universal LP Conversion kit for: 175,000 BTU, includes: OAS-LP29, #S499-8, #113-SS4-D5, U3-8D-S OAS-LPK22 MT 200,000 Universal LP Conversion kit for: 200,000 BTU, includes: OAS-LP22, #S499-8, #113-SS4-D5, U3-8D-S OAS-LPK19 MT 225,000 Universal LP Conversion kit for: 225,000 BTU, includes: OAS-LP19, #S499-8, #113-SS4-D5, U3-8D-S OAS-LPK12 MT 250,000 Universal LP Conversion kit for: 250,000 BTU, includes: OAS-LP12, #S499-8, #113-SS4-D5, U3-8D-S [MT] - NG to LP Conversion Kits TPSI-LPK47 TPSI 50,000 TPSI LP Conversion kit for: 50,000 BTU, includes: Main Burner Orifice OAS-LP47, PSE-SUB163 (Pilot Orifice) TPSI-LPK41 TPSI 75,000 TPSI LP Conversion kit for: 75,000 BTU, includes: Main Burner Orifice OAS-LP41, PSE-SUB163 (Pilot Orifice) TPSI-LPK35 TPSI 100,000 TPSI LP Conversion kit for: 100,000 BTU, includes: Main Burner Orifice OAS-LP35, PSE-SUB163 (Pilot Orifice) TPSI-LPK31 TPSI 125,000 TPSI LP Conversion kit for: 125,000 BTU, includes: Main Burner Orifice OAS-LP31, PSE-SUB163 (Pilot Orifice) TPSI-LPK29 TPSI 150,000 TPSI LP Conversion kit for: 150,000 BTU, includes: Main Burner Orifice OAS-LP29, PSE-SUB163 (Pilot Orifice) [TPSI] - NG to LP Conversion Kits FG-AWS-PBO-P AWS N/A Pilot Burner Orifice for FG-AWS30VDC-GOEK and FG-AWS30VDC-K (AWEIS Standard Capacity 30VDC Valve) [AWS] - Pilot Orifice for the AWS Valve CONTINUED
Brass
Brass
Stainless Steel: Burner Systems
FPB-25RBSAWS-N 25" 125,000
FPB-29RBSAWS-N 29" 125,000
FPB-33RBSAWS-N 33" 175,000
FPB-25RBSAWS-P 25" 125,000
FPB-29RBSAWS-P 29" 125,000
FPB-33RBSAWS-P 33" 175,000
FPB-19RBS16TPSI-N 19" 75,000
FPB-25RBS22TPSI-N 25" 125,000
FPB-29RBS22TPSI-N 29" 125,000
FPB-33RBS31TPSI-N 33" 175,000
FPB-19RBS16TPSI-P 19" 75,000
FPB-25RBS22TPSI-P 25" 125,000
FPB-29RBS22TPSI-P 29" 125,000
FPB-33RBS31TPSI-P 33" 175,000
Pan Size BTU
Model
FPB-20SBSAWS-N 20" 75,000
FPB-26SBSAWS-N 26" 125,000
FPB-32SBSAWS-N 32" 175,000
FPB-38SBSAWS-N 38" 250,000
FPB-20SBSAWS-P 20" 75,000
FPB-26SBSAWS-P 26" 125,000
FPB-32SBSAWS-P 32" 175,000
FPB-26DBSAWS-N 26" 125,000
FPB-29DBSAWS-N 29" 125,000
FPB-34DBSAWS-N 34" 175,000
FPB-39DBSAWS-N 39" 250,000
FPB-44DBSAWS-N 44" 250,000
FPB-26DBSAWS-P 26" 125,000
FPB-29DBSAWS-P 29" 125,000
FPB-34DBSAWS-P 34" 175,000
FPB-39DBSAWS-P 39" 250,000
FPB-44DBSAWS-P 44" 250,000
FPB-26DBS22TPSI-N 26" 125,000
FPB-29DBS22TPSI-N 29" 125,000
FPB-34DBS31TPSI-N 34" 175,000
FPB-26DBS22TPSI-P 26" 125,000
FPB-29DBS22TPSI-P 29" 125,000
FPB-34DBS31TPSI-P 34" 175,000
Model
FPB-25SFBSAWS-N 25" 125,000
FPB-30SFBSAWS-N 30" 125,000
FPB-34SFBSAWS-N 34" 175,000
FPB-40SFBSAWS-N 40" 250,000
FPB-46SFBSAWS-N 46" 250,000
FPB-25SFBSAWS-P 25" 125,000
FPB-30SFBSAWS-P 30" 125,000
FPB-34SFBSAWS-P 34" 175,000
FPB-40SFBSAWS-P 40" 250,000
- 13 -
EACH STAINLESS STEEL BURNER SYSTEM IS DESIGNED FOR NATURAL GAS OR PROPANE FROM THE FACTORY. YOU CAN PURCHASE A NATURAL GAS (NG) > TO > LIQUID PROPANE (LP) CONVERSION KIT.
Steel l Round | Drop-In [AWS]
Steel l Round | Flat [AWS]
Steel l Round | Drop-In [TPSI]
Steel l Round | Flat [TPSI] Stainless Steel l Round | Drop-In [MT] Stainless Steel l Round | Flat [MT]
Steel l Square | Drop-In [AWS]
Steel l Square | Flat [AWS]
Stainless
Stainless
Stainless
Stainless
Stainless
Stainless
Pan Size BTU
Model
Model Pan Size BTU
Pan Size BTU
Model
Model Pan Size BTU TF-18DOCTO12MT-N 18" 50,000 TF-24DOCTO18MT-N 24" 75,000 TF-36DOCTO30MT-N 36" 250,000 Model Pan Size BTU TF-19ROCTO12MT-N 19" 50,000 TF-25ROCTO18MT-N
Pan Size BTU
25" 75,000 TF-30DOCTO24MT-N 30" 125,000 TF-31ROCTO24MT-N 31" 125,000 Model
FPB-46SFBSAWS-P 46" 250,000 Pan Size BTU
FPB-38SBSAWS-P 38" 250,000
Stainless Steel: Burner Systems
FPB-20SBS16TPSI-N 20" 75,000
FPB-26SBS22TPSI-N 26" 125,000
FPB-32SBS31TPSI-N 32" 175,000
FPB-20SBS16TPSI-P 20" 75,000
FPB-26SBS22TPSI-P 26" 125,000
FPB-32SBS31TPSI-P 32" 175,000
Model Pan Size BTU
TF-18SOCTO12MT-N 18" 50,000
TF-24SOCTO18MT-N 24" 75,000
TF-30SOCTO24MT-N 30" 125,000
Model Pan Size BTU
LOF-3614HAWS-N 36" x 14" 125,000
LOF-4214HAWS-N 42" x 14" 150,000
LOF-4814HAWS-N 48" x 14" 150,000
LOF-6016HAWS-N 60" x 16" 175,000
LOF-7216HAWS-N 72" x 16" 200,000
LOF-9616HAWS-N 96" x 16" 250,000
LOF-3614HAWS-P 36" x 14" 125,000
LOF-4214HAWS-P 42" x 14" 150,000
LOF-4814HAWS-P 48" x 14" 150,000
LOF-6016HAWS-P 60" x 16" 175,000
LOF-7216HAWS-P 72" x 16" 200,000
LOF-9616HAWS-P 96" x 16" 250,000
Model
FPB-25SFBS22TPSI-N 25" 125,000
FPB-30SFBS22TPSI-N 30" 125,000
FPB-34SFBS31TPSI-N 34" 175,000
FPB-25SFBS22TPSI-P 25" 125,000
FPB-30SFBS22TPSI-P 30" 125,000
FPB-34SFBS31TPSI-P 34" 175,000
Model Pan Size BTU
TF-24SFOCTO18MT-N 24" 75,000
TF-30SFOCTO24MT-N 30" 125,000
TF-36SFOCTO30MT-N 36" 250,000
LOF-3614FHAWS-N 36" x 14" 100,000
LOF-4814FHAWS-N 48" x 14" 150,000
LOF-6016FHAWS-N 60" x 16" 175,000
LOF-7216FHAWS-N 72" x 16" 200,000
LOF-9616FHAWS-N 96" x 16" 250,000
LOF-3614FHAWS-P 36" x 14" 100,000
LOF-4814FHAWS-P 48" x 14" 150,000
LOF-6016FHAWS-P 60" x 16" 175,000
LOF-7216FHAWS-P 72" x 16" 200,000
LOF-9616FHAWS-P 96" x 16" 250,000
LOF-8416HAWS-P 84" x 16" 225,000
LOF-9616HAWS-P 96" x 16" 250,000
LOF-3614FHTPSI-N 36" x 14" 125,000
LOF-4814FHTPSI-N 48" x 14" 150,000
LOF-3614FHTPSI-P 36" x 14" 125,000
LOF-4814FHTPSI-P 48" x 14" 150,000
- 14 -
CONTINUED
Stainless Steel l Square | Drop-In [TPSI]
Stainless Steel l Square | Flat [TPSI]
Stainless Steel l Square | Drop-In [MT] Stainless Steel l Square | Flat [MT]
Stainless Steel l Linear | H Burner | Drop-In [AWS] Stainless Steel l Linear | H Burner | Flat [AWS]
Stainless Steel l Linear | H Burner | Drop-In [TPSI] Stainless Steel l Linear | H Burner | Flat [TPSI]
Model Pan Size BTU
Pan Size BTU
Model Pan Size BTU LOF-3614HTPSI-N 36" x 14" 125,000 LOF-4214HTPSI-N 42" x 14" 125,000 LOF-4814HTPSI-N 48" x 14" 150,000 LOF-3614HTPSI-P 36" x 14" 125,000 LOF-4214HTPSI-P 42" x 14" 125,000 LOF-4814HTPSI-P 48" x 14" 150,000 Model Pan Size BTU
Model Pan Size BTU
Model
LOF-3614HMT-N 36" x 14" 125,000
LOF-4214HMT-N 42" x 14" 125,000
LOF-4814HMT-N 48" x 14" 150,000
LOF-6016HMT-N 60" x 16" 175,000
LOF-7216HMT-N 72" x 16" 200,000
LOF-9616HMT-N 96" x 16" 250,000
LOF-3606TAWS-N 36" x 6" 75,000
LOF-4806TAWS-N 48" x 6" 100,000
LOF-6006TAWS-N 60" x 6" 125,000
LOF-7206TAWS-N 72" x 6" 150,000
LOF-9606TAWS-N 96" x 6" 200,000
LOF-3606TAWS-P 36" x 6" 75,000
LOF-4806TAWS-P 48" x 6" 100,000
LOF-6006TAWS-P 60" x 6" 125,000
LOF-7206TAWS-P 72" x 6" 150,000
LOF-9606TAWS-P 96" x 6" 200,000
Model Pan Size BTU
LOF-3606TTPSI-N 36" x 6" 75,000
LOF-4806TTPSI-N 48" x 6" 100,000
LOF-6006TTPSI-N 60" x 6" 125,000
LOF-7206TTPSI-N 72" x 6" 150,000 LOF-3606TTPSI-P 36" x 6" 75,000
LOF-4806TTPSI-P 48" x 6" 100,000
LOF-6006TTPSI-P 60" x 6" 125,000
LOF-7206TTPSI-P 72" x 6" 150,000
Model Pan Size
LOF-3606TMT-N 36" x 6" 75,000
LOF-4806TMT-N 48" x 6" 100,000
LOF-6006TMT-N 60" x 6" 125,000
LOF-7206TMT-N 72" x 6" 150,000
LOF-9606TMT-N 96" x 6" 200,000
Model Pan Size BTU
LOF-3313FHMT-N 32 3/4" x 12 3/4" 100,000
LOF-3614FHMT-N 36" x 14" 125,000
LOF-4814FHMT-N 48" x 14" 150,000
LOF-5113FHMT-N 50 3/4" x 12 3/4" 125,000
LOF-6016FHMT-N 60" x 16" 175,000
LOF-7216FHMT-N 72" x 16" 200,000
LOF-9616FHMT-N 96" x 16" 250,000
Model Pan Size BTU
LOF-4808FTAWS-N 48" x 8" 100,000
LOF-7208FTAWS-N 72" x 8" 150,000
LOF-8408FTAWS-N 84" x 8" 175,000
LOF-9608FTAWS-N 96" x 8" 200,000
LOF-4808FTAWS-P 48" x 8" 100,000
LOF-7208FTAWS-P 72" x 8" 150,000
LOF-8408FTAWS-P 84" x 8" 175,000
LOF-9608FTAWS-P 96" x 8" 200,000
Model Pan Size BTU
LOF-4808FTTPSI-N 48" x 8" 100,000
LOF-7208FTTPSI-N 72" x 8" 150,000
LOF-4808FTTPSI-P 48" x 8" 100,000
LOF-7208FTTPSI-P 72" x 8" 150,000
Model Pan Size
BTU
LOF-4808FTMT-N 48" x 8" 100,000
LOF-7208FTMT-N 72" x 8" 150,000
- 15EACH STAINLESS STEEL BURNER SYSTEM IS DESIGNED FOR NATURAL GAS OR PROPANE FROM THE FACTORY. YOU CAN PURCHASE A NATURAL GAS (NG) > TO > LIQUID PROPANE (LP) CONVERSION KIT.
Stainless Steel l Linear | H Burner | Drop-In [MT] Stainless Steel l Linear | H Burner | Flat [MT]
Stainless Steel l Linear | T Burner | Drop-In [AWS] Stainless Steel l Linear | T Burner | Flat [AWS] Stainless Steel l Linear | T Burner | Drop-In [TPSI] Stainless Steel l Linear | T Burner | Flat [TPSI]
Stainless Steel l Linear | T Burner | Drop-In [MT] Stainless Steel l Linear | T Burner | Flat [MT]
Pan Size BTU
Model Pan Size BTU
BTU
EACH STAINLESS STEEL BURNER SYSTEM IS DESIGNED FOR
GAS OR PROPANE FROM THE FACTORY. YOU CAN
A NATURAL
TO
LOF-9608FTMT-N 96" x 8" 200,000 LIQUID PROPANE (LP) CONVERSION KIT.
NATURAL
PURCHASE
GAS (NG) >
>
Stainless Steel: SRW / Paver FPB Packages
One model number - each package provides the all-in-one solution for upgrading to a gas fire pit.
All models are sold in either Natural Gas or Liquid Propane from the factory.
To the right you will find a representation of what’s in the box of each package.
Round > Flat [MT]
FPB-26D22MTN-PK 26" to 29"
FPB-29DBS22MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 OAS-LPK31
FPB-26DBS22MT-N FLEXFRAME-SS PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-10 (x3) OAS-LPK41 FPB-29D22MTN-PK 29" to 32"
FPB-34D31MTN-PK 34" to 37"
FPB-39DBS36MTN-PK 39" to 42"
FPB-44DBS36MTN-PK 44" to 47"
Square > Flat [MT]
FPB-34DBS31MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-6LNTS FG-LAVA-40 + FG-LAVA-10 OAS-LPK26
FPB-34DBS31MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 OAS-LPK26 FPB-34D31MTN-PK2 34" to 37"
FPB-39DBS36MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 OAS-LPK12
FPB-44DBS36MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 (x2) OAS-LPK12
FPB-25SF22MTN-PK 25" to 28"
FPB-34SF31MTN-PK 34" to 37"
FPB-40SFS36MTN-PK 40" to 43"
FPB-40SFS36MTN-PK2 40" to 43"
FPB-30SFBS22MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 OAS-LPK31
FPB-25SFBS22MT-N FLEXFRAME-SS PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-10 (x3) OAS-LPK31 FPB-30SF22MTN-PK 30" to 33"
FPB-34SFBS31MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 OAS-LPK26
FPB-40SFBS36MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-6LNTS FG-LAVA-40 + FG-LAVA-10 OAS-LPK12
FPB-40SFBS36MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 OAS-LPK12
Model
FPB-20SBS16MTN-PK 20” to 23” FPB-20SBS16MT-N FLEXFRAME-SS PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-10 (x2) OAS-LPK31
Linear > Flat [MT]
Model Fits Inside Burner System Flexframe Control Panel Vent Kit Media LP Conv. Kit
LOF-3614FHMTN-PK 36" to 40" L, 14" to 18" W LOF-3614FHMT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 OAS-LPK31 LOF-4814FHMTN-PK 48" to 52" L, 14" to 18" W LOF-4814FHMT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 (x3) OAS-LPK29
LOF-6016FHMTN-PK 60" to 64" L, 16" to 20" W LOF-6016FHMT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 (x2) OAS-LPK26
- 16 -
BURNER SYSTEM FLEX FRAME CONTROL PANEL VENT KIT MEDIA
Model Fits Inside Burner System Flexframe Control Panel Vent Kit Media LP Conv. Kit
Model Fits Inside Burner System Flexframe Control Panel Vent Kit Media LP Conv. Kit
Fits Inside Burner System Flexframe Control Panel Vent Kit Media LP Conv. Kit Square > Drop-In [MT]
Pro Series: SRW / Paver FPB Packages
One model number - each package provides the all-in-one solution for upgrading to a gas fire pit.
All models are sold in either Natural Gas or Liquid Propane from the factory.
To the right you will find a representation of what’s in the box of each package. BURNER SYSTEM
Round > Flat [MT]
FPB-26DPS18MTN-PK 26" to 29"
FPB-26DPSSF18MT-N FLEXFRAME-SS PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-10 (x3) NG FPB-29DPS18MTN-PK 29" to 33" FPB-29DPSSF18MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 NG FPB-34DPS25MTN-PK 34" to 39"
FPB-34DPSSF25MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 NG FPB-34DPS25MTN-PK6 34" to 39"
FPB-26DPS18MTP-PK 26" to 29"
FPB-29DPS18MTP-PK 29" to 33"
FPB-34DPS25MTP-PK 34" to 39"
FPB-34DPS25MTP-PK6 34" to 39"
FPB-34DPSSF25MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-6LNTS FG-LAVA-40 + FG-LAVA-10 NG
FPB-26DPSSF18MT-P FLEXFRAME-SS PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-10 (x3) LP
FPB-29DPSSF18MT-P FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 LP
FPB-34DPSSF25MT-P FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 LP
FPB-34DPSSF25MT-P FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-6LNTS FG-LAVA-40 + FG-LAVA-10 LP
Model Fits Inside Burner System Flexframe Control Panel Vent Kit Media Gas Type Square > Flat [MT]
FPB-25SFPS18MTN-PK 25" to 30"
FPB-30SFPS25MTN-PK 30" to 35"
FPB-34SFPS25MTN-PK 34" to 39"
FPB-25SFPS18MTP-PK 25" to 30"
FPB-30SFPS25MTP-PK 30" to 35"
FPB-34SFPS25MTP-PK 34" to 39"
FPB-25SFPSSF18MT-N FLEXFRAME-SS PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-10 (x3) NG
FPB-30SFPSSF25MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 NG
FPB-34SFPSSF25MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 NG
FPB-25SFPSSF18MT-P FLEXFRAME-SS PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-10 (x3) LP
FPB-30SFPSSF25MT-P FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 LP
FPB-34SFPSSF25MT-P FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 LP
FPB-20SPS14MTN-PK 20" to 25"
FPB-20SPSBR14MT-N FLEXFRAME-SS PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-10 (x2) NG
FPB-20SPS14MTP-PK 20" to 25" FPB-20SPSBR14MT-P FLEXFRAME-SS PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-10 (x2) LP
LOF-3610PS306MTN-PK 36" to 41" L, 10" to 15" W LOF-3610PS306MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 NG
LOF-4810PS406MTN-PK 48" to 53" L, 10" to 15" W LOF-4810PS406MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 NG
LOF-6010PS506MTN-PK 60" to 65" L, 10" to 15" W LOF-6010PS506MT-N FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 (x2) NG
LOF-3610PS306MTP-PK 36" to 41" L, 10" to 15" W LOF-3610PS306MT-P FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 LP
LOF-4810PS406MTP-PK 48" to 53" L, 10" to 15" W LOF-4810PS406MT-P FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 LP LOF-6010PS506MTP-PK 60" to 65" L, 10" to 15" W LOF-6010PS506MT-P FLEXFRAME-SS3 PAVER-CP-MT PAVER-VENT-4LNTS FG-LAVA-40 + FG-LAVA-10 (x2) LP
- 17 -
FLEX FRAME CONTROL PANEL VENT KIT MEDIA
Fits Inside Burner System Flexframe Control Panel Vent Kit Media Gas Type Square > Drop-In
Model
[MT]
Model Fits Inside Burner System Flexframe Control Panel Vent Kit Media Gas Type
Linear > Flat [MT]
Model Fits Inside Burner System Flexframe Control Panel Vent Kit Media Gas Type
SRW / Paver FPB Accessories
Flexframe
Allows you the flexibility to fill the gap between the fire pit structure and the pan. You can easily remove the burner without disturbing the structure. Flexible and easy to adapt for round, square, and rectangular fire pits.
FLEXFRAME-PRO3
COMPATIBLE WITH
Pro Series - Wider Version of the FLEXFRAME. Designed for Larger Round, Square and Linear Burner Systems - Constructed of 16 Gauge 304 Stainless Steel (3) 44” pieces per package
SRW/Paver Control Panel Enclosures
FLEXFRAME-SS3
Constructed of 16 Gauge 304 Stainless Steel. Engineered to protect against outdoor elements including salt water environments (3) 44” pieces per package
FLEXFRAME-SS
Constructed of 16 Gauge 304 Stainless Steel. Engineered to protect against outdoor elements including salt water environments (2) 44” pieces per package
House the components of your burner system seamlessly within your SRW/Paver blocks.
ComponentsofburnersystemarenotincludedintheControlPanelEnclosure-theyarelocatedintheburnersystemorSRW/PaverKityoupurchased.
PAVER-CP-AWS
For use when building fire pit enclosures with SRW block and an AWS burner system.
INCLUDES:
SRW bracket kit and extender
Lintel - 12” L x 3” W
Screws and fittings
Tapcon® concrete anchors
COMPATIBLE WITH
PAVER-CP-TPSI
For use when building fire pit enclosures with SRW block and an TPSI burner system.
INCLUDES:
SRW bracket kit and extender Lintel - 12” L x 3” W
Screws and fittings Tapcon® concrete anchors
COMPATIBLE WITH
PAVER-CP-MT-MSI
For use when building fire pit enclosures with SRW block and an MT burner system.
INCLUDES:
Face plate for key valve and MSI
SRW bracket kit and extender Lintel - 12” L x 3” W
Battery operated Piezo igniter Ignition hood
Screws and fittings
Tapcon® concrete anchors
COMPATIBLE WITH
SRW/Paver Vent Kits
PAVER-VENT-4-LNTS
Stainless steel SRW vent kit with lintel. Each vent provides 18 square inches of ventilation.
INCLUDES:
Two (2) 3 5/8”H x 8”W vents with mounting plate, extension plate extends overall size up to 10”W
Two (2) Tapcon® concrete anchors
Two (2) Lintels 12”L x 3”W (20 gauge galvanized steel)
COMPATIBLE WITH
PAVER-VENT-6-LNTS
Stainless steel SRW vent kit with lintel. Each vent provides 18 square inches of ventilation.
INCLUDES:
Two (2) 5 5/8”H x 8”W vents with mounting plate, extension plate extends overall size up to 10”W
Two (2) Tapcon® concrete anchors
Two (2) Lintels 12”L x 3”W (20 gauge galvanized steel)
COMPATIBLE WITH
PAVER-CP-MT
For use when building fire pit enclosures with SRW block and an MT burner system.
INCLUDES:
SRW bracket kit and extender
Lintel - 12” L x 3” W
Screws and fittings
Tapcon® concrete anchors
COMPATIBLE WITH
MSI-BSMTI
Manual spark ignition kit for FPB “MT” Match Throw Systems featuring the burning spur.
COMPATIBLE WITH
- 18 -
- 19RTF Enclosures / Media & Jewelry FG-LAVA-10 Lava Rock Lava Stones 10 lbs. FG-LAVA-40 1 cubic foot ( approx 30 - 40 lbs.) Each rock is approximately 1” to 2” in diameter FG-LS50 50 lbs. Each stone is approximately 1” to 2” in diameter SOLD IN 10LB JUGS Black GL-BLACK-10 Copper GL-COPPER-10 Crystal GL-CRYSTAL-10 Light Blue GL-LIGHTBLUE-10 Seabreeze GL-SEABREEZE-10 Black GRL-BLACK-10 Bronze GRL-BRONZE-10 Cobalt GRL-COBALT-10 Copper GRL-COPPER-10 Silver GRL-SILVER-10 Ironwood Steel (7) L-IW-SM Ironwood Steel (11) L-IW-MED Ironwood Steel (14) L-IW-LG Ironwood Steel (14) L-IW-XL Birch (5) L-BR-3048 Birch (6) L-BR-6084 Driftwood (5) L-DW-3048 Driftwood (6) L-DW-6084 New Oak (5) L-NO-3048 New Oak (6) L-NO-6084 Sedona (19) L-SEDONA Spit Fire (17) L-SF Twig Set (4) L-IW-TWIG810 Twig Set (5) L-IW-TWIG1214
exterior panels are factory clad with 1/2” Permabase cement board. Permabase
impact resistant, extremely durable and
stable. It
flexural,
strength characteristics,
moisture resistant
rot, disintegrate
water. Dark Blue GL-DARKBLUE-10 INCLUDED VENT-KIT-6X12 INCLUDED VENT-KIT-6X12 INCLUDED VENT-KIT-6X12
RTF-L10824 108" L x 24" W x 18" T RTF-L10834 108" L x 34" W x 18" T RTF-L4224 42" L x 24" W x 18" T RTF-L4234 42" L x 34" W x 18" T RTF-L6024 60" L x 24" W x 18" T RTF-L6034 60" L x 34" W x 18" T RTF-L8424 84" L x 24" W x 18" T RTF-L8434 84" L x 34" W x 18" T Model Dimensions Linear RTF RTF-R42 42" Diameter x 18" T RTF-R48 48" Diameter x 18" T RTF-R60 60" Diameter x 18" T Model Dimensions Round RTF RTF-S42 42" W x 42" W x 18" T RTF-S48 48" W x 48" W x 18" T RTF-S60 60" W x 60" W x 18" T Model Dimensions Square RTF Rock Media Approx. 1/2” - 1” in size Broken Glass Approx. 1/2” - 1” in size Reflective Glass Steel > Log Sets Steel >Twig Sets Concrete > Log Sets Concrete > Twig Sets
Features The
is
dimensionally
has overall
compressive and tensile
highly
and will not
or swell when exposed to
Supports up to 700lbs. Template lines on top of units for easy cut outs. Warranty: Lifetime warranty on construction and manufacturer defects. Comes included with a VENT-KIT-6X12
Glass Windshields
FOR BURNER SYSTEMS
Round Windshields
Model Dimensions
GWS-23R 23" Diameter x 8" H
GWS-32R 32" Diameter x 8" H
GWS-36R 36" Diameter x 8" H
GWS-38R 38" Diameter x 8" H
GWS-48R 48" Diameter x 8" H
GWS-60R 60" Diameter x 8" H
Lids
Model Dimensions Square
Windshields
GWS-2424 24" W x 7 1/2" H
GWS-3030 30" W x 7 1/2" H GWS-3838 38" W x 7 1/2" H GWS-4242 42" W x 7 1/2" H
Model Dimensions Linear Windshields
GWS-2911 29 1/2" L x 11 1/2" W x 6" H
GWS-2917 29 1/2" L x 17" W x 6" H
GWS-3511 35 1/2" L x 11 1/2" W x 6" H GWS-3517 35 1/2" L x 17" W x 6" H
GWS-4111 41 1/2" L x 11 1/2" W x 6" H GWS-4119 41" L x 19" W x 6" H
Model Dimensions
GWS-5311 53 1/2" L x 11 1/2" W x 6" H
GWS-5319 53" L x 19" W x 6" H
GWS-6511 65 1/2" L x 11 1/2" W x 6" H GWS-6521 65" L x 21" W x 6" H
GWS-7711 77 1/2" L x 11 1/2" W x 6" H GWS-7721 77" L x 21" W x 6" H
Round Lids
Model Dimensions Fits Models
LID-19R2 22" Diameter x 2.5" H FPB-19R Series
LID-25R2 28" Diameter x 2.5" H FPB-25R Series
LID-29R2 32" Diameter x 2.5" H FPB-29R Series
LID-33R2 36" Diameter x 2.5" H FPB-33R Series
Square Lids
Model Dimensions Fits Models
LID-20S 22 1/4" W x 2" H FPB-20S Series
LID-26S 28 1/4" W x 2" H FPB-26S Series
LID-32S 34 1/4" W x 2" H FPB-32S Series
LID-38S 40 1/4" W x 2" H FPB-38S Series
Linear Lids > H Burners
Model Dimensions Fits Models
LID-LOF2412
LID-LOF3012
LID-LOF3614
LID-LOF4214
LID-LOF4814
LID-LOF6016
LID-LOF7216
H LOF7216
LID-LOF8416 86 3/4” L x 18 3/4” W x 2 7/8” H LOF8416
LID-LOF9616 98 3/4” L x 18 3/4” W x 2 7/8” H LOF9616
Linear Lids > T Burners
LID-LOF2406 26 3/4” L x 8 3/4” W x 2 7/8” H LOF2406
LID-LOF3006 32 3/4” L x 8 3/4” W x 2 7/8” H LOF3006
LID-LOF3606 38 3/4” L x 8 3/4” W x 2 7/8” H LOF3606
LID-LOF4806 50 3/4” L x 8 3/4” W x 2 7/8” H LOF4806
LID-LOF6006 62 3/4” L x 8 3/4” W x 2 7/8” H LOF6006
LID-LOF7206 74 3/4” L x 8 3/4” W x 2 7/8” H LOF7206
LID-LOF8406 86 3/4” L x 8 3/4” W x 2 7/8” H LOF8406
LID-LOF9606 98 3/4” L x 8 3/4” W x 2 7/8” H LOF9606
- 20 -
Accessories
26 3/4” L x 14 3/4” W x 2 7/8” H
LOF2412
3/4” L x 14 3/4” W x 2 7/8”
32
H LOF3012
L x 16 3/4” W x 2
38 3/4”
7/8” H LOF3614
44 3/4” L x 16 3/4” W x 2 7/8” H
LOF4214
50 3/4” L x 16 3/4” W x 2 7/8” H
LOF4814
62 3/4” L x 18 3/4” W x 2 7/8”
H LOF6016
74 3/4” L x 18 3/4” W x 2 7/8”
Model Dimensions Fits Models
FOR BURNER SYSTEMS
KEY-PC-12
12”
FG-12QDK
KV-PC-12
High capacity straight key valve with polished chrome key cover and 12” key (350,000 BTU @ 1/2 PSI)
MSI-BSMTI
Manual spark ignition kit for FPB “MT” Match Throw Systems featuring the burning spur.
VENT-KIT-6X12SS
Includes 2 stainless steel 6” tall x 12” wide vents. Each vent provides 18 square inches of cross ventilation.
Unique all mechanical gas shut-off timer with built-in emergency stop - no power required High Btu capacity Safest gas timer available in the industry Available in 1 hour models
Innovative multi-port design provides installation flexibility 1/2”
ESTOP-CP-KIT
ESTOP-LC-KIT
ESTOP-RM-KIT
FG-32LPHRK
32” Liquid Propane Hose and Regulator Kit, Rated at 85,375 BTU @10” W.C. CSA-AGA/CGA Approved.
FG-60LPHRK
60” Liquid Propane Hose and Regulator Kit, Rated at 130K BTU @10” W.C. CSA-AGA/CGA Approved.
FG-LPQDK
LP quick disconnect kit - includes 12’ (144”) 1/2” OD, 3/8” ID, gray PVC hose with quick disconnect fitting.
FG-LPRK
100K BTU Liquid Propane Regulator, 3/8” MPT Adapter and Acme Quick Connect. CSAAGA/CGA approved.
- 21 -
polished chrome key for key valve
panel
to
ESTOP1-0H
ESTOP1-0H Control
designed
house
timer.
Cabinet designed to house ESTOP1-0H timer (Removable Lock)
Locking
mount
to
Surface
enclosure designed
house ESTOP1-0H timer.
for use
Quick Disconnect Kit
with Natural Gas or Liquid Propane - 12’ (144”), 3/8” I.D.
NPT inlets and outlets (side and back) Six (6) mounting holes (front and side) for secure installation Natural gas (NG) or Liquid Propane (LP) - no conversion necessary Dial has UV Protection
Valves / Gas Valve Accessories
FOR BURNER SYSTEMS Gas Valves / Gas Valve Accessories
Kit FOR BURNER SYSTEMS Propane Accessories FOR BURNER SYSTEMS Steel Gas Flare Fitting, 3/8” OD Flare x 3/8” MIP (tapped 1/8” FIP) U1-6C-S Steel Gas Flare Fitting, 3/8” OD Flare x 1/2” MIP (tapped 3/8” FIP) U1-6D-S Steel Gas Flare Fitting, 1/2” OD Flare x 3/8” MIP (tapped 1/4” FIP) U1-8C-S Steel Gas Flare Fitting, 1/2” OD Flare x 1/2” MIP (tapped 3/8” FIP) U1-8D-S Steel Gas Flare Fitting, 3/8” OD Flare x 1/2” FIP U3-6D-S Steel Gas Flare Fitting, 1/2” OD Flare x 1/2” FIP U3-8D-S 1/2” OD (3/8” ID) x 10”, with 1/2” OD FLARE NUTS T200-9898-10 1/2” OD (3/8” ID) x 16”, with 1/2” OD FLARE NUTS T200-9898-16 1/2” OD (3/8” ID) x 22”, with 1/2” OD FLARE NUTS T200-9898-22 1/2” OD (3/8” ID) x 28”, with 1/2” OD FLARE NUTS T200-9898-28 1/2” OD (3/8” ID) x 34”, with 1/2” OD FLARE NUTS T200-9898-34 1/2” OD (3/8” ID) x 46”, with 1/2” OD FLARE NUTS T200-9898-46 Gas Flex Lines FOR BURNER SYSTEMS Gas Fittings FOR BURNER SYSTEMS
Gas
/ Vent Kit
/ Vent
Electric & Gas Heaters
DIR SERIES
INFRARED HEATERS
Schott Nextrema® glass
Ruby halogen bulb provides full power in under 6 seconds.
IP65 rated for outdoor or indoor use.
Anodized aluminum casing provides long life. Up to 5,000 hours of running life. Includes pivoting mounting bracket. Designed for permanent installations on a dedicated circuit.
OUTDOOR/INDOOR INFRARED
DLW SERIES
RADIANT HEATERS
Electric & Gas Heaters
DSH SERIES
SERIES
Slim profile is perfect for ceiling and wall-mount applications. Warms like the sun, heating people and objects with zero visible light or glare. Safe, reliable design with an IP55 rating that provides protection against dust and water. Fully assembled, simply mount, and hardwire using the easy to access top-mounted junction box.
Offers flexibility in design with color options - choose either white or black to suit your style needs. Designed for permanent installations on a dedicated circuit. Designed for hard-wired controls – switch or timer (not included).
Get heat on demand with a gold-tube quartz element that provides full power in under 6 seconds. Suitable for all climates, with an IP65 rating for outdoor or indoor use. Each heater comes with the element pre-installed, which eases the installation and reduces the risk of damaged, broken or misplaced elements upon delivery.
For optimum heat, direct the unit toward the area you want to warm up. Stay in control, multiple heaters can be operated with a single remote.
Unit has safety mechanism that automatically places the heater in Standby mode after 8 hours of continuous operation.
High-performance ceramic burner - 31,500 BTU. Suitable for residential and commercial application.
World-class wind protection up to 9.9 mph (16 km/hr). Provides an easy setup with some assembly required. 4 tile ceramic burner.
Electronic finger pull for easy ignition and turn-off. Protective grille and reflector included. Safety tilt switch ensures safe operation.
- 22 -
combines high-temperature, thermal shock and chemical resistance, excellent infrared transmission, non-porous surface and attractive design.
INFRARED HEATERS
INFRARED LP / NG HEATERS DGR
FG-AWS-SCV-KIT
FG-TP : Thermopile - for primary pilot assembly
FG-HSI : Hot Surface Ignition - for pilot burner assembly
FG-AWS-CONTROLLER : Main Controller Module
FG-TMSI-PILOT-SVC-KIT
FG-IGNIT-ASSSY-PI: Igniter Assembly
FG-SPARK-IGN: Spark Igniter Assembly
FG-GASVALVE-2: Gas Valve (piloted)
FG-CONTROL-KNOB: Control Knob
FG-TFS-SVC-KIT
VCS-5000MODTC : Module
AF-4000BP12 : Battery Pack w/12’ wire
TFS-IGNT-ASSEMBLY : Igniter Assembly ST3-100-1027 : Mesh Screen cover for Ignition Hood ST3-113-1028 : Stainless Thread Cutting Screws (8)
FG-LTFS-SVC-KIT
PILOTO23300-206 : Pilot Assembly
VCS-5000MODTC : Module AF-4000BP12 : Battery Pack w/12’ wire
FG-TMSI-SVC-KIT
TMS-TC-ASSEMBLY : Thermocouple/Rainshield Replacement Kit
ST3-080-1009 : Copreci Manual Gas Valve ST3-110-1005: Mounting Nut for Copreci Valve ST3-050-1024 : Manual Gas Valve Knob for Copreci Valve 3042-RB : Manual Spark Ignitor Module with Red Button PIEZO23WH : 23" Piezo Extension wire PIEZO48WH : 48" Piezo Extension wire ST3-100-1027 : Mesh Screen Cover (for ignition hood) ST3-113-1028 : Stainless Thread Cutting Screws
TMSI-TC-ASSEMBLY
hood
VCS-5000MODTC
Ignition module
Built for NG. If LP is required, must purchase FG-AWS-PBO-P
FG-FD2HW
- 23Replacement Kits & Parts 30VDC, 320W Power Supply FG-AWS-PS-30V320 Stainless steel faceplate with switch AWS-SWITCH-KIT Pilot burner orifice for FG-AWS30VDC-GOEK and FG-AWS30VDC-K.
Pilot Orifice is only orifice need for LP conversion of FG-PBA pilot assembly FG-AWS-PBO-P Electronic emergency stop for 120VAC or 30 VDC.
Two (2) hour mechanical timer. FG-TIMER-2HR 1420-A (On/Off/ Remote) with 110 Receiver. FG-1420-AOD AWS heat shield FG-HEATSHIELD AWS Ignition control box FG-ICB Hardware bag for AWS valve systems FG-AWS-HARDWARE-BAG Copreci manual gas valve for round, square and flat burners featuring TMSI ignition system ST3-080-1009 Stainless steel faceplace (only) AWS-FACEPLATE FG-AWS pilot burner assembly (30” long) FG-PBA Ignition assembly for piloted TMSI Line Of Fire systems FG-IGNIT-ASSY-PI Spark igniter for TMSI LOF systems FG-SPARK-IGN Control knob for all LOF burners featuring TMSI LOF ignition FG-CONTROL-KNOB Gas valve (non-piloted) for LOF TMSI
series burner pilot assembly
Primary
FG-EMER-STOP
systems FG-GASVALVE-1 Gas Valve (piloted) Fits: LOF-48LHTMSI-N LOF-48LTTMSI-N LOF-60LTTMSI-N FG-GASVALVE-2 Thermocouple for non-piloted TMSI Line Of Fire systems FG-THERMOCOUPLE L
PILOTO-23300-206 Ignition module, igniter probes, thermocouple and ignition hood TFS-IGNT-ASSEMBLY Copreci Thermocouple with Ignition
30 VDC power supply for single fire feature GOE-30VDC 120 min mechanical
timer (no enclosure)
POOL CERTIFIED
FOR BURNER SYSTEMS
AWS Ignition Accessories & Replacement Parts
- 24How Much Media? 36” Kalea Bay 15 lbs 48” Kalea Bay 20 lbs 60” Kalea Bay 25 lbs 72” Kalea Bay 25 lbs Model Glass Only KALEA BAY 30 lbs 20 lbs 35 lbs Glass Only Lava Rock Lava Stones SANCTUARY 1 Sanct 2 120 lbs 30 lbs 30 lbs Sanct 3 70 lbs 15 lbs 20 lbs Model Glass Only Lava Rock as a Base Lava Stones (on top of Lava Rock SANCTUARY 2 / 3 16” 10 lbs 5 lbs 10 lbs 10 lbs 30 lbs 19” 10 lbs 10 lbs 20 lbs 15 lbs 40 lbs 25” 15 lbs 15 lbs 30 lbs 20 lbs 70 lbs 29” 20 lbs 20 lbs 40 lbs 25 lbs 90 lbs 33” 25 lbs 25 lbs 50 lbs 30 lbs 110 lbs 34” 30 lbs 25 lbs 60 lbs 30 lbs 120 lbs 44” 45 lbs 35 lbs 70 lbs 50 lbs 200 lbs ID of Fire Pit Lava Rock Only Lava Rock as a Base Glass (on top of Lava Rock Lava Stones (on top of Lava Rock) Glass Only
20” 10 lbs 10 lbs 20 lbs 15 lbs 50 lbs 26” 15 lbs 15 lbs 30 lbs 20 lbs 90 lbs 32” 25 lbs 25 lbs 50 lbs 30 lbs 130 lbs 38” 30 lbs 30 lbs 60 lbs 35 lbs 190 lbs ID of Fire Pit Lava Rock Only Lava Rock as a Base Glass (on top of Lava Rock Lava Stones (on top of Lava Rock) Glass Only
24 x 12 20 lbs 40 lbs 20 lbs 30 x 12 20 lbs 50 lbs 20 lbs 36 x 14 30 lbs 70 lbs 30 lbs 48 x 14 40 lbs 90 lbs 40 lbs 60 x 16 50 lbs 130 lbs 50 lbs 72 x 16 60 lbs 150 lbs 60 lbs 84 x 16 70 lbs 180 lbs 70 lbs 96 x 16 80 lbs 200 lbs 80 lbs Pan Size Lava Rock Glass Lava Stones H DROP-IN Pan Size Lava Rock Glass Lava Stones H FLAT 30 x 10 20 lbs 40 lbs 20 lbs 36 x 10 20 lbs 50 lbs 20 lbs 48 x 10 30 lbs 60 lbs 30 lbs 60 x 10 40 lbs 80 lbs 40 lbs 72 x 10 50 lbs 100 lbs 50 lbs 96 x 10 60 lbs 130 lbs 60 lbs Pan Size Lava Rock Glass Lava Stones PRO SERIES - H FLAT 24 x 14 20 lbs 50 lbs 20 lbs 30 x 14 20 lbs 60 lbs 20 lbs 36 x 14 30 lbs 70 lbs 30 lbs 48 x 14 40 lbs 90 lbs 40 lbs 60 x 16 50 lbs 130 lbs 50 lbs 42 x 16 60 lbs 150 lbs 60 lbs 84 x 16 70 lbs 180 lbs 70 lbs 96 x 16 80 lbs 200 lbs 80 lbs PAN LAVA ROCK BURNER PAN BURNER GLASS LAVA ROCK PAN BURNER STONES LAVA ROCK PAN LAVA ROCK BURNER PAN BURNER GLASS LAVA ROCK PAN BURNER STONES LAVA ROCK PAN LAVA ROCK BURNER PAN BURNER GLASS LAVA ROCK PAN BURNER STONES LAVA ROCK 24 x 6 10 lbs 20 lbs 10 lbs 30 x 6 10 lbs 30 lbs 10 lbs 36 x 6 10 lbs 30 lbs 10 lbs 48 x 6 20 lbs 40 lbs 20 lbs 60 x 6 20 lbs 50 lbs 20 lbs 72 x 6 20 lbs 60 lbs 20 lbs 84 x 6 30 lbs 70 lbs 30 lbs 96 x 6 30 lbs 80 lbs 30 lbs Pan Size Lava Rock Glass Lava Stones T DROP-IN Pan Size Lava Rock Glass Lava Stones T FLAT 24 x 8 10 lbs 30 lbs 10 lbs 30 x 8 20 lbs 30 lbs 20 lbs 36 x 8 20 lbs 40 lbs 20 lbs 48 x 8 20 lbs 50 lbs 20 lbs 60 x 8 30 lbs 60 lbs 30 lbs 72 x 8 30 lbs 80 lbs 30 lbs 84 x 8 40 lbs 90 lbs 40 lbs 96 x 8 40 lbs 100 lbs 40 lbs
ROUND FIRE PITS
SQUARE FIRE PITS
Gas Pipe Sizing Chart
NATURAL GAS (NG)
10 108 230 387 793 1237 2259 3640 643420 75 160 280 569 877 1610 2613 5236 9521 30 61 129 224 471 719 1335 2165 4107 7859 40 52 110 196 401 635 1143 1867 3258 6795 50 46 98 177 364 560 1041 1680 2936 6142 60 42 89 159 336 513 957 1559 2684 5647 70 38 82 149 317 476 896 1447 2492 5250 80 36 76 140 239 443 840 1353 2315 4900 90 33 71 133 275 420 793 1288 2203 4667 100 32 68 126 266 411 775 1246 2128 4518 125 28 60 117 243 369 700 1143 1904 4065 150 25 54 105 215 327 625 1008 1689 3645 175 23 50 93 196 303 583 993 1554 3370 200 22 47 84 182 280 541 877 1437 3160 300 17 37 70 145 224 439 686 1139 2539
Natural Gas (NG) flow is given in thousands of BTU/hr. One cubic foot of NG gas - 1000 BTU.
Nominal pressure at the burner for Natural Gas is 3.5” of water column. (Typical machine supply 5” - 7”).
Pipe length must include additional length for all fittings. Add approximately 5 feet of pipe per fitting.
PROPANE GAS (LP)
Liquid Propane (LP) flow is given in thousands of BTU/hr. One cubic foot of NG gas - 2516 BTU.
This chart refers to low pressure LP, after regulation, standard nominal pressure at the burner for Liquid Propane Gas is 11” of water column
Pipe length must include additional length for all fittings. Add approximately 5 feet of pipe per fitting.
Natural Gas Example: A machine with a burner that requires 440,000 BTU would need a 1 - 1/4” pipe for a 20’ long run.
7708
6936
Liquid Propane Example: A machine with a burner that requires 440,000 BTU would need a 1” pipe for a 20’ long run.
NOTE: The sizing charts above list the specific pipe sizes required for the amount of BTU’s for a new gas line installations. If you are using an existing gas line you must take into consideration the existing gas line capacities to ensure you will have proper pressure.
This chart is for reference only, we recommend you consult with a Licensed Plumber/Gas Fitter or NFPA54 (National Fuel Gas Code - current edition) for more details.
- 25 -
Pipe Length (ft.) 1/2” 3/4” 1” 1 - 1 1/4” 1 - 1 1/2” 2” 2 - 2 1/2” 3” 4”
10 275 567 1071 2205 3307 6221 10140 17990 35710 20 189 393 732 1496 2299 4331 7046 12510 25520 30 152 315 590 1212 1858 3465 5695 10110 20620 40 129 267 504 1039 1559 2992 4778 8481 17300 50 114 237 448 913 1417 2646 4343
15730 60 103 217 409 834 1275 2394 3908
14150 70 89 185 346 724 1086 2047 3329 5908 12050 80 78 162 307 630 976 1811 2991 5309 10830 90 69 146 275 567 866 1606 2654 4711 9613 100 63 132 252 511 787 1496 2412 4281 8736 125 54 112 209 439 665 1282 2083 3618 7382 150 48 100 185 390 590 1138 1808 3210 6549 175 43 90 168 353 534 1030 1637 2905 5927 200 40 83 155 325 491 947 1505 2671 5450 300 37 77 144 303 458 887 1404 2492 5084 Pipe Length (ft.) 1/2” 3/4” 1” 1 - 1 1/4” 1 - 1 1/2” 2” 2 - 2 1/2” 3” 4”
ver. 110322
Tech & Sales | 800.966.8126 trueflame.com 14520 Delta Ln - Suite 105 | Huntington Beach | California, 92647
