Lab. Sintesi Finale P5 Light and Interaction 2018 N. Besana, S. de Bari, M. Rocchitelli, A.Tremolada Caulis was born into the Synthesis Laboratory (final design course of the “Thebachelor).goal of the laboratory is to design a system of products for public areas in which the light create and innovative user experience.” 1. Public spaces furnituresMODULARITYSMART LIGHTING 5
Context Analysis Light as physical material melt with Thearchitecture*.company works on commission and its creations are unique projects. Viabizzuno The Tecno brand is identified in its enthusiasm in engineering and technological innovation.* The company works for public furniture on which our analysis focuses. Tecno * Sources found from the official websites viabizzuno.it, tecno.it and from the interview at Politecnico di Milano. 6
USER FURNITURESANALYSISANALYSIS Public areas are populated by a few objects: benches and picnic tables for the outside, without electricity and often uncomfortable for reading a book. these are not designed to give the possibility to work. Where do we study/work? Do you prefer stay alone or with other people? coworking20%library10%park20% 60%40% office/home50% Shopping centers and parks are the places where users gather to go from a few minutes to several hours. To study, work, entertain with leisure activities. The trend of “together alone” emerges: people find themselves in more or less crowded places to undertake individual activities. alonewithsomeone else 7
BOARDINSPIRATION Concept Development 8
FORMAL STUDY Modular structures that allow versatility for environmentsdifferent and use. An elegant shape that visually recalled a street lamp and an outdoor seat.
9
Product Development It is a family of products for furnishing public areas. They have been designed to be comfortable with a flexible shape: it allows multiple configurations and arrangements for the architect who designs the area Itintended.hasbeen designed with intelligent light system for energy saving (brightness sensor). Table 45*50*h70 cm Seat 45*50*h48 cm Solar cover 100*20*h120cm Seat with backrest 80*50*h60cm 10
TOP teak (outdoor) fenix (indoor) LED BOX brightness sensor ELETRICAL PLUG 220 V and USB STRUCTURAL BASE stainless steel 316 INSTALLATION BASE stainless steel 316 All components can be disassembled with specific tools (maintenance). PRESENCE SENSORS radius 5m 11
Interaction Caulis has been designed to allow a momento of work, in serenity, even for long periods of time. DAYTIME 12
NIGHTTIME The path marker LED is dimmable, it is designed to emit two different light intensities: a low one for service light and a high one for human presence. 13
STRUCTURE 14
An Arduino system, three PIR proximity sensors, a twilight sensor and a switch for the current constitute the intelligence of the prototype. It has a steel structure (created by a blacksmith) and wooden plans.
Functional
Prototype
15
16

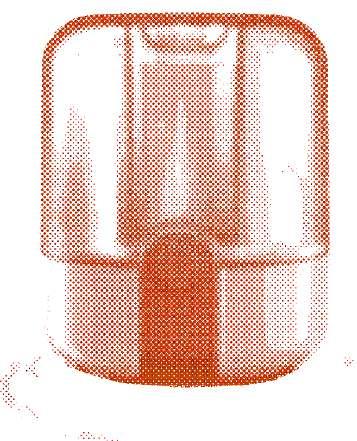

Lab. Design studio II redesign 2020 P. Contini, S. de Bari, S. Minini, S. Purushotaman Pillai Desktop air purifier with its own recognizable aesthetic that communicates cleanliness and purity. The product will create a healthy environment at home and will not need a periodical purchase of filters. It employs wet scrubbing, UV light and TiO2 for air purification and sterilization. 2. Desktop air purifier PUR A WATER DROP 80 micron Dia polluted air SCRUBBINGWET UVTiO2LIGHT 17
Concept development INSPIRATION BOARD 18
AIR FLOW cm30 Ø 12 cm capillary effect one way valve Uv light This is the first concept developed. An in-depth analysis on the best air purification method based on the possibility of not having disposable filters but water. This analysis finally led us to the wet scrubbing effect (industrial method). 19
Structure InnerOutertank tank Upper base Lower base SAN, moldedinjectionABS,injectionmoldedEletronics Weight : 1 kg Water : 500 ml Dimension : 170*220 mm waterdirty clean water SAN, moldedinjection one way valve 20
Ultrasonic atomizer PCB, UV C light Fan San Ace • Power 12 V • Static pressure 18 - 210 Pa • Frequency 20 KHz air path DIRTY AIR CLEAN AIR The dirty air is sterilized in the low base (TiO2 + UV). Then it crosses the upper base (membrane filter) entering the outer tank where the finest particles will remain trapped due to the effect of the wet scrubbing (implemented by the atomizer). 21

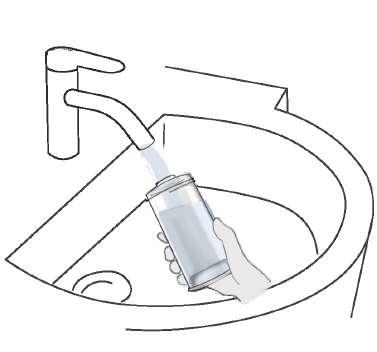

Fill 500 ml water Close tank Lock the tankInsert tank Turn Storyboard STARTING After switching on, the object starts the airprocess.purification 22
Unplug the object Lift the outer tank Pour out dirty water Pull and free the grid clean the prefilter ON MAINTENANCE The product automatically turns off when the water ends. 23

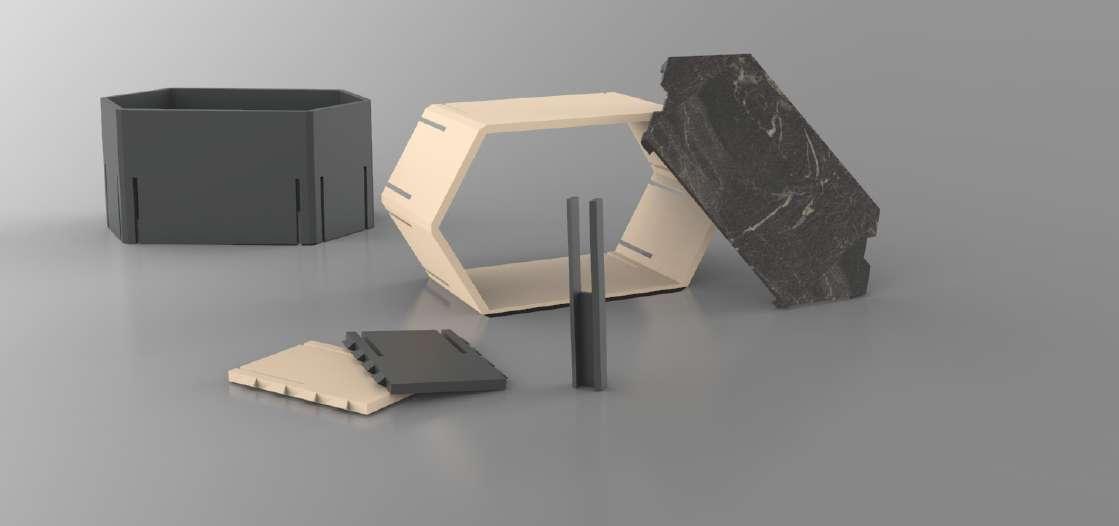

Concorso SM’Art “La Libreria” 2018/2019 S. de Bari, A. Tremolada. The Mirai project born from the brief of the “La Libreria” competition, of which it won the first award as best project. “The project of a” bookcase “of any type and use, intended for home furnishings, using only materials produced by SM’art: melamine panels and HPL laminates. The projects must be carried out exclusively by interlocking, without the use of parts fixing tools”. 3. Modular bookcase mirai Joint Door Modul 300*515*250 mm Bookcase parts dovetail joint 24
PATTERNS:INFINITE Mirai is a hexagonal modular bookcase. The shape comes from the research variable and customizable model. It is consistent with the volumes of a library and it reflects the trend of home personalization. 25
LACCATA3105 ANTRACITE OLYMPUS0L40 SABBIA OLYMPUS0L40 APOLLO WOW3105 TAIGA LACCATA0014 GOBI LACCATA3151 TORTORA LACCATANEW* RAME LACCATANEW* NETTUNO WOW!WOO6 PAMPAS
Palette colors NCS color system design.
This palette works on the color contrast. The mexture give to the bookcase an original and sophisticated character. The second palette is based on neutral shades in harmony of color. It is designed to be adaptable in different modern Palettespaces. with two new shades* not present in the company catalog, to be combined with the PAMPAS wood texture. These colors recall a fresh spirit, actual trends in the world of interior design. NEUTRAL MOOD VIVID
SOPHISTICATEDHARMONYCONTRAST
26
27
28 The goal was to design the packaging for the natural deodorant product by Naloop a Viennese Startup. 4. Deodorant packaging Internship GPdesignpartners 2021, S. de Bari
DURABLESUSTAINABLE REFILLING 29 It contains 30g of product, simple refilling process for garantee dorability and sustainability in using. It’s made by a natuaral polimer with different coloures avelable for different tastes, the texture is suggesting the rotation.
Concept development PROTOTYPEPRINTING3D 30
LidShellDeodorantHandleHolder 31 REQUIREMENTS OF DESIGN Manual mechanism: sliding with rotation for extraction and refilling Mono-material: natural polimer for sustainable purpose Compact design: to be portable and simple to use
The goal was to design a small object for the Politecnico di Milano merchandising: an easily reproducible industrial product, with low costs, that enhances the material, wood. 5. Gadget antistress Course Monomaterico Wood design 2019 S. Alzacuffi, S. de Bari, A. Moruzzi, M. Rocchitelli The three woods symbolically represent the three major faculties of Politecnico (Engineering, Architecture and 40Design).40 32
TEXTURE ONDULATA TEXTURE SPIGOLOSA CONCA SEMISFERICA PERNO Ash tree However walnutAmerican The different textures are designed to create different sensations, relax comfort and a compulsive movement (the central pin) to release stress. 33
• CNC milling machine • Column drill • Drilling machine • Pin turning • Logo laser-cut • Finishing with straw oil OPERATIONS Prototyping 34
35
6. Graphics personal project The project gave me the opportunity for a direct relationship with clients. The management of unexpected requests, changes and problems for exaple the reduction of project costs and times. 36
Events (2019) organised by OPI Varese and Maya association: “Conosci previeni affronta il cancro” “Mamy brisk walking. Graphics by Stefania de Bari 37
