The Experimental Art Foundation includes a number of internal and external spaces for public presentation of artwork and performances, along with a range of private work spaces and laboratories. In order to honor the site with such rich history, a series of interwinding art corridor inspiried by the existing site characteristic is inserted into the coal loader to provide a new experiment on art viewing and the coal loader.
COEXISTENCE OF THE PAST AND PRESENT 01
Date| June 2019 Instructor| Mano Ponnambalam Status| 6th Design Studio Program| Experimental Art Foundation Site| Waverton Coal Loader, Sydney
Experimental Art Foundation [EAF] and associated landscapes on the old Coal Loader site at Waverton, near North Sydney. The coa loader is located in between the Ball Head natural reserve with rich diversity of greenary, the abandoned wharf that used to serve the coal loader and the Waverton residential area. Each with its own characteristic, yet managed to co-exist harmoniusly. Facinated by the interesting combination of history, nature, and present development of the site, this project aims at honoring the existing and signify the harmonius co-existence of the past and present through the new Experimental Art Foundation.
CLUSTERED ARRANGEMENT OF PROGRAM PATTERNS EXTRACTED FROM THE SITE SITE ANALYSIS CURVED CIRCULATIONDIAGONAL + VERTICAL CIRCULATION HORIZONTAL CIRCULATION NATURAL RESERVE ABANDONED WHARF
RESIDENTIAL AREA COAL LOADER
Whensuperimposition.overlaying the patterns of the site features on top of one another, the structure of the wharf and harbor dominates the drawing by its directional and powerful characteristic. With the dark and elongated tunnel as the background, the spatial quality and atmosphere of dissecting the coal loader tunnel with patterns from existing site starts to appear.
To realize the concept, a solid structure is needed. Based on the site analysis, it is most suitable to pick the dynamic diagonal and vertical structure of the wharf as the reference and the coal loader as the space to be modified.
CONCEPTUAL DRAWING 1 - OVERLAYING SITE FEATURES WITH DISTINCTIVE PATTERNS.
CONCEPTUAL DRAWING 2 - EXTENDING UNTIL THE TWO RHYTHMS COLLIDE.
To record and combine the findings of the site, Conceptual Drawing 1 is made to integrate the observations made from the site visit. The aim is to illustrate the relationship between the main existing features of site, and the method chosen is
A new structure inspired by the wharf structure is inserted into the existing coal loader tunnel to introduce a new angle when traveling through the tunnel. The irregular and disorder wharf structure cuts through the tunnel, dissecting the tunnels into several part of massing. By extracting some of these parts, the spaces containing the arts are born.
RESEARCHLINKING THE DISTINCTIVE OVERLAYING, INTERSECTION AND DISSECTION
CONCEPTUAL MODEL - ORDER AND DISORDER
When the shadow collide, at that instinct, they connected. “牆上樹影牆上藤，瞬間邂逅亦姻親.-吴冠中
Being most fascinated by the strong characteristic and contrast of the collision between the regular and the chaotic order of the timber support of the abandonded wharf. The conceptual model shown below was made to observe the relationship between the orderly and disorderly structure.
CONCEPTMOMENT OF COLLISION
CONCEPTUAL DRAWING 2 - EXTENDING UNTIL THE TWO RHYTHMS COLLIDE.
EXISTING TUNNEL CONNECTING SURROUNDINGSWITHAREA
ART EXISTING SITE ARCHITECTURE
To preserve as much of the coal loader as possible, The Art Foundation is formed by inserting a series of new art corridorand extracting parts of the coal loader structure to create exhibition spaces. Not only can the form and characteristic of the coal loader be preserved, the new walkway also cuts through the coal loader tunnel in all directions, revealing new faces of the coal loader visitors have never seen before. The walkway connects the residential area, the bush and the conservation hub nearby, linking the three distances site together. An extra level of exhibition platform is inserted in between the ground floor and the upper level of the cliff, acting as a transition between the upper level and the lower level. Both circulation paths direct the visitors toward the harbor and reveal the harbor step by step.
DISSECTING THE TUN NEL INTO TWO LEVEL EXTRACTING MASS ING TO EXHIBITIONCREATESPACE
DEVELOPMENTEXTRACT AND INSERT
3 4 6 5 1 7 8 9 10 2 6 6 6 1 Information center + Exhibition space 2 Exhibition space 3 Auditorium 4 Performance Art Space 5 Sculpture exhibition space 6 Residence Artist’ studio Upper level 7 Performance Art Platform 8 Media Art Space 9 Waterfront deck 10 Viewing platform Circulation of the new Art Corridor is inspired by the diagonal and vertical structure of the abandonded wharf. Circulation of The Existing Tunnel Circulation of the new Sculpture and Performance Art Space is inspired by the curved circulation of the natural reserve Spatial program of the Residence Artist’s Studio is inspired by the clustered placement of the residential unit.
741 852 963 SPATIAL EXPERIENCE - JUSXTAPOSITION OF THE OLD AND THE NEW
Long Section
Sculpture and Performance Art Space The Art Foundation is formed by inserting a new viewing platform and extracting parts of the coal loader structure to created exhibition space. The viewing platform is designed to maximize users’ sensation experi ence through limiting their perception. It is achieved by controlling the dimness and visibility of the space so that the users have to rely on their sensation to locate themselves in the art foundation.
SENSATION + PERCEPTION
02OURRE-PROGRAMMINGLIVINGHABIT
Date| February 2019 Instructor| Yvonne Haber Status| 5th Design Studio Program| Urban social housing Site| Mascot, Sydney
A multi-unit dwellings to accommodate three household on a single suburban lot in a middle suburb of Sydney with reference to existing models for the processes of suburban desertification This project explore an alternative prrogram for residential units which builds upon multiple pocket green space to re-connect human with the nature.
.
RESEARCHEXISTING PROBLEM OF TERRACE CONCEPT RE-STACKING-
LIVING DINING& BEDROOMBEDROOM ROOFCOURTYARDGARDEN CORE
Lack of interaction between spaces. Private space and public space are defined distinguish, no in-between space for users. Lack of interaction with the surroundings due to shoulder-to-shoulder ar rangement.
LIVING & DININGBEDROOM BACKYARD BEDROOM BEDROOMUTILITY
PRIVATE PUBLICPRIVATEPUBLIC PRIVATE
THE PROGRAMME
To tackle the above problem, a central void is placed in each unit to reduce the density of the building mass and to breath in the surroundings.
Lack of sunlight and view due to lack of openings
The layout of the existing terraces is long and narrow creating a dark and timid environment on the inside.
Elongated alignment of space is a typical layout of traditional terraces in Sydney. This layout allows efficient use of space but also lead to the following issues.
FLOW OF SPACE
Re-stacking the program to cre ate interesting overlapping of private and communal space. By placing the corridor in the central, right above the commu nal space facilitate inter-level interaction. The continuous green corridor from the pathway outside the unit goes through the living area and extend all the way to the roof. Creating a flow of space from outside to the inside, and bottomto the top. Due to the high density of the site, the separation between each unit is minimal. The crental void allows equal access to natural sunlight and directing the view inward.
Green lane as separation from public walkway. Linking with the neighbouring public space with a public park lane INSERTING NATURE
Offset from boundaries and dividing the site into three units for three families
DEVELOPMENTEXTRACTING MASSING,
Insertingdensity a series of green platform along the circulation that cuts through the functional space of each unit.
Extracting part of level two to bring in more sunlight. Splitting the units 1.5m apart to create wind corridor and reduce building
SUNPATH
Timber with double glazing Timber with double glazing 80mm
window frame
Reinforced screed Insulation panel Gravel covered drainage Aarnafil membrane Geo-fabric layer Water Extensicereservoirmedia layer Reinforced concrete
.
1:75 @ A4 0 1M 2M 3M
GREENERY & ARCHITECTURE
Among the three types of common placement of green space, frontyard, back yard and courtyard, courtyard has the cloest relationship with the indoor space due to it’s central location. However, it is rare to be seen in small scale housing unit or terrace. This project propose a new spatial program that is built around the concept of “internal courtyard”
By inseting multiple small green platform along the central void and placing the private space around them, an “internal courtyard” is formed. Each of the small green platform is located at differnt levels, a vertically extend courtyard is
window frame
Livingformed.anddining room + the internal courtyard + outdoor lawn
213 4 6 5 213 46 5 213 46 5 777 8 8 8 9 8 8 1. Kitchen 2. Living Room 3. Kitchen 4. Deck 5. Courtyard 6. Storage 7. Master Bedroom 8. Single Bedroom 9. Roof Garden GROUND FLOOR PLAN A’ A’ A A SECOND FLOOR PLAN N 1:75 @ A4 0 1M 2M 3M
SECTION AA’
Date| June 2018 Instructor| John Gamble Status| 4th Design Studio Program| Urban Public Space Site| Millers Point, Sydney
03URBANTRANSFORMABLEBLOCK
Located next to the central business district of Sydney, the Urban Block is a new public gathering spot and secondary business hub for arts and craft and start-company with community library, shops for small business and cafe on the ground floor. With its’ flexible and transformable structure, the Urban Block aims to become a dynamic and energetic gathering spot for people of all age, providing opportunities and diversity to the community.
To suit the needs of the diverse type of user, the Urban Block is a flexible urban space that is enable to host programmed and unprogrammed activities.
LIBRARYOFFICE CAFE VISITORCENTER ROOMSTUDY OF THE CLIFF OBSERVATORY
SCENARIO CIRCUIT
PLATFORMEXERCISE

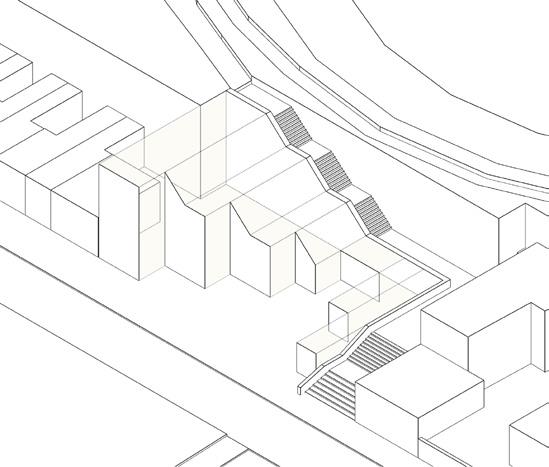

Dissecting the cliff into 7 sections based on the level of the existing staircase and extend each sections towards the street to create a dynamic and welcoming facade. A gathering space is formed in the centre , creating a platform for weekend markets, perfor mance, community events and casual gathering space.
MEETINGOUTDOORAREA PERFORMANCE SPACE PLAYGROUND FLEA MARKET
PICNIC AREA
START-UP
Located at a close walking distance to the Central Busi ness District and Leisure area, the Urban Block act as a public gathering spots and secondary business hub for traditional craft, art and start-up company, adding diversity and opportunities to the community. 15 minutes walk 15minuteswalk10minuteswalk

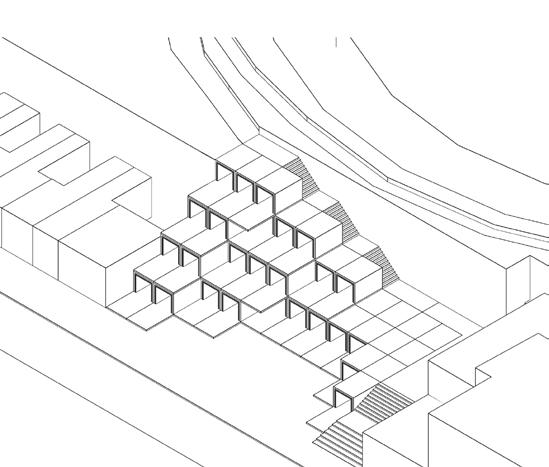

A gathering space is formed in the centre , creating a platform for weekend markets, perfor mance, community events and casual gathering space. The extrusion of the cliff is di vided into 4 levels based on the resting platform of the existing staircase. Existing cliff
CONCEPT EXTENSION-

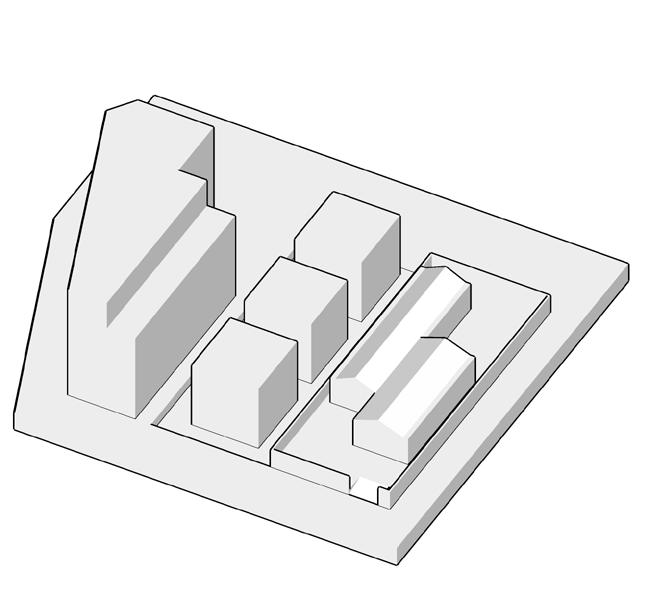

EXISTING
ARTS & CRAFT RETAIL ARTIST’SSTUDIO
HILL OBSERVATORYHILL CENTRALDININGCENTRALRESIDENTIAL EXISTING STAIRCASE
The interior space can be expanded by pulling out the movable layers of facade. On the other way around, pulling in the movable layers can create more outdoor space and even create an outdoor platform when combined with the neighbouring blocks. Fully open outdoor deck can merge with the neighbouring deck to form an outdoor event space. Sheltered outdoor deck create a semi-private space where you can enjoy the sunshine and the view while maintaining a certain degree of privacy Enclosed outdoor deck as an extension of the interior space.
CONCEPTTHE BREATHING FACADE
RECYCLED TIMBER 30% 60%BUILDINGTRANSPARENCYFABRICTRANSPARENCYPVCPANEL
InteriorINHALE space is expanded to the maximum by pulling out the layers of facade and privacy is secured for each blocks.
InteriorEXHALE space is released by pulling in the layers of facade, revealing various size of outdoor platform.

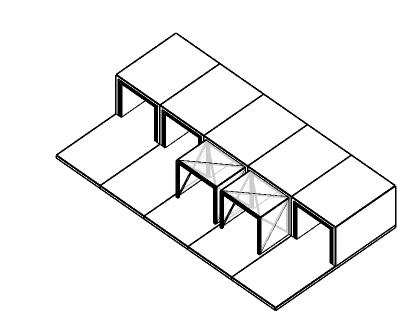

The breathing facade is composed by modular blocks with layers of movable building skin. Each layer of building skin is made from different material in order to achieve a flexible need on privacy based on the user’s need. The block contains half interior space and half outdoor space.
UNPROGRAMMED SPACE Apart from the programmed activity space, several unplanned outdoor space are formed by a combination of outdoor deck. The sequence and scale of these unprogrammed outdoor space are ever-changing, it can be an outdoor cafe area formed by two consecutive outdoor deck or an outdoor exhibition walkway formed by a series of wide and narrow outdoor deck. The activity happening at these unplanned micro public space are fully depending on the users’ improvisation and needs, adding unexpected character and exploring the potential and possibility of the urban space.
OFFICE FULLY OPEN 30% TRANSPARENCY 60% TRANSPARENCY CAFERETAILSTUDIOARTISTLIBRARY Working space Cafe+ + StoreAccessorybar Hand workshopcrafts InternalLibrary meeting space
MODULAR MODIFIABLE BLOCKS Working space Outdoor resting areaeventexchangeBook+ forExhibitionpublic cafeOutdoorstoreClothing Presentation StorageeventdiningPrivateSpace Painting Formalworkshopevents
FULLY COMBINATIONOPEN 01 30%COMBINATIONTRANSPARENCY02 60%COMBINATIONTRANSPARENCY03 PHYSICAL MODEL - MODULAR MODIFIABLE BLOCKS PHYSICAL MODEL - UNPROGRAMMED SPACE
