Anchors

Anchor Bolts • Concrete Anchors • Façade Anchors • General Hardware & Ties • Geotechnical Anchors Masonry Anchors • Post-Tensioning • Reinforcing Anchors • Utility Anchors

DYWIDAG – Systems International GmbH

Phone: +49 8231 96 07 0 Email: geotechnik@dywidag-systems.com Web: www.dywidag-systems.com/emea Product: GEWI® and GEWI® Plus® Bar Anchors, Strand Anchors, Soil Nails, DYWI® Drill Hollow Bars Description: DYWIDAG – Systems International (DSI) DSI o ers a complete system of ground and rock anchors, soil nails and micropiles for geotechnical applications. GEWI Piles and DYWI Drill hollow bars are well respected as innovative solutions worldwide.

Halfen USA

Phone: 800-423-8140 Email: info@halfenusa.com Web: www.halfenusa.com Product: HTA Anchor Channels Description: An ideal cast-in solution to replace post installed anchors and weld plates. HTA Anchor Channels are ICC Approved and provide a high level of adjustability to accommodate large concrete tolerances. Load resistance provided in tension and shear. Available in stainless steel and hot dip galvanized.

Hardy Frame

Phone: 800-754-3030 Email: dlopp@mii.com Web: www.hardyframe.com Product: Hardy Frame Anchoring Solutions Description: Hardy Frame pre-engineered anchorage details for Unreinforced, Reinforced and Back-toBack Reinforced Anchorage Solutions are available to download. Embed details are also available for Z4 continuous tie-down systems. Details are organized to be used as supplemental sheets for plan submittals.

Heckmann Building Products, Inc.

Phone: 708-865-2403 Email: info@heckmannanchors.com Web: www.heckmannanchors.com Product: Pos-I-Tie® ermalClip® Description: A masonry anchor accessory designed to reduce thermal conductivity through masonry walls. e innovative and e ective design of the ermalClip adds thermal-break technology to all of the advantages of the Original Pos-I-Tie Veneer Anchoring System!

Hilti, Inc.

Phone: 800-879-8000 Email: us-sales@hilti.com Web: www.us.hilti.com Product: Hilti Mechanical, Chemical and Cast-InPlace Anchors Description: Full line of anchors for concrete and masonry construction including KB-TZ Stud Anchors, KH-EZ Screw Anchors, HCI Single Point Cast-In-Anchors, Hilti Anchor Channels, HIT-HY 200 and HIT-RE 500 V3 Chemical Anchors. Hohmann & Barnard, Inc.

Phone: 800-645-0616

A MiTek - BERKSHIRE HATHAWAY COMPANY

Email: weanchor@h-b.com Web: www.h-b.com Product: 2-Seal ermal Anchors Description: Innovative anchors engineered to create a thermal break in the wall cavity, reducing heat transfer. Dual diameter washers seal BOTH the insulation and air barrier while stainless steel barrels and a UL-94 coating transfer one-seventh the thermal energy of traditional anchors. Results backed by 2D and 3D thermal testing. Product: 2-Seal ermal Wing Nut Anchor Description: Uses a stainless steel barrel and a proprietary UL-94 coating to reduce heat transfer in the wall cavity to one-seventh of traditional zinc barrel anchors. e wing portion is reinforced with a steel core which will not fail in a re like typical clip-on plastic wings.

Hubbell Power Systems, Inc.

Phone: 573-682-8709 Email: clwitting@hubbell.com Web: www.abchance.com Product: CHANCE Helical Piles Description: Used worldwide to secure deep foundation applications such as residential and commercial buildings, tower foundations, soil retention projects, and heavy equipment foundations.

IES, Inc.

Phone: 800-707-0816 Email: info@iesweb.com Web: www.iesweb.com Product: VAConnect Description: Steel base plates and shear tabs too are what we will design for you. ose anchor ‘calcs’ (Appendix D) are also dealt with easily.

Kelken Construction Systems

Phone: 732-416-6730 Email: ken@kelken.com Web: www.kelken.com Product: Keligrout Structural Adhesive Description: Superior high strength polyesterresin anchoring material works in temps of zero degrees, and in and under water. Keligrout provides guaranteed pullout values exceeding ACI-349-85.

RISA Technologies

Phone: 800-332-RISA Email: info@risa.com Web: www.risa.com Product: RISABase Description: When accuracy counts, RISABase delivers. RISABase uses an automated nite element solution to provide exact bearing pressures, plate stresses, and anchor bolt pull out capacities, eliminating the guess work of hand methods. De ne bi-axial loads and eccentric column locations. Choose from several connection types and specify custom bolt locations. SCIA, Inc – a Nemetschek Company

Phone: 410-207-5501 Email: info@scia.net Web: www.scia.net/baseplate Product: SCIA Base Plate Check Description: A free software that makes it easy to check all required limit states of AISC 360-10 Speci cation Section J (base plates) and ACI 318-11 Appendix D (anchorage). e output is completely transparent so you can see and verify the mathematics.

Simpson Strong-Tie

Phone: 800-925-5099 Email: web@strongtie.com Web: www.strongtie.com Product: Drop-In (DIAB) Internally readed Anchor Description: Improved geometry in the preassembled expansion plug provides better setting capability so the anchor installs with 40% fewer hammer strikes. DIAB anchors feature a positive-set marking indicator at the top of the anchor, helping you identify proper installation.

Product: Titen® 2 Concrete and Masonry Screw Description: Patented undercutting threads make installation easier and increase load capacity. Improved thread design undercuts the base material more e ciently, reducing installation torque and making it easier to drive without binding, snapping or stripping.

Trimble Solutions USA, Inc.

Phone: 770-426-5105 Email: kristine.plemmons@trimble.com Web: www.tekla.com Product: Tedds Description: Automating your everyday structural designs, Tedds’ broad library includes anchor bolt design per ACI 318 Appendix D. e calculation includes comprehensive checks for tensile and shear failure of anchors and is available as part of a free trial at the website.

Product: Tekla Structures Description: Tekla is an Open BIM modeling software that can model all types of anchors required to create a 100% constructible 3D model. Anchors can either be created inside the software or imported directly from vendors that have 3D CAD les of their products.

Wej-it High-Performance Anchors

Phone: 203-857-2200 Email: sales@toggler.com Web: www.wejit.com Product: Wej-it High-Performance Anchors Description: Wej-It produces a wide range of high-quality light duty, mechanical, and adhesive anchoring products for hollow and solid substrates.

CAN A STRUCTURAL FLOOR SYSTEM BE EASY TO INSTALL, COST-EFFECTIVE AND GREEN?

YES.

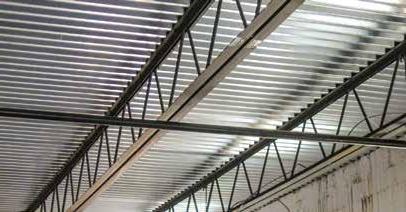

Ecospan is an innovative, simple and economical solution for elevated concrete fl oor and roof systems. The Ecospan Composite The Ecospan Composite Floor System off ers all these 3. Shearflex® HD screw advantages and more. A safe, cutting-edge choice, Ecospan helps reduce building costs while off ering the benefi ts of sustainable building materials that qualify for LEED® certifi cation through the U.S. Green Building Council.

5. Concrete Slab (by others)

4. Concrete Reinforcement (by others)

2. Vulcraft/Verco Steel Deck

1. Vulcraft E-Series Steel Joist

Ecospan is perfect for ICF wall framing systems (Insulated Concrete Forms) (Insulated Concrete Forms)

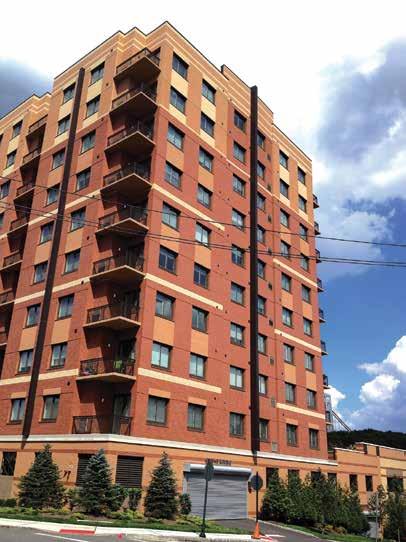

Ecospan is the natural choice for:

Senior Living and Care Facilities Apartments Condominiums Student Housing Military Housing Hotels and Resorts Medical Facilities Offi ce Buildings Mezzanines THE VULCRAFT BIM Schools EVOLUTION

Ecospan Composite Floor System Nucor Vulcraft National Accounts 6230 Shiloh Road, Suite 140 Alpharetta, GA 30005 (678) 965-6667 888-375-9787

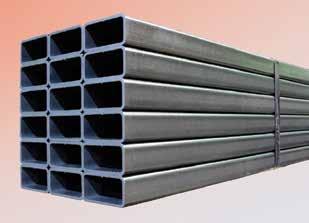

INDEPENDENCE TUBE CORPORATION – founded in 1972, is a leading manufacturer of square, rectangular and round structural steel tubing. Independence Tube produces structural steel tubing from prime steel on the most advanced tube mill equipment in the industry. High frequency welding techniques assure the ultimate in weld integrity. Structural steel tubing’s ease of fabrication, high strength and pleasing appearance make it a “First Choice” material. Potential applications are as unlimited as the designer’s imagination. Independence Tube began in a 53,000 square foot facility located on the southwest side of Chicago. Today, we operate two Divisions in Illinois (Chicago & Marseilles) and two Divisions in Alabama (Decatur & Trinity). Combined operations comprise over 1.7 million square feet under roof and over 150 acres of property.

CHICAGO, IL MARSEILLES, IL DECATUR, AL TRINITY, AL

A500

INDEPENDENCE TUBE produces steel tubing to ASTM A500, ASTM A252 and ASTM A513 in the following sizes. ROUNDS – 1.66" OD x .109" wall through 16" OD from .625" x .688" SQUARES – 2" SQ x .109" wall through 12" SQ x .625" wall RECTANGLES – 2½" x 1½" x .125" wall through 16" x 8" x .625" wall

VALUE ADDED SERVICES off ered are: • I.D. fl ash removal • HSLA grades • Charpy V-notch testing • Pickled and oiled • Weld on the short side • Secial tolerances • Flux leakage • A252 Pipe beveling • Band saw cutting • Mitre cutting ASTM A53

INDEPENDENCE TUBE also manufactures ASTM A53 Type E Grade B pipe in Trinity Alabama in sizes from: Schedule 40 – 2" NPS through 8" NPS | Schedule 80 – 2" NPS through 4" NPS

ROLLING SCHEDULE – With a yearly published on–time rolling schedule second to none in the industry, you can manage your inventory more closely, knowing that material will be ready when promised. Independence Tube also off ers Vendor Managed Inventory (VMI), Electronic Data Interchange (EDI) and bar coding; all of which have become very important services in the management of inventory and communications. www.independencetube.com/www.itctube.com/itcpiling.com The next time you are on–line, please take a moment to visit our new web site. There you will fi nd our Company history and product information downloads. In addition, www.itctube.com is our 24/7 on–line customer secure Portal which will allow you to view inventory, place orders and inquiries, release loads and view and download open order reports and test reports. Independence Tube is an active member of the American Institute of Steel Construction (AISC) and the Metals Service Center Institute (MSCI), the Farm Equipment Manufacturers Association (FEMA), the Pile Driving Contractors Association (PDCA) and the National Association of Pipe Distributors (NASPD) and its products can be purchased at steel service centers across North America.

We Have The Smartest Customers In The Industry Customers In The Industry We Want To Keep It That Way.

We Want To Keep It That Way.

Independence Tube is launching a major educational initiative. Independence Tube Corporation University – ITC U. Tube and pipe products are becoming more and more a first choice material for conventional as well as non-conventional applications. On-line Training We will offer on-line tutorials that will provide industry knowledge and training to empower architects, engineers, designers, fabricators and service center professionals on the manufacturing and benefits of HSS and the industries it supplies. Team of Experts We will have a dedicated web page where you can submit your questions. Our team of experts, including an engineer and metallurgist, will answer all your concerns. From our rolling practices to exploring the grades and sizes we produce. We will let you determine how HSS can fit into your next design, fabrication or structure. School is now in session. Sign up today, it’s free.
