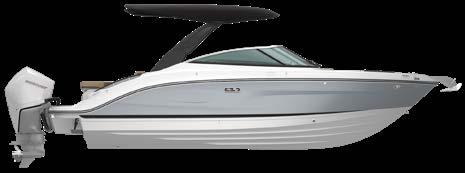

Sea Ray SLX 260 Outboard

BORN TO SHINE

The SLX™ 260 Outboard combines ingenuity with intuition to reveal a host of next-level features that make boating effortless. Everything aboard has been carefully considered in response to feedback from boaters. Seating has been improved for a smoother, more luxurious ride. Integrated storage keeps gear, watersports equipment and other items secure and within reach. The expanded transom sunpad presents a relaxing space to take in the sights along the water’s edge. Leveraging sophisticated style and easy-to-use amenities, the SLX 260 Outboard truly shines in delivering an escape from the day-to-day.

STANDARD PROPULSION

Mercury ® 300 Verado ® Outboard

hp / 224 kW) – black

CRUISING SPEED

30–32 mph / 48–51 kph

WIDE OPEN THROTTLE (WOT)

51–53 mph / 82–85 kph

FUEL CAPACITY

gal / 284 L

RANGE

192 mi / 309 km (cruising speed)

mi / 233 km (WOT)

LENGTH OVERALL

28′7″ / 8.71 m with outboard

30′0″ / 9.14 m with outboard & anchor

BEAM

m

BRIDGE CLEARANCE

5′3″ / 1.60 m without tower

8′5″ / 2.57 m with tower

DRAFT

34″ / 86 cm (outboard down)

cm (outboard up)

DRY WEIGHT

lb / 2,524 kg

WATER READY WEIGHT

lb / 3,184 kg (fully optioned)

DEADRISE

gal / 53 L

HOLDING TANK

gal / 23 L

CAPACITY

15 people / 2,190 lb / 993 kg

Maximum: 3,210 lb / 1,456 kg

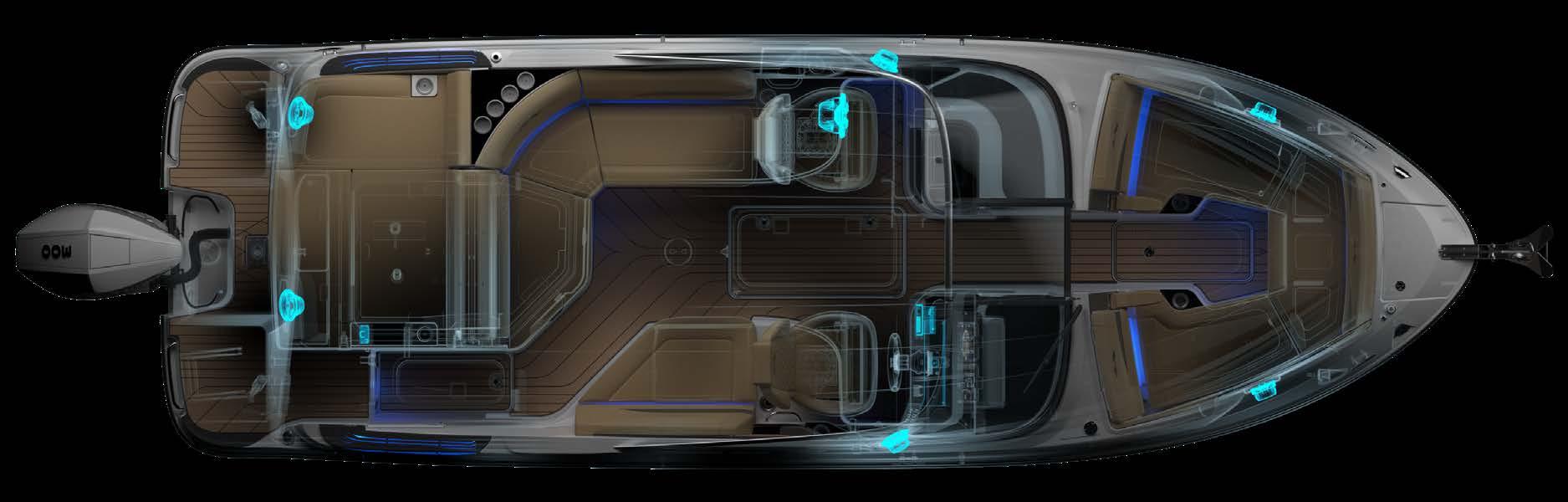

AT A GLANCE

A POWER TOWER T-TOP

The boat is available with a nextgeneration Power Tower featuring removable canvas sections that can be unzipped to reveal a T-top opening.

E PLUSH BOW SEATING

The bow offers lounge-style seating with foldable armrests. Choose the Comfort Bundle to add a teak table and filler cushion.

B DELUXE COCKPIT

The cockpit showcases an updated layout with deeper ergonomic seating for a smoother ride.

F BOW UPGRADES

With the Anchor Bundle, the bow can be enhanced with a stainless steel anchor, windlass, rope and chain.

C REIMAGINED WINDSHIELD

For a more enjoyable cruising experience, the windshield has been redesigned to be angled level with the horizon when the boat is planing.

D PORT-SIDE COMPARTMENT

The convenient port-side compartment can be used to store gear or upgraded to a head for uninterrupted boating.

F

A B D E

C

A SEAMLESS CONTROL

The helm is equipped with a Dual Digital Dash™ for effortless captaining, including 9″ Simrad ® touchscreen displays with Mercury ® VesselView ® Mobile.

D OPTIMIZED STORAGE

Integrated storage optimized for space has been incorporated throughout the boat. A storage area under the sunpad is ideal for stowing floating water mats and inflatables.

B FUSION ® AUDIO

Listen to music out on the water with premium sound from the Fusion ® stereo or select the Entertainment Bundle for a Fusion ® Premier audio system.

E POWERFUL PROPULSION

The boat features a standard Mercury ® 300 Verado ® outboard engine with SmartCraft ® Digital Throttle & Shift (DTS) and optional Dynamic Running Surface™.

C VERSATILE SUNPAD

The expanded sunpad presents an inviting place to relax. A space under the sunpad can be filled with drinks for an integrated cooler or kept empty for dry storage.

C

A B D E

VINYL UPHOLSTERY

BOW & COCKPIT FLOORING

SWIM PLATFORM FLOORING

STANDARD FEATURES

BOW & COCKPIT

• Cup holders, stainless steel (17)

• Floor liner, fiberglass (self-bailing)

• Lighting, LED (courtesy)

• Outlets, 12V accessory (helm & transom) – 2

• Outlets, USB dual port (5)

DOORS

• Bow block-off door, acrylic

• Hatch for bilge access, gas-assisted

• Transom door, acrylic

SEATING

• Aft L-shaped bench seating with storage below

• Bow seating, U-shaped with foldable armrests & hinged cushions

• Cockpit social area with opposing seating & storage

• Helm bucket seat with swivel, slider & flip-up bolster

• Port companion bucket seat with swivel, slider & flip-up bolster

• Sunpad

STORAGE

• Bow storage (in floor & under seating)

• Cooler storage (cockpit)

• Side panel tubs (cockpit)

• Ski & wakeboard storage, gas-assisted (cockpit floor)

HULL & DECK

• Bow rail, vinyl-wrapped stainless steel

• Cleats, stainless steel through-bolted (8″) – 6

• Deck fill plate, stainless steel

• Drain plug

• Eyes, stainless steel (bow & stern)

• Handrails, stainless steel

• Light, removable (stern)

• Lights, navigation (stainless steel) – integrated into deck

• Rub rail, PVC with stainless steel insert

• Swim platform, integral with concealed stainless steel four-step swim ladder & grab handles

• Thru-hull fittings, stainless steel

• Windshield, tempered tinted curved glass with walk-through door & stainless steel header

STORAGE

• Anchor storage

• Glove box (port console door)

• Integrated cooler or dry storage, fiberglass (under sunpad)

• Storage (transom walkway floor)

• Storage with lockable door (under port console)

• Transom storage for gear & inflatables with gas-assisted fiberglass lid (under sunpad)

TECHNICAL

ELECTRICAL

• Battery charger, 12V onboard (triple bank)

• Electrical system, 120V 60Hz

• Fuse block

• Remote battery switches

FUSION ® AUDIO SYSTEM

• AM/FM stereo (helm)

• Bluetooth™

• Digital Signal Processing (DSP)

• Wi-Fi audio streaming with Apple AirPlay ® 2

• XS Series speakers (6.5″) – 2 pairs

HELM

• Digital Dash™, dual (9″)

• Active Trim control & monitoring

• Chartplotter with preloaded charts (North America only)

• CZone ® digital switching

• Mercury Marine ® VesselView ® Link

• Simrad ® 9″ touchscreen displays (2)

• Transducer with depth, water temperature & fishfinder

• Horn

• Mercury Marine ® SmartCraft ® Digital Throttle & Shift (DTS)

• Active Trim speed-based automatic engine trim system with integrated GPS

• Engine start / stop

• Mercury Marine ® VesselView ® Mobile

• Parallel start system

• Steering, power-assisted with tilt wheel

• Switch panel with illuminated weatherproof chrome switches

• Tilt & trim, power

MECHANICAL

BILGE

• Bilge lighting, 12V

• Bilge pump, 1200 GPH 12V automatic (aft)

• Bilge storage, finished (aft)

• Vents, integral

FUEL SYSTEM

• Evaporative emissions fuel system

• Fuel lines, USCG compliant

• Fuel tank with anti-siphon valve & electric sending unit

UNDERWATER GEAR

• Propellers, stainless steel

OPTIONS & ACCESSORIES PROPULSION

• Mercury ® 300 Verado ® Outboard (300 hp / 224 kW) – white

BOW & COCKPIT

• Boarding ladder, stainless steel concealable four-step with hatch (bow)

• Flooring, Infinity Luxury Woven Vinyl™ (snap-in)

• Flooring, SeaDek ®

• Side entry step (starboard cockpit)

HULL & DECK

• Air compressor for water toys with dedicated storage

• PTM Watersports Premium ski mirror

• Ski tow pylon, removable

• Windshield wiper (starboard)

TOPS & CANVAS

• Bimini top & boot with stainless steel ball & socket

• Mooring cover – black

• Power Tower with removable canvas T-top & automated extended sunshade

• Sunshade, manual with poles (bow seating)

• Wakeboard racks, three-position swivel

TECHNICAL

ELECTRONICS

• 1st Mate™ Marine Safety & Security System

• Fusion ® tower speakers (only available with tower option & Entertainment Bundle)

• Apollo™ Series monoblock amplifier for subwoofer (2000W)

• Signature Series can speakers (8.8″) – 2

MECHANICAL BILGE

• Storage caddy

UNDERWATER GEAR

• Dynamic Running Surface™ (trim tabs that automatically optimize running attitude & trim, delivering stability & performance)

• Propellers, high-altitude

• Trim tabs, electric with indicator

WASTE SYSTEM

Options require Water System Bundle.

• Gray water system

• Macerator with seacock interlock system

• Pump-out head with sink & holding tank

• VacuFlush ® head with sink & direct overboard discharge(international only)

• VacuFlush ® head with sink & holding tank

TRAILERS

• Trailer brakes, electric over hydraulic

• Trailer, galvanized tandem axle with bunks & tandem axle disc brakes

• Trailer, painted tandem axle with bunks & tandem axle disc brakes

INTERNATIONAL SYSTEMS

• CE certification

Some features and options may not be available when a boat is built for regions outside North America and/or has CE certification. Boats ordered with 220V 50Hz electrical systems will have the appropriate appliances in the corresponding voltage.

BUNDLES

ANCHOR BUNDLE

• Anchor, stainless steel

• Windlass with rope & chain

COMFORT BUNDLE

• Filler cushion (bow)

• Table with dedicated storage, teak (bow)

• Table with dedicated storage, teak (cockpit)

ENTERTAINMENT BUNDLE

ELECTRONICS

• Inductive charging station

FUSION ® PREMIER AUDIO SYSTEM UPGRADE

• Apollo™ RA770 AM/FM stereo (helm)

• Apollo™ Series amplifier, 8-channel (2400W)

• Bluetooth™

• Digital Signal Processing (DSP)

• NRX300 remote unit (transom)

• Signature Series speakers (7″) – 3 pairs

• Signature Series subwoofer (10″)

• Wi-Fi audio streaming with Apple AirPlay ® 2

ESSENTIALS BUNDLE

• Cockpit & tonneau covers

• Fender clips, quick connect (6)

• Flagpole with base & U.S. flag

• Swim platform & port console storage flooring, SeaDek ® (glue-down)

LIGHTING BUNDLE

• LED RGB-W color-changing & white accent lighting package

• Lighting for bow & cockpit

• Lighting for cup holders

• Underwater thru-hull (2 lights)

• Lights, docking

• Sea Ray badge, illuminated (hull)

• Sea Ray logo light projected onto cockpit floor (only available with Power Tower option)

WATER SYSTEM BUNDLE

• Bow washdown

• Pullout sprayer (transom)

• Water pressure system with 12V pump & filtration

COMFORT BUNDLE

Add a touch of luxury to your Sea Ray with stowable teak tables and a filler cushion that converts the bow into an expansive sunpad.

Teak bow tableBow filler cushion

Teak cockpit table

Signature Series subwoofer and speaker

remote unit and

speakers

Series bow speaker

Premier Audio system with Apollo™ RA770 stereo and inductive charging station

ESSENTIALS BUNDLE

For a superior boating experience, elevate your Sea Ray with some of the most popular accessories requested by boaters.

Flagpole with base and U.S. flagQuick connect fender clips

SeaDek ® swim platform flooring

Cockpit and tonneau covers

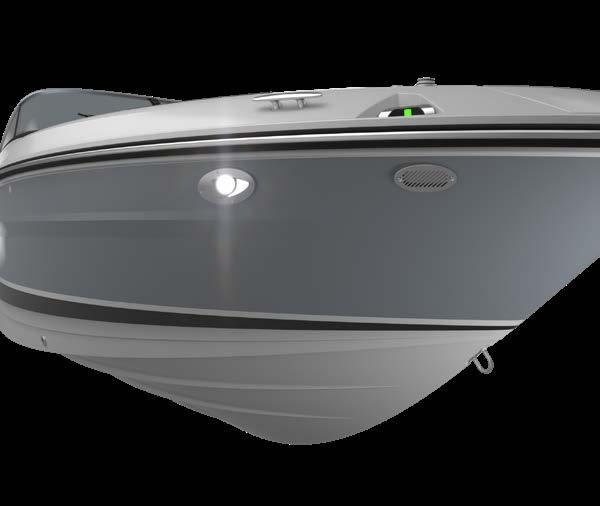

LIGHTING BUNDLE

from day to night during a sunset cruise or twilight excursion with illuminating

that enhance the ambience.

Sea Ray badge

color-changing and white accent lighting package

lights

WATER SYSTEM BUNDLE

Rinse sand from your Sea Ray and gear while out on the water with a convenient bow washdown and transom sprayer.

washdown

pullout sprayer

SEA RAY,

RICHER MOMENTS

EVERYTHING

THE WATER

MOMENT EXCEPTIONAL.
