angles, as long ago as the 1970s, cued by the use of helmet mounted sights, this technology has only recently become really widely adopted.

Apartheid South Africa’s isolation led to the development of a succession of advanced IR-homing air-to-air missiles, culminating in the A-Darter (V3E), which was given a formal Type Certificate by South Africa and Brazil in September 2019, and which has been cleared for use on the Saab JAS39 Gripen. The A-Darter has a thrust vectoring control (TVC) system, and a two colour thermal imaging seeker. The weapon has a range of 12 nautical miles (22km), and the absence of aluminium powder in the propellent inhibits production of a smoke trail.

Rafael’s Python 5 marks the latest in a series of Israeli air-to-air missiles. The missile has 18 control surfaces, which are claimed to make the weapon at least as agile as rival missiles with thrust vectoring. The advanced seeker includes an electro-optical (EO) and image infrared (IR) homing seeker which scans the target area for hostile aircraft, then locks-on for terminal chase. Python 5 has a range of 10nm (20 km) and carries an 24 pound (11 kilogram) warhead.

Arguably the most interesting WVR missiles on the market today resulted from the same requirement! In the 1980s, North Atlantic Treaty Organisation (NATO) nations signed a Memorandum of Agreement (MoA0 under which the United States (US) would develop the AMRAAM for beyond visual range (BVR) use, while European countries abandoned their medium range missile programmes. The quid pro quo was that an Anglo-German team would develop a short-range air-to-air missile to replace the AIM-9 Sidewinder. But in the end, the US and Germany would drop out of the original ASRAAM programme to develop their own short-range missiles, while the UK programme gave rise to an entirely new design.

The US developed the AIM-9X, marrying the rocket motor, fusing system, and warhead, from the AIM-9M to a new focal-plane array (FPA) seeker, a digital autopilot, fixed forward canards, with steerable tail surfaces and three-dimensional thrust vectoring. The Focal Plane Array had been designed by BAE Dynamics for ASRAAM,

MBDA MICA fired from a Rafale.

Network and connect with key military, industry and government decision makers at the premier land forces exposition for Australia and the Indo-Asia-Pacific region. LAND FORCES will highlight defence capability and showcase platforms, equipment, support and technologies. l Military, government and industry conferences and briefings l International defence, government, industry and academic delegations l Comprehensive industry exhibition Don’t miss this opportunity to network and connect with key thought leaders through this established, worldclass exposition.

Platforms - Equipment - Support - Technologies www.landforces.com.au

BRISBANE CONVENTION & EXHIBITION CENTRE, AUSTRALIA Proudly supported by the Queensland Government

For further information contact the LAND FORCES Sales Team: PO Box 4095 Geelong, Victoria 3220 Australia T: + 61 (0) 3 5282 0500 E: expo@amda.com.au

USAF

USAF airmen prepare the AIM-9X Sidewinder missile before a live fire test at Holloman Air Force Base, New Mexico, in 2019. The AIM-9X is arguably the most advanced infrared-tracking, short-range, air-to-air and surface-to-air missile.

but was due to have been manufactured by Hughes in the US. The AIM-9X’s lower drag gives it improved range and speed than its predecessors, with a claimed range of 19nm (35km). Some 13 separation and control test launches and 12 guided launches were performed from US Navy Boeing F/A-18s and USAF Boeing F-15s between 1999 and 2000, leading to a first low-rate initial production contract for the AIM-9X in November 2000 and initial operational capability (IOC) in November 2003.

The AIM-9X Block II missile was an upgraded variant with a new datalink and a lock-on-after-launch capability, and this entered service in 2015. The AIM-9X is claimed to have improved infrared counter counter measures (IRCCM) performance but has apparently had some difficulty with older Soviet-era flares. When a US Navy F/A-18E Super Hornet strike fighter tried to shoot down a Syrian Su-22 ‘Fitter’ the AIM9X was decoyed, and the F/A-18E had to fire an AIM-120.

Germany withdrew from the ASRAAM project in 1990, after it discovered that the capabilities of the Vympel R-73 missile (the AA-11 ‘Archer’) had been seriously underestimated, and that it was far more capable in terms of seeker acquisition and tracking than the latest AIM-9 Sidewinder. This led Germany to develop a new, tail-controlled, thrust-vectoring missile with a new imaging IR seeker, but which retained the diameter, length, mass and centre of gravity as the AIM-9, ensuring that any aircraft capable of firing the Sidewinder would also be capable of launching the Diehl BGT Defence IRIS-T, using the same missile launcher interface. Slower than many of its competitors, at just Mach 3, IRIS-T had a range of 14nm (25km).

Following the departure of Germany from the ASRAAM consortium, a new version was designed to meet the Royal Air Force’s (RAF’s) specification, with no operational or technical compromises to satisfy the requirements of other customers. BAE received a $786 million (£570 million) development and manufacturing contract in 1992, and a first guided firing was undertaken in the US, in 1996, from an Lockheed Martin F-16 test aircraft.

UK Service Evaluation Trials were flown by the Panavia Tornado F3 OEU, which deployed to Eglin Air Force Base in April 2002. A Tornado F.Mk 3 downed a pair of QF-4 drones in the process.

After some delays, the AIM-132 ASRAAM finally entered service with the RAF in 2002. The introduction of ASRAAM revolutionised RAF air defence capabilities. The revolutionary focal plane array (FPA) seeker allowed targets to be acquired at significant BVR distances, while the high energy motor provided very high acceleration, and gave range performance that was comparable with the last generation of radar-guided BVR missiles. The ASRAAM’s range is usually stated to be ‘in excess of 13nm (25km)’ and has been reported to be as long as 26nm (50km).

ASRAAM was designed for use against targets at much longer ranges than other IR-homing missiles, responding faster, getting off the rail faster, flying faster and reaching further than any other competing missile, and reaching as far as early versions of the AMRAAM.

To ensure this, ASRAAM used a 6.5 inch (16.51cm) diameter rocket motor. This compared to the 5in (12.7cm) motors used by the AIM-9M and AIM-9X and IRIS-T. This gave the ASRAAM significantly more thrust, speed and range. The weapon frequently defeated targets that tried to break off an engagement, as they were unable to achieve sufficient separation from the launch aircraft to avoid being shot down. ASRAAM also proved able to discriminate easily between decoy flares and real targets. With a full digital integration on the Typhoon, including the use of a helmet-mounted sight, ASRAAM proved even more impressive, demonstrating unmatched high off-bore sight capabilities.

The missile can be fired ‘over-theshoulder’ to engage a threat behind the launch aircraft, and the target does need not be in the seeker's field of view at launch

An F-16 Fighting Falcon from the 49th Wing at Holloman Air Force Base, N.M., fires an AIM-9M Sidewinder during training and evaluation at Weapons System Evaluation Program-East, 10 March, 2021.

SUBSCRIBE NOW!

thE dEfENCE dECISION-MAKER’S fIRSt-ChOICE REfERENCE JOURNAL ARMAdA INtERNAtIONAL & COMPENdIUM SERIES OffER YOU INSIGht & ANALYSIS tO StAY AhEAd.

Pursuing Pirates OPtrOnics DevelOPments + sPecial OPeratiOns Quarterly CYBER WARFARE FIGHTER RADAR + UNMANNED sYsTEMs CoMpENDIUM

UNMANNED SYSTEMS

A Compendium by Armada International

A Quarterly Armada International Supplement

SignalS intelligence

Dec 2015/JAN 2016. Issue 06. AFGHANISTAN’S ENDLESS WAR AFGHANISTAN’S ENDLESS WAR

feb/mar 2016. Issue 01.

2016

: The TrusTed source for defence Technology analysis

Q4 2015/Q1 2016 : The TrusTed source for defence Technology analysis

SUPER SAVER OFFER VALID FOR LIMITED PERIOD

ORDER FORM

Annual Subscription: For Europe CHF 222 Other countries USD 222

Yes, I would like to receive 1 year 2 years Please deliver the magazine at the below address: Name:..........................................................................Position / Rank:...................................................................................... Organisation / Unit:........................................Address: .............................................................................................................. ..................................................City:....................................... Postcode:.................................. Country:…….…....…………. Tel:…………………………..................... Fax:………….……...…….....…............. Email:…….…....…...............................

I would like to pay by card. Mastercard Visa Card Number:………….................................. Expiry Date:..............................Signature:........................................................ Name on Card:............................................................................. Card Security Code............................................................... Auto Renewal: Yes No

Your subscription will automatically be renewed after your initial term for a one/two year subscription unless you tell us to stop. Before the start of each renewal, you will be sent a reminder notice stating the rate then in effect. If you do nothing, your credit/debit card will be charged or you will receive an invoice for another subscription year. You may cancel at anytime during your subscription and receive a full refund for unmailed issues

By cheque: Cheque made payable to: Media Transasia Limited, MAIL or FAx your subscription form to: : Media Transasia Ltd., 75/8, 14th Floor, Ocean Tower 2, Soi Sukhumvit 19, Bangkok 10110 THAILAND. Tel +66 2204 2370 Fax: +66 2204 2387 Email: accounts@mediatransasia.com or subscribe via www.armadainternational.com

Saab

A Swedish Air Force Gripen E test firing a Diehl BGT Defence IRIS-T missile.

because of the midcourse inertial guidance capability. This capability was demonstrated in 2009 by a Royal Australian Air Force (RAAF) F-18, which conducted a successful lock on after launch firing of an ASRAAM at a target behind the wing line, simulating a ‘chase down’ situation by an enemy fighter.

The US refused to share ASRAAM integration data with F-16 operators, hoping to advantage the home-grown AIM-9X. This effectively shut off a potentially huge export market for ASRAAM sales. The RAAF shortlisted ASRAAM for its F/A-18A Hornet fighters in 1997, after evaluating it against the Rafael Python 4 and the AIM-9X, which were judged to be inferior.

A new Block 6 ASRAAM is now in production, incorporating a new generation seeker of increased pixel density, and a new rocket motor, a new intelligent proximity fuze, and a new actuation system from the CAMM air defence missile. The new variant has already been selected and ordered by the Sultanate of Oman and Qatar for their Eurofighter Typhoons, and by India, and further exports are likely.

MBDA inked a $428 million (£250 million) contract to supply 384 missiles to India in July 2014, to equip its upgraded SEPCAT Jaguar fighter-bombers under the ‘New Generation Close Combat Missile’ (NGCCM) programme. The ASRAAM is also set to equip India’s Sukhoi Su-30MKI squadrons, and the indigenous Light Combat Aircraft (LCA).

The IRIS-T configuration is shared by the Japanese AAM-5B, which entered service in 2004, though exports are unlikely, so it remains of little interest outside the JASDF! Interestingly, the new Chinese PL-10 also uses the same basic configuration, and this weapon has been claimed to be China’s most advanced air to air missile. A prototype was reportedly completed in 2013, and the weapon has been tested on the stealthy J-20 and on the J-11 (a licence-built Su-27). On the J-20 the weapon can move from its internal weapons bay to a semi-external position, with weapons bay doors closing behind it to give the seeker a view of the outside world, while minimising radar returns from the weapon bay itself. The PL10 should not be assumed to be an IRIS-T copy, though previous Chinese AAMs have often been copies of Western designs.

Interestingly, France followed a very different approach in developing its MICA (Missile d’interception, de combat et d’autodéfense, ‘interception, combat and self-defence missile’), producing a longer-range weapon for use over both short and medium ranges. MICA was developed by Matra from 1982, with the French company subsequently becoming part of the Anglo French MBDA. Flight trials began in 1991, and the missile was ordered in 1996 to equip the Dassault Rafale and Mirage 2000.

MICA is available in two versions – the MICA RF with an active radar homing seeker and the MICA IR with an imaging infra-red homing seeker. The intention was to provide a missile that would replace both the ‘French Sparrow’ – the Matra Super 530 - in the BVR intercept role but also the shorter-range Matra Magic II IR-homing dogfight missile. The weapon was the first Western air-to-air missile to use thrust vectoring but it is neither as agile as some competing IR-homing rivals nor as fast and as lethal as other BVR weapons, but it does represent an interesting, effective and useful compromise.

MICA is not yet believed to have a mature integration with a helmet cueing system, but has demonstrated a third-party targeting capability, undertaking a ‘Parthian’ over-the-shoulder shot against a pursuing target.

There is a new generation of shortrange ‘dogfight’ missiles now under development, not least in the US, where the USAF has sponsored two separate research and development programmes by Raytheon: the Small Advanced Capability Missile (SACM) and Miniature Self-Defense Munition (MSDM). Lockheed Martin has also designed a conceptual air-to-air missile known as Cuda, and nicknamed ‘Halfraam’, which promises to double the F-22’s missile load, and to provide a short-to-medium range weapon.

In recent concept artwork portraying a number of future fighter programmes, tomorrow’s fighters have been shown using directed energy weapons against other aircraft. But these weapons remain essentially unproven, and despite decades of research and development, they are still at the experimental stage. They are likely to demand huge amounts of electrical power and are liable to have only the most modest range. The air-to-air missile looks like it will be here to stay – at least for the foreseeable future.

Rafael

Rafael’s Python 5 air-to-air missile has 18 control surfaces which gives the missile its agility.

BEGINNING OF THE END FOR F-35?

Jon Lake

The United States Air Force’s (USAF) Warfighting Integration Capability (AFWIC) office has drawn up a new future fighter roadmap that would cap Lockheed Martin F-35A deliveries at “about 1,050 jets” representing a 720 aircraft reduction. AFWIC argues that legacy platforms like the Boeing F-15 and Lockheed Martin F-16 can and should continue to play a vital role in the USAF’s frontline force mix, and this is likely to be reflected in the new TacAir study launched by the USAF, in association with the Pentagon’s Cost Assessment and Program Evaluation (CAPE) office.

New USAF chief of staff General Charles Q.Brown has characterised the F-35 as a boutique, high-end fighter in the same class as the Lockheed Martin F-22. It is perhaps worth remembering that the USAF ended F-22 production prematurely, after just eight test aircraft and 187 operational aircraft had been built – far short of the 750 advanced tactical fighters that it had originally envisaged.

Former Pentagon acquisition tsar Will Roper was just as critical, observing that: “the F-35A is ‘a long way from being an affordable fighter that we can buy in bulk’.”

Although procurement cost of the F-35 has dropped to around $102.7 million (Lockheed Martin’s claim of an $80m unit cost does not include the engine) the aircraft still has prohibitively high operating, support and sustainment costs, and availability remains below expectations. These facts are the source of growing anger and frustration among the top brass.

The USAF has not yet officially abandoned plans to buy 1,763 F-35A aircraft, and this figure remains the official ‘program of record’, but the service has clearly begun to examine options for the future of its tactical fighter fleet. Some radical alternatives are clearly being considered in the new TacAir study, which will aim to establish the right mix of aircraft, what capabilities they should have and how many of each type will be required.

While it is far too early to predict with certainty what the report’s conclusions may be, it is already clear that the USAF is shifting further and further away from

Get the latest insiGht into the defence industry

www.armadainternational.com

USAF/ Matthew Short

its original plan to deploy an all-stealthy frontline force, consisting of Boeing B-2 bombers, F-22 air dominance fighters, and F-35 tactical fighters.

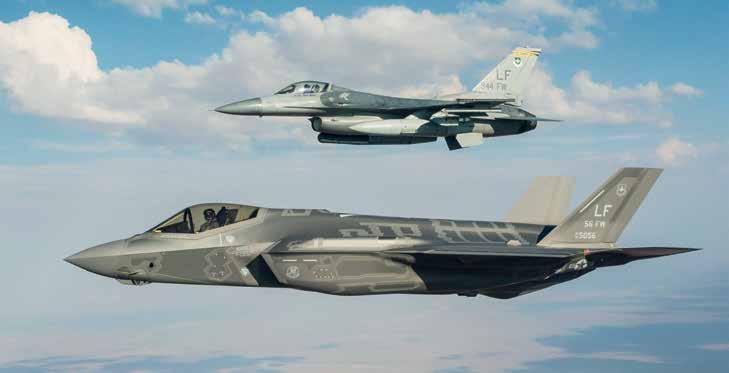

In recent years, the operational and cost advantages of using fourth and fifth generation fighters together, leveraging the strengths of each, has been recognised and embraced much more widely. Fourth generation fighters enjoy some attributes that aircraft like the F-35 do not share. They can carry bigger weapon loads and more AAMs to the fight, and some may enjoy superior performance, or have more advanced sensors, or may be able to use rapidly reprogrammable electronic warfare (EW) equipment to protect them against enemy air defences. Some believe that this kind of ‘digital stealth’ is actually more effective than traditional stealth in countering an evolving threat, since jammers can be upgraded or replaced whereas an low observable aircraft’s shape, structure and surface coatings cannot be changed. There has also been an acknowledgement that the USAF has the wrong mix of aircraft for the lower-end fight – something for which stealth fighters are arguably particularly poorly suited.

The USAF has recognised this, and has revealed “expanded plans to blend legacy fourth- and fifth-generation fighters to meet a range of mission sets.” It has also started to acquire new fourth generation fighters, something that would have been deemed unthinkable a few years ago. The idea that only stealthy fighters can provide a meaningful capability now seems very old-fashioned.

Delays to the F-35 forced the USAF to delay the planned retirement of the F-16 from 2025 to at least 2048, and the USAF has now purchased an initial eight F-15EX Advanced Eagles and is eventually set to procure at least 144 F-15EX aircraft.

Continued procurement of the F-35, with its sky-high operating and support costs, will threaten the USAF’s ability to expand to fulfil former chief of staff General Dave Goldfein’s goal of growing the force from 312 to 386 operational squadrons by 2030. His replacement, General Brown, reportedly believes that the USAF is hurtling toward “the most difficult force structure decisions in generations” and has said that hard choices must be made.

“Programs that once held promise, but are no longer affordable or will not deliver needed capabilities on competition-relevant timelines, must be divested or terminated,” he stated last August.

Brown would like to introduce a more cost-effective alternative to the remaining, unbuilt, F-35As and buying new F-16s could also be an option. General Brown (himself a former F-16 pilot) is, however, “open to looking at other platforms to see what that right force mix is.”

Brown reportedly thinks that the USAF needs an aircraft with an open mission systems architecture, and with enough computing power to allow software codes to be updated very quickly. He believed that even the latest F-16 variants lack this, and will therefore be unable to provide the kind of operational agility that the USAF needs.

Brown told a defence media roundtable: “I want to be able to build something new and different that’s not the F 16 — that has some of those capabilities, but gets there faster and uses some of our digital approach,” adding, “I want to entertain a clean-sheet design of something that’s not necessarily fourth-generation, but may not be completely fifth-generation either….. Let’s not just buy off the shelf, let’s actually take a look at something else out there that we can build.” This was the first time that a senior US Air Force officer had advocated introducing a new fourth-generation aircraft into the USAF inventory.

But if such an aircraft is adopted, and if the USAF does cap F-35A production at 1,050 aircraft (60 percent of the planned total), what will that mean for F-35 sustainment costs and for the economies of scale that F-35 export customers were expecting? And what does it say about the USAF’s long term commitment to the type? Air staffs in Australia, Japan, South Korea, and Singapore will doubtless be watching developments with great interest.
