October 2019 Products

Ultrasonic level sensor

Anfield Sensors | anfieldsensors.com

This economical ultrasonic level sensor can be used as a simple multipoint level switch or for continuous feedback through a 4–20 mA loop. Its compact size and robust design is made for industrial or mobile equipment. It features a 5 to 78 in. (13 to 200 cm) sensing range and four digital outputs and one analog (4–20 mA) output. The robust design comes from its cast aluminum body with IP65 rating, no moving parts and all-metal enclosure. Features include a 1-in. NPT process connection and digital display with push buttons for setup. It offers advanced USB programming.

Additionally, the design compensates for fluid sloshing and provides accurate level measurement of up to 0.5% of full sensing range. The sensor provides non-contact measurement and can be programmed easily with free downloadable software.

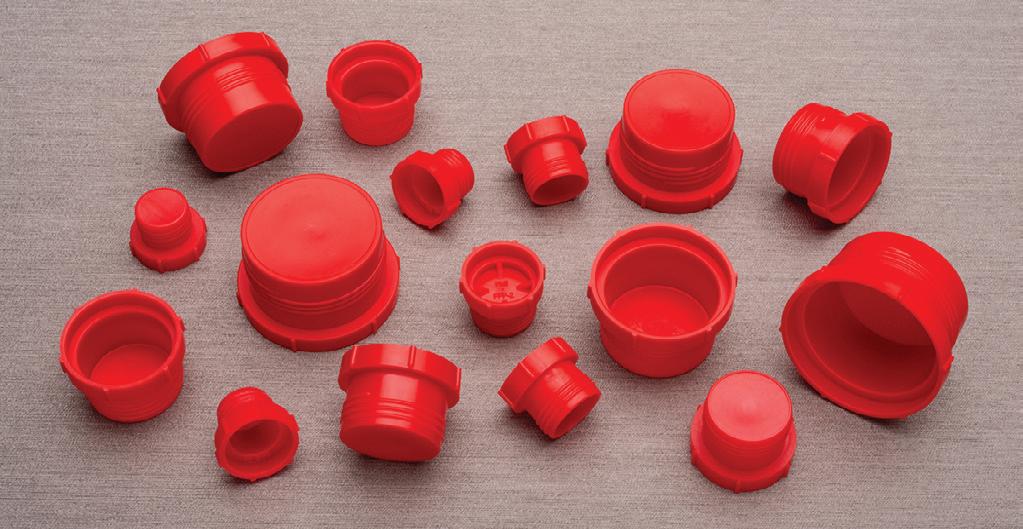

Hydraulic plugs

Polymer Molding Inc. | polymermolding.com

Polymer Molding’s new hydraulic plugs provide a positive seal for SAE straight thread O-ring ports and MIL-MS-33649 bosses. The FFP series threaded plugs are knurled to protect against contaminants and for easy assembly and removal on fluid power components. An integrated O-ring type bead seals in the bevel of the port to prevent contaminants and oil leakage. The FFP series plugs are molded in high-density polypropylene. The standard color is red.

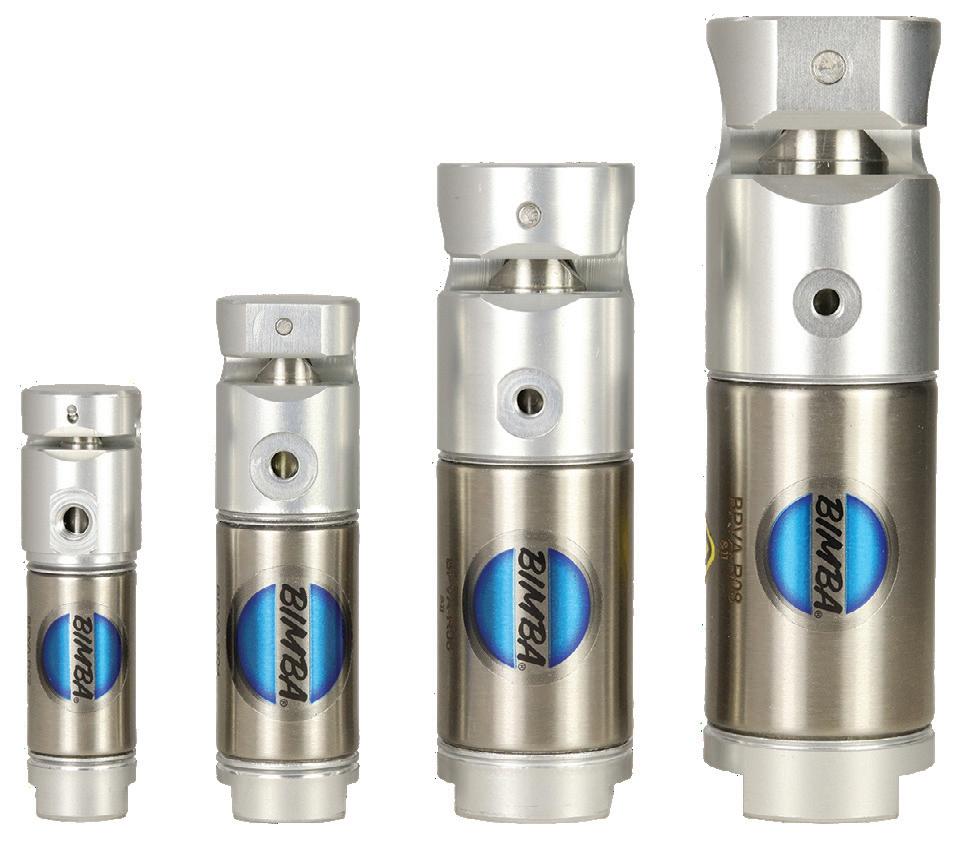

Compact line of pneumatic pinch valves

Bimba | bimba.com

Bimba has launched the BPVA, an affordable, compact, pneumatic pinch valve. The BPVA expands the pinch valve portfolio with a more cost-effective solution for industrial and medical applications. As with its other pinch valves, the BPVA is designed as an alternative to traditional wetted valves by opening and closing flexible tubing to control the flow of media; it never makes contact with the valve.

The BPVA:

• requires less maintenance and reduces the risk of contamination, • offers a life expectancy of 3 million cycles, • features a compact design that enables operations in confined spaces, and • is available at a cost-effective price point

With a completely stainless-steel, corrosion-resistant option, the BPVA is suitable for wash down and sanitary environments. Additional options such as mounting brackets, various seal materials, and magnetic position sensing accommodate a broad range of applications.

Subfreezing dryer

Ingersoll Rand | ingersollrand.com

Ingersoll Rand has introduced its new dryer technology, the Subfreezing Dryer. The Subfreezing Dryer is the first dryer that provides a -4° F pressure dew point at 70% lower energy costs and 40% smaller footprint than that of traditional desiccant dryers. It is compatible with oil-flooded rotary compressors, oil-free rotary compressors, centrifugal compressors, and reciprocating compressors.

The new Subfreezing Dryer achieves air quality previously only attainable with costlier drum or desiccant dryer technology. This new technology provides users with high quality, -4° F dew point air, from a high-performance regenerative refrigerant dryer in an efficient and economical package. It supplies a constant ISO Class 3 -4° F pressure dew point air, regardless of changes in demand or ambient temperatures. This allows users to meet the compressed air needs of their operation.

Coalescing filter/regulator series

ControlAir | controlair.com

The new Type FA10 coalescing filter and the Type FA12 filter regulator/coalescing filter combo are specifically designed to remove liquid aerosols and sub-micron particles from compressed air. The Type FA12 filter regulator with coalescing filter combines the coalescing filter with a high-performance filter regulator in one convenient piggy-back assembly.

The Type FA10 coalescing filter provides superior filtration down to 0.3 or 0.01 micron. It is offered with 1 ⁄8, ¼, or ½-in. NPT porting. Maximum operating pressure is up to 150 psig (10 bar) and proof pressure of 200 psig (15 bar). Temperature limits are 23° to 140° F (–5° to 60° C). Flow capacities range up to 39 scfm (1,100 lpm). Drain capacities range up to 1.89 oz (56 cm 3 ) and can be mounted in-line or with bracket.

The Type FA12 filter regulator/coalescing filter combo comes in one convenient compact package. The filter regulator provides accurate pressure regulation and filtration to 5 microns, while the coalescing filter provides further filtration down to 0.3 or 0.01 micron. The Type FA12 offers 1 ⁄8 or ¼-in. NPT porting. Operating pressure range is 7-140 psig (0.5-10 bar). Supply pressure is up to 150 psig (10.5 bar). Temperature limits are 23° to 140° F (–5° to 60° C). Flow capacities range up to 46 scfm (1,300 lpm). Drain capacities range up to 1.28 oz (38 cm 3 ). The unit can be mounted in-line or with a bracket.

7-gallon version of TNK series

Schroeder | schroederindustries.com

The TNK7 is a complete hydraulic reservoir solution specially designed for compact and agile hydraulic (mobile) applications.

It is an integrated and certified clean solution for fluid storage, monitoring, and conditioning in smaller-scale mobile hydraulic systems. Whether the application itself is compact in scale with strict weight requirements or is a part of a larger system with stringent clearance allowance, the TNK7 finds itself right at home.

The TNK7 combines customized engineering solutions with scalable usability of catalog items. Users can take advantage of a reservoir with fully equipped components without having to pay extra for tooling, subassembly, and cleaning processes.

Round-body, nonrepairable actuators

IMI Precision Engineering | imi-precision.com

The introduction of the Roundline Plus Expanded Range adds seven new cylinder types to the existing actuator line-up.

Three-position (3R) cylinders provide three positive stroke positions with a single cylinder. Non-rotating (NR) double-acting and reverse acting cylinders have a unique square piston rod with rounded corners, suitable for applications where the load connected to the rod requires consistent orientation. All stainless steel non-repairable (SR) cylinders are suitable for food processing/packaging, medical, chemical, or marine environments where washdown solutions and other corrosives are present. Tough duty (ZR) cylinders have a larger diameter two-piece piston rod, elastomer bumpers, and Buna N U-cup seals for reliable operation in higher duty applications. Rod lock (LR) cylinders are typically clamped units that hold the piston rod in position when air pressure is not present, preventing drift at machine shutdown. Roundline hydraulic cylinders (HR) deliver up to 500 psi hydraulic pressure and slow, smooth movement. Finally, hole punch (HPR) single-acting cylinders have a removable cutter at the end of the rod with razorsharp cutting teeth designed to punch holes in thin plastic film.

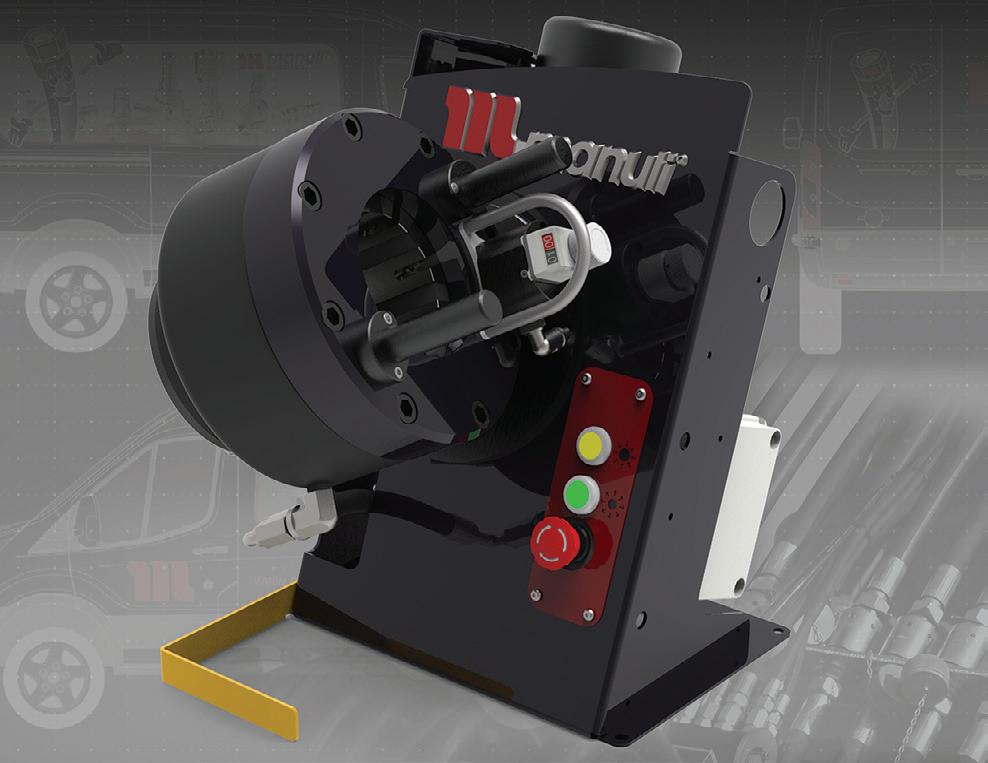

Mobile crimping machine

Manuli Hydraulics | manuli-hydraulics.com

Designed specifically for mobile maintenance vans and onsite repairs, the MRV 137 EVO R is a compact, ergonomically designed, crimping machine with an adjustable head for maximum ease of use. The rotating crimping head can be positioned vertically, horizontally, or any position in between through its design and tool-free locking mechanism.

Suitable for 4 wire-spiral hoses up to 1¼-in., the MRV 137 EVO R is a versatile addition to any low to medium volume mobile repair and maintenance operation. The MRV 137 EVO R can be supplied with an optional ergonomic quick-change gun for die installation and removal and can also be fitted with an optional die storage panel making it even more efficient to use.

Closed-circuit variable displacement pump

Parker Hannifin | parker.com

The PC3 variable displacement axial piston pump is designed for medium duty applications. It comes in ten standard displacement options: 7, 11, 18, 20, 25, 30, 35, 40, 45, and 52 cc and in three different frame sizes. Displacement sizes 7 to 20 are rated at 210 bar and 3,600 rpm while sizes 25 to 52 are rated at 300 bar and 3,400 rpm during continuous operation. The PC3 comes with a variety of built-in features to increase system efficiency and streamline performance. These features include a hot oil shuttle valve, hydraulic pressure overrides, cross port reliefs, and bypass valve which reduce the need for third-party components and help protect your pump. When combined with the various modular and inter-changeable controls (manual servo, hydraulic proportional, electric proportional, direct swashplate) the PC3 will efficiently deliver the exact power you need when operating your application.

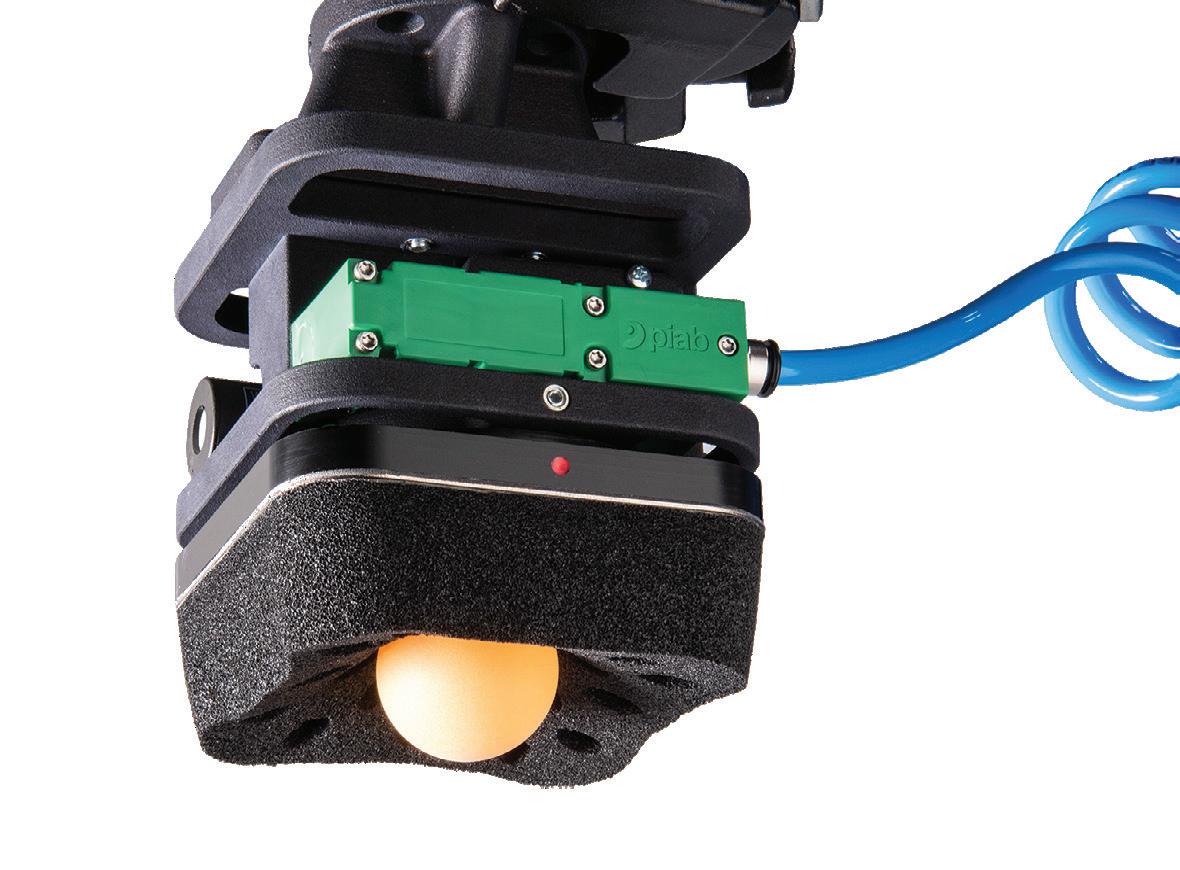

Vacuum gripper

Piab | piab.com

The Kenos KCS gripper enables a collaborative robot (cobot) that can handle just about anything, anywhere, at any time. This versatility makes it a suitable "co-working" tool, especially for small businesses, where flexibility is essential. Originally developed together with a leading cobot manufacturer as a tailor-made automation tool for one application, the resulting vacuum gripper cobot proved so successful that it is now being offered more widely.

Combining proprietary air-driven COAX technology for highly efficient vacuum ejection with an easily replaceable technical foam that molds itself around any surface or shape, the Kenos KCS gripper can be used to grip, lift, and handle any object. Standard interface (ISO) adapters enable the whole unit to be attached to any cobot type on the market and, with a body made in a lightweight 3D printed material, it can be easily moved to perform different jobs in different parts of a production site, warehouse, or other setting.

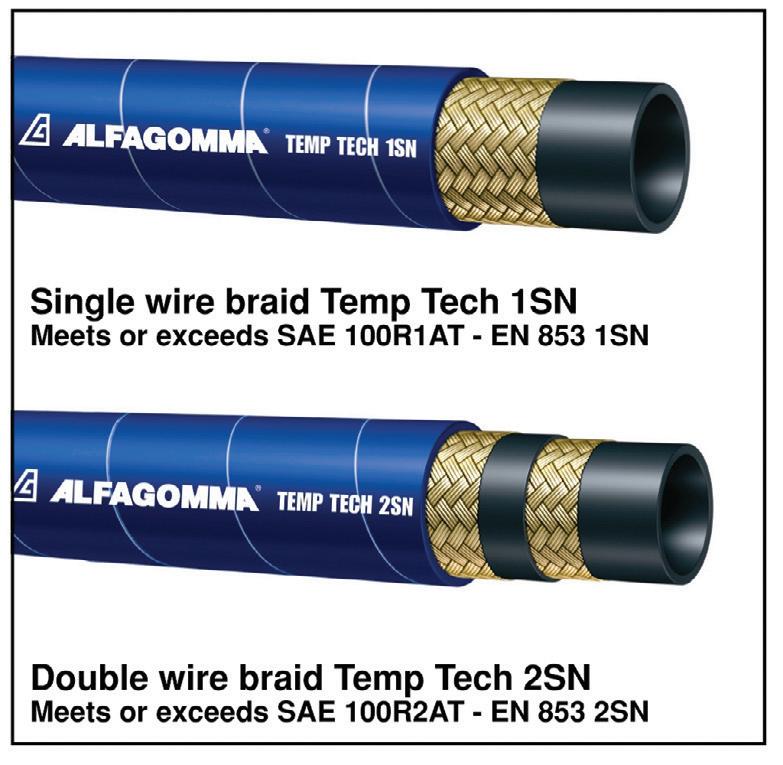

High-temperature hydraulic hoses

Kuriyama of America Inc. | kuriyama.com

Temp Tech high-temperature hydraulic hoses by Alfagomma withstand long exposure to nearly every type of hydraulic fluid, lubricating oil or fuel commonly used in industry today, including fire-resistant hydraulic fluids. Available in single wire braid versions 1SN/R1AT and 100R5, and double wire braid 2SN/R2AT, Temp Tech hoses will operate in applications with continuous high temperatures of +300°F. They are also designed for use where greatly extended service life under “normal” conditions is desired.
