Graphisoft goes multi-disciplinary

Version 24 of Graphisoft’s flagship BIM modeller, ArchiCAD, includes the usual raft of features for customers, but this release also delivers four years of underthe hood development to revolutionise model collaboration, writes Martyn Day

When analysing a yearly release of a BIM product, it seems natural to go with the biggest features which have been added to the software. With that in mind, ArchiCAD 24 is a bit of an unusual beast as it is probably the biggest release of ArchiCAD in living memory, in terms of development effort and scope. It’s just that this new technology, previously called Project Everest, is so seamless that it’s not particularly obvious, as it’s a workflow enabling technology in both BIMcloud, the real-time collaboration platform, and ArchiCAD 24.

When BIM first came out, it was sold on the concept of the Single Building Model (SBM): a single model structured database which contains all multi-disciplinary contributor’s components, together with related building information. It was only when firms started to model in BIM that issues quickly arose, with a lack of collaboration, limits on model size, performance and interoperability, and the basic lack of decent standards.

The Single Building Model was a utopia and twenty odd years later the industry is still cutting up models and deploying workarounds and Common Data Environment (CDE) strategies to manage collaboration.

For the last four years, Nemetschek, Graphisoft’s parent company, has been working on the problem of data portability within BIM ecosystems with a project called ‘Everest’. While a leading proponent of OpenBIM and Industry Foundation Classes (IFC), these open standards are not the same as working with the original data and require one way ‘dumps’ of data to be imported into other applications for processing.

With the cloud and modern computing, the whole concept of file exports, file imports and data surviving round-tripping is inelegant, time-consuming and could surely be improved?

Nemetschek set about developing a new foundational schema (structured data format), to establish seamless BIM data sharing for users with compatible Nemetschek applications, and hopefully those independent developers who want to plug in and participate through an open API. The technology is now delivered in Graphisoft’s latest BIMcloud product and within the new ArchiCAD 24.

BIMcloud revolution BIMcloud, Graphisoft’s collaboration server, has seen a considerable evolution since its original launch in 2014. It securely connects teams that are working on common projects and limits data transfer by only sending the ‘delta’, the changes that each contributor makes, with additional secure local caches to reduce network delays. It offers controls and locks at the element level and now can act as the single source of BIM data for anyone, anywhere on the planet. This release brings a new BIMcloud API and global availability for the SaaS variant. It works on a server or can be hosted in the cloud and enables permissions from the project to the element level, and only sends the data that has changed, not the whole model.

The new multi-disciplinary capabilities added to BIMcloud allow expanded integrated design opportunities, sharing one common model between teams - architectural, structural and MEP elements, together with the integrated analytical model. Also, Model Compare and Rollback are new features to quickly identify what has changed between models and revert to a previous state if necessary, together with a comments/notes ability.

The new ‘Everest’ technology embedded within BIMcloud, is akin to having the ArchiCAD BIM schema extend to additional connected and compatible BIM tools, which may or may not be Nemetschek products.

With BIMcloud holding all the model data, changes flow between all connected applications to and from the BIMcloud. But here, BIMcloud is also smart, in that it will notify participants if their elements are altered or changed, so they need checking. And it is smart enough to only send the data that eco-system compliant applications, such as structural analysis tools, require.

In the case of a structural engineer’s beam, it omits the fire protection coating or dry wallets which surround them when sent to the analysis tool. This bypasses unnecessary filtering, file exports, file transfers and delays. You get what you need, when you need it.

We talked with Viktor Varkonyi, Chief Division Officer at Nemetschek Group, about the Project Everest development, “We have a very strong vision for how the design profession will work in the future, because we strongly believe that the current roadmap means working in a silo. Everyone is managing their own data,” he says. “We are taking a totally different approach and Project Everest is going to be a really disruptive approach.

“Our integrated approach means the architect can work on the architectural view, the structure modeller can work on the structural model, or the structural engineer can work on the analytical view, all in one model with protection for the different roles and responsibilities with a very robust management system.”

It’s important to point out that this isn’t particularly intended to be a solution for integrating products such as Revit into ArchiCAD BIM workflows but it’s not beyond the realms of the imagination, should someone want to do the work. This BIMcloud / ArchiCAD capability is very much targeted at data that is stored in the ArchiCAD schema and predominantly about building an ecosystem of apps which plug and play between teams and individuals. That said, at last year’s Key Customer Conference, BIMcloud was demonstrated sharing geometry between ArchiCAD and Trimble Tekla, so an architect and structural engineer could ‘model check’ to compare each-other’s geometry within their respective models.

The first instalment of this technology and benefit is for structural workflows. BIMcloud now enables Nemetschek’s SCIA Engineer (multi-material structural analysis), RISA-3D (structural design) and Frillo (structural analysis and structural design) to be integrated into a seamless workflow, with data flowing forwards and backwards from each application.

Graphisoft CEO, Huw Roberts explains, “This new technology is about connecting designers with structural, mechanical or electrical, with engineers who are carrying out analysis in perhaps over 300 different structural analysis tools - SCIA, RISA, STAAD, Midas etc. for thermal systems or connections.

“Today, every building project is shared by many people and every change could impact the column sizes or increase area and load, and the designers need to know the impact. The whole monolithic exchange of models that usually happens, contains way too much information and gives rise to long turnaround times between design, analysis and fix. This technology drastically reduces those iterative loops.”

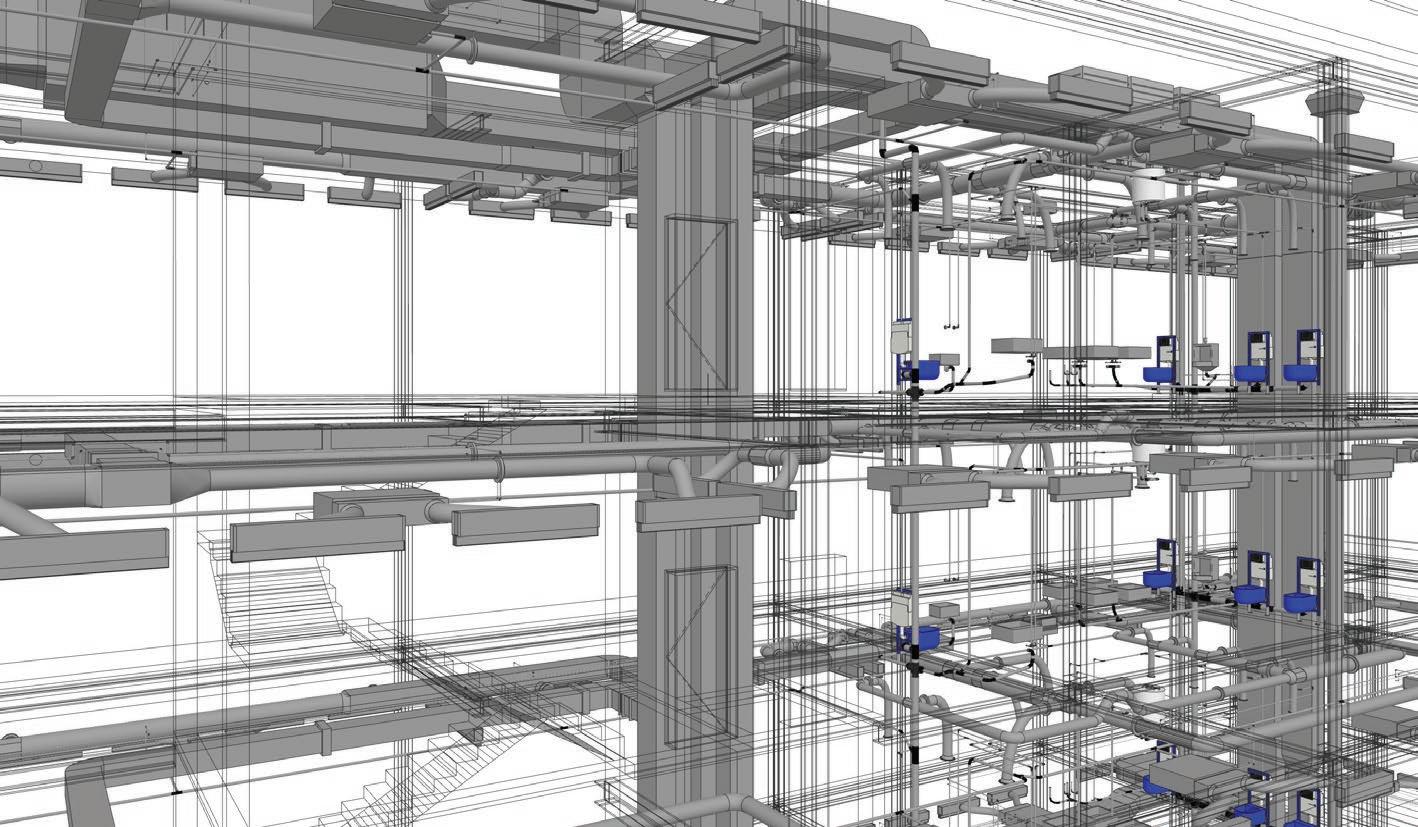

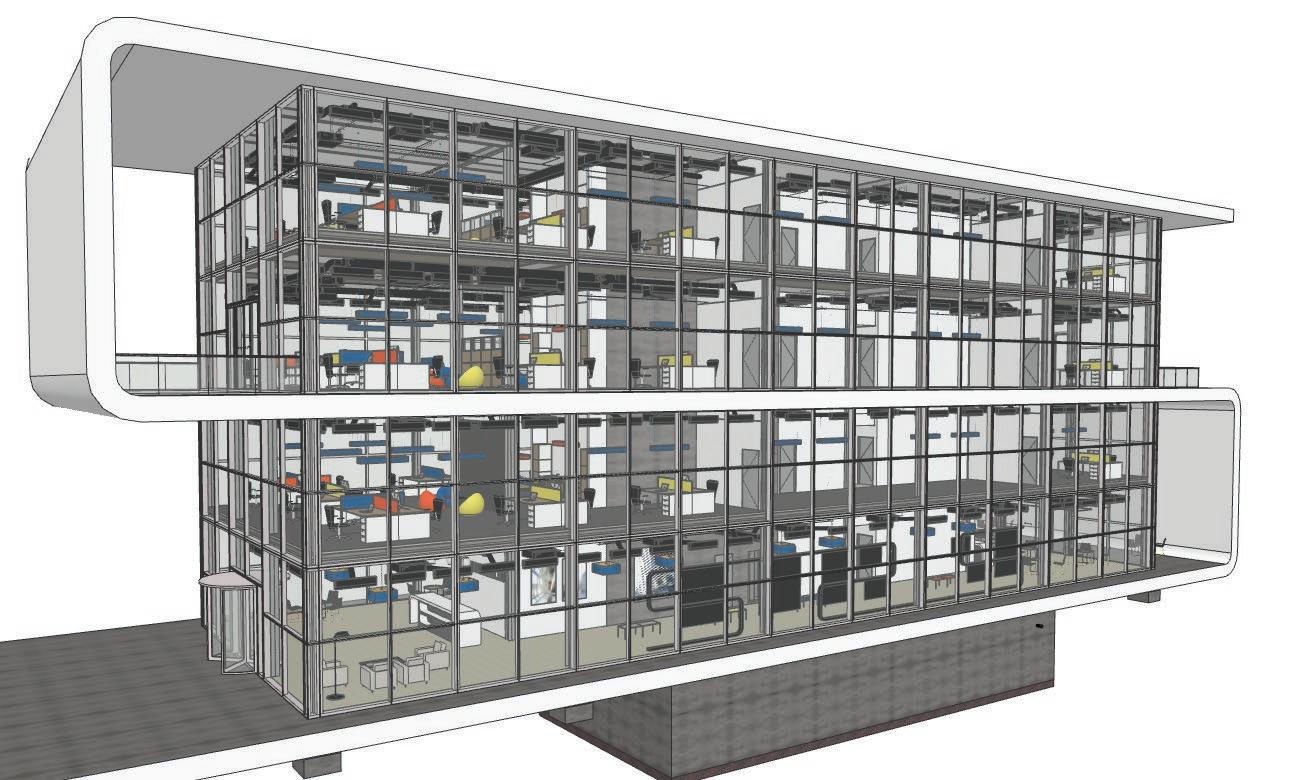

Multi-disciplinary While the product is called ArchiCAD, as the years have gone on its scope and reach has broadened and its name has become a bit of a misnomer. The core strength is certainly architecture but ArchiCAD is an all-rounder for defining BIM projects and development of MEP and structural elements have been turbo-charged.

Structural While you could model structural elements before 24, a lot of the development work and the first piece to get the benefit of the underlying ‘Everest’ changes is structural. ArchiCAD now can automatically generate a Structural Analysis Model (SAM) based on structural element definitions within the building model.

The software automatically checks that the structural ‘stick model’ elements are all connected and will update as the building design evolves. Here it’s possible to see all loads, load-bearing capacities, connection points between load-bearing elements such as beams slabs and roofs etc. Graphisoft believes that if you see how this has been implemented and the benefits to collaborative workflows, you won’t want to go back.

Using BIMcloud and the new seamless technology, model and structural data can be sent to engineers running Nemetschek’s SCIA (structural analysis) and RISA (multi-material structural solver). The live SAM data can be used for all calcs and changes sent in either direction. This means no file exports. An architect can make model changes and, at the press of a button, a structural engineer can check changes, perform analysis and feedback any changes necessary to the architect, literally at the speed of electrons.

This could crush the iterative part of the design process from days and weeks to minutes and hours. The one stipulation is that your tools need to be able to connect to Graphisoft’s BIMcloud. However, if not, they support the open

source format called SAF (Structural tools and save favourite views/positions. Analysis Format) and IFC SAV. BIMx models can be saved and accessed

While the main example shown on the via BIMcloud or deposited on Dropbox or launch of ArchiCAD 24 was structural, other hosted file stores. the company will start rolling out other seamless integrations with all sorts of Twinmotion analysis tools. Another thing to note here Graphisoft’s partnership with Epic is that Nemetschek realises that profes- Games, the developer of Unreal Engine, sions use other applications and that per- continues to blossom with a deep integraforming some function ‘inside’ a BIM tion for Twinmotion 2020, enabling authoring tool is probably not the best amazing real-time visualisation and VR place for some of this to be occurring. capabilities. The software is free to those There is an open API to plug into the on ArchiCAD plans. ArchiCAD 24 also ‘Everest’ schema and so other firms can has 500+ new surface materials along also play in the seamless, data-roundtrip- with a renewed residential library. ping BIMcloud ecosystem. share models, allowing the viewing, meaAPI-tastic Mechanical, Electrical & Plumbing While ArchiCAD offers its own programMEP elements were available as an add- ming environment, GDL, and hooks into on to ArchiCAD, but now MEP is built McNeel Rhino/Grasshopper like no other into the core platform, so BIM tool, Graphisoft is all users get the chance to create MEP components. There has been considerable development of the ‘‘ ArchiCAD 24 consolidates now adding support for Python API and the exciting looking PARAM-O for custom parametric content MEP capabilities and it components and (currently only available looks to be fully featured and easy to use, placing elements creates holes in workflows that span all aspects in the Windows version). ArchiCAD is getting incredibly flexible in the walls etc. If you are creat- of the BIM design options to customise and ing a model and all that is process and is drive parametric model available is a basic MEP drawing, as opposed to an MEP model, this can be deeply integrated with advanced generation. The PARAM-O plug-in, is worth mentioning in a imported and used for ref- generative bit more detail as it can erence, to quickly model geometry tools create objects with nodes up an MEP layout in 3D. By including MEP in ArchiCAD, it’s clear that like Grasshopper. It has clearly graphs to create GDL objects. This takes a few lessons from Dynamo and Nemetschek is looking to become a Grasshopper to liberate address the dissenters who say that ArchiCAD is not an alternative to Revit as multidisciplinary application to GDL, which is a rarely used, but powerful parametric language in it’s not multi-discipline. rival products ArchiCAD. Now powerful The combination of struc- like Revit GDL components can be tural, MEP and architectural in its flagship product is more than a statement of intent. graphically scripted without any knowledge of the programming language just through ’’ Visualisation bocharged ArchiCAD to offer a fantastic BIMx, the visualisation and presentation array of expandability through today’s tool, gets a major overhaul with the cre- most powerful parametric tools - ation of a single BIMx app. BIMx is now Grasshopper, GDL/PARAM-O and ‘freemium’ in that it’s free to create and Python, driving BIM objects. wired up schematics. Graphisoft has tursuring and sharing of models, although Conclusion you will need ArchiCAD to create them. ArchiCAD 24 is a quiet revolution. At the

BIMx is also now pretty much avail- launch, you would not hear the company able everywhere - mobile, desktop or via talk about the underlying technology browser. For paying users, BIMx can be stacks or go into any great depth about enabled to stream huge models which how much work has been done in the last don’t fit into memory and can access API three/four years. Indeed, all you would see and be shown is the new capabilities to make seamless Single Building Modelling possible.

In many respects, for regular readers of AEC Magazine, Graphisoft has pretty much delivered the type of functionality that Autodesk was talking about with Quantum in 2016 (tinyurl.com/quantumaec), although Autodesk hasn’t delivered anything yet. Graphisoft has managed to seamlessly integrate it into the current product line and has re-written part of ArchiCAD to utilise the new schema.

With this release, as a taster, we are seeing a big jump into integrating structural workflows with the architectural and MEP design software. While this benefits the Nemetschek ecosystem of products, the company is still supporting open standards and access to this new API. There are already a number of thirdparty developers who are looking to make use of BIMcloud and integrate their analysis tools into the solution. We will have to wait and see if other authoring tool developers are enticed into BIMcloud integration.

I can imagine how Graphisoft may be concerned that people might think that it is not as committed to open formats as it historically has been with this ‘Everest’ powered ecosystem. However, this simply isn’t the case, as the company realises that there will always be file-based workflows, for as long as there are a myriad of applications used in the design and construction industry. One only has to look at how the Nemetschek stable of products are individually branded and distinct technology groups are free to sell point tools which address all the types of mix and match workflows that are used in the industry.

One of ArchiCAD’s biggest drawbacks, claimed by competitors, is that it is a product only for architects, as it’s in the name. ArchiCAD 24 consolidates components and workflows that span all aspects of the BIM design process and is deeply integrated with advanced generative geometry tools like Grasshopper. It has clearly become a multidisciplinary application to rival products like Revit. But perhaps, as opposed to comparing authoring tools, it clearly offers something different and advanced in the cloud management and single model concept. Perhaps a fairer assessment of ArchiCAD would be to look at workflow and multiuser modelling. BIMcloud is what people should be looking at; it’s a game changer.
