"REMANUFACTURING CONGESTION" Yifei Zhang Portfolio B.Arch, Chang'an University(CN) MSc Architecture, Delft University of Technology(NL) Selected Works 2017 - 2021 zyfapplication@163.com | China: (+86) 18792927917 | the Netherlands: (+31) 613794789

The word 'congestion' comes from the culture of congestion mentioned by Rem Koolhaas in <Delirious New York>, which refers to an 'All in One' program, a systematic structure that integrates density, traffic, and cultural phenomena. Meanwhile, architecture is constantly absorbing new cultures and new technologies. I suggest the current congestion should be a broader meaning mixture, including environment, efficiency, sunlight, water, technology, in order to use new types and new systems to regulate, connect and adapt to the city.

In short, what I mean by Remanufacturing Congestion should be a state in progress, trying to reinterpret reality, using remanufacturing methods to combine distinct technologies and desires, and adapting various congestions as prototypes to suit to crowded cities or even escape from overcrowded cities as an architectural awareness.

PROLOGUE

'Remanufacturing Congestion' is an overview of my portfolio. Focusing on the environment, construction, details, and design as well as images, I deem that architecture should respond more sensitively to the impact of urbanization and new industries, and try to create a system of crowded culture, it might be remanufactured, or it might be the unique combination. Remanufacture, in a broad sense, is the process of rejuvenating old machinery and equipment. I choose to use the word 'Remanufacture' instead of 'recreating' or 'rebuilding' since 'Remanufacture' is a more subjective word, which means the design is an emotional element in the process. Moreover, I tend to consider architecture as a complex machine, so how to intervene in the old building to revitalize it, and how to put the new building in a state of mechanism that responds to the environment and society and people, and how to make the created overlapping or parallel spatial rules compatible with crowded content are where I concentrate.

At the same time, another meaning of congestion should be a more general kind of person and traffic——a state of congestion in the 'shoulder to shoulder', I prefer thinking of this part of congestion as another name for communication and interaction. Similarly, like rebuilding the Tower of Babel to create a space and collective experience, I hope that the architecture can accommodate more activities and emotions, and play an optimistic concept in the city to accept and transform the reality, full power.

Art Propaganda Complex and New Narration of Lunar Art Production Academic | Individual Work | Started on March, 2021 Instructor: Lei Zhang, Dongxue Fu 7807* Surveillance Palace Academic | Team Work | Started on February, 2021 Instructor: Gökçe Önal Other works* 02 Sanitary Buildings in the City Place to AcademicRetreat|Individual Work | Started on September, 2020 Instructor: Susanne Pietsch, Koen Mulder 22

New Narration of Textile City

Broken and Reconstructed Industrial Area of Textile City Based on the Concept of Urban Community Academic | Teamwork | Started on January, 2019 Instructor: Ziliang Lu, Lei Zhang 4003 Soul Beacon As a Recorder of "Missing Society" Academic | Individual Work | Started on December, 2017 Instructor: Wei Liu, Lei Zhang 6005 White Ring of "Eye-Power"

Observing and Being Observed Academic | Team Work | Started on September, 2018 Instructor: Yue Guo 6606 Daily Heritage Theatre Shed theatre as a mediator to stimulate the dialogue of the ignorance of identity and daily heritage Academic | Individual Work | Started on April, 2021 Instructor: Stefano Milani, Micha de Haas 5004

401

Art Community on the Grant Canal

CONTENTS

Design

014

Contribution: Concept Design,

Team

Narration of Textile city Broken and Reconstructed Industrial Area of Textile City Based on the Concept of Urban Community

Academic

Properties: Industrial Architecture Renovation

New

1st Prize, 2019 the 3rd"Zhongsheng Cup" Joint Graduation Project of West Nine Universities Alliance, China Gold Prize, 2019 the 17th Asian Design Award Site: Xi'Cang District, Xi'an,China Instructor: Lei Zhang, Ziliang Lu (luziliang@chd.edu.cn) (Graduation project) Started Date: January, 2019 | Work (Teammate: Lecan Li) Site

Research, Analysis, Architecture Design, Detail, Drawing, Physical Model

The textile city witnessed the whole process of the industry from prosperity to decline in the last century, and the people, architecture, and environment there also withdrew from the historical stage. At the same time, the future seems to be no direction. Everyone involved in it has changed from their pride to inferiority.

The term 'community' in sociology was first introduced by Tönnies, a German classical sociologist, in his 'community and society.' Tönnies divides the community into three parts: consanguineous community, geo community, and spiritual community. From the beginning of social theory, the concept of community has been entwined with the variation of modernity and has been evolving. We try to use the system of 'community' to restore the broken city, environment, community, space and relationship between people in Textile City, breaking the original shackles, and let different areas and systems coordinate to form a new production and living system. What's more, it is necessary to cure the environment damaged by industrial production, reconstruct the relationship between people, retrieve the shared memory of the past, and let people here treat themselves as part of the region where they can find the sense of identity and regains "dignity."

Residence: transformed from National No.4 textile factoryDemolishing

There is an area transformed into the Banpo Art Center on the north side of No.3 Factory. Many artists live and work here, but due to the lack of popularity, there has been a lack of vitality, what's worse, the local textile industry transformation caused a large number of elderly and unemployed population. Besides, there are many Soviet aid buildings left by World War II around, which has become a significant feature here.

Goal Site: abandoned National No.3 textile factory Art Park: transformed from National No.1 textile factory,however,lack of popularity B C D E

As a brilliant state-owned enterprise in the last century, the textile city was once known as the existence of "small Hong Kong" in Xi'an. Its two main components are the production area and residential area and their supporting facilities. At present, the production area has been abandoned, and the residential sector has lost the support of the production and the vitality as the past. The business form is almost left; in the meantime, with the development of the times, the infrastructure of the residential area gradually cannot meet the needs of the residents.

BaqiaoShaanxiChinaDistrict

F G

Factory Status A B C D E F G

FORGOTTEN TEXTILE CITY

Factory: National No.5 textile factory

SiteProjectExistingTargetFactoryWorker'sSchoolKindergartenShopInhabitationResidentAreaAreaScopeLocation

A large number of artists came in, meanwhile, some local adults

At present, the original positions of No.4 factory and No.1 Factory have been modified. The No.3 Factory and No.5 factory are

According to the flow of tourists and residents, No.1 textile factory is designed to serve tourists and entrepreneurs, while No.3 textile factory and No.5 textile factory serve both residents and tourists.

Format Planning Residence ArtDisusedTransformed

The end of the railway park is connected with the new textile city park, and the cultural and creative complex is designed in No. 2 design

THE EVOLUTION OF CITY COMMUNITY

TEXTILE

Functionallocation.Planning Residence Residence Reconstruction of Factory Building ComplexFactory Machine AbandonedMachineBuildingFactory Aging of Infrastructure StagnantIndustry People Conflict Artists Residents Tourists

REGIONAL PLAN STRATEGY

The streamline of residents and tourists will intersect in public buildings and landscapes, but tourists will not disturb the daily life streamline of residents.

Resident Streamline Tourists Streamline Regional Streamline Resident arrival direction External Internal Tourists arrival direction

left. Economic System Transformation Collaboration PLANNED ECONOMY COMMODITY ECONOMY COMMODITY ECONOMY OLD TEXTILE COMMUNITYCITY1950s COLLAPSED TEXTILE CITY COMMUNITY1970s NEW TEXTILE COMMUNITYCITY2020s

Statusabandoned.Quo 1.Visitor service + studio 2.Cultural complex 3.Textile theme residential area 4.New textile park 5.Railway theme park

In the era of the planned economy, small city communities such as textile cities exist all over the country. However, with the advent of the market economy era, many small communities gradually open their barriers and start to exchange and interact with each other, sharing resources to pursue more significant interests. But at the same time, the traditional textile industry of the textile city was eliminated by the times, workers were laid off, and the young people had to go out of the textile town to seek opportunities in the outside world, resulting in the labor loss.

8 FUNCTION DISTRIBUTION New Volume Interference BREAK THE RECONSTRUCTIONISOLATIONOFFACTORYPrototypeSawtooth Interfere Point Spindle Shape Deconstruction New Elements——Cone InsertExtendVolume Transverse Axis More Cones CurveDistributionLapping RESIDENT Residential Area ResidentsDirectionArrival Life Service ServicedCo-workApartmentMarketSpace Apartment Service BookstoreA-center WorkshopMuseum Tourists Area TouristsDirectionArrival Tourism Facilities Artists Area ArtistsDirectionArrival Co-work Distribution Path Public FunctionCurveRELATIONSHIPARTISTTOURISTDeconstruction 4. Placing Deconstructive Quantities 8.Formation 3. Creating a New Axis Order2. Extracting Roofs1.Original Factory Building 5. Main Cone 6. Insert Other Cones 7. Hotel Roof Lifting

WEAVE——LINKING THE FRAGILE COMMUNITY

The building and its surroundings have been redesigned as a comprehensive hub connecting all kinds of people and functions, including sightseeing corridors and wetland parks. The whole system uses the means of "weaving" and the concept of community to connect the form, space, and three kinds of participants in the cultural and creative complex, namely, the relationship between residents, tourists, and artists. In terms of form, the straight sawtooth roof is deconstructed and transformed into a stripped roof, entrance canopy, a spiral ramp, and other structures. Each functional node of the building is inserted by a cone-shaped block, which not only breaks the low elevation of the plant but also plays a role in improving the building climate.

11 GROUND FLOOR PLAN MUSEUMA TEXTILE CREATIVE WORKSHOPB CONFERENCE HALLC CO-WORKING SPACED APARTMENT PUBLIC LIVING AREAE RESIDENTIAL ACTIVITY CENTERF BOOKSTORE AND LIBRARYG CULTURAL AND CREATIVE PRODUCTS MARKETH OPEN-PARKING GROUNDI LOBBY LECTURE HALL RECEPTION ROOM OPEN OFFICE SPACE PREFACE HALL OFFICE EXHIBITION HALL SUPERMARKET VR EXPERIENCE HALL CAFE VIDEO HALL YOGA ROOM LAST ROOM FITNESS ROOM VIEWING ATRIUM DINING HALL WORKSHOP KITCHEN CREATIVE HALL ACTIVITY ROOM COMPANY SHOWROOM OPEN EXCHANGE AREA TEA ROOM LANDSCAPE POOL SEMINAR ROOM CHILDREN'S READING SMALL LECTURE HALL READING AREA 1 15 2 16 3 17 4 18 5 19 6 20 7 21 8 22 9 23 10 24 11 25 12 26 13 27 14 28

12 2ND FLOOR PLAN 2 2 6 6 6 3 1 1 4 5 3RD FLOOR PLAN 4TH FLOOR PLAN We choose to change the west side of the original factory building, that is, the part close to the sightseeing corridor, into a hotel. To adapt to various needs and continue the characteristics, we use the residential layout of the residential area for reference, combine with the sloping roof of the factory building to make combination and adaptation, and provide different family types and some particular room types. Besides, we have raised the height of the plant to maximize the economic effect of space and meet the living needs of enough people. APARTMENT DESIGN 2.Thermocline Apartment 6.Flat Apartment 3.Co-Work Place Toplessness 1.Canteen Toplessness4.Cafeteria 5.Cafeteria13500Toplessness78009900990099009900780078007800780012900129001290012900 27007800780078007800780045004500450045001800180036003600180018002400240024002400 240024002700270027002700 510021002100 540054002100210042004200420042007800780054005400 39007800 39003900 39007800780078007800780078007800 780078007800780078007800 3300 3900150015004500450042004200 330033004500450039003900 4500 3900630063003300330036003600 450045003300330039003900 13500 11700 11700 3900 7800 39003900 390033004500 27002700 2700 75003600 New family loft apartment Plan A New family loft apartment Plan B New family loft apartment Plan C Couple apartment plan Shared apartment plan Studio plan

13 New family loft apartment Plan A New family loft apartment Plan B New family loft apartment Plan C Space Type of Family Area Extract Type Type Translation HOTEL APARTMENT SPACE TYPOLOGY THE SECOND FLOOR SHOWCASE OF ART MARKET SPIRAL BOOKSHELF Shared apartment plan Couple apartment plan Studio plan

14To break the original curing form, we insert four cones to reconstruct the spatial order. Each cone-shaped space belongs to its central part, which integrates transportation and has different public properties, such as the museum, creative studio, lecture hall, CO governance landscape, spiral bookshelf, etc., to produce a good sense of space experience and participation. Similarly, as the hub of green technology, cone space complements the green-sustainable strategy of the new complex. CONE-SHAPEDD.BookSPACEStackC.Vertical Plant A.Cone Type Exhibition Hall A B C D B.Lecture Hall To Workshop Office entrance To atrium Garden Office entrance To reading area To the Children'sroofreading area entrance Reading room entrance Office entrance Entrance to lecture hall Museum entrance VR experience To the roof To the market To vertical planting To activity center To children's reading area To the market Drawn by Lecan Li

15 Roof Planting SystemRainwater Utilization andReuseRecoveryofOriginal Drainage System of Corbel Column in Factory Building Roof Planting and IrrigationRainwater Reclaimed Water Recovery System A Reservoir with Conical Bottom for Groundwater Collection and ReservoirConicalStorageBoxFoundationArchitecture Consumption and Daily Water Use Rainwater Harvesting System with Strip Roof Sponge City System Water Purification System Building Water Circulation System Photovoltaic Glass Curtain ETFEWall Membrane Structure Double-layer Curtain Wall Forms a Cavity Natural Ventilation System Heat Preservation and Energy Collection of double curtain wall Cover WaterFillerPlantinglayerlayerllayerpermeable layer Gravel drainage Sponge City Strategy Drainage Pipe Water Pipeline Reservoir Cone Box Foundation Conical Box Foundation as Reservoir Atrium Summer Pool Cooling of Atrium Pool in Summer SUSTAINABLE APPROACHES Vertical plants can get enough sunlight here, and can also be used as a display cabinet for people to watch! The plants.andprovidessystem,waterofsystemextensionverticalirrigationisapartthereclaimedcirculationwhichnutritionirrigationfor I've plantstomanylearnedwaysCultivatehere we residents have a lot of fun: teaching tourists to plant flowers and plants, and having a closer relationship with the outside world.

16 VapourInsulationProtectionCoverRoofFilterGrowingVegetationMediumFabricMembraneBoardCourseRetarderStructural Deck L80X5 Angle ReinforcementSteel300mmSteel Plate Bonding Reinforcement 1.5m Wide Roof Road CirculationGroundwaterPipeExistingwithBracketReinforcementDrainageRevampingErectedofPipelineofColumnSteelEnclosureDrainageSystem Horizontal Balance of Lateral Thrust With Trough Tie Rod System to Prevent Rod Instability Front Section View Φ240mm Steel Column Φ40mm Steel Tie Rod Φ100mm Steel Tie Rod Cable Frame Buckling Restraint System BuildingReinforcementBondingWaterCirculation System Buried Depth of Independent Foundation : 2.5mWaterproof Layer 3% Slope-finding Drainage Hollow DownpipeSphericalSteelSheetLightweightStructureAluminumStructureConnectionJointArticulation

STRUCTURE AND DETAILPlantingDESIGNRoofStructureRoofLightingRenovation1-Louver Roof Renovation 2-Solar Energy Collection Roof3-RoofRenovationPlanting Roof and Corbel Structure Perspective of Curved Roof Structure

The thin steel structure is used to support the second-floor space and roof. To prevent the instability of the small column, we use the cable frame buckling restraint system to make the column only bear the vertical force, creating the continuity of space. The stagnant area of the factory building and the flow area of the creative market are existing at the same time, while the stripped roof implies the direction of the space.

1. The slopes of sawtooth factory buildings are all southward, forming a natural lighting advantage. We use part of the roofs as planting roofs; 2. Use part of photovoltaic solar panels to collect solar energy; Use louver roofs on some permanent place to ensure the indoor space get sufficient lighting.

CREATIVE MARKET

STAGNATION OF FLOW

The central reconstruction part of the building has been shaped into a creative market, which provides the functions of exhibition and goods exchange, supports the vision exchange in the entrance, and forms an excellent public rest place for the citizens.

By using a benign flowing space to drive the vitality of the venue and a stable area to retain visitors and tourists, the community of textile city can make sure that the influx and aggregation of the venue vitality at any time.

10mm Aluminum Rotating Side28/120mmArm Wood Louver Three-layer Glass WindowSlider Support Secondary Keel Secondary Keel Hanging M8 Hanging9mmRibGypsum Board Main Keel Hanging M10 Expansion Bolt 30/30/3 Angle ComponentsSteel 30mm Asphalt Mortar 10mm Granular Cork Mat 240mm Reinforced Concrete floor Mineral Wool ProtectiveInsulationLayer Light Steel Keel Ceiling Floor Construction Light Steel Keel ConstructionHOTEL ROOM AND WEST SIDE SUNSHADE CONSTRUCTURE Movable Sunshade Construction 30mm Wooden Floor 80mm Concrete Cushion Layer Step FloorInsulationStructureLayerStructure 170 270 Indoor Stairs Construction18mmWhiteBirchPlywood 10mm Aluminum Rotating Side Arm Three-layer Glass Window 28/120mm Wood Louver Φ60mm Aluminum Tube Larch Shingle Windproof Layer Reinforced Concrete Column Louver Sunshade Section A-A 10987654321AA 1211 RECORD DRAWINGS 1.Groove Gutter 2.Larch Shingle Windproof 3.Threaded Strip Welded to Steel 4.60/120mmSheet Laminated Timber 5.110/90mmFir Window Frame 6.10mm Aluminum Rotating Side 7.28/120mmArm Wood Louver 8.Floor and Ceiling 9.Φ40mm Aluminum Tube 10.Three-layer Glass 12.components11.80/40/4mmRHSWindowAluminum Φ60mm Aluminum Tube Non-slip Floor Tile Cement Mortar Waterproof Layer ReinforcedInsulationScreed Concrete Structure Cement Mortar Waterproof Layer 3% Toilet Waterproof Construction

COMMUNITYhere. IN PROGRESS

The new textile city is experiencing the new industry revitalization due to the influx of people and frequent business exchanges. Residents will also benefit from this, and young people will have the opportunity to choose to return to the community which they are familiar with and work for him. At the same time, with the new development of the region, the convenient replacement of the structure and the replacement of the format can easily make the textile city complete the transition from transformation to finalization, so that the new vitality of the place can be renewed

I studied several typical parks in Amsterdam, generalised and adapted to the scale of the site by having two orthogonal hard paths running through the park and dividing it into four activity zones, and beyond that the building itself. In order to reinforce the original concept of the toilets and the materials and atmosphere of the scheme. I have tried to make the building and the activities it carries more pure and spiritual by subtracting.

At the same time, I fancy the property of the garden itself, so is it possible to make the majority of the site a pocket park? Having both a public nature park and public toilets give the site a similar nature, and the proximity to the canal also gives the building a better view, looking like a shelter set back from the city, giving a sense of reassurance and protection.

The site was chosen for the project on an open area by the paradiso and the villa, near the street on one side and near the canal on the other. I did not want the public toilet to be a very large and impressive building, but rather to look more unpretentious and welcoming to anyone who wants to come in and use it, retreat and relax for a while and then continue their journey or party, but it should also be cheap and utilitarian and easy to maintain and clean. To achieve this, I did not place the building close to the street, because if I had done so the building would have had to become a larger and more extravagant volume due to the order of the buildings along the street, and the possible smell of the toilets might have made the street less attractive.

02 Sanitary Buildings in the City

The ground floor of the building is entirely devoted to toilets with bathing facilities and some service rooms, while at the same time these toilets are gender-neutral, with two larger spaces on either side for the disabled.

Academic | Individual Work Amsterdam is an extremely cosmopolitan city where people of all colours, nationalities and ethnicities can find a place of their own and you can find almost any facility here. However, first time visitors are puzzled when, after a day of sightseeing, finding a place to go to the toilet and wash up becomes a difficult task, especially for women and disabled people, as there are always plenty of urinals curled up for men to relax temporarily, but this is obviously very unfriendly to women and disabled people. While you can find such places in any restaurant, restaurants that cannot be entered in a lockeddown state in times of epidemics make public toilets an even more urgent agenda. Is Amsterdam still an ACCESSIBLE city?

The height of the building's ground floor has been raised to allow the cleaning section to be opened, allowing users to enjoy the view of the river while bathing without fear of being seen from outside. On the ground floor is a small but more relaxed café that you can easily reach from both outside and inside, and I have likewise increased the size and language of the windows here to make them more unified and comfortable.

Msc1, Interior Building Cities Studio, TU Delft Site: Amsterdam, the Netherlands Instructor: Susanne Pietsch, Koen Mulder Properties: Public Buildings Design Started Date: September, 2020

The entrance to the building's façade has an open-air washbasin to supply the people moving around next to it with the ability to wash without having to enter the interior, while at the same time suggesting an internal washing function, and the variation of materials in the interior of the first floor seen later echoes the different materials used in the sink section. I have tried to use the simple design language of the building itself to compose the other resting and lingering spaces, you can see some rectangular chairs in the plan, I have used the expression of the wood used in the building as a unified way to make some of the resting spaces also part of the building proper. I have changed to a clean paint job to make the interior cleaner and easier to clean, and this floor is also brighter, with the lowered bay window acting as a resting and waiting space, and the removal of the ceiling at the top to give a more realistic and pure expression of the building structure.

The building is constructed in timber, using sustainable and high strength CLT as the structural layer for the first floor and roof, while the ground floor is made of concrete for waterproofing reasons. The building is assembled and disassembled using a combination of timber columns for ease of assembly and recycling, while the brick surface responds to the texture of the surrounding buildings, but the interior has been chosen for its cheap and easy to maintain lacquer finish, which also brightens and warms up the interior.

24The project site is located in the center of Amsterdam, near the National Museum and the concert hall called Paradiso. The site has not been used for housing due to a constant change of ownership and a slow process of consultation between the government and the neighbors. The design wanted to take an urban perspective and return to the architecture. Taking inspiration from the squares and toilets of Amsterdam, the attempt is to provide a building that truly serves the city and everyone in it. SITE ANALYSIS If the public is not provided with a clean and hygienic space, is this city still accessible? Park Public Toilet Distribution of Park and Public Toilet in Amsterdam √ ××× ×× The analysis on the left summarises the typical pocket park forms and road relationships in Amsterdam and attempts to experiment with these park forms at the scale of our site, resulting in a simple orthogonal road division park form.

VOLUME FORMING2.Theconsistency

1. If the building is close to the roadside, the park becomes an inward-looking private garden. (x) 2. When the building is set back from the street, both the park and the building have public attributes. (√) 3. The building massing follows the order of the architectural elements on both sides. 4. pocket parks expand the street into an amplified public node.

Composition and Elements Analysis

1. The volume of the building itself acts as a transitional form between the outer corridor of the Paradiso on the left and the small house of the Villa, with a slight slope of the roof responding to the sloping roof forms on either side.

I do not think the public toilet need to be a very luxury nor impressive building, but rather to look more unpretentious and welcoming to anyone who wants to come in and use it, retreat and relax for a while and then continue their journey or party, but it should also be cheap and utilitarian and easy to maintain and clean. To achieve this, I did not place the building close to the street, because if I had done so the building would have had to become a larger and more extravagant volume due to the order of the buildings along the street, and the possible smell of the toilets might have made the street less attractive. At the same time, I fancy the property of the garden itself, so is it possible to make the majority of the site a pocket park? Having both a public nature park and public toilets give the site a similar nature, and the proximity to the canal also gives the building a better view, looking like a shelter set back from the city, giving a sense of reassurance and protection.

3. Introduced by the trees into the park and then into the building, the ground floor of the building serves as a space for washing and the first floor as a space for rest and relaxation. As a necessary shelter and pause space for the city, you can perform the most basic and most demanding acts of rest here

of the building's façade elements: the exterior corridors, columns and terraces allow the building to relate and dialogue with the paradiso, and the elevated interior staircase responds to the Paradiso's entrance staircase on the one hand, while the higher floor height ensures that people in the wash have a view in the canal direction without being overlooked by others.

4. Several of the building's exterior corridors respond to the relationship between the building and its components in the Paradiso, and the brick material of the cladding on the facade responds to the relationship of the facade.

26 Ground Floor Plan 1:100 3. Washroom for Disability 2. Noramal Washroom 1. Rest Area 1 7 777AA 6 4 2 2 223 3 4. Laundry room 5. Pocket Park 6. Public Activity Area 7. Outdoor Dining Area 5

27 3. Viewing Area 2. Dinning Area 1. Bar 1 4 2 5 3 4. Staff Rest Room 5. Terrace with Sunbeds 1st Floor Plan 1:100

28 Sectional Perspective 2 Sectional Perspective 1

29 Fragement Section 1:33 - Floor coveringFloor - Heated anhydride screed - Decoupling for sound insulation - Separating layer - Airtight layer - Cross laminated timber structure - Installation cavity - Suspended battens with spring clamps - Cavity insulation between battens - Plasterboard

- Vapour permeable facade membrane - Layer of air - Brick cladding - Exterior thermal insulation - Timber frame - Airtight layer - Installation layer - Internal

CladdingWall- Layer of air - Roof covering - Rear ventilation layer - Vapour barrier - Insulation layer - Vapour layer - Airtight layer - Cross laminated timber structureRoof - Top-hung window

30 DETAIL SECTION 1:5

- Floor coveringFloor - Heated anhydride screed - Decoupling for sound insulation - Separating layer - Airtight layer - Cross laminated timber structure - Installation cavity - Suspended battens with spring clamps - Cavity insulation between battens - Plasterboard - Float Glass Insulating Glass Window-Cavity - Float Glass - Vapour permeable facade membrane - Layer of air - Brick cladding - Exterior thermal insulation - Timber frame - Airtight layer - Installation layer - Internal CladdingWall- Layer of air - Sunshade louver

31 DETAIL MODEL 1:5

1 (From tourists' view): A tourist stands from the street, seeing the pocket park and part of the building hidden behind the trees and Paradiso.

32Perpective

Perpective 2 (From tourists' view): Approaching the park, the tourist witnesses the people and activities here, as well as the building standing in front of him.

Perpective 3(From indoors' view): The corridor in the middle and the building here shows like a shelter, welcoming and protecting everyone comes in.

34Sturctural Frame FIRMITAS Roof and Floor System Joint & Connection Window StructureConnectionsConnected to the Ground Roof System Floor System CLT Floor (1F) Concrete Floor (0F)

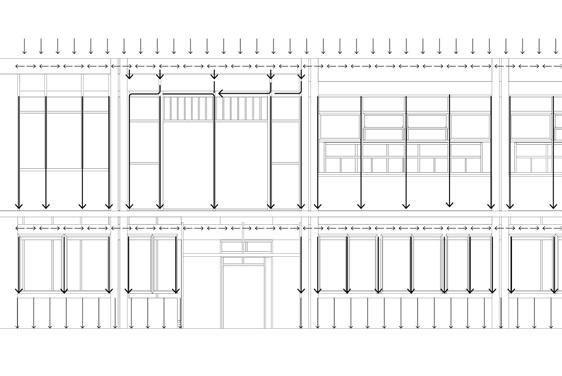

35 Load Path of Window Opennings Load Bearing PrefabricationTransformation Assembly WallOrderConnected to the FoundationGround Due to the loose soil of the site, use pile foundation H>10m Structural Principle of the Facade Surface Facade above the windows 2 15 7 7 8 89 9 10 6 5 410 14 11 12 13 1 3

36Flush HeatWaterCavitiesVentilationTightnessSystem Rain Water, Plumbling and Energy Reuse Sloping roof-top connection of solar collector Energy transform Rain water drainage and collect path Ventilation winter Ventilation summer Sunshade louver Up-Hung window Double layer insulated glazing UTILITAS

Perpective 4(From indoors' view): Brighter space on the 1st floor, and when you go out to the terrace, you can have a nap for a while in the sunbed.

Surface materials Visual relations, colour and shadows

Beam as an element leads the direction to the canal while the floor leads the other direction to another programme.

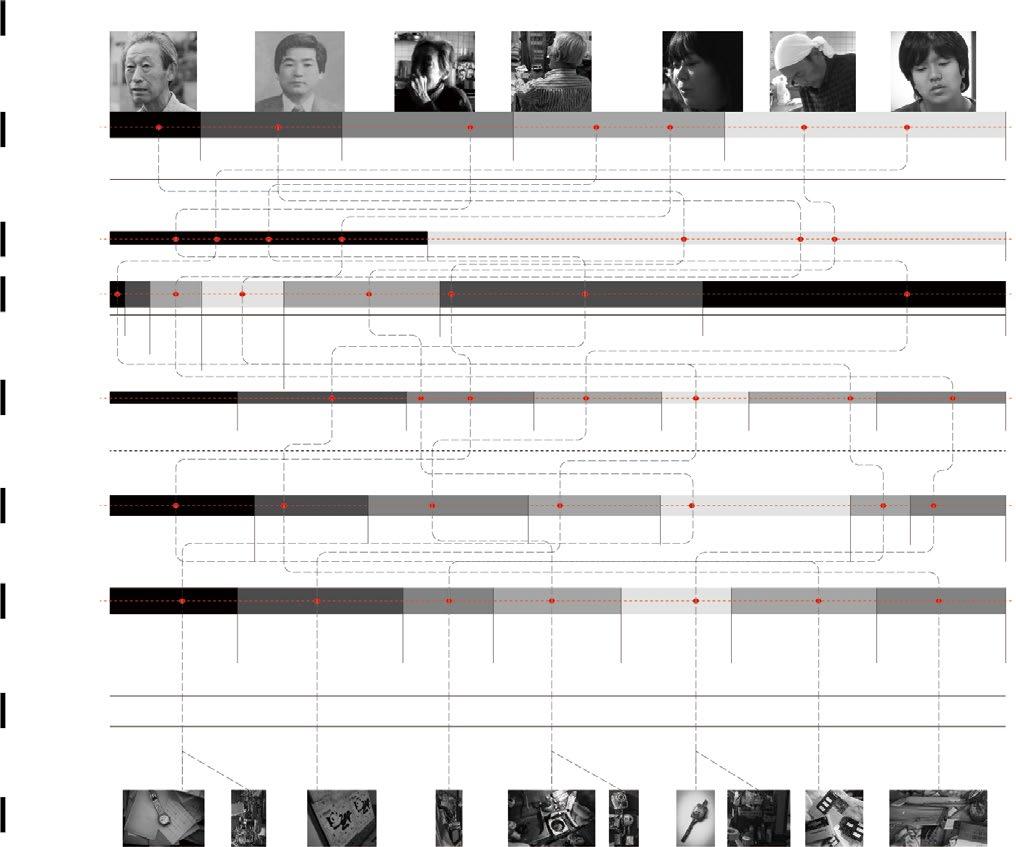

4003 Soul Beacon As a Recorder of "Missing Society" Workshop with University of Kitakyushu, Japan Site: Kitakyushu, Japan Instructor: Lei Zhang (zl.wc@chd.edu.cn), Wei Liu (cauliuwei@chd.edu.cn) Properties: Monument Design Started Date: December, 2017 Academic | Individual Work

"People are all related to others. .. .. .. .. .. What happens if you lose contact? "In recent years, there has been a new phenomenon that has attracted the attention of the society, namely, the phenomenon of "missing society." The "edge" is human relations, geography, social relations, etc.. Some has lost connection with society and has become "unknown" or even a forgotten person. However, the phenomenon of "lonely death" derived from it is even more alarming. People are forgotten because they are missing their direction, and they live alone until they are forgotten and die someday. Even at this time, no one pays attention. Finally, they might be discovered merely because of the disgusting odor. Handles the remains, disposed of the relics, in the end, what was left was only a line published in the newspaper: "In a family house in Sancho, a suspected 60-80-year-old person died, and his identity was unknown."

In cinema MamaCoco, it said, "When one is forgotten by all other people in the world, he is really dead then. " But what if one is forgotten when he is still alive? We hope that there are ways to rebuild the relationship between people and awaken people's memories of the forgotten living. On the other hand, I also hope to be alert to the entire society and remind the society of its love for "missing society."

42The Japanese have always had the national character of "not giving others trouble," and their behavior is determined according to the attitude of others. When their fragility, loneliness, and misfortune are unacceptable to this society, they will only choose to bear it silently. This means that the object of isolation and death is not only the poor people living in the bottom but more only live a regular but tough life; their future is likely to become a socially isolated person. LONELY DEATH: THE MISSING SOCIETY IN JAPAN Newspapers piled up after death Missing Society Old man Lonely Situation Pray to gods but not neighbors Missing Society Child Suicide note of the Missing Societies Pray and Bless Death under the Deities Body DisposalDisposalDepartmentofRelics TraceDeathStressJobRegionAgeGenderGenerationName HeiseiNakazatoOmori1364(p)11-14 Heisei1451(p)15-18 Female Male 39% <202%20-404%FamilyUnmarried40-506%HokkaidoPeopleRelations Natural Disasters Relatives'Death Career Breakdown L O N E L Y D E A T H Can't Find a Steady Job. No One Communicateto Losing Partner Dispatch Staff Retired Staff Wage-earner Lonely Traveler StudentNetwork Anchor Kantou Tohoku Kyushu Shikoku Kindai Chugoku14%16%13% 21% 13% 19% 20%14% 8% 14%16% 12% 9% 18% 11% 12% 6% 21% 16%13%14% 50-609% 60-7017% 70-8027% 61%35%>85 Heisei1669(p)19-22 Heisei1860(p)23-26 Heisei2361(p)27-30 Choshun KobayashiTsukasa Shibata Cat(netVideoID) Fujita Ken Chitose Data collected from the Internet

Japan Industrial

Funeral Customs Change

Residential

Fukuoka Site To save land resources, funeral forms have undergone three stages of change: burial, cremation, and vertical cemetery. Vertical cemeteries have increased the efficiency of land use tenfold, which is of considerable significance to Japan.

43 Core

PurgeWorshipand Vertical AddRampSurround Change the Form of Burial Responding to Tradition

CemeteryMorphogenesisTraditionalForm

The Japanese believe that "the soul ascended to heaven and reincarnated and the body turns to earth to nourish all the livings." So a plant is often planted next to the grave. People water the plants and prune the leaves to express memorial. CemeteryBuildings BuildingsPark

Scale,Emotion,Light HearingVisionTouchVision Noisy Intention Scale/Light Scale Plan Form Scene Emotion Change Sight Experience ReplacementViewRebirthMercyCalmRelookIsolation

44 Daily and MonumentalMonumentality of MonumentalityCemetery of MonumentalityMonument of Park Daily DailyLighthouseCemeteryofDailyofofPark The Superposition of Daily and Monument The Superposition of Daily and Monument

Cemetery buildings in China are usually far from the city and the wilderness because of traditional taboo, while the Japanese always respect death. Typically, the cemetery is located in the center of the town or around the residential area for grave-sweeping, and people recognize the dead. The daily nature of the cemetery and its commemorative nature give the program a very high degree of freedom. We combine it with the park, take the function of the lighthouse and the form of the monument together, and connect the daily nature of the program with the most considerable degree of the memorial. Let the city's reality and history interweave and urge the city always to remember that there are so many people who are being forgotten.

MemorialLighthouseFuneralMourningExhibitionChurchWall

The Superposition of Daily and Monument

MemorialLighthouseReversalRelationshipScaleMonumentSubjectPlacement

Bottom

handler Using plants as

sweeping

Due to the aging of Japanese society, many elderly people still have to travel between different jobs every day. The remains of the body took his body to the lighthouse, separated all the relics from his life, prayed for him.

Proprietary body a new birth

grave Vine: growth, interweaving, contact PeriodCommemorativePeriodBirthNew Housing of the DeadSoul Beacon SACRIFICE AND FUNERAL FLOW

There is a long, narrow corridor in front of the main area of the Soul Lighthouse, and they can see all the clues before the life projected by AR

When3.Memorial2.Cremation1.Lonelytechnology.DeathWallthename

on the wall is touched, his coffin on the tower will glow, guiding people to find. To pray that his 'new' life can flourish here and coexist with others. The coffin is fertilized by visitors, watering, and even they will pray for the souls here like passing the shrine. Plants have been growing vigorously, guiding the lost ships and lost people, as another special way, they continues to glow and heat in the world and are remembered. 4.Glow Coffin

7.Lighthouse6.Growing5.Church PeriodDeathDeath : another kind of new birth Traditional gravesweeping form

base PlantSoilAsh

Watering as a of the

way

The names of the deceased are inscribed on the memorial wall of the entrance ramp. As people touch the names, the AI holographic projection will show his life and

The mourning space consists of a memorial ramp surrounding the plant burial area. When commemorating the deceased, people will find the plant burial of the dead along the slope, and then water and fertilize the plants, trim the branches and leaves to express their grief for the deceased.

epitaph.PlantSeed & tools Touch Switch ChurchEntrance Ramp Holographic Projection Transport Ramp Plant Burial Workstation ExhibitionElevatorRoom AshSoil Entrance of the Dead MourningName Space Exhibition Space & Funeral Space AI Memorial Wall & Church

46 AR Holographic

For the deceased, the first place they come to is the burial space. In this space, the ashes of the dead are buried in individual boxes, covered with soil and seeded, and then transported by ramps to the upper area. For the living, the ground floor of the building is a small exhibition hall, explaining the meaning and operation of the building.

PlantLampstandTombs Plant Generator Entrance of the Live & Plant Power Generation System

Lighthouse

HolographicARProjectormemorial wall

During photosynthesis, plants can not only break down water into hydrogen and oxygen but also into positively and negatively charged particles. Therefore, plants can directly convert solar energy into electrical energy with the participation of chlorophyll. When it is irradiated by sunlight, it will generate electric current and form a plant battery. Plants are grown by burials photosynthesize, and the electricity is stored in cells to power the lighthouse.

5004 Art Community on the Grant Canal Art Propaganda Complex and New Narration of Lunar Art Production Site: Yangliu Qing District, Tianjin, China 3rd Prize, 2020 UIA-HYP CUP International Competition in Architectural Design Instructor: Lei Zhang& Dongxue Fu Properties: Linking Infrastructure and Urban Design Design Started Date: March, 2021 Academic | Team Work (Teammate: Kaiyu Lu) Contribution: Concept, Site Analysis, Drawings

I hope we discussed the canal project as a revival of past infrastructure and constructed multiple grounds, then conceived a future floating art entertainment city prototype. The Art complex serves as a common cultural framework, demonstrates the linking of nearby terminal rail stations and a complex network of four underground metro lines, defining a node of hypermobility. Artists and art lovers lived around the art complex. Art was a medium for people’s communication, and the canal became a carrier of art. Every household had its own art propaganda medium-modular boat. Exhibitions and trades could be carried out by boats. Art rippled through the entire town with ships, taking them to further places in the Canal Culture Circle, integrate into people’s daily lives.

In ancient times, the Beijing-Hangzhou Canal was a medium for information and daily supply exchange. A large number of people gathered on both sides of the canal and earned their livings. The boats brought abundant goods, rare foreign toys, and stories. Cultural events happen along the canal, fostering tourism in riverbank cities. Many families in Tianjin skilled in lunar paintings’ production, promoting a high degree of art gathering and economic growth.

General Mapping Local Mapping UrbanGrantspaceCanal Tianjin Beijing JiningHuanghe River Huizhou Hangzhou Yangzhou Tianjin canal ecologyoldcentre art village BusinessTourism Water-conservationexurbLuoyangTianjinHangzhou Beijing Capital Culture Circle Lunar art village Art village Chemical factory Metro station the Grant Canal Ancient Yangliuqing Lunar art village Mid-land Circle Yangze-river Culture Circle Trade behavior Typical culture typology River transportation Jinghang Grant Canal Kind of old fashion! railwayCBDstation 15km Jingfu Road Xiqing Road Metro Line 1 Metro Line 13 Metro Line 15 10km Natural River System 1 1 2 2 3 3 Canal-surroundedAncientartvillagecityRiverusagecondition 450040003500300025002000150010005000450040003500300025002000150010005000 0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000 7500 0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000 7500

MAPPING OF NOMADIC CANAL CULTURE

The Beijing-Hangzhou Canal connects the Chinese three major cultural circles. Tianjin is a typical ribbon-shaped city, industrialized in trade and transportation. In ancient times, Yangliuqing District was famous for producing Lunar paintings. However, the conservative content of Lunar pictures cannot be recognized by youngsters. Simultaneously, the old town cannot attract more tourists due to its replicated renovation and loss of locality.

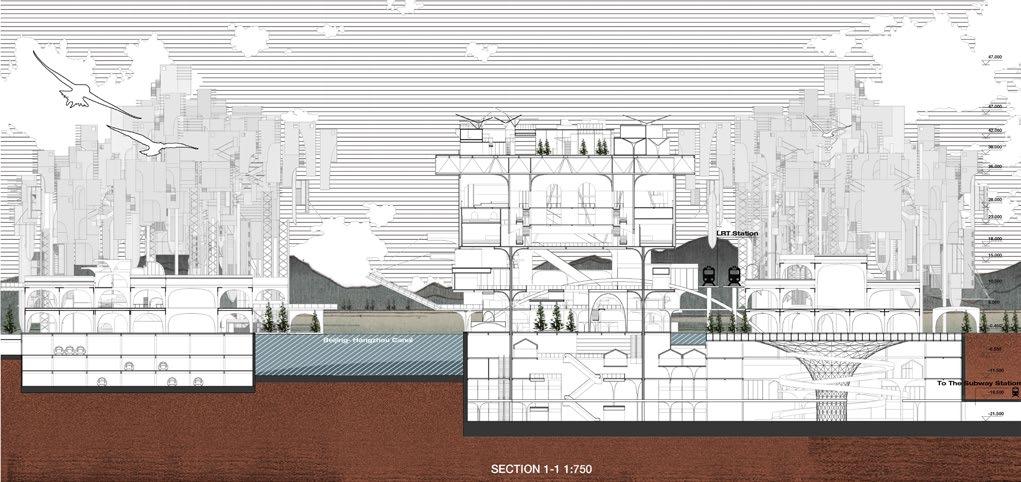

53 REBORN OF LUNAR ART PROPAGANDA SYSTEM New art prototype Art transfer in the community’s layers Art transfer in the capital culture circle propagandaNewLunarartspread Born of lunar art Future art image Function Co-Living&ProgramArtWorkshop Arc-shaped HousingPersonal boatSelf-exhibitionCentreexhibitionPresspropagandaPrivatebargainDeal Art making Symbose ancient village Propaganda Bargain&Trade Connect city Art drift Nomadic art propaganda Art exchange Off-shored art show On-shored art show Official propaganda Rental ship gallery Art complex Storage Storage Art experience Space Media Storage Paper&palettematerialpreparationWoodblockcarvationLinerubbing Rice ManualApprenticepaperpicturetrainingrendering Religious Festival RoastingBlessing Drying Bright color tinting Dark color tinting Ink linear picture Woodcut linear picture EventSpace TimeBehaviorNarrative story Elements PhenomenaDeconstructInfluenceRecomposition (OfficialStructurepropaganda) (Bottom-up)

Visitors from railway stationRetail art product Trade centre Media studioMedia press atrium Message centre

GalleryLunar

Boat gallery can exchange the exhibition and function modules, acting as an extension of exhibition space on the canal.

of theComponentboatLayer Path large

Layer 3 art bargaingallary&

Layer 2 spliced

auditoriumhub tube

combined

55 NEW LUNAR ART'S COMPONENTS TYPOLOGY Arc components of 'Maxi-Block' sector and nomadic galleryii Arc components of media complex sector

Disassembly diagram combinedworkshopworkshop

combined productionshow&Layer1 hollow

gallery combined residence combined workshop exhibition + boat workshop+ boat residence + boat exhibitionresidence+ workshop residence+ workshop residence+ workshop residence combined activity hall workshop multi-person residence arc umbrella arccommercial show arc arc Layer 4 media studio Layer 5 atrium propaganda megastructure space constructed by changable, private and public components.

iiii

Labyrinth

57 FANTASY ART PRODUCTION STORY IN MAXI-BLOCK Segments transgression Podium contributes to macroscale drawings, bottom-up commercial, and boat assembling. Upstair particular forms of blocks serve as bridge, ribbon, cathedral, square, and activator for the community. A block larger than the standard size: of 2 hectares enables developing a required social mix of art production and interaction activities, greater efficiency in sustainability questions. Maxi-block's Potential Folded temple TiltedTiltedCentripetal ReversedWeavedFoldedworkshop+co-living+ joint production+ squarecathetralbridge ribbonactivatorribbonliving+ auditorium+ production+ co-living+ auditorium+ TOD+ co-living+ gallery+ auditorium+ living+ auditorium+ production+ co-living+ studio+ clustered and split hanged and tilted weaved and collaged Battlefield arena Somnambullistic 'Siheyuan' Artists& visitors Art& boats Pedestrian porosity Multiple grounds Productive edge Memorable nodes Fantasy world story I II III Spatial operation

4 spliced archOvalassembleceiling Natural ventilation system1 80mm1 bed of 2-layerGeotextilegravellayerBitumiousseal80mmInsulationVapour-retarding10mmMortarlevelling350mmConcreteroof Beams Interlayer insulation Planting roof Stretch storage ceiling Water circulation VentilationIndependentsystemfootinterlayer

Plaster160mm15mm Drainage pipe Drainage pipe Strip footing InsulationSteel structure connection 5% Slop-finding drainage WaterBondingDownpipereinforcementcirculationsystem 2 2 Super flat view hole Equipment hole Ventilation Floor and Rainwater Harvesting Details of Inclined Balcony and Planting Roof Rainwater Harvesting Sponge City Strategy

Vapour

Spliced preservation two roofs

58 3 TYPICAL ARCHS CONSTRUCTION AND SUSTAINABLE APPROACHES Pre-casted Spliced Arch Pre-casted Umbrella Arch Cast-in-place Hollow Arch litchi grain plasterseat metal edge Boss room OpenBalconyofficeStretch Spliced2100Mediasunshadestudio4200archdesigned in 2 different dimensions can assemble as other functions for macroscale production.

Insulating concrete,300mm Laminated float glass 2mm Handrail, steel profile,zinc coated PVB foil 0.76mm, polished Water-repellent,paintededge grey Sub-structure, bitiminous, root resistant,5mm barrier, steel-reinforced concrete

Placed waterfront space, umbrella arches' surface was well-decorated as stucco plaster texture. hollow arches crisscross, defining different working space for studio.

Unit: Ceiling Storing for Art Tools Heat

Two

Entertainment Room between 2 Umbrella Archs Rainater Reservoir in Transfer Floor Rainater Reservoir Timber floor board 25mm Gravel drainage base Reinforced concrete Pipe connected catch basin Water permeable layer Filler CoverPlantinglayerlayerlayer

raise Protectivesupportmat Sealing,

and air interlayer between

59 PARTIAL PERSPECTIVE MAIN SECTION DRAWING

6005 White Ring of "Eye-Power" Observing and Being Observed Site: Instructor:Tokyo,JapanYueGuo (yueg@mid-aa.com) Properties: Bathing Architecture Design Started Date: September, 2018 Academic | Individual Work

Foucault's research on space concerns the formation of various institutions in modern Europe, including prisons, clinics, hospitals, etc. In the territory of these disciplines, knowledge, power, space, human body, and other issues are intertwined. In the panoramic open prison designed by Bentham, Foucault interprets this mode as "the Panopticon." I find that the different spatial depths created by asymmetrical visibility can produce exciting spatial experiences. In the bathhouse, people can communicate and observe without hesitation through thick fog. It is a collection of observations and being watched. So I use Foucault's interpretation of Velazquez's “"Las Meninas” to integrate the spatial relationship in the design of the bathhouse building: "perhaps there exists, in this painting by Velazquez, the representation as it were, of Classical representation, and the definition of the space it opens up to us. And, indeed, representation undertakes to represent itself here in all its elements, with its images, the eyes to which it is offered, the faces it makes visible, the gestures that call it into being. But there, amid this dispersion which it is simultaneously grouping and spreading out before us, indicated compellingly from every side, is an essential void: the necessary disappearance of that which is its foundation – of the person it resembles and the person in whose eyes it is only a resemblance. This very subject – which is the same – has been elided. And representation, freed finally from the relation that was impeding it, can offer itself as representation in its pure form."

lists the development and types of Japanese bathhouse. The heterogeneous spatial characteristics are extracted from different brands in different periods and juxtaposed. The topology is in the form of a circular plane to dispel the primary sense of the building, and the form of the center position is further dispersed into multiple chambers to decentralize. Combined to form heterogeneous space; the private bathroom that looks at the sky and nature from the ground, and the space above from the center, etc. respond to the space state of no subject staring and being stared in "Las Meninas, "bringing different space depth and observation way in different angles and positions of limited space. EYE-POWER AND "LAS MENINAS"

TYPE,

painting will depict the king as the protagonist in detail, and thus become the object of the viewer; but "Las Meninas" dispels the subjectivity of the viewer through "the definition of the space it opens up to us," standing directly in front of the picture in a none objectified way. As an abstract form, visual right is used to connect space. Without the meaning of monitoring management, viewing right is like "Las Meninas" in the interpretation of the relationship between space: explore to see and be seen, the angle and position of view coincide with the content of the picture so that multi-perspective and decentralization become the theme of the picture.

62Following

Bath TheConnectionSightVolumeTypeDecentralizationPrototypeTypeEye-PowerTypicalTypeFormLevelPlanconventional

Melancholy and closed Hot Spring Chambers NatureOfuroObservationI Public and Open Shallow Hot Spring InternalAshiyuObservationIII Bright and Open Hot Spring OcclusionPublicOnsenObservationVandClosedSwimming Pool InternalRotenburoObservationIVPublic and Closed PublicSentoN/ABathingII

Ground Plan Underground Plan

64 A-A SECTION Mechanical Floor Meditation Room HotBoxSpringFoundation 1.Slab Detail 2.Chambers Detail 3.Lighting Tube Detail Insulation Layer Vapour Barrier Screed Concrete Inclined Wall Light-absorpting Shade Cast-in-placeTarpaulin Concrete Weather Proofing Sealant GlassWater Structure Layer Decorative RingConcrete Beam Light DiffuserPipe Insulation InorganicVentilationLayerGapThermal Insulation InsulationInside layer Internal Liner Horizontal Plate 40mm*40mm Ventilation Chamber Cold WaterproofWater Layer

The columns and inverted funnel structure at the bottom extend to the box foundation as the support system of the building center. The inverted funnel structure is also a meditation space, with a lighting tube extending to the upper part and lots of ventilation gaps on the wall. Besides, the building has a continuous circulation of streamline to switch the state and view at any time quickly.

Toilet Ramp Chambers Recreation

65 HANDICRAFT MODEL

Properties: Temporary Theater Design Started Date: April, 2021 Academic | Individual Work

The theatre played the role of an intermediary at that time, people would cheer and communicate while watching the theatre, the theatre allowed people of different cultures and classes to communicate, even if they did not speak the same language and had different cultures. The site itself, where the Ruins of St Paul's is located, is discussing the inheritance and maintenance of an ancient heritage, but completely ignoring the everyday heritage. My design aims to create space for dialogue, so this site provides an opportunity for these two kinds of conservation for architectural sites and the everyday heritage I create to form a connected landscape. Three forms of conservation coexist and different identities come together to create opportunities for dialogue.

Daily Heritage Theatre Shed theatre as a mediator to stimulate the dialogue about the ignorance of identity and daily heritage

Msc2, International Design Studio, TU Delft Site: Macau, China Instructor: Stefano Milani, Micha de Haas

The issues in Macau are the ambiguity of identity and confusion about heritage. And Macau theatres used to exist as a space that could provide these exchanges, and for a while they were hugely popular in Macau, they were different from the cinemas and theatres of today, which were built around temples and churches. The hierarchy of people in Macau was very strict a few decades ago, with Portuguese, Macanese, Chinese, Southeast Asians, rich and poor all having different classes and very little interaction with each other. But in the makeshift theatres built out of sheds, facing God, facing interesting plays, there was no class distinction, people could sit at the front early in the day and watch, but late in the day they could only watch on the shelves, and it was very lively.

The official handover ceremony took place at midnight on 19 December 1999, in the grounds of the Macau Cultural Centre. The handover ceremony ended with the inauguration of the Macau Special Administrative Region at the Macau Cultural Centre in the early hours of December 20th.

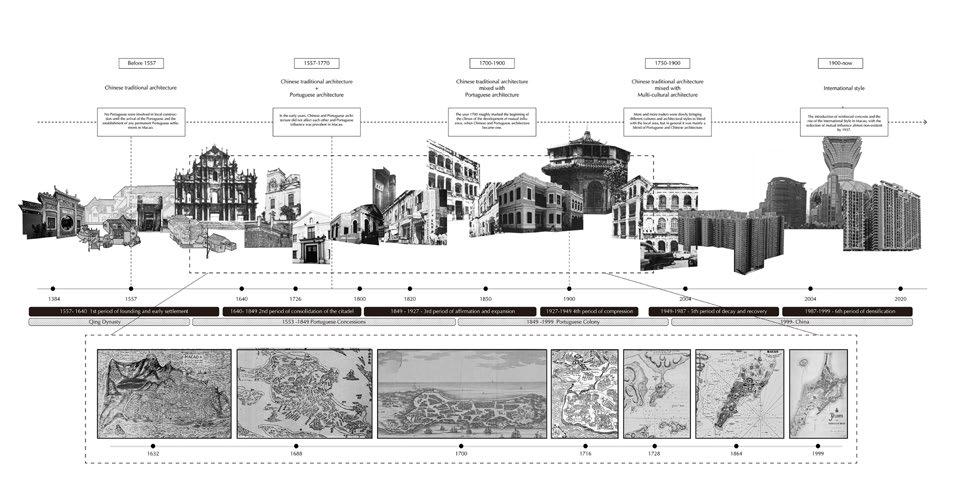

1849 Portuguese colonisation 1865 The appearance of the theatre shed 1937 Japanese invasion of China 1966 Cultural Revolution 1974Gambling agian 1999 Return of Macau

According to the records, such temporary theatres were very popular with people from all walks of life, and during the time when the theatre was being set up, it would become the most lively place, with beggars, blind people, seafarers, tourists and rich people all crowding together, some even climbing onto the bamboo scaffolding to watch because there were no seats available, in a very harmonious and frictionless way. During the war against Japan, Macau, like Hong Kong, became a refuge area for people from Guangzhou and the surrounding areas, as Portugal declared Macau "neutral" in the Sino-Japanese war.

The Cultural Revolution, formally the Great Proletarian Cultural Revolution, was a violent sociopolitical purge movement in China from 1966 until 1976.

After the assassination and beheading of the Governor of Macau in 1849, the Qing army engaged the Portuguese army in a battle that eventually made Macau a full-fledged colony of the Portuguese Empire.

The development of the gaming industry has led to the expansion of Macau's tourism industry, promoting rapid growth in investment in tourism hospitality facilities and a marked increase in tourism reception capacity

Populationdistributionchanges

69 Identity and Parish Theatre

70 /VerandahsBasementPlanBalcony/CourtyardStructure/ColumnWall/RoofParapetDoorWindowCeramicsPlasteringPattern TRADITIONAL ARCHITECTURAL ELEMENTS IN MACAU

71 TYPOLOGY OF BUILDING SHEDS AND THEATRE OF MACAU Large theatre shed Open structure, fully functional Exhibition shed Exhibition in the centre, open on both sides Middle theatre Semi-enclosedshedconstruction Instant theatre shed Temporary,structureopen Temple theatre shed Open viewablestructure,atdifferentheights Small theatre shed Flexible and movable stage and seats for easy dismantling THEATRE TYPOLOGY AND HERITAGE ANALYSIS

72 Shed Structure Detailing and Connections Vertical structures and grid JointsInter-gridConnectionconnectionstogroundconnectionswithwoodenwedge Joints with dowels and clamping fitters Joints with dowels and lashing Oblique support Rope fixing horizontal Rope fixing vertical structure Vertical structural system Partial structure system Site Section 1-1 Site Section 2-2 Site Section 3-3 Site elements and site planSiteProgrammeSection generation Building-siterelationship FunctionVolumeRampsallocationSmallStages AdaptationStepstothe terrain Stairs Tea Rooms ChangeableSiteInsertSeparationlargevolumeElementResponseFlexiblespaceTheatre ShedSubdivisionConnectionstructureLargetheatrePath and connections Function organisation

73 Plan 1: 200 Master Plan 1:500 Sectional Perspective 1st floor at 2.500m 2nd floor at 5.500m 3rd floor at 8.500m Roof floor at 11.500m

74 1LegendsSquare 11 Retail 2 To main core 12 Stage area(Small stages) 3 To large theatre 13 Flexible space 4 Seat area 14 To the Second floor 5 Stage area(Large theatre) 15 To the Third floor 6 To the Second floor 16 Exit to the path 7 Stage area(Changeable Theatre) 17 Tea Rooms 8 To the Second floor 9 Transport core 10 Back stage

75 Small Stages SectionalSectionalPlanPlanperspectiveperspectiveChangeable Theatre

76 Plan Sectional perspective Large theatre

77 Flexible space Tea Rooms PlanPlanSectional perspective Sectional perspective

78Cedric Price and Joan Littlewood. Fun Palace promotional brochure, 1964. Perspective drawing of Cedric Prices “Fun Palace.” University Of Brighton. 2014. Exemplary Project — Cedric Price.

Instead of focusing on the aesthetic expression of the building, Cedric Price insisted on eliminating the form as an element of representation. He destroyed the beauty of architecture and substituted it with the beauty of the user.

Project Description

The Fun Palace is the first project that comprehends the challenges that accompany the “architecture of the digital age”.Cedric Price wanted to eliminate the physical presence of architecture for the benefit of social interaction and use computers and the internet with its different modes and scales of interaction as basic elements of our everyday social interaction.

79 07* Surveillance Palace Msc2, Experiments in Drawing Theory, TU Delft Instructor: Gökçe Önal Properties: Drawing and theory experiments Design Started Date: February, 2021 Academic | Team Work (Teammate: Alice Chau Ka Yee, Rui Wei)

Course Description

In this course, drawing is not only considered to be a technique or instrument for architectural design but also as an autonomous form of architectural knowledge as well as a concept of critical reflection and innovative thinking. The relationship between drawing and theory belongs to a long and well-established tradition, according to which drawing is seen as a significant instrument of representation, namely in its double function of constituting architectural knowledge and as an act of creative construction, capable of modifying the real and refocusing it within the dimension of theoretical and practical construction - often with a pronounced ideological content. More specifically, herein, it is advanced that the rigorous graphic investigation of these remarkable works can disclose the aspects of their theoretical value that cannot be grasped from the simple observation.

We try to deconstruct the fun palace and all the elements will be reorganized in our Palace. We divide these elements into five categories, structure, enclosed space, open space, circulation, and facilities, most of the elements can be adapted according to users. In this way, the greatest pleasure of traditional parks is preserved–the pleasure of strolling casually. This is the hardware of fun palace.

Contribution: Concept, Drawing Translation, Drawing Technique, Drawing Course Detail: https://www.borders-territories.space/Projects/Education/Ed.062

‘Experiments in Drawing Theory’ investigates the speculative power of drawing in developing an architectural position by analyzing three seminal architectural work: Giovanni Battista Piranesi’s Carceri d’Invenzione series (1745/50 – 1761), Aldo Rossi’s Città Analoga (19761981) and Cedric Price’s Fun Palace (1961-1985).

Big data is one of the most prevalent topics for these decades, we envisioned all the visitors in the fun palace are data carriers, data like body temperature and heartbeats can be collected by the sensors that separated in the palace, these sensors can also collect data of environment like acoustic, illuminance and air velocity. This data will be transmitted to the central computer and then be analyzed the system we design, the feedback will be shown in the environment. This process will be repeated until the state of the visitors, space, and environment each the position envisioned. Inour project, sensors, and monitors play a key role in the whole system, they may also result in some ethics problem, we call it AsSurveillancePalace.wementionedbefore,

According to Norbert Wiener, cybernetics is the scientific study of control and communication in the animal and the machine. It is described as the art of steering so it is basically about getting to what you want. It requires feedback for the self-correction system to reach or get closer to your goal. This mechanism creates a conversation between humans and humans by generating feedback.

Cedric Price wanted to eliminate the physical presence of architecture, so how can we adapt the space a nd environment responding to sensors? Then we find that, in graphic design, lines can be used to establish a certain sensibility, which is called a mood line. The mood line idea can be also be applied to the three-dimensional architectural space.

As for the software, we made a timeline that traces the development of technologies that might be used in the palace, with the support of these technologies, there will be many possibilities of what this place could be. Even beyond the expectation of Cedric Price, they might be both positive and negative.

In our project, mood comes from sensors, and we give each mood a specific spatial form so it can be shown physically.

In the fun palace, the feedback loop consists of three steps: sensing, controlling, and acting. Electronic sensors first gather raw information from individual users, the computer would then compile the data to establish overall user trends by setting parameters for modification. At last, the building computer would relocate the building elements such as movable walls and walkways and adapt to the form and layout in use.

DECONSTRUCTING FUN PALACE

81 CYBERNETICS

82 RESEARCH & REFERENCE

“Leisure-and-entertainment facilities today tend to provide specific commercialized types of fun, often offering rather passive enjoyment is specifically designed to comfort zones, the Fun Palace idea of fun is to specifically provide the opportunity to investigate your limits, alone or together with others.”The transformation of the leisure industry seems to warn us that some negative effects might come with the surveillance system. How can the data we collect not be used maliciously a question we have to think about?

DRAWING: SYSTEM &PROGRAM

Jeremy Bentham, in 1785, proposed the Panopticon, a prison building consisting of a rotunda with a shuttered examination room in the middle. This design allowed a single guard to watch all the prisoners in the prison, without the prisoners knowing whether they were being watched or not. In 1975, Michel Foucault used the Panopticon as a metaphor for modern disciplinary society in his book Discipline and Punish. Later Gilles Deleuze observed that technology had enabled the replacement of physically protected facilities such as schools, factories, prisons, and office buildings by automatic surveillance machines that could extend the range of surveillance to manage production and consumption. Through a single screen, people can monitor a large amount of content beyond the reach of the human eye. Bruno Latour saw the panopticon as a form of surveillance that "sees everything but sees nothing", and he proposed a counterpart, the Oligopticon. t is more in line with today's society that the form of surveillance has become "see little but see detailed", from single surveillance to multiple surveillance. Because of technological developments, whether it's surveillance cameras or stolen personal data from mobile phones, people are constantly being watched by a myriad of hidden things around them. In Latour's Actor-network theory, he is usually associated with equal treatment of human and non-human actors, that is, humans no longer serve as the only subject of study. So we imagine what would happen if we made all surveillance and sensor devices the subject of our research, that is, the Oligopticon perspective of surveillance to observe scenarios and reflect on the possibilities and potential threats of information gathering and feedback in Fun Palace in the present society. Since we decided to make it a SurveillancePalace, many movies share a similar idea that came to our minds. The Truman Show, West World, Paprikaand Rear Window. Simulation and virtual world, self-awareness, we can find some similarities in both Fun Palace and our SurveillancePalace.Are there any possibilities to awake the potential skills and talents of visitors through their experience in our Palace?

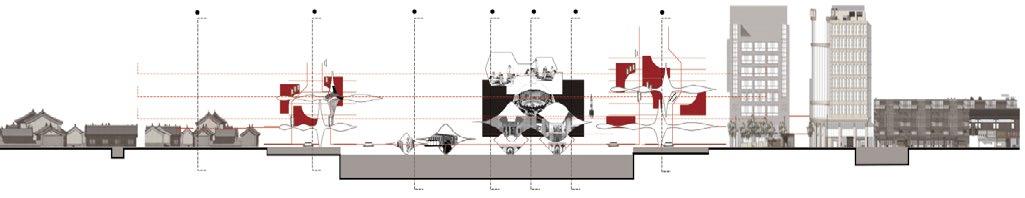

84 DRAWING: SCENE SLICING AND ROUTES

85 DRAWING: SCENARIOS
