CYBERPUNK STREET 05
Unreal Engine 5 Environment Design
Spring 2022
Advertisement
Unreal Engine 5
Individual Project
个人完成的Unreal Engine 5场景设计/地编项目，资产来源于Kitbash3D。受《赛博朋克 2077》游戏启发设计了一个赛博街区小场景，完成了打光，相机设置，资产管理等工作。
The Modular Economy Housing Project with UE5 Building Game
Fall 2022
Critic|Richard Garber
TA|David Perrine
Individual Project
The project stands at the Summit Plaza of New Jersey City. The chunk drawings show the housing’s connection with the existed library. While redesigning the library, I tried to bring more attractions and function to it and to make a library of 21st century. By adding gallery, more computer desks and café to the library, more residents from the neighborhood could be draw to this place.
Camera movement, Object placing, outline shader, red/green shader, UI button
DEMO-A PHASE 01
Gme Design Sketches
Second object placing, snapping gird
The game demo is designed for clients, residents, state coder to use. The game helped them better understand the site condition and to express their needs for this housing project. Designer could got feedback from the result of their game and improve the design. Here I use the studio unit of my project as a building asset. Unfortunately, due to some technical problem, the game was not finished bu we got a daft demo version.
DEMO-A PHASE 03
Site scene development, Main interface UI
Midterm Design
BUILDING GAME DEMO-A RESUILT
Blueprint development by David Perrine, UI by Sharlene and Jianqing

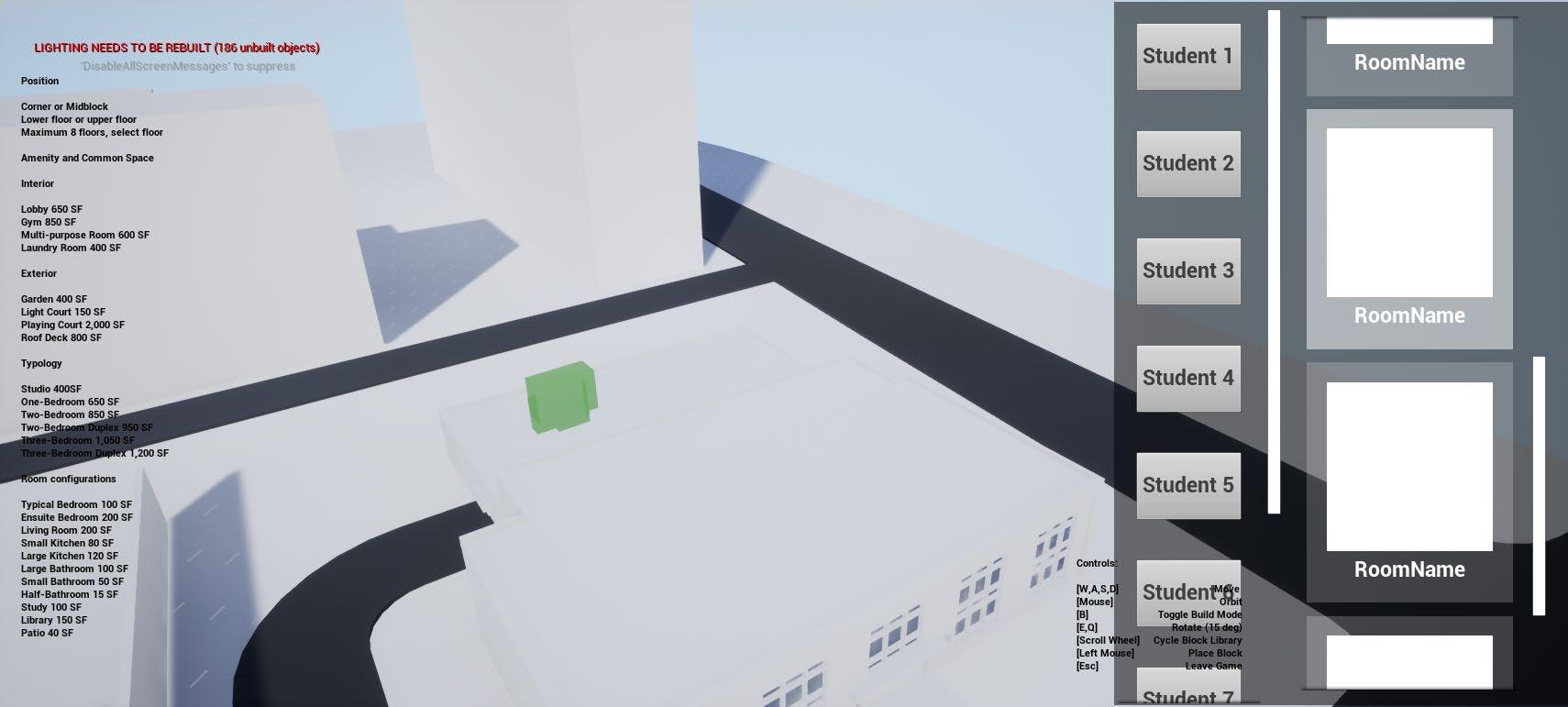

Site scene, Camera controll, Placing object, Rotation, Switch object, Delete object.
UI menu to select different type of room.
FLOOR PLAN - 5F
Total Units Area: 7000 SF
14 Units: 2 Studio, 4 Mini Units, 4 1B1B Units, 3 2B2B Units, 1 Duplex 1b1b Units
In the plans, the units aggregate according to the hexed pattern and are connected by hallways. Hallway is also designed in modular logics to be more easily prefabricated. The amenity space of 2F makes use of the roof of lobby and library, turning them to swimming pool and patio.
FLOOR PLAN - 2F
Total Units Area: 7000 SF
14 Units: 2 Studio, 4 Mini Units, 4 1B1B Units, 3 2B2B Units, 1 Duplex 1b1b Units
On the 5th floor, units floorplate goes bigger to the top of the library and lobby. Hallway is more enclosed but there are still many openings to get access to roof garden.
FACADE & MATERIAL RENDER
The main construction method for the units modules is pre-fabricated concrete. Each module consists of pre-fab concrete walls, the top and bottom modules are fixed directly by iron nails, and then the floor and ceiling are laid. The base is hollow and is used to store the rainwater collected in the roof garden. The rainwater is reused for irrigation of the roof garden through pipes in the walls.
The rendering shows the pool designed using lobby roof. The outdoor view of the librarian auditorium is also shown. The entrance at the northeast corner is designed with a number of landscapes and an outdoor theater, and the Unit module is very distinctive in form, as a hexed island.
