STERLING 800 PRESSING EXCELLENCE
THE ONLY CHOICE FOR SCREW PRESSES
part of the global Desmet organisation
RoseDowns is a proud

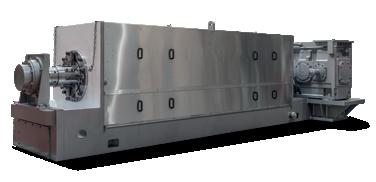

The innovative design of the 800 Series Sterling Screw Press is a result of RoseDowns industry experience and knowledge.
RoseDowns utilize 250 years of British engineering excellence to produce the worlds best equipment for the oils and fats industry.
STERLING
800 PRESSING EXCELLENCE
• High Reliability
• Operator Friendly
• Value Added Options
Key Features
• Feeder Assembly
• Worm Assembly
• Gearbox & Thrust Bearing Assembly
• Discharge End Bearing
• Stainless Steel Covers Press Options
• Barring Motor
• Cake Breaker
• Press Orientation
• Shaft & Choke Cooling
• Compress V Control
• Feeder Layout
• Hard-Faced, Fully Welded or Goldstar Parts
• Safety Inspection Kit
• Hydraulic Fines Brush
1
4 2
Cake Breaker Reduces the size of the cake pieces for subsequent mechanical handling and processing.
3 5 6
Feed end drive
Multistage, Low Compression Worm Assembly Designs giving maximum oil yield for
The gearbox and thrust bearing assembly are located in a clean environment.
Cage
One Piece cast cage opens to 90° for easy access.
Length 5,750 mm* Frame Width 1,200 mm Max Width 1,915 mm Frame Height 1,500 mm Inlet Height 2,000 mm Cage Bore 400 mm Overall Press 20,000 Kg Half Cage 3,000 Kg Worm Assy 3,200 Kg Gearbox 3,300 Kg Weight Main Motor 300-630 kW (400-840 HP) Base Conveyor 1.5 kW (2.0 HP) Vertical Feeder** 5.5 kW (7.5 HP) Horizontal Feeder 3.0-5.5 kW (4.0-7.5 HP) Cake Breaker** 5.5 kW (7.5 HP) Barring Motor** 15 kW (20 HP) Gearbox Oil Cooler** 2.2 kW (3.0 HP) Installed Power (Subject to application) (*) Excluding main motor. (**) Optional. All dimensions are approximate. We reserve the right to alter the specification at any time without prior notice. Dimensions Typical Duty Pre-Press 650–800
/ Full Press 120–150 TPD
TPD
Cannon Street - Kingston Upon Hull HU2 0AD - United Kingdom
Tel : +44 (0)1482 329864 | E-mail: rosedowns.uk@desmet.com
Großer Weidenweg 3a - 27367 Ahausen/Eversen - Germany
Tel: +49 (0)4231-982 88 0 | E-mail: rosedowns.de@desmet.com
OF SCREW PRESSES rosedowns.co.uk
