STERLING 1000 PRESSING EXCELLENCE
THE ONLY CHOICE FOR SCREW PRESSES
RoseDowns
is a proud part of the global Desmet organisation

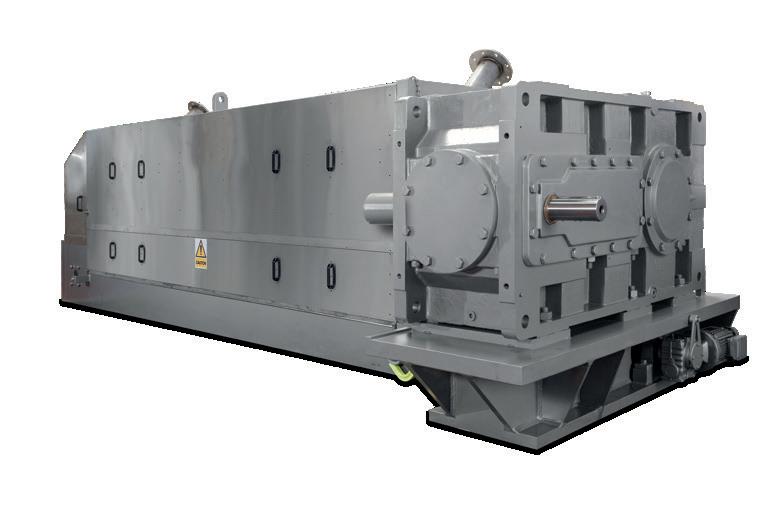

The innovative design of 1000 Series Sterling Screw press is a result of RoseDowns industry experience and knowledge.
RoseDowns utilize 250 years of British engineering excellence to produce the worlds best equipment for the oils and fats industry.
STERLING
1000 PRESSING EXCELLENCE
Design Basis
• High Reliability
• Operator Friendly
• Value Added Options
Key Features
• Feeder Assembly
• Worm Assembly
• Gearbox & Thrust Bearing Assembly
• Discharge End Bearing
• Stainless Steel Covers
Press Options
• Barring Motor
• Cake Breaker
• Press Orientation
• Compress V Control
• Shaft & Choke Cooling
• Feeder Layout
• Hard-Faced, Fully Welded or Goldstar Parts
• Safety Inspection Kit
• Hydraulic Fines Brush
4 1
2
3
Feed end drive The gearbox and thrust bearing assembly are located in a clean environment.
Cake Breaker Reduces the size of the cake pieces for subsequent mechanical handling and processing.
5
Multistage, Low Compression Worm Assembly
6
Designs giving maximum oil yield for Cage
One Piece cast cage opens to 90° for easy access.
Length* 6,250
Frame Width 1,200 mm Max Width 1,915 mm Frame Height 1,500 mm (min)
Height 2,000 mm Cage Bore 410 mm Overall Press 21,500 Kg Half Cage 3,000 Kg Worm Assy 3,000 Kg Gearbox 4,200 Kg Weight Main Motor 500 -700 kW (670-940 HP) Base Conveyor 1.5 kW (2.0 HP) Vertical Feeder 5.5 kW (7.4 HP) Horizontal Feeder 3.0-5.5 kW (4-7.4 HP) Cake Breaker 5.5 kW (7.4 HP) Barring Motor 11 kW (14.8 HP) Gearbox Oil Cooler 1.1-2.2 kW (1.5-3.0 HP) Installed Power (Subject to application) (*) Including barring motor & water cooling. All dimensions are approximate. We reserve the right to alter the specification at any time without prior notice. Dimensions
mm
Inlet
