ARTÚNSHÖFÐI

MOVING EXISTING INDUSTRY IN THREE PHASES

PHASE 3

PHASE 2

PHASE 1 PHASE 2

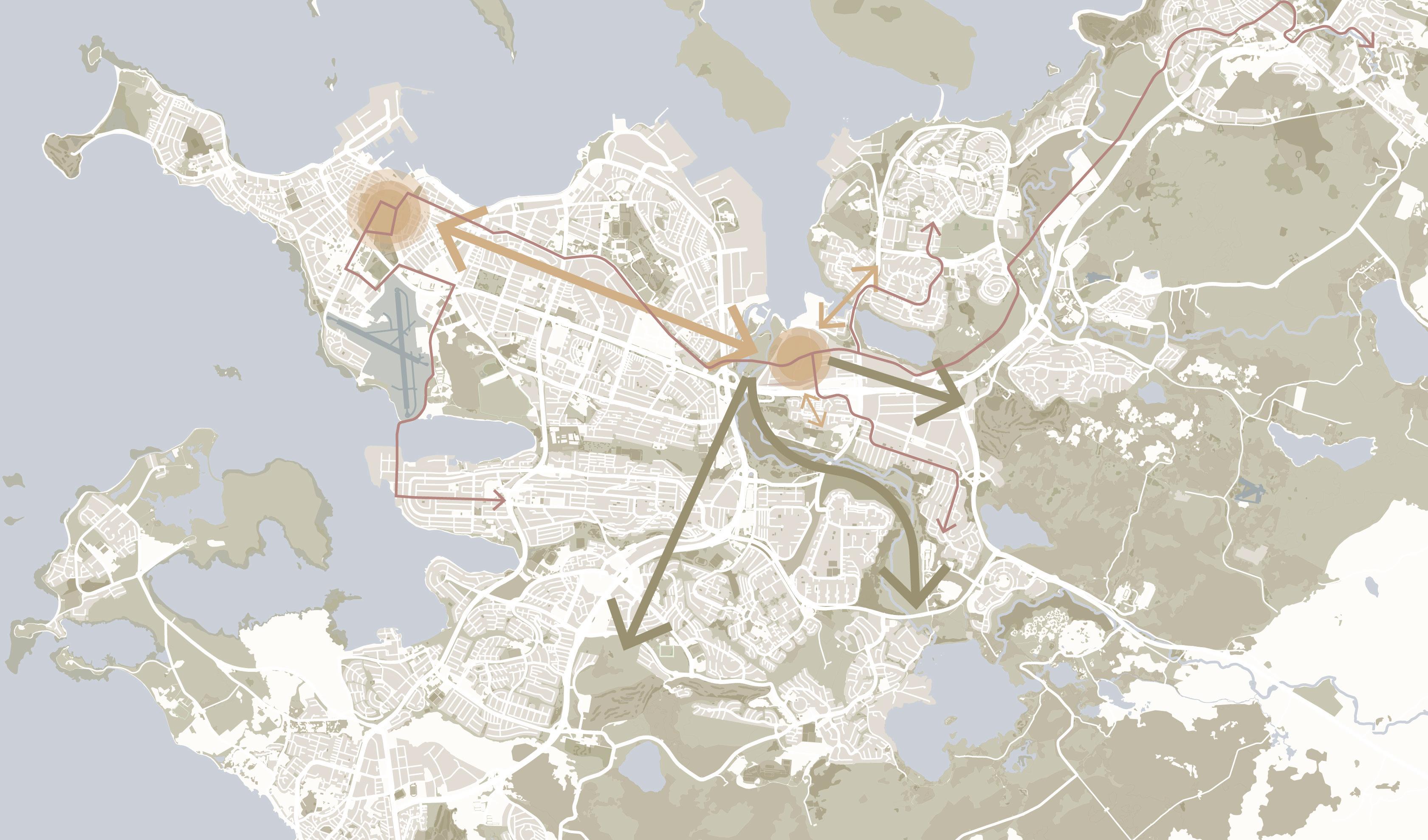

REGIONAL STRATEGY

CREATING ATTRACTIONS ALONG THE FIRST BRT LINE AND PRESERVE THE EXISTING GREEN INFRASTRUCTURE

ADDING MIX USE AND RESIDENTIAL BUILDINGS WITH EXTENDING THE GREEN NETWORK

EXTENDING ON THE LANDFILL

B
PU
R T
LIC ELATED TRANSFORMA ION CENTER
Annika Enzinger Urban lanscapes 2022
ELLIÐAVATN
FOLDIR AIRPORT HAMRAR
PUBLIC SPACE
SMALAHOLTSSKÓGUR

The transformation from a non-attractive industrial area to an attractive mixed area with a network of public spaces needs time. The area is going to be developed in three phases to improve the quality of live of the citizens and increase the attractiveness of the district. In the first phase, when there’s only the first city line of the BRT, the areas around the stops are going to be developed with plazas and activities. After, in the second phase, as soon as live is happening along the line, there’s a need for residential buildings and work opportunities. The Plazas along the BRT line are going to be extend through a network of public spaces in the mixed area with different usage. And in the last phase when the BRT line is finished, and the frequency is higher because of three lines going through the area. The residential area is going to be extended on the landfill in the north.

MASTERPLAN M 1:2000 SECTION
M 1:200 GREEN NETWORK BUS
ACCESSIBILITY CAR A A‘ B B‘ EMERGENCY
BRT LOCAL
A-A‘
NETWORK BUILDING HEIGHTS
4-5 FLOORS
3-4 FLOORS 1-2 FLOORS
12m 27m 20m 26m 12m 22m 12m 34m 12.5m 20m 10m 7m 8m 3.5m 3.5m
SECTION B-B‘ M 1:200 10.5m 4.5m 3m 8m 12m 24m 12m 7m 3m 4m DETAIL M 1:500
SPORT CENTER
EVENT SPACE
1 MAIN PLAZA 2 BRT STOP 10 SPORTS CENTER 11 CAFÉ 6 PLAYGROUND 5 EVENT SPACE 14 SUPERMARKET 8 PARK 12 OFFICE 13 COMMUNITY CENTER 15 SCHOOL 7 WATERFRONT 9 RESTAURANT 3 MOBILITY HUB 4 HOT POOLS 1 2 3 4 5 10 14 15 6 7 8 9 11 13 12

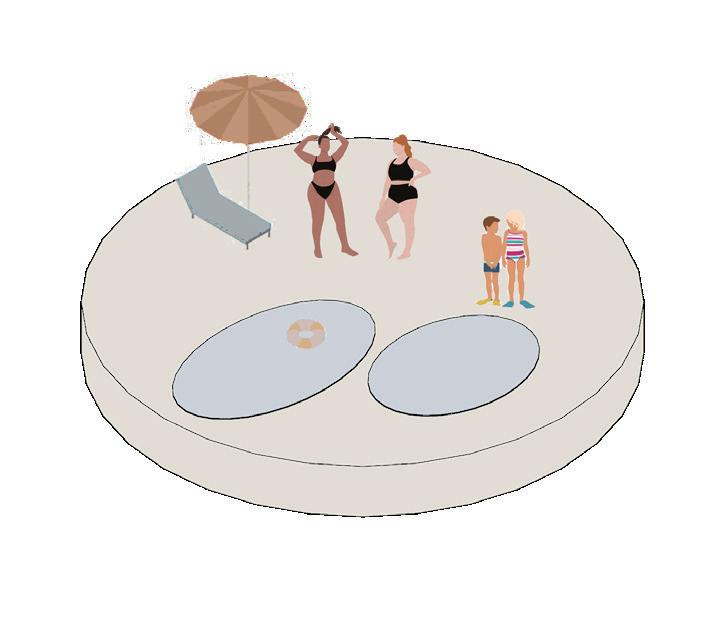

HOT POOLS BRT STOP
