WELCOME
LALITA, a registered architect in India currently working at an architectural firm in the capital of India-Delhi, under the guidance of senior architects and designers. Withholding 5 Years full-time Degree in Bachelor of Architecture (B Arch) and 3 Years full time Diploma in Interior Design from reputed universities, I'm trying to serve my skills in the Built Environment with knowledge of art & science of building design to develop the Concepts for structure and evaluating these Concepts into reality.
2
This is how my architecture journey started. I did my thesis project on Beach Resorts, Goa, in the 4th year. Then I joined an architectural apprenticeship which was the mandatory part of BArch’s academic curriculum in the final year/5th year. In my apprenticeship, I got opportunities to work for 5-star hill resort named ITC Welcome SPA & Resort, which is located near Jim Corbett National Park, Uttrakhand, India, and this project comes under the development of the Indian Himalayan Region (IHR). In 2021, I completed my BArch degree. I continued in the same firm as a Junior Architect, where I was appointed for an apprenticeship. I was learning so much with live projects that I didn't opt for another firm after graduation, and I am currently working here. This time I got the opportunity to work for a housing project named Raksha Paradise which consists of 53 individual villas and group housing.
I'mHi,
WORK EXPERIENCES
CBSE,
Morphosis Infra Pvt. Ltd , Rajinder Nagar, Delhi, India.
Diploma in Interior Design (70%)
Architectural Apprenticeship (Full Time)
Areva Design, South Extn., Delhi, India.
January 2014 to January 2015 (1 Year Part Time)
Architect (Full Time)
01 August 2015 to 03 August 2016 (1 Year)
Astha Interior & Infrastructure Pvt. Ltd , Delhi, India.
SOFTWARE SKILLS AUTOCAD * * * * * Expert 3Ds MAX * * * * * Advance SKETCHUP * * * * * Advance PHOTOSHOP * * * * * Advance MS OFFICE - Word, Excel, PPT. * * * * * Expert ENSCAPE * * * * * IntermediateVITAECURRICULUM 3
Interior Designer (Part Time)
CADD CENTRE, New Friends Colony, Delhi, India.
01 May 2021 to PRESENT (1 Year+)
16 Aug 2016 to 30 April 2021 (5 Years Full Time Degree)
MeeraBai Institute of Technology, Delhi, India.
22 Aug 2012 to 30 Apr 2015 (3 Years Full Time Diploma) S.S.K.V. New Delhi, India.
10th Standard or Year 10 (CGPA 8.0)
Diploma in ID GRAFX - AutoCAD, 3Ds Max, Photoshop
01 May 2018 to 31 October 2018 (6 Months)
QUALIFICATIONS Maharshi Dayanand University, Rohtak, Haryana, India. Bachelor of Architecture, B Arch. (80%)
11 August 2020 to 30 April 2021 (9 Months)
Interior Designer (Full Time)
CONTENTS PAGE NO ACADEMIC WORK 1. THESIS-BEACH RESORT-GOA, 4TH YEAR WORK (2020) 05 – 12 PROCESS WORK 13 RANGE OF MEDIA 14 PROFESSIONAL WORK (2020 – PRESENT) 2. ITC WELCOME RESORT & SPA 16 – 22 3. AFOWO RAKSHA PARADISE RESORT (HOUSING) 23 – 25 INSPIRATIONS & VISION 26 4
* There is no ups and down of level
THESIS - PARADISE BEACH RESORT & SPA AT CAVELOSSIM, SOUTH GOA, INDIA.
CAVELOSSIM SITE 3D MODEL IMAGE

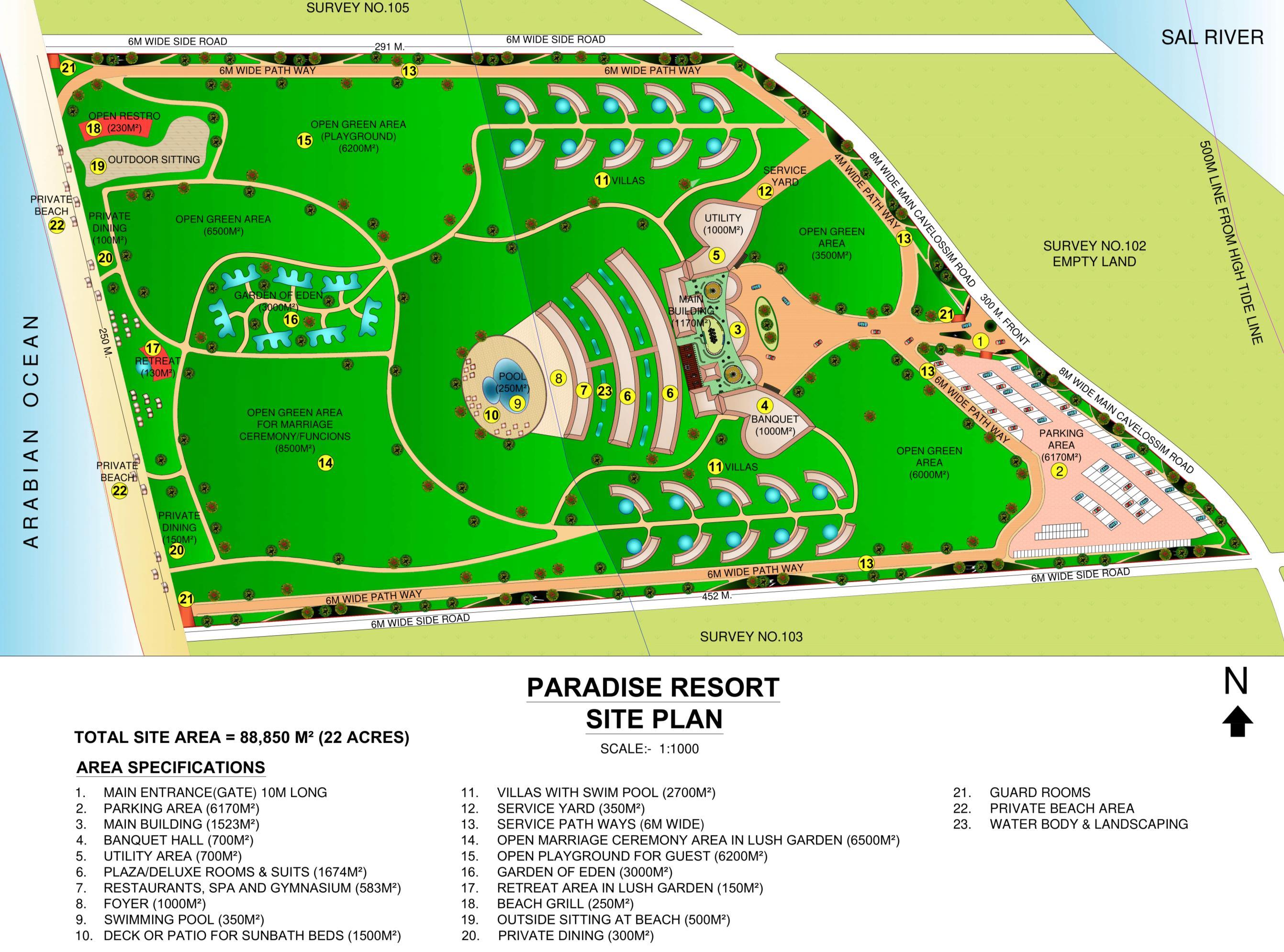

SITE PLAN
(01)
Project Area: 88, 875 SQMT. (22 Acres Approx.)
GOA MAP
Project Location: Cavelossim, South Goa, India.
Project Status: Proposed
INDIA MAP
CAVELOSSIM MAP
The GCZMA insists that projects shall be endorsed only on incorporation of full details with respect to the systems contemplated for rain water harvesting, solid waste ‘treatment/ disposal’ and supplemental use of renewable sources of energy.
* The soil is rich in minerals and humus, thus conducive to agriculture.
PURPOSE OF RESORT
* Site is plane with minor slope toward beach
* Further inland and along the riverbanks, the soil is mostly alluvial and loamy.
Project Name: PARADISE RESORT & SPA
37km away from the Dabolim International Airport, Site situated with Cavelossim main road NH 43.
GOOGLE LOCATION
TOPOGRAPHY
INDIA is seventh largest Country in South Asia.
SITE LOCATION
Type of the Project: Commercial Building Type: Recreation Building
* Mostly Goa's soil cover is made up of laterites rich in ferric Aluminum oxides and reddish in color.
* Numbers of trees are there
GOA
ABOUT STATE
SITE SECTION DIAGRAM
SOIL CONDITIONS
Sandy Soil
* No site boundaries are constructed.
5
The members of GOA COASTAL ZONE MANAGEMENT AUTHORITY (GCZMA) acknowledged that on account of rapid developments in the “Tourism Industry”, environmentally sound and sustainable management of the coastal zone is critical It was also felt that due to the contemplated proposals for a Special Economic Zone (SEZ), new international airport, major IT/Biotech Parks, etc., the Coastal Zone Management Plan for Goa may need adjustments to reduce pressures on already congested coastal stretches and allow a more evenly spread out pattern of tourism facilities in all over Goa.
The Member Secretary clarified the GCZMA meeting for conducting a confirmatory site inspection, and 9 cases of ‘Hotel/Resort’ project proposals (3 beach resort/6 business hotel).
Cavelossim is a village in South Goa District.
Loamy Soil
SITE ANALYSIS
Goa is India's smallest state by area and the fourth smallest by population It is visited by large numbers of international and domestic tourists each year for its white sand beaches, nightlife, places of worship and World Heritage listed architecture.
* Covered with Grass and loamy sand
PROJECT PROFILE
Goa is a smallest state in India. It is India’s pocket sized paradise.
* Tourism is Goa's primary industry: it gets 12% of foreign tourist arrivals in India
* Konkani is spoken as a native language by about 66.11% of the people
* Crab, lobster, shrimp, jellyfish, oysters and catfish are the basis of the marine fishery
* Rail Goa has margaon railway station with two rail lines one run by the South Western Railway and the other by the Konkan Railway
* The sex ratio is 973 females to 1,000 males.
* North Goa is further divided into three subdivisions Panaji, Mapusa, and Bicholim; and five talukas (subdistricts) Tiswadi/Ilhas de Goa (Panaji), Bardez (Mapusa), Pernem, Bicholim, and Sattari (Valpoi).
RELIGION:
* Temple architecture is an amalgam of original Goan temple style with Dravidian, Hemadpanthi, Islamic, and Portuguese architecture
* Goa's state animal is the Gaur, the state bird is the Ruby Throated (Yellow Bulbul), which is a variation of Black crested Bulbul, and the state tree is the Matti (Asna).
6
GEOGRAPHY:
* Goa's seven major rivers are the Zuari, Mandovi, Terekhol, Chapora, Galgibag, Kumbarjua canal, Talpona and the Sal.
* South Goa is further divided into five subdivisions Ponda, Mormugao Vasco, Margao, Quepem, and Dharbandora; and seven talukas Ponda, Mormugao, Salcete (Margao), Quepem, and Canacona (Chaudi), Sanguem, and Dharbandora. (Ponda taluka was shifted from North Goa to South Goa in January 2015).
* In 2010, there were more than 2 million tourists reported to have visited Goa, about 1.2 million of whom were from abroad
* Road Government run buses link major routes (like the Panaji Margao route) The Corporation owns 15 bus stands, 4 depots Hired forms of transport include unmetered taxis, auto rickshaws and motorcycles operated by pilots.
* Wind flow from south east to north west.
TRANSPORTATION:-
GOA WIND ROSE DIAGRAM
ECONOMY:
* Goa is India's richest state with the highest GDP per capita two and a half times that of the country
* The population moved from 64.5% Christian and 35% Hindu in 1851 to 50% Christian and 50% Hindu in 1900
1. The Bom Jesus Basilica
* Goa has a coastline of 160 km.
SUB-DIVISION:
POPULATION:
2. Churches and convents of Old Goa
* One of the biggest tourist attractions in Goa is water sports. Beaches like Baga and Calangute offer jet skiing, parasailing, banana boat rides, water scooter rides.
DEMOGRAPHY
* GOA area = 3,702 km2.
CLIMATE:
* Goan Hindu houses do not show any Portuguese influence
* The state is divided into two districts: North Goa and South Goa.
* According to the 2011 census, in a population of 1,458,545 people, 66.1% were Hindu, 25.1% were Christian, 8.3% were Muslim and 0.1% were Sikh.
* Marathi may also be used "for all or any of the official purposes
* Average annual rainfall is 2900mm
* Goa also has a high snake population.
LANGUAGE:
* Average temperature 35 °C (95 °F)
FLORA & FAUNA:
* Goa's state domestic product for 2017 is estimated at $11 billion at current prices
HISTORIC SITES & NEIGHBOURHOODS:
* The population has a growth rate of 8.23% per decade
HOT & CLIMATEHUMID
* Goa is known for its coconut cultivation.
* Goa has two World Heritage Sites:
* Goa has hot and humid climate for most of the year.
* Goa has a population of 1.459 million residents as of 2011
* The birth rate is 15.70 per 1,000 people in 2007
* It lies between the latitudes 14°53′54″ N and 15°40′00″ N and longitudes 73°40′33″ E and 74°20′13″ E.
* Goa is a part of the coastal country known as the Konkan, which is an escarpment rising up to the Western Ghats range of mountains, which separate it from the Deccan Plateau.
* Air Dabolim Goa International Airport.
ARCHITECTURE:
* These are both Portuguese era monuments and reflect a strong European character.
* Each district is administered by a district collector, appointed by the Indian government.
* Equatorial forest cover in Goa stands at 1,424 km²
* The architecture of Goa is a combination of Goan, Ottoman and Portuguese styles
TOURISM:
* Rice is the main food crop
* As of 2013, Goa was a destination of choice for Indian and foreign tourists, particularly Britons and Russians
3.IRON USE IT TO MAKE SOME BEAUTIFUL STRUCTURE AND ELEMENTS OF IRON.
PARADISE IN LANDSCAPE DESIGN
3 D MODEL VILLA/COTTAGEOF
7
3 D MODEL OF MAIN BUILDING
1 WATER WHITE PEARLS RD IRON 4TH BRASS SILVER TH GOLD TH DIVINE LIGHT
* IN RELIGIOUS OR MYTHOLOGICAL COSMOLOGY, THERE'S BELIEVE THAT HEAVEN IS CONSIST OF SEVEN LEVEL OR SEVEN DIVISIONS.
I AM PLANNING TO GIVE SENSE OF HEAVEN IN MY DESIGN PART OF THE RESORT, I'M SELECTING 'PARADISE' AS RESORT NAME AND AS WELL AS CONCEPT 'PARADISE' FOR THE RESORT WHICH REFERS TO MORE EARTHLY STATES & PLACE AND IT DILIGENTLY DEPICT HEAVEN. THOUGH I HAVE TO ALSO INSURE THE BY LAWS OF COASTAL AREA ZONES.
4.BRASS USE IT FOR PAINTING FRAMES, WALL CLADDING, ETC.
ZONING OF AREAS
CONCEPT FOR PROPOSED BEACH RESORT
1.WATER AS POOL, FOUNTAIN, WATER FALL ETC.
7.LIGHT USE OF DIFFERENT TYPES OF DIVINE LIGHTING IN OUR RESORT.
I HAVE A SITE AREA IN FRONT OF ARABIAN OCEAN IN GOA, I MUST HAVE TO PROPOSED AN INTERMEDIATE PLACE OR STATE WHERE THE RIGHTEOUS SOULS AWAIT RESURRECTION AND FEELS LIKE THEY ARE IN "HEAVEN".
6
2ND
ST
VILLAS / COTTAGES ARE THE SEPARATE AND INDIVIDUAL UNITS OF THE RESORT, WHICH WILL BUILT AT SOME DISTANCE TO EACH OTHER, SO THAT PRIVACY CAN BE MANAGE IT WILL HAVE SEPARATE SWIMMING POOLS & INDIVIDUAL TERRACE DEPENDS ON FACILITIES & LEISURE
·IN THE BOOK OF GENESIS, PARADISE IS DESCRIBED AS ''GARDEN OF EDEN'', BIBLICAL ''GARDEN OF GOD''.
BUBBLE DIAGRAM
3

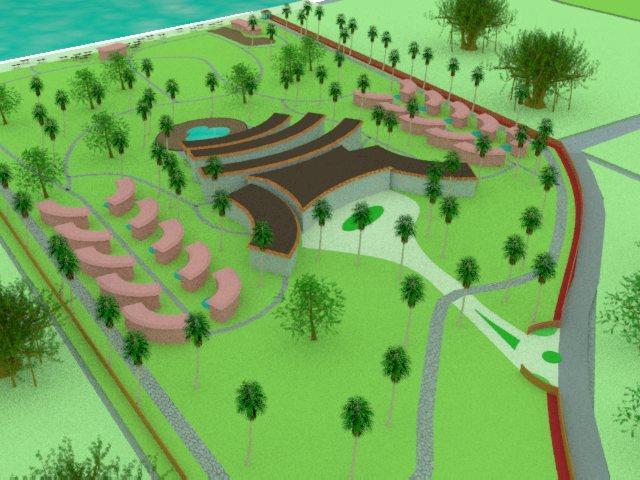

3 D SITE PLAN SHOWING BUILDING PLACEMENT & ITS CHARACTERISTIC (PRE FINAL)
BY USING THE ANGEL'S WINGS, I STARTED DEVELOPING THE SHAPE OF THE RESORT STRUCTURE STEP BY STEP UNTIL THE FINAL SHAPE OCCURRED, WHICH IS SUITABLE FOR GOOD PLANNING AND CIRCULATIONS IN ASPECTS OF SUN PATH, WIND BLOWS ETC. THIS FORM WILL USE AS MAIN BUILDING OF THE RESORT WHERE GUEST ARRIVES FIRST.
2.WHITE PEARLS AS DECORATIVE INTERIOR PURPOSES SUCH AS SCUPLTURE, ETC.
WHY PARADISE ?
DEVELOPMENT STRATEGY
* IT WILL GIVE SENSE OF A STATE OF BLISS, FELICITY OR DELIGHTFUL TO GUESTS.
THE 'PARADISE RESORT' WILL INTEND TO BE ORGANIZE VACATIONS, DESTINATION WEDDINGS, MEETINGS AND STIMULATE TOURISM INDUSTRY THE PARADISE WILL BE AN INTEGRATED DELUXE FIVE STAR RESORT COMPLEX WITH HOST OF MUTUAL BENEFICIAL FACILITIES, i.e. LARGE BALLROOM WITH BANQUET HALL & AUDITORIUM, SPORTS GROUND, OTHER AMENITIES LIKE GYMNASIUM, SPA AND RETAIL SHOPS THE QUALITY OF FACILITIES AND LIFESTYLE AMENITIES WILL PLAY AN IMPORTANT ROLE IN ATTRACTING NATIONAL OR INTERNATIONAL EVENTS AND TOURISM IN SOUTH GOA AS WELL.
5TH
7
6.GOLD GOLDEN EFFECT IN LOBBY INTERIOR SUCH AS CORNICE, PILLAR, FURNITURE, DECORATIVE PEACE.
ANGELS CAME IN OUR MIND WHEN WE ALWAYS THINK ABOUT HEAVEN SO, I FIRST STARTED WITH FORM OF ANGEL'S WINGS.
SHAPE DEVELOPMENT
5.SILVER USE IT AS GIFT TO GIVE GUEST TO MAKE MEMORABLE STAY WITH RESORT.
USES OF THESE MATERIALS (BUILDING COMPONENT)
·PARADISE LANDSCAPE WOULD CREATE A PLEASURE GARDEN IN WHICH THE GUESTS EXPERIENCE THE GREATEST SENSUAL AND SPIRITUAL HAPPINESS.
* PARADISE IS ANOTHER WORD FOR HEAVEN.
BUILDING ORIENTATION
FINAL SHAPE OF MAIN BUILDING
* EACH OF THE SEVEN LEVEL IS DEPICTED AS BEING COMPOSED OF A DIFFERENT MATERIALS SUCH AS:
8
9
BLOCK A - MAIN BUILDING LAYOUT PLAN
BLOCK A - SECTION 10
BLOCK A - ELEVATIONS
LAYOUT
FRONT BEACH GRILL
BLOCK E – RETREAT BLOCK
LONGITUDINAL SECTION
LAYOUT PLAN
BLOCK B & C - VILLAS / COTTAGE
PLAN SECTION ELEVATION 11
GROUNDLONGITUDINALELEVATIONSECTIONFLOORLAYOUTPLANREARELEVATION BLOCK D –
3D BLOCK MODELLING ON 3DS MAX NOTE: IT WAS WORK OF MY UNDERGRADUATE DEGREE AND THAT TIME I ONLY KNOW ABOUT HOW TO DO BLOCK MODELLING AND APPLY MATERAILS ON 3DS MAX . I LEARNT SKETCHUP LATER FOR INHANCE MY MODELLING SKILLS. 12
PENCIL WORKS INK WORKS
DOT WORK PORTICO AND ROTUNDA ROME ARCH OF TITUS ROME
PROPOSED ELEVATION OF COTTAGE/VILLA TYPES OF DOMES INDO ISLAMIC ARCHITECTURE TYPES OF MINAR & MINARETS INDO ISLAMIC ARCHITECTURE JAMAROMANMASJIDDORIC ORDER GREEK DORIC ORDER 17TH CENTURY ENGLAND FURNITURE STYLES 17TH CENTURY AMERICA FURNITURE STYLES 13
PERSPECTIVE VIEW OF KITCHEN PERSPECTIVE VIEW OF BEDROOM PERSPECTIVE VIEW OF LIVING HALL
PROCESS / SKETCH WORK
LINGARAJA TEMPLE, ORRISSA
LASER
CUT WOODEN MODEL – INDRAPRASTHA SANSKRITIK KALA KENDRA (CULTURAL CENTRE) LIGHTING OBJECT MADE UP OF COLORED PLASTIC ACRYLIC SHEETS AND CARBOARD. ACRYLIC SHEET FIXED IN PARTICULAR WAY INSIDE THE SQUARE CARBOARD BOX, SO THAT LIGHTS FALLS ON WALL & FLOOR IN DIFFERENT PATTERN. 14
RANGE OF WORK IN TERMS OF DIFFERENT MEDIA LOTUS TEMPLE, DELHI- MADE UP OF THREAD AND PINBOARD PINS & ALL PINS. FARM HOUSE MODEL- MATERIALS WERE USED LIKE GRASS SHEET, CARDBOARD, WOODEN STICKS, THERMACOAL, COLORED PAPER, HANDMADE SHEET, PLASTIC TRANSPARENT SHEET FOR WATER BODY & READYMADE TREES AND CAR MODEL. EMPIRE STATE BUILDINGMODEL MADE UP OF ACRYLIC SHEETS AND CARDBOARD. WALL ART IT WAS GROUP TASK OF FOUR STUDENTS. ACRYLIC PAINTS WERE USED. PRIMARY SCHOOL MODEL- MATERIALS WERE USED LIKE CORK SHEET FOR PATHWAY PAVEMENT, GRASS SHEET, CARDBOARD, WOODEN STICKS, THERMACOAL, COLORED PAPER, PLASTIC TRANSPARENT SHEET FOR WATER BODY & WINDOWS.
PROFFESSIONAL WORKS
15
Site is Situated 35km away from Ramnagar towards Ranikhet at Chilkiya Range.
India is seventh largest country in South Asia.
UTTRAKHAND MAP
ANNUAL CLIMATE DATA FOR NAINITAL
35Km away from the Ramnagar toward Ranikhet, Resort located on an isolated hill near Jim Corbett National Park, this project come under the Development of the Indian Himalayan Region (IHR). 5 STAR RESORT is now at final stage of completion consisting of about 62 rooms and public areas. The property has been designed in such a manner that each room has a stunning view of Ramganga river downhill. Sprawling Landscape & Gardens was the main consideration in Design development of this project. Design Contemporary structure on a Downhill Site Condition was the challenges while execution of the project
Project Area: 28330 Sq. Mt. (Approx. 7 Acre)
GOOGLE LOCATION
TOURISM- A popular hill station, Nainital has numerous tourist spots including Nainital Lake, Naina Peak 8622ft, Himalaya Darshan & Echo Zone, Hanumangarhi and Pt G B Pant, High Altitude Zoo, Raj Bhawan, etc
Uttrakhand is a state in the northern part of India.
Project Owner: Lalit Jha
Company Name: Morphosis Infra Pvt. Ltd.
It is popular hill station in Uttrakhand.
ITC WELCOM RESORT & SPA AT NAINITAL, UTTRAKHAND, INDIA
Type of the Project: Commercial Building Type: Recreation Building
(02)
Project Location: Jim Corbett, Nainital, Uttrakhand, India
Project Scope: Design & Build Services
ROLE – When I joined apprenticeship in 2020 in Morphosis Infra Pvt Ltd., I got opportunity to work for 5 star Hotel brand, ITC Welcom and its structure work was already completed. During my stage of work, I have done 100% contribution in all interior working drawings of Guest rooms, Banquet hall, SPA, Restaurant, Reception block, Back of house (BOH) and Pool side Restrobar.
I Handout all working layouts such are furniture, flooring, electrical, reflected ceiling plan, lighting layouts along with all typical details i.e. Elevations, Sections, Door/Windows, Furniture details etc.
16
I have also coordinated with HVAC and fire drawings i.e., Smoke detector and sprinkler points. I played important role in site execution, material selection and more…. (ONLY SELECTED WORK IS SHOWN IN PORTFOLIO)
PROJECT PROFILE
NAINTAL MAP
Project Name: ITC WELCOM RESORT & SPA
Project Architect: Ar. Abhishek Kumar
SITE LOCATION
INDIA MAP
SITE PLAN 1 2 3 5 6 9 12 13 13 14 14 15 15 181716 2019 21 22 7 4 10 8 9 9 11 23 23 23 23 23 LEGEND 1. MAIN ENTRANCE OF RESORT 2. 7M WIDE PATHWAY TOWARD MAIN BUILDING 3. 5M WIDE PATHWAY TOWARD PARKING 4. PARKING AREA 5. MAIN BUILDING BLOCK WITH RECEPTION & ADMIN 6. BANQUET BLOCK 7. 4M WIDE PATHWAY TOWARD COTTAGES 8. BANQUET OPEN LAWN 9. COMMON LAWN OF RESORTS WITH LANDSCAPE FEATURES 10. 3M WIDE RAMP PATHWAY 11. 3M WIDE STEPS PATHWAY 12. TYPE A COTTAGES 13. TYPE B COTTAGES 14. TYPE C COTTAGES 15. TYPE D COTTAGES 16. SWIMMING POOL 17. SWIMMING POOL DECK AREA 18. SPA BLOCK 19. RESTROBAR 20. AMPHITHEATER 21. BASKET BALL COURT 22. GAZEBO AND PLAY AREA 23. MAIN ROAD RAMNAGAR TOWARD RANIKHET. 7 7 7 7 7 N NORTH DIRECTION 17 VIEW AFTER STRUCTURE WORK COMPLETION.
This building block placed on top elevated zone so that each rooms have a stunning view of hills. Interior concept & planning base on functions of respective area.
18
VIEW OF RECEPTION AREA
VIEW AT ENTRANCE DOOR
VIEW
It also consist of gymnasium & fun zone area, making it separate & relax able block within the resort for adult and as well as for children.
OF GUEST RELAXATION AREA
OF GUEST RELAXATION AREA
The average temperature in Jim Corbett is 19.5 °c throughout the year and sometimes it also experience snow fall in February month. This is why this location is known for major footfall in each months. Imagine how this warm scheme in each rooms will give cosy impact on guest while spending leisure time when snowing here.
ROLE I have worked on Interiors Drawings, MEP, Fire Fighting coordination and Material specifications.
VIEW
OF MASSAGE ROOM
SPA & ACTIVITY BLOCK
VIEW OF RECEPTION AREA
VIEW
19
BANQUET HALL- This building block placed along with main building which consist of reception, back of house (BOH), restaurant & kitchen area. So that food can be easily accessible in banquet hall from kitchen within the block. The banquet has a big ballroom which can be divided into two equal parts by the sliding folding partition. It also include two meeting rooms for business purposes and pre functions area for buffet counter. Wooden wall panelling has been done in ballroom with insulation material to absorb sound and its influence the interior as well.
20 BANQUET HALL LAYOUT PLAN
ROLE I have worked on Interiors Drawings, MEP, Fire Fighting coordination and Material specifications
3D VIEWS OF BALLROOM (WARM & TRADITIONAL INTERIOR SCHEME)
21
3D VIEW OF MAIN BUILDINGPOOL SIDE

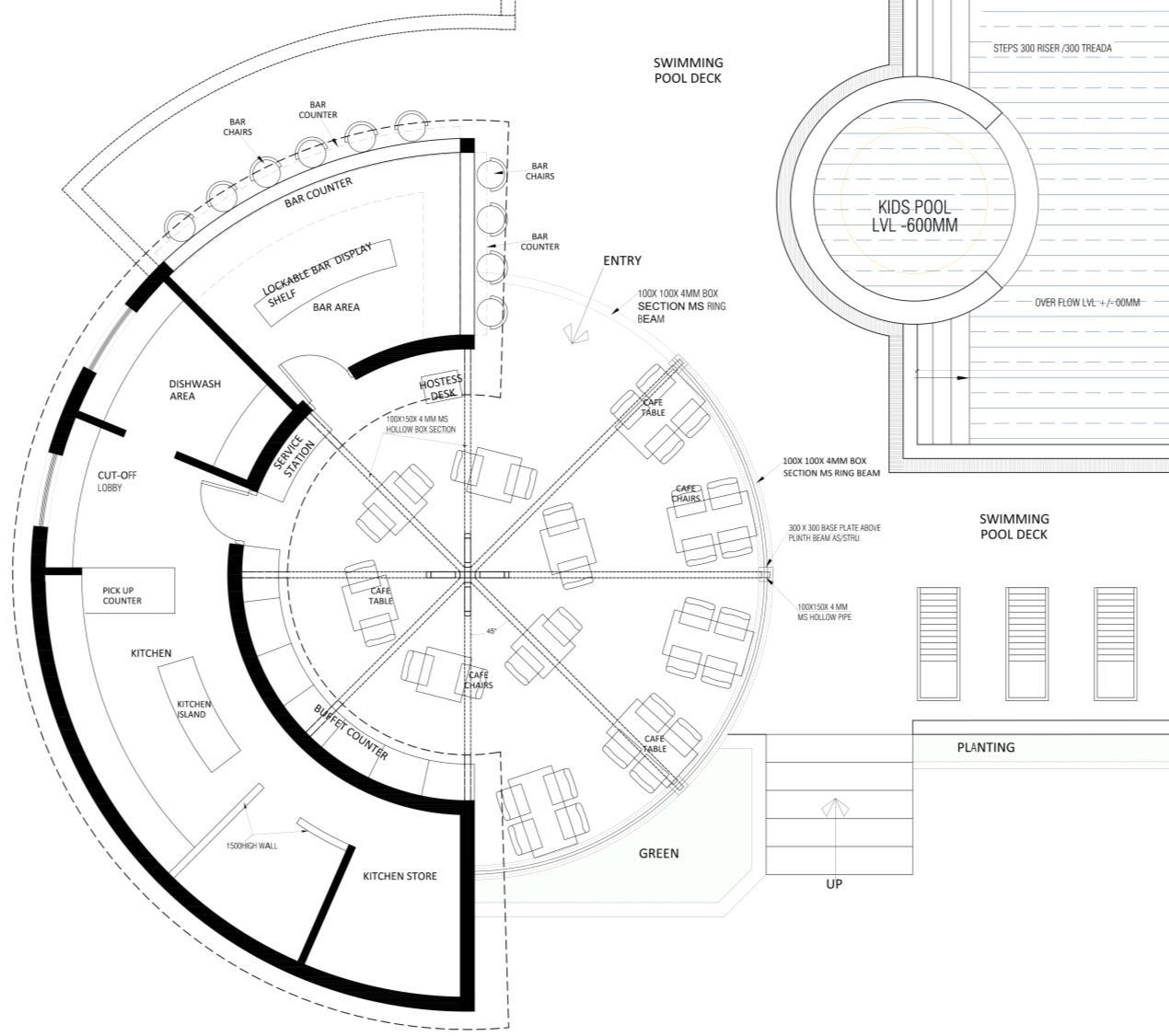

PLAN OF POOL SIDE RESTROBAR
CONCEPTUAL 3D VIEWS VIEWS AFTER
CONSTRUCTION
GLIMPSE OF
22
RESTROBAR
Project Name: Raksha Paradise Resort
Type of the Project: Commercial
(03)
ROLE When I joined same company as Junior Architect, I got opportunity to work for Housing Project. In this project I started with initial Site Plan. I worked on Site development, placing of Buildings with Setting-out Plan & Sections, Pathway planning within the Site. As it is Hilly Area, I coordinated with major and minor contours with the help of survey plan so that we don’t need to do too much excavation on site. Later on, I worked on Architectural Drawings of respective Villas and Conceptual Elevation of Group Housing Building.
Company Name: Morphosis Infra Pvt. Ltd.
AT MAJKHALI, UTTRAKHAND, INDIA
Project Scope: Design & Build Services
Raksha Paradise Resort, meaning Queen’s Meadows or Queen’s Land, is a charming hill station located at an elevation of 6132 feet above sea level, in the Almora district in North Indian state of Uttrakhand. Nestled in the midst of the great Himalayas, this British era hill station is also a cantonment town, home to the Kumaon Regimental Centre, maintained by the Indian Army. Offering a panoramic view of the majestic snow clad Himalayas, ranging from Bhagirathi peak in the west to the Nanda Kot in the east, Raksha Paradise Resorts is a coveted tourist spot for the admirers of natural beauty.
Project Location: Majkhali, Ranikhet, Uttrakhand, India.
23
INITIAL 3 D VIEW OF HOUSING UNITS LOCATIONSITE
AFOWO RAKSHA PARADISE RESORT
PROJECT PROFILE
Project Area: 26868 Sq. Mt. (Approx. 6.6 Acre)
AVERAGE MINIMUM AND MAXIMUM TEMPERATURE IN ALMORA DISTRICT
Project Architect: Ar. Abhishek Kumar
Project Owner:- Armed Forces Officials Welfare Organization (AFOWO)
These units have G 1 Structure because of the nature of the site. In some villas we have G 1 with stilt floor. Uttrakhand experience heavy rainfall from June To September and also Snow fall once in a year. To keep these climate points with influence of modernism, the slope roof is designed in Villas. Each Villa have view of Indian Himalayas
IT IS A HILLY SITE WITH MAJOR & MINOR CONTOURS. IN RAKSHA PARADISE RESORT, UPPER SIDE (ELEVATED) IS CONSIST OF 53 INDIVIDUAL 3BHK VILLAS AND LOWER SIDE IS CONSIST OF 240 UNITS OF GROUP HOUSING. IN GROUP HOUSING WE HAVE STUDIO, 1BHK & 2BHK UNITS.
Group Housing have G+4 Structure with Stilt Parking. Slope Hip Roof is designed for Housing Units in Traditional Style with RCC and Roof Shingles materials. Tried to give modern feature in elevation which is cladded with stone. (3D yet not finalized)
SITE PLAN
ENTRANCE
GROUP HOUSING
3BHK VILLAS (FIRST ROW)
PUBLIC BUILDING
24
Public Building is the first building to see when you enter in the resort. It is situated at site’s top elevated area. It consist of indoor amenities like Gymnasium, Yoga & Meditation Center, Restaurant, Club House, Common & VIP Activity Halls, Children Play room along with Outdoor amenities such are Swimming pool, Basket & Tennis Court.
In Entry Floor there is a Living cum Dining Hall, Kitchen & 1 Bedroom with attached Toilet. Lower Floor have two Bedrooms with attached Toilets and 1 Servant Room with Toilet.
Drawings
GROUP HOUSING
STILT CONCEPTUAL 3D VIEW CONCEPTUAL 3D VIEW CONCEPTUAL 3D VIEW

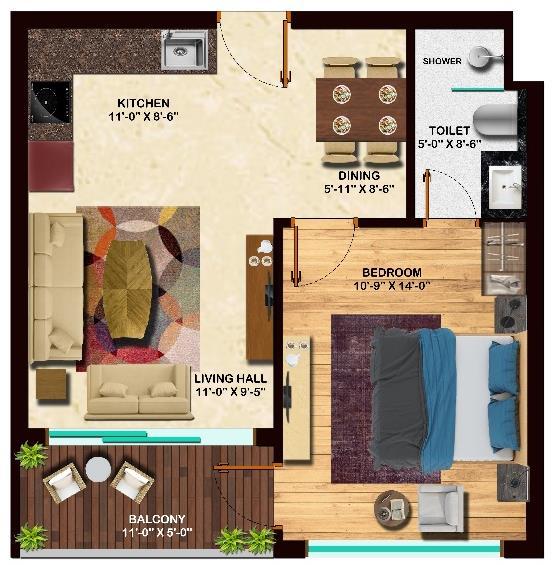

HOUSING UNITS RENDER PLANS STUDIO UNIT PLAN 1 BHK UNIT PLAN 2 BHK UNIT PLAN
I have worked on Architectural and coordinated structure drawings Villas are under construction at this stage
25RENDER3BHK-VILLAPLANS ENTRY FLOOR PLAN LOWER FLOOR PLAN STILT FLOOR PLAN
3BHK VILLAS (2000 SQFT.)
3BHK VILLA ENTRY SIDE VIEW 3BHK VILLA BALCONY SIDE VIEW
Group Housing is still at Designing Stage. I tried to play with structure of balcony which will give modernism impact on elevation without using of any heavily materials such as stone cladding on exterior walls.
3BHK VILLA G 1 WITH
Architect who have inspire me most is ZAHA HADID, as she has proven herself, a wonderful role model for women in the male dominated field of architecture and she became the very first woman to win the Pritzker award in 2004. I really want to serve my skills in development of countries on a big scale through architecture as like she did or might be something different from her.
HAWA MAHAL, JAIPUR CITY PALACE, JAIPUR VIKASA SOUDHA, KARNATAKA VIDHANA SOUDHA, KARNATAKA LEGISLATURE
ST. CATHEDRAL,PHILOMENA'SCATHOLICCHURCH,MYSORE 26
MY INSPIRATION & VISION
• Learn something which I don’t know and not aware of it.
Architectural practices will enhance my architectural knowledge and Project Complexity based on live projects and its diverse range of projects will add unique skills to my Design Portfolio. I understand after completion of advance practices, graduates will be given more responsibility on projects, and those responsibilities will eventually give me more knowledge and experience in the field. Working in an Architectural firm, will give me opportunities to carry out specialist studies and research, which will help me to tackle upcoming responsibilities in my future endower. So, here I am looking forward to learn and enhance my skills with vast knowledge of architecture.
MY HOBBIES
I have not any specific kind of hobbies which I like to do in my free times on daily or weekly basis. But yes, there are few things which I like to do:-
QUTUBDELHIMINAR,
• Even I like to volunteering by giving tuition classes for children who don’t afford to pay or with minimum fee.
• Sometimes I love to do photography of architectural monuments and buildings.
• Love to know about other countries, like their cultures and discipline.
