ACCESSORIES
Our practical accessories and office tools can be arranged to match our Panel collection - Bene's organisational and screening elements. The extensive range of accessories allows for customising and organising of a workstation - and within direct reach as well. The collection ranges from visual screening elements, CPU and screen
mounts to storage compartments and trays to ensure an orderly workspace, and helpful magnetic and fabric pin boards to bring some added colour. The highly sophisticated organsation rail system ensures that all Bene accessories can be integrated with our panels, making them truly multi.
PRODUCT DESCRIPTION
TABLE ADD-ON ELEMENTS

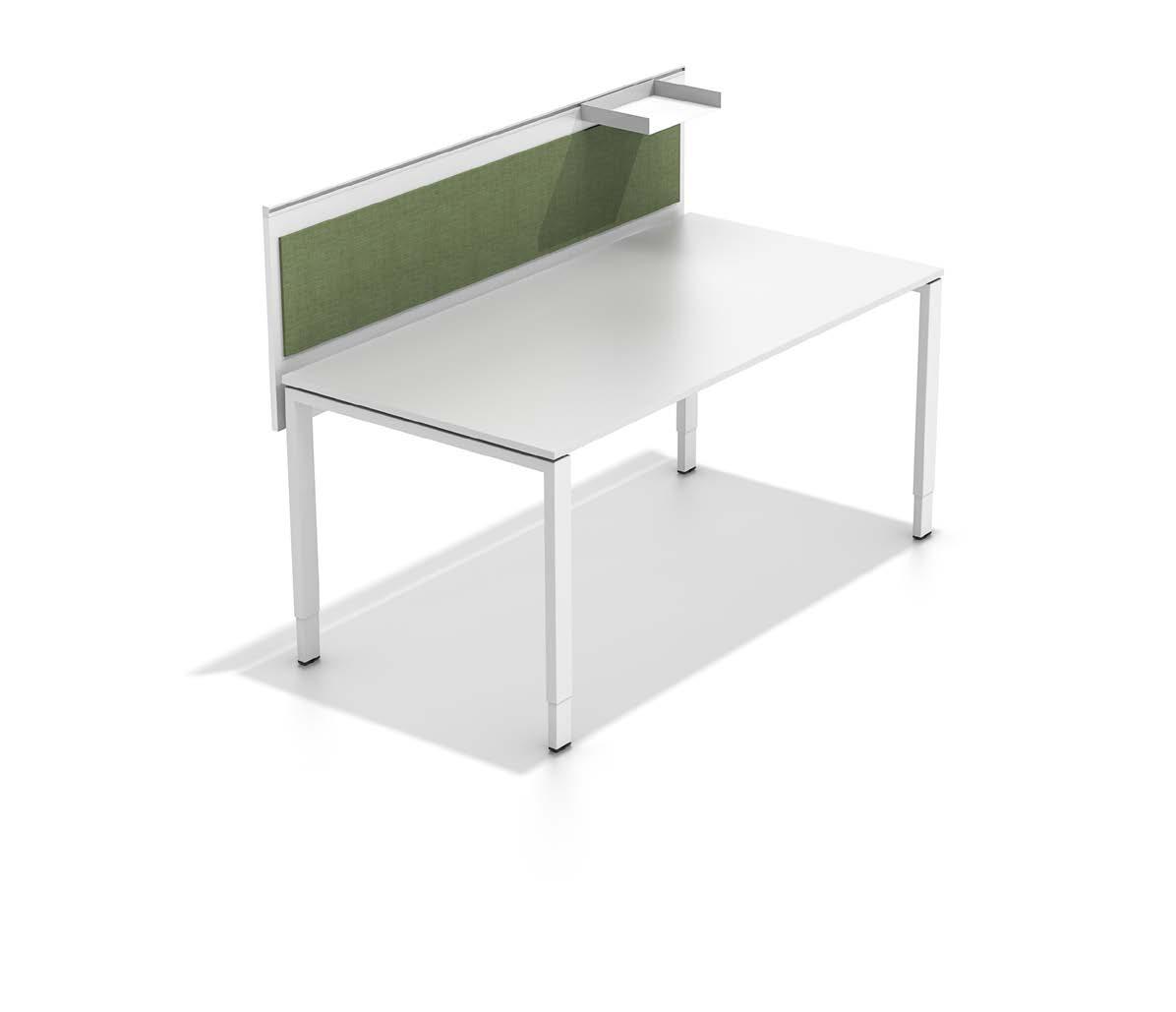

Modesty panels
For the provision of visual screening and/or upgrading of free-standing workstations. The sliding panels can be attached to desks in the Workstation and Consult ranges. modesty panels are available it the following materials:
Chipboard
material thickness 16 mm
· Assembly flush to the rear edge of the desk, to universal adapters or shortened to frames. With Filo desk systems and angled desks in the Workstation and Consult ranges, the fronts are mitre cut and joined to each other by means of connection fittings.
mesh covered
· Assembly with angled desks flush to the rear edge of the desk, in Filo desk systems shortened directly to the frame.
Steel and chipboard panels can, however, also be shortened by 193 mm with the Workstation range. exceptions are formed by combinations with lower desk container, KT sideboard and a table depth of 600 mm. Assembly in conjunction with T-Panel is only possible with a 20 mm gap.
DIMENSIONS
Modesty panels
Chipboard
nominal dimension: 800-2.400 mm
· Width: 800-2.400 mm
Height: 350 mm
(400 mm from lower edge of the desk)
mesh covered
nominal dimension: 800-2.400 mm
· Width: 650-2.250 mm
Height: 350 mm
(400 mm from lower edge of the desk)
The actual width of the modesty panel is determined by the nominal dimension, the slab-end finish, and the desktop shape.
PRODUCT DESCRIPTION
CPU holder
Flexible holder for computers below the desk surface by means of an adjustable strap.
· Assembly external or internal to the desk frame. PC height max. 48 cm.
· Load: max. 30 kg
Screen
Lateral screening in two different versions. A rectangular shape which closes flush to the desk edge and a shape running under and in front of the table top for even better screening.
With stand feet, can be freely positioned on table top.
Additional felt glides are stuck on the stand feet in order to protect the table top.
DIMENSIONS
Width: 240 mm
· Height: 560 mm Depth: 316 mm
· Width: 240 mm Height: 525 mm
· Depth: 291 mm
· Width: 240 mm
Height: 530 mm Depth: 291 mm
Width: 800 mm
· Height: 385 mm (with screen base)
Width: 800 mm
Height: 535 mm (with screen base)
PRODUCT DESCRIPTION
ORGANISATION ELEMENTS
Magnetic screen and pin screen magnetic screen
Pin board
· Steel plate
material strength 1 mm (without hook-in lug)
· is hung into the organisation profile (not organisation rail)
soft fibreboard covered with fabric on steel plate material thickness 10 mm (without hook-in lug)
· is hung into the organisation profile (not organisation rail)
A minimum panel height of 1.135 mm is required in order to hook the magnetic screen and pin screen in.
Check the configuration of the T-Panels and the hook-in height.
Magnetic board
The magnetic board is equipped with organisational grooves which allow steel trays to be hooked into it. (plastic trays are not suitable)
Steel plate
· material thickness 3,5 mm (without hook-in lug) is hung into the organisation profile (not organisation rail)
· maximum width for hanging into the organisation groove is 314 mm.
A minimum panel height von 1.135 mm is required in order to hook the magnetic board in.
Check the configuration of the T-Panels and the hook-in height.
DIMENSIONS
nominal dimension: 400-1.200 mm
Width: 390-1.190 mm
Height: 350 mm
nominal dimension: 400-1.200 mm
Width: 390-1.190 mm
Height: 350 mm
nominal dimension: 400 mm
Width: 390 mm
· Height: 350 mm
PRODUCT DESCRIPTION
Storage box
· Steel plate is hung into the organisation profile or organisation rail
A minimum panel height von 1.135 mm is required in order to hook the storage box in.
Check the configuration of the T-Panels and the hook-in height.
Drawers
The drawers are available in three versions. All three are made of steel plate and are hooked into the organisation profile or organisation rail.
A minimum panel height of 1.135mm is required in order to hook the drawers in.
Check the configuration of the T-Panels and the hook-in height.
closed open open, short
DIMENSIONS
Storage box
Drawer closed
Drawer open
Drawer open short
Width: 314 mm
· Height: 51 mm Depth: 225 mm
Width: 308 mm
· Height: 43 mm Depth: 215 mm
Width: 308 mm
· Height: 43 mm Depth: 215 mm
Width: 308 mm · Height: 43 mm Depth: 145 mm
PRODUCT DESCRIPTION
Compartment
· Chipboard 19 mm is hung into the organisation profile (not organisation rail)
· T-Panel Pure with compartment can be only hung in without pin board
· Chipboard 19 mm is hung directly onto T-Panel Pure
· T-Panel Pure with compartment can be only hung in with pin board
A minimum panel height of 1.135mm is required in order to hook the ompartment in. Check the configuration of the T-Panels and the hook-in height.
Counter top for T-Panel Extend for T-Panel multi
for T-Panel Pure
· Chipboard 19 mm, compact desk top 13 mm Assembly off-centre or centrally to the panel possible
Chipboard 19 mm, compact desk top 13 mm Assembly off-centre to the panel
The position of the counter top can be freely selected anywhere along the T-Panels. maximum load: 10 kg.
DIMENSIONS
Compartment
nominal dimension: 800 mm, 1.000 mm
· Width: 800 mm, 1.000 mm Height: 163 mm
· Depth: 248 mm
Counter top for reception panel
nominal dimension: 600 mm
· Width: 600 mm Height: 184 mm
· Depth: 220 mm
for T-Panel multi for T-Panel Pure
· Width: 800-2.400 mm Depth: 300 mm
· Width: 800-2.400 mm Depth: 240 mm
PRODUCT DESCRIPTION
Trays and cups
Plastic trays
Pencil tray
Paper tray in A4 landscape format
Paper tray in A4 portrait format
Steel tray
Steel tray short
The metal insert is always included with the larger steel cup. Selection can be made between a metal or a wooden insert with the steel tray. Steel trays are hooked into the organisation profile or the organisation rail. Check the configuration of the T-panel and the distance to the table top.
Steel tray short with metal insert
Steel tray short with wooden insert
DIMENSIONS
Paper tray in A4 landscape format
Paper tray in A4 portrait format
Width: 380 mm
· Depth: 150 mm
· Width: 322 mm Depth: 222 mm
· Height: 127 mm
Width: 350 mm
· Depth: 270 mm
tray short
· Width: 322 mm Depth: 122 mm
· Height: 127 mm
Width: 270 mm
· Depth: 350 mm
COLOURS AND MATERIALS
MATERIALS AND SURFACES
The following materials and colours are available for this product.
• available - not available
Product
Chipboard modesty panel
modesty panel mesh
CPU holder
Screen 2
CBS parts
magnetic screen
Pin board
board
Storage box
Drawers
Compartment
Counter top for T-Panel multi extend 3P
Counter top for T-Panel Pure extend 3X
Pencil tray
Paper trays
Aluminium tray
Steel tray
metal insert for steel tray
1 Adjustable strap in SZ black
2 Stand feet in SZ black or WI white, stuck on felt glides in SZ black
3 extension parts and metallic parts in AL aluminium, powder-coated
Colours and colour illustration included “Colours & materials”
MELAMINE
MELAMINE GROUP 1: Basic colours
MELAMINE GROUP 2: Additional basic colours 1,2,3
GROUP 2: Decor colours 1,2,3
GROUP 3: Accent colours 1,2,3
1 not available for compact top
2 not available for duo-edge
3 not available for 3 mm edge single-coloured
GROUP 3: Decor colours , wooden texture 1,2,3
COLOURS & MATERIALS
VENEER: Maple
VENEER: Oak
VENEER: Chestnut
VENEER: Walnut
VENEER: Beech
COLOURS & MATERIALS
Different fabric collections are available as cover: era, Urban Plus, Xtreme Plus, Step, Step melange, Remix, europost, mainline Flax, Assam, Fiord, Steelcut, Hallingdal, Steelcut Trio, Divina melange, Divina mD, Coda, elle, Opera. more information about the specific fabric collections is available at www.bene.com.
METAL SURFACE POWDER-COATED
