12x12 Cube Elements
In the proejct we had to create a 12ft by 12ft space that involved one of the 4 main elemtents (Earth, Wind, Fire and Water).
Element: Earth
Site plan Floor plan West Section East
Elevation
Element: Wind
Floor plan
All Elevations
North,South Section
East,West Section
Element: Fire
Site plan

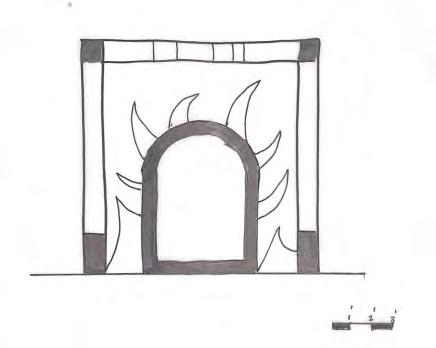

South Elevation
North Elevation

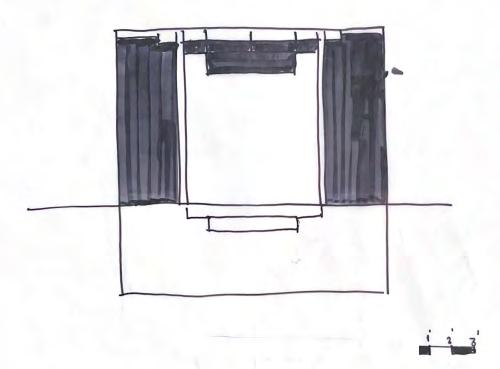

North-South Section
Element: Water
Floor plan
South Elevation
East Elevation
West Elevation
Farm to Table Restaurant
The farm-to-table restaurant situated in Pittsburgh, PA, within the Heinz Lofts, was conceived with a vision to seamlessly integrate nature into its architecture.
Positioned at the northeast corner of the site, the restaurant o ers view of the city skyline and a serene view of the river to the south. Opting for a Japanese-style garden design, I aimed to infuse the site with a natural surrounding. The essence of this garden and the restaurant is to evoke a sense of tranquility, simplicity, and coherence for the customers.
West Elevation
East Elevation
1st Floor
2nd Floor
Farm to Table Restaurant
Russian Constructivist Construction
For this project we were given a russian painting that we had to recreate in our own way. The top view had to be the same as the painting but we could change what was underneath in any way we choose. There was 2 steps to this proejct. Creating 3 iterations of the painting in sketch-up, then choosing our favourite iteration and creating a hand done model of the iteration. I chose my third iteration for this project because that one is the most interesting and one that felt most like the whole point of the project
Iteration 1
Iteration 2
Iteration 3
Hand done Models of Iteration 3
Supremus 2 - Kazimir Malevich 1915

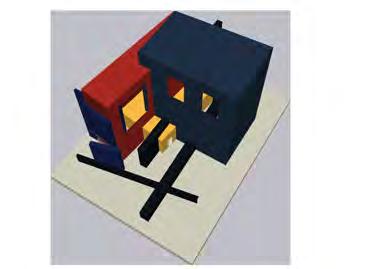

Sketch-up model of Iteration 3
Cube Transformation
In this project, we transformed a 4in x 4in cube, aiming to transform it into another object within 5 steps. Initially, I changed the cube by adding columns around its perimeter, enclosing it further. Progressing to the second step, I carved through the interior of the cube, crafting a void in its center. Moving to step 3, I sliced through the opposite side, continuing the omdification process. Subsequently, I eliminated the inner cube entirely, leaving behind only the outer columns. For the final rendition, I opted to repurpose this structure into a functional table.
Rendered Final Iteration
Step 1
Step 2
Step 3
Step 4
Step 5
Interfaith Building
The interfaith building welcomes followers of the three Abrahamic religions with a garden entrance, offering a tranquil transition from the outside world. Inside, light streams through windows, guiding patrons through the space. The architecture blends Islamic, Christian, and Jewish traditions, symbolizing interconnectedness. As visitors explore, they're invited to connect with a divine presence that unites all faiths. This space serves as more than just a place of worship; it's a space where all are welcomed no matter what background you come from. Here, believers find peace, Inspiration, with the interplay of light and water.
Contemplative space 113 Maintenance 118 Entrence 108 Men's Restroom 120 Worship space 106 Entrence 108 Women's Restroom 121
North West Section
East Section
Morning View Garden View
Aerial View
Contemplative Night View
Interfaith Building
Aerial View
Gathering Space
View from the path
View from the street
