Sistema de braquiterapia portátil,

no utiliza fuentes radiactivas, garantiza una menor dosis a tejidos sanos y exige mínimos requisitos de blindaje. que

La braquiterapia electrónica cumple todos los objetivos de la radioterapia moderna actual: • perfil de alta eficacia y baja toxicidad • tecnología de vanguardia • alto nivel de aceptación por parte de los pacientes y usuarios • rentabilidad y opciones de tratamiento personalizadas

XOFT®

¿Qué es Xoft® Axxent®?

Es un versátil sistema diseñado y fabricado para procedimientos eficientes de braquiterapia. Xoft® no hace uso de isotopos radiactivos para la administración del tratamiento radiante, evitando -por lo tanto- las numerosas desventajas asociadas con el uso de material radiactivo. Posee una exclusiva fuente de radiación formada por un micro tubo de rayos X que se activa sólo en las posiciones predeterminadas para el tratamiento, emitiendo radiación de forma isotrópica. Esto, sin lugar a dudas, representa un importante desarrollo tecnológico en el campo de la braquiterapia, revolucionando esta práctica clínica y mejorando la experiencia de los pacientes y usuarios. La fuente de rayos X miniaturizada de alta tasa de dosis (HDR) funciona a 50 kV, proporcionando un haz de baja energía. La micro fuente incrustada en la punta de un catéter se coloca dentro de aplicadores especialmente diseñados y compatibles con imágenes tomográficas (TC). Debido a la baja energía de la radiación empleada, es posible la entrega de tratamientos en salas con mínimos requerimientos de blindaje, por lo que la entrega del tratamiento se puede llevar a cabo incluso en la misma sala donde se le realiza la imagen al paciente. El sistema de braquiterapia Xoft se considera electrónico debido a que el movimiento de la fuente de rayos X en pasos definidos dentro del aplicador es controlado electrónicamente. Constituye un sistema realmente portátil debido a su diseño compacto y a su tamaño reducido (pesa aproximadamente 90 Kg), lo que permite una alta movilidad del equipo. Posee, además, un scanner de código de barras que agiliza la entrada precisa de los datos del tratamiento del paciente al sistema. El sistema Xoft para el uso general de braquiterapia está aprobado por la FDA, marcado CE y autorizado en un número creciente de países para el tratamiento del cáncer. Consideramos que el sistema de braquiterapia electrónica Xoft® puede ser incorporado en cualquier institución sin la necesidad de requerimientos complejos, garantizando procedimientos eficaces y seguros, con un nivel de complejidad mínimo y flujos de trabajo optimizados. Así mismo, su incorporación lleva consigo una reducción de costos significativos.

AXXENT®

Beneficios del Sistema de Braquiterapia de Xoft

• La importación es mucho más fácil ya que no utiliza ningún tipo de material radioactivo. • La protección radiológica está garantizada y la exposición a la radiación está controlada, minimizando los riesgos de incidentes asociados a la radiación y eliminando la logística de procedimientos de emergencias para el control de exposiciones accidentales. • El recambio de la fuente de rayos X se realiza en un tiempo muy corto, aproximadamente en 5 minutos, sin que esto conlleve a la generación de residuos radiactivos. • No necesita Búnker para operar, haciendo posible la entrega de tratamientos incluso en la sala de adquisición de imágenes. • Es portátil, debido a su peso ligero y a su diseño compacto resulta un equipo de muy fácil traslado. • No existe el decaimiento radiactivo por lo que los tiempos de tratamientos son siempre constantes. • El mantenimiento es muy simple y el servicio está garantizado (esto incluye la cantidad de fuentes de rayos X necesarias para asegurar la continuidad de los tratamientos). • Incluye sistema de planificación y equipamiento de dosimetría para control de calidad.

Las capacidades integrales del sistema Xoft ofrecen una opción atractiva para médicos y pacientes para mejorar la flexibilidad, precisión y personalización en el tratamiento específico del cáncer.

DELEC CIENTÍFICA

ABOCADOS A LA

¿Quiénes somos?

INNOVACIÓN

DeLeC Científica es una empresa exitosa, en constante crecimiento, líder en innovación tecnológica aplicada a la medicina que fue fundada en el año 2003 por un grupo empresario de capitales nacionales, con vocación de servicio y alto grado de Responsabilidad Social.

“Si en el futuro somos lo que proyectamos, en el presente somos lo que hacemos en virtud de aquella decisión y proyecto”. José Ortega y Gasset

¿Cuál es nuestra misión y concepto de negocio? Nuestra misión es impulsar la mejora continua de nuestro sistema de salud regional, ofreciendo para ello los mejores productos de la revolución tecnológica del siglo XXI. A tal fin, nos hemos propuesto hacer foco en lo especial y proveer soluciones a problemas de los que nadie se ha ocupado, teniendo en cuenta que hay muchas empresas de electromedicina, de todo tipo y tamaño, que se dedican a atender el mercado de volumen con soluciones estandarizadas que dejan afuera a mucha gente.

¿A quiénes servimos y con qué tipo de productos? Servimos a las comunidades científicas y médicas proveyéndoles productos y servicios de última generación y alto valor agregado. Nos concentramos exclusivamente en aquellos que son seguros y están debidamente certificados y aprobados por los organismos internacionales de control - FDA y CE - y también los nacionales - ANMAT y ARN –; todo en el marco de un soporte pre y post venta de excelencia.

¿En qué nos especializamos? Somos consultores altamente especializados en el desarrollo e implementación de programas médicos de excelencia soportados por equipos y sistemas de real innovación tecnológica.

¿Cómo estamos organizados? La firma cuenta con seis áreas de trabajo con roles bien definidos. • División de Sistemas Médicos: Se distingue por proveer la mejor tecnología de punta disponible, a partir de la revolución tecnológica del siglo XXI, para cubrir necesidades de equipamiento de diagnóstico y también de tratamiento. Busca optimizar resultados clínicos y al mismo tiempo mejorar la calidad de la experiencia vivida por los pacientes antes, durante y después del proceso de tratamiento. • División de Cirugía Robótica y Simulación: pone a disposición de la comunidad médica la posibilidad inigualable de asistencia robótica a la cirugía mínimamente invasiva y también los únicos simuladores quirúrgicos verdaderamente realísticos; considerados los mejores del mundo en cirugía virtual. • División de Radioterapia y Radiocirugía: Ofrece el conjunto ideal de equipos para tratamiento de tumores malignos y benignos. Incluye, además, diferentes sistemas que representan alternativas complementarias para cubrir todas las necesidades requeridas por un centro de radioterapia. • División de Ingeniería, Soporte Técnico y Aplicaciones Clínicas: Asegura el correcto funcionamiento de la base de equipos de innovación tecnológica instalada, incluyendo su actualización continua, y brinda servicio docente a los usuarios para asegurar su correcta utilización y las buenas prácticas. • División de Comunicación y Marketing: Área en constante crecimiento que busca llegar estratégicamente a los públicos de relevancia para la empresa y trasmitir un mensaje claro sobre su misión y objetivos. Para que “las cosas sean” es necesario comunicar que existen. “No se desea lo que no se conoce”. • División de Administración, Personal y Finanzas: Optimiza los resultados económicos de la empresa, cuidando que haya una distribución equitativa de los recursos entre los seis grupos de interés: proveedores, clientes, personal, accionistas, bancos/inversores y el fisco. Su objetivo principal es velar por una gestión eficiente y ecuánime al momento de crear valor económico produciendo, al mismo tiempo, valor social.

Precisión submilimétrica e innovación en tratamientos de radioterapia y radiocirugía.

Radioterapia intraoperatoria, pequeño, ligero, móvil, autoblindado y efectivo.

Tomógrafo de mamas con imágenes 3D realmente isotrópicas.

Hospitales móviles diseñados a la necesidad del cliente.

Tomógrafos móviles autoblindados de uso en clínicas y ambulancias.

Adquisición continua de imagen en bipedestación 2D y 3D con baja dosis.

Simuladores de alta y mediana fidelidad y sistema audiovisual con herramientas de gestión.

Cabezas para intubación, torso para trauma y monitor multiparamétrico simulado.

Tecnología no invasiva que ayuda a visualizar venas no visibles a simple vista.

Sistema de adquisición de señales biológicas y software para educación e investigación.

Braquiterapia sin fuentes radiactivas. Eficiente, portátil y seguro.

Plataforma para la planificación inteligente de tratamiento radioterapéutico.

¿Cuál es nuestra filosofía? Nuestro lema es ganar cuando el cliente también gana, cumplir con lo prometido y hacerlo a tiempo.

¿Qué nos diferencia del resto de las empresas del rubro? Nuestro diferencial es que no sólo proveemos equipos, sino que desarrollamos programas médicos de excelencia, acompañando al cliente desde la etapa embrionaria del proyecto hasta su optimización operativa. • Seleccionamos el equipamiento necesario y lo instalamos. • Brindamos soporte técnico con garantía oficial. • Nos encargamos del entrenamiento de los médicos y del personal de la institución local. • Una vez que llegamos a una institución, nunca nos vamos.

¿Cuál es nuestra modalidad de trabajo? Trabajamos en equipo con proveedores y clientes a través de una continua actividad de docencia. No tenemos vendedores, pero nos atenemos al perfil y la descripción habitual de las tareas de un vendedor técnico. Nuestro equipo se compone de profesionales universitarios, frecuentemente con posgrado que, a poco de ingresar a la compañía, son enviados a las distintas fábricas representadas para capacitarse de la mejor forma para ofrecer cada producto con solvencia técnica y científica.

¿Contra quiénes competimos? No poseemos competidores, ya que vamos en una dirección distinta al resto, usualmente: cambiando paradigmas.

¿Dónde comercializamos y soportamos nuestros productos? La firma comercializa la mayoría de sus productos en Argentina, Uruguay, Paraguay y Bolivia. Sin embargo, muchas veces, a pedido de distintos fabricantes, extendemos nuestro radio de acción llegando a otros países de América del Sur. En el 2010 introdujimos la cirugía robótica en Colombia, preparando el terreno para que luego se nombrara un distribuidor local. Antes, en el 2008, habíamos instalado las dos primeras unidades da Vinci que hubo en Brasil. Lo hicimos en el Hospital Albert Einstein y en el Sirio Libanes, ambos de Sao Paulo. Cabe destacar que también en este país existe actualmente un distribuidor local para esta tecnología.

¿Cuál es nuestra visión de futuro? En el mediano plazo esperamos ser líderes regionales y referentes indiscutidos en innovación tecnológica aplicada a la medicina. Esto lo lograremos gracias a nuestro comportamiento empresarial, calidad de relaciones que establezcamos, eficiencia y efectividad de nuestros productos y servicios. Apostamos a ser una organización de renombre y prestigio regional, comprometiéndonos con la comunidad y ayudando para la construcción de un mundo mejor a través de la mejora continua del servicio de salud.

Oficinas de DeLeC Científica

C O N S U LT O R Í A Nuestra experiencia en el ámbito de la innovación tecnológica en salud nos dice que el mejor equipo no hace una intervención de calidad por sí mismo. Tan importante como la herramienta son la formación, la comprensión de la tecnología, el buen uso, el asesoramiento y los objetivos que orientan la práctica. Por eso en DeLeC Científica acompañamos a las instituciones desde el desarrollo de los proyectos, el diseño de nuevas áreas o servicios de salud, el asesoramiento en la adquisición de nuevas tecnologías, los requerimientos normativos y legales, la diagramación logística, el mantenimiento y el monitoreo del uso.

Un asesoramiento adecuado es clave para: • obtener planificaciones que permitan optimizar el tiempo de los proyectos, • prever los riesgos potenciales para garantizar la viabilidad en el mediano y largo plazo, • identificar todos los stakeholders alrededor del proyecto y prever cuál será el impacto en ellos, • conseguir una mirada profunda sobre la inversión, el retorno y reconocer oportunidades que no están a la vista.

Con el fin de asesorar tomando como referencia los máximos estándares de calidad, los consultores de DeLeC nos actualizamos de acuerdo a los programas de formación de las firmas que representamos y participamos de forma activa en la agenda más relevante de la innovación tecnológica médica en Occidente.

ESPECIALIZADA

SERVICIO TÉCNICO Ofrecer un servicio técnico de alta performance, alineado tanto a las exigencias y estándares de las marcas con las que trabajamos, como a los requerimientos de nuestros clientes es un punto destacado en nuestra empresa. El equipo técnico asiste en la interpretación de los requerimientos previos (condiciones eléctricas, infraestructura, etc.), se ocupa de la instalación, cuando el equipo lo requiere, y luego monitorea el funcionamiento y el uso para garantizar el desempeño óptimo de la tecnología. Nuestros técnicos deben cumplir con un cronograma de formación y capacitación anual, en las casas matrices de las firmas que representamos. Por lo tanto, desde DeLeC Científica ofrecemos una asistencia de instalación y posventa certificada por fábrica.

EXPERTO

SOBRE XOFT DE iCAD INC.

Xoft Microtube se fundó en 1998 con el objetivo de desarrollar una fuente de rayos X miniaturizada. La intención inicial era utilizar dicha fuente en cardiología para tratar la restenosis intravascular. Más tarde, esta empresa aposto a los beneficios que podría generar su tecnología en el tratamiento del cáncer, específicamente en aplicaciones de radioterapia intraoperatoria, logrando su aprobación por FDA en el año 2005. Posteriormente, desarrollaron su aplicación en el tratamiento de braquiterapia ginecológica y superficial, obteniendo su certificación por FDA en el 2008. En la actualidad, esta tecnología patentada, combinada con las capacidades integrales del sistema Xoft, ha impulsado el tratamiento de braquiterapia en miles de pacientes con cáncer en todo el mundo. Cada componente de este sistema avanzado ha mejorado la calidad de la atención, el flujo de trabajo operativo y ha aumentado el acceso a la radioterapia de vanguardia. Xoft Microtube fue adquirida por iCAD Inc. en diciembre de 2010. iCAD es una empresa que se especializa en el desarrollo de software para el diagnóstico de cáncer de mama. Brinda soluciones de atención médica precisa, diseñadas por expertos para optimizar la eficiencia operativa, la confianza del médico y los resultados de los pacientes. La sede corporativa de iCAD se encuentra en Nashua, New Hampshire; mientras que las instalaciones de fabricación y oficinas de Xoft se encuentran en San José, California. Misión de Xoft iCAD:

ampliar el acceso a una radioterapia altamente

conformada para mejorar el tratamiento de una amplia gama de cánceres.

“El sistema Xoft es capaz de apuntar con precisión a las células cancerosas y preservar el tejido sano circundante, lo que resulta en una reducción significativa de la dosis de radiación que llega a los órganos en riesgo. Nuestros primeros resultados con esta tecnología dirigida son muy prometedores, y nos complace ofrecer esta valiosa opción de tratamiento a pacientes adecuadamente seleccionadas con cáncer de endometrio y cuello uterino.” Agustina Mendez Villamon, MD Radiation Oncologist Miguel Servet University Hospital, Zaragoza, Spain

XOFT AXXENT®

El versátil sistema de braquiterapia Xoft® Axxent® (eBx®) utiliza tecnología de braquiterapia electrónica (libre de isotopos radiactivos) de vanguardia para administrar tratamientos radiantes altamente focalizados en el volumen blanco, en salas con mínimos requerimientos de blindaje. Constituye un sistema realmente portátil debido a su diseño compacto y a su tamaño reducido (pesa aproximadamente 90 Kg), lo que permite una alta movilidad del equipo y, por lo tanto, su adaptación en una amplia gama de entornos clínicos. El sistema está compuesto principalmente por: • Controlador Axxent® • Fuente de rayos X HDR Axxent® • Juego de tubos y bomba de refrigeración Axxent® • Brazo de tratamiento Axxent® • Aplicadores Axxent® • El kit de accesorios de física de Axxent® • Sistema de Planificación. • FlexiShield Axxent® o barreras de protección contra la radiación.

Controlador Axxent® El controlador Axxent® suministra energía a la fuente de rayos X y hace circular agua para el enfriamiento de la misma. Se encarga también de controlar el movimiento de la fuente en pasos definidos dentro del aplicador, los cuales son asignados por el operador durante de planificación de tratamiento.

Brazo flexible: Permite un posicionamiento de la fuente de manera precisa

Scanner de código de barras: Agiliza la entrada de datos del tratamiento del paciente de manera precisa

Protección radiológica garantizada: Permite tratamientos en salas con mínimos requerimientos de blindaje debido a la baja energía de la radiación

Panel de pantalla táctil: Ofrece instrucciones paso a paso fáciles de leer e información sobre el tratamiento en tiempo real

Conector USB: Comunica planes de tratamientos individualizados

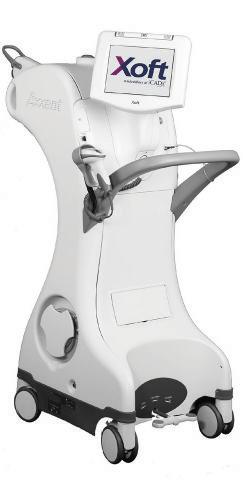

Portátil: Pesa 90 kg y su tamaño reducido permiten que el sistema sea móvil

A través del controlador se puede pausar o detener el tratamiento en cualquier momento, interrumpiendo instantáneamente la producción de rayos X.

Parada de emergencia

Brazo de tratamiento

Nido de extracción de la fuente

Cámara de pozo blindada con inserto personalizado

Fuente de rayos X HDR Axxent® La fuente corresponde a un tubo de rayos X miniaturizado (2,2 mm de diámetro), desechable, sellado al vacío y diseñado para administrar radiación con emisión isotrópica. Funciona con un potencial acelerador de hasta 50 kV y una corriente máxima de 300 μA. El tubo de rayos X se encuentra integrado en la punta de un catéter flexible refrigerado por agua, el cual en su versión estándar mide 250 mm de longitud y 5 mm de diámetro (500 mm de longitud en su versión extendida).

Conexión de HV

Conexión de tubos de refrigeración

El controlador está programado para limitar el uso de la fuente de rayos X a 750 minutos. Si esta es usada por más de 750 minutos el material del catéter puede degradarse y tener fugas. Los usuarios suelen adquirir fuentes en virtud de un contrato anual basado en el volumen de pacientes tratados, de modo que puedan utilizar múltiples fuentes a lo largo del año según sea necesario. Las fuentes pueden ser reemplazadas rápida y fácilmente por el usuario en unos pocos minutos; no es necesario que el personal de servicio técnico esté en el lugar para realizar el procedimiento de reemplazo de la fuente.

Diagrama esquemático de la composición del tubo de rayos X.

Circuito HV

Ánodo cónico

X-ray Tube

Refrigeración

La fuente se calibra antes de la administración de cada fracción de radiación utilizando una cámara de pozo incorporada en el controlador y un electrómetro de uso exclusivo. Durante el funcionamiento de la fuente, la energía media del haz es de aproximadamente 26,7 keV (similar a la del 125Ir) con una energía máxima de 50 keV, proporcionando un haz de baja energía y alta tasa de dosis (1 Gy/min a 1 cm en tejido). La energía media del sistema Xoft es menor a la de los rayos gamma de 192Ir (380 keV) y de 60Co (alrededor de 1250 keV), por lo que ofrece una ventaja significativa en cuanto a la reducción de la dosis en órganos a riesgo.

Cualquier mal funcionamiento en el circuito de alto voltaje (HV), incluido el tubo de rayos X, dará como resultado que el tratamiento se detenga, registrándose los parámetros del tratamiento administrados hasta ese momento. El controlador posee una pantalla en la que se podrá observar el tiempo transcurrido, el tiempo total planificado, el tiempo restante en la posición de parada actual y la posición de la fuente de forma esquemática.

Juego de tubos y bomba de refrigeración Axxent® La bomba de refrigeración, en conjunto con el juego de tubos de refrigeración, hace circular agua a través del catéter donde va insertada la fuente durante el tratamiento. Cualquier interrupción en el flujo de agua es detectada por un sensor de flujo, que indicará al controlador que deje de producir rayos X hasta que se solucione la restricción de flujo de agua. El juego de tubos de enfriamiento y la bolsa de agua esterilizada (de medio litro), deben reemplazarse periódicamente, según los patrones de uso en cada instalación.

Parada de emergencia

Bomba de agua Bolsa refrigerante

Tubos de refrigeración

Brazo de tratamiento Axxent®

El controlador cuenta con un brazo con amplios grados de libertad y alta capacidad de articulación. Dicho brazo posee sensores que verifican si el aplicador y la fuente están bien posicionados para la administración de tratamiento. También cuenta con un dispositivo, denominado “nido de extracción de la fuente”, que se encarga de controlar el movimiento de la fuente en pasos definidos dentro del aplicador de acuerdo con la planificación del tratamiento.

Conexión de alto voltaje para la fuente Palanca de ajuste de altura de brazo de tracción

Nido de extracción de la fuente

(con el catéter de la fuente conectado)

Perilla para fijar el brazo de tracción

Conexión del aplicador

Aplicadores Axxent® El sistema Xoft cuenta con una gama de aplicadores diseñados por expertos y testeados con más de 200 ciclos de radiación para el tratamiento de cáncer de endometrio, cuello uterino y vagina, todos los aplicadores compatibles con TC.

Aplicador cervical Axxent® El aplicador cervical Axxent® está indicado para su uso con el sistema electrónico de braquiterapia Xoft para administrar braquiterapia de HDR en el tratamiento intracavitario de cuello uterino. Es un diseño tipo Henschke, construido con tubería de titanio de pared delgada (0,4 mm) que se conecta al sistema Xoft a través de tubos de transferencia. El aplicador es esterilizable y reutilizable. Hay cuatro geometrías de tándem, todos con alrededor de 8 mm de diámetro: un tándem recto y tres tándems en ángulos de 15°, 30° y 45°. Los colpostatos tienen tapas en forma de ovoide de diámetro variable (20, 25 y 30 mm). Se utiliza un soporte para mantener los tres tubos juntos mientras se coloca el aplicador en el paciente. El aplicador cervical Axxent® recibió la aprobación de la FDA en 2013.

Aplicador cervical Xoft compuesto por tándem y dos colpostatos. El tándem de 45 grados con tapón cervical y ovoides de 25 mm se muestran aquí con el soporte estabilizador.

Aplicador vaginal Axxent® El aplicador vaginal Axxent® de tipo cilindro está indicado para su uso con el sistema electrónico de braquiterapia Xoft para administrar braquiterapia intracavitaria en la vagina. El juego incluye aplicadores de cuatro diámetros diferentes, que van desde 20 hasta 35 mm. Los aplicadores son esterilizables y reutilizables.

Contenido del juego de aplicador vaginal Axxent®, de izquierda a derecha: 4 canales de origen idénticos, 4 aplicadores vaginales con diámetros de: 35 mm, 30 mm, 25 mm y 20 mm.

Cilindro colocado en soporte estabilizador para tratamiento.

La siguiente figura muestra la imagen por TC de un aplicador vaginal con un catéter marcador insertado, se observa también el tapón del canal en la punta del aplicador.

Imagen por TC del aplicador vaginal con tapón. En la imagen se observa el contraste generado por la presencia de sulfato de bario en la pared exterior del aplicador.

Los aplicadores vaginales Axxent® se diseñaron de manera que la dosis de radiación administrada se atenúa en un 6%. Para compensar esta atenuación, resultante de la presencia de sulfato de bario en la pared exterior del aplicador, se seleccionó el material que compone el cuerpo principal de los aplicadores vaginales tal que atenúe menos radiación que el agua. Los aplicadores vaginales para la administración de braquiterapia intracavitaria en la vagina recibieron la aprobación de la FDA en 2008. *Actualmente se están desarrollando otros aplicadores, dentro de los cuales destaca el de recto y uno para próstata.

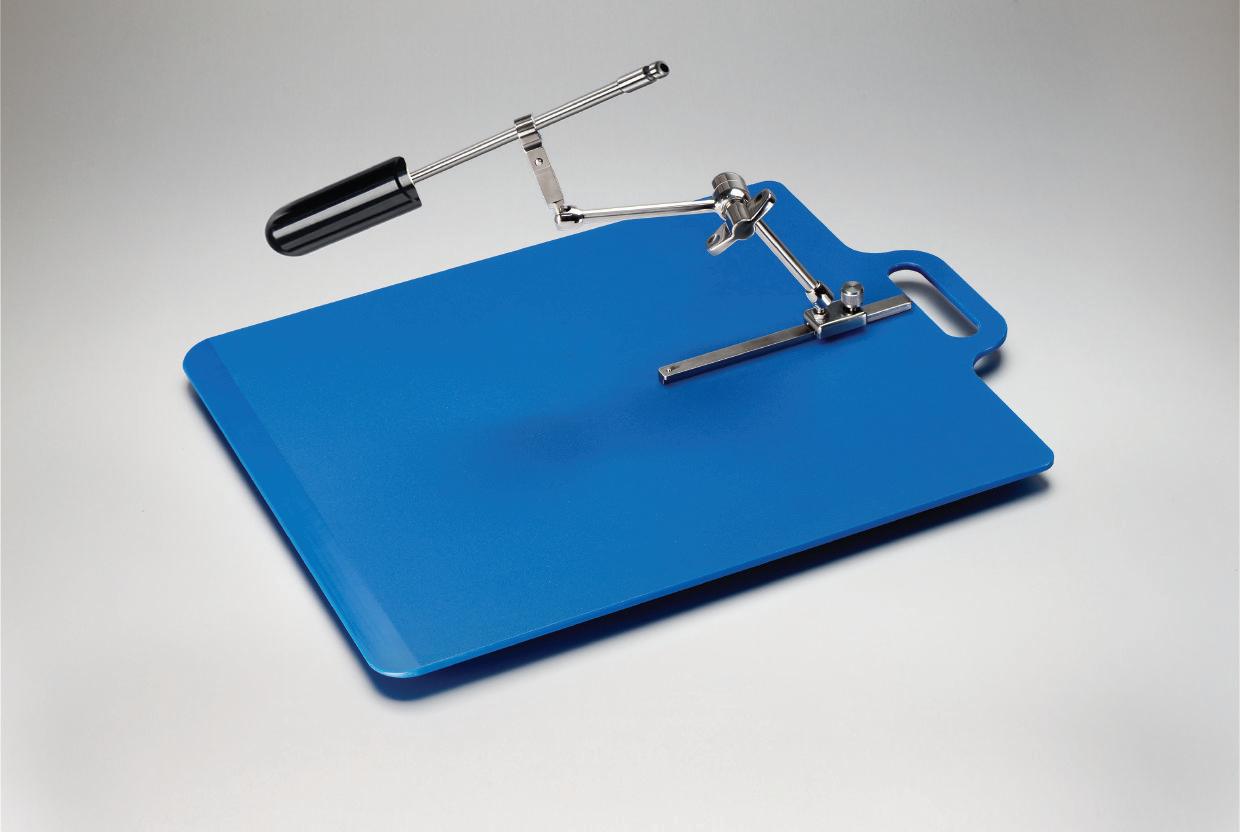

Kit de accesorios de física de Axxent® El kit de accesorios de física de Axxent® permite a los físicos realizar pruebas de control de calidad para verificar que el sistema está funcionando correctamente. Antes del tratamiento, se puede utilizar el kit de accesorios, con sus manómetros y catéteres especializados, para confirmar parámetros operativos claves y especificaciones de los componentes.

Sistema de Planificación de Tratamiento El software de planificación que se utiliza con el sistema Xoft permite al médico y al físico médico personalizar la administración del tratamiento, considerando el sitio del tumor, la prescripción y la protección de los órganos sanos circundantes. Una vez realizada la planificación, el plan de tratamiento se transfiere al controlador para su administración. El controlador entrega el tratamiento al paciente moviendo la fuente de rayos X a través del aplicador según los tiempos de espera y las posiciones de paradas establecidas durante la planificación. La administración localizada de braquiterapia con el sistema Xoft minimiza la dosis recibida por el tejido sano y, así mismo, minimiza la exposición del personal, lo que permite a los médicos y profesionales tratantes permanecer en la sala de tratamiento con el paciente.

Planificación del tratamiento de braquiterapia ginecológica con Xoft

La preparación y planificación de un plan de tratamiento ginecológico con el sistema Xoft es similar a un plan creado para cualquier otro sistema de braquiterapia HDR. Las curvas de isodosis mostradas en las distintas publicaciones científicas respaldan el uso del Xoft, demostrando que la fuente de 50 kV tiene una cobertura del PTV (por sus siglas en inglés “Planning Target Volume”) comparable a la de Ir pero con una dosis más baja para los órganos a riesgo.

192

Ir -192 HDR

Xoft 50 kV

Vejiga V50% - 48.50%

Vejiga V50% - 22.50

Recto V50% - 21.70%

Recto V50% - 13.70

Vejiga V35 % - 80.0%

Vejiga V35% - 42.1%

Recto V35% - 47.0%

Recto V35% - 27.7%

Implante de cuello uterino; figura tomada de: PM Mobit et al “Comparison of Axxent-Xoft, 192Ir and 60 Co high-dose-rate brachytherapy sources for image-guided brachytherapy treatment planning for cervical cancer”. Published by the British Institute of Radiology 2015.

Ir -192 HDR

Xoft 50 kV

V95% - 99.7%

V95% - 99.6%

Vejiga V35% - 47.7%

Vejiga V35% - 27.4%

Recto V35% - 48.3%

Recto V35% - 28.3%

Implante vaginal; figura tomada de: Adam Dickler et al “A dosimetric comparison of Xoft Axxent Electronic Brachytherapy and 192iridium high-dose-rate brachytherapy in the treatment of endometrial cancer”. Published by ELSEVIER 2008.

La siguiente imagen representa un Histograma de Dosis-Volumen (DVH) para la vejiga, recto, intestino delgado y sigmoide de tres planes de tratamientos creados de forma estandarizada para un implante ginecológico de cuello uterino típico con Xoft, 192Ir y 60Co.

Figura tomada de: PM Mobit et al “Comparison of Axxent-Xoft, 192Ir and 60Co high-dose-rate brachytherapy sources for image-guided brachytherapy treatment planning for cervical cancer”. Published by the British Institute of Radiology 2015.

Comparado con las fuentes

Ir o

192

Co, Xoft proporciona una mejor

conservación de los órganos a riesgo pélvicos asociados (vejiga, recto, sigmoides e intestino delgado), generalmente, en todo el rango de dosis. No parece haber diferencias significativas entre los planes generados con fuentes radioactivas de 192Ir o 60Co. Por todo esto, podemos decir que la fuente de 50 kV usada en braquiterapia es ideal para tratar patologías ginecológicas, ofreciendo una opción atractiva para mejorar la flexibilidad, precisión y personalización del tratamiento.

FlexiShield Axxent® Aunque no se necesitan mayores requerimientos de protección radiológica, el sistema viene con un escudo protector -FlexiShield Axxent®-, el cual está diseñado para proteger al operador de la radiación injustificada durante el tratamiento. El FlexiShield no es estéril y es reutilizable. En caso de que se considere necesario, el operador podría optar por utilizar otros tipos de escudos de radiación fijos o portátiles.

Seguridad Radiológica La baja energía de la fuente de rayos X de Xoft permite que los tratamientos puedan ser administrados en salas con mínimos requerimientos de blindaje La primera capa hemirreductora (HVL) de la fuente de braquiterapia Xoft varía de 1,39 a 1,56 mm de aluminio, mientras que el HVL para 192Ir es de 3 mm de plomo y para 60Co es de 11 mm de plomo. Por lo tanto, no es necesario trasladar al paciente de la sala de imágenes a un búnker de braquiterapia HDR. El blindaje requerido en una sala de imágenes por rayos X suele ser suficiente para el uso del sistema Xoft. El sistema podría ser trasladado fácilmente de una habitación a otra o incluso entre instalaciones, lo que permite una alta flexibilidad en la programación de los pacientes, aumentándoles la accesibilidad a este tipo de tratamientos.

El siguiente gráfico proporciona un ejemplo de tasas de exposición en la sala donde se administre el tratamiento. Sin embargo, cada instalación debería realizar sus propias mediciones y establecer su propio plan de seguridad radiológica.

Tasas de exposición: paciente con FlexiShield, todas las mediciones están dentro de 2 metros

Xoft se diferencia de otros sistemas por su versatilidad y ventaja operativa. En la siguiente tabla, se resumen algunas características importantes de la braquiterapia realizada con Xoft que destacan sobre otros sistemas de braquiterapia.

XOFT AXXENT

VARIAN GAMMAMED

BEBIG M U LT I S O U R C E

92 KG

250 KG

300 KG

Micro tubo de rayos X con capacidad de encendido y apagado.

Fuente de 192Ir.

Fuente de 60Co.

Tasa de dosis constante de 1 Gy/min a 1 cm en tejido.

Requiere corrección por decaimiento para cada tratamiento.

Sin concepto de vida media. La fuente tiene un límite de uso de 750 minutos. Las fuentes pueden ser reemplazadas rápida y fácilmente por el usuario.

Vida media de unos 74 días. El vendedor recomienda reemplazar las fuentes radiactivas 4 veces al año.

Vida media de 5,3 años. El proveedor recomienda reemplazar la fuente cada 3 a 4 años.

0,0267 MeV

0,38 MeV

1,25 MeV

1,39 - 1,56 mm (Al)

3 mm (Pb)

11 mm (Pb)

Incluye cámara de pozos y electrómetro Standard Imaging.

Cámara de pozo y electrómetro no integrado.

Sistema de dosimetría integrado.

PROCEDIMIENTOS LO G Í S T I CO S PA R A L A I M P O R TAC I Ó N D E FUENTES RADIAC TIVAS

MANIPULACIÓN H O S P I TA L A R I A DE FUENTES RADIAC TIVAS

RIESGO DE EXPOSICIÓN

RESIDUOS DE M AT E R I A L E S RADIACTIVOS

CARACTERÍSTICA

PESO

TIPO DE FUENTE

EMISIÓN ISOTRÓPICA

TA S A D E D O S I S

VIDA MEDIA

ENERGÍA MEDIA DE LA FUENTE

HVL

NECESIDAD DE BÚNKER EXCLUSIVO

CALIBRACIÓN DE LA FUENTE

No. El tratamiento se puede administrar incluso en salas de TC.

*El sistema Bebig MultiSource de Eckert & Ziegler ofrece la posibilidad de fuentes de 60C o de 192Ir, pero para efectos de comparaciones en la tabla se indica solo la fuente de 60Co.

Base instalada

B A S E I N S TA L A DA

USA

AUSTRALIA

CHINA

CANTIDAD

86 1

IRÁN

ESPAÑA

PORTUGAL

SUIZA

TURQUÍA

RUSIA

BANGLADES

TRINIDAD Y TOBAGO

INDIA

MALASIA

Instituciones referentes en el uso de la tecnología: Kaiser Permanente, California - Estados Unidos

TA I WÁ N

BULGARIA

REINO UNIDO

COREA

UC Health, Colorado - Estados Unidos Hospital Miguel Servet, Zaragoza - España Hospital de Cáceres, Cáceres - España ICO Girona, Girona - España Hospital de Bellinzona, Bellinzona - Suiza Grupo Omega, Guntur - India

PAPERS

CONTENIDO A dosimetric comparison of Xoft Axxent Electronic Brachytherapy and iridium-192 high-dose-rate brachytherapy in the treatment of endometrial cancer

Comparison of Axxent-Xoft,192 Irand60 Co high-dose-rate brachytherapy Sources for image-guide dbrachytherapy treatment planning for cervical cancer

Prospective multi-center trial utilizing electronic brachytherapy for the treatment of endometrial cancer

Treatment of cervical cancer with electronic brachytherapy

Use of electronic brachytherapy to deliver postsurgical adjuvant radiation therapy or endometrial cancer: a retrospective multicenter study

Calculated and measured brachytherapy dosimetry parameters in wรกter for the Xoft Axxent X-Ray Source: An electronic brachytherapy sourcea)

A dosimetric comparison of Xoft Axxent Electronic Brachytherapy and iridium-192 high-dose-rate brachytherapy in the treatment of endometrial cancer

Calculation of relative biological effectiveness of a low-energy electronic brachytherapy source

Electronic brachytherapy for postsurgical adjuvant vaginal cuff irradiation therapy in endometrial and cervical cancer: A retrospective study

A comparison of the biological effective dose of 50-kV electronic brachytherapy with 192Ir high-dose-rate brachytherapy for vaginal cuff irradiation

102

A continuación se pone a disposición una selección de publicaciones científicas que avalan las características y beneficios del sistema Xoft, de iCAD Inc. En la selección de estos papers se dio prioridad a los contenidos más recientes y pertinentes, confeccionada por DeLeC Científica. Si el lector desea ampliar la información científica sobre los usos del sistema Xoft puede consultar a los sitios www.delec.com.ar, o bien al correo: comunicaciones@delec.com.ar

ARTICLE IN PRESS

Brachytherapy

(2008)

Regular Article

A dosimetric comparison of Xoft Axxent Electronic Brachytherapy and iridium-192 high-dose-rate brachytherapy in the treatment of endometrial cancer Adam Dickler1,*, Michael C. Kirk2, Alan Coon2, Damian Bernard2, Tom Zusag2, Jacob Rotmensch3, David E. Wazer4 1

Department of Radiation Oncology, Little Company of Mary Hospital, Evergreen Park, IL 2 Department of Radiation Oncology, Rush University Medical Center, Chicago, IL 3 Department of Obstetrics and Gynecology, Rush University Medical Center, Chicago, IL 4 Department of Radiation Oncology, Brown University School of Medicine, Providence, RI

ABSTRACT

PURPOSE: This analysis was undertaken to dosimetrically compare iridium-192 high-dose-rate brachytherapy (IB) and Xoft Axxent Electronic Brachytherapy (XB; Xoft Inc., Sunnyvale, CA) in the treatment of endometrial cancer. METHODS AND MATERIALS: The planning CT scans from 11 patients previously treated with IB were used to construct hypothetical treatment plans using the source characteristics of the XB device. The mean V95, V100, and V150 (percent of the planning target volume that received 95%, 100%, and 150% of the prescription dose) were calculated. For both the bladder and rectum, the V35 (percent of the organ that received 35% of the prescription dose) and V50 (percent of the organ that received 50% of the prescription dose) were calculated for each patient using both methods of vaginal brachytherapy. RESULTS: The mean %V95 was 99.7% vs. 99.6% ( p 5 ns) and the mean %V100 was 99.0% vs. 99.1% ( p 5 ns) for the IB and XB methods, respectively. The mean %V150 was 35.8% vs. 58.9% ( p!0.05) for the IB and XB methods, respectively. The mean bladder %V35 was 47.7% vs. 27.4% ( p!0.05) and the mean bladder %V50 was 26.5% vs. 15.9% ( p!0.05) for the IB and XB methods, respectively. The mean rectal %V35 was 48.3% vs. 28.3% ( p!0.05) and the mean rectal %V50 was 27.8% vs. 17.0% ( p!0.05) for the IB and XB methods, respectively. CONCLUSIONS: The IB and XB methods of vaginal brachytherapy offer equivalent target volume coverage; however, the XB method allows increased sparing of the bladder and rectum. 2008 American Brachytherapy Society. All rights reserved.

Keywords:

Xoft electronic brachytherapy; Brachytherapy; Endometrial cancer

Received 20 December 2007; accepted 28 May 2008. * Corresponding author. Department of Radiation Oncology, Little Company of Mary Hospital, 2800 West 95th Street, Evergreen Park, IL 60805. Tel.: Ăž1-708-229-5560; fax: Ăž1-708-229-5378. E-mail address: atd22_99@yahoo.com (A. Dickler).

High-dose-rate (HDR) vaginal brachytherapy using iridium-192 (IB) is being increasingly used as an adjuvant radiation treatment for selected patients with endometrial cancer, either as monotherapy or as a boost to the vaginal cuff after external beam radiation (EBRT). IB has several advantages over low-dose-rate brachytherapy. It does not require hospitalization for the procedure, minimizes the radiation exposure to the hospital staff, and decreases the risk of thromboembolic events. Unfortunately, IB is not feasible for all patients who are eligible for this form of treatment. IB requires expensive equipment, including a HDR afterloader unit and a shielded room, which is not available at all radiation facilities. In addition, scheduling of IB patients can lead to logistic difficulties for busy radiation centers that have a single-shielded

ARTICLE IN PRESS 2

A. Dickler et al. / Brachytherapy

vault used for treatment of both their EBRT and brachytherapy patients. Xoft Axxent Electronic Brachytherapy (XB; Xoft Inc., Sunnyvale, CA) was developed to overcome these barriers to treatment associated with IB. XB uses a 50 kV X-ray source and thus does not require a shielded radiation vault or a HDR afterloader unit. Consequently, a kilovoltage approach could lead to vaginal brachytherapy being more accessible to many patients, particularly those who do not live near a radiation facility with a HDR afterloader unit. Two previous reports described a dosimetric comparison between XB and IB in the treatment of partial breast irradiation (2, 3). To date, no data have been published comparing these two brachytherapy techniques in the treatment of endometrial cancer. This study was conducted to retrospectively compare both the target coverage and normal tissue radiation doses with IB and XB.

(2008)

associated with increased dose in the high-dose region. The mean %V95 was 99.7% vs. 99.6% ( p 5 ns) and the mean %V100 was 99.0% vs. 99.1% ( p 5 ns) for the IB and XB methods, respectively. The mean %V150 was 35.8% vs. 58.9% ( p! 0.05) for the IB and XB methods, respectively (see Table 1). XB was able to achieve increased bladder and rectal sparing compared to IB. The mean bladder %V35 was 47.7% vs. 27.4% ( p ! 0.05) and the mean bladder %V50 was 26.5% vs. 15.9% ( p! 0.05) for the IB and XB methods, respectively. The mean rectal %V35 was 48.3% vs. 28.3% ( p !0.05) and the mean rectal %V50 was 27.8% vs. 17.0% ( p! 0.05) for the IB and XB methods, respectively (see Table 2).

Discussion Methods and materials The study population consisted of 11 patients previously treated with IB. Patients received IB either as monotherapy or as a boost to the vaginal cuff after 45 Gy of EBRT. Vaginal cylinder diameters ranged from 2.5 to 3.5 cm in the study population. The CT scans used in radiation planning for the IB treatment for these 11 patients were used to construct hypothetical treatment plans using the source characteristics of the XB device. In this study, a prescription dose of 7 Gy in three fractions prescribed to 0.5 cm depth was used for both methods of brachytherapy for all 11 patients. Treatment planning and plan optimization were performed with PLATO treatment planning software, version 14.3.2 (Nucletron, B.V., Veenendaal, the Netherlands). The physics parameters for the iridium-192 and XB sources were entered in TG-43 format. The planning target volume (PTV) was defined as the first 5 cm of vaginal cuff. The PTV, bladder, and rectum were contoured. The mean %V95 (percent of the PTV that received 95% of the prescription dose), %V100 (percent of the PTV that received 100% of the prescription dose), %V150 (percent of the PTV that received 150% of the prescription dose), bladder %V35 (percent of the bladder that received 35% of the prescription dose), bladder %V50 (percent of the bladder that received 50% of the prescription dose), rectal %V35 (percent of the rectum that received 35% of the prescription dose), and rectal %V50 (percent of the rectum that received 50% of the prescription dose) were then determined for each patient using the two methods of vaginal brachytherapy. The results were compared using the nonparametric Wilcoxon signed ranks test. Results The XB and IB methods of vaginal brachytherapy offered equivalent target volume coverage, but XB was

XB was developed to make brachytherapy more accessible to patients, especially those who live a significant distance from a center with a HDR afterloader unit. This enhanced accessibility has the potential to increase the number of women who receive adjuvant radiation therapy after surgery. In addition, this technology may allow improved quality of life for selected endometrial cancer patients who could be treated with vaginal brachytherapy alone, allowing them to receive a shorter course of radiation compared to the typical 5-week course of EBRT. Previous reports have evaluated the dosimetric properties of XB in the treatment of breast cancer (2, 3). The current series is the first report evaluating this device in the potential treatment of endometrial cancer. Table 1 PTV coverage IB

%V95

%V100

%V150

Patient

6.65 Gy per fx

7.0 Gy per fx

10.5 Gy per fx

1 2 3 4 5 6 7 8 9 10 11

99.78 99.54 99.93 99.55 99.72 99.85 99.56 99.75 99.69 99.58 99.86

99.27 99.49 99.61 99.27 99.60 99.84 99.61 99.95 99.66 99.72 99.81

98.89 98.55 99.81 98.67 99.02 99.37 98.42 99.13 99.09 98.86 98.80

98.10 98.79 99.16 98.53 99.13 99.50 99.07 99.78 99.26 99.34 98.93

22.07 25.98 42.17 33.41 36.91 41.82 38.61 49.99 40.68 41.13 21.16

42.16 48.32 59.68 53.77 56.55 67.29 60.35 75.69 72.52 67.40 44.38

Mean p Value

99.7 ns

99.6

99.0 ns

99.1

35.8 !0.05

58.9

IB 5 Iridium-192 high-dose-rate brachytherapy; XB 5 Xoft electronic brachytherapy; PTV 5 planning target volume; fx 5 radiation fraction; %V95 5 percent of the PTV that received 95% of the prescription dose; %V100 5 percent of the PTV that received 100% of the prescription dose; %V150 5 percent of the PTV that received 150% of the prescription dose.

ARTICLE IN PRESS A. Dickler et al. / Brachytherapy

(2008)

Table 2 Normal tissue doses IB

Bladder %V35

Bladder %V50

Rectal %V35

Rectal %V50

Patient

2.45 Gy per fx

3.50 Gy per fx

2.45 Gy per fx

3.50 Gy per fx

1 2 3 4 5 6 7 8 9 10 11

54.29 68.43 82.37 46.66 50.58 59.75 35.53 56.62 23.07 13.07 33.90

30.86 36.70 55.02 23.43 26.42 33.85 18.49 36.79 12.87 8.80 18.16

31.51 35.03 56.07 23.79 27.18 29.08 18.68 34.08 10.67 8.05 17.07

17.53 18.67 37.91 11.75 14.52 18.76 9.99 24.47 6.36 5.51 9.59

57.65 40.98 68.36 36.18 56.58 50.07 42.39 67.96 37.04 28.48 45.37

34.91 24.26 39.30 15.94 30.46 33.49 24.40 38.61 23.28 22.30 23.88

35.65 24.13 41.63 16.35 31.38 32.12 25.31 34.67 21.12 21.27 22.60

21.54 14.47 23.68 7.69 17.07 21.87 16.12 21.29 14.70 15.65 12.45

47.7 !0.05

27.4

26.5 !0.05

15.9

48.3 !0.05

28.3

27.8 !0.05

17.0

Mean p Value

IB 5 Iridium-192 high-dose-rate brachytherapy; XB 5 Xoft electronic brachytherapy; PTV 5 planning target volume; fx 5 radiation fraction; bladder %V35 5 percent of the bladder that received 35% of the prescription dose; bladder %V50 5 percent of the bladder that received 50% of the prescription dose; rectal %V35 5 percent of the rectum that received 35% of the prescription dose; and rectal %V50 5 percent of the rectum that received 50% of the prescription dose.

Our results showed that XB offers equivalent target volume coverage to IB; however, it was associated with increased ‘‘hot spots’’ in the target volume. The mean %V150 was 35.8% vs. 58.9% ( p! 0.05) for the IB and XB methods, respectively. With the XB method a mean of almost 60% of the upper vaginal cuff received 10.5 Gy per fraction, when the prescription dose was 7 Gy per fraction. Based upon reported clinical results, it is unlikely that this increased volume of vaginal cuff in the high-dose region will lead to clinically significant side effects. The American Brachytherapy Society lists a fractionation schedule of 10.5 Gy in three fractions prescribed to the vaginal surface as a suggested dosing schedule (4). In addition, Noyes and investigators from University of Wisconsin reported their results using two fractions of 16.2 Gy prescribed to the ovoid surface in 63 patients. With this relatively large fraction size, there were no Grade III/IV complications reported, and only 4 patients reported symptomatic vaginal apex fibrosis (5). XB was associated with increased normal tissue sparing compared to IB. The mean bladder %V35 was 47.7% vs. 27.4% ( p !0.05) and the mean bladder %V50 was 26.5% vs. 15.9% ( p! 0.05) for the IB and XB methods, respectively. The mean rectal %V35 was 48.3% vs. 28.3% ( p ! 0.05) and the mean rectal %V50 was 27.8% vs. 17.0% ( p! 0.05) for the IB and XB methods, respectively. Because kilovoltage irradiation is attenuated in tissue more quickly than radiation from the higher-energy iridium-192 source, the dose received by the bladder and rectum was reduced (see Fig. 1). Vaginal brachytherapy is generally a well-tolerated procedure, but serious adverse bladder and rectal side effects have been reported. Fayed et al. conducted a retrospective review of 1179 patients treated with vaginal brachytherapy at the Mallinckrodt Institute Radiation Oncology Center

Fig. 1. Dose distributions for IB (top) and XB (bottom) vaginal brachytherapy. 25% IDL 5 25% Isodose line, 50% IDL 5 50% Isodose line.

ARTICLE IN PRESS 4

A. Dickler et al. / Brachytherapy

between November 1960 and December 2004. The authors of this study observed Grade III or IV gastrointestinal and genitourinary complications in 2% of patients treated with low dose rate and 4% of patients treated with HDR ( p 5 ns). The rates of Grades III and IV complications were greater if patients received EBRT before vaginal brachytherapy (6). Hansgen et al. reported on 541 patients who were treated either with vaginal brachytherapy alone or combined with EBRT. Severe late complications consisting of fistulas of the bladder or bowel occurred in 2.8% of patients in the combined radiotherapy group, and 0.7% of patients in the HDR brachytherapy alone group (7). Clinical results will be needed to determine whether a reduction in radiation dose to the bladder and rectum achievable with XB will further reduce the risk of treatment-related toxicity in patients treated with combined EBRT and vaginal brachytherapy or vaginal brachytherapy alone.

Conclusion XB has the potential to make vaginal brachytherapy more accessible to patients and to decrease their risk of side

(2008)

effects. Clinical studies are needed to validate these promising dosimetric results. References [1] Jemal A, Siegel R, Ward E, et al. Cancer statistics, 2007. CA Cancer J Clin 2007;57:43e66. [2] Dickler A, Kirk MC, Seif N, et al. A dosimetric comparison of MammoSite high-dose-rate brachytherapy and Xoft Axxent electronic brachytherapy. Brachytherapy 2007;6:164e168. [3] Smitt MC, Kirby R. Dose-volume characteristics of a 50-kV electronic brachytherapy source for intracavitary accelerated partial breast irradiation. Brachytherapy 2007;6:207e211. [4] Nag S, Erickson B, Parikh S, et al. The American Brachytherapy Society recommendations for high-dose-rate brachytherapy for carcinoma of the endometrium. Int J Radiat Oncol Biol Phys 2000;48: 779e790. [5] Noyes WR, Bastin K, Edwards SA, et al. Postoperative vaginal cuff irradiation using high dose rate remote afterloading: a phase II clinical protocol. Int J Radiat Oncol Biol Phys 1995;32:1439e1443. [6] Fayed A, Mutch DG, Rader JS, et al. Comparison of high-dose-rate and low-dose-rate brachytherapy in the treatment of endometrial carcinoma. Int J Radiat Oncol Biol Phys 2007;67:480e484. [7] Hansgen G, Nagel M, Dunst J, et al. Postoperative radiotherapy in endometrial carcinoma. A retrospective analysis of 541 cases. Strahlenther Onkol 1999;175:548e553.

BJR Received: 29 December 2014

Accepted: 20 May 2015

doi: 10.1259/bjr.20150010

Cite this article as: 60 Mobit PN, Packianathan S, He R, Yang CC. Comparison of Axxent-Xoft, 192Ir and Co high-dose-rate brachytherapy sources for image-guided brachytherapy treatment planning for cervical cancer. Br J Radiol 2015; 88: 20150010.

FULL PAPER

Comparison of Axxent-Xoft, 192Ir and 60Co high-dose-rate brachytherapy sources for image-guided brachytherapy treatment planning for cervical cancer 1,2

P N MOBIT, PhD, 1S PACKIANATHAN, MD, PhD, 1R HE, MS and 1C C YANG, PhD

Department of Radiation Oncology, University of Mississippi Medical Center, Jackson, MS, USA Cameroon Oncology Center, PO Box 1870, Douala, Cameroon

Address correspondence to: Dr Paul N Mobit E-mail: mobit_paul@yahoo.ca

Objective: To evaluate the dosimetric differences and similarities between treatment plans generated with Axxent-Xoft electronic brachytherapy source (XoftEBS), 192 Ir and 60 Co for tandem and ovoids (T&O) applicators. Methods: In this retrospective study, we replanned 10 patients previously treated with 192Ir high-dose-rate brachytherapy. Prescription was 7 Gy 3 4 fractions to Point A. For each original plan, we created two additional plans with Xoft-EBS and 60Co. The dose to each organ at risk (OAR) was evaluated in terms of V35% and V50%, the percentage volume receiving 35% and 50% of the prescription dose, respectively, and D2cc, highest dose to a 2 cm3 volume of an OAR. Results: There was no difference between plans generated by 192Ir and 60Co, but the plans generated using

Xoft-EBS showed a reduction of up to 50% in V35%, V50% and D2cc. The volumes of the 200% and 150% isodose lines, however, were 74% and 34% greater than the comparable volumes generated with the 192Ir source. Point B dose was on average only 16% of the Point A dose for plans generated with Xoft-EBS compared with 30% for plans generated with 192Ir or 60Co. Conclusion: The Xoft-EBS can potentially replace either 192 Ir or 60Co in T&O treatments. Xoft-EBS offers either better sparing of the OARs compared with 192Ir or 60Co or at least similar sparing. Xoft-EBS-generated plans had higher doses within the target volume than 192Ir- or 60Cogenerated ones. Advances in knowledge: This work presents newer knowledge in dosimetric comparison between Xoft-EBS, 192Ir or 60 Co sources for T&O implants.

Cervical cancer is the most common cancer for females in the developing world, accounting for over 230,000 deaths per year.1 In developing countries, most cancers are diagnosed in the later stages, which makes them difﬁcult to treat, and cervical cancer is no exception. According to the American Brachytherapy Society Task Group Report,2 cervical cancer with clinical Stages IB2—IVA should be treated primarily with concurrent chemoradiation treatment followed by brachytherapy. Many clinical studies have shown that high-dose-rate (HDR) brachytherapy is of comparable efﬁcacy with low-dose-rate brachytherapy for patients with early- to advanced-stage cervical cancers.3,4 Many cancer centres in the developed world have thus adopted HDR brachytherapy treatments for patients with cervical and endometrial cancer.

may need to be constructed if for some reason the afterloader cannot be located in one of the pre-existing teletherapy bunkers. 192Ir has been the radioactive source of choice for most HDR brachytherapy devices, but the 192Ir source needs to be changed at least 3–4 times per year because the half-life of 192Ir is 73.8 days. In a resourcelimited setting such as in developing countries, this ongoing cost may be prohibitive. Afterloaders have recently been developed to house the miniaturized 60Co radioactive source, and the use of this source reduces the number of source exchanges from 3–4 times a year to once every 5–7 years owing to its much longer half-life of 5.26 years.5,6 This certainly reduces the ongoing cost of source exchanges, but one still needs a shielded bunker to use a 60Co radioactive source.

The main limitation to the widespread adoption of HDR brachytherapy in developing countries is the high cost of the afterloader, and the fact that a new shielded bunker

In the past few years, however, promising new technologies, mainly with electronic brachytherapy systems, have been developed that have eliminated the need for

BJR

PN Mobit et al

administrating brachytherapy in a shielded bunker. The AxxentiCad Xoft® electronic brachytherapy system (iCad, Inc., Nashua, NH) is based on a miniaturized 50 kVp X-ray source of 2.2 mm in length. The Bremsstrahlung photon spectrum ranges from 26.7 to 34.5 keV, which is similar to 125I (27.2–35.5 keV; mean, 28.4 keV). The ﬁrst half-value layer (HVL) of Xoft-electronic brachytherapy source (EBS) ranges from 1.39 to 1.56 mm (Al). The average energy of the Xoft-EBS is about 30 keV, which is ,10% of that of 192Ir (380 keV) or 60Co g-rays (1170 and 1330 keV). The HVL for 192Ir is 2.5 mm of lead while that for 60 Co is 11 mm of lead. Because of the low energy of Xoft-EBS, treatments using this source can be delivered in rooms shielded for CT or in regular operating rooms with minimal portable shielding.7 This electronic brachytherapy system has been investigated by numerous authors for brachytherapy applications such as accelerated partial breast irradiation, surface treatments for skin cancers and endometrial cancer brachytherapy treatments but not for tandem and ovoids (T&O) applicators.7–10 The objective of this study was to evaluate the dosimetry of T&O treatment plans generated using the Axxent-Xoft EBS. These plans were then compared with plans generated with the 192Ir and 60Co HDR radioactive sources.

METHODS AND MATERIALS All patients treated for cervical cancer in our facility with HDR brachytherapy received an individually customized plan based on the CT scan that was performed after the insertion of the applicator into the patient on the day of treatment. All the patients reported in this series were previously treated in our clinic with an 192Ir HDR source. They all received 25 fractions of 1.8 Gy each in external beam treatment to the whole pelvis followed by three fractions of the same dose to the sidewall as a boost delivered with a midline block. This was then followed by four fractions of T&O HDR brachytherapy of 7 Gy prescribed to Point A. The following organs at risk (OARs) were contoured on the CT scans: rectum, bladder, sigmoid and small bowel. The contours were based on GEC-ESTRO contouring guidelines.11 The CT scan had a slice thickness of 2 mm. The planning objectives were to keep the highest dose to 2 cm3 of the OARs, D2cc, ,80% of the prescription dose. This is a retrospective study in which we created CT-based plans on 10 patients who were previously planned and treated in our facility with T&O applicators using an 192Ir HDR brachytherapy source. Each patient originally had four different

Figure 1. Coronal view of the dose distribution. On the left is 192Ir and on the right the Xoft electronic brachytherapy source. L, left; R, right; F, foot; H, head; P, posterior.

2 of 8

birpublications.org/bjr

Br J Radiol;88:20150010

Full paper: Comparison of T&O HDR plans generated with

192

Ir,

Co and Xoft-EBS

BJR

Table 1. Evaluation of volumes of 200%, 150%, 100% and 50% isodose volume for Xoft electronic brachytherapy source-, 60 Co-generated plans for a tandem and ovoids applicator with tandem length of 6 cm

Source type 192

Volume of 150% isodose line (cm3)

Volume of 100% isodose line (cm3)

Volume of 50% isodose line (cm3)

35.6

64.0

125.1

350.4

36.4

65.1

128.0

356.3

Xoft-EBS

61.9

87.1

134.8

270.2

CT scans and four different treatment plans (one new plan is generated for each fraction of HDR T&O insertion and treatment). For each HDR plan generated with the 192Ir radioactive source, we generated two additional plans using Xoft-EBS and 60Co, for a total of 12 plans per patient. Thus, for this study, we evaluated 120 CT-based plans in total. Treatment planning was performed using the Varian BrachyVisionTM treatment planning system v. 8.9 (Varian® Medical Systems, Palo Alto, CA). We had previously commissioned the 192 Ir HDR source that we routinely use for our HDR programme. We also had commissioned the Xoft-EBS as well as the BeBigTM 60Co HDR source manufactured by Eckert & Ziegler into the Varian BrachyVision treatment planning system using AAPM-TG43 format for the two sources.12–14 For the work reported in this article, we entered the American Association of Physicists in Medicine Task Group 43 data into the planning system and did a hand calculation of the dose predictions at several points for both the 60Co and the Xoft-EBS sources. During the clinical commissioning of the Xoft-EBS source in the planning system, we did extensive measurements in manufacturer supplied phantoms and compared the dose prediction using the radiochromic film. The results were in good agreement and consistent with what has been published in the literature for the Xoft-EBS source.7,8 OARs including rectum, bladder, sigmoid and small bowel were all individually contoured. The Foley catheter balloon with the contrast media was also contoured to represent the bladder. The corresponding data from the three radiation sources (Xoft-EBS, 192Ir and 60Co) are compared in one-way analysis of variance using IBM SPSS® Statistics for Windows v. 22 (IBM Corporation, Armonk, NY) at a confidence level of 95%, and an initial p-value was derived. If the initial p-value is .0.05, it indicates no significant difference between any two data groups. If the initial p-value is ,0.05, further tests between any two groups from the three groups of data are performed using the least significant difference, and p-values will be derived to determine which two groups of data are significantly different in the means. RESULTS Figure 1 shows the coronal view of two plans from our database that was generated with the Xoft-EBS and the 192Ir source. We observed that the pear-shaped dose distribution of the prescription isodose line appeared similar for both sources, and we did not discern any obvious significant differences between the two sources in terms of the prescription isodose line. This suggested that sharp dose gradients could be achieved using

3 of 8 birpublications.org/bjr

Ir- and

Volume of 200% isodose line (cm3)

192

a T&O applicator with the appropriate arrangement of sources (or dwell positions) using either of these sources. Furthermore, Figure 1 also shows that there were significant differences in the 200% isodose (yellow) and 150% isodose lines (pink) between the Xoft-EBS and 192Ir generated plans. For instance, the 150% isodose line for the Xoft-EBS-generated plan is continuous throughout the plane of view and the 200% isodose is mostly continuous. This contrasted sharply with the corresponding lines in the plan generated with the 192Ir source where there are significant breaks in the continuity of both isodose lines (150% and 200%). This finding indicated that near the applicator, the Xoft-EBS created a more extensive “highdose” volume than that of a comparable plan generated with 192 Ir. By contrast, it is not very apparent from Figure 1, but the width of the 50% isodose line (blue) measured through the reference point for the EBS-generated plan is smaller than the 50% isodose width generated with the 192Ir source. In order to further compare the volumetric dose distribution, we converted the 200%, 150%, 100% and 50% isodose lines into volume structures for three plans using a tandem length of 6.0 cm. All calculated isodose volumes include the applicator volume. The results are displayed in Table 1, which shows the volume of the converted structures with the 200%, 150%, 100% and 50% isodose lines. We again noted from Table 1 that the volume of the 200% isodose line with Xoft-EBS is approximately 74% greater than the comparable volume generated with either 192 Ir or 60Co. For the 150% and the 100% isodose lines, these volumes were still about 34% and 7% higher, respectively. However, this trend is reversed for the 50% isodose line where the volume of the isodose line for the Xoft source is only 77% of the isodose volume generated by either 192Ir or 60Co. Table 2 shows the comparison of the average doses to Point B for the 10 patients in our study. Once again, we saw small differences between the Point B doses for 192Ir and 60Co sources, which averaged about 210 and 203 cGy, respectively. However, the mean Point B dose is only 112 cGy for the Xoft-EBS-generated plans, i.e. about 45% less than the Point B dose for plans generated with either 192Ir or 60Co sources. We summarized from Figure 1 and Tables 1 and 2 that: (a) the prescription isodose line appears to be similar regardless of the radioactive source used (b) there seems to be no significant differences between plans generated by either 192Ir or 60Co radioactive HDR sources (c) there are significant differences in the volumes encompassing the 200%, 150% and 50% isodose lines between Xoft-EBSgenerated plans and either of the 192Ir- or 60Co-based plans

Br J Radiol;88:20150010

BJR

PN Mobit et al

Table 2. Comparison of average dose to Point B for Xoft electronic brachytherapy source, 192Ir and 60Co sources with tandem length of 6 cm

Source type 192

Point B (cGy)

Prescription dose (%)

210 6 27

203 6 31

Xoft-EBS

111 6 35

(d) there are signiﬁcant differences between the Point B doses for plans with either 192Ir or 60Co and that for plans generated with Xoft-EBS, which is only amounting to about 16% of Point A dose compared with an average of 30% in 192 Ir or 60Co plans. Figure 2 shows the dose distributions in all three orthogonal planes and the dose–volume histogram (DVH) for the bladder, rectum, small bowel and sigmoid for one of our T&O plans. The plans were generated in a standardized fashion with the Xoft-EBS source, 192Ir and 60Co. It seems apparent that the plan generated using the Xoft-EBS source may offer a signiﬁcant organ dosesparing advantage especially in the lower dose region since the DVH curve for the 192Ir-generated plan lies above that of the

Xoft-EBS-generated plans for all the OARs. Although this looks intuitive, we quantified the differences by determining the V50%, V35% and D2cc for the OARs for all the three radiation sources. The D2cc represents a measure of the highest dose to the OARs. Table 3 shows the D2cc for the rectum and bladder for all the patients in our study; each data point is the average of the values from four different fraction plans. The mean value for all 10 patients would show that there appears to be no significant differences between the values for Xoft-EBS, 192Ir and 60Co, as the p-value is 0.314. For the bladder, the average D2cc was 3.07 Gy for the XoftEBS plans compared with approximately 4.11 Gy for 192Ir or 60Co, a reduction of about 25%. A statistical analysis shows that p 5 0.036 ,a 5 0.05, concluding that there is a significant

Figure 2. Dose distribution and dose–volume histogram for organs at risk.

4 of 8 birpublications.org/bjr

Br J Radiol;88:20150010

Full paper: Comparison of T&O HDR plans generated with

192

Ir,

Co and Xoft-EBS

BJR

Table 3. Evaluation of D2cc (highest dose to a 2-cm3 volume of the organ at risk) for rectum and bladder

Patient

Rectum (Gy) 192

Bladder (Gy) Xoft

192

Xoft

4.88

5.02

4.76

2.26

2.21

2.42

3.48

3.52

2.87

5.28

5.38

4.01

4.65

4.93

4.21

3.94

3.99

3.06

3.82

3.93

3.21

3.76

2.39

3.77

3.84

3.28

4.67

4.62

3.51

3.66

3.70

3.50

3.40

3.11

1.89

3.63

3.74

3.09

3.97

3.91

2.80

5.07

5.15

4.70

3.51

3.46

2.28

5.86

5.91

5.33

5.51

5.53

4.38

3.75

4.06

3.42

4.79

5.08

4.02

4.26 6 0.81

4.38 6 0.81

3.84 6 0.85

4.11 6 0.95

4.10 6 1.05

3.07 6 0.86

Average 6 standard deviation p (three groups) (a , 0.05) pIr-Xoft or pCo-Xoft (a , 0.05)

0.314 NA

difference between the three groups. There are significant differences between Xoft-EBS and 192Ir (p 5 0.024), and Xoft and 60Co (p 5 0.025), but not between 192Ir and 60Co (p . 0.05, not given in Table 3, which applies also in Tables 4–6) for D2cc to the bladder. The results for the sigmoid colon and small bowel are displayed in Table 4 for all the sources. There was a small difference for the D2cc for the sigmoid between the Xoft-EBS and 192Ir or 60Co (p 5 0.157). There was no significant difference for the small bowel doses except that the Xoft-EBS average value was marginally smaller but without statistical significance (p 5 0.865). Assessment of the V35% and V50% provides a measure of the planned dose in the low-dose regions of the DVH. Table 5 shows the

0.036 NA

0.024

0.025

comparison of the V50% for the rectum and bladder using all three sources, while Table 6 shows the data for V35%. As shown in Tables 5 and 6, for both rectum and bladder, the normalized volume of tissue receiving 35% and 50% of the prescription dose is smaller for the Xoft-EBS plans compared with plans generated with 192Ir or 60Co (p-values are given to indicate the level of signiﬁcance). DISCUSSION The results obtained in our study, which is based on data from 40 patient plans that were previously generated and treated with the 192Ir HDR source, show that the Xoft EBS can potentially serve as a replacement for 192Ir or 60Co radioactive sources. Similarly, the 60Co source appears to be adequate as an alternative to 192Ir for brachytherapy use in cervical cancer; indeed, it

Table 4. Evaluation of D2cc (highest dose to a 2-cm3 volume of the organ at risk) for sigmoid colon and small bowel

Patient number

Sigmoid 192

Small bowel Xoft

192

Xoft

2.63

2.62

1.64

1.39

1.42

1.10

5.17

5.13

4.51

5.32

5.31

5.14

3.09

3.11

2.36

3.76

3.83

3.60

4.76

4.14

6.53

6.55

6.72

3.89

3.95

3.12

5.08

5.10

4.65

4.89

4.90

4.18

4.61

4.55

4.23

4.16

4.12

3.55

3.36

3.31

2.97

3.14

3.10

2.56

4.85

4.80

4.40

5.03

5.21

4.34

4.39

4.32

3.94

3.92

3.72

3.09

3.93

3.61

3.35

4.07 6 0.90

4.06 6 0.93

3.35 6 0.96

4.32 6 1.37

4.28 6 1.38

4.01 6 1.47

Average 6 standard deviation p (three groups) (a , 0.05)

5 of 8 birpublications.org/bjr

0.157

0.865

Br J Radiol;88:20150010

BJR

PN Mobit et al

appears to have dose characteristics similar to that of the iridium source. There are, however, a number of caveats that must be taken into consideration by both the Medical Physicist and the Radiation Oncologist during the planning process for Xoft-EBS HDR brachytherapy treatment. Firstly, lower energy X-rays and g-rays have a higher relative biological effectiveness (RBE) than higher energy X-rays or g-rays such as those from 192Ir sources or 60Co.15,16 Thus, the “biologically equivalent dose” (BED) around the applicator itself could be exceedingly high and consequently lead to undesirable short- and long-term side effects on the tissues approximated closest to the applicators. One alternative approach to potentially mitigate the BED-related effect on the cervix and endometrium is to use a lower dose per fraction and higher number of fractions when utilizing the Xoft-EBS. Secondly, the volumes of the 200% and 150% isodose lines are signiﬁcantly greater when the plan is generated with the XoftEBS compared with plans generated with 192Ir or 60Co sources. This means that a larger central volume around the applicator itself is potentially receiving a higher dose and with a higher biological equivalent dose. To minimize toxicity, the midline block that is traditionally used in external beam radiation therapy at doses above about 45 Gy may need to be implemented at a lower external beam dose so as to limit the external beam dose to the

central region of the pelvis. Using a lower dose per fraction and a higher number of fractions for the brachytherapy portion can also help to reduce the BED to levels somewhat more comparable with those generated by 192Ir or 60Co. Thirdly, Point B, which is located 5 cm lateral of patient midline at the level of Point A in inferior to superior direction, typically receives approximately 25–30% of the prescription dose, representing approximately 7 Gy over the course of traditional HDR brachytherapy. Plans generated with Xoft-EBS only receive about 16% of the Point A dose. Because any attempt to throw the dose more laterally during brachytherapy will likely result in much higher midline doses, an alternative means of achieving adequate dose to Point B may be to supplement it during the external beam portion of the therapy. Fourthly, we have demonstrated that in this study the Xoft-EBS appears to provide better sparing of the associated pelvic OARs (bladder, rectum, sigmoid and small bowel) than either 192Ir or 60 Co sources, generally over the entire dose range as shown in Figure 3, which shows the DVH comparison for a typical implant generated with all three sources. There was only one patient for whom the dose to the small bowel was greater than that seen in plans generated with either 192Ir or 60Co sources. Since the XoftEBS has a higher RBE compared with the other two sources, increasing the number of fractions and reducing the fractional

Table 5. Percentage of rectum and bladder receiving 50% of prescription dose (V50%)

Patient number 1 2 3 4 5 6 7 8 9 10 Average 6 standard deviation

Rectum (V50%) 192

19.7

20.2

19.7

20.1

61.5

64.9

10.1

16.7

29.1

32.0

10.5

11.3

11.8

13.0

11.6

12.8

13.2

13.7

29.9

30.9

21.7 6 15.8

23.5 6 16.2

p (three groups) (a , 0.05) pIr-Xoft or pCo-Xoft (a , 0.05)

Bladder (V50%) Xoft-EBS

192

11.9

9.4

8.9

2.1

11.6

9.6

8.9

11.6

38.9

77.6

76.6

37.8

8.7

61.9

67.2

31.6

20.7

41.9

42.0

18.7

4.9

33.5

32.1

10.0

9.3

51.6

48.6

22.7

5.8

39.4

37.7

17.2

8.6

87.9

86.6

41.6

16.8

72.4

70.0

31.5

13.7 6 10.1

48.5 6 27

47.9 6 27.1

0.019

0.022

0.280 NA

Xoft-EBS

22.5 6 12.9

0.029 NA

NA, not applicable.

6 of 8 birpublications.org/bjr

Br J Radiol;88:20150010

Full paper: Comparison of T&O HDR plans generated with

192

Ir,

Co and Xoft-EBS

BJR

Table 6. Percentage of rectum and bladder receiving 35% of prescription dose (V35%)

Patient number

Rectum 192

39.5

40.9

Bladder Xoft

192

41.2

23.1

40.7

38.6

5.9

41.3

23.1

40.6

38.6

6.4

86.0

88.0

61.3

99.9

99.5

67.7

35.9

43.5

20.6

96.5

97.2

59.6

65.3

68.0

48.4

76.6

76.9

42.2

39.2

40.1

16.8

74.4

73.2

25.6

42.1

43.4

14.1

92.1

90.4

40.2

Xoft

29.0

30.6

14.0

79.0

76.8

38.2

37.1

37.2

19.3

100.0

72.5

55.2

55.9

36.3

100.0

62.9

Average 6 standard deviation

47.0 6 17.2

p (three groups) (a , 0.05) pIr-Xoft or pCo-Xoft (a , 0.05)

48.9 6 17.2

27.7 6 15.9

80.0 6 23.0

0.015 0.016

0.009

79.1 6 23.7

42.1 6 24.0

0.001 NA

0.001

0.002

NA, not applicable.

dose as previously suggested could mitigate the effect of a higher physical dose, if, for some reason, the Xoft-EBS-generated plans increased the dose to any of the OARs of radiation damage. It is also important to note that analysing the data in terms of D0.01cc, D2cc and D5cc did not change the conclusions. CONCLUSIONS All three sources appear to be suitable for use in cervical cancer HDR brachytherapy, but the use of Xoft-EBS may reduce the doses to the OARs while achieving a comparable dose coverage to the target. The V35% and V50% may be useful as indicators of

the quality of the plan as they appear to characterize the lower dose region of the DVH curves more adequately. There were no noticeable differences between the 192Ir and 60Co T&O plans, but the plans generated using the Xoft-EBS offered better sparing of OARs when evaluating the V35% and V50%, which represent the lower dose in the DVH curve. However, when the D2cc was used to evaluate the dose to the OARs, there was no signiďŹ cant dose difference in the D2cc value for the rectum, which represents doses closer to the prescription dose. There was a reduction of up to 50% of the dose between Xoft-EBS and the other two sources when calculating the dose to Point B.

Figure 3. Comparison of doseâ&#x20AC;&#x201C;volume histogram for a tandem and ovoids implant for plans generated with 192Ir, 60Co and Xoft-EBS sources.

7 of 8

birpublications.org/bjr

Br J Radiol;88:20150010

BJR

PN Mobit et al

REFERENCES 1.

Sankaranarayanan R. Overview of cervical cancer in the developing world. FIGO 26th Annual Report on the Results of Treatment in Gynecological Cancer. Int J Gynaecol Obstet 2006; 95(Suppl. 1): 205–10. doi: 10.1016/ S0020-7292(06)60035-0 Viswanathan AN, Thomadsen B; American Brachytherapy Society Cervical Cancer Recommendations Committee; American Brachytherapy Society. American Brachytherapy Society consensus guidelines for locally advanced carcinoma of the cervix. Part I: general principles. Brachytherapy 2012; 11: 33–46. doi: 10.1016/j.brachy.2011.07.003 Falkenberg E, Kim RY, Meleth S, De Los Santos J, Spencer S. Low-dose-rate vs. highdose-rate intracavitary brachytherapy for carcinoma of the cervix: the University of Alabama at Birmingham (UAB) experience. Brachytherapy 2006; 5: 49–55. doi: 10.1016/j. brachy.2005.12.001 Saitoh J, Ohno T, Sakurai H, Katoh H, Wakatsuki M, Noda SE, et al. High-dose-rate interstitial brachytherapy with computed tomography-based treatment planning for patients with locally advanced uterine cervical carcinoma. J Radiat Res 2011; 52: 490–5. doi: 10.1269/jrr.10189 Ntekim A, Adenipekun A, Akinlade B, Campbell O. High dose rate brachytherapy in the treatment of cervical cancer: preliminary experience with cobalt 60 Radionuclide source-A Prospective Study. Clin Med Insights Oncol 2010; 19: 89–94.

8 of 8 birpublications.org/bjr

Richter J, Baier K, Flentje M. Comparison of 60 cobalt and 192 iridium sources in high dose rate afterloading brachytherapy. Strahlenther Onkol 2008; 184: 187–92. doi: 10.1007/s00066-008-1684-y 7. Mobit PN, Rajaguru P, Brewer M, Baird M, Packianathan S, Yang CC. Radiation safety consideration during intraoperative radiation therapy. Radiat Prot Dosimetry 2015; 164: 376–82. doi: 10.1093/rpd/ncu292 8. Dickler A, Kirk MC, Coon A, Bernard D, Zusag T, Rotmensch J, et al. A dosimetric comparison of Xoft Axxent Electronic Brachytherapy and iridium-192 high-dose-rate brachytherapy in the treatment of endometrial cancer. Brachytherapy 2008; 7: 351–4. doi: 10.1016/j.brachy.2008.05.003 9. Dickler A, Kirk MC, Seif N, Griem K, Dowlatshahi K, Francescatti D, et al. A dosimetric comparison of MammoSite highdose-rate brachytherapy and Xoft Axxent electronic brachytherapy. Brachytherapy 2007; 6: 164–8. doi: 10.1016/j. brachy.2007.01.005 10. Smitt MC, Kirby R. Dose-volume characteristics of a 50-kV electronic brachytherapy source for intracavitary accelerated partial breast irradiation. Brachytherapy 2007; 6: 207–11. doi: 10.1016/ j.brachy.2007.03.002 11. Pötter R, Haie-Meder C, Van Limbergen E, Barillot I, De Brabandere M, Dimopoulos J, et al; GEC ESTRO Working Group. Recommendations from gynecological (GYN) GEC

12.

13.

14.

15.

16.

ESTRO working group (II): concepts and terms in 3D image-based treatment planning in cervix cancer brachytherapy-3D dose volume parameters and aspects of 3D imagebased anatomy, radiation physics, radiobiology. Radiother Oncol 2006; 78: 67–77. doi: 10.1016/j.radonc.2005.11.014 Rivard MJ, Davis SD, DeWerd LA, Rusch TW, Axelrod S. Calculated and measured brachytherapy dosimetry parameters in water for the Xoft Axxent X-Ray source: an electronic brachytherapy source. Med Phys 2006; 33: 4020–32. doi: 10.1118/1.2357021 Ballester F, Granero D, Pérez-Calatayud J, Casal E, Agramunt S, Cases R. Monte Carlo dosimetric study of the BEBIG Co-60 HDR source. Phys Med Biol 2005; 50: N309–16. doi: 10.1088/0031-9155/50/21/N03 Granero D, Pérez-Calatayud J, Ballester F. Technical note: dosimetric study of a new Co-60 source used in brachytherapy. Med Phys 2007; 34: 3485–8. doi: 10.1118/ 1.2759602 Rava P, Dvorak T, Markelewicz RJ Jr, Hiatt JR, Sternick ES, MacAusland SG, et al. A comparison of the biological effective dose of 50-kV electronic brachytherapy with (192) Ir high-dose-rate brachytherapy for vaginal cuff irradiation. Brachytherapy 2012; 11: 402–7. doi: 10.1016/j.brachy.2011.08.004 Ling CC, Li WX, Anderson LL. The relative biological effectiveness of I-125 and Pd-103. Int J Radiat Oncol Biol Phys 1995; 32: 373–8. doi: 10.1016/0360-3016(95)00530-C

Br J Radiol;88:20150010

Dickler et al. Radiation Oncology 2010, 5:67 http://www.ro-journal.com/content/5/1/67

Open Access

RESEARCH

Prospective multi-center trial utilizing electronic brachytherapy for the treatment of endometrial cancer Research

Adam Dickler*1, Mohamed Y Puthawala2, John P Thropay3, Ajay Bhatnagar4 and Gary Schreiber5

Abstract Background: A modified form of high dose rate (HDR) brachytherapy has been developed called Axxent Electronic Brachytherapy (EBT). EBT uses a kilovolt X-ray source and does not require treatment in a shielded vault or a HDR afterloader unit. A multi-center clinical study was carried out to evaluate the success of treatment delivery, safety and toxicity of EBT in patients with endometrial cancer. Methods: A total of 15 patients with stage I or II endometrial cancer were enrolled at 5 sites. Patients were treated with vaginal EBT alone or in combination with external beam radiation. Results: The prescribed doses of EBT were successfully delivered in all 15 patients. From the first fraction through 3 months follow-up, there were 4 CTC Grade 1 adverse events and 2 CTC Grade II adverse events reported that were EBT related. The mild events reported were dysuria, vaginal dryness, mucosal atrophy, and rectal bleeding. The moderate treatment related adverse events included dysuria, and vaginal pain. No Grade III or IV adverse events were reported. The EBT system performed well and was associated with limited acute toxicities. Conclusions: EBT shows acute results similar to HDR brachytherapy. Additional research is needed to further assess the clinical efficacy and safety of EBT in the treatment of endometrial cancer. Introduction Endometrial cancer is the most common gynecologic cancer, and an estimated 42,160 new cases of endometrial cancer were diagnosed in 2009 [1]. The standard management for endometrial cancer is a total abdominal hysterectomy and bilateral salpingo-oophorectomy (TAH-BSO) with or without lymph node sampling. The vagina is the most common site of recurrence, and whole pelvic radiotherapy, vaginal cuff brachytherapy, or both types of radiation therapy may follow surgical treatment. Radiation therapy significantly decreases the risk of local regional recurrence and has been associated with improved survival in patients with stage IC disease [2-4]. Vaginal brachytherapy is often employed in the treatment of endometrial cancer, either alone or in combination with external beam radiation. Vaginal brachytherapy has typically been delivered using a vaginal cylinder and a

high dose rate (HDR) Iridium-192 radiation source. A modified form of HDR brachytherapy has been developed called Axxent Electronic Brachytherapy (EBT). The EBT device uses a 50 kilovoltage (kV) electronic X-ray source, which does not require a shielded vault for treatment or an HDR afterloader unit. The dosimetric properties of the EBT and Ir-192 sources were compared in the treatment of endometrial cancer [5]. Both sources provided equivalent target volume coverage, and EBT was associated with increased bladder and rectum sparing compared to Ir-192. A prospective, multi-center clinical study was carried out to evaluate the success of treatment delivery, safety and toxicity of EBT as post-surgical adjuvant radiation therapy in patients with early-stage endometrial cancer. The results of this trial represent the first clinical report of EBT in the treatment of endometrial cancer.

* Correspondence: atd22_99@yahoo.com 1

Little Company of Mary Hospital, Evergreen Park, IL USA

Full list of author information is available at the end of the article ÂŠ 2010 Dickler et al; licensee BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Dickler et al. Radiation Oncology 2010, 5:67 http://www.ro-journal.com/content/5/1/67

Methods The study was approved at the institutional review boards at each of the five participating sites. Each patient was consented prior to enrollment in the trial. Patients

This trial utilized the FIGO staging system for endometrial cancer developed in 1988. Eligibility for the trial included patients with Stage I & II endometrial cancer, excluding Stage IA Grade 1, who had undergone a TAHBSO. Exclusion criteria included patients with collagen vascular disease, scleroderma, or active lupus. Materials

The EBT system consists of the disposable X-ray source, vaginal applicators, the controller unit, and the base plate and clamp. The miniature X-ray source produces 50 kilovolt X-rays at its tip and can be translated within the applicator to provide a predictable dose of radiation to the tissue surrounding the cylinder. The vaginal applicators are cylinders made of medical-grade polymers and provide transmission characteristics specifically for the low energy X-rays emitted by the EBT source. A vaginal cylinder size was selected for each patient, and 25 mm, 30 mm, 35 mm cylinders were utilized in the study. The applicator was inserted just prior to treatment and removed following treatment on each treatment visit. The base plate and clamp provide stabilization of the applicator during radiation treatment. The mobile controller unit provides power to the X-ray source and contains the user interface. Treatment

If vaginal brachytherapy was to be administered as the sole radiation treatment modality, sites were given the option of treating with a prescription dose 7.0 Gy x 3 to 0.5-cm depth or 5.5 Gy x 4 to 0.5-cm depth. If vaginal brachytherapy was to be delivered in conjunction with external beam radiation therapy (EBRT), sites first delivered 45 Gy EBRT in 25 fractions to the pelvis. At the completion of EBRT, sites were given the option of treating with an EBT prescription dose of 6.0 Gy x 3 to the vaginal surface or 8.0 Gy x 2 to the vaginal surface. Treatment planning was performed according to the standard of care at the treating institution and typically with BrachyVisionâ&#x201E;˘ treatment planning software (Varian Medical Systems, Palo Alto, CA) or Platoâ&#x201E;˘ treatment planning software (Nucletron, Columbia, MD).Three dimensional treatment planning was completed for each patient prior to the first brachytherapy fraction. Both 2D and 3D treatment planning were permitted prior to each fraction according to the physician's standard of care, but a 3D treatment plan based on computed tomography (CT) was required so that normal tissue doses could be calculated. CT images were recorded prior to each frac-

Page 2 of 6

tion on all patients to verify correct applicator placement. A CT scan was performed with the vaginal applicator in place and the patient in a supine position. The CT scan encompassed a superior border of L5/S1 and an inferior border of the ischial tuberosities. TG-43 parameters specific to EBT were used to compute the delivered dose [5,6]. Patients were followed at 1 month and 3 months post-treatment. Endpoints

The primary endpoints of the study were the successful delivery of the prescribed radiation dose and treatmentrelated adverse events. Adverse events and severity were recorded during treatment and at the 1- and 3-month follow-up visits. Adverse events were graded according to the common terminology criteria (CTC) version 3.0. The n (number of observations) and proportion is reported for each endpoint. For continuous variables, the mean, standard deviation, and range is presented. Categorical variables are described using proportions and frequencies.

Results

Patient Population

A total of 15 patients were enrolled in the study. The first patient was enrolled in September 2008, and enrollment was completed in October 2009. Patient and disease characteristics are listed in Table 1. The mean age of the patients was 63.2 years of age (range 41.6-72.7). Nearly half (46.7%) had FIGO Stage IB cancer; 5 (33.3%) had Stage IC, and 3 (20.0%) had Stage IIA. All patients were followed for 3 months. Treatment

The EBT vaginal brachytherapy was successfully delivered for all 48 treatments in the 15 patients. In the 10 patients who received EBT alone, the prescription dose was 7.0 Gy x 3 fractions to a 0.5 cm depth in 7 patients and 5.5 Gy x 4 fractions to a 0.5 cm depth in 3 patients (Table 2). In the 5 patients who received EBRT before EBT, the EBRT dose was 45 Gy in 25 fractions in 4 patients delivered by IMRT in 3 and three dimensional conformal radiation therapy (3D-CRT) in 1, and 50.4 Gy in 28 fractions in 1 patient delivered by 3D-CRT. Following EBRT, the EBT prescription dose was 6.0 Gy x 3 fractions to the vaginal surface in 3 patients, 5.0 Gy x 4 to the vaginal surface in 1 patient, and 8.0 Gy x 2 to the vaginal surface in 1 patient. The mean treatment time was 4.9 minutes. The brachytherapy treatment summary and applicator size used for each patient is listed in Table 1. CT scans were used to evaluate the dose to normal tissues and volume of treatment after applicator insertion and prior to the first fraction of brachytherapy. The length of vagina treated ranged from 4.0 to 7.0 cm with a

Dickler et al. Radiation Oncology 2010, 5:67 http://www.ro-journal.com/content/5/1/67

Page 3 of 6

Table 1: Patient Characteristics Mean Age (Range) Years

63.2 (41.6-72.7)

loose clamp assembly. This issue was easily rectified, and treatment was completed as scheduled. Adverse Events

Race

An independent data safety monitor adjudicated the adverse events. Six patients reported adverse events possibly or probably related to the EBT treatment including 4 CTC Grade I toxicities and 2 CTC Grade II toxicities (Table 4). There were no treatment related adverse events reported at the time of treatment and there were no serious adverse events reported in the study. One patient developed Grade I dysuria at her 1-month follow-up visit. Additional Grade I adverse events reported by one patient each included mild mucosal atrophy, vaginal drying, and rectal bleeding. A patient reported both Grade II dysuria and pelvic pain at her 1-month follow-up visit. Nine of 15 patients reported no treatment related adverse events during treatment through the 3-month follow-up visits.

n (%)

Caucasian

11 (73.3%)

Hispanic

1 (6.7%)

Asian

2 (13.3%)

Other

1 (6.7%)

FIGO Cancer Stage IB

7 (46.7%)

5 (33.3%)

IIA

3 (20.0%)

Tumor Grade Grade 1

3 (20.0%)

Grade 2

8 (53.3%)

Grade 3

4 (26.7%)

Depth of Myometrial Invasion â&#x2030;¤1/3

8 (53.3%)

> 1/3 and â&#x2030;¤ 2/3

5 (33.3%)

> 2/3

2 (13.3%)

Mean Time from Hysterectomy to 1st EBT Treatment

113.1 Days

(Range)

(37-787) Days

Applicator Sizes

n (%)

25 mm

7 (46.7%)

30 mm

7 (46.7%)

35 mm

1 (6.7%)

mean length of 5.28 cm. The dosimetric data is summarized in Table 3. The EBT system performed without major malfunction. No technical issues occurred with the controller or the applicators. At one site there was a source issue related to the electrical connection, which was traced to a

Discussion Post-operative vaginal brachytherapy was compared with external beam radiation therapy (EBRT) in 427 patients with stage I or IIA endometrial cancer in a report of the PORTEC-2 trial [7]. The rates of overall survival, disease free survival, and vaginal relapse were not significantly different between the two treatment modalities. However, the rates of Grade I-II gastrointestinal toxicity were significantly lower in the vaginal brachytherapy arm (27/ 215 patients or 12.6%) as compared with the EBRT arm (112/208 patients or 53.8%). The authors of this study concluded that vaginal brachytherapy alone should be the adjuvant treatment of choice for patients with high-intermediate risk endometrial cancer [7]. Those results may lead to more patients being treated with post-surgical vaginal brachytherapy alone for early stage endometrial cancer. This combined with patients who receive both EBRT and vaginal brachytherapy likely will lead to an increasing utilization of HDR vaginal brachytherapy. Currently, the most common method of delivering vaginal brachytherapy relies on a radioactive isotope, Iridium-192, which is not feasible for all centers. Many centers do not have an HDR afterloader device, which is

Table 2: Total Prescribed Dose (Gy) of EBT in patients categorized by whether they received EBRT in addition to EBT EBT Alone

EBT + EBRT Prescription

Dose (Gy)

5.5Gy x 4Fx to 0.5 cm

7Gy x 3Fx to 0.5 cm

8Gy x 2Fx to Vaginal Surface

6Gy x 3Fx to Vaginal Surface

5Gy x 4Fx to 0.5 cm

# of patients (%)

3 (20.0%)

7 (46.7%)

1 (6.7%)

3 (20.0%)

1 (6.7%)

Gy = gray, EBRT= external beam radiation therapy, Fx = Fraction, cm = centimeter

Dickler et al. Radiation Oncology 2010, 5:67 http://www.ro-journal.com/content/5/1/67

Page 4 of 6

Table 3: Dosimetry Analysis: The percent of the planned target volume (PTV) or organ receiving 50, 95, 100, or 150% of the prescribed dose at depth followed by the maximum point dose in cGy to the indicated organ Mean % ± SD

Range

%V95

91.0 ± 13.6

49.0 - 103.0

%V100

87.6 ± 13.7

48.0 - 98.0

%V150

34.1 ± 15.6

3.3 - 69.7

Bladder %V50

11.5 ± 9.7

0 - 40.2

Rectal %V50

17.4 ± 10.9

0 - 36.0

Max Point Dose to Bladder

701.2 ± 169.3 cGy

467 - 1087 cGy

Max Point Dose to Rectum

775.0 ± 355.4 cGy

100 - 1584 cGy

Max Point Dose to Small Bowel

421.3 ± 391.1 cGy

0 - 1188 cGy

required with an Ir-192 source. In addition, many centers have a single shielded radiation vault for both their EBRT and HDR patients. This can lead to logistical difficulties in scheduling patients at a busy radiation center. Electronic brachytherapy (EBT) was developed to make brachytherapy more accessible for patients. EBT treatment does not require a shielded radiation bunker and thus increases the settings in which brachytherapy treatments can be performed. This report describes the first prospective clinical trial of vaginal EBT for the treatment of endometrial cancer.

EBT treatment was delivered successfully for all 48 fractions of treatment in this study. The EBT device performed as expected with minimal technical issues. EBT was well tolerated with no serious adverse events. Six patients reported Grade 1-2 adverse events. Previous reports of EBT for accelerated partial breast irradiation (APBI) demonstrated an acceptable safety profile similar to that seen with Ir-192 based APBI [8]. Previous reports with Ir-192 based vaginal brachytherapy have shown it to be a very well tolerated procedure. Fayed, et al., reported only a 4% risk of Grade III/IV toxicity in 175 patients treated with HDR. The authors also noticed that the complication risk was higher if the patients also received EBRT [9]. Weiss et al and MacLoed et al have both reported on studies with over 100 patients treated with HDR brachytherapy alone and described no Grade III/IV toxicity [10,11]. It should be noted that these studies utilizing Ir-192 have larger patient numbers and longer follow-up than the current series. The EBT radiation fractionation schedules utilized in this study were derived from the American Brachytherapy Society Recommendations for the suggested doses of Ir-192 HDR alone or in combination with EBRT [12]. It has previously been shown by Dickler, et al., in a dosimetric comparison that EBT offers similar target volume coverage and increased bladder and rectum sparing compared to Ir-192 based vaginal brachytherapy [5]. As a result, using the same radiation fractionation as used for Ir-192 treatment, it is reasonable to expect similar or possibly less bladder and rectal toxicity with EBT treatment. In the current study at 3 months follow-up, there have

Table 4: Number (%) of patients with adverse events reported at the one-month (1 mo) or three-month (3 mo) follow-up visit that are possibly related or probably related to the EBT treatment 1 Month Visit Pt #

Adverse Event

Grade

N (%)

Visit

Relationship to EBT Treatment

Visit Resolved

EBT & EBRT

Dysuria

1 mo

Possibly related

Unresolved at 3 mo. visit

EBT & EBRT

Dysuria

1 mo

Possibly related

Resolved at 3 mo. visit

EBT & EBRT

Vaginal pain

1 mo

Probably related

Resolved at 6 wk. visit

3 Month Visit Pt #

Adverse Event

Grade

N (%)

Visit

Relationship to EBT Treatment

Visit Resolved

EBT

Mucosal atrophy

3 mo

Probably Related

Reported at 3 mo. visit

EBT

Rectal bleeding

3 mo

Probably Related

Reported at 3 mo. visit

EBT & EBRT

Vaginal Drying

3 mo

Possibly Related

Reported at 3 mo. visit

EBT = Electronic Brachytherapy, EBRT = External Beam Radiation Therapy RT = radiation therapy treatment, mo = month, wk = week

Dickler et al. Radiation Oncology 2010, 5:67 http://www.ro-journal.com/content/5/1/67

been no reports of Grade III/IV toxicity, and 9 of 15 patients have reported no toxicity at all. This is consistent with previous published reports using Ir-192 brachytherapy [7,10,11]. Although the study by Dickler, et al., showed similar target coverage between EBT and Ir-192 HDR treatment, EBT was associated with increased "hot spots" in the vaginal canal [5]. Specifically, the %V150 (percent of the target volume receiving 150% of the prescription dose) was 58.9% vs. 35.8% for the EBT and Ir-192 treatments, respectively. It is not known whether an increased volume of the vaginal canal being exposed to higher radiation doses will put patients at an increased risk for vaginal side effects such as stenosis or vaginal shortening. At 3 months follow-up, there were no incidences of vaginal stenosis or shortening in the current study. Of note, Noyes and investigators from University of Wisconsin have reported their results treating 63 patients with HDR and vaginal ovoids with vaginal surface doses of 16.2 Gy. The authors reported no incidence of Grade III/IV side effects using much higher vaginal surface doses than used in the current study [13]. Further follow-up will be needed to determine if late vaginal side effects occur at an increased rate with EBT treatment.

Conclusions The EBT system performed well and was associated with limited acute adverse events. The prescribed dose was successfully delivered in all 15 patients. Acute results are similar to those using HDR brachytherapy. Further research with EBT will be needed to establish its clinical efficacy and long-term toxicity in the treatment of patients with endometrial cancer. List of Abbreviations AE: Adverse events; CT: Computerized tomography; CTC: Common Terminology Criteria; EBRT: External Beam Radiation Therapy; EBT: Electronic Brachytherapy; Gy: Gray; HDR: High Dose Rate; Ir- 192: Iridium 192; kV: kilovoltage; QID: Four times per day, TAH-BSO: total abdominal hysterectomy and bilateral salpingooophorectomy Author's Information AD has completed dosimetric comparisons of electronic brachytherapy and iridium-192 and requested to proceed with a small study on the initial experience using electronic brachytherapy for the treatment endometrial cancer following TAH-BSO. Competing interests We disclose to Radiation Oncology the following potential conflicts of interest: Author Disclosures: Dr. Dickler is on the scientific advisory board for Xoft, Inc.

Page 5 of 6

Authors' contributions All five authors contributed significantly to this manuscript by contributing to the study data collection, reviewing the data analyses, revising, and approving the final manuscript. All authors contributed to the study design of this first experience. Acknowledgements The authors wish to thank all site participants and investigators who supported this research, and the patients for participating in this study. A medical writer, Leslie Todd, assisted with preparation of this manuscript, and Xoft, Inc, compensated her time. Funding for this study was provided by Xoft, Inc. Author Details 1Little Company of Mary Hospital, Evergreen Park, IL USA, 2Rhode Island Hospital, Providence, RI USA, 3Beverly Oncology and Imaging Centers, Montebello, CA USA, 4Cancer Treatment Services Arizona, Casa Grande, AZ USA and 5Swedish Covenant Hospital, Chicago, IL USA Received: 13 May 2010 Accepted: 20 July 2010 Published: 20 July 2010 Radiation ÂŠ 2010 This article is an Dickler Open Oncology is available et Access al;2010, licensee from: article 5:67 http://www.ro-journal.com/content/5/1/67 BioMed distributed Central under Ltd.the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

References 1. Jemal A, Siegel R, Ward E, Hao Y, Xu J, Thun MJ: Cancer statistics 2009. CA Cancer J Clin. 2009, 59(4):225-49. 2. Scholten AN, van Putten WL, Beerman H, Smit VT, Koper PC, Lybeert ML, Jobsen JJ, Warlam-Rodenhuis CC, De Winter KA, Lutgens LC, van Lent M, Creutzberg CL: Postoperative radiotherapy for stage I endometrial carcinoma: long-term outcome of the randomized PORTEC trial with central pathology review. Int J Radiat Oncol Biol Phys 2005, 63:834-38. 3. Keys HM, Roberts JA, Brunetto VL, Zaino RJ, Spirtos NM, Bloss JD, Pearlman A, Maiman MA, Bell JG: A phase III trial of surgery with or without adjunctive external pelvic radiation therapy in intermediate risk endometrial adenocarcinoma: a gynecologic oncology group study. Gynecol Oncol 2004, 92:744-51. 4. Lee CM, Szabo A, Shrieve DC, Macdonald OK, Gaffney DK: Frequency and Effect of Adjuvant Radiation Therapy Among Women with Stage I Endometrial Adenocarcinoma. JAMA 2009, 295:389-97. 5. Dickler A, Kirk MC, Coon A, Bernard D, Zusag T, Rotmensch J, Wazer DE: A dosimetric comparison of xoft axxent electronic brachytherapy and Ir192 hdr brachytherapy in the treatment of endometrial cancer. Brachytherapy 2008, 7(4):351-4. 6. Rivard MJ, Davis SD, DeWerd LA, Rusch TW, Axelrod S: Calculated and measured brachytherapy dosimetry parameters in water for the Xoft Axxent X-Ray Source: An electronic brachytherapy. Med Phys 2006, 33:4020-32. 7. Nout RA, Smit VT, Putter H, Jurgenliemk-Schulz IM, Jobsen JJ, Lutgens LC, van der Steen-Banasik EM, Mens JW, Slot A, Kroese MC, van Bunningen BN, Ansink AC, van Putten WL, Creutzberg CL: Vaginal brachytherapy versus pelvic external beam radiotherapy for patients with endometrial cancer of high-intermediate risk (PORTEC-2): an open label non-inferiority, randomized trial. Lancet 2010, 375:816-23. 8. Mehta VK, Algan O, Griem KL, Haile K, Wazer DE, Stevens RE, Chadha M, Kurtzman S, Modin SD, Dowlatshahi K, Elliott KW, Rusch TW: Experience with an electronic brachytherapy technique for intracavitary accelerated partial breast irradiation. Am J Clin Oncol 2010. published online April 9. Fayed A, Mutch DG, Rader JS, Rader JS, Gibb RK, Powell MA, Wright JD, Elnaga I, Zoberi I, Grigsby PW: Comparison of high-dose-rate and lowdose-rate brachytherapy in the treatment of endometrial cancer. Int J Radiat Oncol Biol Phys 2007, 67(2):480-4. 10. Weiss E, Hirnle P, Arnold-Bofinger H, Hess CF, Bamberg M: Adjuvant vaginal high-dose-rate afterloading alone in endometrial carcinoma: patterns of relapse and side effects following low-dose therapy. Gynecol Oncol 1998, 71:72-6. 11. MacLeod C, Fowler A, Duval P, D'costa I, Dalrymple C, Elliott P, Atkinson K, Firth I, Carter J: High-dose-rate brachytherapy alone post-hysterectomy for endometrial cancer. Int J Radiat Oncol Biol Phys 1998, 42:1033-9. 12. Nag S, Erickson B, Parikh S, Gupta N, Varia M, Glasgow G: The American brachytherapy society recommendations for high-dose-rate brachytherapy for carcinoma of the endometrium. Int J Radiat Oncol Biol Physics 2000, 48(3):779-90.

Dickler et al. Radiation Oncology 2010, 5:67 http://www.ro-journal.com/content/5/1/67

13. Noyes WR, Bastin K, Edwards SR, Buchler DA, Stitt JA, Thomadsen BR, Fowler JF, Kinsella TJ: Postoperative vaginal cuff irradiation using high dose rate remote afterloading: a phase II clinical protocol. Int J Radiat Oncol Biol Phys 1995, 32:1439-43. doi: 10.1186/1748-717X-5-67 Cite this article as: Dickler et al., Prospective multi-center trial utilizing electronic brachytherapy for the treatment of endometrial cancer Radiation Oncology 2010, 5:67

Page 6 of 6

Received: 27 November 2018

Revised: 9 May 2019

Accepted: 20 May 2019

DOI: 10.1002/acm2.12657

RADIATION ONCOLOGY PHYSICS

Treatment of cervical cancer with electronic brachytherapy Sergio Lozares-Cordero1 | José Antonio Font-Gómez1 | Almudena Gandía‐Martínez1 | Anabela Miranda‐Burgos2 | Agustina Méndez‐Villamón2 | David Villa‐Gazulla1 | Verónica Alba‐Escorihuela1 | Sara Jiménez‐Puertas1 | Víctor González‐Pérez3 1 Department of Physics and Radiation Protection, Miguel Servet University Hospital, Zaragoza, Spain 2

Department of Radiation Oncology, Miguel Servet University Hospital, Zaragoza, Spain 3 Department of Physics and Radiation Protection, Fundación IVO, Valencia, Spain

Author to whom correspondence should be addressed. Lozares‐Cordero Sergio E‐mail: slozares@salud.aragon.es.

Abstract Purpose: We report the ﬁrst cervical cancer cases treated with interstitial electronic brachytherapy (eBT) at our hospital and compare them with plans made with high‐ dose‐rate interstitial brachytherapy based on Ir192 (HDR‐BT). Materials and methods: Eight patients with cervical cancer were treated with the Axxent eBT device (Xoft, Inc.). Planning was with magnetic resonance imaging and computed tomography following the recommendations of the EMBRACE protocol. The dosimetry parameters of organs at risk (OAR) were evaluated for the bladder, rectum, and sigmoid colon (D2cc, D1cc, and D0.1cc). In addition, the V150 and V200 of irradiated tissue were compared for both eBT and HDR‐BT. All patients received intensity‐modulated external beam radiation therapy with a regimen of 23 sessions of 2 Gy followed by four sessions of 7 Gy of eBT performed over 2 weeks (two sessions followed by another two sessions a week later) following the EMBRACE recommendations. Each of the eight patients was followed to assess acute toxicity associated with treatment. Results: The doses reaching OAR for eBT plans were lower than for HDR‐BT plans. As for acute toxicity associated with eBT, very few cases of mucositis were detected. No cases of rectal toxicity and one case with grade 1 urinary toxicity were detected. The results at 1 month are equally good, and no relapses have occurred to date. Conclusions: The ﬁrst results of treatment with the Axxent eBT device are promising, as no recurrences have been observed and toxicity is very low. eBT is a good alternative for treating cervical cancer in centers without access to conventional HDR. KEY WORDS

cervical cancer, electronic brachytherapy, HDR, image‐guided brachytherapy

1 | INTRODUCTION

most frequent type of cancer in developing countries, with more than 500,000 new cases diagnosed every year.1

Cervical cancer is the second most frequent type of cancer in

The initial approach in patients with stage IA1‐IA2 cervical cancer

women, with a mean age at onset of 45 yr worldwide. It is also the

is generally surgery, if possible, and radiotherapy or brachytherapy

---------------------------------------------------------------------------------------------------------------------------------------------------------------------This is an open access article under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in any medium, provided the original work is properly cited. © 2019 The Authors. Journal of Applied Clinical Medical Physics published by Wiley Periodicals, Inc. on behalf of American Association of Physicists in Medicine. J Appl Clin Med Phys 2019; 1–9

wileyonlinelibrary.com/journal/jacmp

SERGIO

ET AL.

(BT) if not. Patients with advanced cancer (IB2‐IIA bulky‐IIB‐III‐IVA)

The unit is constructed of a disposable mini‐x‐ray tube inserted

receive chemotherapy and radiotherapy concomitantly, as well as BT,

into a ﬂexible plastic sheath approximately 5.5 mm in diameter. Water

irrespective of whether they can undergo surgery.2

is pumped around the source to reduce heating from the target. The

The use of BT as a key component in the treatment of cervical cancer is the main prognostic factor in local control of the disease.3

electrons (20–50 keV) are emitted from a ﬁlament nearly 1 cm from the anode. The anode is made mainly of a microlayer of tungsten on

As with cancer at other sites, the response of gynecological can-

an yttrium substrate that acts as a buffering layer and a small amount

cer to radiation is dose‐dependent, with improved local control at

of silver that acts as a constituent of the brazing alloy. The anode tran-

higher doses.4 Better knowledge of tumor extension at diagnosis

sitions are from a spherical tip to a conical‐hemisphere section and

and the response to the treatment received has led to more realistic

ﬁnally to a cylinder. The source is mounted on a mechanical robot arm

local treatment of cervical carcinoma, with adapted BT that is tai-

that is attached to a movable treatment control console.19

lored depending on the ﬁndings at different points during the course

The unit can be used to treat nonmelanoma skin tumors, intraop-

of the disease. Therefore, BT has proven to be efﬁcacious as a com-

erative radiotherapy in breast cancer, and postoperative treatment

ponent of radiation therapy. The dose released by BT in contact

of endometrial and cervical cancer.

with the tumor (4 fractions in 2 weeks) is at least equivalent to the

The case of skin tumors is problematic. High doses can reach

dose administered during external beam radiation therapy (EBRT) on

bone (high atomic number), owing to the predominant photoelectric

the pelvis for 5 or 6 weeks.5

effect at low energies.20 Such a situation could arise in cases of cer-

Any nonsurgical treatment of gynecologic cancer with curative intent should combine EBRT and BT.6 The traditional approach has 7

vical cancer, although, to date, we have had no reports of this problem at our center.

been low‐dose rate BT. For the last few years, the type of BT

It can also be used to treat cervical cancer in protocols that

applied has been high‐dose rate BT (HDR‐BT) with Ir192,8 which

require treatment with HDR‐BT after chemotherapy and EBRT with

makes it possible to optimize both the dose and patient comfort,

a dedicated applicator (Fig. 1).

since it can be administered on an outpatient basis, even though more sessions are necessary. Technical advances in imaging and dosimetry have led to the use

The eBT system at our center was acquired in May 2015 for treatment of skin cancer and intraoperative radiotherapy for breast cancer after tumor removal.

of computed tomography (CT) and magnetic resonance imaging

Postoperative treatment of endometrial cancer with the Axxent

(MRI) to locate the tumor and organs at risk (OAR) and to plan treat-

eBT unit was started in 2015, and in May 2016, we treated the ﬁrst

ment based on real anatomy.9

case of cervical cancer.

A working group from GEC‐ESTRO published recommendations

This therapeutic approach was traditionally applied in many cen-

on contouring the target tumor and OAR, as well as on the dose vol-

ters throughout the world with HDR devices based on Iridium‐192

ume parameters to be reported for image‐guided BT in deﬁnitive

(Ir192, half‐life of 73.8 days and mean energy of 0.355 MeV) and

radiotherapy for locally advanced cervical cancer.10 The major advan-

different types of applicator, of which Fletcher applicators were the

tage of this technique is the possibility of conforming the dose to

most common. In the current century, others have appeared and

both volume (3D) and time (4D). Thus, repetitive imaging performed

may help in treatment based on interstitial needles placed in various

before each BT implant makes it possible to adapt the BT dose to

conﬁgurations.21

the anatomy of the individual patient, taking into account not only

Retrospective studies on patients treated with Ir192 have com-

the position of the OAR but also tumor regression, which is often

pared endometrial cancer,22,23 cervical cancer,24 and breast cancer.25

achieved with previous EBRT and chemotherapy.

A lower dose was always found in the OAR in patients whose planning

The EMBRACE study,11 which was developed some time after

was based on eBT, although the patients in those studies were treated

publication of the GEC‐ESTRO recommendations, attempted to unify

with Ir192. Another study comparing patients with endometrial cancer

all of the processes involved in the management of cervical cancer

treated with eBT has reported favorable preliminary results.26

by providing guidelines for the participating centers. A key feature is

The objective of treatmenting with eBT is to provide an alternative

the use of MRI to better deﬁne the tumor and the OAR volumes. It

with a portable device, thus conferring the advantage of mobility and

allows to prescribe higher doses to the region of interest thus

obviating the need for a shielded room: with the energy used by the

increasing the tumor control as shown in the Retro EMBRACE

device, screening equivalent to 0.5 mm of lead on walls and doors is

study.12 All of the participating centers used HDR‐BT with Ir192 in

sufﬁcient. Transport is no longer a factor since it does not involve

their treatments.

radioactive sources. In addition, the device facilitates quality control

Electronic brachytherapy (eBT) has been evolving since the start

and preparation and implementation of the treatment.27

of the 21st century13 and has become a treatment option for various tumor sites in different settings.14–18 The Axxent eBT unit (Xoft, Inc., subsidiary of iCAD, San José,

2 | MATERIALS AND METHODS

CA, USA) provides treatment to patients with a miniature 50‐kVp x‐ ray source that irradiates the tumor directly in skin cancer and with

At our center, patients diagnosed with cervical cancer who are can-

different applicators in the case of breast or gynecologic cancer.

didates for eBT after EBRT are selected from among those who, at

SERGIO

ET AL.

FIG. 1.

Cervical applicator.

T A B L E 1 Characteristics of electronic brachytherapy sources. 750 minutes of clinical use

Working life of eBT sources

T A B L E 3 EMBRACE protocol dosimetric requirements based on ESTRO‐ABS recommendations for CTVs and OARs in EQD2. Target

D90 HR‐CTV EQD210

D98 HR‐CTV EQD210

D98 IR‐CTV EQD210

planning aims

>90 Gy < 95 Gy

>75 Gy

>60 Gy

Deviation allowed with respect to calibration certiﬁcate

<10%

Deviation allowed with respect to ﬁrst measure

<5%

Limits for prescribed dose

>85 Gy

Maximum energy

50 kVp

OAR

Average energy

29.6 keV

Bladder D2cc EQD23

Rectum D2cc EQD23

Sigmoid D2cc EQD23

Treatment time for cervical treatment

15–25 min

Planning aims

<80 Gy

<65 Gy

<70 Gy

Limits for prescribed dose

<90 Gy

<75 Gy

T A B L E 2 Patients and treatments characteristics.

T A B L E 4 EMBRACE protocol dosimetric requirements for BT (4 fractions of 7 Gy) after 46 Gy of EBRT in EQD2, %PD and dose per BT fraction.

Patients

Age + Range (years)

59.7 (27–72)

FIGO Stage

D90 HR‐CTV

IB1

12.5% (1)

%PD

1 fraction

%PD

1 fraction

IB2

12.5% (1)

>107%

>7.5 Gy

>80%

>5.6 Gy

IIA2

25% (2)

<117%

<8.2 Gy

IIB

37.5% (3)

D98 IR‐CTV

IIIB

12.5% (1)

%PD

1 fraction

Uterine probe inclination

15° (8)

>46%

>3.2 Gy

Ovoids 3 cm

50% (4)

Ovoids 2.5 cm

25% (2)

Ovoids 2 cm

25% (2)

Bladder: D2cc ≤ 90 Gy, D0.1cc ≤ 110‐115 GyBladder: D2cc ≤ 75– 87%, D0.1 cc ≤ 107–113%Bladder: D2cc ≤ 5.3–6.1 Gy, D0.1cc ≤ 7.5–7.9 Gy

Time IMRT to eBT

10.6 (7–15) days

OTT

52.5 (49–58) days

Treatment time in tandem per fraction

14.6 (8.8–19.5) min

Treatment time in ovoids per fraction

3.5 (0.8–7.5) min

Proportions are given with number of total and median range. FIGO stage is given in percentage of the total number of patients. Time IMRT to eBT: time between the end IMRT treatment and the start of eBT. OTT, Overall treatment time.

D98 HR‐CTV

Rectum: D2cc ≤ 75 Gy, D0.1 cc ≤ 80–85 GyRectum: D2cc ≤ 51–67%, D0.1 cc ≤ 75–81%Rectum: D2cc ≤ 3.6–4.7 Gy, D0.1 cc ≤ 5.3–5.7 Gy Sigmoid: D2cc ≤ 75 Gy, D0.1 cc ≤ 80–85 GySigmoid: D2cc ≤ 60– 67%, D0.1 cc ≤ 75–81%Sigmoid: D2cc ≤ 4.2–4.7 Gy, D0.1 cc ≤ 5.3– 5.7 Gy Prescribed dose of BT treatment: 4 fractions of 7 Gy. EQD2n, Dosage equivalent to 2 Gy per session for α/β = n according to the quadratic linear model. The limit value is the result of adding EBRT + BT; HR‐CTV, High‐risk clinical target volume; IR‐CTV, Intermediate‐risk clinical target volume; %PD, Percentage of prescribed dose.

SERGIO

ET AL.

F I G . 2 . Isodose lines in Axial, Coronal, and Sagittal views for eBT and Ir192. (a) Axial view: Distances to 25% of the prescribed dose: 5.1 cm (eBT) and 5.7 cm (Ir192). (b) Coronal view: Distances to 25% of the prescribed dose: 5.9 cm (eBT) cm and 6.2 cm (Ir192). (c) Sagittal view: Distances to 25% of the prescribed dose: 5.2 cm (eBT) cm and 5.7 cm (Ir192). Red line: HR‐CTV contour. Prescribed Dose: 7 Gy per fraction.

their ﬁrst evaluation for radiotherapy, are expected to have a resid-

excluding quality control time, each eBT source has a useful average

ual tumor ≤3 cm with no parametrial involvement after EBRT. They

clinical life of 750 min. If a source is not stable, it is withdrawn and

are re‐evaluated after EBRT to determine whether the diagnostic

replaced (Table 1). Each session lasted between 15 and 25 min.

parameters remain unchanged (see above).

Mean age was 59.8 yr (27–70 yr), with different tumor stages

In this study eight patients were treated using the Axxent (Xoft)

(Table 2). The eight patients received chemotherapy without surgery

device between May 2016 and June 2018 with the Axxent cervical

and adjuvant EBRT in the form of intensity modulated radiation

applicator (Modiﬁed Henschke HDR Cervix Applicator‐Fig. 1),

therapy (IMRT) with a regimen comprising 23 sessions of 2 Gy each

intrauterine probes angled at 15°, and ovoids of 2–3 cm. After

all over the pelvis, followed by eBT (28 Gy in four sessions). The

SERGIO

ET AL.

sessions were administered twice weekly (Thursday and Friday) after radiation therapy. Planning was with MRI and CT scans acquired

CT images are used to reconstruct the applicators appropriately; MRI is used to contour the target volumes and the OAR.

before the ﬁrst session. The patient was then admitted for the sec-

The high‐risk clinical target volume (HR‐CTV) and the intermedi-

ond session the following day, after a new CT check‐up. The proce-

ate‐risk clinical target volume (IR‐CTV) are contoured, and the blad-

dure is repeated the following week for the third and fourth

der,

sessions, with new MRI and CT images. OAR and target volumes are

rectum,

and

sigmoid

colon

OAR

following

the

recommendations of GEC‐ESTRO.

contoured in accordance with the EMBRACE protocol. The treat-

After the medical physicist reconstructs the applicators and pre-

ment planning system (TPS) used is Brachyvision‐Eclipse (Varian

pares the plan according to the dosimetric requirements of the

Medical System Inc., Palo Alto, CA, USA). The mean time from initia-

EMBRACE protocol10 (Tables 3 and 4), the radiation oncologist

tion of IMRT to the end of eBT was 52.5 days (49–58 days), and the

approves it, and if appropriate, the patient is treated. Subsequently,

time between the end of IMRT and the end of eBT was 10.6 days

an additional plan is drawn up for treatment with Ir192 source in

(7–15 days) (Table 2). The calculations are compared retrospectively

order to compare both plans. The processing unit deﬁned in the TPS

with those for Ir192 sources and for each of the eight patients, with

for this purpose is Gammamed Plus with GammaMed Plus HDR

two plans per patient, giving a total of 32 different plans (16 for eBT

source 0.9 mm (Varian Medical System Inc., Palo Alto, CA, USA). The calculation algorithm is TG‐43, with speciﬁc parameters for

and 16 for Ir192). Planning was performed after a CT study (3‐mm slice thickness) and T2‐weighted MRI study (5‐mm slice thickness). Both sets of

the Axxent device.29 As for HR‐CTV and IR‐CTV, the values of the dose were determined to 90% (D90) and 98% (D98). HR‐CTV values are the same in

images were registered.

T A B L E 5 Comparison of dosimetric parameters for Axxent eBx and Ir‐192 HDR. EBRT (IMRT) Dose per fraction:

2 Gy

No fractions

Total dose:

46 Gy

BT (eBx or Ir‐192) Dose per fraction:

7 Gy

No fractions

Total dose:

28 Gy Dose per fraction (Gy)

Vol HR‐CTV: 16.6cc (10.1–38.7)

Axxent‐eBx

Ir‐192

Mean (Gy)

SD (Gy)

%PD

Range (Gy)

D98

0.7

100%

6.3–7.8

D90

8.5

0.9

121%

7.6–10.0

D98

0.9

57%

3.0–5.4

D90

4.9

1.0

70%

3.7–6.5

D2cc

4.4

0.8

63%

3.9–6.1

D1cc

4.9

0.8

70%

D0.1cc

5.9

0.9

84%

Range(%PD)

Mean (Gy)

SD (Gy)

%PD

Range (Gy)

Range(%PD)

89–111%

7.1

0.8

101%

6.3–8.3

89–119%

108–142%

8.4

0.8

120%

7.6–10

108–143%

42–76%

4.1

0.8

59%

3.4–5.3

48–76%

53–93%

0.9

71%

4.1–6.4

58–91%

55–87%

4.6

0.8

66%

4.1–6.3

59–90%

4.3–6.7

61–96%

5.1

0.8

73%

4.5–6.9

64–99%

5.4–8.1

77–115%

0.9

86%

5.5–8.2

79–117%

Target HR‐CTV

IR‐CTV

Organs at risk Bladder

Rectum

Sigmoid

D2cc

2.1

0.7

30%

1.3–3.5

19–49%

2.6

0.7

37%

1.9–3.9

26–56%

D1cc

2.5

0.8

36%

1.5–3.8

21–54%

0.8

43%

2.1–4.1

30–59%

D0.1cc

3.5

1.0

50%

1.9–4.4

26–63%

3.9

1.0

56%

2.5–4.9

36–70%

D2cc

3.8

0.7

54%

3.1–5.2

44–74%

0.7

57%

3.3–5.3

47–76%

D1cc

4.4

0.9

63%

3.7–6.2

52–88%

4.6

0.9

66%

3.9–6.4

55–91%

D0.1cc

1.4

86%

4.6–8.5

65–121%

6.2

1.4

89%

4.8–8.7

69–124%

D98, D90: Dose to the 98% or 90% of the HR‐CTV or IR‐CTV volume in Gy. D2cc, D1cc, D0.1cc: Doses to the volume of 2 cc, 1 cc, or 0.1 cc in Gy and in %PD (percentage of prescribed dose). SD, standard deviation; Vol HR‐CTV, Volume of HR‐CTV, average, and range; HR‐CTV, high‐risk clinical target volume; IR‐CTV, intermediate‐risk clinical target volume.

SERGIO

ET AL.

the two treatment plans in each case, since the same normalization is applied throughout planning. We also determined V150 and V200, both of the HR‐CTV and of total tissue (sum of tumor tissue and healthy tissue), which receive 150% and 200% of the prescribed dose. As for the OAR, the parameters are the same as those recommended in the EMBRACE protocol, and they are determined for all OAR of interest in the study, namely, bladder, rectum, and sigmoid colon. The parameters compared are D2cc (maximum dose, 2 cc), D1cc, and D0.1cc; toxicity is evaluated according to the parameters of the Radiation Therapy Oncology Group (RTOG).30

3 | RESULTS Patients were followed up for a median of 13.4 months (2– 28 months). Patients planned with eBT received a lower dose in the OARs than those planned with Ir192. The differences in the energy of both irradiation methods constitute the isodose lines that lead to the dose differences in the OARs (Fig. 2). In the bladder, the average dose parameters for all the treatments compared (eBT vs Ir192) were 63% of the prescribed dose vs 66% for D2cc, 70% vs 73% for D1cc, and 84% vs 86% for D0.1cc. The differences were more remarkable in the rectum (30% vs 37% for D2cc, 32.9% vs 36% for D1cc, and 50% vs 56% for D0.1cc) and in the sigmoid colon (D2cc, 54% vs 57%; D1cc, 63% vs 66%; and D0.1cc, 86% vs 89%) with an average HR‐CTV volume of 16.6 cc (Table 5). By applying these data and the t test, we see that the difference is signiﬁcant for cases of D2cc and D1cc of the rectum (P < 0.05) (Fig. 3).

FIG. 3.

Box and Whisker Plot: D1cc and D2cc of rectum.

Although D90 and D98 for HR‐CTV were the values used to standardize the plans, we did observe a small difference in the cov-

4 | DISCUSSION

erage of IR‐CTV—57% of the prescribed dose for eBT vs 59% for HDR‐BT—although both were above the objective set by EMBRACE

We obtained acceptable results after the ﬁrst 28 months (mean fol-

(>46%, Tables 3 and 4). In addition to the differences in the IR‐CTV

low‐up, 13.4; range, 2–28 months) using the Axxent eBT device for

coverage percentage, it is useful to observe the differences in dose

treatment of cervical cancer with EBRT and chemotherapy, thus indi-

equivalent to 2 Gy (EQD2), taking into account the contribution of

cating that this option is a good alternative in BT.

EBRT and the part of eBT or Ir192 in each case (Table 6). V150 and

The dose prescribed in each eBT treatment was administered

V200 for HR‐CTV were greater for the cases calculated with Axxent

without taking into account the fact that the mean beam energy

than for those calculated with Ir192, although the difference was

was much lower than in Ir192 (26 keV vs 355 keV) and, therefore,

very small owing to the volume of the tumors treated. In addition,

without taking into account the differences in the relative radiobio-

even though tissue volumes that received 150% and 200% of the

logical effectiveness (RBE) expected for low‐energy radiation.31,32

dose prescribed were included (Table 7), given the low energy of

One clinical study showed that reducing the dose prescribed for

eBT compared to Ir192 also observed an increase in the dose in the

treatment of nodular and superﬁcial basal cell carcinoma using eBT

vaginal wall in contact with the surface of the ovoids of 13% on

and based on a different RBE reduced control of the tumor from

average, although no cases of acute mucositis were observed. Of

95% to 90%, thus demonstrating better control for the standard pre-

the eight patients treated at our center, only one had grade 2 acute

scription.33

toxicity (RTOG) (Table 8). One month after treatment, vaginal toxic-

In our study, we did not modify treatment owing to differences

ity had disappeared. Rectal toxicity and urinal toxicity were minimal

in RBE with respect to Ir192 because of the good results achieved

(Table 8). To date, no patients have experienced recurrence of their

with treatment administered to the endometrium26 and the contra-

disease.

dictory results reported in several published studies. Modiﬁcation of

SERGIO

ET AL.

T A B L E 6 EQD2 for Axxent and Ir‐192. BT and EBRT (IMRT) obtained adding doses according to linear quadratic model. AXXENT

Ir‐192

EQD2(Gy)

BT + IMRT

%PD

%SD

BT + IMRT

%PD

Prescription dose.

39.7

85.7

100%

D98

39.7

85.7

100%

D90

52.4

98.4

121%

D98

18.7

68.7

57%

D90

24.3

70.3

D2cc

26.6

D1cc

30.0

D0.1cc

%SD

39.7

85.7

100%

40.5

86.5

101%

14%

13%

51.5

97.5

120%

17%

13%

19.3

65.3

59%

70%

14%

25.0

71.0

71%

10%

72.6

64%

28.0

74.0

66%

76.0

69%

10%

33.0

79.0

73%

10%

41.4

87.4

84%

12%

43.2

89.2

86%

12%

6.1

52.1

23%

11.6

57.6

37%

α/β = 10Gy Target HR‐CTV

IR‐CTV

α/β = 3Gy Organs at risk Bladder

Rectum

D2cc D1cc

Sigmoid

9.0

55.0

31%

14.4

60.4

43%

D0.1cc

14.6

60.6

43%

21.5

67.5

56%

D2cc

19.8

65.8

53%

22.4

68.4

57%

D1cc

23.8

69.8

59%

28.0

74.0

66%

D0.1cc

38.1

84.1

79%

12%

45.6

91.6

89%

13%

α/β = 10 Gy for target and 3 Gy for OAR according to EMBRACE. EQD2, Equivalent dose to 2 Gy per fraction in EBRT; %PD, Percentage of Prescribed Dose; %SD, Standard Deviation of %PD; IMRT, intensity modulated radiation therapy; BT, brachytherapy; HR‐CTV, high‐risk clinical target volume; IR‐CTV, intermediate‐risk clinical target volume.

the prescribed dose continues to be controversial in low‐energy cases.34

The sample of patients selected only included tumors with no parametrial extension so as not to require insertion of interstitial

We can achieve the same coverage of the cervix as during plan-

needles during treatment. Since this modality is not yet available in

ning when Ir192 is used in all of the cases presented and the dose

the Axxent model, patients requiring interstitial needles were

to OAR can be reduced, even though V150 and V200 of the plan-

referred to another center.

ning target volume increase very slightly. This could have led to an

Results for the healthy tissue volume that received high doses

increase in the number of cases of acute mucositis in the study pop-

are slightly higher in the case of eBT, where the tissue irradiated

ulation; however, the toxicity results, together with the reduced

with 150% of the prescribed dose corresponds to 132% of the HR‐

dose administered to OAR, lead us to conclude that eBT is a good

CTV volume, compared with 124% in cases planned with Ir192. For

alternative to treatment with Ir192 in cases of cervical cancer.

tissue irradiated with 200%, these values are 67% vs 63% (Table 7).

In their study of 10 patients, Mobit et al.24 evaluated dosimetric

The differences do not represent an excessive volume in each indi-

differences and similarities between treatment plans generated with

vidual case and, more importantly, do not correspond to an increase

the eBT source of Axxent and Ir92 for tandem applicators and

in the number of cases of mucositis.

ovoids. The authors reported a difference between the two approaches (eBT vs Ir192) for D2cc in the bladder (43.9% vs 58.7%

The dose in OAR is slightly lower in the case of eBT, and cases of toxicity associated with doses in OAR are minimal (Table 8).

of the prescribed dose), in the rectum (54.9% vs 60.9%), and in the

We did not encounter problems of overdosing in bone, because

sigmoid colon (44.1% vs 56%). However, in this case, patients were

we used low energies.20 However, overdosing should be avoided in

treated with Ir192, and the eBT plans were calculated prospectively.

order to reduce the number of fractions and thus prevent this prob-

As for the calculation method used, it is recommended to consider tissue composition and to perform the calculations based on 35

lem from arising. We believe that the scheme proposed by EMBRACE is adequate in this respect.

Our calculations were based on TG‐43, which

Both dosimetry requirements of the EMBRACE protocol were

was modiﬁed for eBT,29,36 with no correction for heterogeneity,

fulﬁlled for both types of treatment, although D0.1cc in the sigmoid

since this was the algorithm used in our TPS and in many other hos-

colon would be above tolerance for Ir192. However, as stated

pitals, for which our results will prove useful.

above, this does not lead to more cases of mucositis. These results,

Monte Carlo models.

SERGIO

ET AL.

T A B L E 7 V150 and V200 for HR‐CTV and for soft tissue. Axxent‐eBx (%HR‐CTV Volume) Mean (%)

Ir‐192 (%HR‐CTV Volume)

SD (%)

Range (%)

Mean (%)

SD (%)

Range (%)

V150

73%

62–90%

73%

10%

57–91%

V200

51%

11%

36–71%

51%

12%

26–72%

Soft tissue 150%

132%

42%

95–246%

124%

26%

96–169%

Soft tissue 200%

67%

29%

34–153%

63%

12%

49–87%

Mean, standard deviation and range of V150, V200: Volume of HR‐CTV and Soft tissue with 150% and 200% of the prescribed dose in percentage of the HR‐CTV volume. HR‐CTV, high‐risk clinical target volume.

T A B L E 8 Acute and 1 month toxicity of patients. Grade 0

Grade 1

The eBT device is a useful addition in centers with an HDR Grade 2

device. Its mobility and versatility mean that it can be used as a %

radiotherapy in breast cancer, in skin cancer, and in postoperative

N=8 Acute vaginal mucositis

complementary facility to treat cervical cancer and for intraoperative

50%

37.5%

12.5%

treatment of endometrial cancer.26 based HDR devices, eBT could be a good alternative for patients who

In areas with a high incidence of cervical cancer and few Ir192‐

Acute rectal toxicity

87.5%

12.5%

Acute urinary toxicity

75%

25%

live far from a major hospital. In addition, given that treatment does not require a bunker for administration and the device is easily transported, this option is much more economically viable than others.

Toxicity (1 month) Vaginal toxicity

87.5%

12.5%

Rectal toxicity

100%

Urinary toxicity

100%

Grade 0,1,2: Int J Radiat Oncol Biol Phys. 1995 Mar 30;31(5):1341‐6. Toxicity criteria of the Radiation Therapy Oncology Group (RTOG) and the European Organization for Research and Treatment of Cancer (EORTC). N, number of patients.

together with the absence of relapses to date, allow us to be optimistic with respect to determining a good eBT‐based alternative to this treatment approach, although longer follow‐up is necessary

ACKNOWLEDGMENTS We thank all the colleagues in the physics and radiation protection service, as well as in radiation oncology, for their support in the preparation of this work and their great daily work, as well as the work of the editor‐in‐chief of the journal and the reviewers who have participated in the correction of the article.

CONFLICT OF INTEREST No conﬂict of interest.

before we can confirm our findings. In addition, we must await the findings of other groups.

5 | CONCLUSION Treatment with eBT represents a huge advantage in centers with no HDR device, although more clinical results, results for local control, and results based on a longer follow‐up are necessary. Our data are based on only eight patients, thus reducing the importance of the conclusion. Nevertheless, they are a promising beginning for treatment of cervical cancer with electronic brachytherapy. The doses in the OARs are lower with eBT, although the difference is not signiﬁcant in the bladder or sigmoid colon. They are signiﬁcant, however, for the D2cc and D1cc parameters in the rectum. The broad experience accumulated over the years with Ir192 treatments makes it the reference for cervical cancer, eBT could be an alternative in cases where treatment with Ir 192 is not available, as long as the results obtained continue to be satisfactory.
