TRANSFORMING ARCHITECTURAL IDEAS INTO REALITY

In our current digital age of design, the allure of boundless potential for imagination through digital media leaves many suffering the absence of physical examination. In contrast, this portfolio recognizes the inseparability of both. I have channeled my identity as an architectural designer through a series of sculpted impressions that are represented by different media, such as technical drawings, physical models, and conceptual mapping. This curated collection presents a large range of representation, delving into spatial relationships, materiality, and experiential qualities. These techniques further push the imaginative potential of renderings into physical reality.

Physical models are vital for comprehending scale and space. In this digital period, where virtual representation is dominant, physical

models offer an experience that provokes imagination and fosters profound connections to the architectural narrative. Consequently, a significant portion of my portfolio showcases these physical studies, reflecting my commitment to obtaining a deeper understanding of each project. These models facilitate a thorough study of architectural elements in three-dimensional reality, allowing for a unique comprehension of the architecture I have designed. By translating these sculpted explorations into tangible forms, I have gained insight as to how people can occupy and interact within these spaces at a specific scale. Hence, these physical models bridge the gap between abstract ideas and concrete realities, enabling the opportunity to convey my architectural vision with clarity.

SUGARCOATED (SC)

FRAMES AND GRAINS STUDIO

12-Week Project | Spring ‘23

Critic: Nathan Hume

Partner: Grace Infante

Nominated for Pressing Matters _SC.02

_An Urban Orchard & Confectionery

This project explores the main program of an interwoven Urban orchard as an integrated food bank in the Lower East side. This follows the site’s rich history of Orchard Street- what once was a field of trees and crops is now just known as a commerce street. These interplays of rural vs. urban, or natural vs. man made that are already present through the site, is now reflected through the project’s program of synthetizing and condensing the Rural Orchard into a controlled setting. By doing so, we hope that new ways of social engagement will unravel through space by breaking the

boundaries of public/ private. This can create new opportunities for community engagement through the integrated activity of fruit picking amongst engageable confectionery spaces. Alongside blurring the boundaries of the typical atrium, the project seeks to break up and re-configure thresholds of enclosure. With its open ground floor and suspended programs, this “spilling” orchard renders itself visible and engageable from the outside. We further explore the possibilities of frame and enclosure, looking to stuff our structure with loose forms of massing and envelope strategies.

_SC.01

Elevation Render

_SC.02

Plan Parti Diagram

RECONFIGURING THE PUBLIC SPACE: AN INTERIOR ORCHARD

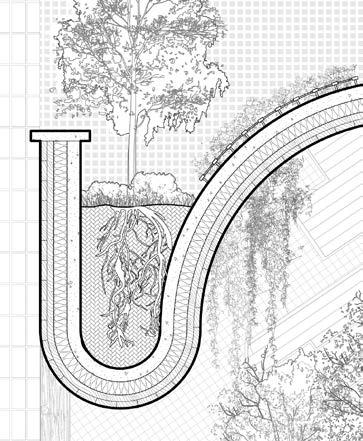

The experimental drawing to the left showcases the main orchard as an immersive focal point within the building. This fosters a semi-public ambiance, inviting and guiding people to explore and engage throughout the building. The presence of the interior orchard also influences the functions of other spaces, as depicted in the render above, showcasing a fruit dispensary area that is connected to the overall concept.

_GM.07

Gallery Space

_SC.03

Experimental Drawing

_SC.03

Experimental Drawing

_SC.04

Fruit Dispensary Factory

_SC.04

01. Candy Factory

02. Juice Production

03. Exterior Eating Area

04. Controlled Orchard

05. Interior Garden

06. Viewing Deck

07. Uncontrolled Orchard

08. Eating Area

09. Orchard Maintenance Systems

10. Garden

11. Tomato Production

12. Candy Store (Confectionary)

13. Exterior Garden

14. Basement Cafe

15. Hydroponics Systems

_SC.07

_GM.07

Gallery Space

_SC.06

Close-Up Details

_SC.07

Juice and Fruit Production

_SC.08

Maintenance Systems

_SC.08

Wall

_SC.12 Main Interior Orchard

_GM.07

Gallery Space

_SC.13

Physical Model @ 1/8” Scale

_SC.14

Back Sectional View

_SC.15

Corner View

_SC.14

_SC.15

RECURSIVE FISSURE

(RF) 02.

PHILADELPHIA MUSEUM OF ART EXTENSION

6-Week Project | Fall ‘21

Critic: Daniel Markiewicz

Nominated for Pressing Matters

_FRAMING THE WATERFRONT

This project embodies the idea of interaction and framing. Situated near the Philadelphia Museum of Art, Recursive Fissure uses experimentation of spatial engagement as well as framing as a tool to explore architectural opportunities and experiences. The compressed fissure creates a visual hiatus while also establishing unity simultaneously with a single intention in mind: engagement. The disjointed masses consist of randomized and ununified geometries, which work cohesively to organize program and spatial circulation on the interior while framing the

exterior atmosphere at the same time. As one approaches the destination, they are met with two heavy masses obstructing the view, only showing a glimpse of the waterfront when they break. The two masses provide a heavy contrast in comparison to the sleek slot that exists between them. It changes the spatial experience for the visitor when they enter the premises. As one finishes crossing the passageway between the two buildings, they are met with the waterfront allowing for a moment of reflection.

_RF.01

Exterior Render

_RF.02

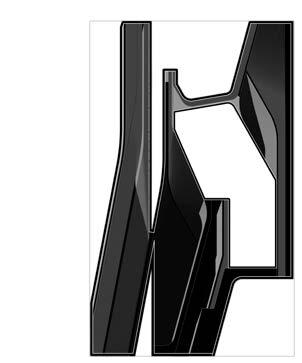

Project 1A Container Elevation

_RF.02

FACADE MATERIALITY

By grabbing certain constituent properties from the earlier projects in the semester, I was able to develop a diagram that was used to engrave a pattern into the facade. The proposed facade is made from copper metal, held and supported by pipes. The copper engraving also seeps into the interior of the building as shown to the left - defining certain areas and creating visual direction for the occupants to follow.

PROGRAMMATIC DISTRIBUTION

The clear divide between the two masses separate the program into museum and education spaces. However, while it appears that both masses are visually separated from the ground floor, they are programmatically connected through the basement level where the main cafe is located. This allows for communal exchange and circulation from one building to the other.

SPATIAL CIRCULATION

The floor plan above demonstrates the circulation and spatial organization on the ground floor. Upon entry to the site intervention, two main access points are created for each individual building. There is a clear difference between the programmatic spaces in each mass.

PROTO-PLANS

MOSAIC OF UNLIKELY AFFINITIES

12-Week Project | Summer & Fall ‘22

In collaboration with FORMA.NY

Exhibited at the ACADIA Conference at the University of Pennsylvania

_RETAIL DESIGN EXPLORATION

It’s common for architects to look to their previous work when developing concepts for projects. Rejected ideas, unbuilt designs, and failed project-starts all provide fertile ground for concept-mining when brainstorming for a new venture. However, rather than simply “reuse” old concepts, ProtoPlans aims to “recycle” them and reworking them into entirely

new creations. Beginning with two previous FORMA.NY plans—for a bathhouse and a library—this project proposes two new plan-driven projects for contemporary retail. Harnessing various neural network platforms, these iterative manipulations offer new explorations into our long-standing interest in the architectural plan.” - FORMA.NY

_PP.01

Conceptual Drawing

_PP.02 Interior Model Photo

_PP.03 Full Model @ 1/4” Scale

SUBSTANCED EXIGENCY(SE)

LOLUX CARE STUDIO

12-Week Project | Fall ‘22

Critic: Jonas Coersmier

Nominated for Pressing Matters

_PUBLIC HOUSING FOR ALL

Focusing on the urban scheme of the Farragut Houses located in Brooklyn, New York – this project aims to provide essential amenities that is drastically needed by the Farragut community. By extending the existing buildings upwards with the addition of a bridging connection, Substance Exigency offers diverse apartment units for families, foster care children, and single individuals . Furthermore, ammenities such as libraries and food resources, are offered to residents to not only give back to the community, but to also provide additional job opportunities.

The neighborhood suffers from food isolation. Residents must travel more than 3 miles to stock up on food due to the gentrification and the high costs of DUMBO and Vinegar hill. Hence, the proposal of a grocery store and food bank integration into the residential blocks. Furthermore, there tends to be a massive cultural difference between foster children and their takers (as well as a lack of education). To combat this issue, libraries are located at the top of each tower. These libraries would provide free sources to not only the children there, but to the other residents too.

_SE.01

Conceptual Choisy Chunk

_SE.02

Focus Area Top View

CONTEXTUALIZING THE URBAN STRATA

The Farragut Houses is a 3-block public housing zone that consists of 11 building towers. To become familiar with the urban scheme, two massing strategies were incorporated into the site. Extending the towers allowed to take advantage of the vertical space that exists above the Farragut towers while the addition of a bridging strategy allowed for an internal connection between the towers. These strategies were implemented across the entire urban strata and then a specific area of interest was selected for further architectural development as shown in the elevation and section.

_SE.03

_SE.05

_SE.04

_SE.07

_SE.08

SPATIAL ORGANIZATION

The floor plans showcase the strategic arrangement of individual unit apartments within the building and individually. Characterized by a dynamic interplay of shifted and angular geometries, the units are enveloped by a mesh facade, creating a distinctive architectural composition as shown in the overall plan.

_SE.06

Ground Floor Plan

_SE.07

Unit Plans

_SE.08

Unit Section

MATERIAL EXPLORATIONS

Exporations of different material processes and combinations were conducted to further investigate how materiality can direct architectural qualities. The images above demonstrate how pigments were mixed, speckled, and casted in different manners. Image SE.11 demonstrates a model of the apartment units and how the material studies was integrated into the exterior walls.

_SE.09

_SE.10

_SE.11

_GM.07

Gallery Space

_SE.09

Material Studies

_SE.10

Focus Area Castings

_SE.11

Unit Apt Model @ 1/8” Scale

_SE.11

POST & PUNCH

PRECAST CONCRETE

12-Week Project | Fall ‘23

Critic: Richard Garber

Team: Bohan Lang, Clay Monarch, & Yiding Han

_A Ballet of Controlled Gestures

This project transcends its traditional bounds, weaving a tapestry of light and shadow through its form. Inspired by the rich narrative of precast concrete in architecture, this design is a ballet of controlled curves and angles. The formal language of this panel reads as a relief. These varied gestures are strategically angled to capture sunlight, making them an integral, ever-changing element of the design. This project highlights the concrete versatility while pushing the boundaries of architectural aesthetics, marrying practicality with form.

The title “Post & Punch” originated from our initial concept of incorporating a column (post) alongside a window opening (punch). _PP.02

The process of this precast concrete panel consisted of initial formal studies that were analyzed with a concrete consultant to determine which options had the potential to be sucessfuly casted. Following this, we created detailed drawings illustrating every step of the casting process, including rebar placement, insulation foam placement, plywood blocking, and more.

_GM.01

05.

GESTURAL MOTUS

HYPERLAPSE CHAMBERS

3-Week Project | Fall ‘21

Critic: Daniel Markiewicz

Team: Douglas Wong, Owen Wang, & Tobie Soumekh

_A CHILDREN’S INSTALLATION

Before producing this project, individual design studies were conducted by each team member to explore different design opportunities. Through a meticulous analysis of each study, we identified a common element: dynamic movement. This fundamental interest in simplified gestures served as our driving force for the design of our installation. Each study describes a different directional gesture and is able to be physically moved. Our installationblends this idea with such gestures through interaction and play. The

directionality of each study provided elements to incorporate into the installation while the simple children’s game, “bead maze” served as the organizing framework for these gestures. In the game “bead maze,” children are directed to move different shaped beads around fun shaped tubes. In our installation, one is encouraged to move different pieces along the pipes in order to create a unified whole from fragmented parts. Each part moves in a direction derived from our studies, following an orchestrated path to complete the whole.

_GM.01

Chambers Render

_GM.02

Silhouette Axonometric

PART TO WHOLE Materiality and color further enforces the relationship of part to whole. When the pieces are returned to the central mass, the entire mass is registered as a monolithic whole. As the pieces slide away from the central mass, an internal color is revealed to reinforce the connection. The stamped pattern on the base plate is also derived from the analysis of the moving pieces.

_GM.04

_GM.05

GM.03

Chambers Aerial Photo

_GM.03

Aerial Photo _GM.04

Top Plan

_GM.05

Part to Whole Elevations

01. Joint w. 3/4” screws

02. Notch w. 2” screws

03. Welded joint

04. ‘Puzzle piece’

05. Mass

06. Fillet curve structure

07. Palimpsest

08. Pipe to base assembly

09. Base

GESTURAL MOTUS

Gallery Space _GM.06

Exploded Axonometric _GM.07

Overall Photo _GM.08 Movement Photo

_GM.08

_GM.07

STUDY 02 | Additional Explorations

ALTER EGO

(AE)

PENN CHARITY FASHION SHOW COMPETITION

8-Week Project | Spring ‘22

Team: Khang Truong & Lucy Zhong

Exhibited at the Philadelphia Museum of Arts

_WING & CROWNS

The purpose of the competition was to come up with a winglike structure that could be coordinated with outfits provided by the Hera Concept for the Penn Charity Fashion Show. The Hera Concept focuses on feminity as a brand, in which we decided that the wings structure should reflect that message.

The concept for the fashion show is alter ego, another theme we also incorporated in the design. As a team, we decided to use a piped structure that consists of both rigid and fluid gestures to represent strength and resilient identities. One wing was produced in black and the other in white.

_AE.01 Black Crown & Wings

_AE.02 Wings in B&W

_AE.03 Crowns in B&W

VERDANT LOCUS

11-Week Project | Spring ‘22

Critic: Brian DeLuna

Nominated for Pressing Matters

_A GREEN MARKET FOR CALLOWHILL

The city of Philadelphia has been scarce of multi-faceted green market place. In the Callowhill District, located on Buttonwood and 10th St., resides Verdant Locus, an interactive market mostly consisting of gardens and open green spaces. As one approaches the area, they are instantly met with the familiar atmosphere of community and belonging. The surrounding gardens and vegetation pleases the occupants senses, allowing them to truly bask in the organic environment. Individuals have a sense of peace here.

Verdant Locus is sandwiched between the Rincon restaurant and a multi-purpose building consisting of independent art studios - creating a great opportunity for communal interaction amongst the Callowhill district. The market will consist of multiple quadrants: a community vegetable garden, a hemp garden, an interior agroforestry, a public venue, multiple outdoor public spaces, and a farmers market. These quadrants will work codependently and will rely on one another for resources and income.

_VL.01

Elevation

_VL.02

Elevation Parti

SPOILA REDUX STUDIO

Front

Silhouette

_VL.02

_VL.03

TRANSLATION FROM 2D TO 3D

The relief map shown above served as a reference to incite what certain annotations are to be translated into real elements such as trees, green areas, public parks, and more. It is a 2.5D translation of the drawing to the right. The drawing itself is inspired from previous annotated anaylses made of Philadelphia. The rectangular profile proposes where the building could be located on the site.

SITE CONTEXT & PROGRAM

This axonometric provides a visual representation of the building’s placement within its surroundings, emphasizing its connection to the adjacent rail park as well. Despite the current disuse of the rail park today, there exists an opportunity to repurpose it as a parking facility for the green market as shown. Additionally, the axonometric highlights the programmatic elements within the building, underscoring its emphasis on incorporating greenery.

LEGEND

01. N 10th St

04. Conservator

06. Agroforestry

_GM.07

Gallery Space

_NL.03

Analytical Map

_NL.04

Chunk Axonometric

_VL.05

Chunk Axonometric

01. Roof Top Garden

02. Interior Agroforestry

03. Work Labs

04. Open Garden 05. Step Seats

06. Dining Hall

07. Kitchen

08. Interior Cafe 09. Exterior Cafe

Parking Garage

_PP.01

PETALS & PALETTES

701 AGRARIAN PICTURESQUE

12-Week Project | Fall ‘23

Critic: Florencia Pita

Partner: Khang Truong

_AN ORGANIC COSMETICS FARM

Petals and Palettes” seeks to intervene into Ojai, California’s agricultural landscapes, drawing inspiration from Albert Hoffman’s graphic techniques to cultivate a unique visual language. Various notations, inspired by pixel farming and zone overlap, signify potential planting spots and the cohabitation of varying plant species. The project distills pixel farming methods into speculative drawings and models, bridging the gap between abstract representation and practical farming experiences.

_PP.01

Axon Render

_PP.02

Silhouette Elevation Parti

These abstract representations would come to life to facilitate the production of organic cosmetics such as lip balm, skincare, and rose water. These are made from a diverse array of “natural” elements—lavender flowers, beeswax, rose bushes, grapevines and olive trees— interwoven with “constructed” elements like bee nucs, benches, tents, and columns. This transformation results in a layered blend of art, architecture, and agriculture, providing an refreshed experience between the visitor and Ojai’s farming practices.

NOTATIONS & FIGURES

Drawing inspiration from Albert Hoffman’s graphic techniques, a set of figures and notations was developed to combine, overlap, and reshape to generate a comprehensive mapping of our site. The initial row in PP.03 illustrates the overlay of varied notations at different densities, while the subsequent row showcases figures meticulously crafted from a stringent grid framework. In the third row, we present our initial concept of amalgamating these explorations. Figure PP.04 embodies the final mapping compiled of different figures and notations in color. Our emphasis was on delineating three distinct zones, employing smaller overlaid figures and notations to denote farming zones and their applications.

_VL.03

Relief Site Map & Conceptual Figure Mapping

_PP.03

Figural Studies

_PP.04

Compiled Figure Mapping

REPRESENTATION OF NOTATION

The model explores how notation can be physically represented through different mediums. One medium was using bias tape and thread and using the technique of weaving and stitching. Notation becomes expanded through depth where it is not only three dimensional for the purpose of representation but also a system of how the model was held together structurally. Layering plexi also gave opportunity to generate complexity from color and allowed us to see relationships between color and notation, where color became its own system for overlap. Through depth the notation begins to shift in color, form, heirarchies and densities.

In figure PP.05, you can see how our mapping of notations and figures becomes realnotations transformed into beenucs, benches, solar panels and more.

_PP.05

_VL.03

Relief Site Map & Conceptual Figure Mapping

_PP.05

Conceptual Plexi Model

_PP.06

Full Site Render

ORGANIZATION OF ZONES & VEGETATION

The render above shows the relationship between different figural zones. These zones consist of apple trees, lavender bushes, rose bushes, vineyards, rewilding areas, solar panels, bee nucs, sunflowers, and forestry. The diverse vegetation allows for the opportunity to produce different organic cosmetics. Moreover, the depiction of notation in this render exemplifies its dual role: it can serve as a symbol for organizing vegetation or transform into a tangible object mirroring the shape of the notation itself.

_PP.08

_VL.03

Relief Site Map & Conceptual Figure Mapping

_PP.08

Perspective Render _PP.09

Relief Conceptual Model
