Chapter 1• Introduction
Thread is a protocol for building efficient, secure, and scalable wireless mesh networks for Internet of Things (IoT) applications. This book will serve as a comprehensive guide to help you understand and implement wireless sensor networks using the Thread protocol. In this book, you’ll learn how to:
• Set up Thread Border Routers to connect a Thread network to a non-Thread network.
• Establish a Thread network between devices, using advanced features such as NAT64 and multicast addressing.
• Permit devices to join a Thread network by using network commissioning.
• Use Constrained Application Protocol (CoAP) as a communication protocol for messages between Thread devices.
• Discover Thread devices and their services on a network using SRP and mDNS/ DNS-SD protocols.
• Secure application protocols such as CoAP with Datagram Transport Layer Security (DTLS).
• Reduce power consumption of Thread devices.
This introductory chapter takes an overview of the Thread protocol, its advantages and disadvantages. It also goes on to list the other software and hardware platforms used in this book.
Thread is a low-power, wireless, and IPv6-based networking protocol designed specifically for IoT devices. Development of the protocol is managed by the Thread Group (https:// www.threadgroup.org), an alliance founded in 2015. This is a consortium of major industry players, including Google, Apple, Amazon, Qualcomm, Silicon Labs, and Nordic Semiconductor.
The Thread specification can be downloaded from https://www.threadgroup.org/ support#specifications (registration is required). The version history is as follows:
Thread 1.0 2015 Never implemented in commercial products
Thread 1.1 2017
Thread 1.2 2019
Thread 1.3 2023
The ability to automatically move to a clear channel on detecting interference (channel agility)
The ability to reset a master key and drive new rotating keys in the network
Enhancements to scalability and energy efficiency
Support for large-scale networking applications, including the ability to integrate multiple Thread networks into one singular Thread domain
Enhancements to scalability, reliability, and robustness of Thread networks
Standardization of Thread Border Routers, Matter support, and firmware upgrades for Thread devices
Table 1.1 Versions of the Thread specification
Building wireless sensor networks with OpenThread ● 12
Version Release year Remarks
All versions of the Thread specification maintain backward compatibility.
1.2 Thread’s architecture
Thread employs a mesh networking architecture that allows devices to communicate directly with each other, eliminating the need for a central hub or gateway. This architecture offers inherent redundancy, as devices can relay data using multiple paths, ensuring increased reliability in case of any single node failure.
The Thread protocol stack is built upon the widely used IPv6 protocol, which simplifies the integration of Thread networks into existing IP infrastructures. Thread is designed to be lightweight, streamlined and efficient, making it an excellent protocol for IoT devices running in resource-constrained environments.
Before discussing Thread, it’s essential to understand its place in the network protocol environment. Most modern networks are based on the Internet Protocol suite, which uses a four-layer architecture. The layers of the Internet Protocol suite are, from bottom to top:
Link layer
Defines the device’s connection with a local network. Protocols like Ethernet and WiFi operate within this layer. In the more complex Open Systems Interconnection (OSI) model, this layer includes the physical and data link layers.
Network layer
Enables communication across network boundaries, known as routing. The Internet Protocol (IP) operates within this layer and defines IP addresses.
Transport layer
Enables communication between two devices, either on the same network or on different networks with routers in between. The transport layer also defines the concept of a port. User Datagram Protocol (UDP) and Transmission Control Protocol (TCP) operate within this layer.
Application
layer
Facilitates communication between applications on the same device or different devices. Protocols like HyperText Transfer Protocol (HTTP), Domain Name System (DNS), Simple Mail Transfer Protocol (SMTP), and Message Queuing Telemetry Transport (MQTT) operate within this layer.
When data is transmitted across the network, the data of each layer is embedded in the layer below it, as shown in this diagram:
Chapter 1• Introduction ● 13
Figure 1.1 Network data is encapsulated in the four layers of the Internet Protocol suite (based on: Colin Burnett, CC BY-SA 3.0)
Thread operates in the network and transport layers. However, it’s important to know what’s going on in all layers.
1.2.1 Link layer: IEEE 802.15.4
For its link layer, Thread builds upon the IEEE 802.15.4 standard, a specification by the Institute of Electrical and Electronics Engineers (IEEE). This is the same link layer that Zigbee uses. It focuses on low power consumption, allowing devices to communicate for months or even years on a single battery charge. The direct communication range is approximately 10 meters under normal conditions.
IEEE 802.15.4 is a radio standard operating in the license-free 2.4 GHz frequency band with data rates up to 250 kbit/s. It has 16 channels (channels 11 to 26), ranging from 2405 to 2530 MHz with 5 MHz channel spacing. This is the same 2.4 GHz frequency band used by Bluetooth and Wi-Fi.
Note:
In Europe and North America, IEEE 802.15.4 also supports channels at frequencies of 868 MHz and 920 MHz, respectively. Channel 0 (with a data rate of 20 kbit/s) is for 868.3 MHz, and channels 1 to 10 (with a data rate of 40 kbit/s) are for 906 to 924 MHz with 2 MHz channel spacing.
An IEEE 802.15.4 network includes two types of devices:
Full Function Device (FFD)
A device that implements the complete feature set of the IEEE 802.15.4 standard. It can communicate with all other IEEE 802.15.4 devices within its immediate radio range.
Reduced Function Device (RFD)
A device that implements only a subset of features of the IEEE 802.15.4 standard to conserve device resources. It can only communicate with the FFD through which it joined the network.
Building wireless sensor networks with OpenThread ● 14
An IEEE 802.15.4 network is known as a Personal Area Network (PAN). Each PAN is identified by a unique PAN ID that no other PAN in range is allowed to have. Within each PAN, one FFD is the PAN coordinator. This device initiates and manages the PAN, enabling other devices to join the network.
IEEE 802.15.4 includes built-in encryption and authentication, using AES-128 (128bit Advanced Encryption Standard) in CCM* mode, a variation of CCM mode (counter with cipher block chaining message authentication code). This mode provides authenticated encryption by combining encryption in CTR (counter) mode with authentication using CBC-MAC (cipher block chaining message authentication code). The original message is transmitted alongside a MIC (Message Integrity Check) so the recipient can validate that the message has not been tampered with.
Devices can only communicate with each other in an IEEE 802.15.4 network if they use the same 128-bit AES key. The IEEE 802.15.4 standard doesn’t, however, define the key exchange process. The key must therefore either be stored in each device during manufacture, entered manually by the user, or by a key exchange protocol in the layers above the link layer.
IEEE 802.15.4 data packets can transmit data from 0 to 127 bytes long. Each IEEE 802.15.4 device has an EUI-64 (Extended Unique Identifier) address set by the manufacturer, which is used as a MAC address. When a device joins a PAN, it’s also assigned a 16-bit short address. This allows the transmitted packets to be shorter because they only need to use two instead of eight bytes to define source and target addresses. Some special short addresses exist, such as 0xffff as a broadcast address to send packets to all devices, and 0xfffe as an unassigned address, used by devices while joining a network.
1.2.2 Network layer: 6LoWPAN and IPv6
Thread’s network layer consists of IPv6 over Low-Power Wireless Access Networks (6LoWPAN). This is an IETF specification described in RFC 4944, "Transmission of IPv6 Packets over IEEE 802.15.4 Networks", with an update for the compression mechanism in RFC 6282, "Compression Format for IPv6 Datagrams over IEEE 802.15.4-Based Networks". 6LoWPAN’s purpose is to allow even the smallest devices with limited processing power and low energy requirements to be part of the Internet of Things.
6LoWPAN essentially enables you to run an IPv6 network over the IEEE 802.15.4 link layer. It acts as an ‘adaptation layer’ between IPv6 and IEEE 802.15.4 and is therefore sometimes considered part of the link layer. This adaptation poses some challenges. For example, IPv6 mandates that all links can handle datagram sizes of at least 1280 bytes, but IEEE 802.15.4, as explained in the previous subsection, limits a frame to 127 bytes. 6LoWPAN solves this by excluding information in the 6LoWPAN header that can already be derived from IEEE 802.15.4 frames and by using local, shortened addresses. If the payload is still too large, it’s divided into fragments.
The link-local IPv6 addresses of 6LoWPAN devices are derived from the IEEE 802.15.4 EUI64 addresses and their shortened 16-bit addresses. The devices in a 6LoWPAN network
Chapter 1• Introduction ● 15
can communicate directly with ‘normal’ IPv6 devices in a network if connected via an edge router. This means there is no need for translation via a gateway, in contrast to non-IP networks such as Zigbee or Z-Wave. Communication with non-6LoWPAN networks purely involves forwarding data packets at the network layer.
In this layer, Thread builds upon IEEE 802.15.4 to create an IPv6-based mesh network. In IEEE 802.15.4 only communication between devices that are in immediate radio range is possible, whereas routing allows devices that aren’t in immediate range to communicate.
If you want to delve into more details of Thread’s network layer, consult the Thread Group’s white paper "Thread Usage of 6LoWPAN" (https://www.threadgroup.org/Portals/0/ documents/support/6LoWPANUsage_632_2.pdf).
1.2.3 Transport layer: UDP
On top of 6LoWPAN and IPv6, Thread’s transport layer employs the User Datagram Protocol (UDP), which is the lesser known alternative to Transmission Control Protocol (TCP).
UDP has the following properties:
Connectionless
Unlike TCP, UDP doesn’t require establishing a connection before transferring data. It sends datagrams (packets) directly without any prior setup.
No error checking and recovery
UDP doesn’t provide built-in error checking, nor does it ensure the delivery of packets. If data is lost or corrupted during transmission, UDP doesn’t attempt to recover or resend it.
Speed
UDP is faster than TCP, as it doesn’t involve the overhead of establishing and maintaining a connection, error checking, or guaranteeing packet delivery.
UDP is ideal for use by Thread for several reasons:
Resource constraints
Thread devices often have limited processing power, memory, and energy. The simplicity and low overhead of UDP make it a better fitting choice for such resourceconstrained devices compared to TCP.
Lower latency
UDP’s connectionless and lightweight nature guarantees data transmission with low latency, making it appropriate for wireless sensors.
Building wireless sensor
with OpenThread ● 16
networks
1.2.4 Thread lacks an application layer
Unlike home automation protocols such as Zigbee, Z-Wave, or Matter, the Thread standard doesn’t define an application layer. A Thread network merely offers network infrastructure that applications can use to communicate. Just as your web browser and email client use TCP/IP over Ethernet or Wi-Fi, home automation devices can use Thread over IEEE 802.15.4 as their network infrastructure.
Several application layers exist that can make use of Thread:
Constrained Application Protocol (CoAP)
A simpler version of HTTP, designed for resource-constrained devices and using UDP instead of TCP.
MQTT for Sensor Networks (MQTT-SN)
A variant of MQTT designed to be used over UDP.
Apple HomeKit
Apple’s application protocol for home automation devices.
Matter
A new home automation standard developed by the Connectivity Standards Alliance (CSA).
Note:
Matter was developed by the Zigbee Alliance, the original developers of the Zigbee standard for home automation. Following the introduction of Matter, the Zigbee Alliance rebranded to the Connectivity Standards Alliance. Matter’s application layer is heavily influenced by Zigbee. It not only runs on top of Thread, but can also be used over Wi-Fi and Ethernet.
Like your home network which simultaneously hosts a lot of application protocols including HTTP, DNS, and SMTP, a Thread network can also run all these application protocols concurrently.
Figure 1.2 The Thread network stack supports multiple application protocols simultaneously.
Throughout this book, we will be using CoAP as an application protocol in a Thread network. Once you have a Thread network set up, you can also use it for Apple HomeKit and Matter devices.
Chapter 1• Introduction ● 17
Chapter 1• Introduction
1.3 Advantages of Thread
Some of Thread’s key benefits include:
1.3.1 Scalability
Thread’s mesh network architecture allows for large-scale deployment of IoT devices, supporting hundreds of devices within a single network. Thread accommodates up to 32 Routers per network and up to 511 End Devices per Router (you’ll learn about these different device roles in chapter 4). In addition, from Thread 1.2, multiple Thread networks can be integrated into one single Thread domain, allowing thousands of devices within a mesh network.
1.3.2 Security
Devices can’t access a Thread network without authorization. Moreover, all communication on a Thread network is encrypted using IEEE 802.15.4 security mechanisms. As a result, an outsider without access to the network credentials can’t read network traffic.
1.3.3 Reliability
Thread networks are robust and support self-healing and self-organizing network properties at various levels, ensuring the network’s resilience against failures. This all happens transparently to the user; messages are automatically routed around any bad node via alternative paths.
For example, an End Device requires a parent Router to communicate with the rest of the network. If communication with this parent Router fails for any reason and it becomes unavailable the End Device will choose another parent Router in its neighborhood, after which communication resumes.
Thread Routers also relay packets from their End Devices to other Routers using the most efficient route they can find. In case of connection problems, the Router will immediately seek an alternate route. Router-Eligible End Devices can also temporarily upgrade their status to Routers if necessary. Each Thread network has a Leader who supervises the Routers and whose role is dynamically selected by the Routers. If the Leader fails, another Router automatically takes over as Leader.
Border Routers have the same built-in resilience. In a Thread network with multiple Border Routers, communication between Thread devices and devices on another IP network (such as a home network) occurs along multiple routes. If one Border Router loses connectivity, communications will be rerouted via the other Border Routers. If your Thread network only has a single Border Router, this will become a single point of failure for communication with the outside network.
1.3.4 Low power consumption
Thread is based on the power-efficient IEEE 802.15.4 link layer. This enables devices to operate on batteries for prolonged periods. Sleepy End Devices will also switch off their radio during idle periods and only wake up periodically to communicate with their parent Router, thereby giving even longer battery life.
Building wireless sensor networks with OpenThread ● 18
1.3.5 Interoperability
As the protocol is built upon IPv6, Thread devices are straightforward to incorporate into existing networks, both in industrial and home infrastructure, and for both local networks and cloud connections. You don’t need a proprietary gateway; every IP-based device is able to communicate with Thread devices, as long as there’s a route between both devices facilitated by a Border Router.
1.4 Disadvantages of Thread
In life, they say there’s no such thing as a free lunch and Thread is no exception to this rule. Some of its limitations are:
1.4.1 Limited range
Thread’s emphasis on low power consumption can lead to a restricted wireless range compared with other technologies such as Wi-Fi. Although this can be offset by its mesh architecture, where Routers relay messages, it still means that devices in general can’t be placed too far apart.
1.4.2 Low data rates
Thread supports lower data rates than some rival IoT technologies. This makes Thread unsuitable for applications requiring high throughput.
1.4.3 Complexity
The Thread protocol stack may be more challenging to implement compared to other IoT networking solutions, potentially ramping up development costs and time.
1.5 Platforms used in this book
In this book we focus on building wireless sensor networks using the Thread protocol together with the following hardware and software environments:
Nordic Semiconductor’s nRF52840 SoC
A powerful yet energy-efficient and low cost hardware solution for Thread-based IoT devices
OpenThread (https://openthread.io)
An open-source implementation of the Thread protocol, originally developed by Google, making it easy to incorporate Thread into your IoT projects
Zephyr (https://zephyrproject.org)
An open-source real-time operating system designed for resource-constrained devices
Armed with these tools and by using practical examples we will go on to guide you step-bystep through the details of the hardware and software required to build Thread networks and OpenThread-based applications.
Chapter 1• Introduction ● 19
1.5.1 Nordic Semiconductor’s nRF52840 SoC
Nordic Semiconductor’s nRF52840 is a SoC built around the 32-bit ARM Cortex-M4 CPU running at 64 MHz. This chip supports Bluetooth Low Energy (BLE), Bluetooth Mesh, Thread, Zigbee, IEEE 802.15.4, ANT and 2.4 GHz proprietary stacks. With its 1 MB flash storage and 256 KB RAM, it offers ample resources for advanced Thread applications.
This SoC is available for developers in the form of Nordic Semiconductor’s user-friendly nRF52840 Dongle. You can power and program this small, low-cost USB dongle via a computer USB port. The documentation at https://docs.nordicsemi.com/bundle/ug_ nrf52840_dongle/page/UG/nrf52840_Dongle/intro.html lists comprehensive information about the dongle.

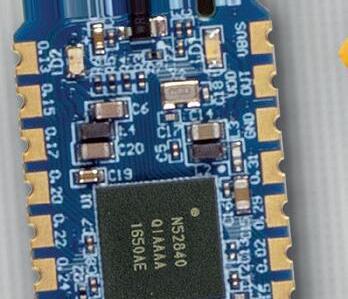

Figure 1.3 Nordic Semiconductor’s nRF52840 Dongle is a low-cost USB dongle ideal for experimenting with Thread.
1.5.2 OpenThread
Thread is basically a networking protocol; in order to work with it we need an implementation of the Thread networking protocol. The industry’s reference implementation, used even by professional Thread device developers, is OpenThread. It’s a BSD-licensed implementation, with development ongoing via its GitHub repository https://github.com/openthread/ openthread. The license for this software allows for its use in both open-source and proprietary applications.
OpenThread provides an Application Programming Interface (API) that’s operating system and platform agnostic. It has a narrow platform abstraction layer to achieve this, and has a small memory footprint, making it highly portable. In this book, we will be using OpenThread in conjunction with Zephyr, but the same API can be used in other combinations, such as ESP-IDF for Espressif’s Thread SoCs.
Building wireless sensor networks with OpenThread ● 20
Figure 1.4 The BSD-licensed OpenThread project is the industry’s standard implementation of the Thread protocol.
1.5.3 Zephyr
Zephyr is an open-source real-time operating system (RTOS) designed for resourceconstrained devices. It incorporates OpenThread as a module, simplifying the process of creating Thread applications based on Zephyr and OpenThread. Because of Zephyr’s hardware abstraction layer, these applications will run on all SoCs supported by Zephyr that have an IEEE 802.15.4 radio facility.
Chapter 1• Introduction ● 21
Figure 1.5 Zephyr is an open-source real-time operating system (RTOS) with excellent support for OpenThread.
1.6 How to use this book
Like a lot of manuals covering IoT topics, this book combines network administration, programming, and electronics. The electronics part is minimal, largely restricted to connecting a sensor and hookup to a power supply. However, the other two topics are substantial. Hence, I assume that you have some prior experience in network administration and programming. The programs for Zephyr are written in C, some prior basic knowledge will be useful here.
For the hardware, I recommend a Nordic Semiconductor nRF52840 Dongle, but you can use any microcontroller board with Thread radio supported by Zephyr (see chapter 11 for some alternatives). There are variants of the dongle by other manufacturers, such as the April USB Dongle 52840 (with an external antenna) or the nRF52840 MDK USB Dongle from makerdiary (with a case). Consult the appendix at the end of this book if you want to use one of these, as they come with a different bootloader.
Building wireless sensor networks with OpenThread ● 22
Figure 1.6 From left to right: April Brother’s April USB Dongle 52840, Nordic Semiconductor’s nRF52840 Dongle, and makerdiary’s nRF52840 MDK USB Dongle.
The more devices you have in a Thread network, the better it works, because Routers can relay messages via other devices. Having more devices also aids in understanding how Thread operates: we can turn devices on and off, run commands on them through Zephyr’s shell, and observe how the network reacts. So, if possible, I recommend purchasing a handful of nRF52840 Dongles or other IEEE 802.15.4 devices supported by Zephyr. A USB hub with several Thread devices plugged in makes an excellent test setup, as shown in this example:
Figure 1.7 A USB hub with some Thread dongles plugged in is a great test setup to get to know Thread networking.
If you’re serious about Thread development with Zephyr, I also recommend Nordic Semiconductor’s nRF52840 Development Kit. This is the bigger (and slightly less affordable) brother of the nRF52840 Dongle, offering more capabilities to debug code easily. With one of these, you can carry out initial development and debugging then flash the code to the nRF52840 Dongle once all the bugs have been ironed out.
Chapter 1• Introduction ● 23
Figure 1.8 Nordic Semiconductor’s nRF52840 Development Kit has some powerful debugging capabilities.
This book serves as a practical guide. It not only explains theoretical concepts, but also demonstrates the network features using examples, accompanied by code for a variety of basic Thread applications. I encourage you to make use of all these examples as you progress through the book.
By the time you finish you will have gained the necessary knowledge and skills to confidently implement Thread-based wireless sensor networks for your own IoT projects.
Here’s a brief overview of what we will be covering in this book:
Chapter 1: Introduction
An introduction to Thread, its layered architecture, its advantages and disadvantages.
Chapter 2: Preparing your development environment
A guide to preparing the development environment for Zephyr, as well as some tools for inspecting IEEE 802.15.4 traffic and simulating Thread networks.
Chapter 3: Setting up Thread Border Routers
Steps for setting up a Thread Border Router, using a Raspberry Pi or an ESP32-based platform.
Chapter 4: Thread networking fundamentals
A deep dive into Thread networking basics, including device roles, device types, and the diverse types of IPv6 addresses used within a Thread network.
Chapter 5: Setting up a Thread network
Setup of a minimal Zephyr application and a closer look at network discovery, NAT64, DNS queries, multicast addresses across Thread and non-Thread networks, including UDP communication.
Chapter 6: Network commissioning
An explanation of network commissioning as a more user-friendly way to add devices to a Thread network.
Building wireless sensor networks with OpenThread ● 24
Chapter 7: Using CoAP in a Thread network
An introduction to CoAP, with various applications running a CoAP server and client using a Thread network.
Chapter 8: Service registration and discovery
An explanation of how to register services of Thread devices with a Border Router and how to discover them
Chapter 9: Securing application protocols with DTLS
Adding application-level security with Datagram Transport Layer Security (DTLS) for CoAP applications, including the setup of pre-shared keys and X.509 certificates
Chapter 10: Low-power Thread devices
An exploration and optimization of power consumption of Thread devices
Chapter 11: Conclusion
A wrap-up to this book, offering some resources for learning more about Thread and some ideas for further exploration
Appendix
Some specialized tips that will come in handy in various situations
Note:
All the code examples from this book are published on https://github.com/ koenvervloesem/openthread-applications. Read the instructions in this GitHub repository for more information about how to download them. The repository also lists any errors that may have been found in this book since its publication as well as information about changes that affect the examples herein.
1.7
Summary and further exploration
In this introductory chapter, we took a look at the basics of the Thread protocol and its layered architecture. We also gained insights into some of the advantages and disadvantages of this particular network protocol.
At the end of this chapter, we took a look at all the hardware and software platforms used throughout this book. Here we focus on the Zephyr RTOS with the OpenThread API running on Nordic Semiconductor’s nRF52840 Dongle. These particular platforms aren’t the only fish in the sea when it comes to platforms for use with Thread programming. For instance, I didn’t cover Espressif’s ESP-IDF platform for its ESP32-H2 SoCs, which also includes OpenThread. With the knowledge you pick up from this book about Thread networking basics, and in particularly with the OpenThread API, you will be in a good position to understand any Thread APIs running on other platforms.
In the next chapter, you’ll learn how to set up a development environment including the support tools you will need for all the exercises described in this book.
Chapter
Introduction ● 25
1•
Index
6LoWPAN 15, 39, 69
A
Acknowledgment (ACK) 132, 133, 137, 140, 141, 151, 152, 154, 162, 172
Adafruit nRF52 bootloader 250
Address Solicit Request 111
Address Solicit Response 111
Advertisement 111 aiocoap 173
All-Nodes multicast address 89, 96, 107, 111, 155, 160, 162, 170, 172, 177, 236
All-Routers multicast addresses 82, 83, 89, 96, 111
ALOC16 93
Ampere Meter mode 232, 233
anycast address 89
Anycast Locator (ALOC) 90, 93, 95 Apple HomeKit 17 application layer 13, 17
B
Base64
223
battery power 83
Beacon 107
Beacon Request 107
bidirectional IPv6 connectivity 47 block-wise transfer 178
BME280 163, 165
bootloader 30
Border Agent 124, 180
Border Router 18, 19, 47, 78, 87, 94, 112, 122, 124, 179, 181, 182, 185, 186, 187, 246 button 159
C
ca.conf 217 certificate 224, 226, 227
Certificate Authority (CA) 217
Certificate Authority (CA) certificate 218, 224, 226, 227
Certificate Signing Request (CSR) 219, 221 channel 36, 65, 66, 69, 70, 107, 108, 178
child
80, 81, 84, 90, 91, 92, 110, 111, 112, 192
Child ID 91, 109
Child ID Request 109
Child ID Response 109
child table 72, 110, 112
Child Update Request 109
Child Update Response 109
CMake 99
CMakeLists.tst 99
CoAP 39, 111, 123, 178, 204
CoAP client 139, 155, 160, 162, 163
CoAP ping 134, 138
CoAPS client 213, 227
Coap Secure (CoAPS) 204
CoAP server 139, 140, 141, 147, 149, 162, 163, 174, 175, 179, 189
CoAPS server 210, 223, 224
Commissioner 65, 74, 93, 121, 122, 123, 124
Commissioner Candidate 123
Commissioner Credential 125, 129 commissioning 81, 90, 121, 178, 204 configuration overlay 58, 100, 106
Confirmable (CON) 132, 133, 134, 136, 137, 138, 141, 151, 152, 154, 155, 161, 162, 174, 175
Constrained Application Protocol (CoAP) 17, 131 current consumption 235, 238, 240
D
Datagram Transport Layer Security (DTLS) 131, 204
DELETE (0.04) 135 development environment 26
Device firmware updates (DFU) 246
device roles 80 device tree 145, 146, 147, 159, 236
device tree overlay 58, 146, 160, 165, 166, 236 device types 82
Device Under Test (DUT) 231, 232 DFU (Device Firmware Upgrade) mode 30
Index ● 253
Building wireless sensor networks with OpenThread
DNS 114
DNS-SD (DNS-based Service Discovery) 179, 180, 186, 197
E
edge router 16, 87
EMPTY (0.00) 134
End Device 18, 72, 80, 81, 82, 83, 91
ESP32-C6 244
ESP32-H2 63, 244
ESP-IDF 64, 244
Espressif Thread Border Router 47, 62
EUI-64 15, 123, 128, 169, 170, 177
Extended PAN ID 125
External Commissioner 124, 180
F
factory reset
122
firmware package 30
flashing 29, 31, 66
Full End Device (FED) 43, 83
Full Function Device (FFD) 14
Full Thread Device (FTD) 82, 89, 106
G
GET (0.01) 135, 139, 140, 141, 152, 153, 154, 155, 163, 174, 175, 207
Global Unicast Address (GUA) 90, 94, 95, 100, 119, 174, 183 guiconfig 104
H
Home Assistant 79 hostname 189
I
I²C 163, 165
ICMP Echo (ping) request 40, 113, 117
ICMPv6 Router Advertisements (RA) 187
IEEE 802.15.4 14
IEEE 802.15.4 radio 82, 83, 107
instance name 189
interface identifier (IID) 87, 90
Internet Protocol (IP) 13
Internet Protocol suite 13
IP addresses 40, 69, 90, 92, 94, 183
IPv4 112, 114, 115, 119
IPv6 13, 15, 19
IPv6 addresses 47, 87 IPv6 address prefix 87
J
Joiner 65, 121, 123
Joiner Credential 123, 129 JSON 170, 176
K
Kconfig 99, 101, 121, 122, 211, 224, 237
L
Leader 18, 68, 85, 93, 108, 111, 123, 192
LED 145, 147, 153, 154, 155, 210
Link Accept 111
Link Accept and Request 111
link layer 13, 14, 107 , 204
Link-Local IPv6 address 15, 40, 72, 88, 89, 90, 95, 96 Link Request 111
M Matter 17
Mbed TLS 183, 189, 205, 211, 224 mDNS 48, 179, 197
mDNS hostname 187, 188 menuconfig 102 MeshCoP (mesh commissioning protocol) 123, 127
Mesh Link Establishment (MLE) Advertisement 27, 108, 235
Mesh-Local EID (ML-EID) 88, 89, 90, 92, 95, 96, 118, 139, 154, 182, 195, 206, 228
Mesh-Local prefix 39, 90, 92, 95 mesh network 16
Message ID 133, 137, 153, 154, 155
message type 132, 138, 150, 151, 152, 161 method code 134, 150, 153, 161
Minimal End Device (MED) 43, 80 , 83, 89, 107
Minimal Thread Device (MTD) 82, 83, 106
MLE Advertisement 107
MLE Announce 107
MLE Attach 108, 111, 112
● 254
MLE Link Request
111
MQTT for Sensor Networks (MQTT-SN) 17, 243, 246
multicast address 88, 95, 115, 116
Multicast Listener Discovery 96
Multicast Listener Registration (MLR) 58, 100
N
NAT64
112, 114, 119
Native Commissioner 122 neighbors 90
netdata 113
network key 38, 65, 66, 68, 69, 70, 74, 77, 121, 204
network layer 13, 15
network name 70, 74, 107, 125, 180
network prefixes 68
network resilience 48
Non-confirmable (NON) 132, 134, 136, 138, 140, 151, 152, 155, 170, 172, 175, 176
nRF52840 20
nRF52840 Development Kit 23, 29, 164
nRF52840 Dongle 20, 30, 33, 49, 58, 100, 159, 163, 165
nRF Connect for Desktop 231
nRF Sniffer for 802.15.4 33
nRF Thread Topology Monitor 46
nrfutil 27
O
Observe option 178
Off-Mesh Routable (OMR) address 68, 94, 95, 174, 183
Off-Mesh Routable (OMR) prefix 68, 69, 94
On-mesh commissioning 122
OpenSSL 217
OpenThread 20
OpenThread Border Router (OTBR) 47, 49
OpenThread C API 245
OpenThread CLI 245
OpenThread commands 62, 66
OpenThread Network Simulator (OTNS) 41, 80
OpenThread shell 61
operational dataset 65, 67, 68, 70, 105, 125
Option Numbers 170 OTBR API 79
P
PAN ID 15, 74, 105, 107, 108, 123, 129, 178
parent 80, 83, 91, 92, 109, 110
Parent Request 109
Parent Response 109
partition 86
PEM (Privacy-Enhanced Mail) 223, 224, 227
Personal Area Network (PAN) 15 petitioning 123 piggybacked response 137, 140, 154 polling period 107, 238, 240
POST (0.02) 135 power consumption 231 power management 238
Power Profiler 231, 235
Power Profiler Kit II (PPK2) 231 pre-shared key 125, 205, 206, 208, 209, 210, 211, 212, 213
Primary Backbone Router (PBBR) 93, 115 private key 217, 218, 219, 221, 224, 226, 227 prj.conf 99, 138, 141, 155, 166, 189, 204, 210, 213, 223, 227, 237
PUT (0.03) 135, 140, 141, 151, 152, 55, 161, 162, 163, 170, 175, 176
PuTTY 32, 66
Pyspinel 46
R
Radio Co-Processor (RCP) 49, 58, 63, 122
radio interference 59
Raspberry Pi 47, 49
Raspberry Pi OS 49
Reduced Function Device (RFD) 14 reliability 18
Reset (RST) 132, 133, 134, 138, 151 response code 135, 137, 150, 153 RLOC16 44, 81, 90, 91, 92, 95, 111 Router 18, 43, 71, 80, 81, 82, 83, 91, 106, 107, 108, 109, 110, 192 Router capabilities 82, 83
Index ● 255
Router Eligible End Device (REED) 18, 82, 83, 106, 107, 109
Router ID 91, 111
router table 71, 110, 111, 112
Routing Locator (RLOC) 90, 91, 92, 95
routing table 82, 83
S screen 32, 66
security 18
self-healing 18, 85
serial connection 32, 66, 100, 217, 248, 249
serial terminal 66
service discovery 48, 68, 93, 179
service name 189
Service Registration Protocol (SRP) 48, 179
Service Registry 181
sleep mode 83
Sleepy End Device (SED) 18, 43, 83, 89, 107, 238
Source Meter mode 232, 233
Spinel 63
SRP client 181, 182, 184
SRP server 181, 182, 185
SRP service 179, 186, 189
Stateless Address Autoconfiguration (SLAAC) 100
Synchronized Sleepy End Device (SSED) 83 synthesized IPv6 address 114, 115, 120 T
Thread Group 12, 245
Thread Management Framework (TMF) 178
Thread protocol stack 13
Thread specification 12, 245
Thread version 105, 180
TLV (Type-Length-Value) 109 token 135, 137, 153, 155, 154
Transmission Control Protocol (TCP) 13, 49 transport layer 13, 16
U
UF2 251 unicast address 88, 90
Unique Local Address (ULA) 90
USB extension cable 59 User Datagram Protocol (UDP) 13, 16, 118
west 29, 97 west build 29 west flash 29 Wireshark 33, 70
X.509 certificate 217, 223, 227 XPAN ID 74, 107
Zephyr 21
Zephyr development environment 26
Zephyr shell 33, 100, 237 zeroconf 197 Zigbee 14, 16, 17
wireless sensor
OpenThread ● 256
Building
networks with
W
X
Z
