Lighting Solutions

Warm white

Neutral white

Cool white

Tunable white provides the most flexibility in illumination available by allowing color temperatures to be adjusted from warm white to cool white light.

This integrated lighting solution is ideal in residential, commercial, educational and healthcare applications.

CHOOSE YOUR TW LIGHT

ATOM TW LED PUCK LIGHT

Designed for recessed installation in a hole of 2 1/4" (57 mm) with a shallow depth of only 5/16" (8 mm). Perfect for countertops, inside or under cabinet lighting, bookcases, and more.

For technical informations, see page 20

K-PAD TW LED PANEL LIGHT

Designed for quick surface-mount installation with a thickness of only 5/16" (8 mm). Perfect for countertops, under cabinets, shelves, and furniture lighting.

FLEXYLED CR TW

For technical informations, see page 23

Comes with Twin LED technology which provides dynamic adjustment or static selection of color temperature, with the aid of Tunable White or Changeable White selectors (sold separately, see page 18). Divisible every 4" (100 mm).

24

Designed to slide easily into small profiles with a thickness of only 6 mm wide. 140 twin LEDs/m. Equipped with a power supply cable and a connector (pre-wired)

24

Designed to slide easily into small profiles with a thickness of only 6 mm wide. 140 twin LEDs/m. Equipped with a power supply cable and a connector (pre-wired)

V FLEXYLED HE6 PW TW

V FLEXYLED HE6B PW TW

TUNABLE WHITE SYSTEMS

CHOOSE YOUR TW CONTROL SET 2

TW MULTI-ZONE REMOTE CONTROL

Remote control with 3 channel options for light intensity and color dimmer functions.

No.16216784

TW SINGLE ZONE MINI REMOTE CONTROL

Remote control to adjust the light intensity of a single channel.

No.16783

TOUCHTM TW DIMMER CONTROL

A quick tap turns the lights on or off; a longer touch cycles the color temperature control. Surface-mount installation. No.167814224

MAGIC BOXTM TW COLOR TEMPERATURE SELECTOR

3 fixed color temperature selector switch (warm white, neutral white, and cool white). No.174900124

REQUIRED PRODUCTS

X-DRIVER TW power supply No. 167814224XX

CM2-XD TW remote control module No. 16782

TW power cable No. 1678200

TW controls sets are compatible with tunable white lights only.

WIFI LED LIGHTING APP

THE NEW RICHELIEU WIFI LED APPLICATION ALLOWS YOU CONTROL THE LIGHTS AND USE VOICE-CONTROL DEVICES, SUCH AS GOOGLE HOME OR AMAZON ECHO, WITH YOUR MOBILE DEVICE.

· You can turn on/off lights and adjust their color, brightness, and lighting mode All of these settings can be adjusted from your mobile device wherever you are The Richelieu WIFI LED application allows for voice command with Amazon ALEXA and Google Assistance, meeting the needs of today’s smart homes.

Android and iOS compatible

Works with

FLEXYLED SE H4

INNOVATIVE LED TAPE LIGHT DESIGNED FOR QUICK AND EASY PRESS-IN INSTALLATION. NO PROFILE REQUIRED; SIMPLY PRESS INTO MILLED GROOVE!

Created using new silicone technology, this tape light is designed for recessed installation in a groove only 4 mm wide and 8 mm deep flush with the panel. Its super flexible silicone casing makes it perfect for creative lighting designs in cabinets, cupboards, and wardrobes.

Can be cut every 1 5/16" (33 mm)

Splash proof IP44 rating

INCLUDED PRODUCTS

FlexyLED SE H4 pre-wired tape light

78 3/4" (2 m) power cable with a Micro24 connector Silicone cap

REQUIRED PRODUCT

Smart converter X-Drivers for 24 V dc lights. No. XDRIVER2415 (See page 44 for all Smart converter X-Drivers).

SUGGESTED PRODUCTS

LED switches and dimmers (see pages 44-47) No. 301142479 - 78 3/4" (2 m) extension cable for 24 V LED lights

HOLL  PUCKLIGHT LED

NEXT LEVEL PUCKLIGHT DESIGN

Reinvention of the standard puck with Italian ingenuity

Holl is a new generation of LED puck light offering excellent freedom of composition with a perimeter light form. This unique, rethinking of how the standard puck light is designed brings an appealing style for charming light effects while maintaining a powerful light source feature.

ADVANTAGES AND BENEFITS

■ Available in three variations:

3 Holl BH features a groove installation

3 Holl TH features a standard puck recess installation

3 Holl BH SP features surface mount installation

■ Output with Micro24 connector is axial or radial to the installation surface

■ Configure with a LED switch for on/off and dimming

■ Multiple lighting temperature ranges available from super warm to neutral white

■ No-dot LED technology

■ Matching style with silicone solutions: FlexyLED AT6, SEH4

UNIKA  LED LIGHT & USB PORT

A NEW VERSATILE LIGHTING CONCEPT

Stylish design, lighting, and charging solution within arm’s reach

Combining a minimal look with advanced functions in a solution that offers two configurations: Unika LED light and Unika LED light with double rapid-charge USB sockets. All this is contained in a tilted cylindrical body with a simple design, perfect for installing on back walls under cabinets or above shelves. Ideal for the hospitality industry.

ADVANTAGES AND BENEFITS

■ Available in two configurations: Unika LED light and Unika USB spotlight LED light

■ Multi-functional single light source

■ Peripheral light source integrated in a 15º tilted support

■ Installing the device under the cabinets near the back wall makes it possible to conceal the cables at the rear and simplify the connection to the power supply

■ Configure with a LED switch for on/off and dimming

■ Unika USB LED integrates a double rapid-charge USB socket for easy charging of smartphones or other devices

■ Multiple lighting temperature ranges available from super warm to neutral white

■ Matching style with silicone solutions: FlexyLED AT6, SEH4, and Holl

SUBBY  DOUBLE USB MODULE

FAST CHARGE TYPE A USB SOCKETS

Adding charging power to the collection of Micro24 systems

Subby integrates two type A USB sockets compatible with smartphones, tablets, game consoles, MP3 players, cameras, etc. Supplied with a Micro24 connector that pairs with the Richelieu lighting system, it creates a powerful combination of technology and lighting.

ADVANTAGES AND BENEFITS

■ The maximum load is 20 W for fast charging a single device up to 4000 mA or two up to 2000 mA

■ The charging time depends on the technical characteristics released by the device's producer

■ Supplied with a 78 3/4" (2 m) power cable with Micro24 connector

■ Developed for recessed installation in Ø 1 13/16" (46 mm) hole or on the surface with a spacer

TECHNICAL SPECS

■ Input: 24 V dc

■ Output: 5 V dc

■ Power: max 20 W

■ USB standard: 2x type A

■ Mounting: recess or surface

■ Bore hole Ø: 1 13/16" (46 mm)

■ Bore hole depth: 1/2" (12 mm)

■ Surface mount height: 11/16" (17 mm)

Compact and versatile LED for drawers and pull-out baskets

Hiddi is a LED with symmetrical light projection, recommended for use in cabinets with pull-out elements or with lift-up doors. Integrates an infrared sensor that switches the light on and off with easy installation to the side of the cabinet using a sliding bracket.

ADVANTAGES AND BENEFITS

■ Module with 28 LEDs for 180º full light diffusion

■ Quick-connect to the light body with a removable 78 3/4" (2 m) power cable

■ Integrated infrared sensor automatically switches it on and off when the cabinet is opened and closed

■ Adhesive cable ducts for simple wire management 7 7/8" (200 mm)

■ Can be installed on the sides of the cabinet frame, using a sliding bracket that hides the fixing screws

TECHNICAL SPECS

■ Tension: 24 V dc

■ Mounting: surface

■ Width: 3 7/8" (98 mm)

■ Height: 1" (25 mm)

■ Thickness: 9/16" (15 mm)

■ Color Rendering Index: CRI 80

■ Luminous flux: (sw/ww) 240, (nw) 255 lm

■ Luminous efficiency: (sw/ww) 80, (nw) 85 lm/W

LINEO  PANEL LED

Evolution of the panel style lighting

The minimal design of Lineo makes it perfect for under-cabinet installation. The peripheral illuminating body, with diffuser just 4 mm thick, ensures the right light projection from a slim, minimally invasive LED.

ADVANTAGES AND BENEFITS

■ Surface-mount installation

■ Quick-connect on the body of the light with a pre-wired 78 3/4" (2000 mm) power cable

■ Peripheral light source

■ Slim panel style design

■ Uniform light effect on the work surface

■ Simple wire management due to placement

■ Matching style with silicone solutions: FlexyLED AT6, SEH4, and Holl

TECHNICAL SPECS

■ Tension: 24 V dc

■ Height: 3/8" (10 mm)

■ Depth: 7 5/16" (186 mm)

■ Width: 2 5/8" (67 mm)

■ Color Rendering Index: CRI 90

■ Luminous flux: 360 lm

■ Luminous efficiency: 72 lm/W

CLOSET

LIGHTING SYSTEMS

HIGH-QUALITY LED LIGHTING + SMART WIRELESS WALL SWITCHES

LIGHT UP ANY DESIGN SIMPLY AND EFFECTIVELY!

GOCCIA HE IFR

GOCCIA IS BOTH A LIGHTING PROFILE AND A CLOSET ROD WITH A BUILT-IN MOTION SENSOR

This striking LED closet rod by designer Giuseppe Bavuso is an elegant, functional light fixture that perfectly combines stylish design with advanced technology and energy efficiency.

Built-in on/off motion sensor (light will turn off after 30 seconds of no motion)

Equipped with a transparent covering to protect the profile from coat hangers

Anodized aluminum finish with a unique teardrop design

INCLUDED PRODUCTS

Goccia LED closet rod with a built-in on/off sensor switch · 79" (2 m) power cable with a Micro24 connector

REQUIRED PRODUCT 24 V LED power supply, such as No. 52406 (see page 48 for all 24 V power supply options)

SUGGESTED PRODUCTS

No. 301142479 - 78 3/4" (2 m) extension cable for 24 V LED lights

CLOSET ROD PROFILE

8' aluminum profile with opal lens offers the perfect customizable solution for closets!

■ Made of anodized aluminum and includes opal lens.

■ Customized lighting for your customers in minutes with cut-to-size!

■ Fast and easy installation with or without lighting

■ Free span for up to 48" & run up to 96" with center supports

■ Diameter: 1 3/16" (30 mm)

INCLUDED IN THE BOX

■ Included opal lens creates the no dot effect

REQUIRES MOUNTING HARDWARE:

■ Closet rod supports (see A, B)

■ Round supports (see C)

SUGGESTED PRODUCTS:

■ LED Tape 9.6 W/m 24 V (see page 8)

No. 30142496124 - Neutral white No. 30142496122 - Warm white

* Tape available in 4.8 W/m and 14.4 W/m

■ KLIPR 8 mm LED tape connector 24 V No. 30141094

ADDITIONAL REQUIRED ITEMS:

■ LED switch (see pages 10-15)

■ 24 V LED power supply (see page 16-17)

Tape light sold separately

Tape light installed here (Sold separately)

INSTALLATION LAYOUT

LAYOUT EXAMPLE A

Example A displays a closet using the Vario shelf system and FlexyLED SEH4 controlled by the BTRF smart wall dimmer.

1. Smart BTRF 1-zone dimmer, RFDE2801Z

2. Smart BTRF Receiver, BTRF24961248

3. Power supply, 52475

4. FlexyLED SEH4, 13002419122079

5. LD8112 LED profile, 8112545122010

6. Vario D10 power profile rail, 54017671030

7. Vario D10 current collector, 53982951030

8. Vario D10 feeder to power supply, 53983051

Vario D10 Kit, No. WEBKIT1243036 includes number 6-8 listed above. Additional current collectors, No. 53982951030, were added per shelf.

LAYOUT EXAMPLE B

Example B displays a closet using the Vario shelf system controlled by the Smart BTRF wall dimmer, and puck lights controlled by X-Driver PIR-XD presence sensors.

system Vario D10 Kit, No. WEBKIT1243036 includes number 5-7 listed above. Additional current collectors, No. 53982951030, were added per shelf.

1. Smart BTRF 1-zone dimmer, RFDE2801Z

2. Smart BTRF Receiver, BTRF24961248

3. Power supply, 52475

4. LD8112 LED profile, 8112395124010

5. Vario D10 power profile rail, 54017671030

6. Vario D10 current collector, 53982951030

7. Vario D10 feeder to power supply, 53983051

8. PIR-XD presence sensor, 1650901030

9. X-Driver power supply, XDRIVER2415 and CM2 module, 1650301

10. Atom puck light, 126124030

Group 1

Group 1: Vario system controlled by Smart BTRF dimmer Group 2: Atom puck light controlled by X-Driver PIR-XD sensor

A

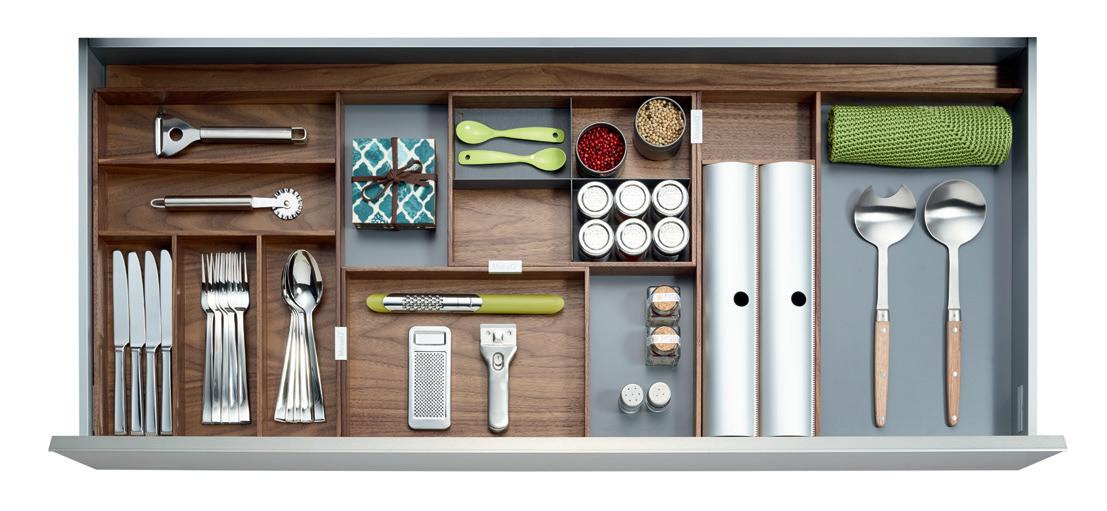

ADD A MAGIC TOUCH TO YOUR DRAWERS!

of using

ADVANTAGES & BENEFITS

■ The same drawer content is accessible from both sides

■ Riverso saves steps, reduces unnecessary movement and improves a room’s flow by allowing the same drawer to open in opposite directions

■ Creates for a more functional space

■ Silent and smooth closing, thanks to the integrated soft closing mechanism. Plus, 3D adjustment for perfect drawer alignment

■ Riverso combines German and Swiss technology to create superb innovation in drawer usage

completely new way

space

A revolutionary sliding system that allows drawers to open from both sides.

BIDIRECTIONAL DRAWER HARDWARE RIVERSO

RESOURCES

Request the Riverso interactive guide to make installation easy.

APPLICATIONS

AN INGENIOUS REVOLUTION

■ Riverso combines the best features of a concealed slide to offer a stable, fluid movement

■ Features a high technology full-extension slide system and up to 100 lb (46 kg) load capacity

■ Optional push-open hardware creates a sleek, handleless drawer front on one side

Riverso is perfect for use as a kitchen island, shop counter, in laboratories, doctor's offices, beauty studios, senior living communities and much more.

Electric Lift-Up System

QANTO with LED

QANTO is complete pre-assembled base cabinet unit equipped with a silent electric elevator system and LED lighting underneath the top shelf. Available for «Corner» or «Island» applications, it will elevate your kitchen to the next level.

•Offers ergonomic access to stored items in a corner cabinet or kitchen island.

•LED lighting underneath the top shelf gives a WOW effect. Light up automatically when system raise up and shut down when lower..

Code: 57011910

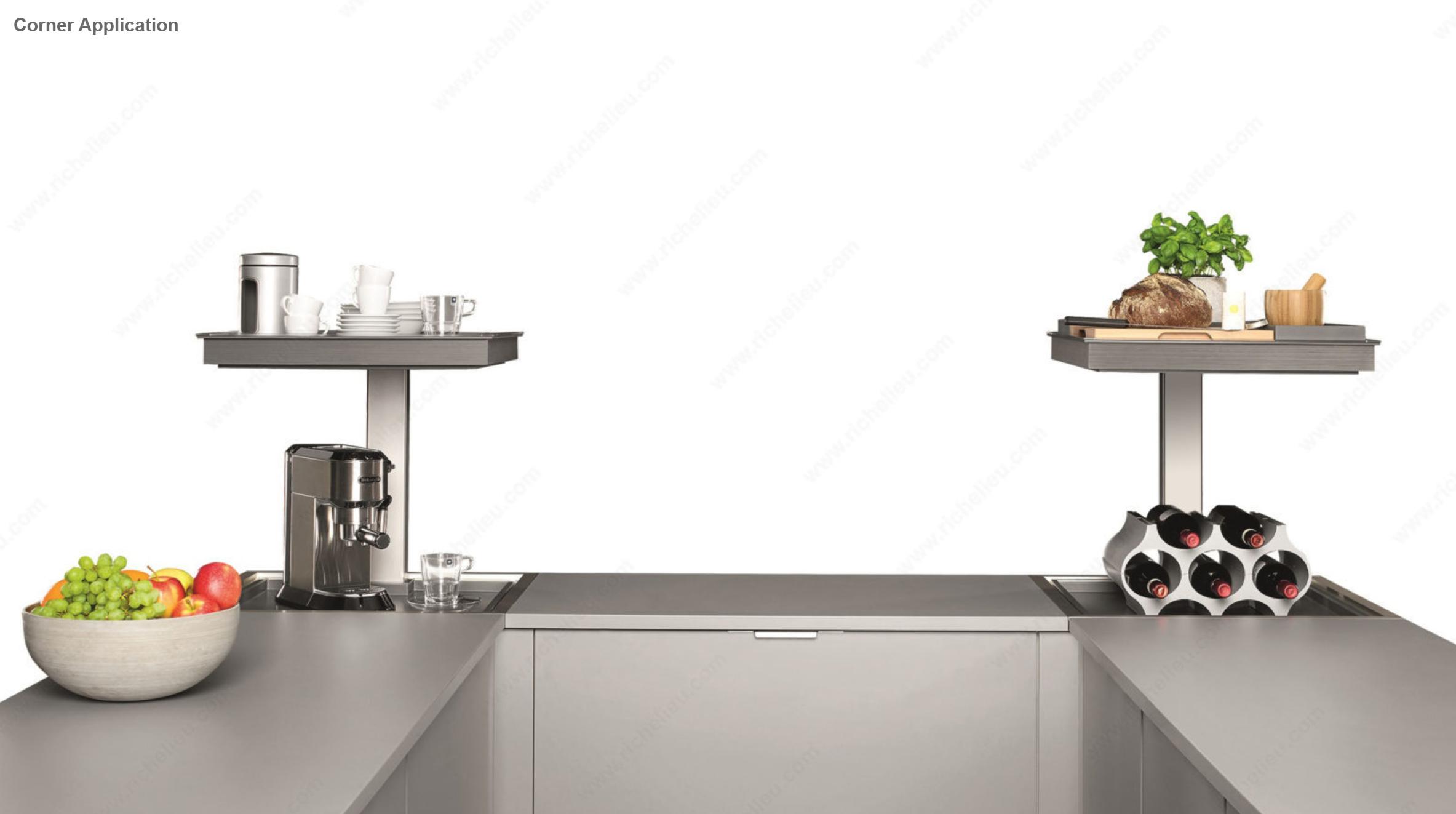

QantoR1 for corner application

•Ideal for storing bulkier appliances like a Coffee/Espresso machine, Mixer, Cookware or creating your stylish hidden bar.

•The 2 shelves move up and down with the simple push of a button.

•QANTO is equipped with a safety feature that will automatically stop the descending shelf if an obstruction is met between shelf and countertop. Safe for fingers.

•The unit height can be adjusted (with supplied legs) from 800 to 1010mm (31 ½” to 39 ¾’’).

•Top tray offers a 10 kg (22 lbs) weight capacity, and 15kg (33 lbs) for the bottom tray.

•Both trays are removable for easy cleaning.

•UL and CSA certified, you simply plug the unit into any standard 120 volt outlet.

Code: 57014910

QantoR4 for islandapplication

The traysmove up and down with the simple push of a button.

www.richelieu.com

Product featuress

Electric Lift-Up System QANTO with LED

Technical Information:

•The Qantosystem is already pre-assembled inside a cabinet. You simply need to fix it to the adjacent cabinets in a corner installation (R-1 model) or within a Kitchen Island (R-4 model). Plug into a standard 120 v outlet. See Instructions for more details.

High quality, easy to clean, ABS trays with crystal glass effect trim.

4 optional spacers included with the cabinet

Outer frame = 22 7/8” (580mm)

Electric Lift-Up System

QANTO with LED

Technical Information:

• 57011910 (R-1)model

Designedfor corner applications in an Lor U-shappedkitchenwherethe countertops line up flush to the edgesof the Qantounit witha miter cut.

Miter cut

• 57014910 (R-4) model

Designedfor a seamless countertop (cut-out option) as in an island application. Once cut, the counter top is placed above the Qantoand adjacent cabinets (and/or supporting structure) and the Qantofinishing rim is fixed into place through the opening.

Required counter top opening size with minimum counter edge space

• Seeinstructions for detailedinstallation specificationson bothmodels.

Finished installation with Qanto rim in place.

Closet Rods and accessories

Oval closet rods

Steel oval closet rods

Material thickness: .039” (1 mm) · 20 gauge

dimensions: 1 1/8” x 5/8” (30 x 15 mm)

Finish: chrome

Aluminum oval closet rods

Material thickness: .06” (1.5 mm) · 16 gauge

length: 8’ (2.44 m)

dimensions: 1 1/8” x 5/8” (30 x 15 mm)

▶

screws included

For Aluminum oval closet rods

Aluminum Hourglass closet rods

Material thickness: .07” (1.8 mm) · 15 gauge

length: 8’ (2.44 m)

dimensions: 1 1/4” x 7/8” (31 x 22 mm)

▶

For Aluminum Hourglass closet rods

▶ cHroMe supports For Steel oval closet rods

supports

supports

ROUND closet rods

Steel HeAvy Duty rouNd closet rods

Material thickness: .079” (2 mm) · 14 gauge

Steel rouNd closet rods

Material thickness: .047” (1.2 mm) · 18 gauge

Aluminum rouNd closet rods

Material thickness: .08” (2 mm) · 14 gauge

length: 8’ (2.44 m)

diameter: 1 5/16” (34 mm)

PULL-OUT TABLES

PULL-OUT DRAWER TABLE MECHANISMS

This line of pull-out table mechanisms is right in step with the latest in home organization and functionalfurnishings, especiallyfor smallspaces. Whether for the kitchen, living room or guest bedroom, these hide-away tables can be used anywhere in the house, part of the trend toward, “smart living” versatile productsthat offer easy accessibility to all. They are fastened to aluminum, telescopic slides mounted in a drawer space or in a cabinet. Pull out the surface for a beautiful, sturdy table with models that seat twoto six persons. The pull-out mechanisms are also a quick, clever way to create more counter space for food preparation, offeringextra-strongload-bearingcapacityfor addedsafety. The tables optimize the overall layout of your kitchen by giving it modular flexibility.

NAXO

FOR 410MM TO 1170MM INTERNAL CABINET WIDTH

NAXO is composed of an aluminum slides system that can be installed instead of a drawer and allows to pull out a complete and functional table when needed. Open the front door, pull out the slides, unfold your top and the table is ready. Ideal for 2 people. NAXO can also be used to create more space in your kitchen’s preparation zone.

FOR 410MM TO 1170MM INTERNAL CABINET WIDTH

This system consistof a table top thathidesintoa spaceusuallyusedfor a drawer. The table is instantlypulledin tiltingthe drawerfront panel. Designedfor functionnalityneedsin a smallkitchen whereitneedsa table top for breakfast or simplyas an extension worksurface, extendup to 895mm (35 1/4"). Accomodates2to 3 people.

The main characteristicof thisproductisthatall components are integratedto the system without havingto store extension panels somewhereelse.

FOR 562 to 1332mm INTERNAL CABINET WIDTH

CHEO is a mechanism that takes the space normally meant for a drawer. Ideal to accommodate 3 to 4 people. The mechanism is composed of heavy-duty aluminum slides fixed on the internal sides of the cabinet and a connecting front bar that is also used as a handle to pull out the mechanism. The table top has to be built by customer.

T-ABLE and T-ABLE-XL

FOR 600MM WIDE CABINETS

This extension table is a revolutionary solution in the small spaces organization. Hidden in a drawer when not used, you just have to pull it out to get a place for meals in a fingertip. They can accommodate 2 to 3 people for T-Able and 4 to 5 for T-Able XL..

T-Able

T-AbleXL

T-BENCH

FOR 450MM WIDE CABINETS

T-BENCH is a revolutionary solution. It’s a foldable pull out bench, that can be used with one of the numerous Richelieu table extensions product line (Cheo, Naxo, Lunch, T-ABLE, etc). T-BENCH offers an extension of around 870mm (34-1/4’’) with a weight capacity of 150kg (330lb)

T-BENCH shownwithT-ABLE

V4-12-09-2018

PARTY

FOR 24" AND 36" WIDE CABINETS

PARTY is a unique mechanism composed of aluminum slides and a foldable leg, enabling the installation of pull out table in all the rooms of the house. Closed, this mechanism set stands in a small suspended furniture or can be integrated in a cabinet. Opened, it transforms into a real table of 1446mm (57’’) suitable for 4 to 6 people. Equipped with an integrated telescopic leg which can support a loading charge of 100 Kg (220 lb). You have limited space in your house or apartment, then PARTY is an excellent solution to organize your living space. In the kitchen, PARTY can also be used to create extra working space like in the preparation zone for example. The table top has to be made by the customer, allowing customization and harmonization of your interior design.

VERSOTO

FOR 1200MM WIDE CABINETS

VERSOTO is a unique mechanism composed of aluminum slides and a foldable leg, enabling the installation of pull out table in all the rooms of the house. Closed, this mechanism set stands in a small suspended furniture or can be integrated in a cabinet. Opened, it transforms into a real table of 1562mm (61 1/2’’) suitable for 5 to 6 people. Equipped with an integrated telescopic leg which can support a loading charge of 100 Kg (220 lb). You have limited space in your house or apartment, then VERSOTO is an excellent solution to organize your living space. In the kitchen, VERSOTO can also be used to create extra working space like in the preparation zone for example. The table top has to be made by the customer, allowing customization and harmonization of your interior design.

OPLA-TOP

FOR 450 -900MM WIDE CABINETS

This extension table isa revolutionnarysolution in the smallspacesorganization. Hiddenin a drawer spacewhennot used, youjusthave to pull itout to gain extra counterspacein a simple movement. Opla-Top offersan extension of approximatively500mm (19 11/16") witha weightcapacityof 40kg (88lb).

SLIDE

SLIDING ISLAND TOP

A surprisingsolution for kitchenislandtop. SLIDE isa mechanismcomposedof aluminumslides, allowingto slide the islandcountertop diagonallyto instantlycreatea new functionalarea. Once opened, SLIDE willoverhang318mm (12 ½") along2 sidesof the islandto accomodateup to 4 people. This isgreatfor snack time, lunch or to have a drink in an entertainingatmosphere. The table top isdoneby the customerand canbe harmonizedwiththe othercountertopsof the kitchen.

DIMENSION SYMBOL Mm

HEIGHTHMIN. 60

COUNTERTOP DEPTHDMIN. 900

COUNTERTOP WIDTHWMIN. 900

V4-12-09-2018

TOP DIMENSIONZ1MIN. 900 MAX. 1200 10 of 12

DIMENSION SYMBOL Mm

TOP DIMENSIONZ2MIN. 900 MAX. 1100

TOP THICKNESSSMIN. 18

MAX. OPENINGE318

DELO

FOR KITCHEN ISLANDS

DELO is the new peninsula table that can be pulled-out from the side of the kitchen island and provides more surface space with one simple motion.

The telescopic guides are attached underneath the tabletop thus concealed and allowing the table to be extended up to its maximum length (1600mm 63’’).

Make full use of your kitchen space. Create a snack area or a dinner table for 5 to 6 people with the DELO pull-out table. The table top isdoneby the customerand canbeharmonizedwiththe other countertopsof the kitchen.

FOR KITCHEN ISLANDS

The sliding counter top MILO is a revolution in kitchen island design. Closed, it provides a smooth, clear surface. Pull it out, and it becomes a real entertaining area while exposing a full working surface that was previously hidden. It accommodates up to 4 people. For a complete set, you need to order the mechanism # 4117725110 and the profiles # 411725210. The top must be built by the customer to be harmonized with the counter tops of the kitchen.

V4-12-09-2018

MEET THE STRAIGHTLINE FAMILY

The StraightLine system of drawer and pantry organization is now available in three finishes, ranging from light to dark, to complement any kitchen design.

Black Ash. This beautifully painted wood brings elegance and contrast to your kitchen organization.

Birch brings a clean, modern look to the StraightLine organization system. This classic wood complements the design of virtually any drawer box or pantry pullout.

StraightLine walnut adds a rich, refined look to your kitchen. With warm tones and strong grains, walnut will make you want to open your drawers and pantries again and again in admiration.

DRAWER ORGANIZATION

THE STRAIGHTLINE PRODUCT LINE IS COMPRISED OF 25 HANDCRAFTED PIECES that can be mixed and matched to create a huge range of organization systems—for drawers, deep drawers, and Kesseböhmer’s Dispensa and Lavido pantries.

NOW THE INSIDE OF YOUR DRAWERS CAN BE JUST AS BEAUTIFUL AS THE REST OF YOUR KITCHEN. Each element serves a specific purpose, such as our foil and plastic wrap dispenser, knife block, and versatile pieces like our drawer boxes and multifunction inserts, so you can truly customize each drawer.

1

MEASURE DRAWER

Check width, depth, and height to ensure the best fit. If drawer is deeper than 16 11/16”, please order depth extender shown below.

Drawer width and depth variable by cutting depth extender

2

SELECT DEPTH EXTENDER

Choose from three finishes in three different widths. Can be cut to match drawer width and depth.

3

DESIGN THE LOOK AND FUNCTION OF DRAWERS

See examples below for inspiration. Each individual piece in drawer sold separately (see pages 12-13 for more information). Utensils not included.

4

ORDER THE ELEMENTS NEEDED FOR DRAWER DESIGN

See all individual pieces on pages 12-13.

Example drawer shown with depth extender and:

Cutlery insert Multifunction insert Foil and wrap dispenser Connection clip x 3 Drawer tray x 4

**For more drawer organization ideas, please see our StraightLine Drawer Set Insert.**

DEEP DRAWER ORGANIZATION

MAKE THE MOST OF YOUR DEEP DRAWERS with our customized line of inserts designed to maximize storage. Removable plate racks and boxes keep the items you use most easily within reach. Anti-slip bumpers ensure that your items always stay put! Accessories—dividers, round posts and anti-slip bumpers—are simply inserted into any of the multiple holes in the bottom panel and anchored firmly with a quick twist.

RUBBER BUMPERS keep unit level and protect drawer bottoms

ANCHORS thread through base plate and provide stability

DIVIDERS create modular divisions of drawer space

Use four ROUND POSTS to create the perfect plate holder

iMove

INTELLIGENT PULL-DOWN SYSTEM FOR WALL UNITS

iMove

INTELLIGENT MOVEMENT

iMove SETS NEW STANDARDS FOR WALL UNITS. THE PRODUCT COMBINES BEAUTY AND PRACTICALITY IN EFFORTLESS MOVEMENT. IT’S TRULY CLEVER!

There’s easy operation, more reachable storage, a clearer view, fast access. The innovative iMove pull-down transforms a conventional wall unit into an ergonomic storage system with big user benefits. The iMove and its contents are pulled downwards and outwards in one easy movement. And the iMove combines practical benefits with a brilliantly stylish design.

Pull Down Mechanism I-Move

Pull down storagesystem for upper cabinets I-Move

Application

-600 or 900mm wideupperkitchencabinet.

- Double sidemountedsystem.

Advantages

• Combines functionalitywithexceptionaldesign.

• Simple usage.

• Optimal accessand silentfunction.

• Increasesviewon storedproducts.

Description

The intelligent movement–Unreachable contents NOW IN EASY REACH!

iMoveupgrades the functionalityin the upper cabinets in combiningaestheticalwithpractical, in an elegantmovement. This isintelligent, isn’tit!

A simple movement, an optimizedaccessibilityto ingredients, a betterviewand an fastestaccess. This innovativelift-down mechanismtransformthe classic uppercabinet intoan ergonomicstoragesystem, offeringupgradedcomfortfor the end user. The entirestoragecomesdown and in front of the cabinet in a single elegantmovement. iMovecombines functionalitywithexceptionaldesign.

• Allowsa movablestorageat the top of products stored on the bottom shelf of the cabinet , and

givesan immediateand total access.

• Compact, itrequiresonly270mm (10 5/8") of internaldepth.

• Thanksto itsassistance device: effortlessopening and closing.

• Offeredin version with1 shelfor 2 shelvesfor 600mm (23 5/8") cabinet widthand 1 shelfsystem for 900mm (35 ½") cabinet width

• Weightcapacityup to 8kg (18 lbs) per complete mechanism.

• Frame and mechanismare made in greymetal, the bottomshelfismade of assortedmelamine.

• Cabinet internalsidemounting.

www.richelieu.com

Description

Pull Down Mechanism I-Move (face frame)

Pull down storage system for face frame upper cabinets I-Move

Application

-Fits cabinet widths from 21" to 30".

- -Wall cabinets in a kitchen.

Advantages

• Combines functionality with exceptional design.

• Simple usage.

• Optimal access and silent function.

• Increases view on stored products.

• Allows a movable storage of products in a wall cabinet and gives an immediate and total access.

• Compact, it requires only 10 5/8" (270mm) of internal depth.

• Thanks to its assistance device: effortless opening and closing.

IMOVE

Taking accessibility to the next level, the iMoveis the intelligent pull-down system for wall cabinets. Never having to get a stool or chair to reach a top shelf is a dream for many and can finally become a reality!

iMovemeets the expectations of a broad customer spectrum, and allows architects, designers, and home ownersto shoot for the stars when deciding how high to construct the ceilings, how tall to build the cabinets, and where to install iMovesso that every adult and child alike can reach all that they need with the utmost ease.

• 3 trendy finishes available, Silver/Grey, Champagne/Maple and Grey/Maple

• Offered in version with 1 shelf or 2 shelves for cabinets of 21", 24", 27" or 30" width.

• Weight capacity up to 8kg (18 lbs) per complete mechanism.

• Cabinet internal side mounting.

• Lateral spacers are included.

Description

Pull Down Mechanism I-Move (frameless)

Pull down storagesystem for framelessuppercabinets I-Move

Application

-Fitscabinet widthsfrom21"to 30".

- Wall cabinets in a kitchen.

Advantages

• Combines functionalitywithexceptionaldesign.

• Simple usage.

• Optimal accessand silentfunction.

• Increasesviewon storedproducts.

• Allowsa movablestorageof productsin a wall cabinet and givesan immediateand total access.

• Compact, itrequiresonly10 5/8"(270mm) of internaldepth.

IMOVE

Taking accessibility to the next level, the iMove is the intelligent pull-down system for wall cabinets. Never having to get a stool or chair to reach a top shelf is a dream for many, and can finally become a reality! iMove meets the expectations of a broad customer spectrum, and allows architects, designers, and home owners to shoot for the stars when deciding how high to construct the ceilings, how tall to build the cabinets, and where to install iMoves so that every adult and child alike can reach all that they need with the utmost ease.

• Thanksto itsassistance device: effortlessopening and closing.

• 2 trendyfinishesavailable, Silver/Grey and Grey/Maple

• Offeredin version with1 shelfor 2 shelvesfor cabinets of 24"or 30"width.

• Weightcapacityup to 8kg (18 lbs) per complete mechanism.

• Cabinet internalsidemounting.

Installation specifications:

Imove1 shelf

Lift-Up and Down Mechanism I-Move

DimensionsHinged doorsHinged doorsFree type mechanism AventosHF type mechanism Hinges clearance< 25mm (1’’)>25mm (1’’)- -

Imove2 shelves

DimensionsHinged doorsHinged doorsFree type mechanism AventosHF type mechanism

Hinges clearance< 25mm (1’’)>25mm (1’’)- -

1 shelf

2 shelves

WINE CELLAR solutions

• Fully customizable

• Silicone O-rings provide no-slip stability

• High-quality finish

Aluminum wall-mounted wine pegs XY

Nek Rite

Beta Bloc Accessories

Washers used to install wine pegs directly to drywall wpw11810

Spacers for heavy or textured panel installation

wpS3810 3/8"

wpS1210 1/2"

wpS0110 1"

Allen Key screws for installing wine peg spacers wpAK114900 1 1/4" wpAK112900 1 1/2" wpAK2900 2" wpAK214900 2 1/4"

WALL sto RA g E AN d AN g LE d suppo R ts for wine bottles

Exclusive collection at richelieu

• Easy to install

• Made from aluminum (anti-corrosive)

• Durable and high-quality finish

Aluminum wall-mounted wine racks

Height: 28" (711 mm), Depth: 9" (229 mm)

Brushed aluminum Glossy anthracite Glossy white Glossy black Glossy red

Angled supports made of wood and aluminum

Height: 28" (711 mm), Depth: 9" (229 mm)

Brushed aluminum Glossy anthracite Glossy white Glossy black Glossy red

CwH01BACwH01BA-ACwH01BA-w CwH01BA-BCwH01BA-r

CwH02BACwH02BA-ACwH02BA-w CwH02BA-BCwH02BA-r

CwH04BACwH04BA-ACwH04BA-w CwH04BA-BCwH04BA-r

CwH06BACwH06BA-ACwH06BA-w CwH06BA-BCwH06BA-r

CwH08BACwH08BA-ACwH08BA-w CwH08BA-BCwH08BA-r

d IVI s I o N sto RA g E AN d WALL s HELVE s for wine bottles

division storage

These modern wine bottle supports combine torrefied yellow birch and brushed aluminum. Easily mounted on the floor and the wall, or on the ceiling and the wall.

solid, aluminum-made, wall shelves

W ood EN RACK s

for wine bottles

• Large number of configurations

• Easy to assemble

• Torrefied poplar wood with anti-mildew properties

single

racks

Racks for standard 750 ml bottles

no CapacityDimensions (w x H)

Standard racks

CCIS83051* 8 bottles 5" x 30" (127 x 762 mm)

CCIS124551* 12 bottles5" x 45" (127 x 1140 mm)

CCID323051 32 bottles 17 1/2" x 30" (445 x 762 mm)

CCID484551 48 bottles17 1/2" x 45" (445 x 1140 mm)

CCID643051 64 bottles35" x 30" (889 x 762 mm)

CCID964551 96 bottles35" x 45" (889 x 1140 mm)

Standard, angled racks

CISI6* 6 bottles5" x 30" (127 x 762 mm)

CISI10* 10 bottles5" x 45" (127 x 1140 mm)

CCIDI243051 24 bottles 17 1/2" x 30" (445 x 762 mm)

CIDI40* 40 bottles17 1/2" x 45" (445 x 1140 mm)

CIDI48* 48 bottles 35" x 30" (889 x 762 mm)

CIDI80* 80 bottles 35" x 45" (889 x 1140 mm)

Stair racks

CIE68* 68 bottles35" x 45" (889 x 1140 mm)

Corner racks for standard 750 ml bottles

no CapacityDimensions (w x H)

Standard corner racks

CIC32* 32 bottles 21" x 30" (533 x 762 mm)

CIC48* 48 bottles21" x 45" (533 x 1140 mm)

Angled, corner racks

CICI24* 24 bottles 21" x 30" (533 x 762 mm)

CICI40* 40 bottles21" x 45" (533 x 1140 mm)

For non-standard bottles

no CapacityDimensions (w x H)

Classic magnum racks

CISM7* 7 bottles 5 3/4" x 30" (146 x 762 mm)

CISM10* 10 bottles 5 3/4" x 45" (146 x 1140 mm)

racks for ice wine bottles and half-bottles

CISG8* 8 bottles 4 1/2" x 30" (114 x 762 mm)

CISG12* 12 bottles4 1/2" x 45" (114 x 1140 mm)

Standard rack for 12 bottles

CCIS124551

Standard rack for 48 bottles CCID484551

Depth: 9" (229 mm)

Standard corner rack for 32 bottles

CIC32

Standard, angled rack for 40 bottles

CIDI40

Stair rack for 68 bottles

CIE68

Rack for 7 magnum bottles

CISM7

Rack for 12 ice wine bottles

CISG12

Standard, angled, corner rack for 40 bottles

CICI40

W

ood EN AN d g LA ss RACK s

for wine bottles

Bulk wooden racks

Angled, wooden bottle holders for standard 750 ml bottles

d

I sp LAY s , BA s E s o R s HELVE s

AN d ACCE sso RIE s for wine bottles

Corner displays for

Wineglass support made of aluminum and pVC

Wineglass support made of wood

Wineglass support made of metal

YouK

OPEN SHELVING SYSTEM DESIGN AND FUNCTIONALITY

DESCRIPTION

·YouK open shelving system combines a flexible functionality and a contemporary design that highlight any area such as wardrobes, kitchens, wall units, bathrooms or offices.

·The various heights and depths of YouK can be used in a myriad of combinations to personalize your design! Youk works with any kind of shelves (not included). Fitted with warm wood shelves that match the interior space, it definitely adds a touch of elegance.

·The high scratch resistance resulting from a large portion of Teflon in the surface finish is a real user benefit.

Contemporary design

Simple

grids

for more straightforward planning and installation

·Matte black finish

YouK OPEN SHELVING SYSTEM

Easy mounting

·Quick and easy to mount in just a few steps and does not require any special tools. Contemporary design with fresh transparency when hanging on the wall or standing on the floor, which also set the tone in the mix.

·YouK ladders can be placed on the floor or hung on the wall with screws, and various heights can be combined to create a customized look!

Disclaimer: Ensuring proper fastening to the wall is the customer's responsibility.

YouK shelving system adjustable leg

This leg is indicated for design purposes only.

STRUCTURAL TABLE LEGS

These structural table legs feature industrial design and a contemporary look with a hint of vintage style. Ideal for all your commercial and residential projects and perfect for both kitchen and conference tables as well as desks and much more.

■ Available in various finishes

■ Easy to install

■ Robust

H-SHAPED TABLE LEGS

■ Available in four finishes: stainless steel (170), matte chrome (174), matte black (900) and matte black iron (909)

■ W idth: 25 3/16" (640 mm)

■ Adjustability: 5/8" (16 mm)

■ Size of the base: 3 5/32" x 3 5/32" (80 mm x 80 mm)

■ Sold by pair

TABLE LEGS

Dinning Bar

X-SHAPED TABLE LEGS

■ Available in four finishes: stainless steel (170), matte chrome (174), matte black (900) and matte black iron (909)

■ W idth: 26 25/32" (680 mm)

■ Adjustability: 5/8" (16 mm)

■ Size of the base: 3 5/32" x 3 5/32" (80 mm x 80 mm)

■ Sold by pair

STRUCTURAL TABLE AND BENCH LEGS

■ Available in two finishes: stainless steel (170) and matte black (900)

■ Option: matching table and bench legs

■ Adjustability: 5/8" (16 mm)

■ Sold by pair

U-SHAPED TABLE LEGS

■ W idth: 24 1/32" (610 mm)

■ Size of the base: 3 5/32" x 24 1/32" (80 mm x 610 mm)

TAPERED BENCH LEGS

■ W idth: 16 5/32" (410 mm)

■ Size of the base: 3 5/32" x 14" (80 mm x 355 mm)

■ Sold by unit

STRUCTURAL LEGS

■ Available in two widths ■ Height: 27 5/8" (702 mm)

■ Adjustability: 5/8" (16 mm)

■ Load capacity/pair: 441 lb (200

STRUCTURAL TABLE LEGS

Suggested product

Round leveler with black nylon base

Load capacity: 331 lb (150 kg) 5201211290

LIBRA H7 Cabinet Suspension System

Application

Libra H7 is the latest development in the cabinet hanger program. Especially conceived for wall-mounted suspended cabinets with heavy loads or particularly deep drawers. Ideal and versatile system for your new kitchen cabinet projects, vanity and commercial displays.

Advantages & Benefits

• Safe: Locking device included.

• Flexible: Vertical adjustment: 13mm In-Depth adjustment: 12mm

• Robust: Each mechanism can support up to 210kg (462 lbs).

• Ingenious: The slim side brackets wings never interfere with the slides for drawers.

• Mounting hardware + 2 wall plates included.

• Optional: Aluminium profile can be recut and drilled.

• Distributes weight evenly on the wall.

• Allows the installation of a rear panel of 4mm or 8mm.

• Exclusive to Richelieu.

Item No. Description

670802032G DOWEL FIXING (Sold in Pairs)

670502032G SCREW FIXING (Sold in Pairs)

6702004010 ALUMINUM PROFILE L: 2000mm (6,5 ft)

LIBRA H7 : hanging system for suspended cabinets, vanities and commercial displays.

• Locking the cabinet as well as vertical 1/2” (13 mm) and in-depth 1/2” (13 mm) adjustments can be easily and smoothly carried out from the inside.

• The hanging system never interferes with the drawer slides thanks to the slim side bracket wings.

• Absolutely no mills or grooves required on the side panels.

TRIADE Concealed Mounting Brackets

TRIADE : the concealed way to support shelves of great thickness!

With three independent adjustments, you will be able to set your shelves the exact way you visualized them!

Advantages/Benefits

 Useful for both flat-pack and rigid furniture, this support is ideal for transport as it secures the shelf in position.

 Easy and quick installation.

 Adjustable in height, you can align it vertically with the slots (2,5mm).

 While placing the shelf in position, the supporting pins can be slided horizontally (2,5mm).

 When the shelf is partially inserted, the shelf angle can be adjusted front to back by turning the supporting pins with a 10mm open-ended wrench.

 A locking bolt will conserve your adjustments.

 A bracket (sold separately) improve the load capacity; it distributes the shelf load on the wall through a Ø8mm pin.

 Made of zinc alloy and steel material.

 Exclusive to Richelieu.

Important information !

 It is strongly recommended to use the bracket in combination with the Triade to increasetheloadrating

Triade Profile Support

TRIADE SYSTEM

The concealed way to support shelves of any thickness. With 3 independent adjustments and its locking device, the Triade system enables you to set your shelves exactly as you visualized them.

DRAWER OR SHELF LOCKING MECHANISM CLICK STOP

Locking mechanism that can be installed to any wood drawer or pull-out shelf equipped with undermount slides. The Click Stop allows the drawer or shelf to lock in an OPEN position, providing a stable usable surface. It can easily be released by gently pulling towards you before pushing the shelf/drawer back in place. Also compatible with Richelieu's EXTENDO metal drawers in the FIORO line.

Application

• Can be used in a kitchen under a microwave cabinet to create a temporary shelf or under the countertop to create a temporary extension to hold an appliance. Also great for laundry room application or in a walk-in closet.

Advantages

• Create an instant and safe working surface on demand; then tuck away when finished .

• Adaptable to any pull-out wood shelf or wood drawer with conventional undermount slides.

• Can be retrofitted.

• Also compatible with our EXTENDO metal drawers.

• Easy to install and easy to use.

• To unlock, simply pull shelf towards you and then push back into place.

• 25mm (1'') spacer is available for Face Frame application. 2 spacers required.

Description

Locking mechanism that can be installed to any wood drawer or pull-out shelf equipped with undermount slides. The Click Stop allows the drawer or shelf to lock in an OPEN position, providing a stable usable surface. It can easily be released by gently pulling towards you before pushing the shelf/drawer back in place. Also compatible with Richelieu's EXTENDO metal drawers in the FIORO line.

For a Face-Frame cabinet application, you will need to get 2X spacers (#2223906) to compensate for the frame width.

#2666906

#2223906

WASTE MANAGEMENT AND RECYCLING CENTERS

Manage your kitchen waste with style!

HIGH QUALITY FINISH • DURABLE MATERIALS

Small bins and individual lids, perfect for compost

US CARGO RECYCLING SYSTEMS

TOP-MOUNT / FACE-FRAME CABINET

The US Cargo Series is designed for imperial-sized face-frame cabinets. Over-travel slides allow for total access to the bins. Available in different bin capacities and configurations, all with a soft-close mechanism included. Also comes with an internal fixed metal lid that provides additional storage space.

• Top-mount installation for a greater stability

• Tested to 100,000+ cycles

• 110-lb (50-kg) load capacity

• Increased strength with heavy-duty ball-bearing slides allowing for smooth opening and closing

• Door-mounted for full access in a single motion

• Inter nal fixed metal lid included

• Small bin comes with individual lid

15" wide cabinet

Replacement bins or lids

18" wide cabinet

21" wide cabinet

24" wide cabinet

EURO-CARGO RECYCLING SYSTEMS

TOP-MOUNT / FRAMELESS CABINET

Replacement

Small

and individual lids, perfect for compost

EURO-CARGO RECYCLING SYSTEMS

TOP-MOUNT / FRAMELESS CABINET

The Euro Cargo Series features heavy-duty ball-bearing slides. They are among the strongest slides on the market and provide smooth and long-lasting operation. Designed for frameless cabinets. * Available with or without soft close.

• Top-mount wastebins

• Comes with an inter nal metal lid offering more storage space

• Tested to 100,000+ cycles

• 110-lb (50-kg) load capacity

• Over-travel slides allowing for easier removal of bins

• Door-mounted for full access in a single motion

• 3-way adjustment front-fixing brackets

• Some models include individual lids for the small bins (as shown)

TOP-MOUNT 12''

Replacement bins

*May be used in face-frame cabinets by blocking the sides of the cabinet behind the frame to mount the slides

SE-CARGO RECYCLING SYSTEMS

TOP-MOUNT / FRAMELESS CABINET

The new SE-Cargo Series features a redesigned straight side with concealed synchronized undermount slides. Equipped with soft-close mechanisms, this series provides smooth and long-lasting operation. Designed for frameless cabinets. *

• Latest generation of trendy top-mount waste bins

• Comes with an inter nal metal lid offering more storage space

• Tested to 100,000+ cycles

• 110-lb (50-kg) load capacity

• Over-travel slides allowing for easier removal of bins

• Door-mounted for full access in a single motion

• 3-way adjustment front-fixing brackets

Individual lid comes with 12L bin

*May be used in face-frame cabinets by blocking the sides of the cabinet behind the frame to mount the slides

Replacement bins or lids Small bins and individual lids, perfect for compost

E-CARGO RECYCLING SYSTEMS UNDERMOUNT SLIDE / FRAMELESS CABINET

The E-Cargo Series features concealed over-travel undermount slides. It is dust-proof and provides smooth and long-lasting operation. Designed for frameless cabinets. * Comes with soft-close mechanism.

• Top-mount waste bins

• Comes with an inter nal metal lid offering more storage space

• Tested to 100,000+ cycles

• 110-lb (50-kg) load capacity

• Over-travel allowing for easier removal of bins

• Door-mounted for full access in a single motion

• 3-way adjustment front-fixing brackets

Cargo Short - 3 Bins

*May be used in face-frame cabinets by blocking the sides of the cabinet behind the frame to mount the slides

No. 461912100

EASY-CARGO RECYCLING CENTERS

TOP-MOUNT / HINGED-DOOR CABINET

• Fast and easy installation: 4 screws and you are done!

• Comes in two configurations, with one or two bins

• Heavy-duty ball-bearing slides

• 66-lb (30-kg) load capacity

• Full extension for easier bin removal

• Available in silver gray

• Comes with inter nal lid offering extra storage space

3.0

Smart electronic door-opener for recycling centers

• Hands-free opening system

• Foot-activated laser sensor

• Optional voice activated “smart” feature compatible with Amazon’s ALEXA

• This “plug & play” system mounts at the bottom front edge of the cabinet and only requires to be plugged into a standard 110 V outlet. Easy to install, it can also be retrofitted

• It is mainly used with our popular waste management systems in a frameless cabinet application but can also be used for deep drawers

• An integrated LED light indicates the laser position

• To open the door, simply move your foot up towards the LED light under the kickplate. The device will push open the door and allow full “hands-free” access to the cabinet

• It also works with wastebins equipped with soft-close runners

• Last but not least, Libero 3.0 is compatible with Smart Homes using ALEXA for the voice-activated feature

• All Libero settings can be easily adjusted via web browsers

Decorative Wire Mesh

Versatile, elegant and timeless

As an extremely versatile material, decorative wire mesh is ever-growing in popularity in various residential, commercial and architectural applications. From kitchen cabinets to space dividers, from hotel to restaurant decor, wire mesh’s multifaceted nature establishes it as a favored material for any project: functional, aesthetic, creative or commercial.

• Available in multiple finishes and styles to get the perfect match for any project

• Ever y design of decorative wire mesh is woven, ensuring a strong and everlasting product

• Made from 80% post-consumer recycled content, that can contribute to LEED credits

Chrome 195 Brushed Nickel BORB Brushed Oil-Rubbed Bronze

142 Pewter 900 Matte Black M41 Antique Copper

Satin Brass BB Burnished Brass

Decorative wire mesh sample box

Samples are available for each wire mesh model. To order, simply add an S at the end of each product number.

PERCENT OPEN AREA (POA)

Defines

TAMBOUR DECOR

GROOVED DECORATIVE SURFACES

Unfinished wood.

Unique and stylish designs.

The grooving provides a unique decorative look as well as the flexibility to design with curves and angles. Wherever you want; reception, healthcare, commercial, hospitality and more.

WOOD VENEER

■ Grooved decorative surface made of wood veneer, which is applied to a backing of high-density MDF.

■ Pine fiber panel core 48" X 96" size, 2 available slat widths.

SOLID WOOD

■ This product is intended solely for interior vertical application and is NOT a structural of functional product.

■ Cherry, Maple, Poplar and Red Oak, 12" x 95" size, 3/4" slat width.

LINEART PANEL CREATE YOUR OWN DÉCOR

AN EXCLUSIVE DECORATIVE PANEL, DESIGNED BY YOU!

A DECORATIVE PANEL FOR CREATING UNIQE DESIGNS!

Personalize your interior design with a robust, multifunctional panel.

Choose the panel surface from our extensive selection of laminates, wood or metal veneers, select the width of the grooves and slats, and VOILÀ: your exclusive and high-quality decorative panel is complete.

Dimensions of the black MDF panel are 48 in x 96 in x 5/8 in (122 cm x 243 cm x 16 mm)

VISIBLE SLIDING BARN DOOR SYSTEMS

Form and function come together for this fashion-forward range of products. Celebrating mechanical hardware in its purist form with visible trolleys and working parts.

I EVO + glass

EVO + wood

EVO +

For Wood or Glass Door

• The EVO + SLIM KIT 40/60 is an elegant "BarnDoor" style sliding system engineered for wood and glass doors for two different weight capacities, up to 40 kg (88 lbs.) and 60 kg (132 lbs.).

• The EVO + SLIM compliments a wide variety of design styles and trends with four durable anodized finishes to choose from Chrome, Champagne, Titanium and Black.

• Includes upper track with mounts, hardware set with soft close mechanisms for one door and a matching pull handle.

• Installation is simple and flexible with adjustable mounts that can be positioned for best structural support. The soft close mechanisms can be fitted to multiple positions to accommodate a wide range of door widths and control where to start and stop the door.

• The EVO + SLIM is an ideal solution for a feature door in residential and commercial applications to access bedrooms, toilets, office, closets, and pantry.

Single Box Track Hardware Kit

Complete set of hardware for hanging a single sliding door.

Includes:

• Single Box Track Brackets - Wall Mount

• 1 x Heavy Duty Box Track

• 2 x Double Axle Box Track Hangers with Apron

• 2 x End Caps

• 2 x Track Mount Door Stops

• 2 x Floor Guides

• Mounting Screws

Double Box Track Hardware Kit

Complete set of hardware for hanging two bypassing sliding doors.

Loft Sliding Door Hardware Kits

Includes:

• Double Box Rail Brackets - Wall Mount

• 2 x Heavy Duty Box Track

• 4 x Double Axle Box Rail Hangers with Apron

• 4 x End Caps

• 4 x Track Mount Door Stops

• 4 x Floor Guides

• Mounting Screws

ALBERGO PRO SERIES BARN DOOR SYSTEM, TOP MOUNT

DOOR MOVEMENT/FUNCTION

Wall mount sliding

WEIGHT CAPACITY PER DOOR: Max. 176 lb (80 kg)

FEATURES

PRO SERIES ALBERGO TM is a commercial grade system designed for hospitality and commercial projects. Made of type 304 stainless steel with sturdy wall mount fasteners and additional wall support discs for sheetrock installations. Recommended installation by a professional contractor.

PRO

ALBERGO PRO SERIES BARN DOOR SYSTEM, TOP MOUNT, SOFT CLOSE

DOOR MOVEMENT/FUNCTION

Wall mount sliding

WEIGHT CAPACITY PER DOOR: Max. 176 lb (80 kg)

Door thickness 1 3/8" to 1 3/4" (35 to 45 mm)

Door width 35" to 50" (890 to 1270 mm)

Soft-close mechanismAvailable, integrated

FEATURES

PRO SERIES ALBERGO TM-SC is a commercial grade system designed for hospitality and commercial projects. Track features two integrated soft-close mechanisms. Made of type 304 stainless steel with sturdy wall mount fasteners and additional wall support discs for sheetrock installations. Recommended installation by a professional contractor.

ALBERGO PRO SERIES BARN DOOR SYSTEM, STRAP STYLE, SOFT-CLOSE OPTIONAL

DOOR MOVEMENT/FUNCTION

Wall mount sliding

WEIGHT CAPACITY PER DOOR: Max. 176 lb (80 kg)

Door thickness 1 3/8" to 1 3/4" (35 to 45 mm)

Door width 35" to 50" (890 to 1270 mm)

Soft-close mechanismAvailable, integrated

FEATURES

PRO SERIES ALBERGO STP-SC is a commercial grade system designed for hospitality and commercial projects. Can be used with or without soft-close. Made of type 304 stainless steel with sturdy wall mount fasteners and additional wall support discs for sheetrock installations. Recommended installation by a professional contractor.

ROBUSTE PRO SERIES BARN DOOR SYSTEM, RUSTIC STRAP STYLE

DOOR MOVEMENT/FUNCTION

Wall mount sliding

WEIGHT CAPACITY PER DOOR: Max. 220 lb (100 kg)

FEATURES

PRO SERIES ROBUSTE is a commercial grade system designed for hospitality and commercial projects. Available in stainless steel and powder-coated steel finishes. Trolley set includes adjustable floor guide. Track sets include sturdy wall mount fasteners and wall support discs. Each track is pre-drilled to accept optional soft-close mechanism and extension connector. Recommended installation by a professional contractor.

PRO SERIES ROBUSTE

STAINLESS STEEL

BRONZE/DARK BROWN BLACK

ROBUSTE PRO SERIES TRACKS AND ACCESSORIES

SOFT-CLOSE

SOFT-CLOSE

PRO SERIES ROBUSTE

NOTE: All tracks are pre-drilled for mounting optional soft-close mechanism and connector plates.

Connector

WOOD DOOR BARN DOOR SLIDING SYSTEM

DOOR MOVEMENT/FUNCTION

Wall mount sliding

WEIGHT CAPACITY PER DOOR: Max. 33 to 165 lb (15 to 75 kg)

FEATURES

The ONWARD URBAN is an aluminum sliding door system for a contemporary style wall mount door application. Intended for residential applications, the tube track is mounted to a very sturdy wall mount profile for simple installations.

Blends perfectly with any style of decor

The ZENITUDE

246016170

INCLUDES:

 2 roller units

 2 end bumpers

Wood-door single-roller hardware set / Stainless Steel

REQUIRED PRODUCT: Stainless Steel Rail (sold separately):

 2 anti-derailer units

 1 floor-level guide for wood door

246016BORB Complete wood-door single-roller hardware set / Brushed Oil-rubbed Bronze

INCLUDES:

 2 x 39 3/8" (1 m) rails

 2 roller units

 2 end-bumpers

 4 wall-mount brackets

 2 anti-derailment devices

 1 connector plate

 1 floor-level door guide

See pages 9 to 11 for a complete listing of rustic pulls and accessories.

RUSTIC SINGLE WOODEN-DOOR HARDWARE SETS

For sliding doors

The GEMINI The DIAMOND

INCLUDES:

 2 x 59" (1.5 m) rails

 2 roller-units

 2 end bumpers

 6 wall-mount brackets

 2 anti-derailer devices

 1 rail connector

 1 floor-level door guide

INCLUDES:

 1 x 78 3/4" (2 m) rail

 2 roller units

 2 end bumpers

 5 wall-mount brackets

 2 anti-derailer devices

 1 floor-level door guide

2460014177 Complete wood-door single-roller hardware set / Brushed Steel

24608160

Complete wood-door single-roller hardware set / Satin Brass

RUSTIC BARN DOOR HARDWARE

For interior sliding doors

Hardware Sets | Pulls

Accessories | Custom Barn Doors

RUSTIC SINGLE WOODEN-DOOR HARDWARE SETS For sliding doors

The CAVALIER

24600790 Wood-door double-roller hardware set / Black

INCLUDES:

 2 roller units

 2 end bumpers

 2 anti-derailer units

 1 floor-level guide for wood door

REQUIRED PRODUCT: Black Rail (sold separately):

Max. capacity per door 33 to 220 lb (15 to 100 kg)

Door thickness 1 3/8" - 1 3/4" (35 mm - 45 mm)

Door width 24" - 60" (61 cm - 152 cm)

Door installation In front of wall

Ideal for closets, kitchen pantries, storage rooms and all other interior door applications

The FERRIS WHEEL

24602090 Wood-door single-roller hardware set / Black

INCLUDES:

 2 roller units

 2 end bumpers

 2 anti-derailer units

 1 floor-level guide for wood door

REQUIRED PRODUCT: Black Rail (sold separately):

 8 spacers (for installation between the wall and the rail brackets)

See pages 9 to 11 for a complete listing of rustic pulls and accessories.

RUSTIC SINGLE WOODEN-DOOR HARDWARE SETS

For sliding doors

The ARROW

INCLUDES:

 2 roller units

 2 end bumpers

 2 anti-derailer units

 1 floor-level guide for wood door

REQUIRED PRODUCT: Black Rail (sold separately):

24600890 Wood-door single-roller hardware set / Black

Easy to install – Additional accessories and hardware available Possibility to install two bypass doors

The RUSTIC

24600590 Wood-door single-roller hardware set / Black

INCLUDES:  2 roller units  2 end bumpers  2 anti-derailer units  1 floor-level guide for wood door

REQUIRED PRODUCT: Black Rail (sold separately):

2460302MATPVC Complete wood-door single-roller hardware set / Matte Black

INCLUDES:

 1 x 78 3/4" (2 m) rail

 2 roller units

 2 end-bumpers

 5 wall-mount brackets

 2 anti-derailment pieces

 1 floor guide for wood door

See pages 9 to 11 for a complete listing of rustic pulls and accessories.

RUSTIC SINGLE WOODEN-DOOR HARDWARE SETS For

sliding doors

 2 roller units

 2 end bumpers

Wood-door

 2 anti-derailer units

door 24600690 Wood-door single-roller hardware set / Black 246015170

REQUIRED PRODUCTS: Rails (sold separately):

Black 246001902460029024600390 Stainless Steel 246011170246012170246003170

Max. capacity per door 33 to 176 lb (15 to 80 kg)

Door thickness 1 3/8" - 1 3/4" (35 mm - 45 mm)

Door width 24" - 60" (61 cm - 152 cm)

Door installation In front of wall

DECORATIVE PULLS

For sliding doors

Rustic black pulls

Contemporary pulls and knobs

ProductDescription

E-GLIDEWoodLadderHardwareKitwith96in (2438mm)two-partrailandsupportingbrackets isdesignedfora92in(2336mm)woodladder. Idealforresidentialandcommercialapplications forshelves,entertainmentunits,closets, pantries,kitchens,andcabinets.

PartNo.DescriptionFinish

88GE6092515

88EG30006130

92inMapleWood Ladder

Uppertelescopichookandfree runningbottomwheels

Unfinished

Unassembled

PolishedBrass

Canbestoredagainstthewalland millworkwithoutremovingthe ladder

Forhook-onrailheightof881/4in (2242mm)to891/4in(2267mm)

88EG3000890 Black

88EG30007ORB

88EG30002185

Hookladder hardwarekitwith two48inRails, bracketwall supports,splicekit, 7stepsupports, andendcaps

Weightcapacityof300lbs(136kg)

Oil-Rubbed Bronze

SatinNickel

Availableinfourfinishes:satin nickel,polishedbrass,oil-rubbed bronze,andblack

Railcanbejoinedwithsplicekit

88EG40040890 Black

88EG400406130 48inrail extension

88EG400407ORB

88EG400402185

88EG30106130

88EG3010890 Black

88EG30107ORB

Supportbracket forrail

88EG30102185 SatinNickel

88EG4106130

PolishedBrass

88EG410890 Black

88EG4107ORB

SpliceKittojoin rails

88EG4102185 SatinNickel

88EG4006130

PolishedBrass

88EG400890 Black

EndCap setof2

88EG4007ORB Oil-RubbedBronze

88EG4002185

SatinNickel

BED

MECHANISMS

Advantages

• Ingenious design – one room becomes many: a work living space by day and a sleeping area by night

• Fits standard North American mattress dimensions (L x W). Mattress thickness varies from 7 to 13" (178 to 330 mm)

• Piston mechanism offers easy opening and secure closing

• Maximum static load rating up to 1322 lb (600 kg)

• Legs self-deploy automatically upon opening and are concealed when closed

• For residential and commercial use

• Limited lifetime warranty on all parts

• Designed and manufactured in Italy

How to build the cabinet

• The minimum required interior depth is based on a standard mattress thickness of 7" (180 mm). For a thicker mattress, adjust the depth of the unit. For example, a mattress 10" thick (254 mm) requires a minimum depth of 14" (355 mm).

• Fur niture panel thickness: minimum of 3/4" (19 mm)

• For more infor mation, please visit our website at www.richelieu.com

Mattress size

Single bed 39" x 75" (990 x 1905 mm)

Double bed 54" x 75" (1371 x 1905 mm)

Queen bed 60" x 80" (1524 x 2032 mm)

How to choose the right piston

Step 1

Use this simple calculation: weight of the door + weight of the mattress = total weight.

Step 2

Choose the piston with the next highest weight capacity.

Safety bar for horizontal opening mechanisms

Metal frame and wood slats, just like conventional beds

2 mattress supports to prevent shifting

Includes 2 magnets for secure closing

2 mattress straps to keep mattress in place

Piston cover

offers easy opening and secure closing

Automatic concealed leg mechanism with levelers

Automatic leg mechanism with levelers for shelf unit

Includes a transverse cross-bar (for added structural stability)
