Feature Wall Welcomes Travelers
by IdeaSoil
Dri-Design panels provide aesthetic upgrade and continuity to baggage claim.
Travelers arriving at General Mitchell International Airport in Milwaukee are now greeted by a stunning new baggage claim area. Photos: Mark Kempf, St. Louis.
Advertisement
Inset. The white panels were used outside, and the silver panels were used for the interior feature wall. A stunning new baggage-claim area now greets air travelers at General Mitchell International Airport in Milwaukee. The high-traffic area needed a durable interior and exterior material that also improved the aesthetics. This was accomplished by a single-source supplier, Dri-Design, Holland, MI, that manufactured Shadow Series wall panels, standard flat wall panels, and column covers for the renovation and expansion project.
“There are various infill, wall, and column-cover conditions where metal panels could achieve that level of durability, provide a long-lasting color and finish, and be easy to maintain,” said Debra Sider, principal with Engberg Anderson Architects, Milwaukee. “In addition, the panels were installed in both existing and new construction locations. From an aesthetic perspective, the metal panels provided continuity across the overall building.”
The 0.080-in. aluminum standard and Shadow Series wall panels were finished in Bone White and Bright Silver. They were installed by
Architectural Products of Wausau, Wausau, WI. Shadow Series panels can be manufactured with varying depths. This freedom to design each panel provides the ability to create a dynamic, one-of-a-kind surface on nearly any façade. The substrate or weather barrier do not need to be modified.
The white panels were used outside and the silver panels used for an interior feature wall, which runs the length of the building and through to the exterior. The feature wall adds a mosaic quality to the interior space, consistent with other design features in the project.
Skylights that run the length of the building illuminate the panels, bringing a reflective and color-changing quality to the multi-dimensional wall. The smooth-finish white panels blend with the other white-clad buildings adjacent to the baggage claim. “The dimensional feature wall is very dynamic, both elegant and playful at the same time,” Sider said. “The flat panels used on the column covers and other exterior walls are stunning. Metal panels were installed using a

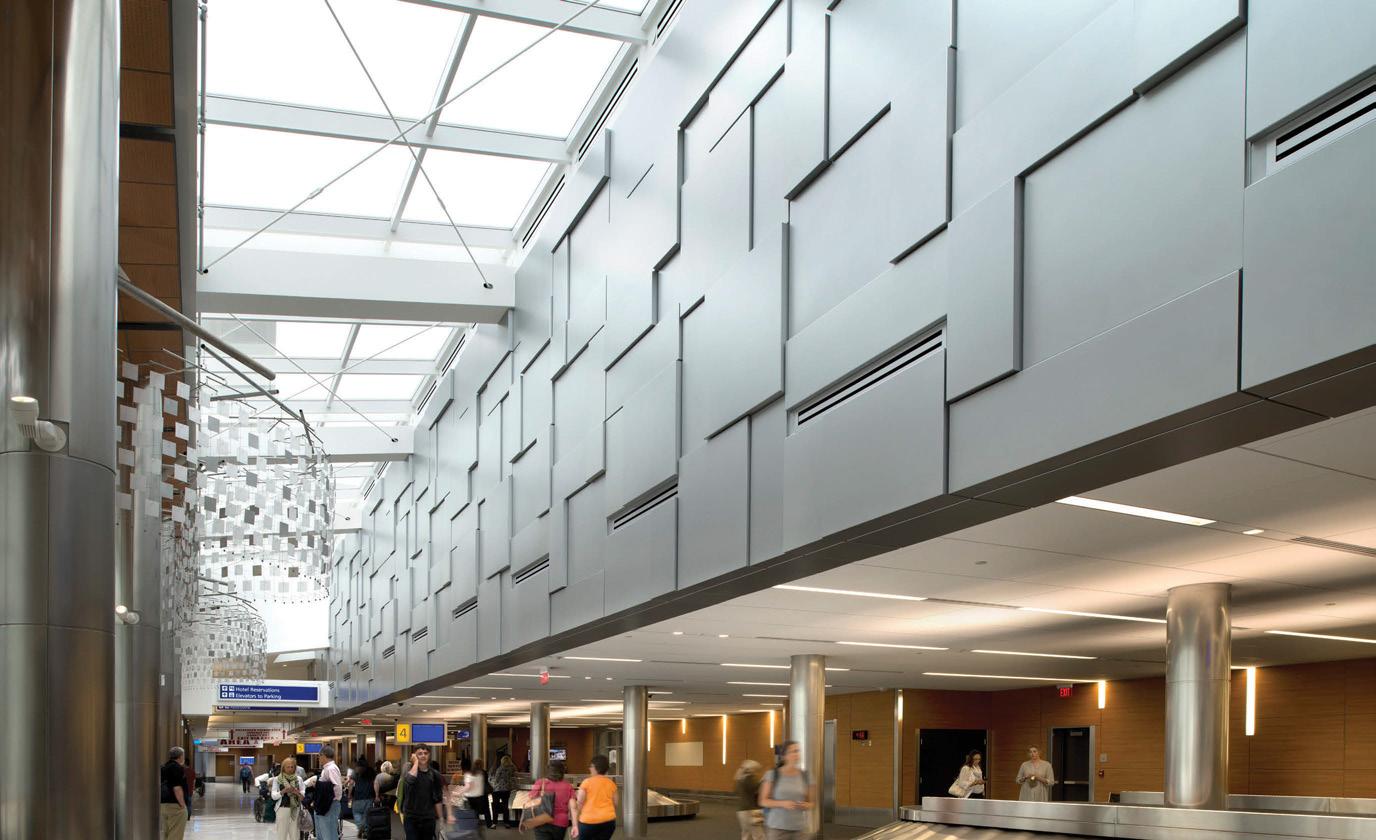

Below. The dimensional feature wall is very dynamic, elegant and playful at the same time, according to the architect.
rainscreen system that meets our constructability standards. The details work well with the other exterior glass and precast materials.”
Dri-Design was selected because it could serve as a single-source provider for all of the metal products. It also provided a variety of highly durable and long-lasting colors and finishes. The baggage claim building is designed to be LEED certified, and the Dri-Design products added points for recycled content, recyclable material, regional fabrication, and no VOCs. Lastly, it was economical and cost competitive.
John H. Schremp, P.E., president of Architectural Products of Wausau, added: “Dri-Design was also selected for its unique rainscreen design using a solid-aluminum sheet. The highly automated fabrication of the panels ensured that the panels would have extremely tight tolerances. At the interior, the product was selected again for its high quality in fabrication and also for the ability to provide a shadow-wall feature extending over the 600-ft.-long wall.”
This three-phase project took place from September 2013 to July 2015. Working on an existing building required coordination and scheduling. The owner did not want to disrupt the more than 800,000 passengers who travel through the airport each month. Some wall-panel details had to be determined on site to conform to existing conditions that were not apparent during the design stages. Dri-Design worked with the architect and the contractor to provide the most appropriate solutions.
The project addressed 45,000 sq. ft. of space in the basement to accommodate five conveyors, two data rooms, other updated rooms, and new and updated building systems; 45,000 sq. ft. of space on the first floor, including five carousels, seven entries, north and south lobbies, gathering space, seven baggage-service offices, general offices, ADA restrooms, and vending areas; and the second floor added 4,000 sq. ft. for 10 offices, as well as new north and south mechanical penthouses for HVAC and electrical systems.
Baggage claim is rarely a traveler’s favorite place, but the upgrades at Mitchell airport make the experience a more pleasant one. CA
Want more information? The resources below are linked on our website at commercialarchitecturemagazine.com and our digital magazine at commercialarchitecturemagazine.com/digital/mar2016.
Circle 2 on the Reader Service Card. Download product specifi cations. View a product portfolio.
For decades,
M-1
® has been the cure-all for every type of roof application: repairing flashing, every type of roof application: repairing flashing, sealing termination bars and coping joints, evensealing termination bars and coping joints, even underwater emergency repairs. Now in celebration underwater emergency repairs. Now in celebration of our 25th anniversary, C HEM LINK has made M-1 even better: Improved elongation. Increased tensile strength, tear strength and shear strength. Better weathering. And M-1 is still solvent-free, moisture-curing, and non-shrinking—a super adhesive/sealant that applies smoothly in both hot and cold climates. Look for the new bright silver package with C HEM LINK’s 25th anniversary icon. Give your next roofing project your best shot. Contact us at 800-826-1681 or visit us at www.chemlink.com.
EDITORS’ CHOICE

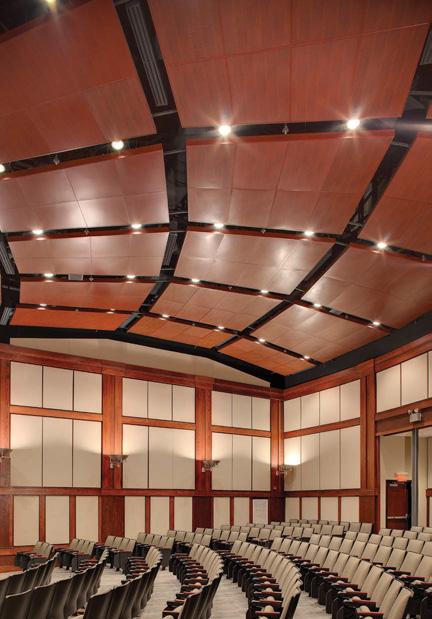

Colorful ceiling solutions A full color spectrum is available for stone-wool acoustic ceiling panels, specialty metal ceiling panels, and ceiling suspension systems. Color-All colors include 34 hues said to convey mood, function, and atmosphere in a room. Metal panels are available in metallic fi nishes, Woodscenes painted fi nishes, and Metalwood woodgrain fi nishes.
Rockfon, Chicago Circle 95 rockfon.com
Sound-suppressing underlayment
LuxWalk:
Acoustic, insulating underlayment Uses fi bers from discarded water bottles Includes moisture barrier

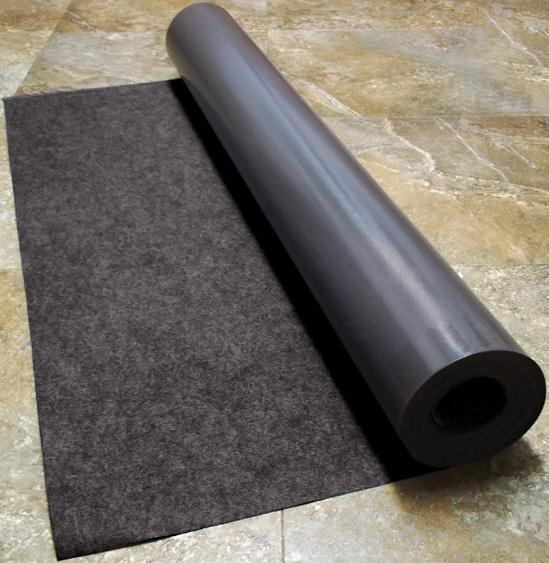

LuxWalk acoustic and insulating underlayment for use under luxury vinyl ooring contains 31% post-consumer materials and uses plastic bers from discarded water bottles diverted from land ll. e product smoothes minor sub- oor imperfections and retards movement of the nished ooring, along with reportedly minimizing impressions and indentations from footfall or stationary furniture. IIC and STC tests validate the product e ectively soothing impact sound and minimizing oor-to-ceiling noise. LuxWalk includes a 2.5-mil lm barrier that acts as a moisture barrier.
MP Global Products, Norfolk, NE Circle 94 mpglobalproducts.com
3-D acoustical panels Zintra Acoustic Textures panels combine visually dynamic 3-D relief with reported increased sound absorption. The panels are available in a broad range of neutral and bright colors and matte fi nishes, and provide an NRC of 0.35 to 0.90. Panels are available in sheet sizes of 2 x 2, 2 x 4, and 9 x 4 ft.
Baresque, Los Angeles Circle 97 baresque.us

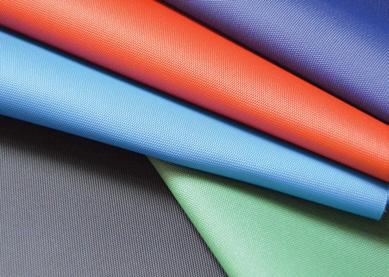

All-weather upholstery Sundance upholstery simulates the look of canvas, but is said to maintain the performance of vinyl. Available in a rainbow of bright colors and neutrals, an MGX topcoat protects the material and cleans with warm, soapy water. Anti-bacterial, anti-microbial, and mildew resistant, applications include outdoor areas and healthcare facilities.
Morbern, High Point, NC Circle 96 morbern.com

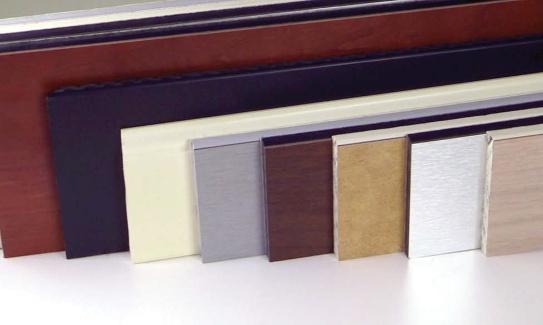

Baseboard products DuroBase products are made from high-impact polymer with a minimum 80% recycled content and laminated with high-pressure laminates. The system includes base molding, chair rail, and corner guards in fi ve colors. Height, thickness, and fi nish are customizable to match any décor. The 100% waterproof, fi berglass-free products do not support mold, mildew, or bacteria growth.
