LEDs Brighten Facility From Front To Back
by IdeaSoil

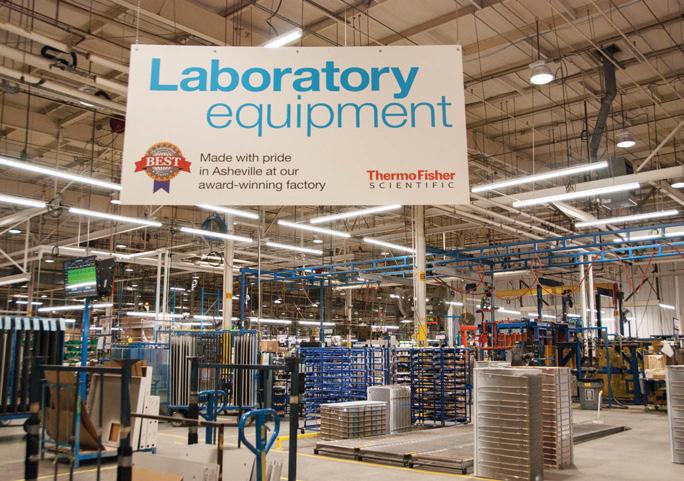

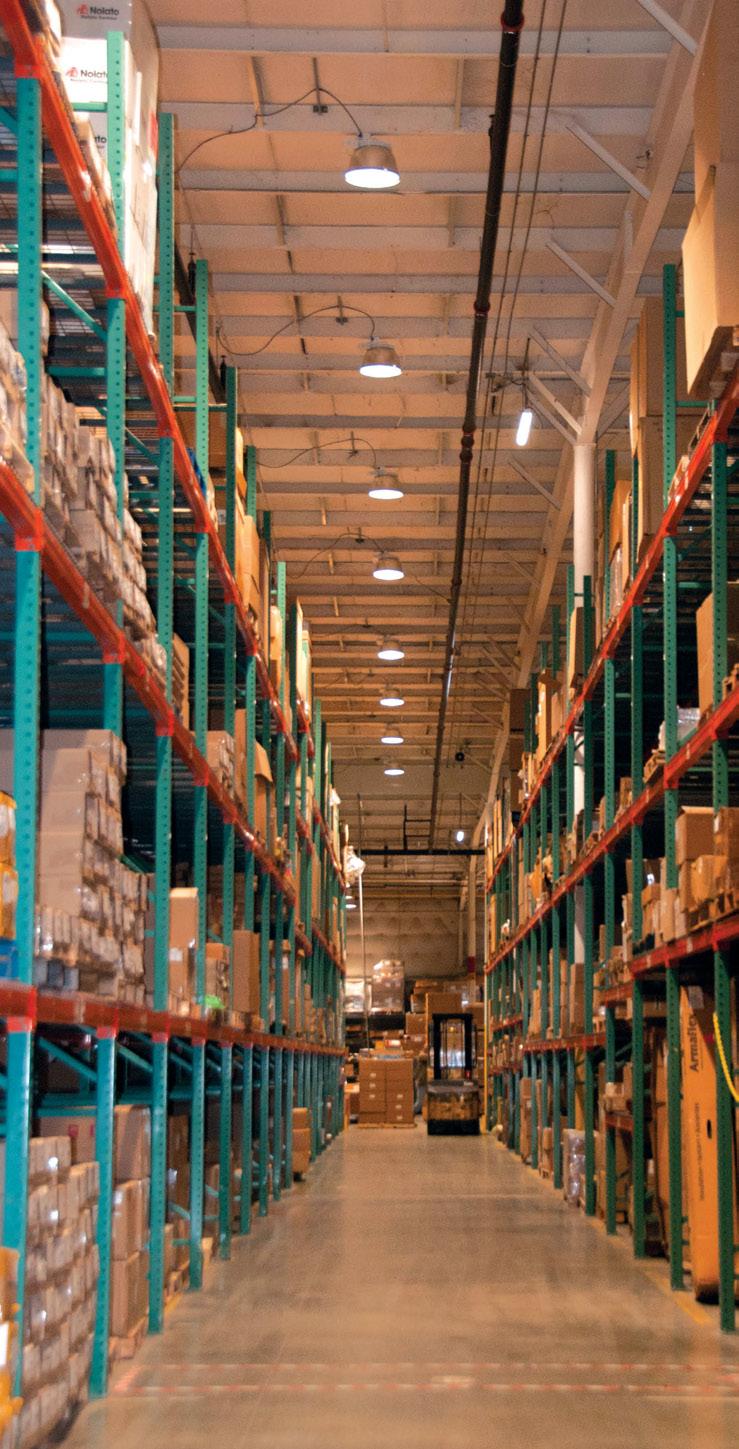

Above. Employees reported that the improved light levels created a more comfortable work environment.
Right. The large-scale project included replacing almost 2,000 fluorescent high-bay lamps, along with wrapped and recessed strips and troffers.
Advertisement
Comprehensive lighting upgrade to LEDs simplifies complex lighting.
Thermo Fisher Scientific, Asheville, NC, began looking at LED lighting for its facilities several years ago and evaluated a number of manufacturers, distributors, and installation companies.
According to Scott Self, director of energy at Thermo Fisher, they couldn’t find a solution that fit their needs and financial requirements. “The first costs were either too high or the deployment costs were too great to make it economically feasible. We started a dialog with Cree Inc., Durham, NC, to discuss the challenges we were facing. We basically said we feel confidant Cree products are rock solid; we just need the specified return on investment (ROI), or better, to move forward with the project. Cree was able to deliver the products we wanted at the ROI we needed. That’s how the project got started.”
The large-scale project included
replacing almost 2,000 fluorescent high-bay lamps, along with wrapped and recessed strips and troffers. Cree CXB series LED high-bay/low-bay fixtures replaced more than 580 fluorescent lamps in the 25-ft.-high production area, and the LS series surface ambient luminaire, in 4- and 8-ft. lengths, replaced more than 600 fluorescent strips to bring deliver light to task areas of the facility.
Outside, facility parking lot and building lights were replaced with XSP series pole-mount and wall-mount luminaires. When the office lighting was replaced with Cree ZR troffer series luminaires, Stephanie Nilsen, director of operations, noted the positive effect the new lighting had in her environment. “It was immediately noticeable in the office space as it rolled out in my area. I felt more awake at work; I felt more in tune and alive, and it felt very energizing.”
Steve Haney, maintenance manager for the Asheville site, received positive feedback on the new lighting as it was installed throughout the plant. Haney heard from employees that the improved light levels created a more comfortable work environment. The better lighting also impacted quality, commented Haney. “Naturally you can see what you’re doing better and spot defects in the workmanship easier with the lights we have now.” He heard the most feedback on the exterior lighting at the facility. “The lights really lit the outside areas and people felt more secure coming into and leaving the facility in the early morning
have areas in the plant for parts inspection and assembly processes and when a light goes out, as trivial as it may seem, it is critical.” Before production could begin again, Haney had to send someone with the necessary equipment to repair the light, costing time and money. In addition to outages throughout the year, Haney managed a scheduled lighting-maintenance process during the facility’s summer shutdown that required four The lighting had a positive impact on quality, allowing defects in workmanship to be spotted easily. people working full-time to replace bulbs and ballasts—at an annual cost of almost $10,000. and evening hours. Even truck drivers have said how With the new LED lighting, backed by a 10-yr. limited much easier it is to back their trailers into the shipping warranty, Haney is looking forward to not having to mandocks with the new lights on the sides of the building.” age lighting issues for quite a while.
Haney is pleased to hear the positive feedback and also The lighting retrofit reduced energy use by 1.1 million pleased that with the new LED lighting, he no longer has kWh or 39%. Payback was three years. to worry about constantly replacing lamps and ballasts in The LED lighting project not only allows Thermo the facility. Before the new lighting, some plant operaFisher Scientific to reduce lighting maintenance and enertions had to be halted to deal with lighting outages. “We gy costs, it also benefits employee engagement at the
Asheville facility. According to Nilsen, “The site here has a grassroots green team program that is run by associates on the floor, and projects like the LED lighting project are completely endorsed by, supported by, and championed by the green team.”
According to Scott Self, the lighting project in Asheville was a glowing success, resulting in big improvements to the site, great feedback, and reduced energy costs. “These results continue to instill our confidence in the project and in the rollout, and certainly, we are positioned to move forward with many more sites.” CA
Want more information? The resources below are linked on our website at commercialarchitecturemagazine.com and our digital magazine at commercialarchitecturemagazine.com/ digital/mar2016.
Circle 7 on the Reader Service Card.
Download a spec sheet for CXB high bay/low bay fi xtures.

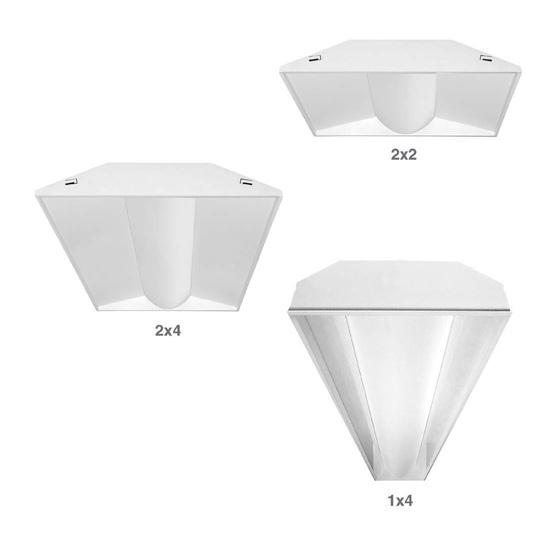

Download a spec sheet for ZR troffer luminaires.
Download a spec sheet for LS series ambient luminaire.
Tectum Panel Art Tectum Panel Art Clouds, at Fraser Clouds, at Fraser Mustard Early Mustard Early Learning Academy, Learning Academy, Toronto, ON Toronto, ON

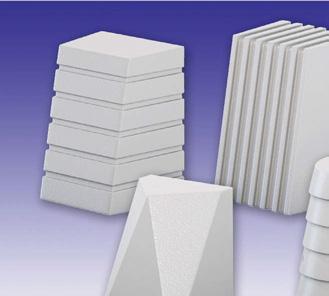

Tectum Panel Art is Tectum Panel Art is available in a wide available in a wide variety of shapes variety of shapes and sizes. and sizes.
Surprise! It’s Tectum.
Acoustics. Style. Toughness. After more than 65-years, it’s no surprise to fi nd Tectum Acoustical Products in schools. The surprise comes from the stunning new shapes, colors and custom design applications. Visit www.tectum.com to see more project photos, request samples or fi nd specifi cations and drawings. BIM models are available.
Pictured above: Interior Wall Panels cut to shape and custom painted for Lincoln Elementary School, Augusta, KS
info@tectum.com • 888-977-9691 • www.tectum.com
EDITORS’ CHOICE
Inground LED light lines
LiniLED PU Inground:
LED linear lighting strips Straight, curved, right-angle confi gurations Suitable for pedestrian and drive-over traffi c

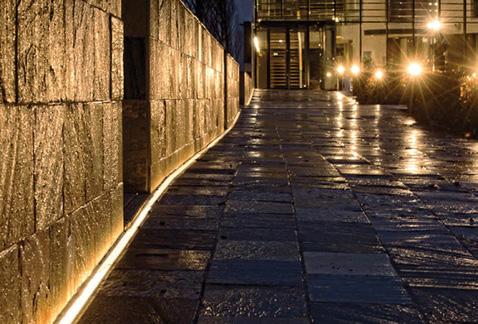

LiniLED PU Inground continuous LED linear lighting strips create white or colored di used light lines in straight, continuous curve, or right-angle designs. Said to be suitable for pedestrian tra c and drive overs in all weather, the strips use Osram +/–50 Kelvin LEDs. Light strips are encapsulated in cast-polyurethane resin and mounted within epoxy-coated stainless-steel light bodies. Standard lengths are 18-, 39-, or 78-in. and united can be joined with IP67 daisy-chain connectors. LED color choices include amber, blue, green, red, and white in 2,700, 3,000, and 4,000 K.
Organic Lighting Systems, Azusa, CA Circle 54 organiclighting.com
Solar-powered bus shelter A bus-stop shelter is 100% solar powered. High-effi ciency solar panels with self-storing battery-backup power and a variety of choices in low-watt LED lamp options keep the shelter off the grid. Self-recharging and self-storing and adaptable to climates, the systems are built to the installation location.
Solar Electric Power Co., SEPCO, Stuart, FL Circle 55 sepconet.com
Linear suspended, sconce luminaires Clara LED luminaire is available in linear-suspended and wallsconce models. The fi xture has a hollow, oval-lensed body in which LEDs shine through and around, providing direct and indirect illumination. The lensed body is available in clear and semi-frosted. Pinstripe-like lines are embedded in the lens. The luminaire is available in 3,000 and 4,000 K. The suspended model is available in sections that can be joined together to form continuous rows.
Architectural Lighting Works, Hayward, CA Circle 56 alwusa.com
Surface-mounted light nodes Light Nodes, a series of small, wall-mounted luminaires for use with LED and other high-effi cacy lamps provide shielded illumination while highlighting architectural features and illuminating pathways and pedestrian areas. Available in eight models, the fi xtures are 4 1/2-in. wide x 7-in. high x 4 1/4-in. deep.
U.S. Architectural Lighting, Palmdale, CA Circle 57 usaltg.com
High-bay LED
CXB high-bay LED luminaire provides 24,000 lumens with a
CRI of 80+, with an effi ciency of 113 lumens/W. The fi xture is a direct replacement for HID and fl uorescent light sources.
Cree Inc., Durham, NC Circle 58 cree.com
Cable for healthcare lighting MC-PCS HCF DuoCable cable for healthcare lighting combines power and control/signal conductors and includes redundant grounding paths to reportedly provide approximately 3 1/2 times better grounding performance than Type AC HCF cable. Applications include use with LED lighting with 0- to 10-V dimming control in patient care areas. The power conductors, insulated green ground, and signal conductor assembly are cabled together and a binder tape with the print legend is wrapped around the assembly. A bare aluminum grounding/bonding conductor is located outside the binder tape. The cable is also available in steel armor or with an overall PVC jacket.
Southwire Co., Carrollton, GA Circle 59 southwire.com
LED troffer retrofit A human-centric LED light troffer retrofit kit is said to create comfortable and natural light. Using a 38-W LED, the panel mimics the natural Kelvin changes of the sun throughout the day in a 2 x 2-ft. troffer. The fixture runs automatically or with presets including sunrise/sunset, reading light, or working light. Applications include hospitals and healthcare facilities.
ABBLighting Inc., Toms River, NJ Circle 62 abblighting.com
OUR INNOVATION. YOUR INSPIRATION.
Downlight trims ProLED downlight retrofit replaceable trim series combines LED lighting and trim options for a range of décor. With Easy Twist Technology, sizes are available for 4-, 5-, or 6-in. downlights in six colors.
Halco Lighting Technologies, Norcross, GA Circle 60 halcolighting.com
LED T8 lamps Plug & Play LED T8 lamps convert existing linear fluorescent troffers into LED tubes. The products replace 2-, 3-, or 4-ft. T8 tubes in existing ceiling- or wall-mounted housings, consuming 9, 11, or 15 W. After removing fluorescent lamps, the units twist into the existing holders and are available in 3,500, 4,000, and 5,000 K.
Litetronics, Harvey, IL Circle 61 litetronics.com
CC-664 Horizontal
CC-663 Vertical
CC-262 Horizontal
PROFILE SERIES CASCADE™ METAL PANEL SYSTEM CC-662 Vertical
CC-663 Horizontal
CENTRIA’s CASCADE Metal Panel System sets a new standard in façade design. Marked by a signature curve with a bold, fl at, slope rib profi le, CASCADE creates shadow relief like never before. Available in seven profi les that integrate with each other and CENTRIA’s Concept Series® panels, CASCADE o ers unparalleled design fl exibility.
See our complete palette of possibilities at CENTRIAperformance.com/cascade To learn more call 1-800-250-7897 REIMAGINE METAL

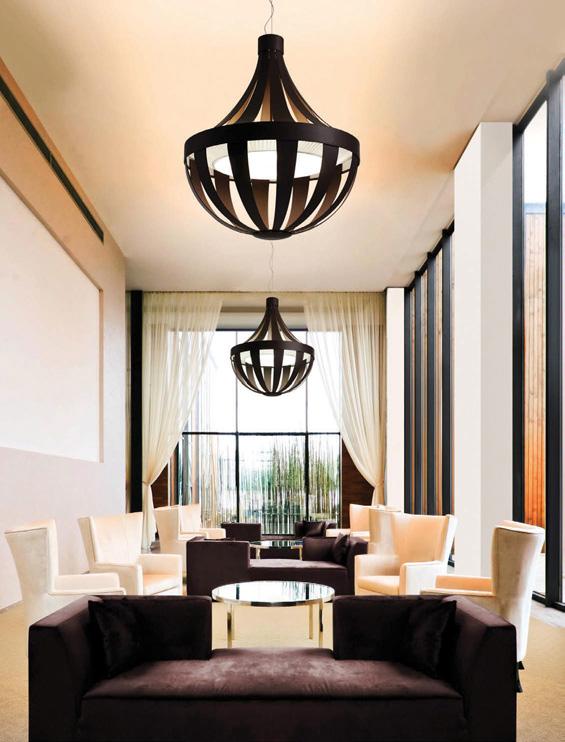

Crown-shaped pendant Anadem crown-shape pendant consists of a series of fire-resistant eco-leather bands with visible stitching. Alternating bands create an airy look while allowing white light to be directed down and around the diffuser’s circumference. Two sizes are available, approximately 35 x 43 in. and 59 x 79 in.
AXO Light USA Inc., Danbury, CT Circle 63 axolightusa.com
LED pendants CPL series LED pendants have a decorative design said to simplify installation with a thin ceiling canopy and a compact driver and heat sink. Shade options provide a variety of light distributions and design looks. Colored glass shades, metal cylinder, and double-glass cylinder shades provide additional designer features.
ConTech Lighting, Northbrook, IL Circle 64 contechlighting.com
Varco Pruden’s Innovative Daylighting Solution PRISMAX SL ™
PrisMAX SL provides more light for longer periods of the day, enhancing a wide variety of indoor activities for customers, employees and visitors in your facility. These durable skylights use prismatic lens technology to deliver optimal daylight performance. PrisMAX SL was developed in conjunction with Sunoptics™ and when used as part of a sensored-controlled lighting package reduces the need for electrical lighting. Designed to work on Varco Pruden’s SSR™ or HWR™ roof systems, PrisMAX SL’s unique “self-curbing” structure uses a patented water-diverter and seam-mounted aluminum framing to create a long term, weathertight seal for years of maintenance-free performance. With Varco Pruden’s PrisMAX SL, you can expect:
Reduced lighting costs Diffused lighting without hot spots Ideal for existing buildings or new construction Environmentally friendly, low maintenance performance Build Smart, Build Green
With Varco Pruden Buildings
Powered by Sunoptics An AcuityBrands Company
Trusted Since 1948
For more information about PrisMAX SL, Visit www.VP.com/ad/CBP.

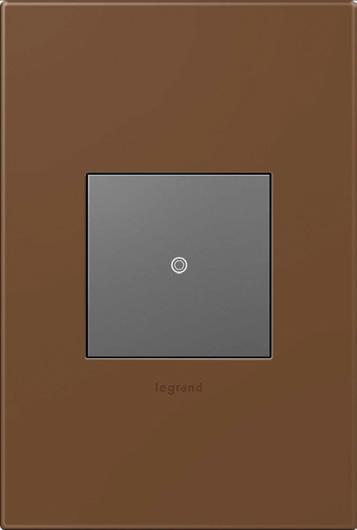

Wall plates The Beyond Beige wall-plate line includes a variety of neutral colors, including Black Ink, Powder White, Greige, Ashen Tan, Cappuccino, and Truffle. The plates coordinate with existing switches and outlets in the adorne collection.
