Curtainwall Encases Auto Showroom

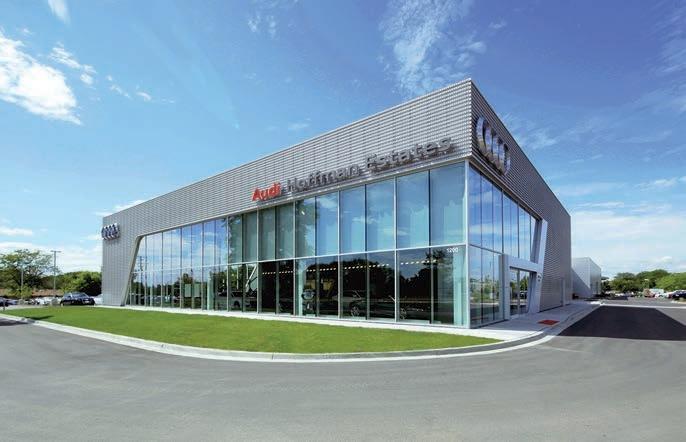

A square, metal-clad terminal prototype design uses a Tubelite curtainwall to set apart a suburban-Chicago Audi dealership. Photo credit: Leopardo Companies

Developed as a modular system, the facility’s structural and spatial concept is fl exible and scalable and features a customer-service center. Photo credit: Leopardo Companies

Aluminum-and-glass front is an integral part of a new modular system for Audi dealerships.

The Audi Hoffman Estates facility, Hoffman Estates, IL, showcases Walker, MI-based Tubelite’s 400-series curtainwall, an exterior that refl ects the effi ciency, performance, luxury, and environmental themes of its vehicles. The $9 million, 47,000-sq.-ft. facility is one of the fi rst in the Midwest to feature a square, metal-clad terminal prototype design by Munich-based Allmann Sattler Wappner Architekten.

In 1990, Audi Hoffman Estates became the first exclusive, stand-alone Audi dealership in the United States. In 2013, it also became one of the first dealerships in the U.S. to use Allmann Sattler Wappner’s design. The Dobbins Group’s Chicago-based architectural team helped the Illinois dealership move the prototype from concept to reality.

The design gives Audi a new identity throughout the world. It also increases dealers’ space to showcase a growing range of cars. Developed as a modular system, the facility’s structural and spatial concept is flexible and scalable.

The Hoffman Estates dealership features a 12-car showroom, service workshop, and customer-service center. “It’s a very unique look,” observed Brian Hall, Audi Hoffman Estates’ general manager.

Well suited to the precise design, scale, and metallic aesthetic of the Audi facility, Tubelite’s 400-series curtainwall is engineered for low- and mid-rise applications. Leopardo Companies Inc., Hoffman Estates, served as the project’s general contractor. Glazing contractor Northern Glass Inc., Elk Grove Village, IL, specified and installed the curtainwall system on time and within budget.

The curtainwall provides 2 1/2-in. sightlines and the strength of 8-in.-deep backmembers with an overall 10-in. system depth. Every other vertical was butt-glazed. Low-e insulating glass reduces solar heat gain in the summer and heat loss in winter, important in the Chicago climate. An exterior screw-applied pressure bar secures the glass.

The curtainwall’s durable framework provides exceptional structural performance, reducing the need for steel reinforcement. “Tubelite helped engineer the curtainwall, letting us know what size steel reinforcement was needed,” noted Eric Martinson, project manager with Northern Glass. “They also helped with some very difficult bends, located in the opposite top and bottom corners.”

The aluminum used to produce the curtainwall is extruded by Tubelite using EcoLuminum, a high-recycled-content aluminum billet with eco-friendly finishes. Enhancing the project’s environmental attributes, longevity, and metallic appearance, the aluminum framing was finished by Linetec, Wausau, WI, using clear anodizing that contains no volatile organic compounds.

Because anodizing is an integral part of the substrate, it delivers excellent wear and abrasion resistance with minimal maintenance, and meets or exceeds all AAMA 611 specifications. The eco-friendly etch process creates an aesthetically appealing frosty matte appearance that helps hide small imperfections, such as die lines, flow lines, minor corrosion, and scratches that may occur on the surface. “It’s got a lot of metal on the exterior for a very specific look,” added Hall. “Everyone seems to love it. … and as for customers, they are all very impressed.” CBP

DATA CACHE

Want more information? The resources below are linked in our digital magazine at cbpmagazine.com/digital/oct2014.

Circle 7 on the Reader Service Card.

Download information on Tubelite’s curtainwall.

Download specifi cations for the Series 400.

EDITORS’ CHOICE

Channel glass coating Pilkington Profi lit with TGP ProColor high-performance channel glass coating does not require tempering and is bonded to the glass with high adhesion strength to resist chipping and facing. Applications include vision-obscuring facades, walls, or partitions. ProColor is available in a wide variety of opaque and metallic colors with varying translucency and can be applied to standard and low-iron Profi lit options in all available textures.

Technical Glass Products, Snoqualmie, WA Circle 61

Hurricane-zone windows

E-series:

• Hurricane-zone windows

• Integrate clear-vision with translucent panels • Meet ADA and UFAS criteria

E-series windows are certifi ed to meet stringent building-code standards in hurricane zones.  e windows allow the integration of clear-vision glass with translucent panels. Clear glazing is 5-ft. wide and as much as 3-ft. high, off ering a variety of design options. All are certifi ed to TAS 201, 202, and 203, as well as ASTM E1886 and E1996, in fi xed and project-out sash models. When properly installed, the windows meet ADA and UFAS criteria.

Kalwall, Manchester, NH Circle 60

Corner window VistaLuxe collection includes a 90-deg. corner direct-set window. The collection uses warm, wood interiors including sustainable harvested species.

Kolbe Windows & Doors, Wausau, WI Circle 62

Motorized drapery system A motorized drapery rod uses battery-operated motors to reduce noise. Housing inside the rod provides easy battery replacement without removing drapery panels. A Touch Wand activation feature is a manual override, allowing users to tap a wand to open or close the draperies. Rods are available in six fi nishes with optional fi nials.

QMotion Advanced Shading Systems, Pensacola, FL Circle 63

Structural glazing sealant 121 structural glazing sealant is a neutral-cure RTV silicone sealant with a one-to-one mix ratio. Said to provide easy mixing, simplifi ed dispensing, and a 24-hr. cure, the sealant reportedly offers excellent adhesion and structural strength on many substrates without using a primer.

Dow Corning Corp., Midland, MI Circle 64

Flood barrier shield

M1500 series double-hung, tilt-in window has a 3 1/4-in. frame with a CW30 AAMA rating. The unit has dual accessory channels and a pour and debridge polyurethane thermal break.

Wojan Window & Door, Charlevoix, MI Circle 66

FBS 20770 fl ood barrier shield protects doors from heavy rain or fl oodwaters without pre-mounting channel brackets to hold the device in place. Used in any standard-sized door opening, a frame with a stop is required and door saddles are recommended.

Zero International, Bronx, NY

“SKYLIGHTOPIA” IS JUST A FEW CLICKS AWAY!

Select LightBasic™ Quick Ship™ translucent panel skylights are now available for easy online ordering @ www.shopmajorskylights.com

LightBasic™ Quick Ship™ single slope skylights are self-flashing, ship assembled and meet OSHA fall protection requirements. Don’t see the right size? Contact us for more info on custom skylight options.

Use code SKYLIGHTOPIA for 5% Off Your Order!

Buy Select LightBasic™ Skylights Online WWW.SHOPMAJORSKYLIGHTS.COM

7120 STEWART AVE, WAUSAU, WI 54401 / 888-759-2678 Double-hung, tilt-in window

Circle 65

Bright-colored glass

Jelly Bean collection of architectural glasses features 14 bright colors for interiors and exteriors. The fi re-polished, safety-laminated glasses meet building safety codes, are stable, fade resistant, and said to be easy to maintain. Colored interlayers reduce solar-energy transmittance and screen out as much as 99% of UV rays. Applications include partitions, railings, canopies, ceilings, doors, and curtainwalls.

Bendheim, New York Circle 67

DuPont Wilmington, DE 800.44.tyvek weatherization.tyvek.com/NFPA285

Solar-control glass Solarban z75 glass is a solar-control, low-e product that has a neutral, cool-gray tint. In a standard 1-in. IGU, the material has a VLT of 48% and a SHGC of 0.24.The glass has an exterior reflectance of 9%.

PPG Industries, Pittsburgh Circle 68

Sealant Quad Max window, door, and siding sealant is part of the company’s Tougher Than the Elements line. The product provides flexibility in stretch and joint movement, strong adhesion without primer, and has enhanced UV resistance. It can be color matched to more than 4,600 colors.

OSI, Westlake, OH Circle 69

Virtual skylight Revelation SkyCeiling for large indoor spaces uses image panels with a 400% larger surface area than the company’s Luminous version, supporting image panels as large as 4 ft. x 4 ft. Applications include high ceilings in commercial, corporate, and public spaces. The independent, modular system works with or without a ceiling grid. Self-supporting gridwork resembles a real skylight.

Sky Factory, Fairfield, IA Circle 70

Non-locking actuators Non-locking versions of the company’s AC-30 and AC-40 actuators for heavy-duty applications are available. AC-30 uses push-button actuation; the AC-40 has a large, integrated handle and push button. Both are available in locking versions.

Southco Inc., Concordville, PA Circle 71

Glass-selection app ViraconGlass mobile iPad app is said to improve the glass-selection process. Users select from 25 coatings on 15 substrates. Models can then be viewed under different lighting conditions and from interior and exterior perspectives.

Viracon, Owatonna, MN Circle 72
